Overview

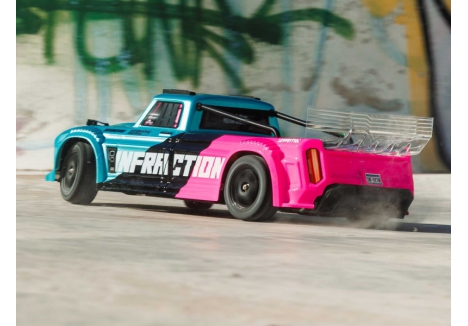

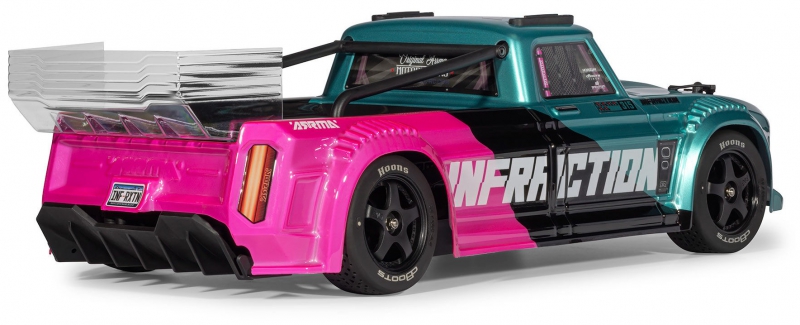

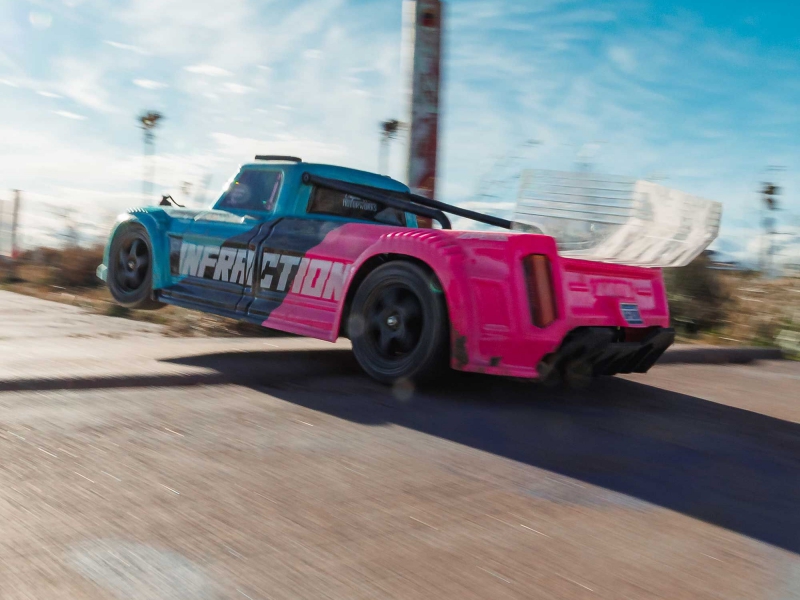

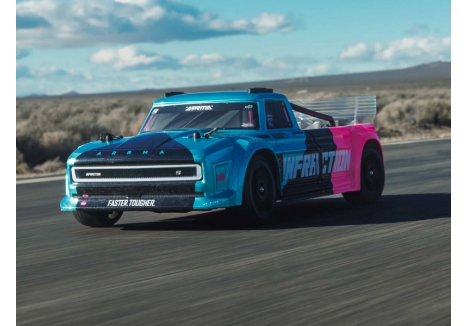

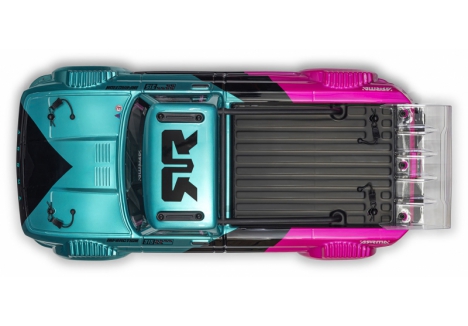

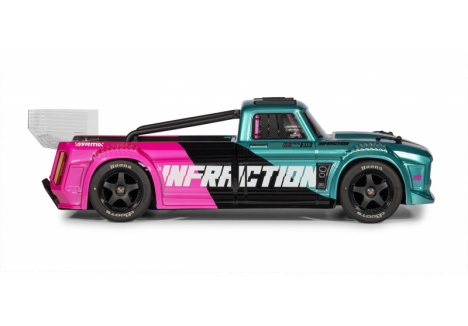

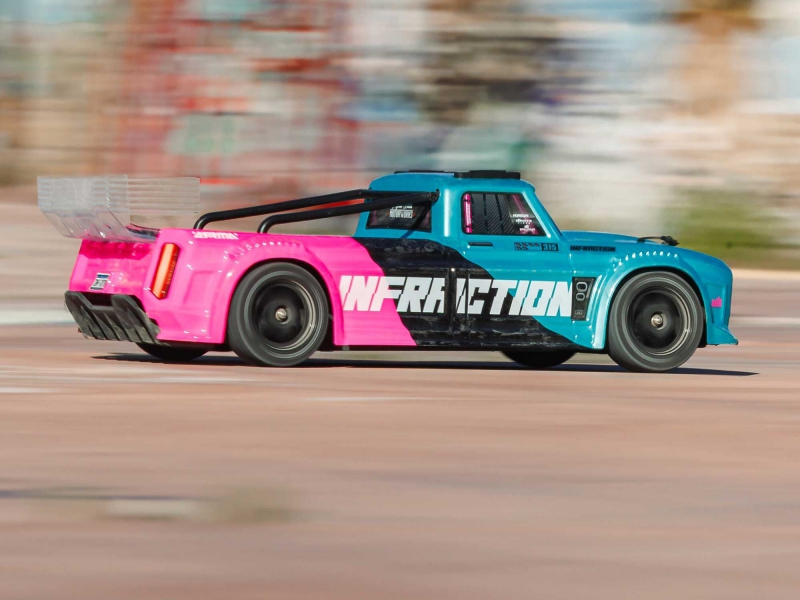

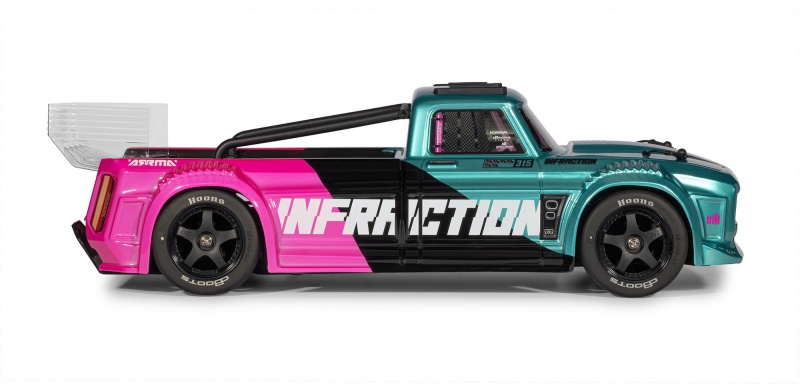

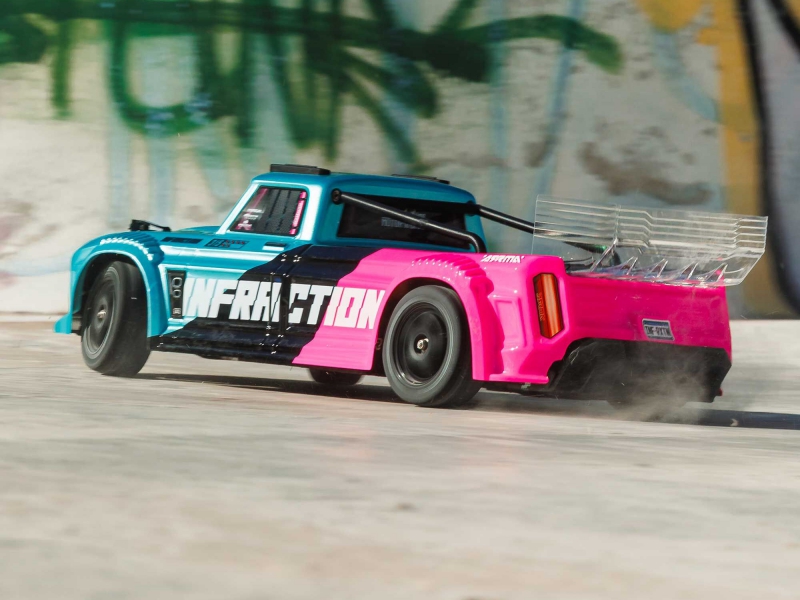

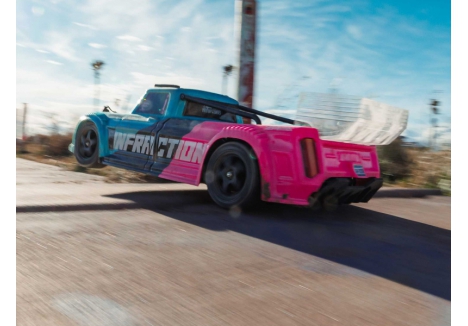

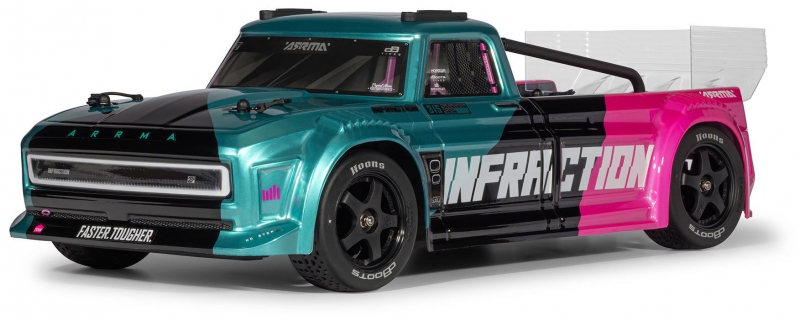

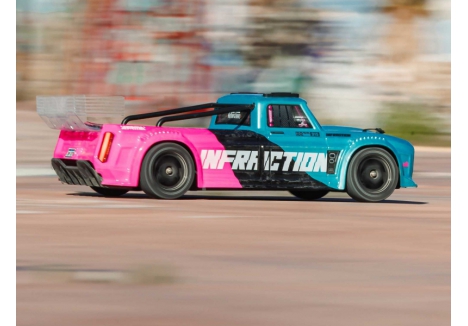

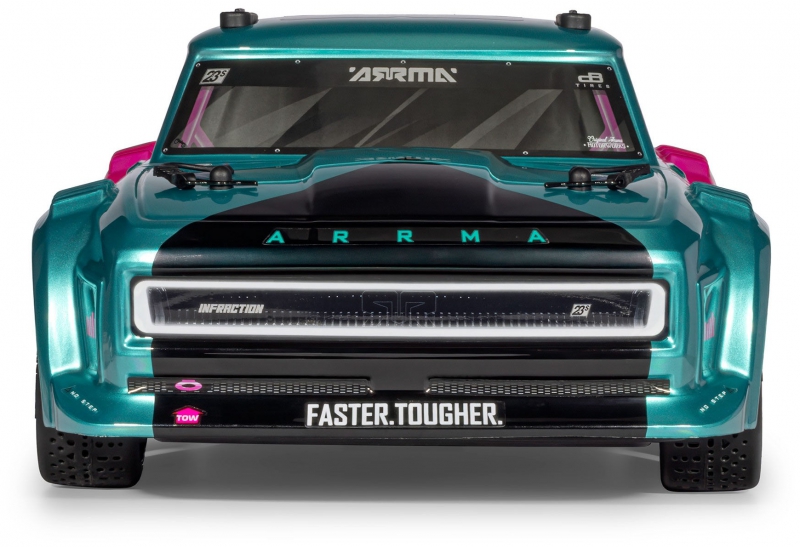

The ARRMA 1/8 INFRACTION 223S DSC 4X4 RTR Street Bash in striking Teal/Pink is the meanest 1/8 scale street machine on the market, delivering a full generational upgrade that makes 65+ MPH feel more accessible, more controllable, and more durable than ever before. This is the sweet spot in the ARRMA lineup: too fast to ignore, too smart to intimidate. Whether you're graduating from 1/10 scale or ready to roast tyres without jumping straight into 6S territory, the 223S is built precisely for you. This ready to run RC car UK enthusiasts have been waiting for combines street-focused engineering with intelligent control systems that grow with your skills.

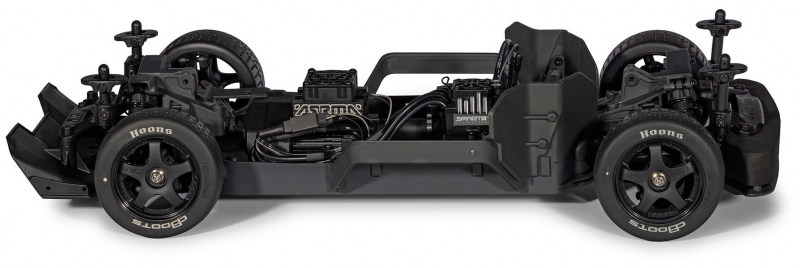

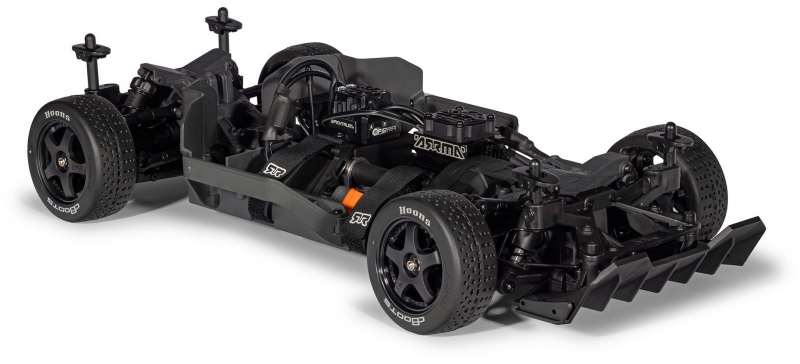

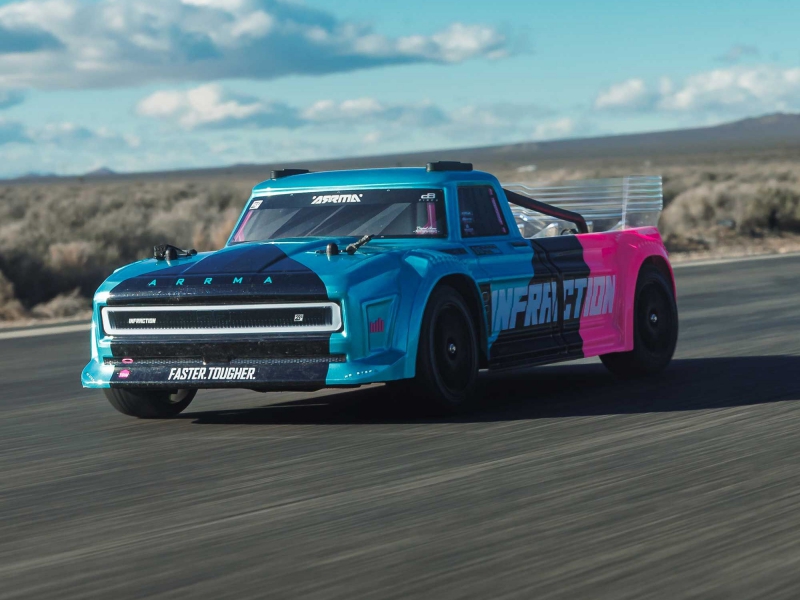

Parking lots, driveways, cul-de-sacs, practically every paved stretch becomes your personal test track. Lay into the throttle, break the rear loose, and start the smoke on your terms. Under the aggressive Infraction body sits a completely re-engineered drivetrain. Metal-geared 37T 1.35 MOD differentials, steel input gears, and dual rubber-sealed bearings throughout mean this platform is built to absorb punishment run after run. The transmission overload coupling handles shock loads and protects your gears without requiring any slipper clutch tuning. All you need to do is bash and let the system take care of itself, making this brushless RC street truck ideal for both beginners learning the ropes and experienced drivers pushing the limits.
Built on the new 223S BLX architecture, this version introduces Spektrum Dynamic Stability Control (DSC), a game-changing feature that automatically applies steering corrections so you can drift hard and keep it pointed right. Whether you're a first-time street basher learning to manage the roost or an experienced driver dialling in your slide angles, DSC keeps your tyres screaming and your run intact. When you're ready to go full send on your own terms, simply turn it off and trust your reflexes. This is a fully assembled, ready to run RC vehicle that comes with everything you need except batteries and a charger.
Key Features

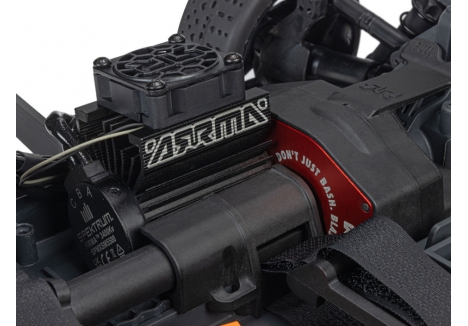

- 65+ MPH Top Speed Capability — Powered by the Spektrum FIRMA Brushless 3400KV motor paired with the 100A V2 Smart ESC, this 1/8 scale truck achieves stunning velocities that rival much larger RC vehicles, with the optional 28T speed pinion included enabling you to reach these speeds with 3S LiPo power for thrilling street domination.
- Spektrum Dynamic Stability Control (DSC) with Four Selectable Modes — An intelligent system that automatically applies steering correction for easy, controllable sideways action, with modes including High for maximum stability and beginners, Medium for lower grip surfaces, Low for high grip surfaces, and Off for maximum fun when you're skilled enough to handle raw control, making this the perfect learning and progression platform.

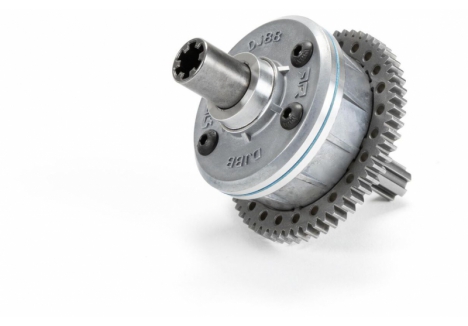

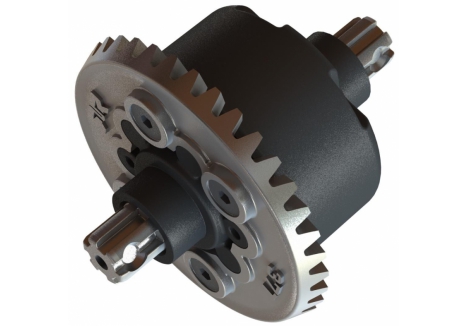

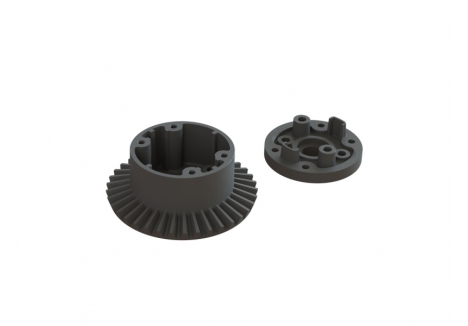

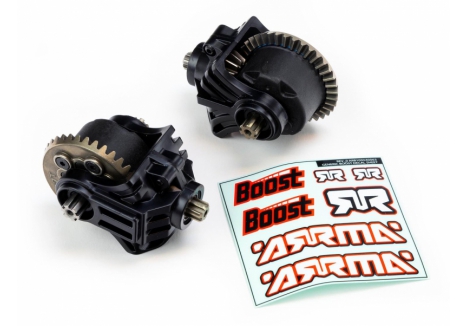

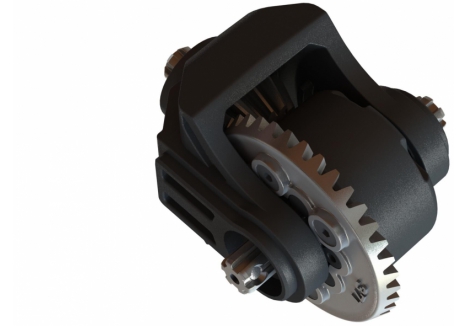

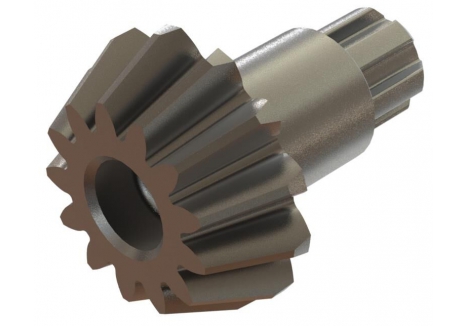

- Metal-Geared Drivetrain with 37T 1.35 MOD Differentials — Both front and rear differentials feature proven 4S-level toughness with metal gears, all-metal diff pinion gears derived from the battle-tested 4S lineup, and steel input gears that deliver serious strength where it counts, ensuring durability for harder launches and longer bash sessions.
- Transmission Overload Coupling — This intelligent mechanical system handles shock loads and protects the drivetrain from sudden impacts, cuts heat generation, reduces blown differentials, and extends gear life for longer, harder run sessions, all without requiring any slipper clutch tuning from you.

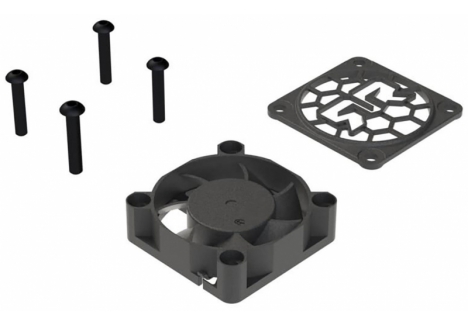

- Waterproof Spektrum Electronics — The complete Spektrum electronics package including the SLR370 DSC SLT Protocol Receiver, FIRMA 100A V2 Smart ESC with integrated fan, and S662 servo are all waterproof and dustproof, keeping the fun rolling through puddles and mud while providing clean, responsive control and easy serviceability.

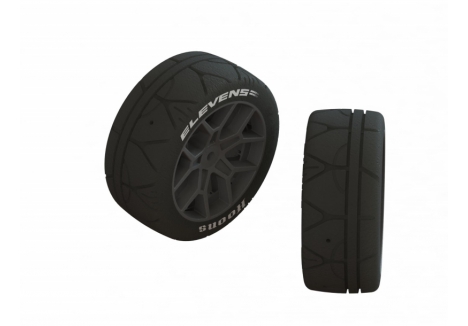

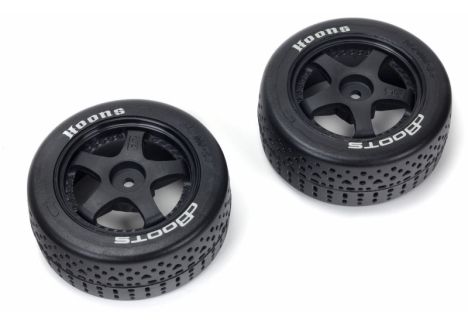

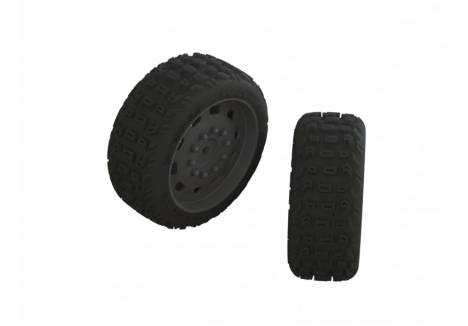

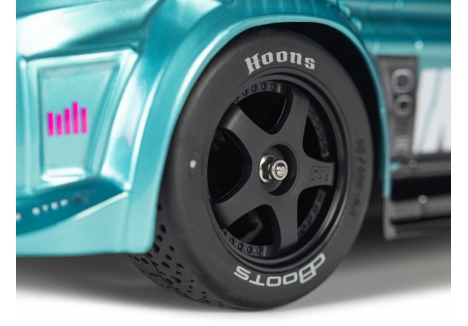

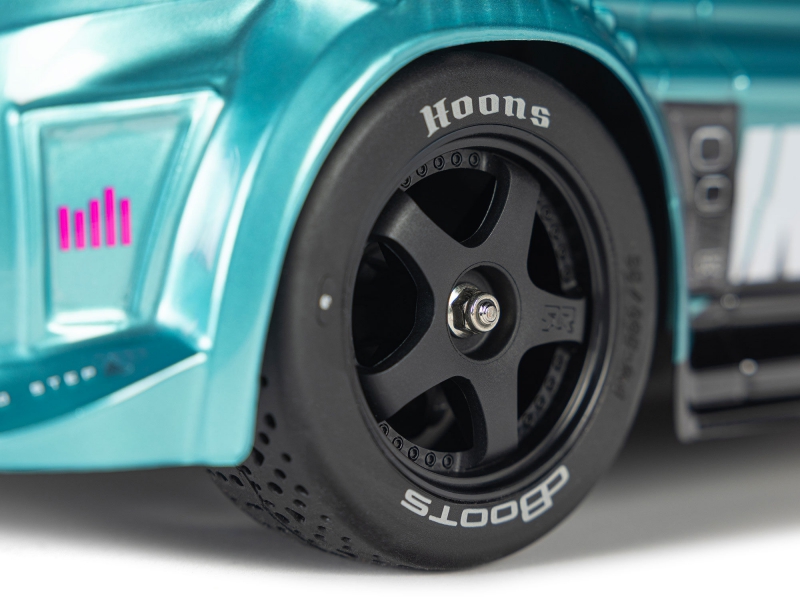

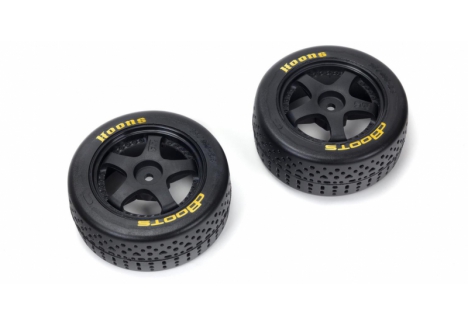

- dBoots HOONS All-Road Belted Tyres — Fitted as standard, these high-performance tyres are durable enough to handle high-speed passes, hard launches, and full-send corner exits across tarmac, gravel, dirt, and mixed terrain, delivering the optimal all-road grip you need with long-lasting durability and more confidence regardless of surface.

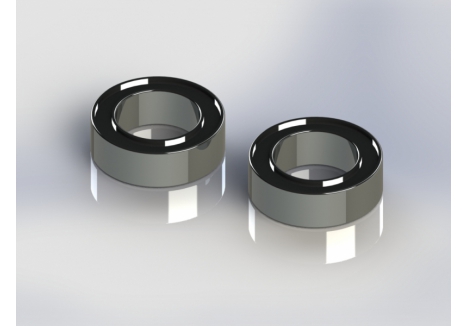

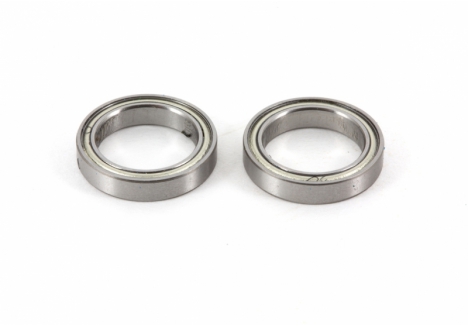

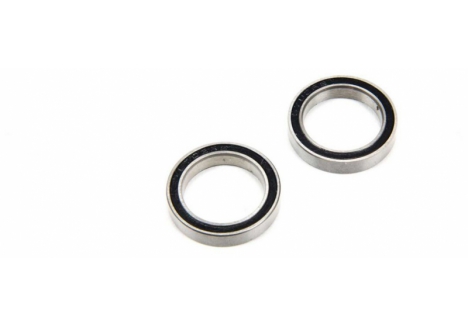

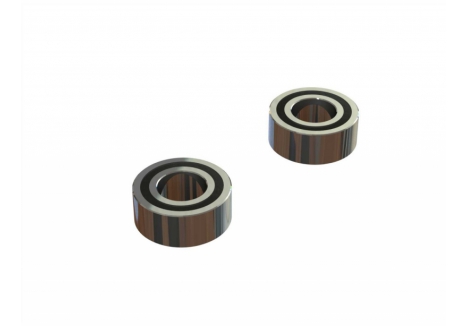

- Dual Rubber-Sealed Bearings Throughout — Every bearing is sealed to keep dirt and moisture out whilst maintaining performance, delivering smooth and efficient power transfer every time you pull the trigger and ensuring reliability through extended bash sessions.

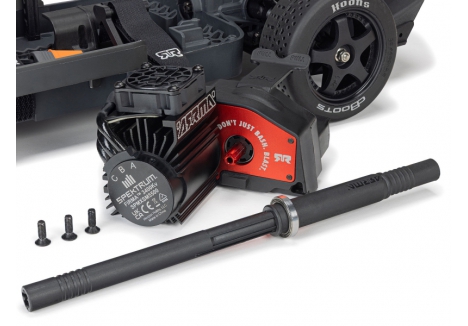

- Modular Design for Easy Maintenance — Designed with bashers in mind, the intelligent layout provides easy access to differentials, drivetrain components, and electronics through smart grommeted access windows, meaning less time in the pits and more time on the street doing what you love.

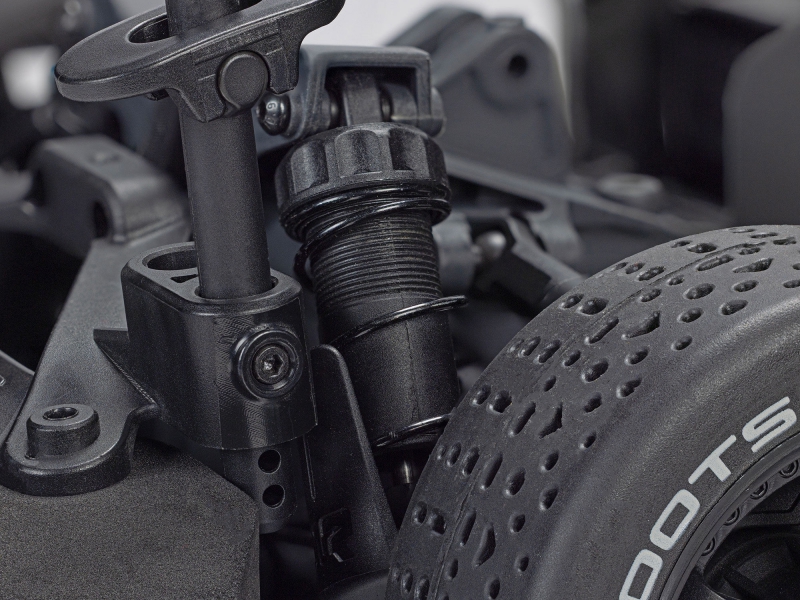

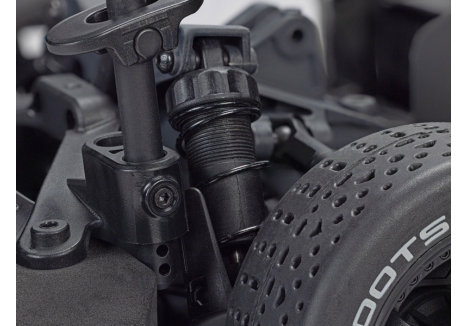

- Oil-Filled Shock Absorbers — Packed with 2000 cSt silicone oil, the composite shock absorbers efficiently absorb bumps, cracks, and all-road chaos to keep your ride smooth, stable, and fully in control at high speed across any terrain.

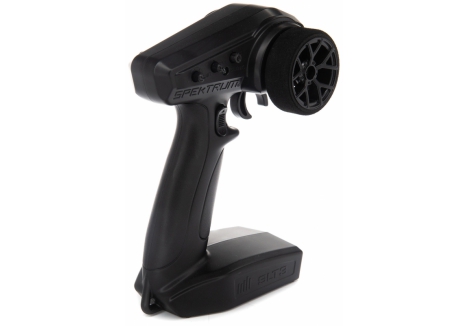

- Comprehensive Control System — The included Spektrum SLT3 transmitter offers 50 and 75 percent throttle limiting for confidence-building speed management, easily matching speed to your skills, with an ergonomic handle and foam wheel grip for maximum comfort and adjustable steering rate for easy driving progression.

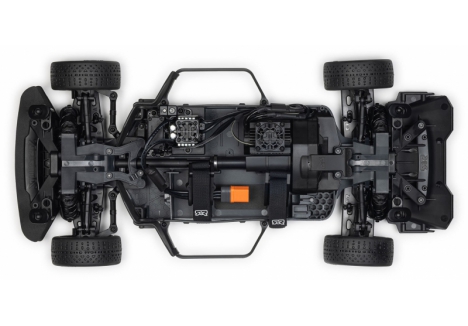

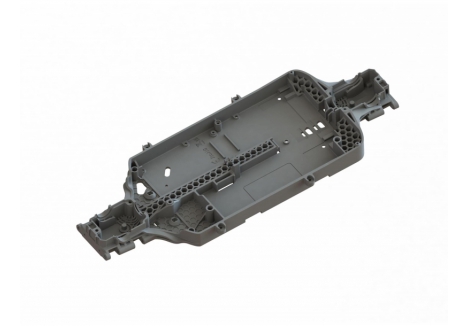

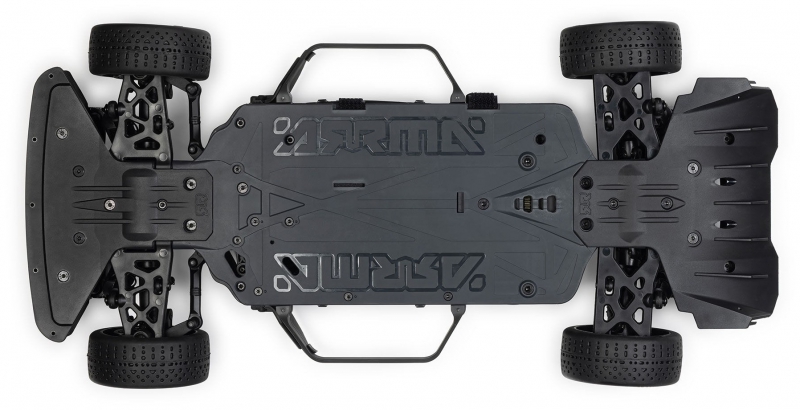

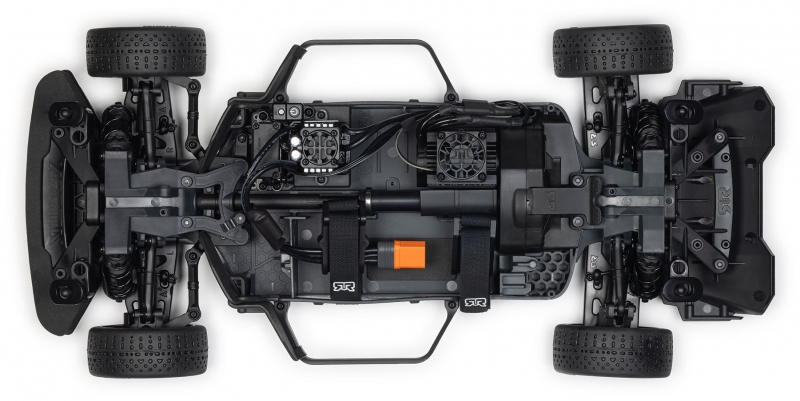

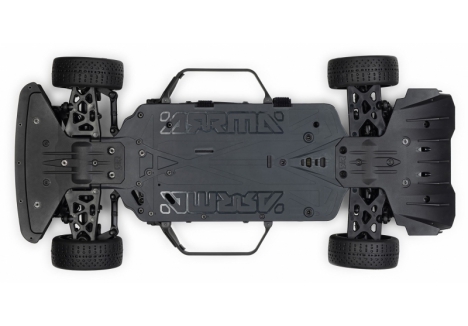

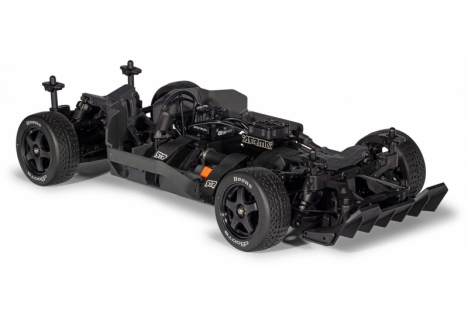

- Heavy-Duty Composite Construction — The precision moulded rugged composite chassis is engineered for all-road toughness, whilst tough composite roof skids protect the iconic Infraction bodyshell from impact damage during aggressive driving and curb checks.

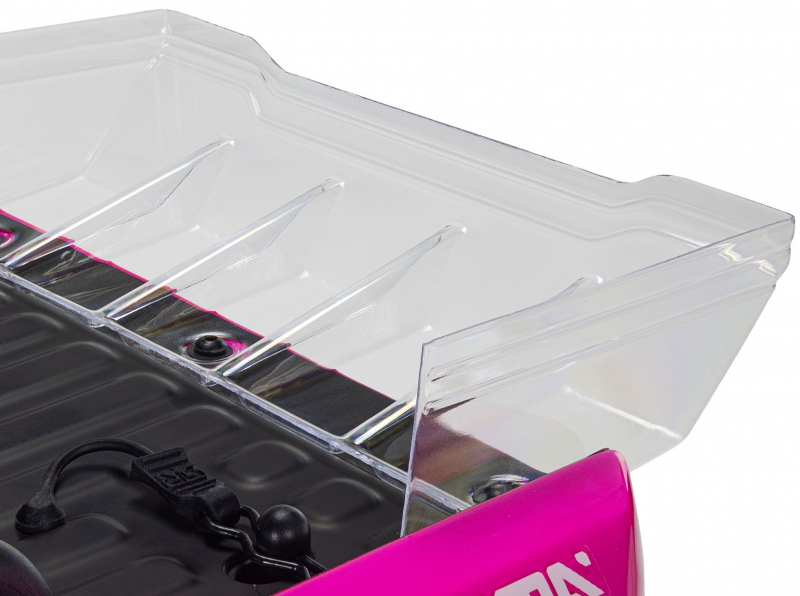

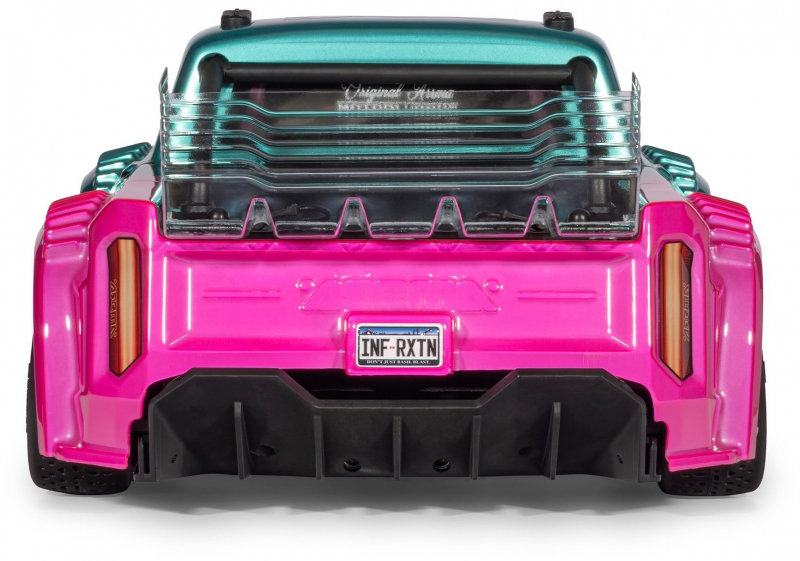

- Detailed Rear Diffuser and Stone Guard — The aggressive rear diffuser styling provides stability at speed with street-focused aesthetics, whilst the integrated stone guard shields the centre driveshaft from debris so you can stay flat-out without hesitation.

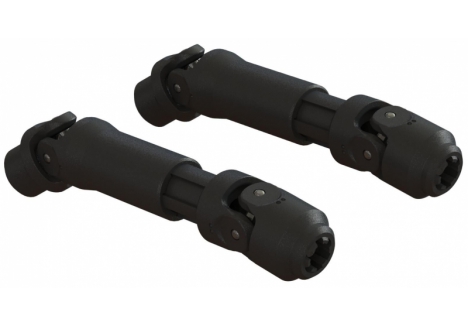

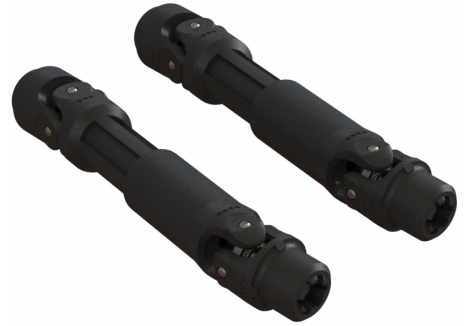

- Heavy-Duty Driveshafts — The UJ slider composite driveshafts are engineered for efficient power transfer from drivetrain to pavement, offering strength and smoothness ready for high-grip launches on tarmac.

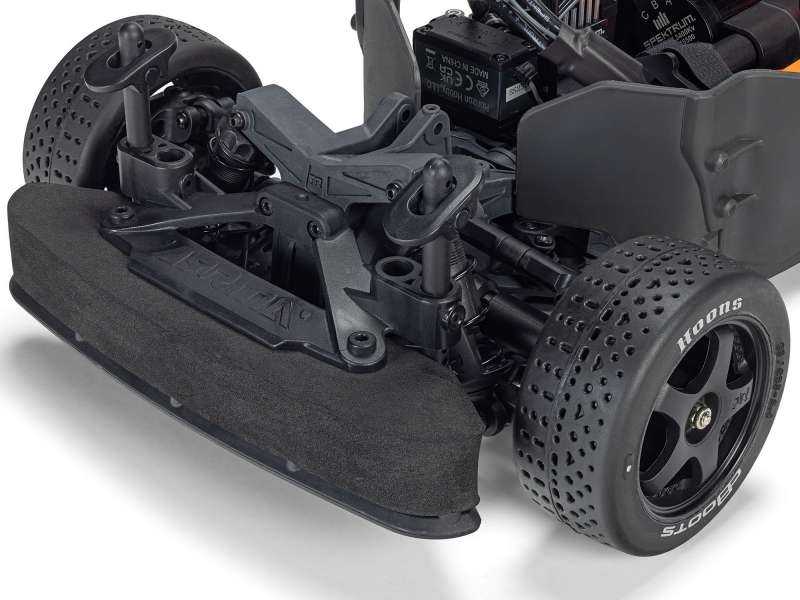

- Durable Foam Bumper Design — Front and rear bumpers are carefully engineered to absorb impacts and protect the body and chassis from curb checks and all-road chaos during intensive bash sessions.

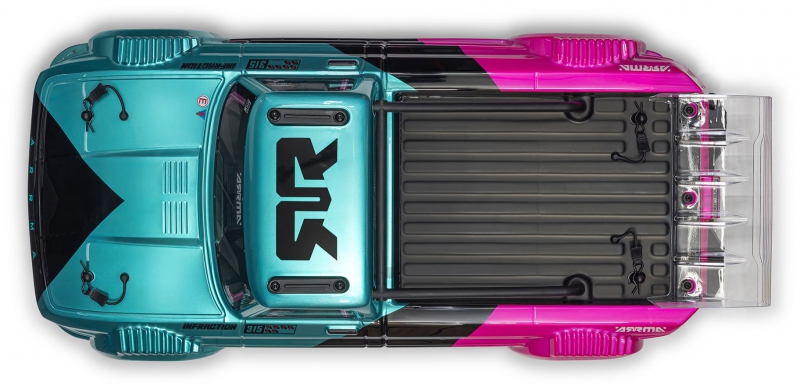

- Three Head-Turning Colour Options — Available in striking Blue/Red, bold Black/Red, and this exclusive Teal/Pink combination, allowing you to shred tyres and own the asphalt in your personal style.
- 3S LiPo Ready with 2S Compatibility — The intelligent FIRMA 100A V2 Smart ESC is 100A continuous rated and compatible with both 2S and 3S LiPo batteries, providing power and performance scaling options to match your progression and preferred driving style.

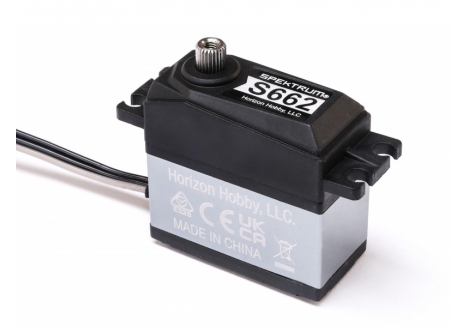

- Spektrum S662 Metal-Geared Servo — Delivering 12KG / 167 oz-in torque at 6V with impressive 0.14 second speed at 60 degrees, this servo features metal gears for durability, an alloy case centre for improved heat dissipation, and steel gears with 25T output spline for reliable steering control.
- Ready-to-Run Out of the Box — This is a fully assembled, ready to run RC truck that requires no assembly beyond charging your LiPo battery and charger (sold separately), making it perfect for new and experienced bashers alike who want to get straight to the action.
Technical Performance
The ARRMA 1/8 INFRACTION 223S DSC 4X4 RTR represents a significant engineering achievement in the street bash category. Measuring 562mm in length with a 335mm wheelbase and standing 161mm tall, the proportions are perfectly balanced for high-speed street performance. The 4WD drivetrain with 50/50 torque split across all four wheels ensures responsive handling and traction management. At the heart sits the Spektrum FIRMA Brushless 3400KV motor in 3660 size, paired with the intelligent 100A V2 Smart ESC featuring waterproof and dustproof construction with an integrated fan for heat management during extended runs. The motor produces exceptional power delivery compatible with both 2S (7.4V) and 3S (11.1V) LiPo batteries in hardcase configuration, with maximum battery dimensions of 147 x 51 x 48mm. The final gear ratio of 7.5, combined with the fitted 50-tooth spur and 19-tooth pinion (with optional 28T speed pinion included), delivers the perfect balance between acceleration and top speed. The transmission features a 37T 1.35 MOD front and rear differential with 2.85 internal gear ratio, reinforced with metal gearing and steel input pinions for durability. The sealed oil-filled shocks feature 1.65 N/mm front and 1.85 N/mm rear spring rates filled with 2000 cSt silicone oil, whilst the differentials use 10,000 cSt silicone oil front and rear. The 4WD system incorporates overload coupling protection, dual rubber-sealed bearings throughout, and captured hingepins with turnbuckle adjustment for fine-tuning. Suspension geometry is optimised with a low 15mm ride height and independent shock design. The dBoots HOONS all-road tyres feature 85mm diameter, mounting on 14mm hex wheels with 61/68mm bead diameters. The IC5 connector battery interface ensures solid power delivery, whilst the Spektrum SLR370 DSC SLT Protocol receiver operates on the 2.4GHz frequency with three channels for smooth, interference-free control. The fully trimmed body with body pins and pin retainers is ready straight from the factory, weighing just 2.91kg (6 lbs 7 oz) without battery, making it manoeuvrable yet substantial enough for stability at high speeds.
What's in the Box
- ARRMA INFRACTION 223S BLX DSC 4X4 RTR fully assembled truck
- Spektrum S662 Metal-geared Waterproof Digital Servo
- Spektrum FIRMA Brushless 3400KV Motor
- Spektrum SLR370 DSC SLT Protocol Receiver

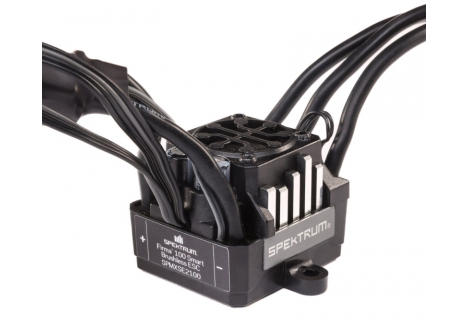

- Spektrum FIRMA 100A V2 Smart ESC with waterproof design
- Spektrum SLT3 2.4GHz 3-Channel Transmitter

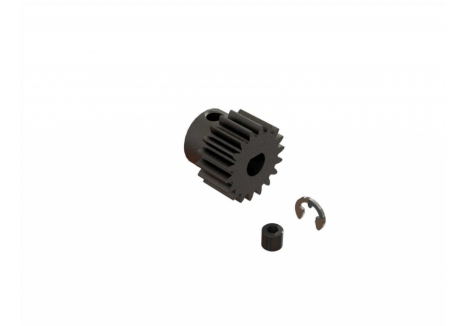

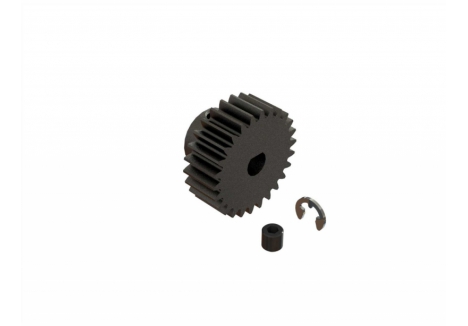

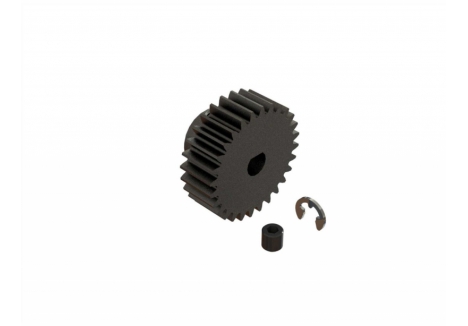

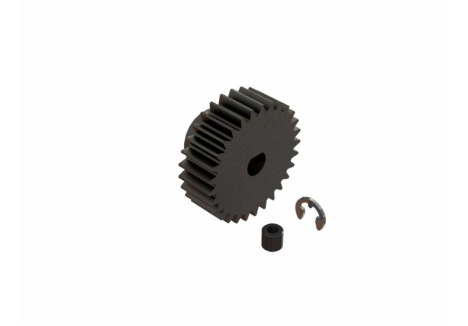

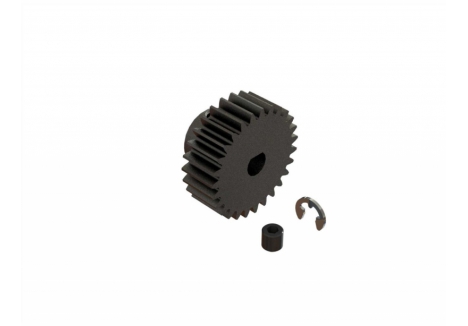

- 28T Speed Pinion for optional higher speed configuration
- Four AA Transmitter Batteries
- Comprehensive Instruction Manual

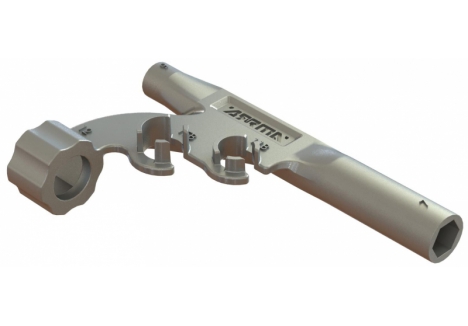

- Multi-tool and Hex Wrenches (2.0mm and 2.5mm)
What You Need to Complete

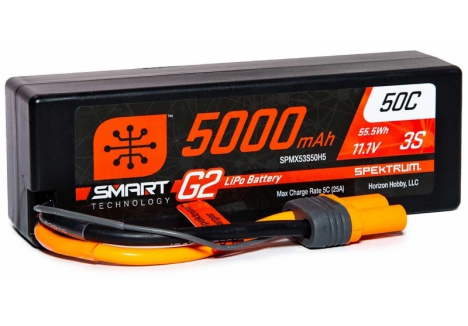

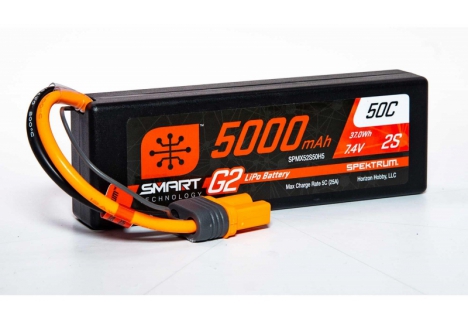

- LiPo Battery: Either one 2S LiPo (7.4V, 50C minimum 5000mAh hardcase configuration) or one 3S LiPo (11.1V, 50C minimum 5000mAh hardcase configuration) — 3S LiPo recommended for maximum 65+ MPH performance

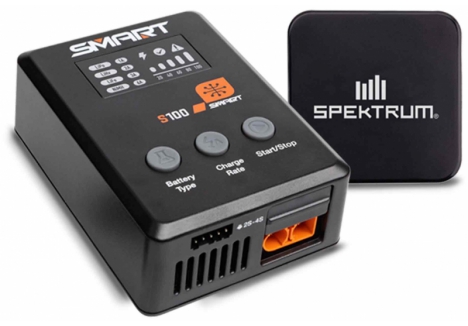

- Battery Charger: Spektrum Smart Charger recommended (such as the S100 100W USB-C or S155 55W AC models)
- LiPo Safety Charging Bag: Essential for safe battery charging and storage
Frequently Asked Questions
- What does Spektrum DSC do and why is it beneficial for RC street bashing? — Spektrum Dynamic Stability Control is an intelligent system that automatically applies steering corrections to help you control sideways action and drifts. It offers four selectable modes: High mode provides maximum stability ideal for beginners, Medium mode works best on lower grip surfaces, Low mode suits high grip asphalt, and Off mode gives you complete control for experienced drivers. This means you can progress from learning to manage high-speed slides to executing advanced driving techniques as your skills develop, making this an ideal long-term investment for progression.
- Is the ARRMA 1/8 INFRACTION 223S DSC suitable for beginners? — Yes, absolutely. While this is a high-performance 1/8 scale brushless RC vehicle capable of 65+ MPH, the Spektrum DSC system with its four intelligent modes makes it accessible to beginners. Start in High mode for maximum stability whilst learning throttle and steering control, use the transmitter's 50 and 75 percent throttle limiters to match the speed to your skills, and progress through the modes as your confidence grows. This makes it one of the best ready to run RC trucks for both new and experienced bashers.
- What battery does the INFRACTION 223S DSC need and how much does it cost? — The truck is compatible with 2S LiPo (7.4V) or 3S LiPo (11.1V) hardcase batteries only, with 5000mAh capacity and 50C discharge rating recommended for optimal performance. Batteries must fit within 147 x 51 x 48mm dimensions. A 2S battery provides good performance for learning, whilst 3S unlocks the full 65+ MPH capability. Batteries are sold separately and typically cost between £50-£90 depending on specification. The included IC5 connectors ensure compatibility with Spektrum Smart batteries featuring integrated telemetry.
- How fast does this RC truck go and what factors affect top speed? — The INFRACTION 223S DSC achieves 65+ MPH with the included 19-tooth pinion on 3S LiPo power. The optional 28-tooth speed pinion is included to allow you to adjust gearing for different surfaces and preferences, with larger pinions reducing top speed but improving acceleration and torque. Actual speed is also affected by battery voltage (3S is faster than 2S), battery capacity and condition, driving surface grip level, and tyre wear. Street surfaces with high grip deliver better acceleration but slightly lower top speeds compared to low-grip surfaces.
- What is the difference between the 223S and other ARRMA models in the lineup? — The INFRACTION 223S represents ARRMA's sweet spot for street bashing — it sits between smaller 1/10 scale models and more extreme 4S 1/8 monsters. It's more powerful than entry-level brushed models, features the intelligent DSC stability control system, uses 2S/3S power (not requiring expensive 4S setups), and focuses on all-road capability rather than pure speed. It's the perfect choice for progressing from 1/10 scale or those wanting serious thrills without the maintenance and expense of larger 6S or 8S trucks.
- Is this waterproof and can I run it in wet conditions? — The Spektrum electronics are waterproof and dustproof, including the SLR370 receiver, FIRMA 100A ESC, and S662 servo. This means you can run through puddles and mud without worry about water damage. However, it's not submersible — avoid intentional water crossings or submerging components. After wet running, allow components to dry completely before storage to prevent corrosion.
- What maintenance does the INFRACTION 223S DSC require? — The modular design makes maintenance straightforward. Regular inspections include checking bearing seals after muddy runs, topping up oil-filled shocks as needed with 2000 cSt silicone oil, monitoring tyre wear on the dBoots HOONS and rotating or replacing when they become slick, and ensuring the transmission overload coupling is functioning correctly. The sealed bearing design and pre-lubricated differentials reduce maintenance requirements compared to traditional setups. Periodic inspection of metal diff gears and servo linkages ensures optimal performance.
- Can I upgrade or modify the ARRMA INFRACTION 223S DSC? — Yes, the 223S is highly modular. You can upgrade to higher capacity batteries, swap the speed pinion for different gear ratios, adjust shock spring rates and oil viscosity, upgrade to alternative tyres and wheels, and replace the servo with aftermarket units. The integrated servo saver with 25T spline provides standard compatibility with replacement servos. The metal differential design is extremely durable, reducing the need for upgrades in this area.
- How long does the battery last per charge? — Runtime depends on driving style, battery capacity, and conditions. A 5000mAh 50C battery typically provides 15-25 minutes of continuous running depending on throttle usage, with high-speed driving reducing runtime compared to moderate throttle use. Most bashers run two or three batteries in rotation for extended sessions. Spektrum Smart batteries with integrated telemetry show remaining voltage, helping you manage battery changes.
- What is included in the Spektrum SLT3 transmitter and how easy is it to use? — The SLT3 transmitter features a 2.4GHz SLT protocol with three channels, ergonomic handle with foam wheel grip, 50 and 75 percent throttle limiters for confidence-building speed management, adjustable steering rate for matching your skill level, and simple DSC mode adjustment via transmitter controls. It's designed for ease of use with colour-coded decals for quick identification and comes pre-programmed and paired with the receiver, requiring no complex setup.
- Is the ARRMA INFRACTION 223S DSC RTR the right choice for street bashing versus off-road? — The 223S is specifically designed for all-road capability, meaning it excels on asphalt and paved surfaces but also handles gravel, light dirt, and mixed terrain. The dBoots HOONS all-road tyres provide excellent grip across multiple surfaces. However, if you're exclusively interested in serious off-road bashings, rock crawling, or mud bogging, dedicated off-road 4WD buggies or trucks might be better suited, but for the versatility of tarmac streets plus occasional rough terrain adventures, the 223S is ideally engineered.
