RC4WD GELANDE II TRUCK KIT WITH CRUISER BODY SET 2025 Z-K0072

Overview

The RC4WD Gelande II Truck Kit with Cruiser Body Set 2025 (Z-K0072) is a premium scale builder's kit designed for serious RC enthusiasts who demand authentic detail, exceptional off-road performance, and genuine buildability. This isn't a ready-to-run RC car — it's a comprehensive scale modelling project that rewards your time and attention with one of the most impressive 1:10 scale trail trucks available in the UK RC hobby market. Whether you're an experienced builder looking for your next challenging project or an intermediate enthusiast ready to step up from entry-level ready-to-run models, the Gelande II offers the perfect balance of complexity and satisfaction.

Built on RC4WD's reputation for uncompromising scale authenticity and trail-proven durability, this kit combines machined billet aluminium construction with the latest drivetrain technology. The iconic Cruiser body conversion captures every detail of a classic full-scale Land Rover Defender, from the removable hard top to the fully detailed interior featuring seats, gear shifter, handbrake, and intricate dashboard elements. This is scale RC perfection — a vehicle that performs as impressively as it looks, capable of tackling challenging terrain whilst maintaining the refined appearance of a serious expedition platform.

The Gelande II represents the pinnacle of what modern scale RC engineering can achieve. Every component has been selected, tested, and refined to deliver both visual authenticity and genuine off-road capability. With over 70 separate body parts, a sophisticated all-link suspension design, and a completely new generation of durable drivetrain components, the Gelande II RC truck kit stands apart as a serious choice for UK-based RC enthusiasts seeking an authentic, high-performance scale crawler.

Key Features

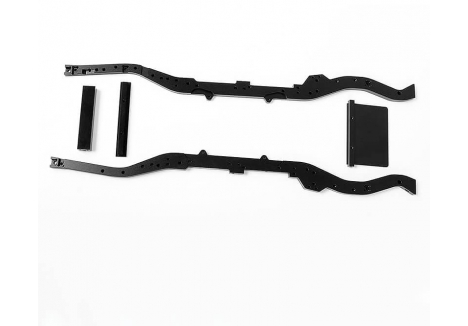

• Machined Billet Aluminium Ladder Frame Chassis — The foundation of the Gelande II is a precision-machined ladder frame constructed from solid billet aluminium, providing exceptional strength-to-weight ratio and the authentic appearance of a real off-road vehicle's chassis. This construction method delivers superior rigidity and durability compared to conventional plastic chassis, ensuring the truck maintains structural integrity even during aggressive trail use.

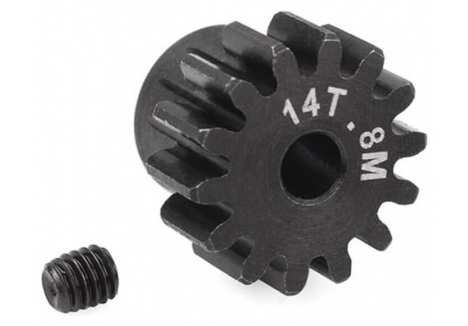

• Updated R3 Single-Speed Transmission with Cast Metal Case — The new R3 transmission features a tough cast metal exterior and wider steel 0.8 Mod gears specifically designed for trail durability. With a 14/64 pinion-to-spur ratio (1:4.57 external, 1.78:1 internal), this transmission delivers the low-end torque necessary for scale rock crawling whilst maintaining reliability through extended off-road sessions. The included Delrin spur with integrated slipper clutch protects the drivetrain from damage during aggressive driving.
• Hammer Transfer Case with Realistic 4x4 Function — Centre-mounted with authentic scale proportions, the Hammer transfer case features a cast metal exterior and widened 0.8 Mod hardened steel gears with eight bearing support. The 1.47:1 ratio provides appropriate gearing for scale trail performance, whilst the visible cast casing adds exceptional visual authenticity to the undercarriage.

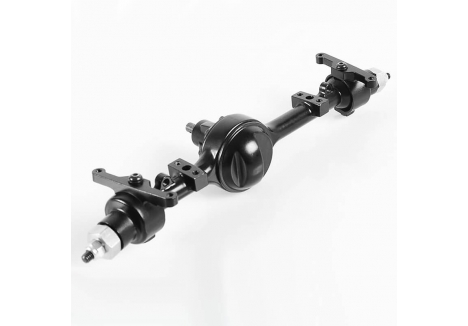

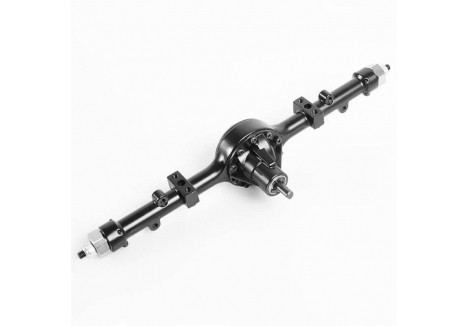

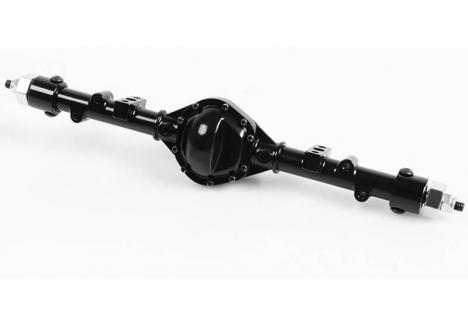

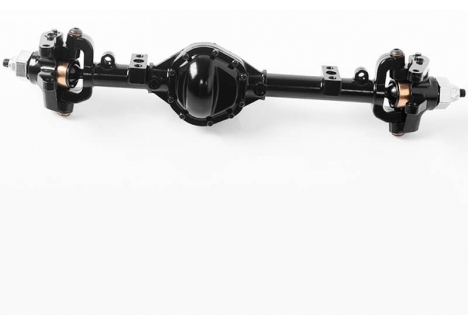

• Yota II Ultimate Scale Cast Axles V2 with XVD Technology — These are the most scale-accurate axles RC4WD has ever produced, featuring innovative 8-degree round knuckles that deliver both authentic appearance and precise steering response. The improved screw engagement maximises steering precision and sturdiness, whilst unique removable diff covers and a compact offset front pumpkin set these axles apart from conventional designs. The 15/40 ratio (2.67:1) is optimised for scale trail performance.
• Refined Suspension with 3-Link Front and Double Triangulated 4-Link Rear — The sophisticated suspension geometry includes a panhard bar on the front axle and double triangulated rear links, delivering smooth handling across varied terrain. This all-link design provides superior articulation compared to simpler suspension types, allowing the truck to maintain contact with uneven ground whilst minimising body roll and dive.
• Dual Spring 80mm Shocks with X-Ring Technology — Purpose-designed for the Gelande II, these shocks feature dual springs providing realistic proportions and consistent damping characteristics. Constructed from solid aluminium and finished with Titanium Nitride-coated shafts, they deliver long-lasting impact control and can be disassembled for maintenance or oil-filling customisation. The X-Ring technology represents RC4WD's latest advancement in shock seal design.
• 6 Lug Wagon 1.9 Inch Steel Stamped Beadlock Wheels — Finished in polished chrome with authentic scale pin-hub design, these stamped steel wheels capture the appearance of genuine off-road beadlock wheels. At 48.26mm outer diameter with 25mm width, they're sized perfectly for 1:10 scale whilst providing the structural strength necessary for aggressive trail use.

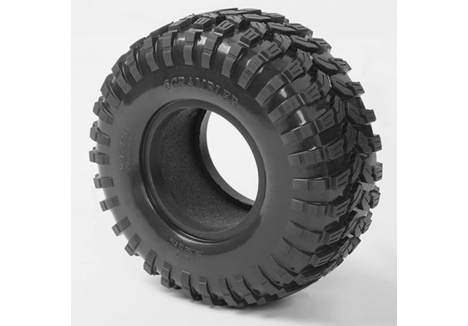

• Scrambler Offroad 1.9 Inch Scale Tyres with X2SS Soft Compound — Designed specifically for scale rock crawling, these tyres feature an advanced X2SS soft compound delivering exceptional grip on mixed terrain. At 104mm outer diameter, they're proportionally correct for 1:10 scale whilst providing genuine traction performance comparable to much larger RC vehicles.

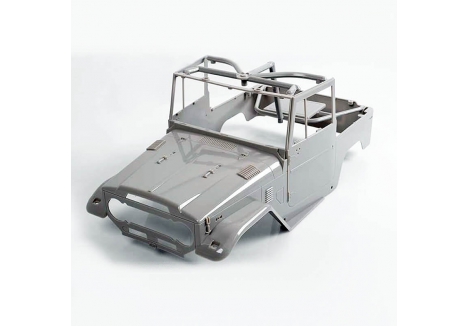

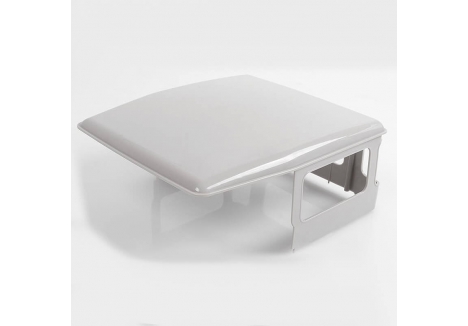

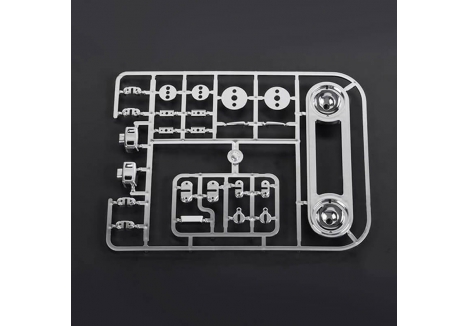

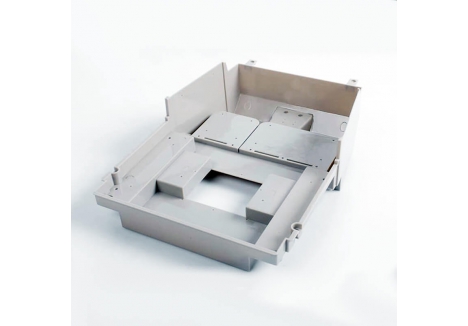

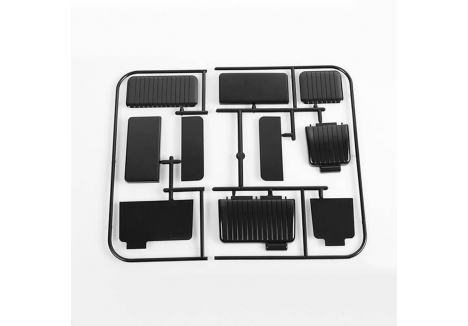

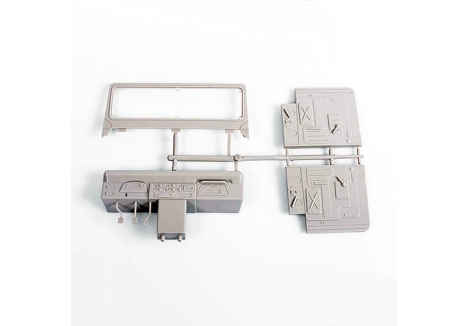

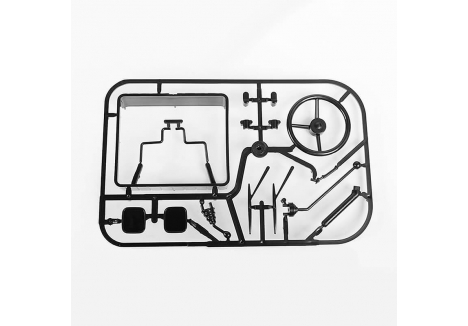

• Cruiser Body Conversion Kit with Fully Detailed Interior — Comprising over 70 separate moulded plastic parts, the Cruiser body is a replica of the iconic full-scale Land Rover Defender Cruiser variant. The removable hard top opens genuine possibilities for interior display, and the detailed interior features seats, gear shifter, handbrake, and comprehensive dashboard detail. A metal grill insert and detail lenses for all signal lights complete the authentic presentation. All parts are moulded in paintable grey finish, ready for professional-quality custom paint schemes.
• Chassis-Mounted Steering Servo — The servo is mounted directly to the frame for authentic positioning and includes the required high-torque digital servo (Twister High Torque Metal Gear Z-E0035) to handle the steering demands of a scale rock crawler.
• Moulded Fuel Cell Electronics Storage Box — Doubling as an electronics enclosure, the moulded fuel cell box provides secure mounting space for receiver and speed controller. Combined with an aluminium frame-mounted under-cab electronics tray and a sturdy battery tray with strap mounts, the Gelande II offers multiple options for battery and electronics placement, accommodating various configurations and custom builds.
• Heavy-Duty Uni-Joint Metal Drive Shafts — The driveshafts feature solid metal uni-joint construction, delivering great driveline angles and exceptional durability on the trail. This design tolerates the extreme articulation and angular stress inherent to serious scale rock crawling.

Technical Performance

The RC4WD Gelande II Truck Kit represents the convergence of authentic scale design and genuine trail-proven engineering. With a final drive ratio of 31.9:1 and a motor accommodation for 35T, 45T, or 55T brushed motors (motors are not included), this kit is engineered for low-speed technical trail driving rather than high-speed bashing. The transmission and transfer case gearing has been calculated to deliver appropriate wheel speed for realistic scale rock crawling, allowing the truck to navigate obstacles with control and precision. The complete drivetrain — transmission, transfer case, and axles — is built from the most durable components RC4WD manufactures, featuring hardened steel gears and cast metal cases designed for day-after-day trail use without premature wear or failure. The overall dimensions are 465mm length × 220mm width × 260mm height, providing a genuine 1:10 scale footprint with 50mm ground clearance. The dual-spring suspension design with refined geometry delivers superior bump absorption compared to single-spring designs, whilst the Titanium Nitride-coated shock shafts resist corrosion and wear from extended outdoor use. This is a kit that requires approximately 2–3 hours of careful assembly time and demands proper tools including hex drivers (1.5mm, 2mm, 2.5mm sizes), thread-locking adhesive, and precision hand tools. The result is a vehicle that combines the meticulous detail of a scale model with the genuine off-road capability to tackle real terrain.

What's in the Box

• 1 × RC4WD Gelande II Truck Kit with Cruiser Body Set (unassembled)

What You Need to Complete

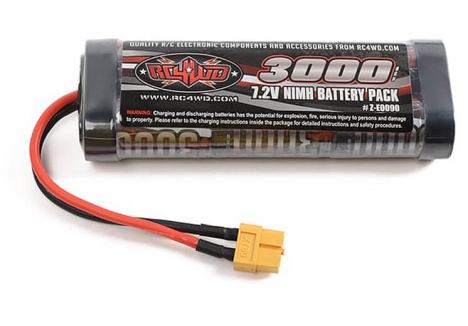

• Electronics: Motor (35T, 45T, or 55T brushed motor — not included), Radio receiver system (2 channels minimum; 3-channel Z-R0009 or 4-channel Z-R0006 recommended), 1 × Twister High Torque Metal Gear Digital Servo (Z-E0035 — included), LiPo battery (consult ESC manual for specifications; 2-cell LiPo examples include Z-E0090), Battery charger
• Tools for Truck Assembly: Hex drivers (1.5mm, 2mm, 2.5mm sizes), Long-nose pliers, Associated brand thread-locking adhesive, Cross wrench or nut driver (4mm, 5.5mm, 7mm sizes)
• Tools for Body Assembly: Modelling or craft knife, Long-nose pliers, Side cutters, Adhesive options including instant glue, plastic solvent, ShoeGoo, E6000, or 2-part epoxy, Hex drivers (1.5mm, 2mm sizes), Small Phillips screwdriver

Frequently Asked Questions

• Is the RC4WD Gelande II Truck Kit suitable for beginners or only experienced builders? — This is an intermediate-to-advanced builder's kit that requires approximately 2–3 hours of careful assembly time and demands quality tools including thread-locking adhesive and precision hex drivers. The instruction manual is comprehensive, but familiarity with RC model building and electronics integration is essential. If you're new to scale RC, starting with a simpler ready-to-run vehicle before progressing to the Gelande II is recommended. However, if you're an enthusiast with some modelling experience, the detailed manual and logical design make this an achievable and highly rewarding project.

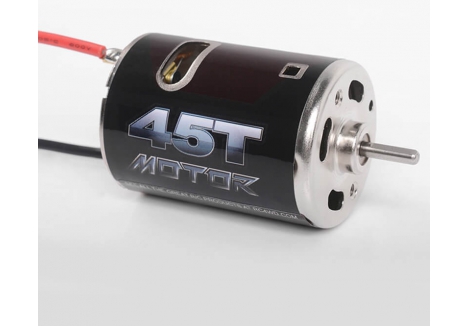

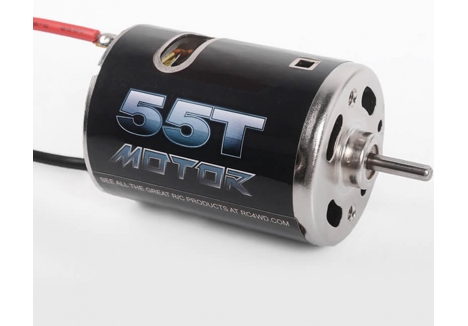

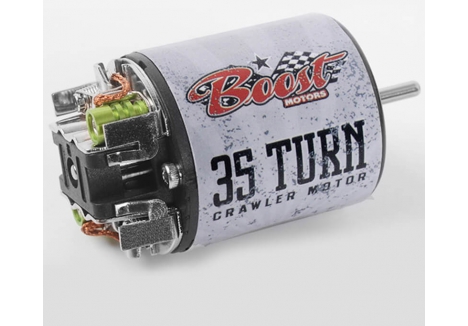

• What motor does the Gelande II Truck Kit require? — The kit accepts brushed motors in 35T, 45T, or 55T configurations. These are not included in the kit, allowing you to select the motor characteristics that suit your driving style. A 45T motor typically provides a balanced combination of speed and torque for trail use, whilst a 35T motor delivers higher speed and a 55T provides maximum low-end torque. You'll also need a compatible speed controller (ESC) and radio receiver system.
• What battery does the Gelande II require and what is the runtime? — The kit accommodates 2-cell LiPo batteries (consult your ESC manual for specific voltage and capacity recommendations). RC4WD offers compatible batteries such as the Z-E0090, though you have flexibility in battery selection based on your performance preferences and available charging equipment. Runtime varies based on battery capacity, motor selection, and driving style, typically ranging from 15–30 minutes of active trail use per charge.
• How does the Gelande II compare to other 1:10 scale rock crawlers available in the UK? — The Gelande II stands apart through its machined billet aluminium ladder frame chassis, which provides superior strength and authentic appearance compared to plastic-frame alternatives. The Yota II axles with XVD technology represent RC4WD's most advanced axle design, delivering scale accuracy combined with precise steering response. The Cruiser body kit is the most comprehensively detailed scale body available, featuring over 70 separate parts and a fully realised interior. The Hammer transfer case provides authentic scale proportions with genuine 4x4 functionality. Overall, the Gelande II represents the premium option for UK buyers seeking an authentic, high-performance scale trail truck.
• Can the Gelande II be customised and modified? — Yes, the Gelande II is designed as a platform for customisation. The Cruiser body arrives in unpainted grey finish, allowing professional custom paint schemes. The removable top enables interior lighting modifications. The sophisticated suspension design accommodates upgraded shock oils and springs. RC4WD offers numerous optional parts including metal bumpers, roof racks with light mounts, and alternative wheel and tyre combinations. The kit's quality components and logical design make it an excellent foundation for serious scale modification and customisation projects.
• Is assembly difficult and what tools are essential? — The manual provides step-by-step instructions, and whilst assembly requires patience and attention to detail, the logical component organisation and comprehensive parts breakdown make it manageable for anyone with basic mechanical aptitude. Essential tools include quality hex drivers (using poor-quality drivers risks stripping screw heads), thread-locking adhesive for metal-to-metal fasteners, and precision pliers. The instruction manual specifically flags steps requiring thread lock, and proper application of adhesive is crucial for drivetrain durability. Take your time, follow instructions carefully, and use quality tools — rushing assembly risks premature component failure.
• What is the scale and size of the Gelande II? — The Gelande II is a 1:10 scale model with dimensions of 465mm length, 220mm width, and 260mm height, providing authentic proportions matching real vehicles. Ground clearance is 50mm, suitable for realistic off-road terrain navigation. These proportions make it appropriately scaled for detailed body kits like the Cruiser whilst remaining manageable for transport and storage.
