Smart Technology - More connected for more confidence and control
Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.
Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers - just connect your pack and press "Start." Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over.
Product Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install - no soldering required
- Rugged plastic case
- Heat dissipating design
- Tabs included for a hard mount
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Dual BEC power connectors
- Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Product Overview
Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
- Spektrum™ Aircraft Receiver
- Spektrum Smart Technology LiPo Battery
- Spektrum Transmitter
What's in the Box?
- (1) Spektrum™ Avian™ Smart ESC
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
One-Wire Telemetry
No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.
Â

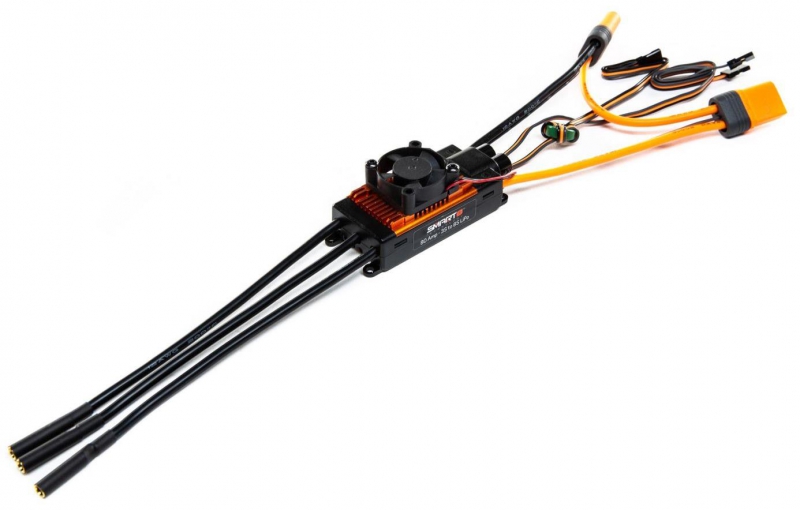

- Product Type: Brushless Electronic Speed Control (ESC)
- Model Number: P-SPMXAE1080
- Brand: Spektrum
- Product Name: Avian 80-Amp Brushless Smart ESC
- Application: Aircraft
- ESC Type: Brushless
- Maximum Continuous Current: 80A
- Maximum Burst Current: 100A
- Battery Input Voltage: 3S - 8S LiPo
- Maximum Input Voltage: 29.6V
- Minimum Input Voltage: 11.1V (3S)
- Processor: 32-bit ARM M4 processor
- Battery Connector: IC5 (backwards compatible with EC5)
- Motor Output Connector: 4mm
- Motor Output Lead: 4mm connectors
- BEC Type: Switch-mode BEC
- BEC Voltage Options: 6V / 7.4V / 8.4V (adjustable)
- BEC Continuous Current: 8A
- BEC Maximum Burst Current: 25A
- Number of BEC Power Connectors: Dual BEC connectors
- Adjustable Timing: Yes
- Braking Function: Yes
- Reverse Function: Yes (Smart Thrust Reversing)
- Forward Operation: Yes
- Programmable: Yes
- Programming Options: Transmitter stick input, Programming Box, On-screen text programming with Smart transmitter, SmartLink USB application
- Telemetry Type: Smart one-wire telemetry
- Telemetry Data: Current, voltage, cell balance, temperature, RPM
- Auto Cutoff: Yes (Automatic LiPo low-voltage cutoff)
- Low-Voltage Cutoff: Programmable
- Over-Current Protection: Yes
- Thermal Protection: Yes
- Failsafe Protection: Yes
- Firmware Updatable: Yes (via Programming Box and SmartLink application)
- Connector Type: IC5 with backwards compatibility to EC3/EC5
- Product Height: 1.3 inches (33mm)
- Product Width: 1.4 inches (35mm)
- Product Length: 2.8 inches (70mm)
- Product Weight: 5.1 oz (145g)
- Case Material: Rugged plastic with mounting tabs
- Heat Management: Aluminium heat sink and cooling fan
- IC Connectors: High heat-resistant IC series connectors
- Installation: Ready to install, no soldering required
- Technology: Spektrum Smart Technology
- Warranty: Limited 1-year warranty
- What's Included: 1x Spektrum Avian Smart ESC, 1x Spektrum Smart sticker sheet, 1x Product manual
- Required Components Not Included: Spektrum aircraft receiver, Spektrum Smart transmitter (for full features), LiPo battery (3S-8S), brushless motor
Overview
The SPM Avian 80 Amp Brushless Smart ESC represents the pinnacle of modern electronic speed control technology for RC aircraft enthusiasts across the UK. Developed and designed by Spektrum engineers in partnership with the industry's leading ESC manufacturer, this advanced brushless ESC combines exceptional power delivery with intelligent telemetry capabilities that transform how you monitor and control your aircraft. Whether you're a seasoned RC pilot looking to upgrade your fleet or someone discovering the world of brushless RC flying for the first time, the Avian 80 Amp Smart ESC delivers the confidence and control you need to push your performance to new heights.
This is not simply a power controller — it's a virtual engineer inside your model, constantly communicating vital operating data directly to your transmitter in real time. The Avian Smart ESC eliminates the frustration of installing multiple wires, sensors, modules and independent links that have traditionally plagued RC aircraft systems. Instead, you get a single, elegant solution that works seamlessly within the Spektrum Smart ecosystem, ensuring all your electronics communicate together perfectly for maximum efficiency and reliability.
The 80-amp capacity makes this ESC suitable for a wide range of aircraft applications, from sport flyers to more demanding aerobatic models. Its compact design fits easily into most airframe configurations, whilst the rugged construction and advanced thermal management ensure reliable performance flight after flight. Ready to install with no soldering required, the Avian 80 Amp brings genuine plug-and-play convenience to brushless RC aircraft, making it an excellent choice for UK hobbyists seeking premium quality and modern Smart technology integration.
Key Features
- Smart All-in-One Telemetry — A revolutionary one-wire telemetry solution transmits crucial flight data directly to your Spektrum transmitter in real time, including current draw, voltage levels, individual cell balance information, motor temperature and RPM readings. This means you can monitor your aircraft's health and performance continuously during flight, adjusting settings on the fly to optimise power delivery and efficiency without needing to land and check separate instruments.
- Fast, Powerful 32-bit ARM M4 Processor — The ESC features a modern high-speed processor that delivers higher resolution signal input and produces more accurate motor output compared to older technology. This translates directly into smoother power delivery, more responsive control inputs and better overall flight characteristics, particularly important when flying precision aerobatic manoeuvres or demanding sport flying routines.
- EC3/EC5 Backwards Compatible with IC3/IC5 Connectors — The Avian features Spektrum's latest high-heat-resistant IC series battery connectors, which are designed from the ground up to provide a more solid connection, higher heat resistance and effortless installation compared to traditional connectors. When used with IC3 or IC5 equipped Spektrum Smart batteries, the ESC automatically receives and transmits battery telemetry data including charge cycles and cell voltage information. The ESC also remains fully compatible with legacy EC3 and EC5 connectors for basic operation.
- Multiple Programming Options for Maximum Flexibility — The Avian can be programmed in three different ways to suit your preference and field conditions. Simple throttle stick programming requires nothing more than your transmitter, whilst the optional Smart ESC Programming Box allows you to make detailed adjustments right at the flying field. For comprehensive setup and firmware updates, the SmartLink USB application provides an easy-to-use computer interface that puts complete control at your fingertips.
- Advanced Multi-Point Protection System — The ESC incorporates sophisticated protective systems that keep your aircraft and battery safe during operation. Over-current protection safeguards your motor from damage during high-demand flight, automatic LiPo low-voltage cutoff prevents battery over-discharge which damages cells, thermal protection monitors ESC temperature and cuts power if needed, and failsafe protection ensures your motor cuts safely if radio signal is lost.
- Smart Thrust Reversing Capability — Now included with Avian Smart ESCs is the ability to reverse motor rotation at the flip of a switch on your transmitter. This innovative feature increases ground mobility for aircraft with wheels or floats, and acts as a powerful brake for models requiring longer runways to land safely. This function requires a Smart-compatible Spektrum transmitter and receiver with the feature properly activated in the ESC parameters.
- On-Screen ESC Programming from Your Transmitter — With compatible Spektrum Smart transmitters and receivers, you can now adjust any ESC parameter directly from your radio's telemetry screen whilst standing at the flight line. This revolutionary feature eliminates the need for separate programming boxes or modules, allowing you to make quick setting changes and experiment with different configurations instantly to maximise power output or efficiency for specific flying conditions.
- Firmware Updatable for Future Enhancements — The Avian's firmware can be updated through both the Smart ESC Programming Box and SmartLink PC application, ensuring your ESC benefits from future improvements and new features released by Spektrum. This forward-thinking approach means your investment remains current and capable of accessing the latest technology as it becomes available.
- Adjustable High-Power BEC with Dual Connectors — The integrated battery elimination circuit features switchable output voltage (6V, 7.4V or 8.4V selectable) and provides continuous current of 8 amps with a maximum burst capacity of 25 amps. Dual power connectors allow you to power multiple receivers or servos independently, providing flexibility for complex aircraft installations whilst the high-capacity design eliminates the need for separate battery eliminator circuits.
- Heat-Dissipating Design with Aluminium Heat Sink — The ESC features a rugged plastic case with integrated tabs for hard mounting directly to your airframe. An aluminium heat sink and cooling fan work together to dissipate heat efficiently during extended high-power flights, maintaining stable performance and extending the operational lifespan of the internal electronics. This thermal management is critical when flying in hot weather conditions or demanding long flights.
- Compact for Easy Installation — Measuring just 70mm in length, 35mm in width and 33mm in height, the Avian fits easily into most aircraft designs without requiring major structural modifications. The compact footprint makes it ideal for mid-sized sport aircraft, trainers and scale models where space is at a premium, yet the powerful 80-amp capability still delivers the performance you need.
- Ready to Install with No Soldering Required — The Avian comes fully assembled and ready to connect using standard RC connectors. There is no need for soldering, heat-shrinking or complex wiring modifications. Simply connect your battery, receiver and motor using the appropriate connectors, program your settings, and you're ready to fly.
Technical Performance
The SPM Avian 80 Amp Brushless Smart ESC delivers genuine performance suitable for a wide range of brushless RC aircraft applications. With a maximum continuous current rating of 80 amps and maximum burst capacity of 100 amps, this ESC can handle powerful brushless motors typically used in sport aircraft, aerobatic models and larger scale aircraft. The fast 32-bit ARM M4 processor ensures smooth, responsive power delivery across the entire throttle range, from precise low-speed control for delicate landings through to full-power aerobatic manoeuvres. The ESC accepts input voltages from 3S through to 8S LiPo battery configurations (3.7 volts to 29.6 volts maximum), giving you exceptional flexibility in power system design and the ability to scale your aircraft's performance by selecting different battery pack configurations. The integrated switch-mode BEC delivers clean, stable power to your receiver and servos with adjustable output voltage to match your specific installation requirements. Built with high-heat-resistant IC connectors that are backwards compatible with legacy EC3 and EC5 connectors, the Avian integrates seamlessly into existing RC aircraft systems whilst offering the advantages of modern connector technology. The ESC's thermal management system with aluminium heat sink and cooling fan ensures reliable operation even during sustained high-power flights or hot weather flying sessions. Weighing just 145 grams with dimensions of 70mm × 35mm × 33mm, the Avian represents an excellent balance between capability and compact size, making it suitable for everything from mid-sized trainers to high-performance sport aircraft.
What's in the Box
- 1 × Spektrum Avian Smart ESC (fully assembled and ready to use)
- 1 × Spektrum Smart sticker sheet
- 1 × Product manual with detailed programming instructions
What You Need to Complete
- Spektrum aircraft receiver compatible with Smart technology (for full telemetry features)
- Spektrum transmitter with Smart technology capability (required for advanced programming and telemetry display)
- 3S to 8S LiPo battery with IC3, IC5, EC3 or EC5 connectors
- Brushless motor suitable for your aircraft (sized appropriately for your intended application)
Frequently Asked Questions
- Can I use the Avian 80 Amp ESC with my existing Spektrum receiver if it doesn't support Smart technology? — Yes, the Avian Smart ESC is backwards compatible and will function with any standard Spektrum receiver, delivering normal ESC operation and basic telemetry. However, to access the full Smart technology features including real-time telemetry display on your transmitter screen, on-screen programming capability, battery data integration and thrust reversing functions, you will need a Spektrum Smart receiver and Smart-capable transmitter to unlock these advanced capabilities.
- What battery configurations does the Avian 80 Amp accept, and which is best for my aircraft? — The Avian accepts any LiPo battery configuration from 3S (11.1 volts) through to 8S (29.6 volts maximum), giving you exceptional flexibility. A 3S or 4S battery is suitable for smaller sport aircraft and trainers, whilst 5S, 6S or higher configurations deliver increased power for larger aircraft or those requiring higher performance. Your choice depends on your motor size, desired performance level and airframe weight. Always ensure your motor and propeller combination can handle the voltage and power output you select.
- Does the Avian 80 Amp ESC work with non-Spektrum transmitters and receivers? — The Avian is designed specifically for use within the Spektrum Smart ecosystem and requires a Spektrum receiver to function. The ESC will not work with transmitters and receivers from other manufacturers such as FrSky, Futaba or Hitec, as it uses Spektrum's proprietary communication protocols. If you use non-Spektrum equipment, you will need to select a different ESC brand that is compatible with your radio system.
- Can I reverse the motor direction using the Avian 80 Amp Smart ESC? — Yes, the Avian includes Smart Thrust Reversing capability, allowing you to reverse motor rotation at the flip of a switch on your transmitter. This is particularly useful for tail-dragger aircraft or models with floats that need to move backwards on the ground, or for models requiring a powerful braking effect during landing. However, this feature requires a Smart-compatible Spektrum transmitter and receiver, and must be activated and configured within the ESC parameters using the programming interface.
- What telemetry data does the Avian provide, and how is it transmitted to my transmitter? — The Avian transmits real-time data including current draw in amps, battery voltage, individual cell voltage information for balance monitoring, motor temperature, and RPM readings. This data is sent via a single data wire connection (one-wire telemetry) to your Spektrum Smart receiver, which then displays this information on your transmitter's screen. When used with a Spektrum Smart LiPo battery, additional battery telemetry is automatically included, such as charge cycle count and battery percentage capacity.
- Is the Avian 80 Amp suitable for beginners, or do I need extensive experience to operate it? — The Avian is suitable for pilots of all experience levels thanks to its ready-to-install design and multiple programming options. Beginners can use simple throttle stick programming right from the flying field without any additional equipment, whilst more experienced pilots can access advanced configuration options through the Programming Box or SmartLink application. The integrated safety features including low-voltage cutoff, over-current protection, thermal protection and failsafe operation provide multiple layers of safeguarding to protect your aircraft and battery investment.
- What connectors does the Avian use, and are they compatible with my existing batteries and motor leads? — The Avian features IC3 or IC5 connectors (depending on amperage requirements) for battery connection. These are Spektrum's modern high-performance connectors with improved heat resistance and solid connections compared to older designs. The ESC remains backwards compatible with legacy EC3 and EC5 batteries and connectors, so you can use your existing equipment even if it predates the Smart technology. Motor output uses standard 4mm connectors suitable for most brushless motors.
- How do I programme the Avian 80 Amp ESC, and what are my options? — The Avian offers three programming methods for maximum flexibility. Throttle stick programming uses only your transmitter with no additional equipment needed — simply follow the manual's instructions using your radio's throttle control. The optional Smart ESC Programming Box connects directly to the ESC and provides a dedicated interface for making detailed adjustments at the flying field. The SmartLink USB application for computers provides the most comprehensive programming interface with firmware update capabilities. Additionally, with a Smart transmitter and receiver, you can programme any parameter directly from your radio's on-screen programming menu.
- What protection systems does the Avian include to keep my aircraft and battery safe? — The Avian incorporates a comprehensive multi-point protection system. Over-current protection instantly cuts power if current draw exceeds safe limits, protecting your motor from damage. Automatic LiPo low-voltage cutoff prevents over-discharge which damages battery cells and reduces lifespan. Thermal protection monitors the ESC's internal temperature and throttles back or cuts power if overheating occurs. Failsafe protection cuts motor power immediately if your radio signal is lost, causing your aircraft to descend safely rather than continuing at full power. Together, these systems provide multiple layers of safety monitoring.
- Can I use the Avian 80 Amp ESC with larger scale aircraft and high-powered setups? — Yes, the 80-amp continuous current rating with 100-amp burst capacity makes the Avian suitable for larger aircraft and demanding applications. The acceptance of up to 8S LiPo batteries (29.6 volts) means you can pair it with more powerful motor configurations than would be possible with lower voltage ESCs. However, always ensure your motor, propeller and airframe can handle the power and performance levels you select, and verify that the 80-amp rating matches your motor's current requirements. For extremely high-power applications exceeding 80 amps continuous, you would need to consider higher-amperage ESC options.
