Smart™ Technology
LiPo batteries with Spektrum Smart
™ technology practically take care of themselves. When combined with a Spektrum
™ Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it's connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition. That's a Smart Battery pack!
Spektrum Smart technology is about offering a higher connection to your hobby. It's a connection that puts you in complete control, makes you more aware and more confident about the capability of your equipment-all the while making your hobby easier. The combined result will make you wish everything about your hobby was "smarter." Spektrum Smart LiPo Batteries are a part of a wide series of Smart technology products now available.
Key Features
- Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
- Integrated Microship Stores Unique Parameters for Each Battery
- New IC3 and IC5 Connectors are Compatible with EC3 and EC5
- Save Time and Hassle, while Improving Battery Life
- Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Feature Overview
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.
Every Smart LiPo battery is factory assembled with the next-generation IC3™ or IC5™ output connector that's conveniently compatible with older devices equipped with robust EC3™ and EC5™ connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.
Spektrum Smart LiPo Batteries Store Unique Data, such as:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Smart Battery Technology

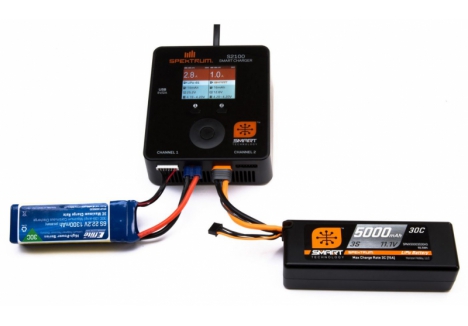

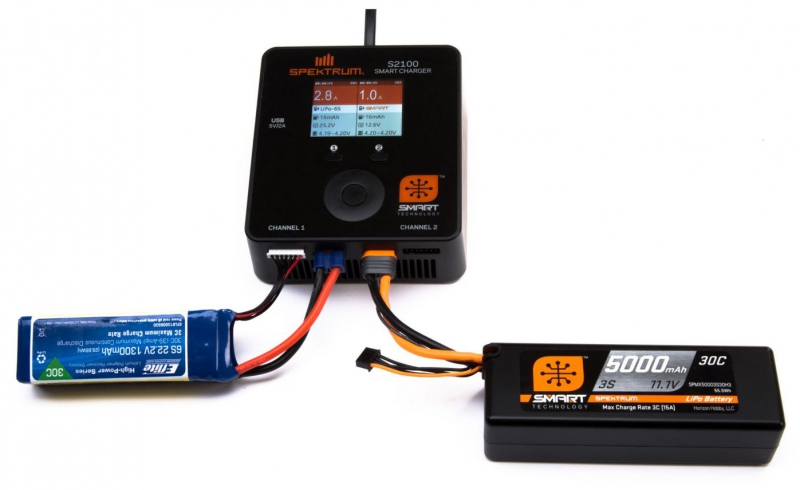

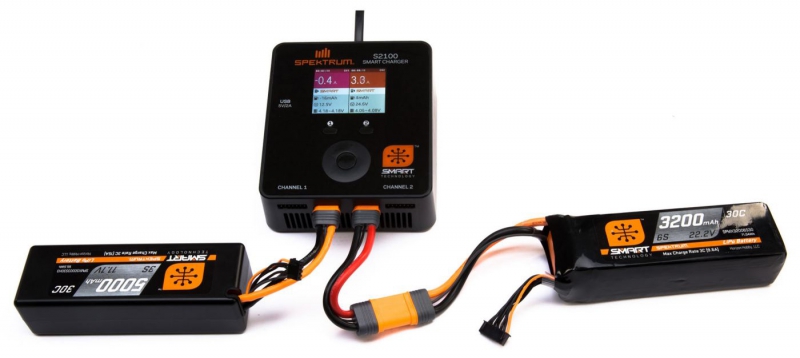

When connected to a Spektrum Smart charger, unique parameters and health of your Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the "start" button. Smart technology will take care of the rest. Every Smart LiPo battery is factory assembled with the next-generation IC3™ and IC5&trade output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers.
Data Rich
An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready for a day at the field or the track.
Simple and Quick
Preset charge, discharge, and storage parameters are automatically relayed to a Spektrum Smart Charger making charging as simple as pressing the "start" button. Charge rate of individual batteries can be user customized allowing you to take full advantage of packs with faster charge ratings. The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate so all you have to do is press "Start." Another feature that the Smart microchip allows is single-connection balance charge. When you plug in your IC3 or IC5 connector to the charger, individual cell voltage is automatically relayed to the Smart charger and allows you to balance charge without fussing with standard balance connectors.

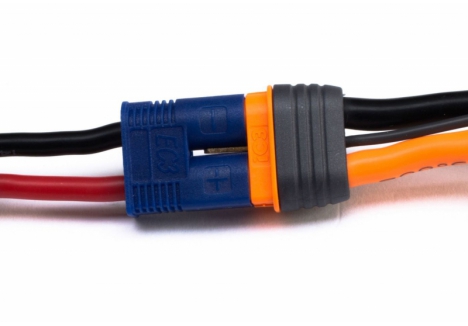

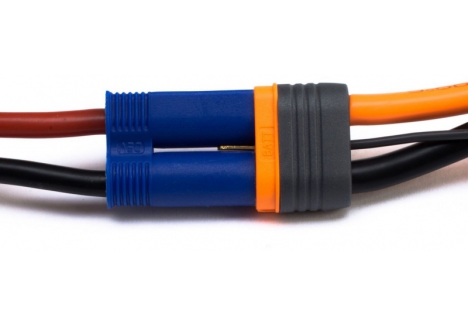

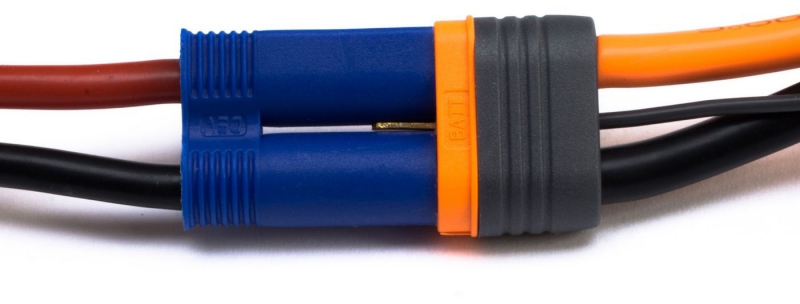

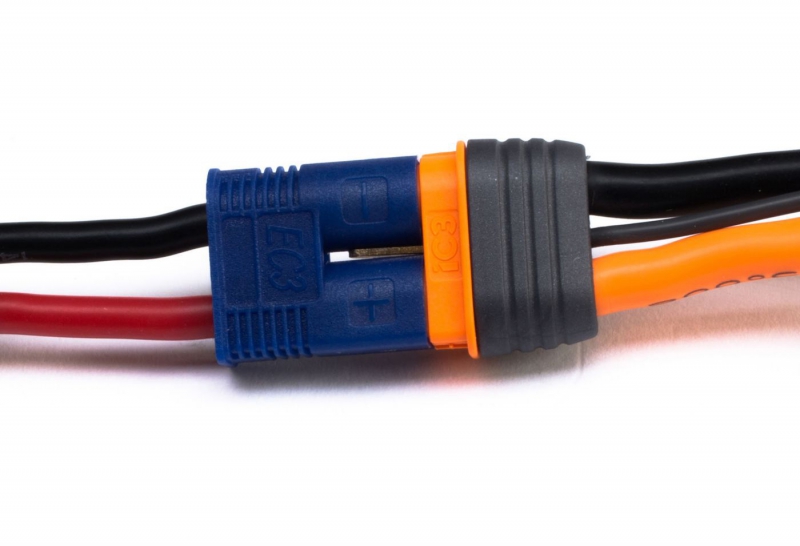

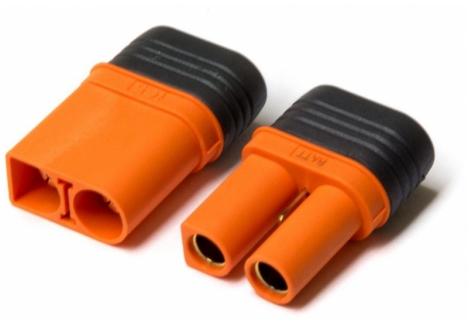

New IC3 & IC5 Connectors
The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3 and EC5 connectors, there's no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device are all the benefits of Smart technology obvious.
Smart Discharge
LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240 hours. This feature will help to extend the life of your Smart Batteries by preventing your batteries from sitting fully charged for an extended period of time, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the life of the pack.
- Battery Type: LiPo (3.7V per cell)
- Nominal Voltage: 22.2V
- Number of Cells: 6S (6-cell)
- Capacity: 3200 mAh
- Maximum Continuous Discharge Rate: 30C
- Maximum Charge Rate: 3C
- Continuous Discharge Current: 96A (at 30C)
- Maximum Charge Current: 9.6A (at 3C)
- Connector Type: IC5
- Backward Compatibility: EC5 connectors
- Product Length: 142mm (5.6 inches)
- Product Width: 42mm (1.7 inches)
- Product Height: 38mm (1.5 inches)
- Product Weight: 484g (400g to 499g range)
- Hard Case: No
- Soft Case: Yes
- Technology: Spektrum Smart Technology with G1 Technology
- Smart Microchip: Yes - integrated data storage microchip
- Stored Data: Battery brand, type, capacity, C rating, cell voltage, temperature, charge/discharge cycles, internal resistance
- Error Logging: Over-heat, over-discharge and over-charge incident tracking
- Smart Discharge Feature: Automatic discharge to storage voltage between 12-240 hours
- IC5 Connector Features: Superior electrical connection, higher heat resistance, effortless installation, data transfer wire
- Application: Air and Auto
- Storage: Yes
- ROAR Approved: No
- California Prop 65: Yes - includes warnings
- Spektrum RC Club Points: Available for members
- Availability: Next Shipment July 2026
Overview

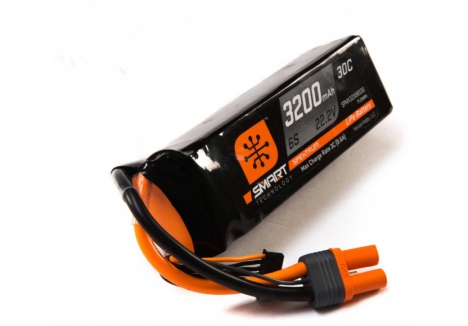

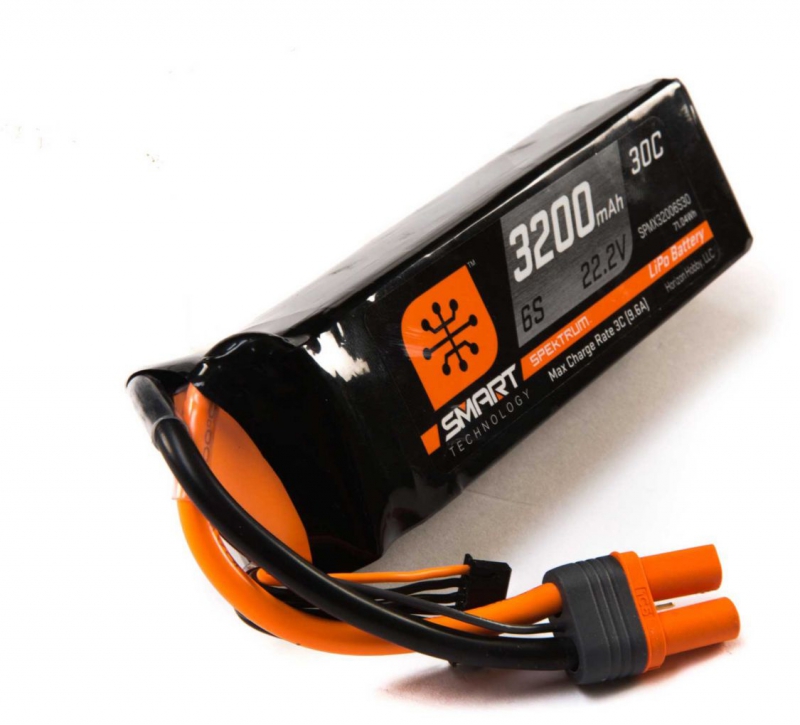

The Spektrum 22.2V 3200mAh 6S 30C Smart LiPo Battery with IC5 connector represents the pinnacle of modern RC battery technology, designed specifically for discerning hobbyists who demand reliability, convenience and intelligent power management. Whether you're piloting a high-performance RC car UK enthusiast, flying demanding aerial platforms, or operating any compatible RC system, this premium LiPo battery delivers exceptional performance coupled with groundbreaking Smart technology that transforms how you maintain and charge your batteries. The 22.2V configuration provides plenty of punch for competitive driving and racing applications, whilst the robust 30C continuous discharge rating ensures sustained power delivery even during the most demanding flight sequences or high-speed ground-based runs. This is a battery engineered for those who refuse to compromise on quality, reliability and ease of use.
What truly sets this Spektrum Smart battery apart from conventional RC batteries is the integrated microchip that stores unique parameters and comprehensive health data about your specific battery pack. When connected to a compatible Spektrum Smart charger, the battery automatically communicates all its vital information, eliminating the need for manual configuration and the frustration of incorrect charging settings. This revolutionary approach to battery management means you can achieve optimal charging performance with a single button press, whilst simultaneously protecting your investment through intelligent monitoring and automated safeguards. For RC enthusiasts in the UK seeking a ready to run power solution that combines advanced technology with genuine reliability, this 6S Smart LiPo battery represents a significant upgrade to your RC hobby experience.
The battery is fully compatible with all Spektrum Smart chargers and systems, whilst maintaining complete backward compatibility with existing equipment using EC5 connectors. This flexibility ensures you can integrate this advanced battery into your current RC setup without requiring expensive additional equipment, making it an exceptionally practical choice for upgrading your battery roster. The Smart technology ecosystem represents the future of RC power management, offering genuine convenience, superior performance monitoring, and the confidence that comes from knowing your battery is always operating at peak condition.
Key Features
- Spektrum Smart Technology Integration — The integrated microchip stores comprehensive data including battery brand, chemistry, cell count, capacity, charge and discharge cycles, C rating, temperature readings and internal resistance measurements, allowing you to make fully informed decisions about battery suitability for each application and track your battery's health over its operational lifetime.
- Automatic Parameter Upload to Smart Chargers — When connected to a Spektrum Smart charger, unique parameters and complete battery health information upload automatically from the Smart memory microchip, eliminating the need to manually configure charge preferences and making charging as simple as pressing the start button on your charger.
- Intelligent Error Logging and Diagnostics — The battery maintains a comprehensive error log tracking the number of over-heat, over-discharge and over-charge incidents, providing crucial diagnostic data that helps you understand whether the battery is suitable for your specific application and identify any potential issues before they become serious problems.
- Smart Discharge Technology for Battery Longevity — When programmed with a Spektrum Smart charger, the battery automatically discharges to your predetermined storage voltage during rest periods you select between 12 and 240 hours, preventing the battery from sitting fully charged for extended periods which would degrade the chemical integrity of the Lithium Polymer cells and dramatically extend overall battery lifespan.
- Advanced IC5 Connector System — The next-generation IC5 output connector provides superior electrical connection, higher heat resistance and effortless installation compared to older connector types, whilst remaining fully backward compatible with devices equipped with robust EC5 connectors so you can use this Smart Battery with your existing equipment.
- Customisable Charge Rate Programming — The charge rate of your battery is fully customisable, allowing you to take complete advantage of the battery's impressive 3C maximum charge rate capability, with the charger automatically remembering your last selected charging rate so settings populate automatically on the next charging session.
- Comprehensive Data Monitoring — Track critical information including individual cell voltage measurements, battery temperature readings during operation, total charge and discharge cycle counts, and all historical performance metrics directly through your Spektrum Smart charger interface, giving you complete visibility into battery condition.
Technical Performance
This Spektrum Smart LiPo battery delivers exceptional technical specifications engineered for demanding RC applications. The 6-cell (6S) configuration produces a nominal voltage of 22.2V, providing substantial power output ideal for high-performance RC cars UK competitors and demanding aerial platforms. The 3200mAh capacity ensures extended runtime whilst maintaining a compact form factor suitable for a wide range of RC platforms, with dimensions of 142mm length, 42mm width and 38mm height keeping the battery proportionate for balanced weight distribution. The battery weighs between 400-499 grammes, with specific weight of 484 grammes as confirmed across multiple sources, making it a substantial yet manageable power solution. The impressive 30C continuous discharge rating delivers approximately 96 amps of continuous discharge current, sufficient for high-speed driving, aggressive manoeuvres and sustained aerobatic flight sequences. Maximum charging is accommodated at 3C rate, allowing rapid replenishment of battery capacity. The LiPo chemistry delivers the high energy density required for serious RC enthusiasts, with the integrated Smart microchip ensuring optimal cell balancing and protection against dangerous overcharge, overdischarge and overheat conditions. The robust IC5 connector design handles the substantial current loads without degradation, maintaining consistent electrical performance throughout the battery's operational lifespan. This is genuine performance engineering for the RC hobbyist who demands reliability, consistency and measurable results on the field or track.
What's in the Box
- Spektrum 22.2V 3200mAh 6S 30C Smart LiPo Battery with integrated microchip
- IC5 connector with data transfer wire for Spektrum Smart charger compatibility
What You Need to Complete
- Spektrum Smart Battery Charger (compatible chargers required to access Smart technology features; alternatively use any quality LiPo charger supporting 6S batteries for standard charging)
- RC vehicle, aircraft or compatible RC device with IC5 or EC5 connector capability
Frequently Asked Questions
- Is this Smart LiPo battery compatible with my existing RC equipment? — Yes, the IC5 connector is fully backward compatible with devices equipped with EC5 connectors, so you can use this battery with your current RC setup immediately. However, to access all the advanced Smart technology features including automatic parameter upload, intelligent charging optimisation and smart discharge functionality, you will need a compatible Spektrum Smart charger. Without a Smart charger, the battery operates as a standard high-performance 6S LiPo battery.
- How does Spektrum Smart technology actually benefit my RC hobby? — Smart technology eliminates the frustration of manual battery configuration by automatically uploading your battery's unique parameters to your charger, meaning you simply press the start button rather than manually adjusting charge rates and preferences every time. The integrated microchip also tracks comprehensive health data including charge cycles, temperature history and diagnostic error logs, allowing you to make informed decisions about which battery to use for specific applications. The smart discharge feature is particularly valuable, automatically conditioning your battery to safe storage voltage after your session ends, dramatically extending overall battery lifespan by preventing the chemical degradation that occurs when LiPo cells remain fully charged for extended periods.
- What discharge rating does this battery offer and is it suitable for high-performance RC cars? — This battery features a 30C continuous discharge rating, delivering approximately 96 amps of continuous discharge current at full capacity. This rating makes it excellent for high-speed RC cars UK racers favour, aggressive driving styles, and demanding aerial applications. The 30C rating means the battery can sustain serious performance demands without voltage sag or thermal issues, ensuring consistent power delivery throughout your entire flight or driving session.
- Can I charge this battery faster than standard LiPo batteries? — Yes, this Spektrum Smart LiPo supports up to 3C maximum charge rate, allowing you to recharge the 3200mAh capacity at 9.6 amps, enabling rapid battery turnaround between RC sessions. However, charge rate is fully customisable through your Spektrum Smart charger, so you can adjust it based on your specific requirements, battery condition and available charging time. The charger automatically remembers your last selected charge rate, streamlining the charging process for subsequent sessions.
- How does the Smart discharge feature help my battery last longer? — LiPo batteries suffer chemical degradation when stored in a fully charged state for extended periods, gradually losing capacity and performance. The smart discharge feature solves this problem by automatically discharging your battery to a safe storage voltage (typically around 3.8V per cell) during rest periods you programme between 12 and 240 hours. This ensures your battery spends minimal time in a fully charged state, dramatically reducing chemical stress and significantly extending the overall lifespan and performance capability of your battery investment.
- What data does the integrated microchip actually store about my battery? — The Smart microchip stores an extensive dataset including battery brand, chemistry type, cell count, capacity rating, C rating, individual cell voltages, battery temperature readings, internal resistance measurements, total charge cycles completed, total discharge cycles completed, and a comprehensive error log tracking the number of over-temperature, over-charge and over-discharge incidents that have occurred. This rich data provides complete visibility into your battery's condition and history, helping you understand whether the battery is suitable for specific applications and alerting you to any concerns before they become serious issues.
- Is this battery suitable for beginners or only experienced RC pilots? — Whilst this is a premium battery suitable for all skill levels, it offers particular advantages for experienced enthusiasts. Beginners can certainly use this battery, and the integrated Smart technology actually makes it easier to use correctly by automating charging parameters. However, LiPo batteries in general require proper care, appropriate chargers and safety precautions. If you are new to RC, consult the comprehensive Lithium Ion Battery Safety Guidelines and Spektrum Smart Battery Safety Sheet included with your purchase to ensure safe operation. The Smart technology helps protect against common mistakes through intelligent monitoring and error prevention.
- Why should I choose a Smart LiPo battery over conventional LiPo batteries? — Smart LiPo batteries offer genuine conveniences unavailable with conventional batteries: automatic parameter upload eliminates manual configuration, integrated monitoring tracks health and diagnostics, smart discharge extends battery life by preventing storage degradation, and customisable charge rates allow optimisation for your specific applications. The integrated microchip essentially transforms battery management from a manual, error-prone process into an automated, intelligent system that protects your investment whilst making your RC hobby more enjoyable and convenient.
