Smart™ Technology Overview
LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When combined with a Spektrum™ Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it's connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition. That's a Smart Battery pack!
Spektrum Smart technology is about offering a higher connection to your hobby. It's a connection that puts you in complete control, makes you more aware and more confident about the capability of your equipment-all the while making your hobby easier. The combined result will make you wish everything about your hobby was "smarter." Spektrum Smart LiPo Batteries are a part of a wide series of Smart technology products now available.
Key Features
- Integrated microchip stores unique parameters for each battery
- Smart discharge allows batteries to automatically discharge to a safe voltage
- Save time and hassle, while improving battery life
- Powerful 100C continuous discharge rating to deliver high performance and longevity
- Protective outer metal alloy sheet helps dissipate heat, hold battery shape, and increase durability
- No soldering required, equipped with IC3 and IC5 Connectors that are compatible with EC3 and EC5
- 100C battery packs are available in a variety of capacities and cell counts that are perfect for almost any application
Feature Overview
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.
Our new Spektrum Smart 100C LiPos come in a variety of popular sizes and are ready to drop into your RC aircraft for better performance, power, and reliability. These are the perfect packs for high performance models and power systems and a great upgrade to get more punch and power on nearly any setup.
Spektrum Smart LiPo Batteries Store Unique Data, Such As:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Â
- Product Type: LiPo Smart Battery
- Brand: Spektrum
- Model Number: SPMX50006S100
- Battery Voltage: 22.2V nominal
- Number of Cells: 6S (6 cells in series)
- Voltage per Cell: 3.7V
- Capacity: 5000mAh
- Battery Chemistry: Lithium Polymer (LiPo)
- Continuous Discharge Rating: 100C
- Maximum Continuous Discharge Current: 500A (100C × 5.0A)
- Maximum Charge Rate: 3C (15 amps)
- Primary Connector Type: IC5
- Connector Compatibility: IC5 (backwards compatible with EC5)
- Balance Connector Type: JST/XH
- Smart Technology: Yes (Generation 1 Smart Technology with integrated microchip)
- Charge Protection Circuitry: Yes
- Smart Discharge Feature: Yes (programmable 12-240 hour auto-discharge to storage voltage)
- Data Storage: Stores battery brand, type, capacity, C-rating, cell voltage, temperature, charge/discharge cycles, internal resistance
- Error Logging: Yes (tracks over-heat, over-discharge, and over-charge incidents)
- Product Length: 5.59 inches (142mm)
- Product Width: 1.81 inches (46mm)
- Product Height: 2.2 inches (56mm)
- Product Weight: 600g or larger
- Case Type: Soft case
- Protective Outer Sheet: Metal alloy with heat dissipation properties
- Wire Gauge: 12 AWG
- Application: Air (RC aircraft, drones, helicopters)
- Storage: Yes (with programmable Smart Discharge feature)
- ROAR Approved: No
- Soldering Required: No (pre-assembled with connectors installed)
- Available in Multiple Capacities: Yes (part of 100C series with various sizes)
Overview

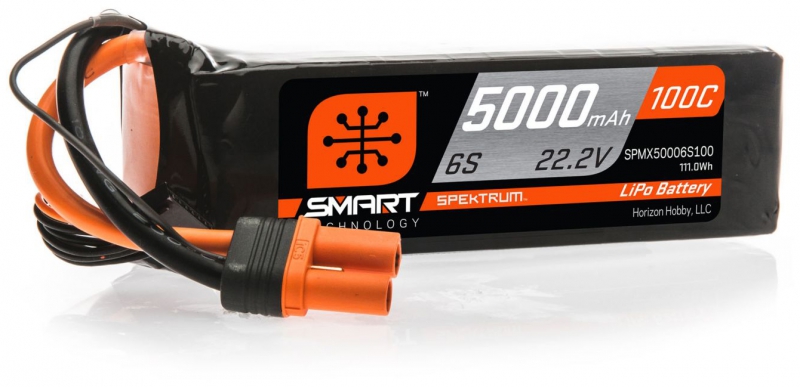

The Spektrum 22.2V 5000mAh 6S 100C Smart LiPo Battery with IC5 connector is a professional-grade lithium polymer battery pack designed for high-performance RC aircraft, drones, and demanding RC applications. This advanced battery represents the cutting edge of RC battery technology, combining raw power with intelligent charging features that make it one of the most user-friendly and reliable battery solutions available to RC enthusiasts in the UK. Whether you're a competitive RC flyer, weekend basher, or serious hobbyist looking to upgrade your existing RC car or aircraft, this Smart LiPo battery delivers the performance and convenience you need to get the most from your RC setup.
The standout feature of this battery is its integration of Spektrum Smart technology—a microchip embedded within the battery itself that stores and communicates vital performance data. When connected to a compatible Spektrum Smart charger, the battery automatically uploads its unique parameters, charging history, and health status. This means you never have to manually programme charge settings again; simply press the start button and let the charger handle the rest. For those seeking the perfect balance between raw power and intelligent automation, this is the ideal choice for your RC hobby setup.
With a massive 100C continuous discharge rating, this 6S battery pack delivers sustained high-current performance that makes it perfect for high-speed RC cars, competitive RC aircraft, and any application where explosive acceleration and consistent power delivery matter. The 5000mAh capacity provides excellent flight or run times, whilst the protective outer metal alloy sheet ensures the battery stays cool under demanding use and maintains its structural integrity throughout its lifespan. The IC5 connector provides a rock-solid connection and is fully backwards compatible with existing EC5 systems, so you can integrate this pack into your current RC setup without requiring additional connector adapters.
Key Features
- Integrated Microchip with Smart Technology — Every battery contains a sophisticated microchip that stores critical battery data including brand, type, capacity, C-rating, cell voltage, temperature readings, and the complete charging/discharging cycle history. This means your battery learns and remembers its optimal operating parameters, eliminating the need for manual setup and making every charge session faster and more efficient.
- Smart Discharge Function — One of the most innovative features of Spektrum Smart batteries is the ability to programme automatic self-discharge to safe storage voltage levels. The battery can be set to automatically discharge to storage condition between 12 and 240 hours, preventing the damage caused by storing fully-charged lithium polymer cells for extended periods. This unique feature dramatically extends your battery's lifespan and maintains consistent performance season after season.
- Automatic Data Upload to Smart Chargers — When you connect this battery to any Spektrum Smart charger, all stored parameters automatically transfer to the charger, eliminating the need to manually input battery specifications. The charger then displays comprehensive battery health information, cycle counts, and any logged error events such as over-temperature, over-discharge, or over-charge incidents, giving you complete confidence in your battery's condition.
- 100C Continuous Discharge Rating — This exceptional discharge rating delivers the sustained high current output needed for maximum performance and reliability in demanding applications. Whether you're powering a competitive RC aircraft, a high-speed RC car, or demanding power systems, the 100C rating ensures consistent power delivery throughout your battery's charge cycle.
- Protective Metal Alloy Outer Sheet — The battery features a robust protective metal alloy outer casing that serves three critical functions: it efficiently dissipates heat generated during high-current discharge, maintains the battery's structural shape even under extreme use, and significantly increases overall durability. This construction extends battery lifespan and allows safe operation at higher discharge rates.

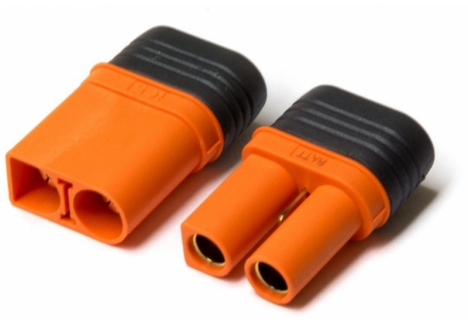

- IC5 Connector with EC5 Compatibility — The next-generation IC5 connector provides a superior connection with higher heat resistance and easier installation compared to older standards. Importantly, the IC5 connector is fully backwards compatible with popular EC5 connectors, allowing seamless integration with existing RC equipment without requiring connector adapters or modifications.
- Error Logging and Diagnostic History — Each battery maintains a comprehensive error log documenting the number of over-heat, over-discharge, and over-charge incidents. This invaluable diagnostic data helps you make informed decisions about whether a battery is suitable for specific applications and provides early warning of potential issues before they become serious problems.
- Customisable Charge Rate Control — Smart batteries allow you to set and remember your preferred charge rate, taking full advantage of packs rated for faster charging. Once you set your preferred rate, the battery remembers this setting permanently, so subsequent charges automatically use your customised rate without additional programming required.
- No Soldering Required — The battery arrives fully assembled with connectors installed, meaning you can unbox it and use it immediately without any technical modifications or soldering work. This makes it ideal for RC enthusiasts of all skill levels who want premium performance without the complexity of custom battery assembly.
Technical Performance
The SPM 5000mAh 6S Smart LiPo represents engineering excellence in RC battery design. At 22.2V nominal voltage (with 6 cells delivering 3.7V per cell in series), this pack delivers the high voltage necessary for demanding applications. The impressive 5000mAh capacity provides extended runtime, allowing longer flights or run times between charges. The 100C continuous discharge rating—meaning the battery can safely deliver 500 amps of continuous current—makes this pack suitable for the most demanding power systems and high-performance RC applications. Constructed from proven lithium polymer chemistry, this battery features advanced cell selection and internal balancing to ensure safe operation and consistent performance throughout the charge cycle. The physical construction measures 142mm length × 46mm width × 56mm height and weighs approximately 600g or more, providing substantial power in a relatively compact form factor suitable for most RC aircraft and larger RC vehicles. The maximum continuous discharge current reaches the full 100C rating, whilst the maximum charge rate of 3C ensures reasonable charge times when using compatible Smart chargers. The soft case construction provides flexibility whilst maintaining structural integrity, and the integrated battery balance connector (JST/XH type) works seamlessly with modern chargers. The charge protection circuitry integrated within the battery prevents dangerous overcharge conditions, adding an extra layer of safety beyond the Smart charger's own protections. Whether you're flying competitive RC aircraft, powering high-speed RC buggies, or running demanding racing setups, this battery's combination of high capacity, exceptional discharge rating, and intelligent charge management makes it a superb choice for serious RC hobbyists in the UK seeking premium performance and reliability.
What's in the Box
- 1 × Spektrum 22.2V 5000mAh 6S 100C Smart LiPo Battery with IC5 connector
- Integrated IC5 connector (backwards compatible with EC5)
- JST/XH battery balance connector
What You Need to Complete

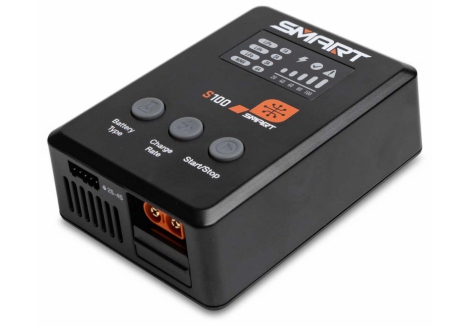

- Spektrum Smart Charger (required to utilise full Smart battery functionality)
- Compatible RC aircraft, drone, or RC vehicle with IC5, EC5, or XT90 connector
- LiPo battery charging bag or fireproof container (safety recommended)
- Proper charging environment with temperature monitoring
Frequently Asked Questions
- What is Spektrum Smart technology and why should I choose a Smart battery? — Spektrum Smart technology transforms battery management by embedding an intelligent microchip into each battery pack. Unlike standard LiPo batteries that require manual specification entry into your charger every time, Smart batteries automatically upload their unique parameters to compatible Spektrum Smart chargers. This eliminates programming steps, remembers your preferred charge rates, tracks complete battery history including cycle counts and error events, and offers the revolutionary Smart Discharge feature that automatically stores your batteries at safe voltage levels. If you fly or run RC regularly in the UK, Smart batteries save time, improve battery longevity, and give you complete confidence in your battery's health status.
- Is the Spektrum Smart 5000mAh 6S battery suitable for beginners? — This is an advanced battery designed for experienced RC enthusiasts rather than complete beginners. The 100C discharge rating and 6S voltage make it most suitable for high-performance aircraft, fast RC cars, and demanding power systems. Beginners typically start with lower-voltage batteries (2S or 3S) and lower discharge ratings (30C-50C) to allow safer learning. However, if you already own a compatible high-performance RC aircraft or car and want to upgrade to premium performance, this battery is excellent, especially when paired with a Spektrum Smart charger.
- What type of RC equipment can I use this 6S battery with? — The 22.2V 6S voltage makes this battery ideal for high-performance RC aircraft (including racing drones, aerobatic planes, and FPV craft), large RC helicopters, and high-performance RC cars and buggies. You cannot use this 6S battery in equipment designed for lower voltages (2S, 3S, or 4S) as it would damage the electronic components. Always check your RC equipment's battery specifications before purchasing. Your equipment must be rated for 22.2V 6S lithium polymer batteries and feature either IC5, EC5, or another compatible connector.
- How does the Smart Discharge feature work and why is it important? — Smart Discharge is a unique Spektrum feature that prevents battery degradation caused by long-term storage at full charge. You programme the battery to automatically discharge itself to a safe storage voltage (typically 3.0V per cell or 18.0V total for this 6S pack) between 12 and 240 hours after use. This automated process prevents the chemical damage that occurs when lithium polymer cells sit at full voltage for extended periods, dramatically extending your battery's usable lifespan. If you store batteries between flying or racing sessions, Smart Discharge is invaluable for maintaining peak performance over many seasons of use.
- Can I use this battery with my existing RC equipment and charger? — The IC5 connector is backwards compatible with older EC5 connectors, so it will physically fit most high-performance RC equipment designed for 6S batteries. However, to access the full benefits of Smart technology—automatic parameter upload, customisable charge rates, error logging, and Smart Discharge—you must use a Spektrum Smart charger. You can use this battery with standard chargers (if your equipment uses EC5 connectors), but you'll lose all Smart features and must manually programme all charge settings. For maximum convenience and battery longevity, we recommend investing in a Spektrum Smart charger.
- What does the 100C continuous discharge rating mean? — The C-rating indicates how much current a battery can safely deliver relative to its capacity. A 5000mAh battery with a 100C rating can deliver 500 amps of continuous current (5.0 amps × 100 = 500 amps). This exceptional rating makes the battery suitable for high-performance applications requiring rapid acceleration, high-speed flight, and sustained high-current demands. Standard batteries typically offer 30C-50C ratings; the 100C rating of this pack provides substantially more power, faster response, and better performance under demanding conditions.
- How long does this battery take to charge? — Charge time depends on your charger and the rate you select. The maximum charge rate is 3C, meaning you can charge at up to 15 amps (5000mAh × 3 = 15 amps). Using a fast charger at maximum rate, a full charge might take 20-30 minutes, though slower charging rates increase charge time proportionally. Always follow your specific charger's instructions and never exceed the maximum 3C charge rate, as faster charging can damage the battery or create safety hazards.
- What physical dimensions and weight should I expect? — This battery measures 142mm in length, 46mm in width, and 56mm in height, weighing approximately 600g. These dimensions make it suitable for larger RC aircraft and high-performance RC vehicles, though you must verify that your specific equipment has adequate battery bay space. The compact-yet-substantial size provides excellent power density whilst remaining manageable for most applications.
- Does this battery include protection circuitry? — Yes, this smart battery includes integrated charge protection circuitry that prevents dangerous overcharge conditions. However, this does not replace your charger's safety features—always use a proper LiPo charger and never attempt to charge with standard battery chargers or automotive chargers. Additionally, always charge in a safe location with proper ventilation and consider using a fireproof charging bag for extra safety.
- Is there a JST/XH balance connector on this battery? — Yes, the battery features a JST/XH balance connector for use with balance chargers and smart chargers. This connector allows your charger to monitor and balance individual cell voltages, ensuring safe and optimal charging. The balance connector must be connected when charging for the battery's charge protection circuitry and balancing functions to operate correctly.
