Overview
Drivers and pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 30C LiPo batteries. New "Generation 2" features make these powerful LiPo packs even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 30C soft-case LiPo packs also include thicker internal metal side plates. These plates improve heat dissipation and provide more protection for the cells against punctures during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging preferences for a Spektrum™ Smart G2 battery until you want to. When a Smart G2 LiPo battery is connected to a Spektrum™ Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.
Spektrum™ Smart G2 30C LiPo batteries store a wide variety of essential information, including:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum™ Smart G2 LiPo 30C batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents. This data can be helpful in assuring that the battery you've chosen is right for the application. Innovative Spektrum™ Smart G2 LiPo 30C batteries are so easy to use, they nearly take care of themselves. It's easy to achieve peak battery performance, reliability and longevity with Smart G2 technology!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update (available at spektrumrc.com).
Features
- Simpler and safer to use
- Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Thicker internal metal side plates protect cells and improve heat dissipation
- Integrated microchip stores unique parameters for each battery

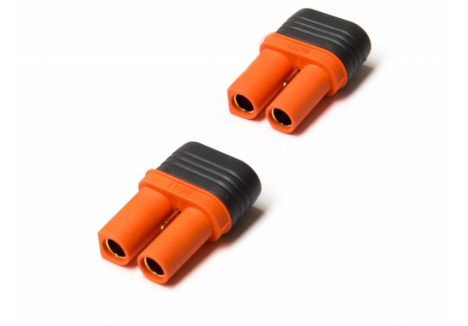

- IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
- Spektrum™ G2 Smart Charger required (or earlier Smart Charger with G2 update, available at spektrumrc.com)
Overview

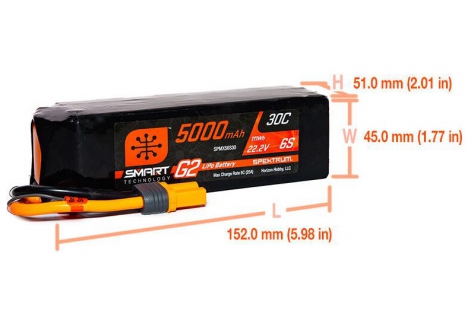

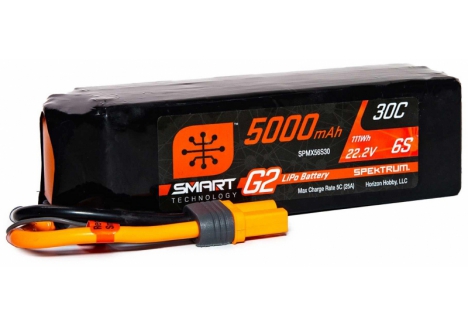

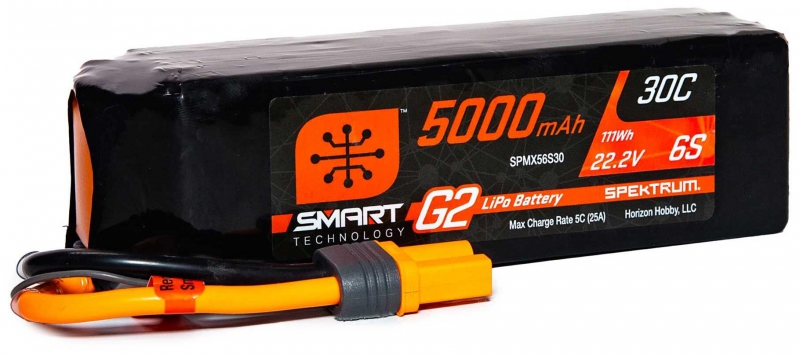

The Spektrum 5000mAh 6S 22.2V SMART G2 30C LiPo battery represents the next generation of intelligent power management for RC enthusiasts across the UK. Whether you're piloting a high-performance RC aircraft or driving a competitive RC car, this Smart G2 battery delivers exceptional performance combined with unprecedented convenience. Spektrum's innovative Smart G2 technology eliminates the complexity that has traditionally surrounded LiPo battery management, making it an ideal choice for both seasoned RC competitors and enthusiasts looking for a reliable, maintenance-free power solution.
This 22.2V 6S LiPo battery pack is engineered for demanding applications that require sustained high power output and impressive discharge rates. With a capacity of 5000mAh and a 30C continuous discharge rating, this battery provides the energy and performance characteristics needed for high-speed RC vehicles and aerobatic aircraft. The integration of Spektrum's proprietary Smart G2 microchip technology transforms battery management from a technical chore into an effortless experience, automatically handling charging parameters, balance monitoring, and storage discharge without requiring separate balance leads or manual configuration.
Built with soft-case construction and featuring thicker internal metal side plates, this battery offers enhanced protection against punctures and impacts during rough landings or intensive bashings. The 111 watt-hour capacity and robust 12 AWG wire gauge ensure consistent power delivery to demanding RC applications, whether you're operating a 1/10 scale RC buggy, RC truck, or electric RC aeroplane. When paired with a compatible Spektrum Smart charger, this battery becomes a self-managing power system that learns your preferences and adapts to your specific needs.
Key Features
- Smart G2 Technology with Single IC5 Connection — Unlike traditional LiPo batteries that require separate balance leads, this battery uses Spektrum's innovative IC5 connector to deliver all charging and balancing information through a single data wire, eliminating the complexity of managing multiple connections and making charging faster and more intuitive.
- Automatic Smart Storage Discharge — The battery arrives factory-programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity, which dramatically extends battery lifespan, maintains optimal performance characteristics, and provides peace of mind that your battery is always in perfect condition without any manual maintenance required.
- Rapid Auto Discharge at Up to 1.5A — The G2 generation offers a storage discharge rate that is three times faster than the previous G1 Smart batteries, significantly reducing the time needed to bring batteries to safe storage voltage and improving your workflow between flying or driving sessions.
- Integrated Microchip with Comprehensive Data Logging — Each battery contains a sophisticated microchip that stores and uploads unique parameters including battery brand, type, capacity, C rating, individual cell voltages, temperature data, charge and discharge cycles, and a detailed error log tracking over-heat, over-discharge, and over-charge incidents to help you make informed decisions about battery health and suitability for your application.
- Thicker Internal Metal Side Plates — The enhanced construction includes reinforced internal metal side plates that provide superior heat dissipation during high-drain operations and offer increased physical protection for battery cells against punctures and damage during rough landings or impact-prone situations.
- 30C Continuous Discharge Rating — The 30C rating provides powerful, sustained current output suitable for high-performance RC applications, while the maximum 5C charge rate ensures you can rapidly prepare batteries between sessions without compromising cell integrity or safety.
- Intelligent Charging Parameters — The battery's integrated memory automatically communicates optimal charging rates and preferences to your Smart charger, meaning you never need to manually program settings—the charger instantly recognises the battery and applies perfect charging parameters automatically.
- IC3 and IC5 Connector Compatibility — The innovative IC5 connector design provides a more solid, reliable connection with higher heat resistance and effortless installation, whilst remaining backward compatible with EC5 style connectors for use with older RC systems and equipment.
- Spektrum Smart Charger Required — This battery is designed specifically to work with Spektrum Smart chargers (or earlier Smart chargers with the latest G2 firmware update), ensuring you benefit from all the intelligent features built into the battery's microchip.
Technical Performance
The Spektrum 5000mAh 6S 22.2V SMART G2 30C battery delivers exceptional performance characteristics engineered for demanding RC applications. With a capacity of 5000mAh and a nominal voltage of 22.2V across six cells, this battery provides 111 watt-hours of total energy storage, offering extended runtime for RC aircraft, high-speed RC cars, and competitive racing vehicles. The 30C continuous discharge rating and maximum burst capacity ensure consistent power delivery during sustained high-demand operations, whilst the 5C maximum charge rate allows rapid turnaround between driving or flying sessions. The battery weighs 770g (27.16oz) and measures 152mm in length, 45mm in width, and 51mm in height, making it suitable for various RC platforms designed for 6S LiPo batteries. The soft-case construction combined with thicker internal metal side plates provides excellent heat dissipation during intensive use whilst offering superior mechanical protection. At 12 AWG wire gauge, the power cables are properly sized to handle the continuous discharge current without voltage sag or heat generation. The integrated microchip continuously monitors battery parameters including temperature, voltage stability, and discharge characteristics, providing real-time data to your Spektrum Smart charger to optimise charging safety and speed. This battery represents the pinnacle of intelligent battery design for the UK RC hobby market, combining raw performance with automated management systems that eliminate guesswork from LiPo battery operation.
What's in the Box
- 1x Spektrum 5000mAh 6S 22.2V SMART G2 30C LiPo Battery with IC5 connector
What You Need to Complete

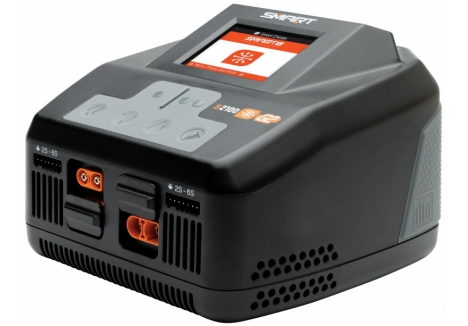

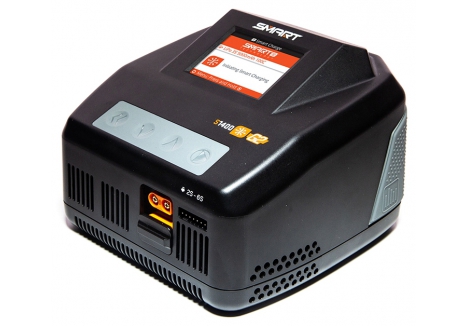

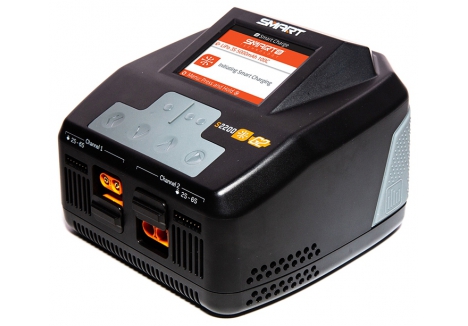

- Spektrum Smart Charger (required to utilise all Smart G2 features; earlier Smart chargers may require G2 firmware update)
- RC vehicle or aircraft compatible with 6S LiPo batteries and IC5 or EC5 style connectors
Frequently Asked Questions
- Does this Smart G2 battery work with my existing RC charger? — This battery is specifically designed for use with Spektrum Smart chargers and requires a Smart charger to function properly and access all intelligent G2 features. If you have an older Spektrum Smart charger, it may be compatible with a firmware update available from Spektrum. Standard chargers cannot access the battery's Smart microchip and will not charge it safely.
- How long does it take to charge the 5000mAh battery? — At the standard 5A charge rate (1C), the battery will reach full charge in approximately one hour. The microchip automatically communicates this optimal charge rate to your Smart charger, so no manual programming is required. You can adjust charge rates through your charger if needed, and the battery remembers your preferred settings for next time.
- What voltage should I store the battery at? — The battery comes factory-programmed to automatically discharge to the ideal storage voltage of 3.90V per cell (23.4V total for this 6S pack) after 72 hours of inactivity. This storage voltage maximises battery lifespan and maintains optimal performance. You can change this automatic storage setting through your Smart charger if you prefer different parameters.
- Is this battery suitable for RC cars and RC aircraft? — Yes, absolutely. The 22.2V 6S configuration and 30C discharge rating make this battery ideal for high-performance RC cars, RC buggies, RC trucks, and electric RC aeroplanes. The 5000mAh capacity provides excellent runtime, whilst the 30C rating delivers the sustained current required for competitive driving or aerobatic flying. This is a versatile battery for any demanding RC application in the UK hobby market.
- What makes Smart G2 batteries safer than traditional LiPo batteries? — Smart G2 batteries include comprehensive safety features including charge protection circuitry, automatic discharge to safe storage voltage, and detailed error logging that tracks over-charge, over-discharge, and over-temperature events. The single IC5 connection eliminates the complexity and potential mistakes associated with traditional balance lead charging, whilst the integrated microchip continuously monitors cell voltages and temperature. These features combine to make Smart G2 batteries significantly safer and more foolproof than traditional LiPo packs.
- How much better is storage discharge on G2 batteries compared to G1? — The G2 generation features automatic storage discharge at up to 1.5A, which is three times faster than the previous G1 Smart battery design. This means your battery reaches safe storage voltage much more quickly—typically within hours rather than days—so you can turn around between sessions faster and keep your batteries in optimal condition with minimal effort.
- Can I use this battery with my old RC equipment? — The IC5 connector is backwards compatible with EC5 style connectors, so you can use this battery with RC vehicles designed for EC5 connections. However, to access the Smart G2 features, you must use a Spektrum Smart charger. Older chargers or non-Spektrum chargers will not recognise the battery's intelligent microchip.
- What information does the integrated microchip store? — The microchip stores comprehensive data including battery brand, chemistry type, capacity, C rating, number of charge and discharge cycles, internal resistance, temperature readings, individual cell voltages, and a complete error log showing any over-charge, over-discharge, or over-temperature events. This detailed record helps you understand your battery's health and performance history.
