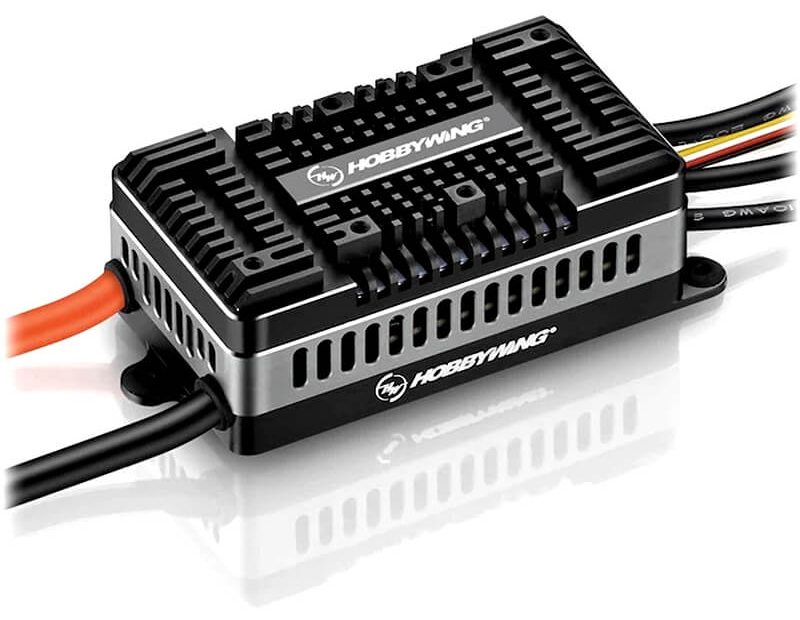

HOBBYWING PLATINUM 260A HV OPTO V5 BRUSHLESS ESC HW30203101

Overview

The Hobbywing Platinum 260A HV OPTO V5 Brushless ESC represents the pinnacle of electronic speed controller technology for serious RC aircraft enthusiasts across the UK. This high-voltage brushless ESC is engineered specifically for 700-800 class electric helicopters and fixed-wing aircraft, delivering exceptional performance, reliability and precision control that demanding pilots expect. Whether you're flying competition-grade helicopters or high-performance fixed-wing models, this ESC provides the cutting-edge technology needed to achieve consistent, stable flight characteristics across a wide range of flying conditions.

What sets the Platinum 260A HV OPTO V5 apart from other brushless ESCs available in the UK market is its innovative engineering approach combined with advanced processor technology. Hobbywing has completely redesigned this ESC with a patent-pending double-sided hollow heat dissipation structure that significantly outperforms conventional cooling designs. This isn't just about lower temperatures – it's about giving you the reliability, stability and performance characteristics you need when flying expensive, precision aircraft where every millisecond of control response matters.

This OPTO version (model HW30203101) is specifically designed for applications requiring optical isolation, making it ideal for use with helicopter flight stabilisers and advanced control systems. The ESC arrives without a built-in BEC, giving you complete flexibility in powering your receiver and servo equipment through external power solutions or separate battery management systems. For pilots who demand the absolute best in constant speed control, RPM accuracy and flight stability, the Platinum 260A HV OPTO V5 is the professional-grade choice.

Key Features

• Double-sided Hollow Heat Dissipation Structure — This innovative, patent-pending design features additional side windows and internal air ducts that allow cooling air to pass directly through the ESC housing. The result is significantly improved heat dissipation compared to traditional ESC designs, meaning your controller stays cooler during extended flying sessions, which improves reliability and extends the lifespan of the electronics.

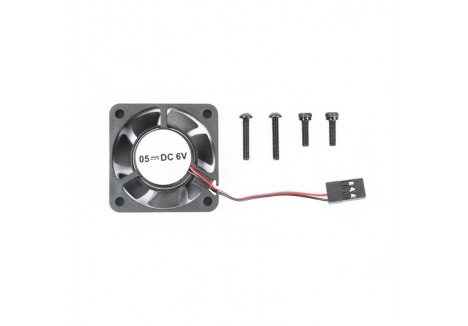

• Switchable No/Single/Double Fan Installation Design — You can configure cooling according to your specific needs, whether you prioritise extreme weight savings for competition flying or maximum heat dissipation for intensive flying sessions. This flexibility means one ESC can be optimised for different applications and flying styles.
• 32-bit Processor with Enhanced RPM Accuracy Algorithm — The latest generation processor combined with Hobbywing's proprietary RPM accuracy algorithm maximises rotational speed precision far beyond previous generation controllers. This delivers noticeably more powerful and consistent performance throughout your flight envelope, with improved stability during aggressive manoeuvres.
• Adjustable Constant Speed Sensitivity — Every pilot has different preferences and flying styles. This ESC allows you to fine-tune the constant speed control sensitivity settings to match your personal flying technique, giving you an ultimate flight experience that feels naturally responsive to your input.
• Synchronous Rectification Technology (DEO – Driving Efficiency Optimization) — This advanced efficiency technology with active freewheeling delivers three major advantages: faster throttle response with enhanced flight stability and flexibility, higher driving efficiency that extends battery life-span, and lower ESC temperature rise ensuring greater reliability during demanding flights.
• Built-in Anti-Spark Circuitry — Eliminates dangerous electrical sparks generated when connecting battery connectors, protecting your equipment and extending the operational lifespan of your battery connectors and ESC input terminals through safer power-up procedures.
• Multiple Telemetry Protocol Support — Full compatibility with Mikado VBar System, Futaba S.BUS2, MSH Brain, iKON and similar advanced control protocols means you can monitor and adjust ESC parameters directly from your remote control system or check working status at any time during flight preparation and operation.
• Comprehensive Protection Systems — Multiple integrated protection functions including start-up protection, current protection, temperature protection, overload protection, throttle signal loss protection, capacitor temperature protection and input voltage abnormality protection work together to effectively prolong the ESC lifespan and prevent damage from unexpected conditions.
• OPTO Version – Optical Isolation — The optical isolation design ensures complete electrical separation between signal and power circuits, eliminating ground loops and making this ESC ideal for use with helicopter flight stabilisers and complex multi-system aircraft where signal integrity is critical.
• Programmable via LCD Program Box or OTA Programmer — Access to 16 adjustable parameters and 4 flight modes (Fixed Wing, Helicopter Express Governor, Helicopter External Governor, and Helicopter Store Governor) through either a dedicated LCD programming box or Hobbywing's wireless OTA Bluetooth programmer for ultimate flexibility in configuration.

Technical Performance

The Platinum 260A HV OPTO V5 is engineered as a high-voltage brushless electronic speed controller rated for continuous current of 260 amps with peak bursts up to 400 amps, making it suitable for powerful brushless motors in 700-800 class electric helicopters with main rotor lengths between 690-880mm or equivalent fixed-wing aircraft. The ESC accepts input voltage from 6S to 14S LiPo battery packs (6-14S), providing the flexibility to work with modern battery configurations that serious RC pilots use for extended runtime and high-performance flying. At 89 x 50 x 34mm in dimensions and weighing just 287 grams including cables, this controller features 1 x black and 1 x red 8AWG silicone wires for battery connection and 3 x black 10AWG silicone wires for motor output connections, ensuring reliable power distribution without voltage drop issues. The double-sided hollow heat dissipation structure with side window design and the advanced 32-bit processor working with the enhanced RPM accuracy algorithm deliver performance levels that set new standards for aircraft ESCs available in the UK market. Synchronous rectification technology optimises driving efficiency, resulting in faster throttle response, improved flight stability, higher power efficiency and longer battery lifespan. The absence of a built-in BEC in this OPTO version gives users complete freedom to implement their own receiver power management strategy, whether through external UBEC modules or separate battery systems, whilst the optical isolation ensures clean signal transmission to flight stabilisers and complex avionics systems without electrical noise or ground loop problems.

What's in the Box

• Hobbywing Platinum 260A HV OPTO V5 Brushless ESC (model HW30203101)
• 1 x black and 1 x red 8AWG silicone battery wires with pre-soldered connectors
• 3 x black 10AWG silicone motor output wires with pre-soldered connectors
• User manual and documentation

What You Need to Complete

• 6-14S LiPo battery pack (6S to 14S compatible)
• Brushless motor suitable for 700-800 class helicopters or fixed-wing aircraft
• Receiver compatible with Futaba, Spektrum or other standard RC protocols

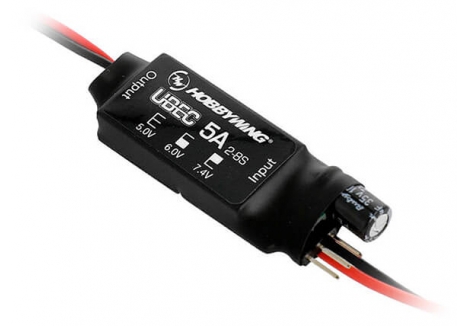

• Power management solution for receiver and servos (external UBEC or separate battery recommended)

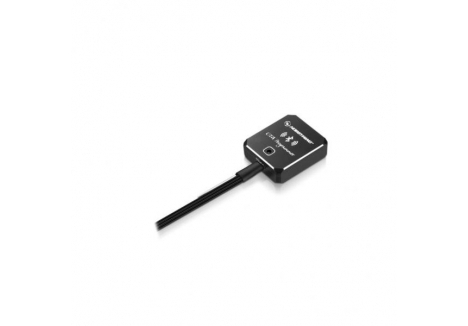

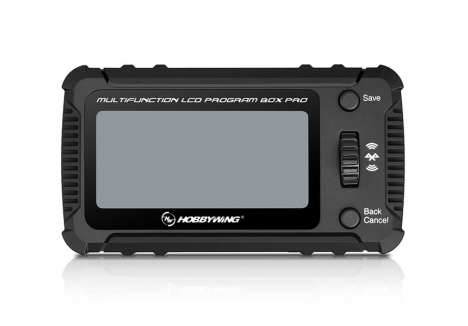

• Hobbywing LCD Program Box (part number 30502001) or OTA Programmer (part number 30850400) for programming and configuration
• Flight stabiliser or governor system if using helicopter control modes
• Appropriate connectors for battery and motor integration

Frequently Asked Questions

• Is the Hobbywing Platinum 260A HV OPTO V5 suitable for helicopter and fixed-wing pilots in the UK? — Yes, this ESC is specifically designed for both 700-800 class electric helicopters with main rotor lengths of 690-880mm and fixed-wing aircraft in the same class. The OPTO version with optical isolation is particularly suitable for helicopters using flight stabiliser systems like VBar or iKON, as it eliminates ground loop issues common with non-isolated ESCs.
• What is the difference between the OPTO V5 and SBEC V5 versions? — The key difference is that the OPTO version (HW30203101) features optical isolation and no built-in BEC, making it ideal for complex helicopter systems requiring clean signal isolation. The SBEC version (HW30203100) includes a built-in 12V programmable switching BEC capable of 10A continuous and 30A instantaneous current output, suitable for simpler fixed-wing applications where integrated power distribution is preferred. Both share identical 260A/400A current ratings and 32-bit processor technology.
• What battery voltage does this ESC require? — The Platinum 260A HV OPTO V5 accepts input voltage from 6-14S LiPo battery packs, providing compatibility with modern lithium polymer battery systems ranging from 22.2V (6S) up to 51.8V (14S), giving pilots excellent flexibility in battery selection for different aircraft weights and power requirements.
• How is this ESC cooled and why does cooling matter? — The innovative double-sided hollow heat dissipation structure with side window design allows cooling air to pass through the ESC and carry heat away from the internal circuit board via the shortest path. The switchable no/single/double fan installation option lets you choose between weight savings and maximum cooling. Better cooling means the ESC operates at lower temperatures, improving reliability during intensive flying and extending component lifespan.
• What telemetry systems does this ESC support? — The Platinum 260A HV OPTO V5 supports multiple advanced backhaul protocols including Mikado VBar System, Futaba S.BUS2, MSH Brain, and iKON devices, allowing you to monitor ESC status and adjust parameters directly from your remote control system or via the OTA Bluetooth programmer on your smartphone.
• How do I programme this ESC? — The ESC supports programming through three methods: the Hobbywing Multifunction LCD Program Box (part number 30502001), the wireless OTA Programmer (part number 30850400) via Bluetooth for smartphone control, or a separate programming port on the ESC itself. Configuration includes 16 adjustable parameters and 4 flight modes for fixed wing and helicopter applications.
• Why is optical isolation important for helicopter flying? — Optical isolation physically separates the signal circuits from power circuits, eliminating ground loop issues that can cause electrical noise and instability when using complex helicopter flight stabiliser systems. This is particularly important for precision constant-speed control in helicopters where every signal needs to be clean and noise-free.
• What protection features does this ESC include? — The Platinum 260A HV OPTO V5 includes comprehensive protection: start-up protection preventing damage during power-up, current protection against overcurrent conditions, temperature protection shutting down if overheating occurs, overload protection, throttle signal loss protection preventing runaway situations, capacitor temperature protection, and input voltage abnormality protection guarding against battery issues.
