Product Details
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
Key Features
- Smart All-in-one Telemetry
- Fast, Powerful 32-bit ARM M4 Processor
- Compact For Easy Installation In Most Applications
- Ready To Install - No Soldering Required
- Limited 1-year Warranty
In The Box
- (1) Spektrum™ Avian™ Smart 200A HV Brushless ESC
- (1) Spektrum Smart Sticker Sheet
- (1) Product Manual
Needed to Complete
- Spektrum™ Aircraft Receiver

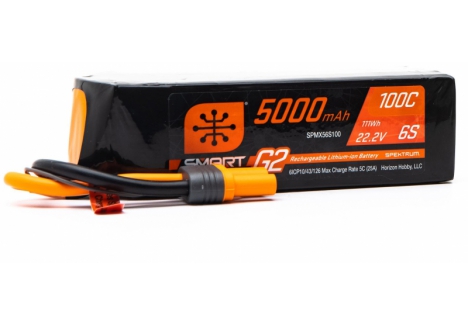

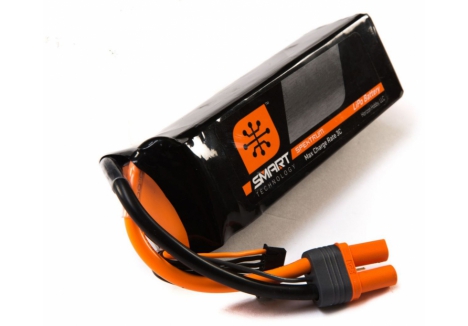

- Spektrum Smart Technology LiPo Battery
- Spektrum Transmitter
Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:

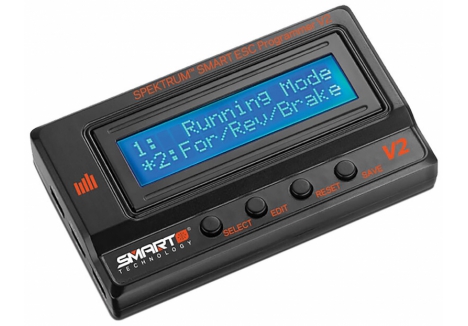

- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install - no soldering required
- Heat dissipating design
- Dual BEC power connectors
- Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Overview
Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
- Brand: Spektrum
- Model Number: P-SPMXAE1200HV

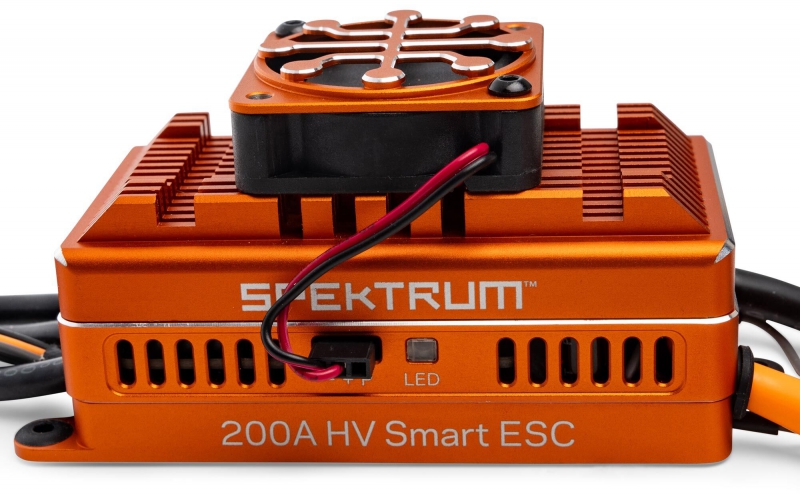

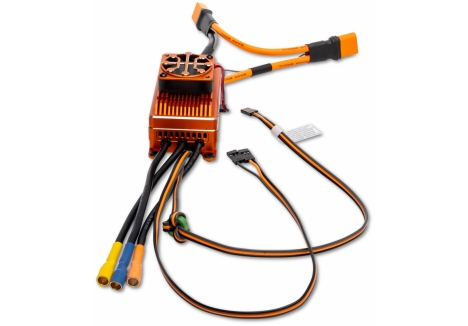

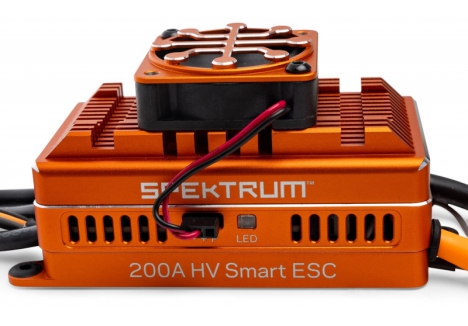

- Product Name: Avian 200A HV Brushless Smart ESC
- ESC Type: Brushless Smart Electronic Speed Controller
- Continuous Current Rating: 200 Amps
- Battery Voltage Range: 6S to 14S LiPo (22.2V to 51.8V)
- Battery Compatibility: LiPo, LiHV (High Voltage)
- Processor: 32-bit ARM M4
- Telemetry: Smart All-in-One Telemetry System
- Weight: 376 grams
- Length: 89mm
- Width: 50mm
- Height: 36mm

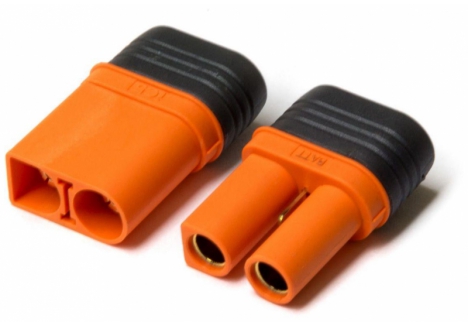

- Connectors: High heat-resistant IC connectors (backwards compatible with EC connectors)
- BEC Power Connectors: Dual connectors
- Protection Features: Over-current protection, automatic LiPo low-voltage cutoff, thermal protection, failsafe protection
- Design: Compact, heat dissipating design
- Installation: Ready to install - no soldering required
- Programming Options: Smart ESC Programming Box, SmartLink USB application, throttle stick programming
- Firmware: Updatable through Smart ESC Programming Box and SmartLink PC application
- Warranty: Limited 1-year warranty
- Receiver Compatibility: Spektrum DSMX/DSM2
- Included Accessories: Spektrum Smart Sticker Sheet, Product Manual
- Additional Components Needed: Spektrum Aircraft Receiver, Spektrum Smart Technology LiPo Battery, Spektrum Transmitter, Brushless Motor, Propeller
Overview
The Spektrum Avian 200A HV Brushless Smart ESC represents the pinnacle of modern electronic speed controller technology for serious RC aircraft enthusiasts across the UK. This is not simply a basic power regulator—it's an intelligent flight management system that transforms how you monitor and optimise your aircraft's performance. Whether you're flying high-performance aerobatic models, large-scale warbirds, or demanding electric aircraft, the Avian 200A HV delivers the reliability, data insight and precision control that competitive pilots demand. Developed through a partnership between Spektrum engineers and the industry's leading ESC manufacturer, this controller combines plug-and-play simplicity with advanced telemetry capabilities that function like having a virtual engineer inside your model.
The Avian 200A HV is designed for pilots who refuse to compromise on performance or safety. Its 200-amp continuous current rating supports everything from 6S to 14S LiPo battery configurations, making it versatile enough for a vast range of aircraft sizes and motor combinations. The Smart technology ecosystem integration means your ESC communicates seamlessly with compatible Spektrum receivers and batteries, providing real-time telemetry data that helps you understand exactly what's happening during flight. For UK RC enthusiasts seeking a brushless ESC with genuine intelligence and reliability built-in, the Avian 200A HV is a serious upgrade that transforms your flying experience.
Key Features
- Smart All-in-One Telemetry System — Unlike conventional ESCs that simply regulate power, the Avian 200A HV provides direct access to vital operating data including current draw, voltage levels, temperature readings and performance metrics. This real-time feedback helps you optimise your aircraft setup for peak efficiency and safety, and gives you confidence that all your electronics are working together perfectly.
- Fast, Powerful 32-bit ARM M4 Processor — The advanced processor architecture ensures lightning-quick response times and smooth power delivery regardless of flying conditions. This high-performance computing core handles complex calculations that optimise motor commutation and electronic control, resulting in smoother acceleration, better efficiency and more predictable flight characteristics.
- Compact Design for Easy Installation — Measuring 89mm long, 50mm wide and 36mm tall with a weight of just 376 grams, the Avian 200A HV fits easily into most aircraft airframes without requiring extensive modifications. The thoughtful compact form factor doesn't compromise functionality—it's engineered specifically to mount in tight spaces where space is at a premium.
- Ready to Install with No Soldering Required — High heat-resistant IC connectors come pre-fitted and are backwards compatible with EC connectors, meaning installation is straightforward for pilots of all experience levels. This plug-and-play approach saves time during setup and reduces the risk of loose connections or cold solder joints that could cause mid-flight failures.
- Multi-Point Protection System — The ESC incorporates over-current protection that safeguards against short circuits and motor binding, automatic LiPo low-voltage cutoff that preserves battery health and prevents over-discharge damage, thermal protection that monitors heat dissipation, and failsafe protection that keeps your model safe if communication is lost.
- Dual BEC Power Connectors — Two independent battery elimination circuit connectors allow you to power multiple receiver and servo combinations, providing redundancy and flexibility for complex aircraft setups with numerous control surfaces.

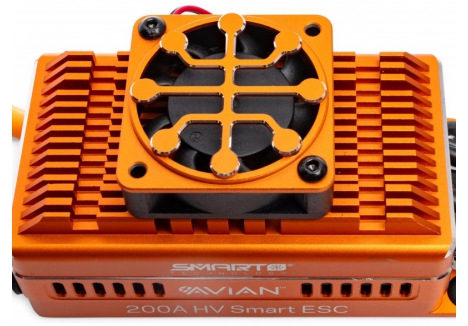

- Heat Dissipating Design — The physical construction includes thermal management features that efficiently disperse heat generated during high-demand flying, ensuring the ESC remains cool even during extended high-current operations or sustained aerobatic manoeuvres.
- Firmware Updatable — Spektrum continuously improves ESC performance through firmware updates, which can be installed via the Smart ESC Programming Box or the SmartLink PC application. This means your investment remains current with the latest optimisations and feature improvements.
- Multiple Programming Options — Configure your ESC using the dedicated Smart ESC Programming Box for on-field adjustments, the SmartLink USB application for detailed computer-based programming, or throttle stick programming for basic settings without additional hardware.
Technical Performance
The Avian 200A HV is engineered for demanding applications where performance, reliability and data insight are non-negotiable. With a continuous current rating of 200 amps and support for 6S through 14S LiPo battery configurations (representing 22.2V to 51.8V), this brushless ESC handles everything from mid-size aerobatic aircraft to large-scale models and high-performance electric jets. The fast 32-bit ARM M4 processor ensures responsive throttle control and smooth motor commutation at any flight envelope. The heat-dissipating design incorporates advanced thermal management that keeps the controller operating safely even during sustained high-current draws that would stress lesser ESCs. All connectors utilise high heat-resistant IC technology, backwards compatible with EC standards, ensuring reliable connections that won't loosen under vibration. The compact 89mm × 50mm × 36mm footprint and 376-gram weight make it suitable for installations where space and weight are critical factors, yet nothing is sacrificed in terms of power delivery or control sophistication. The multi-point protection system—including over-current limiting, automatic low-voltage cutoff for lithium batteries, thermal monitoring, and failsafe functions—ensures your aircraft and valuable components are protected in all conditions. For UK RC aircraft enthusiasts demanding brushless ESC technology that combines intelligent telemetry with proven reliability, the Avian 200A HV sets the performance benchmark.
What's in the Box
- Spektrum Avian 200A HV Brushless Smart ESC
- Spektrum Smart Sticker Sheet
- Product Manual
What You Need to Complete
- Spektrum Aircraft Receiver (compatible with your transmitter system)
- Spektrum Smart Technology LiPo Battery (6S to 14S configuration)
- Spektrum Transmitter (DSMX or DSM2 system)
- Brushless Motor (appropriate KV rating for your aircraft)
- Propeller (suitable for your motor and airframe combination)
Frequently Asked Questions
- What battery voltage does the Spektrum Avian 200A HV support? — The ESC accepts 6S to 14S LiPo batteries, meaning it works with anything from 22.2V (6 cells) through to 51.8V (14 cells). This enormous voltage range makes it suitable for a huge variety of aircraft from mid-size aerobatic models through to large-scale giants and electric jets.
- How does the Smart telemetry system work? — When paired with compatible Spektrum Smart receivers and batteries, the ESC communicates real-time performance data including current draw, voltage levels, temperature and other parameters. You can monitor this information through compatible radio systems, providing unprecedented insight into your aircraft's electrical performance during flight.
- Is the Avian 200A HV difficult to install? — No. The ESC comes pre-wired with plug-and-play connectors—no soldering is required. Simply connect the motor leads to your brushless motor, attach the battery connector, and plug in your receiver leads. The compact design fits into most modern aircraft airframes without modification.
- What's the difference between this and non-Smart ESCs? — The Avian 200A HV is part of Spektrum's Smart ecosystem and provides integrated telemetry, advanced programming options, and communication with other Smart components. Non-Smart ESCs simply regulate power without providing performance data or advanced features. The Smart system gives you genuine insight into what's happening during flight.
- Can I use this ESC with my existing Spektrum radio system? — Yes, the Avian 200A HV is fully compatible with Spektrum DSMX and DSM2 receiver systems. You'll need a compatible Spektrum receiver installed in your aircraft to use the telemetry features, but basic ESC operation works with standard receiver configurations.
- What kind of protection does this ESC offer? — The Avian 200A HV includes multiple layers of protection: over-current protection prevents damage from motor binding or short circuits, automatic low-voltage cutoff protects lithium batteries from over-discharge damage, thermal protection monitors and limits operation if temperatures become excessive, and failsafe protection keeps your model safe if radio signal is lost.
- Is firmware updating easy? — Yes. Updates can be installed using either the Smart ESC Programming Box (portable on-field updates) or the SmartLink PC application (detailed computer-based programming). Spektrum regularly releases firmware improvements that enhance performance and add features.
- What current rating does this ESC handle? — The Avian 200A HV is rated for continuous operation at 200 amps, making it suitable for high-performance aircraft with powerful brushless motors. This current capacity handles demanding applications where sustained high current draw is normal.
