Overview
Drivers enjoy even more Smart advantages when using Spektrum™ Smart G2 100C LiPo batteries to power their vehicles. New "Generation 2" features make these LiPo packs — featuring a 100C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 30C soft-case LiPo packs also include thicker internal metal side plates. These plates improve heat dissipation and provide more protection for the cells against punctures during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging preferences for a Spektrum™ Smart G2 battery until you want to. When a Smart G2 LiPo battery is connected to a Spektrum™ Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.
Spektrum™ Smart G2 100C LiPo batteries store a wide variety of essential information, including:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum™ Smart G2 LiPo 100C batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents. This data can be helpful in assuring that the battery you've chosen is right for the application. Innovative Spektrum™ Smart G2 LiPo 100C batteries are so easy to use, they nearly take care of themselves. It's easy to achieve peak battery performance, reliability and longevity with Smart G2 technology!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.
Features
- Simpler and safer to use
- Powerful 100C continuous discharge rating to deliver maximum performance and longevity
- 100C battery packs are available in a variety of capacities and cell counts that are perfect for almost any application
- Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Thicker internal metal side plates protect cells and improve heat dissipation
- Integrated microchip stores unique parameters for each battery
- IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
- Spektrum™ G2 Smart Charger required (or earlier Smart Charger with G2 update)
- Battery Type: Lithium Polymer (LiPo)
- Battery Chemistry: 3.7V per cell
- Nominal Voltage: 14.8V
- Cell Configuration: 4S (four cells in series)
- Capacity: 5000mAh
- Continuous Discharge Rating: 100C
- Maximum Burst Discharge Rate: 100C
- Watt Hours: 55.5Wh
- Maximum Charge Current: 5A
- Maximum Charge Rate: 5C
- Standard Charge Rate: 1C
- Wire Gauge: 10 AWG
- Connector Type: IC5
- Backward Compatible With: EC5 style connectors
- Case Type: Hardcase
- Product Length: 5.45 inches (138mm)
- Product Width: 1.8 inches (46mm)
- Product Height: 1.37 inches (35mm)
- Product Weight: 18.34oz (520g)
- Technology: Spektrum Smart G2
- Integrated Microchip: Yes
- Auto Storage Discharge: Yes (to 3.90V per cell after 72 hours inactivity)
- Auto Storage Discharge Rate: Up to 1.5A
- Storage Discharge Rate: Three times faster than G1 Smart batteries
- Charge Protection Circuitry: Yes
- Reverse Polarity Protection: Yes
- Thicker Internal Metal Side Plates: Yes (for heat dissipation and cell protection)
- Data Stored in Memory Microchip: Battery brand, battery type, battery capacity, battery C-rating, individual cell voltage, battery temperature, charge/discharge cycles, internal resistance
- Error Logging: Tracks over-heat, over-discharge, and over-charge incidents
- Programmable: Yes
- Balance Connector: G2 Smart (data wire through IC5 connector)
- Requires: Spektrum Smart Charger (not compatible with standard RC chargers)
- Application: Surface (RC cars, trucks, buggies, crawlers, stadium trucks)
- Manufacturer: Spektrum
- Model Number: SPMX54S100H5
Overview

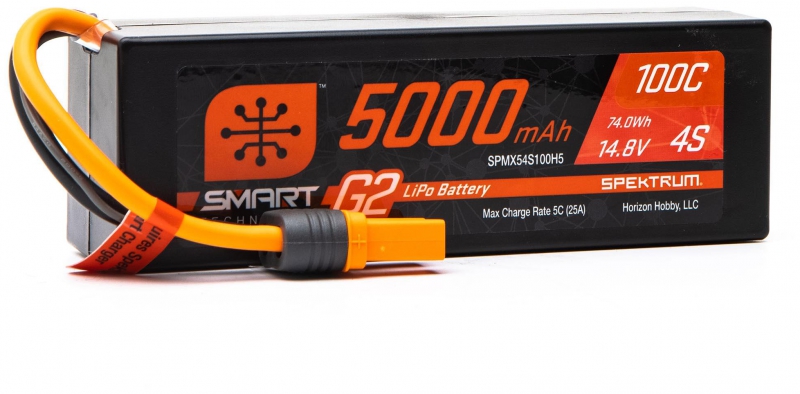

Experience the ultimate in RC battery technology with the Spektrum 14.8V 5000mAh 4S 100C Smart G2 Hardcase LiPo Battery with IC5 connector. This premium lithium polymer battery is engineered specifically for high-performance RC cars, trucks, and surface vehicles that demand maximum power delivery and reliability. Whether you're a serious RC racer in the UK looking to dominate the track, a weekend basher who wants consistent performance, or an enthusiast upgrading your current setup, this Smart G2 battery represents the latest generation of intelligent battery technology that makes RC driving simpler, safer, and more enjoyable than ever before.
The Spektrum Smart G2 range has revolutionised how RC enthusiasts approach battery management and charging. Unlike traditional LiPo batteries that require complex setup procedures and separate balance leads, this innovative battery communicates directly with your Spektrum Smart charger through a single IC5 connector. All your charging parameters, battery health data, and performance history are stored in an integrated microchip and automatically uploaded to your charger when you connect it. This means no more guessing about charge rates, no more confusion about balance leads, and no more risk of incorrect charging procedures damaging your expensive battery pack.
Built with durability and longevity in mind, the hardcase construction protects your investment during transport and storage, whilst the internal engineering delivers exceptional performance when you need it most. With a powerful 100C continuous discharge rating, this 4S battery provides the raw power needed for high-speed runs, aggressive acceleration, and demanding driving styles that push your RC vehicle to its limits.
Key Features
- 100C Continuous Discharge Rating — This exceptional power delivery specification means the battery can safely provide 500 amps of continuous current (5000mAh × 100C), ensuring your RC car or truck has maximum punch on acceleration and maintains consistent power throughout your driving session, making it ideal for competitive racing and aggressive driving styles.
- Smart G2 Technology with Integrated Microchip — Each battery contains an intelligent microchip that stores unique parameters including battery capacity, cell count, C-rating, charging cycles, discharge cycles, temperature data, and internal resistance, plus a comprehensive error log tracking over-heat, over-discharge, and over-charge events to help you monitor battery health.
- One-Connection Charging — No Balance Lead Required — Revolutionary IC5 connector design enables both charging and balancing through a single data wire connection; simply plug your battery into your Spektrum Smart charger and charging begins automatically without the need for separate balance leads, reducing setup time and eliminating connection errors.
- Auto Storage Discharge Technology — The battery automatically discharges to a safe storage voltage of 3.90V per cell after 72 hours of inactivity, protecting your investment from permanent damage caused by over-charged cells during storage, with discharge rates three times faster than previous generation G1 batteries.
- Hardcase Protection — Rigid protective case shields your battery from impact damage, punctures, and physical stress during transport and storage, ensuring your 5000mAh capacity remains protected whether you're storing it at home or carrying it to the track.
- Thicker Internal Metal Side Plates — Enhanced internal construction with reinforced metal plates improves heat dissipation during high-drain applications and provides additional protection for the battery cells against damage from rough landings or impact situations common in RC driving.
- 14.8V 4-Cell Configuration — This 4S (4-cell) lithium polymer battery delivers 14.8V nominal voltage, making it ideal for mid-to-high performance RC surface vehicles including stadium trucks, short-course trucks, buggies, and high-speed racing cars that require substantial power without excessive weight.
- 5000mAh High Capacity — The substantial 5000mAh energy storage provides extended runtime during driving sessions, allowing you to enjoy longer periods of operation between charges whilst maintaining consistent voltage delivery throughout your run.
- Automatic Parameter Upload — When connected to a compatible Spektrum Smart charger, your battery's complete charging history, health information, and performance data automatically upload to the charger's memory, allowing you to review battery condition and make informed decisions about your setup.
- User-Customisable Charge Rate Memory — The integrated memory remembers the last charge rate you configured, so the next time you plug in your battery, these settings automatically take effect without requiring manual adjustment, streamlining your charging workflow.
- EC3 and EC5 Backward Compatibility — Whilst featuring the modern IC5 connector, this battery maintains backward compatibility with older EC5-style connectors, allowing you to use it with legacy RC systems if needed.
- 10 AWG Wire Gauge — Heavy-duty wire construction ensures minimal voltage drop during high-current discharge, delivering maximum available power to your ESC and motor without losses caused by undersized wiring.
- 55.5 Watt-Hour Capacity — This energy rating (14.8V × 5000mAh) provides reference for comparing battery performance and helps determine suitability for different vehicle types and driving styles.
- Maximum 5A Charge Current — The battery supports up to 5A fast charging when used with compatible Smart chargers, allowing you to fully recharge your pack in approximately one hour from completely discharged state.
- 5C Maximum Charge Rate — This rating indicates the battery can be charged at 1C standard rate (5 amps) without stress or damage, optimising the balance between charge speed and battery longevity.
Technical Performance
The Spektrum Smart G2 14.8V 5000mAh 4S battery represents the pinnacle of RC lithium polymer battery engineering. The 100C continuous discharge rating translates to real-world performance: this battery can deliver up to 500 amps of current continuously, providing the explosive acceleration and sustained power that competitive RC racing demands. The 4S (four-cell) configuration delivers 14.8V nominal voltage, which is precisely the specification required by modern brushless ESC units and high-performance RC vehicles. The 5000mAh capacity strikes an optimal balance between run time and weight, allowing you to enjoy extended driving sessions without the battery becoming a significant proportion of your vehicle's overall mass. Constructed with premium lithium polymer chemistry, the individual cells are protected by reinforced hardcase housing and internal metal side plates that dissipate heat efficiently during intense driving. The 10 AWG wire gauge ensures minimal electrical resistance, meaning virtually all the power stored in the battery reaches your motor without losses in the wiring. Temperature monitoring within the integrated microchip helps prevent over-heat situations, whilst the sophisticated cell balancing system maintains uniform voltage across all four cells for maximum longevity. This battery has been engineered to work seamlessly with Spektrum's Smart charger ecosystem, where charging parameters optimise charge cycles and protect your investment through intelligent monitoring. Whether you're running a 1/10-scale buggy, a short-course stadium truck, or any other high-performance RC surface vehicle, this battery delivers the consistent, reliable power that UK RC enthusiasts expect from a premium Spektrum product.
What's in the Box
- 14.8V 5000mAh 4S 100C Smart G2 Hardcase LiPo Battery with IC5 connector
What You Need to Complete

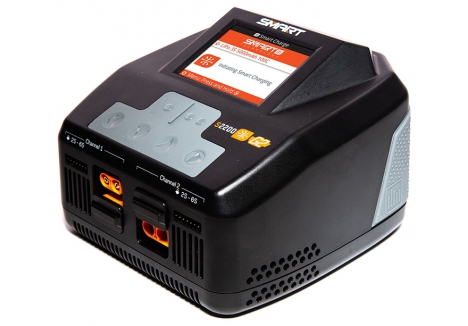

- Spektrum Smart Charger (required for charging and balancing this Smart G2 battery — standard RC chargers cannot be used with Smart batteries)
- RC vehicle compatible with 14.8V 4S LiPo batteries and equipped with IC5 connector or compatible EC5 connector

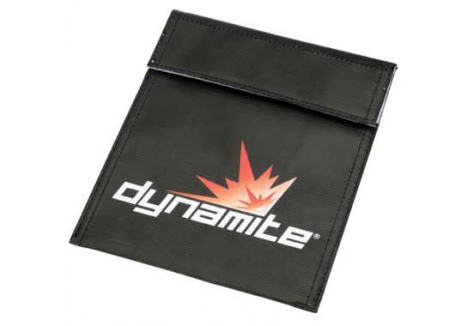

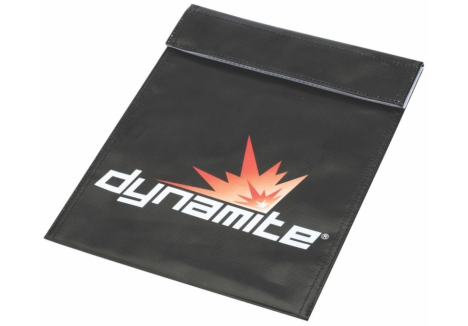

- Battery charging bag or safe storage container (recommended for safe charging and storage practices)
Frequently Asked Questions
- Can I use this Spektrum Smart G2 battery with my existing RC charger? — No, this Smart G2 battery requires a Spektrum Smart Charger to function properly. The integrated microchip communicates exclusively with Smart chargers, which automatically upload and read the battery's stored parameters. Standard hobby chargers cannot access Smart battery technology and will not charge these batteries correctly. You must use an authentic Spektrum Smart Charger such as the S2100 G2 or similar models.
- What makes Smart G2 technology different from standard LiPo batteries? — Smart G2 batteries contain an integrated memory microchip that stores comprehensive battery data including capacity, C-rating, charge cycles, temperature history, and error logs. When connected to a Spektrum Smart Charger, this data automatically uploads to the charger, which then applies the correct charging parameters automatically. You simply connect the battery and charging begins safely without manual setup. Additionally, Smart G2 batteries feature auto-discharge to safe storage voltage after 72 hours of inactivity, protecting your investment automatically.
- Do I need separate balance leads for charging this battery? — No, this is one of the major advantages of Smart G2 technology. Balance information travels through the IC5 connector's data wire, so only a single connection is required for both charging and balancing. There is no separate balance lead to connect, eliminating confusion and reducing the risk of connection errors that could damage the battery.
- How long does it take to charge a 5000mAh 4S battery fully? — Using a Spektrum Smart Charger with 5A output at 5C charge rate, a completely discharged 5000mAh battery requires approximately one hour to reach full charge. The charger includes a countdown timer on its display showing remaining charge time. Charging time varies depending on the current charge state and charger specifications.
- What is the difference between this 100C battery and lower C-rated batteries? — The 100C rating indicates maximum continuous discharge capability; this battery can safely deliver 500 amps continuously (5000mAh × 100C), whereas a 50C rated battery could only deliver 250 amps continuously. Higher C-rating means more power available for acceleration, higher top speeds, and the ability to drive more aggressively without voltage sag. For competitive racing and high-performance RC cars, the 100C rating provides a significant advantage.
- Can this 4S battery be used in vehicles designed for 3S batteries? — No, 4S batteries operate at 14.8V nominal voltage compared to 3S at 11.1V. Using a 4S battery in a 3S-only vehicle can damage the ESC and motor. Always match your battery cell count to your vehicle's specified requirements. A 4S battery is designed for vehicles that specifically list 4S compatibility.
- Is this battery suitable for beginners? — Yes and no. The battery itself is excellent for beginners because Smart G2 technology removes the complexity of manual charging setup — the charger handles everything automatically. However, the high 100C discharge rating and associated power delivery make it best suited for vehicles designed to handle this power. Beginners should confirm their RC vehicle is rated for 4S LiPo and 100C batteries before purchasing.
- How should I store this battery safely? — Store your battery in a cool, dry location at room temperature. The Smart G2 auto-discharge feature automatically brings your battery to safe 3.90V storage voltage after 72 hours of inactivity, so you don't need to manually discharge it. For extended storage periods of weeks or months, keeping your battery at this storage voltage maximises cell lifespan. Consider using a LiPo bag or fire-resistant storage container as a safety precaution.
- What does the 14.8V 4S specification mean? — This battery contains four lithium polymer cells connected in series, with each cell providing 3.7V nominal voltage (4 × 3.7V = 14.8V). The "4S" designation is standard RC terminology for four-cell batteries. This is a common configuration for mid-to-high performance RC surface vehicles.
- Can I use this battery in multiple vehicles? — Yes, provided all your vehicles feature IC5 connectors (or compatible EC5 connectors) and are rated for 4S LiPo batteries with 100C discharge capability. You can swap this battery between vehicles, and the Smart microchip will track cycle counts and history for your records.
- What does the hardcase design protect against? — The rigid hardcase shell protects the battery from impact damage, punctures from sharp objects, crushing forces during transport, and abrasion during storage. Hardcase batteries are more durable than soft-case alternatives, making them ideal for drivers who frequently transport their batteries or operate in rough environments.
- How do I know when my battery needs replacement? — Smart G2 batteries track charge cycle counts and unhealthy events in their error log. When connected to your Spektrum Smart Charger, you can review this history and monitor battery health. Typical signs of aging include reduced runtime, increased voltage sag under load, or swelling of the battery case — any of these indicate the battery should be retired from service and disposed of responsibly.
