Overview

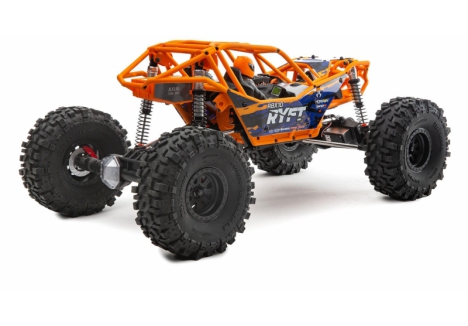

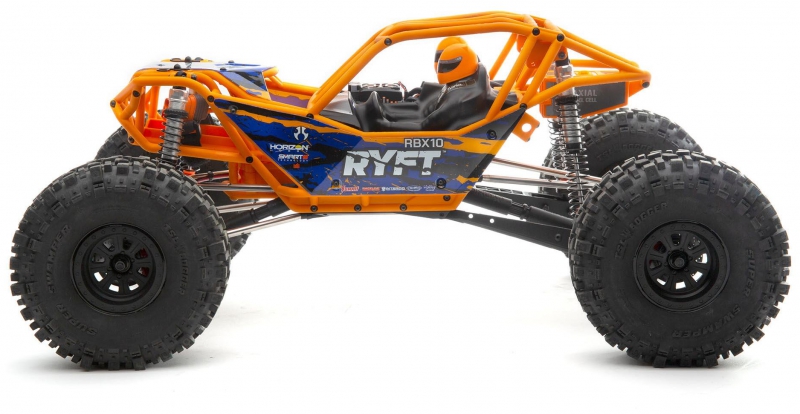

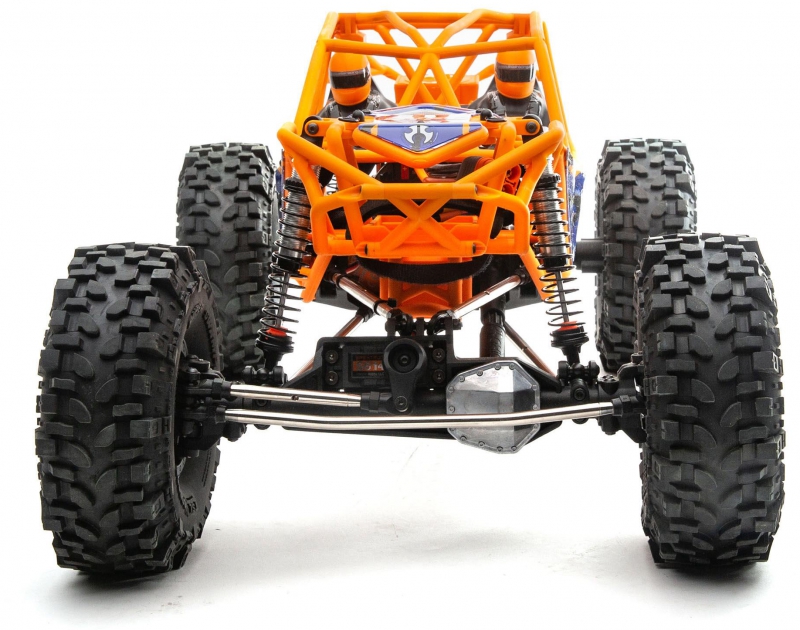

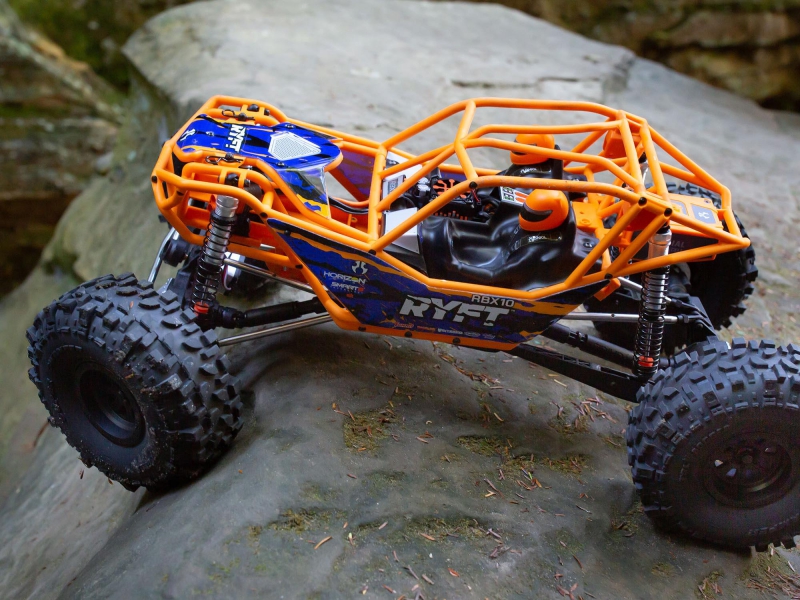

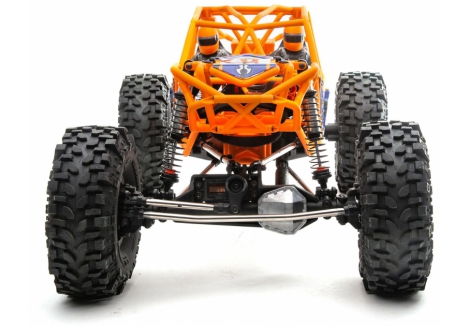

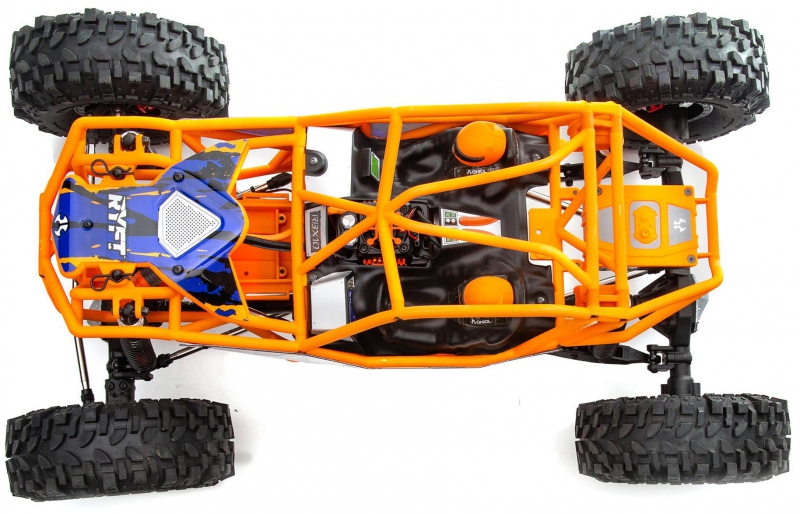

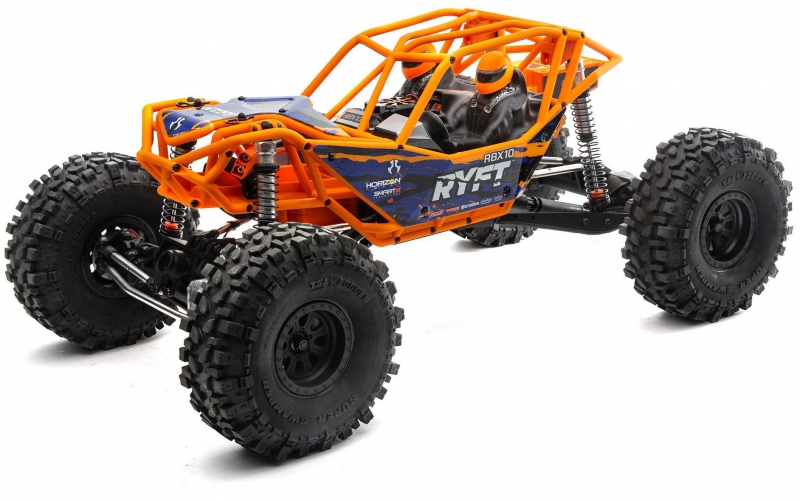

Axial® introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD — a ground-up new ready to run RC rock racer that lets any RC driver experience the thrills of authentic rock bouncer off-road action. Like real full-size rock bouncers that refuse to stop or back down on the throttle when facing steep climbs and massive boulders, the RBX10™ Ryft™ 4WD is built to handle lots of abuse and loads of power. This ready to run brushless RC car is engineered specifically for enthusiasts who want to explore trails, rocky terrain, dirt, gravel and rugged landscapes without fear of machine breakdown. Whether you're new to RC hobbies or an experienced driver looking for a specialised rock bouncer, the RBX10™ Ryft™ delivers unstoppable performance with exclusive Spektrum® technologies built in from the factory.
The Axial RBX10 Ryft is ideal for beginner to intermediate RC enthusiasts who are interested in the rock bouncing style of off-road driving. This 1/10 scale 4WD rock racer requires absolutely no assembly — it arrives as a ready to run (RTR) model, fully built and tested, requiring only a battery and charger to get started. The striking orange factory finish combined with robust engineering makes this one of the most capable entry-level rock bouncer platforms available in the UK ready to run RC market today.
What sets the RBX10™ Ryft™ 4WD apart from standard RC crawlers is its focus on speed and aggression. Featuring a powerful 4S-capable 2200Kv brushless motor paired with the waterproof Spektrum Firma™ 130A Smart ESC, this machine delivers genuine rock bouncing thrills over natural terrain. The combination of solid front and rear axles, a robust tube chassis design, full-time 4WD transmission, and licensed Interco TSL Bogger tyres mounted on Raceline wheels means you're getting professional-level engineering in an accessible package.
Key Features

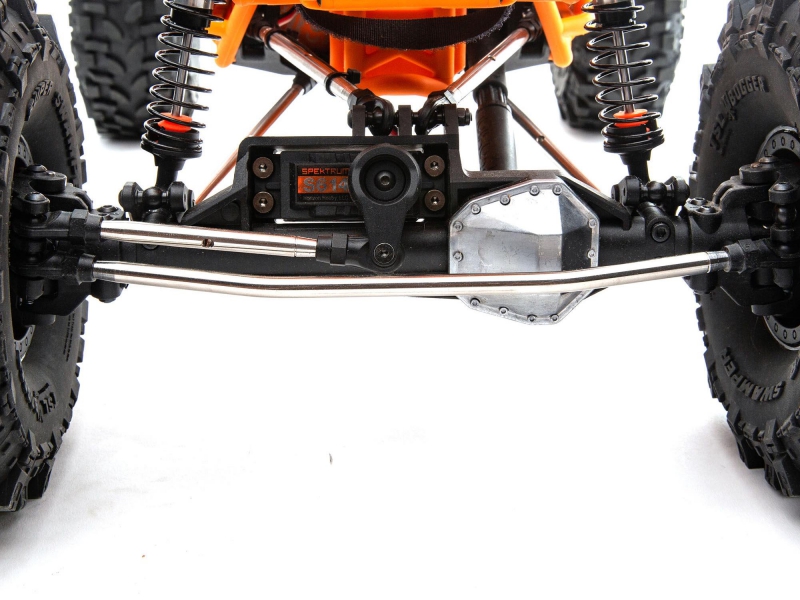

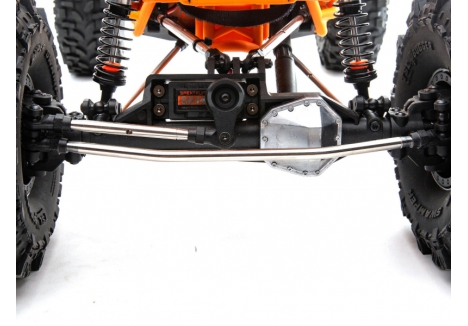

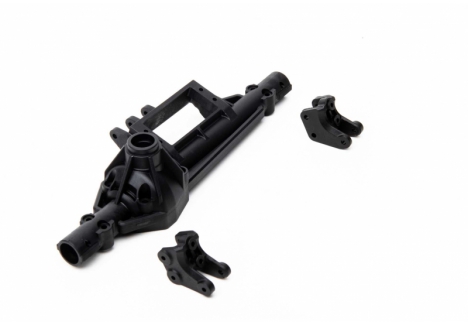

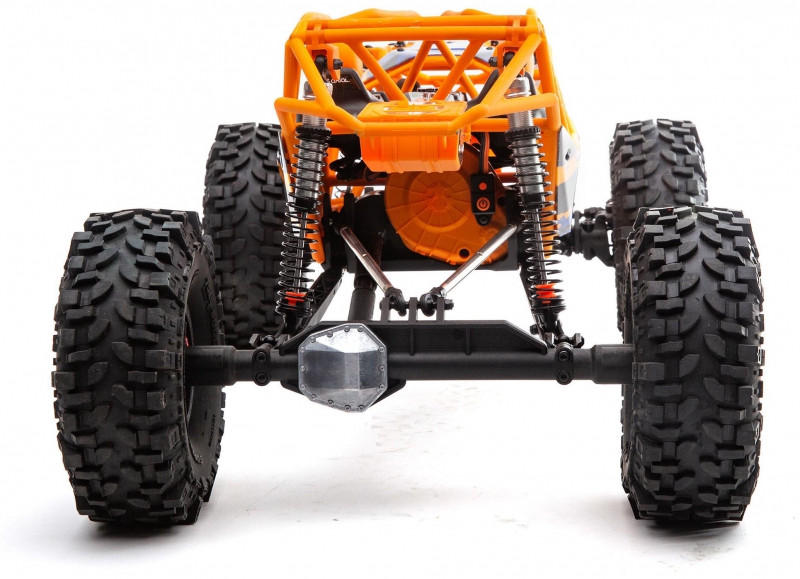

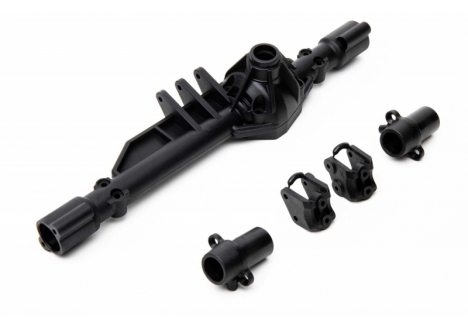

- Solid Axles Front and Rear with Universal Axle Joints — The RBX10™ Ryft™ features durable one-piece, moulded plastic solid axle designs at both front and rear with metal differential covers, engineered to handle the punishment of high-speed rock bouncing without flexing or breaking under load.

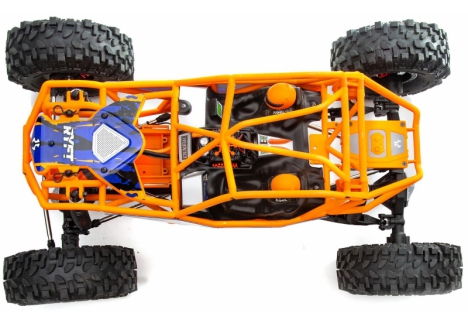

- Robust Tube Chassis Design — The custom tube chassis is engineered from high-strength composite plastic that withstands the hard knocks of RC off-roading and high-speed trail running, providing a rigid foundation that resists impact damage from rocks, roots and uneven terrain.
- 4S-Capable Brushless Motor (2200Kv) — The powerful 2200Kv brushless motor can be pushed to full 4S LiPo power for maximum performance, delivering genuine speed and acceleration across rocky trails whilst maintaining reliability and efficiency.
- Full-Time 4WD Transmission — Unlike part-time 4WD systems, the full-time 4WD transmission keeps power flowing to all four wheels at all times, providing superior traction and capability across loose terrain, slick surfaces and technical rock gardens.
- Licensed Raceline Wheels and Interco TSL Bogger Tyres — These authentic licensed wheels and Three Stage Lug Bogger tyres are specifically designed for rock bouncing, providing aggressive grip and realistic appearance whilst tackling demanding terrain.
- Long Travel Front and Rear Shocks — The extended travel suspension (5.11 inches front, 5.70 inches rear) with oil-filled shock absorbers keeps the chassis stable and controlled over massive rocks and vertical climbs without bottoming out.
- 4-Link Suspension Geometry — The suspension uses a four-link design optimised to reduce axle steer, provide proper anti-squat and roll characteristics, and prevent suspension wrap-up in high-power rock bouncing applications.

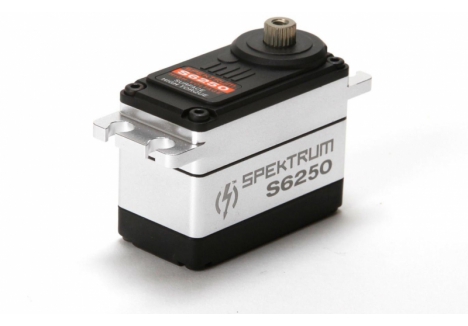

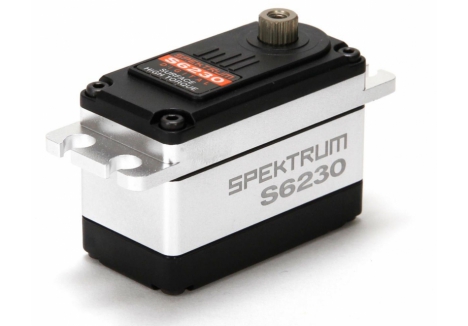

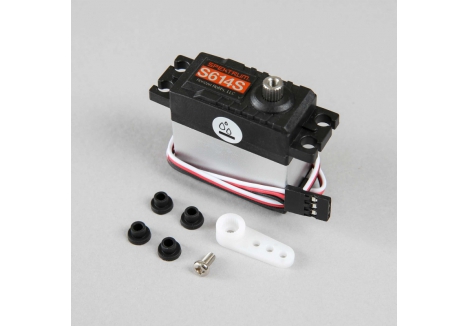

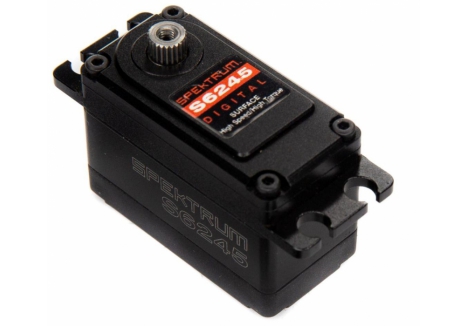

- Waterproof 15kg Servo — A robust, water-resistant steering servo rated at 15kg torque handles precise directional control even in wet conditions and muddy terrain.
- Spektrum® DX3™ 3-Channel 2.4GHz DSMR® Radio Transmitter — The included radio system features exclusive DSMR® (Distributed Spectrum Multiple Response) technology for superior range, response and interference resistance, ensuring reliable control even in busy RF environments.

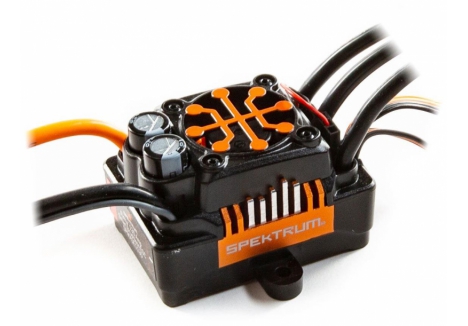

- Spektrum® Firma™ 130A Smart ESC — This waterproof, feature-packed brushless speed controller delivers intelligent power management and feeds real-time telemetry data directly to your DX3™ transmitter, with full compatibility for 2S to 4S LiPo batteries.

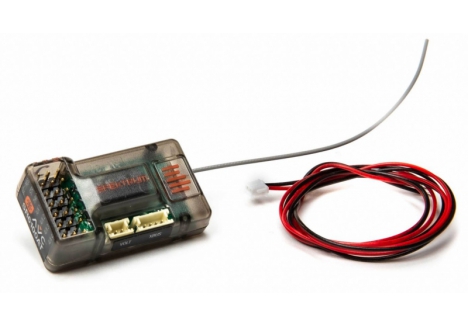

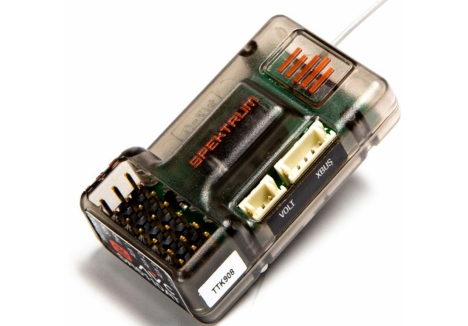

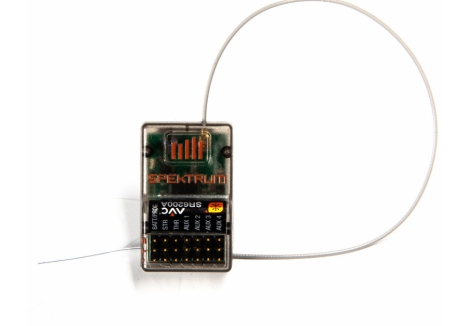

- Spektrum® SR6100AT 6-Channel DSMR® AVC/Telemetry Receiver — The receiver supports frequency-agile DSMR® technology, full-range telemetry capabilities, and integrated Active Vehicle Control® (AVC®) traction assistance for enhanced stability.
- AVC® (Active Vehicle Control®) Technology — Included here for the first time in an Axial® RTR vehicle, this on-demand traction control system lets you dial in extra stability when climbing hills or launching ledges without backing off the power, giving you full-throttle freedom over rough terrain, slick surfaces and loose dirt.
- Smart Telemetry Capability — When paired with a Spektrum™ Smart LiPo battery, the system displays on-board battery capacity at a glance on the DX3™ transmitter's voltage level indicator, with an audible alarm when voltage gets low.
- Ready-to-Run Completion Level — Everything is assembled, bound, balanced and tested from the factory. Simply charge a battery and go — perfect for UK RC enthusiasts who want immediate off-road action without lengthy assembly time.
Technical Performance

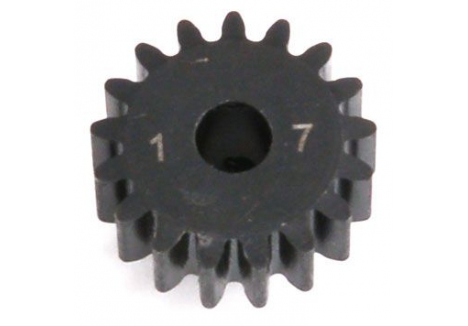

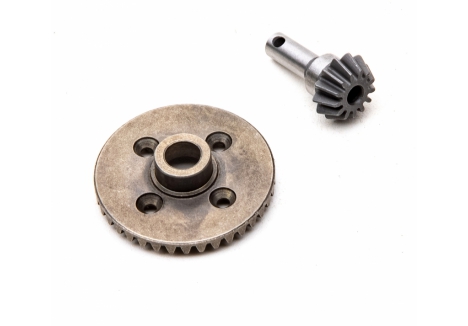

The RBX10™ Ryft™ 4WD represents a significant step forward in ready to run RC rock racer engineering. The chassis is built from injection-moulded plastic composite materials engineered for impact resistance and durability under extreme stress. The brushless motor system uses a 3660 size motor with 2200Kv rating, capable of accepting 3S or 4S LiPo batteries via the IC5 connector. The Spektrum Firma™ 130A ESC is waterproof and rated for continuous operation across the full battery compatibility range, with integrated thermal management to prevent overheating during sustained high-throttle runs. The motor drives through a full-time 4WD transmission with bevel gear differentials and a 17-tooth pinion engaging a 53-tooth spur gear (Mod 1 pitch) for balanced power delivery and realistic rock bouncing speeds. The suspension geometry combines oil-filled shocks front and rear (130mm travel at front, 145mm at rear) with the innovative 4-link design that maximises stability during climbs and prevents unwanted axle steer during cornering or quick direction changes. Ground clearance of 3.25 inches provides excellent obstacle clearance for rocky terrain. The vehicle measures 546mm in length, 324mm in width and 222mm in height, with a wheelbase of 387.35mm (15.25 inches) — proportions that closely mirror full-size rock bouncers. Total assembled weight is just 3.29kg (7.26lbs), keeping the vehicle light enough for responsive handling whilst maintaining stability. The water-resistant construction means it can handle light rain and wet grass, though not full submersion. All electronics including the ESC and receiver come from Spektrum, ensuring seamless integration and reliability.
What's in the Box
- 1x Axial® RBX10™ Ryft™ 1/10 4WD RTR (fully assembled and tested)

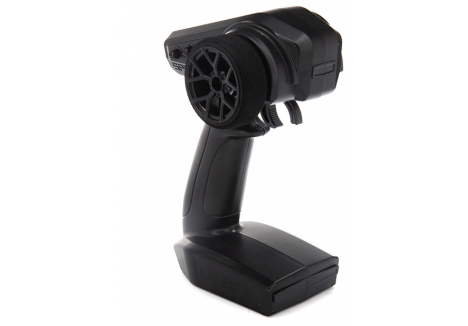

- 1x Spektrum™ DX3™ 3-Channel 2.4GHz DSMR® Radio Transmitter
- 1x Spektrum™ SR6100AT 6-Channel DSMR® AVC/Telemetry Receiver
- 1x Spektrum™ Firma™ 130A Smart ESC (waterproof brushless speed controller)

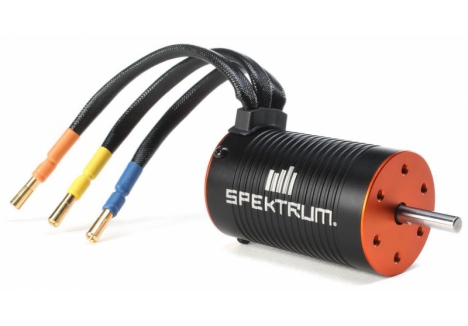

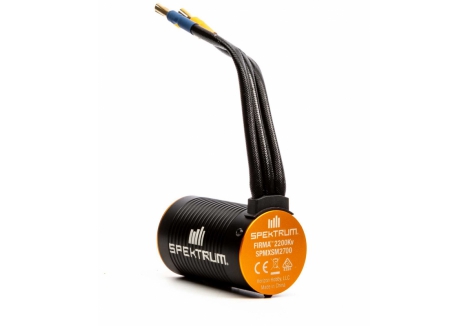

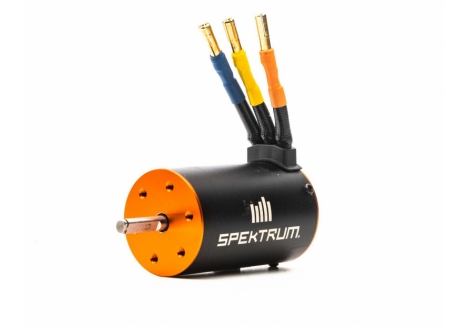

- 1x 2200Kv Brushless Motor (pre-installed)
- 1x RBX10 Ryft 4WD RTR User Manual (English, German, French and Italian versions available)
What You Need to Complete

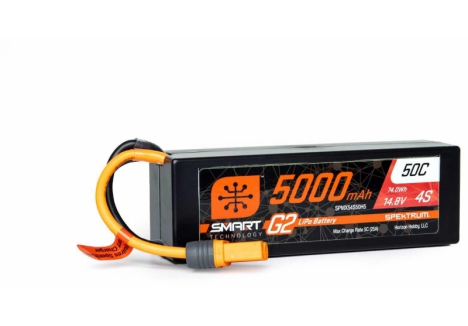

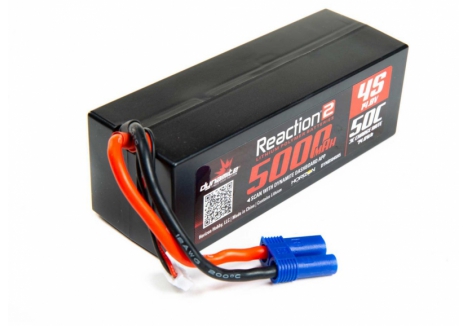

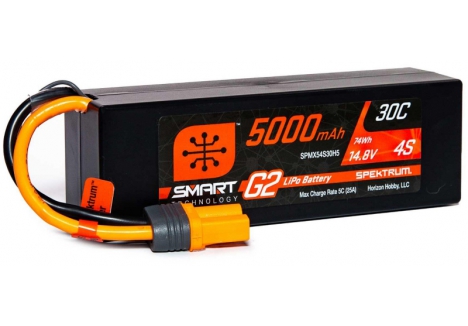

- 1x 3S or 4S Standard or Shorty LiPo Battery with EC5™ or IC5™ connector (battery sold separately)
- 1x Compatible LiPo Battery Charger (charger sold separately)
- 4x AA Alkaline Batteries for Transmitter (a 4-pack is typically included)
Frequently Asked Questions
- Is the Axial RBX10 Ryft suitable for beginners in rock bouncing RC? — Yes, absolutely. The RBX10™ Ryft™ 4WD is specifically marketed as ideal for beginner to intermediate RC enthusiasts. It requires no assembly, arrives ready to run, and includes the Spektrum DX3™ radio which is intuitive to use. The included AVC® traction control technology helps new drivers maintain stability, and the DSMR® radio system is forgiving of interference in different environments. The solid axle design and 4-link suspension are more forgiving of driving mistakes than independent suspension systems.

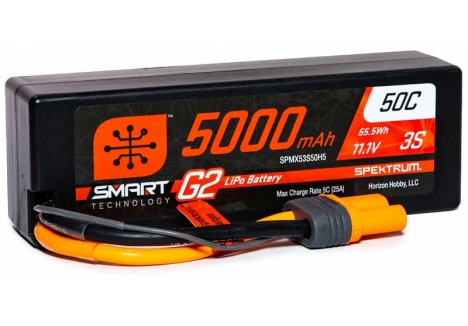

- What battery does the RBX10 Ryft need and how long does it run? — The RBX10™ Ryft™ 4WD is compatible with 3S and 4S LiPo batteries (11.1V and 14.8V respectively) with EC5™ or IC5™ connectors. Standard batteries are recommended, though Shorty packs will also fit. The vehicle does not come with a battery — you must purchase separately. Runtime varies depending on your driving style (continuous full throttle versus mixed speed) and battery capacity, but a 5000mAh battery typically provides 20-30 minutes of active use.
- Does the RBX10 Ryft come with everything I need to start driving? — The vehicle itself is fully assembled and ready, including motor, ESC, radio transmitter, receiver and servo. However, you must supply a LiPo battery with appropriate connector (EC5™ or IC5™), a compatible LiPo charger, and 4x AA batteries for the radio transmitter. Once you have these three items, you can drive immediately.
- What makes the RBX10 Ryft different from other 1/10 scale RC vehicles? — The RBX10™ Ryft™ 4WD is purpose-built for rock bouncing — a specific off-road discipline focused on high-speed climbing and traversing rocky, boulder-strewn terrain. Unlike standard RC crawlers which prioritise low-speed torque and articulation, or buggies which prioritise flat-track speed, the Ryft balances both. The licensed Interco TSL Bogger tyres, solid axle design, four-link suspension, and powerful 2200Kv brushless motor are all optimised specifically for this style. The inclusion of AVC® traction control and Smart telemetry in an RTR vehicle at this price point is also exceptional.
- Is the RBX10 Ryft waterproof? — The vehicle is water-resistant rather than fully waterproof. The Spektrum Firma™ 130A ESC is waterproof, the servo is water-resistant, and the receiver is protected. This means the vehicle can handle light rain and wet grass, but is not rated for full submersion or river crossings.
- How fast is the RBX10 Ryft? — Speed varies depending on battery used and terrain. With a 3S LiPo battery, expect moderate rock-bouncing speeds optimised for control and stability. With a 4S battery, the 2200Kv motor will deliver higher speeds suitable for more aggressive rock garden running. Exact top speed specifications are not published, as performance varies greatly depending on terrain, gear selection and driving technique — rock bouncing prioritises control and line choice over flat-out speed.
- Can I upgrade the motor or ESC on the RBX10 Ryft? — Yes, both components are replaceable. However, the included 2200Kv motor and 130A Firma ESC are well-matched and represent an excellent specification. Any upgrades should maintain compatibility with the IC5 connector, the DX3™/SR6100AT receiver system, and the 4S battery limit unless the vehicle is significantly modified.
- What is DSMR® technology and why does it matter? — DSMR® (Distributed Spectrum Multiple Response) is Spektrum's proprietary digital radio technology that provides superior range, faster response time, and superior interference resistance compared to standard 2.4GHz systems. In practical terms, you get more reliable control at greater distances and better performance in environments with multiple RC vehicles operating simultaneously.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the AXIAL 1/10 RBX10 Ryft 4WD Rock Racer RTR Orange C-AXI03005T1 today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
Parts Diagrams
Front Assembly
Rear Assembly
Chassis and Transmission Assembly

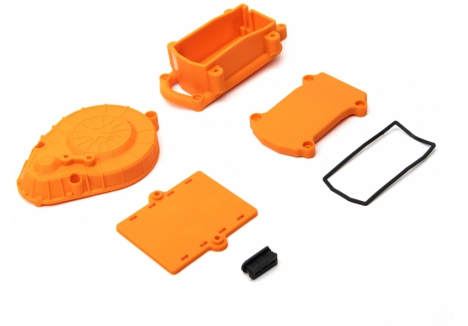

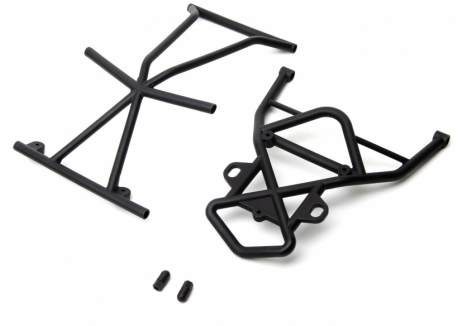

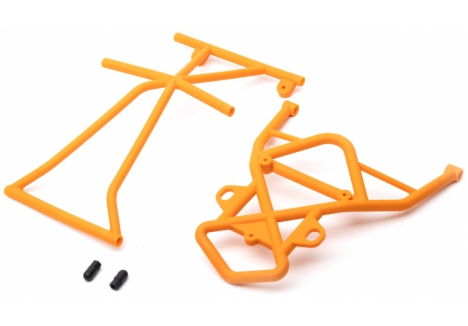

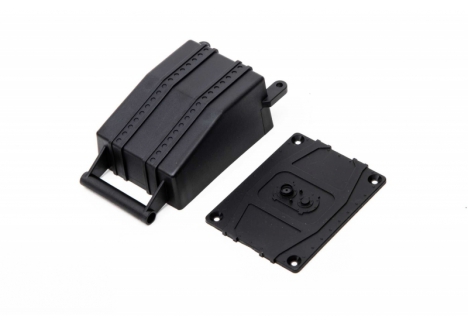

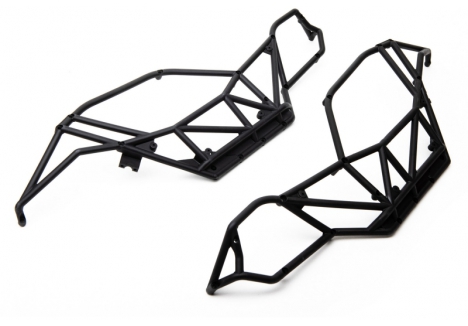

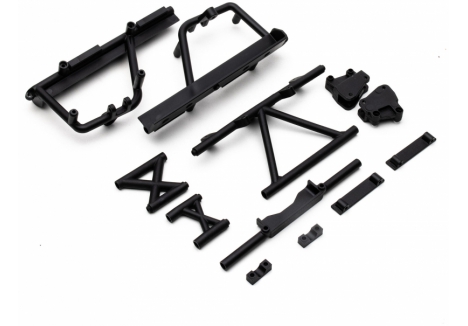

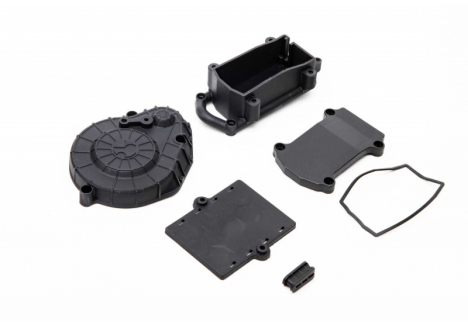

Roll Cage and Receiver Box Assembly

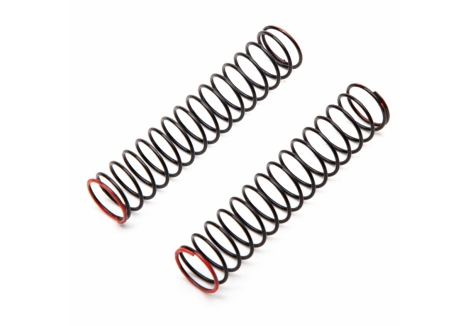

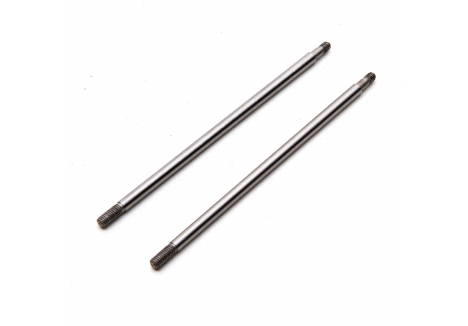

Shock Absorber Assembly

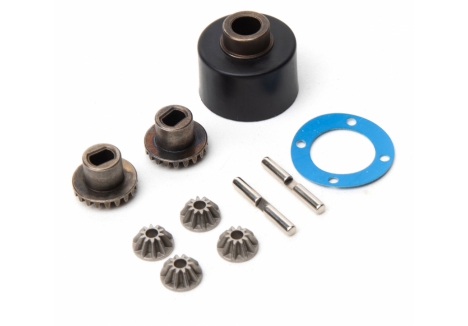

Differential Assembly

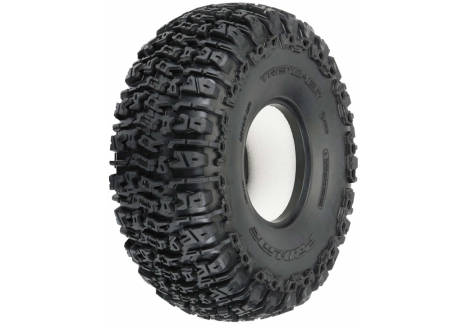

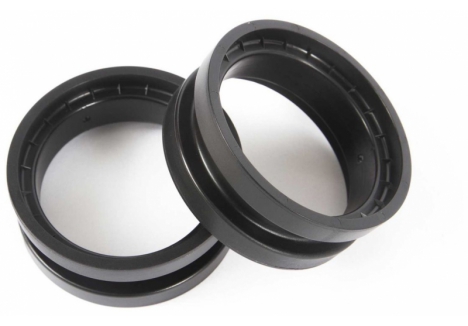

Wheel and Tyre Assembly
