Overview

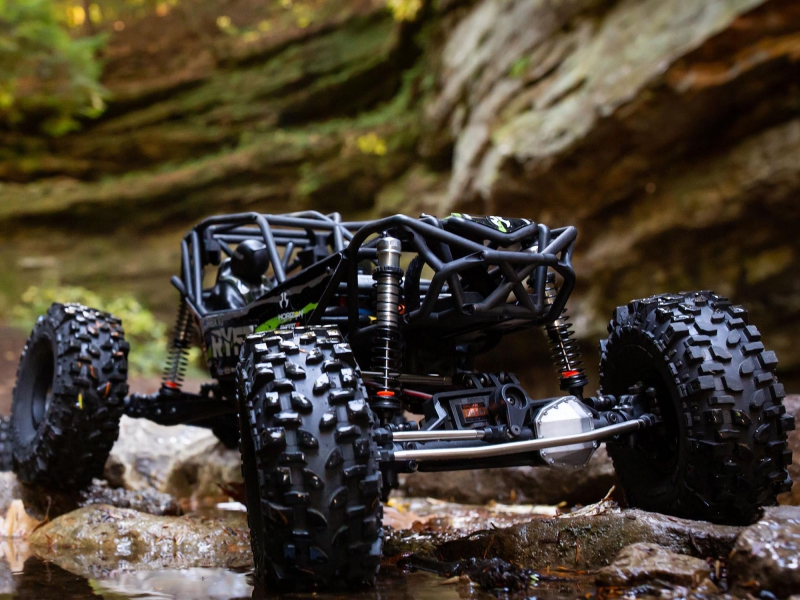

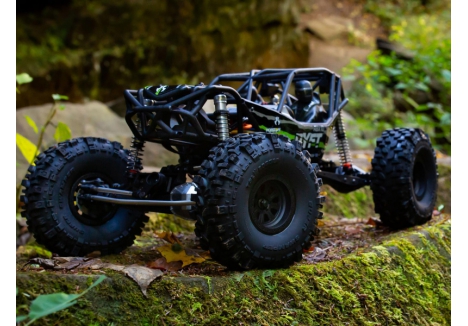

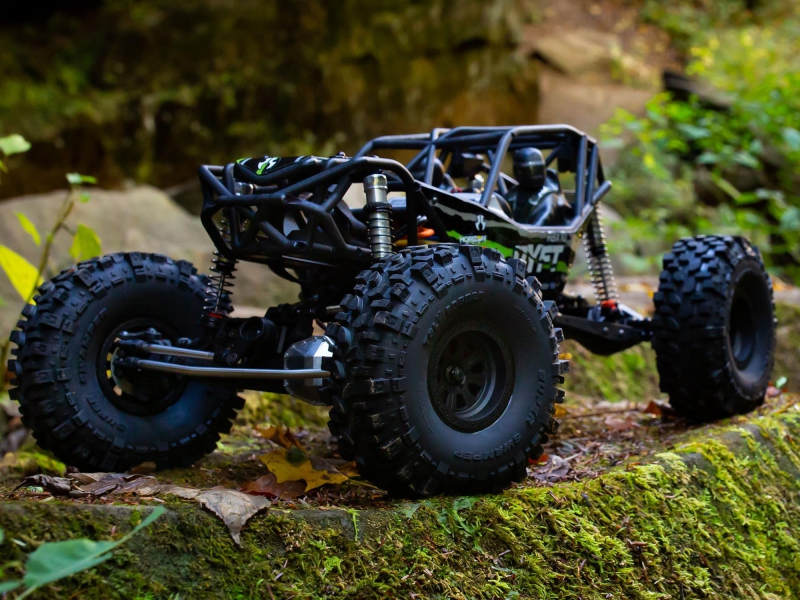

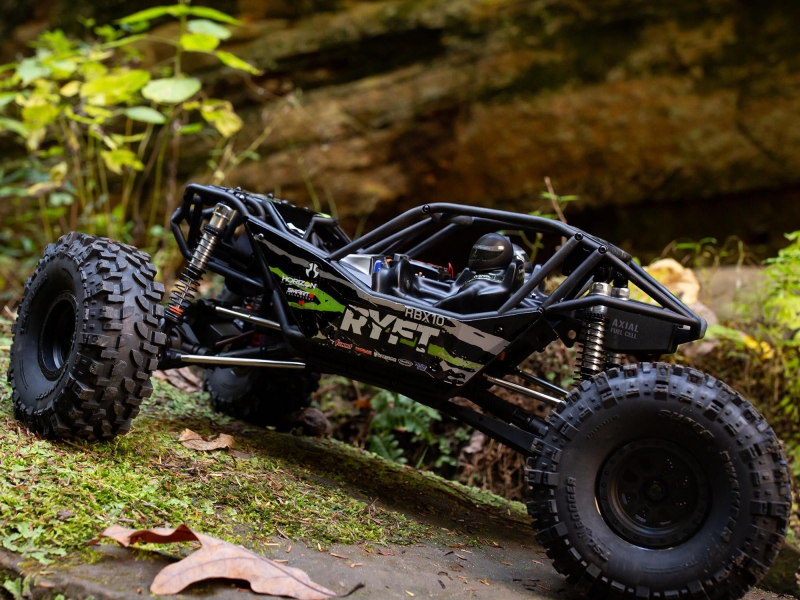

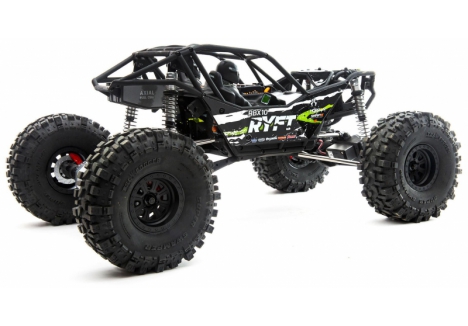

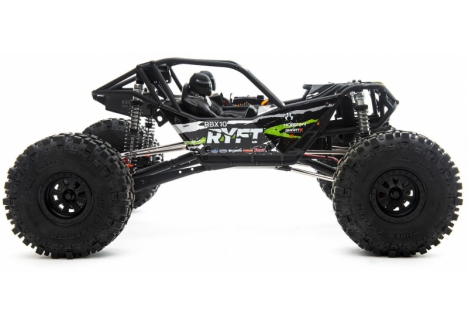

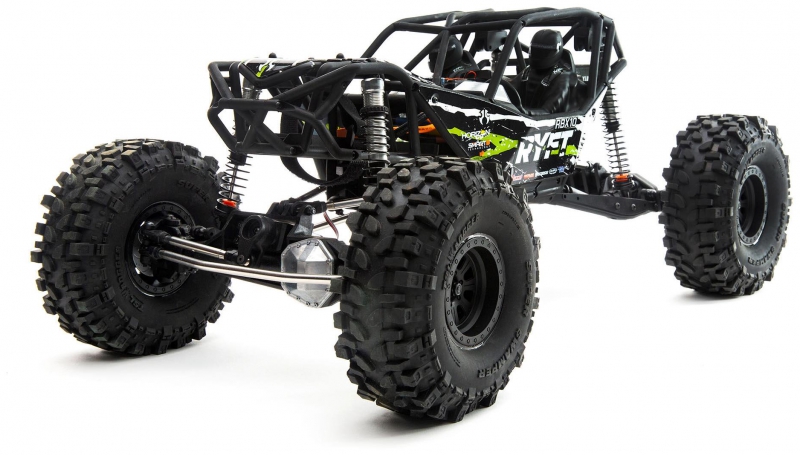

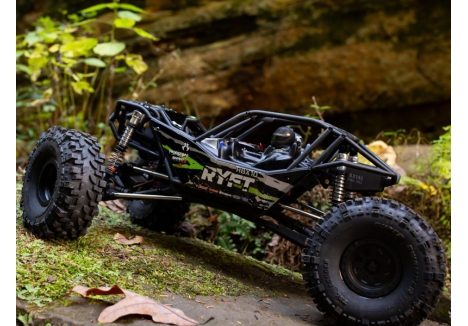

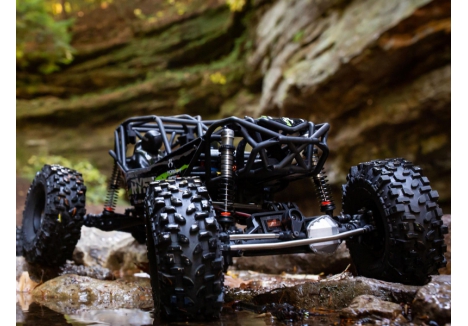

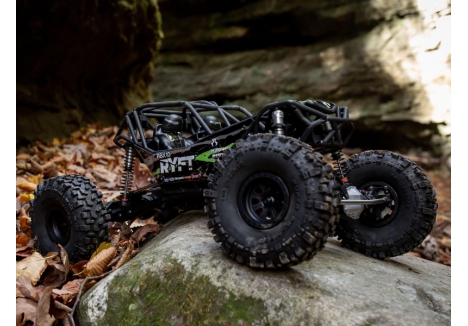

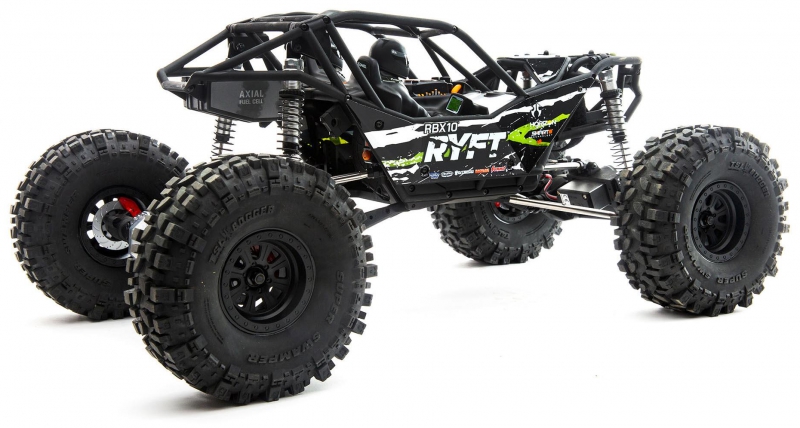

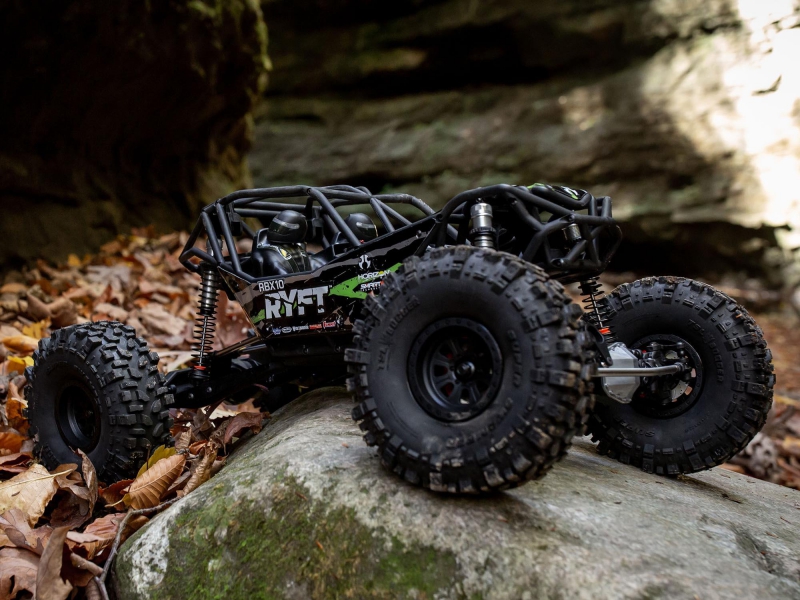

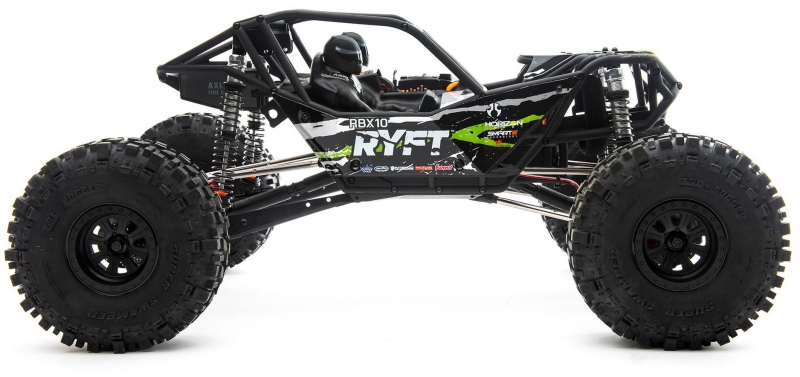

Axial introduces another first with the 1/10 scale RBX10 Ryft 4WD, a ready to run RC car that lets any RC driver experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10 Ryft 4WD. This ground-up new Axial vehicle handles lots of abuse and loads of power, making it an exceptional choice for anyone seeking an authentic rock racing experience in the UK RC hobby market. Whether you're exploring rocky terrain, natural trails, or challenging backyard courses, this brushless RC rock racer delivers unstoppable performance with the kind of durability you'd expect from a purpose-built off-road machine.
The Axial RBX10 Ryft 4WD is ideal for beginner to intermediate RC enthusiasts who are interested in the rock bouncing style of off-road driving over trails, dirt, gravel, rocks and more. If you're new to ready to run RC vehicles and want something that combines ease of use with serious capability, this is an excellent entry point into the rock crawling and rock racing disciplines. The RTR kit comes almost fully prepared — you simply need to add a battery and charger to start enjoying trail-bashing adventures. Unlike many RC kits that require extensive assembly, this ready to run model means you'll be on the tracks within minutes of opening the box.
What truly sets the RBX10 Ryft apart in the competitive UK RC car market is its integration of exclusive Spektrum technologies. Smart telemetry and AVC (Active Vehicle Control) traction control enable all drivers, regardless of experience level, to enjoy unstoppable performance over challenging terrain. The included Spektrum DX3 2.4GHz radio system delivers superior range, response, and interference resistance through DSMR technology, whilst the waterproof Firma 130A Smart ESC provides intelligent power management and real-time telemetry feedback direct to your transmitter.
Key Features

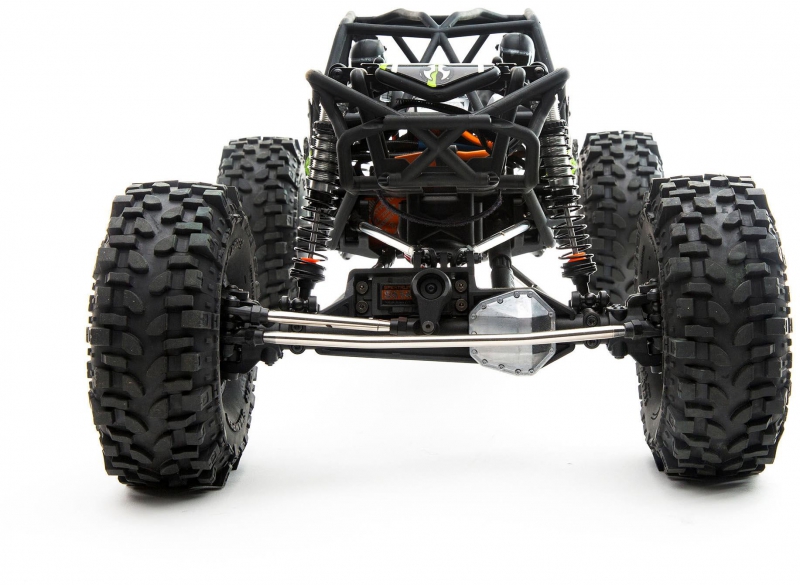

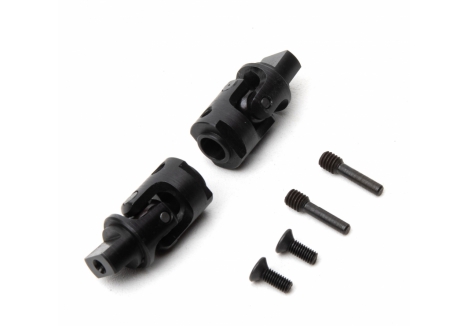

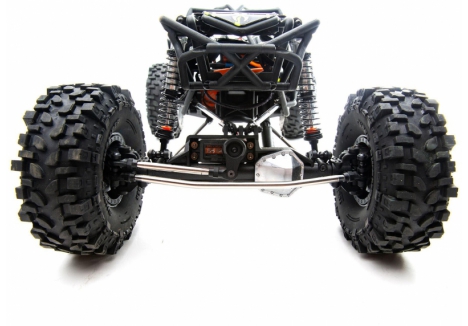

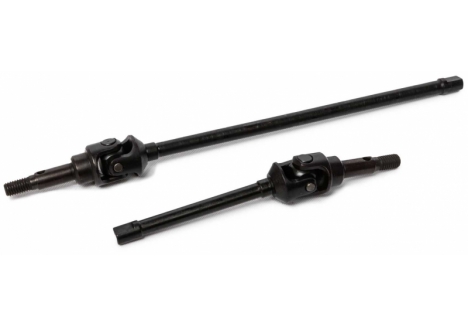

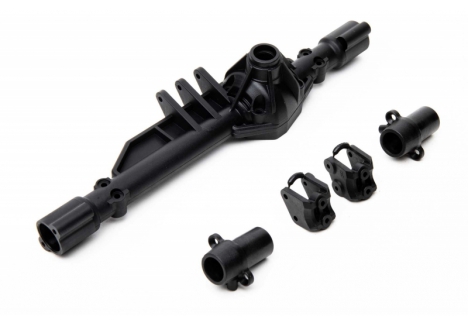

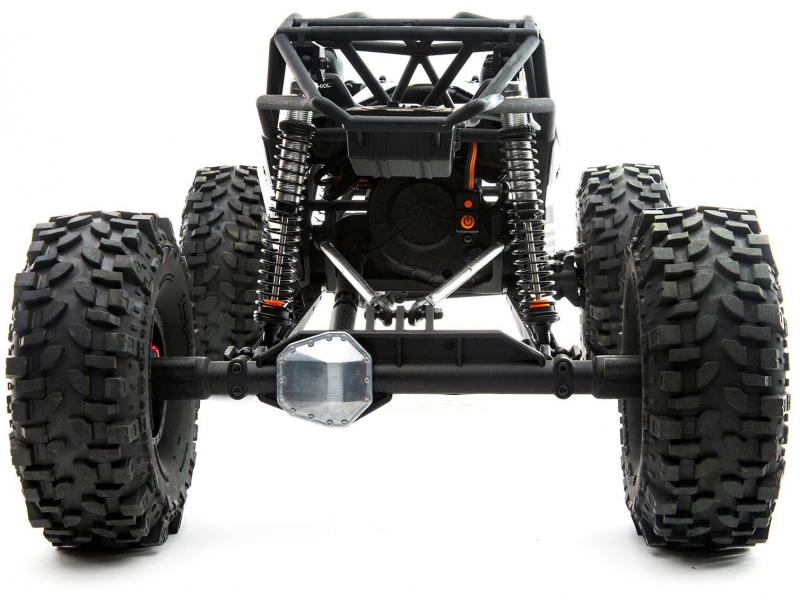

- Solid axles front and rear with universal axle joints — Unlike independent suspension systems, solid axles are engineered to handle massive power delivery and severe impacts without flex or binding, making them ideal for rock bouncing where brute force and reliability are essential. The universal axle joints allow the wheels to articulate independently whilst maintaining straight-line power delivery, crucial for maintaining traction over uneven boulder-strewn terrain.

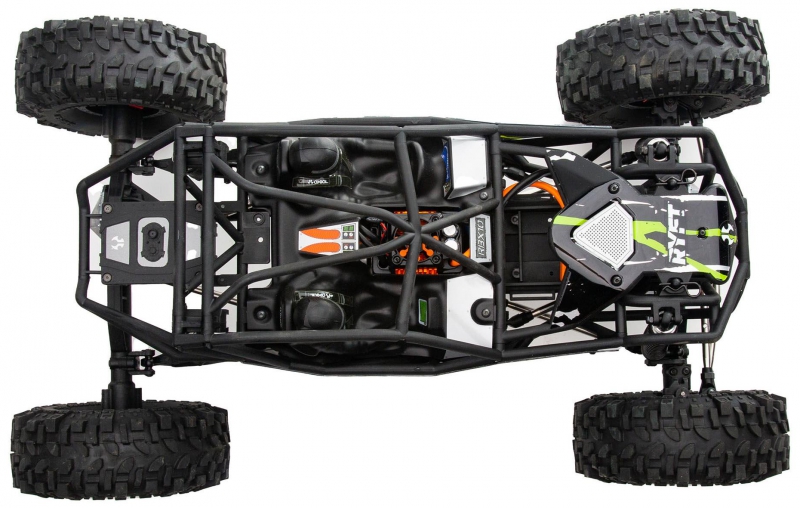

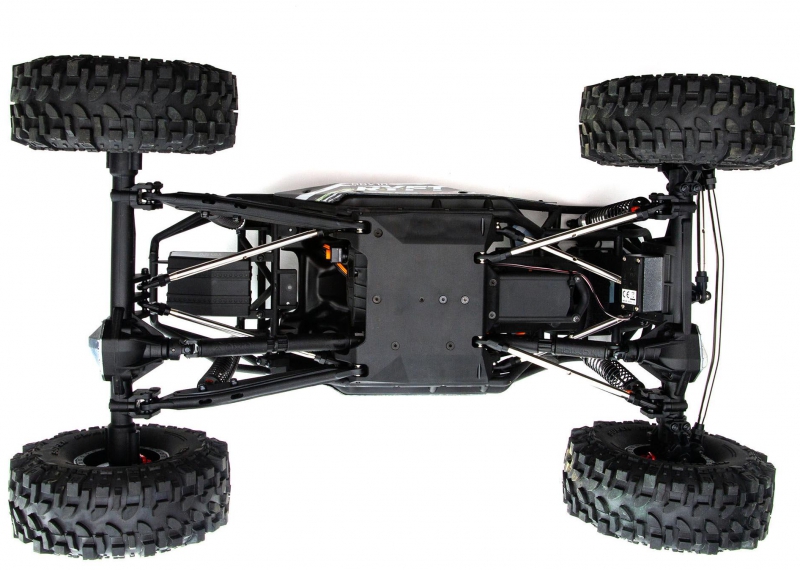

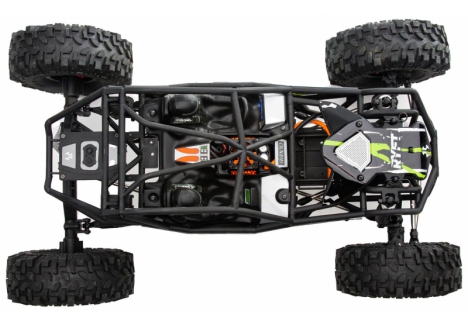

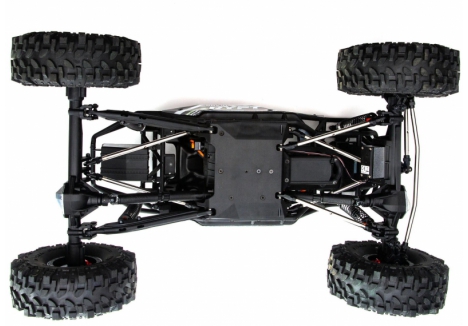

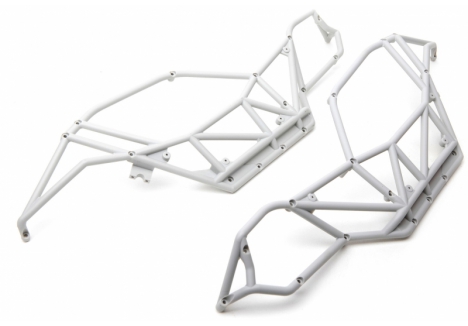

- Robust tube chassis design — The RBX10 Ryft features a custom tube chassis engineered from high-strength composite plastic that mimics the structural approach of full-size rock bouncers. This design withstands the hard knocks of RC off-roading and the punishment of high-speed running over rocks and roots without permanent deformation, whilst keeping weight to a minimum for optimal performance.

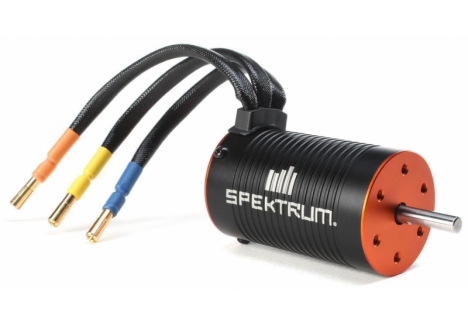

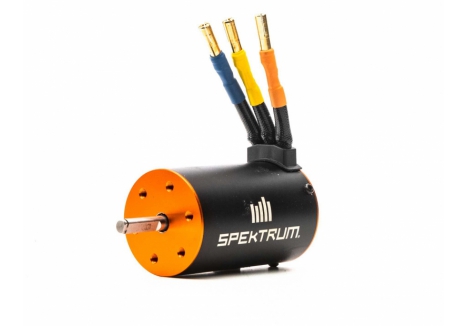

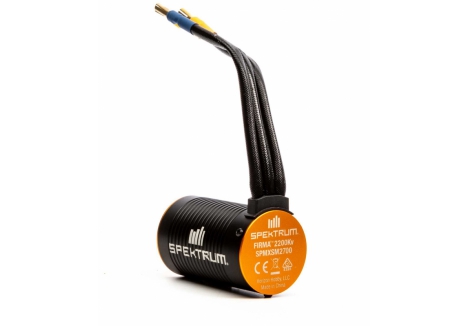

- 4S-capable brushless motor delivering 2200Kv — The 3660-size brushless motor is capable of running on 3S and 4S LiPo batteries, giving you flexibility to match your performance desires and battery budget. At 2200Kv (revolutions per minute per volt), this motor is specifically calibrated for rock racing applications rather than flat-track speed running, ensuring smooth power delivery and extended runtime during typical trail sessions.
- Full-time 4WD transmission — All four wheels receive constant power delivery, ensuring maximum traction in all conditions. Whether you're climbing a vertical rock face, sideways on a ledge, or charging through loose gravel, the full-time 4WD system ensures all four wheels pull together, dramatically improving grip and climb capability compared to 2WD alternatives.

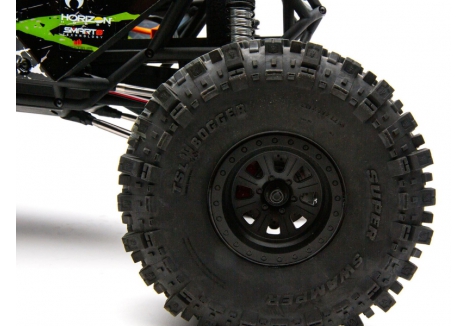

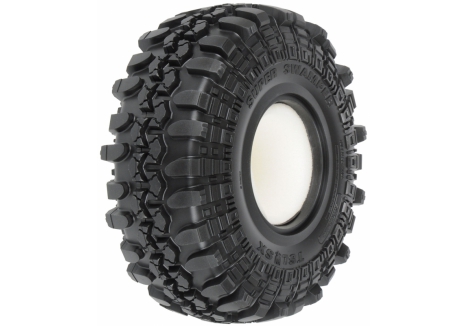

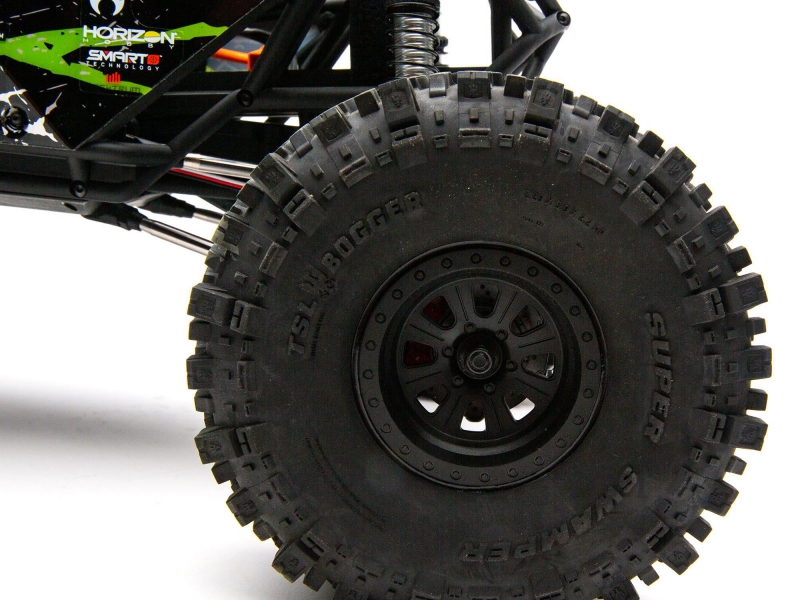

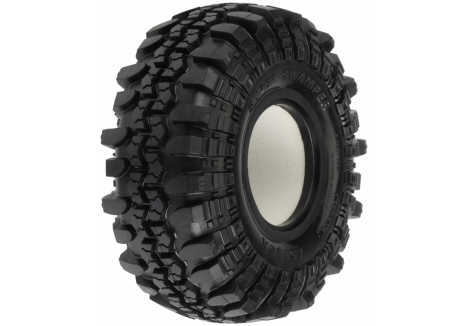

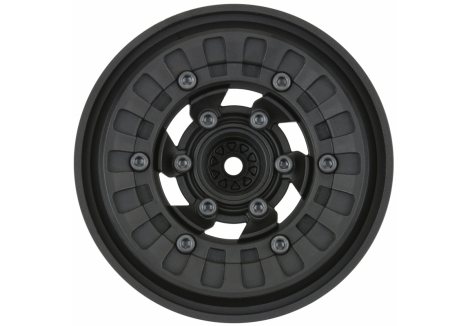

- Licensed Raceline wheels and Interco TSL Bogger tyres — The RBX10 Ryft arrives with genuine licensed wheels from Raceline and authentic Interco TSL (Three Stage Lug) bogger tyres, not cheap imitations. The TSL Bogger tread pattern features three distinct lug stages designed to bite and grip over rocks, roots, and loose terrain with proven real-world effectiveness. Raceline wheels are respected throughout the RC community for their quality and appearance.

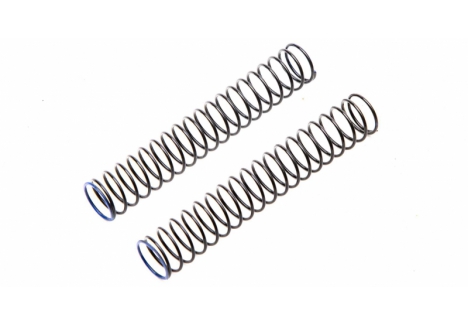

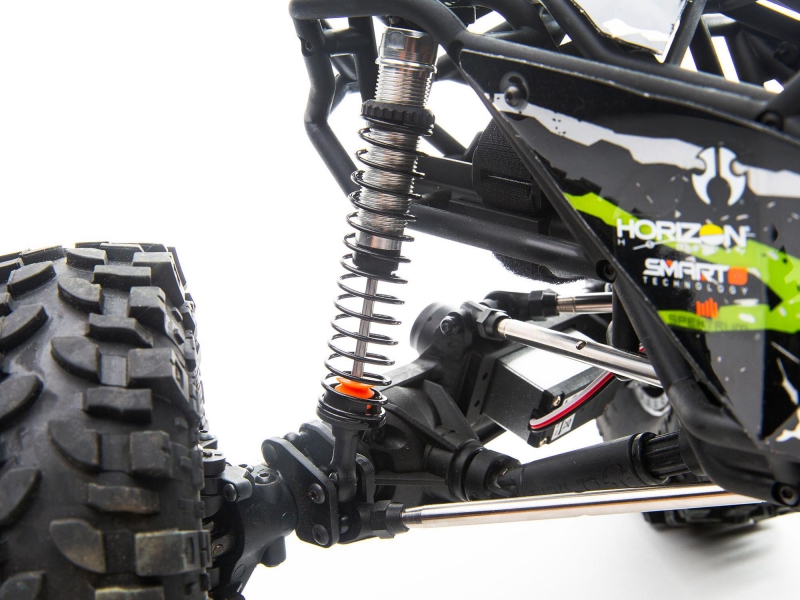

- Long travel front and rear shocks — With 130mm front and 145mm rear oil-filled shocks, the RBX10 Ryft delivers exceptional suspension travel that absorbs massive impacts without bottoming out. Long-travel suspension is essential for rock bouncing, allowing the chassis to remain level as wheels climb over obstacles, maintaining weight distribution and traction at critical moments.

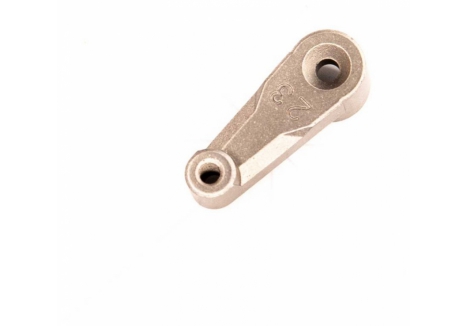

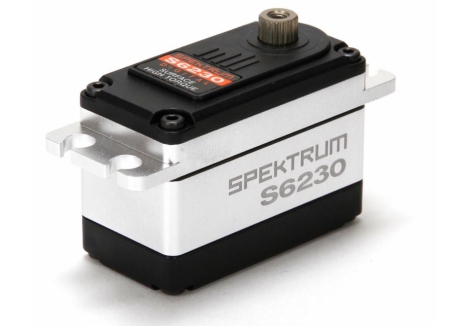

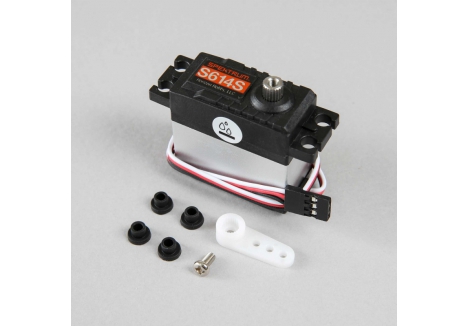

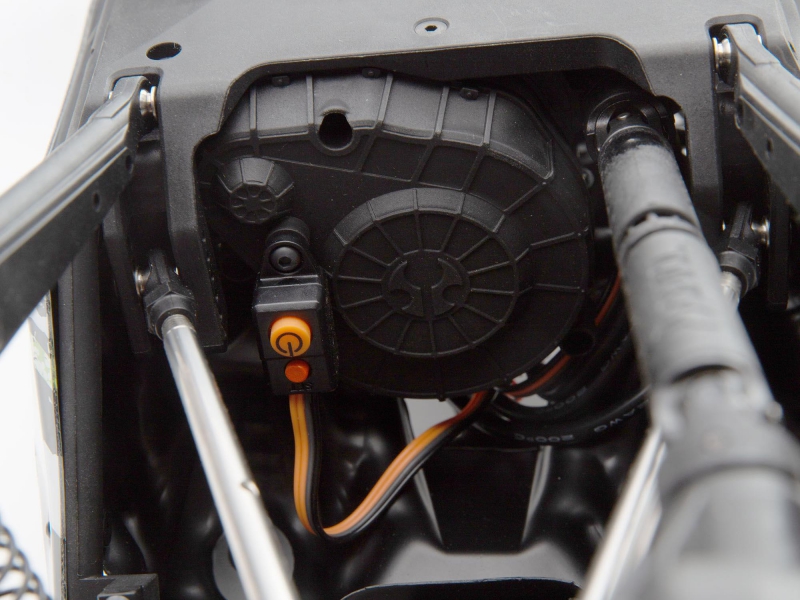

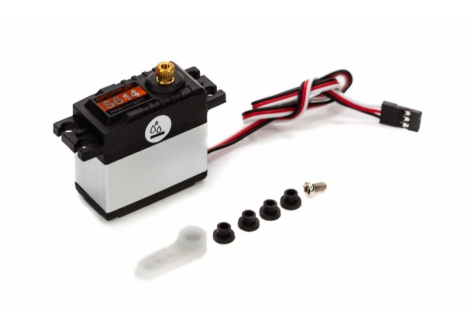

- Waterproof 15kg servo — The included servo is rated for waterproof operation and delivers 15kg of torque, sufficient to maintain accurate steering response even when pushing maximum power through the tyres. Water resistance means you can run through streams and wet conditions without fear of electrical failure.

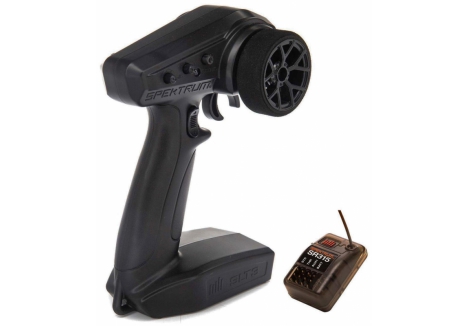

- Spektrum DX3 radio with DSMR technology — This 3-channel 2.4GHz transmitter uses frequency-agile DSMR (Digital Spectrum Modulation Response) technology to deliver superior range, response, and interference resistance. Unlike older spread-spectrum systems, DSMR continuously hops across frequencies to avoid interference from WiFi, mobile networks, and other RC vehicles, making it far more reliable in crowded UK RC locations.
- Spektrum SR6100AT receiver with AVC and telemetry — The included 6-channel receiver isn't just a basic receiver — it features patented Spektrum AVC (Active Vehicle Control) traction control and full-range telemetry capabilities. AVC allows you to dial in extra stability on demand when climbing hills or launching ledges without backing off the power, giving you confidence and control in challenging situations.

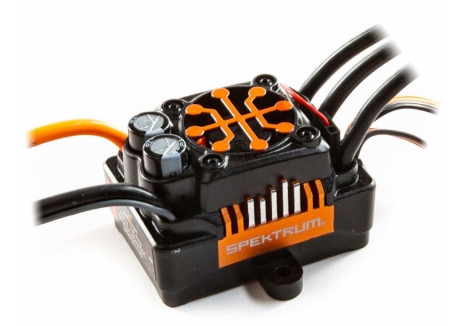

- Spektrum Firma 130A Smart ESC — This feature-packed, waterproof speed controller is compatible with 2S to 4S LiPo batteries and delivers intelligent power management with zero external modules or links required. The Smart ESC feeds important telemetry data straight to your DX3 transmitter in real time, displaying voltage levels with low-battery alarms to keep you informed during running sessions.
- Ready to Run completion level — Unlike many RC kits available in the UK market, the RBX10 Ryft requires no assembly. Everything comes pre-assembled and pre-programmed, ready to run straight from the box. Simply add a 3S or 4S LiPo battery and charger, then you're ready to hit the trails within minutes.
Technical Performance

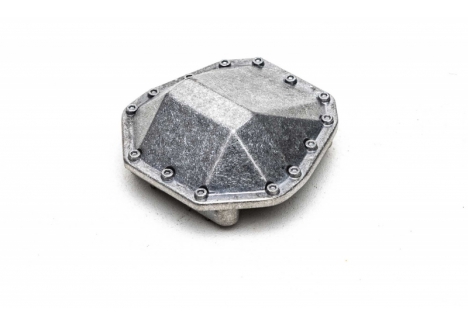

The RBX10 Ryft 4WD is engineered with serious performance credentials backed by proven rock racing design principles. The custom tube chassis construction uses injection-moulded plastic composite material engineered to withstand repeated impacts whilst maintaining structural integrity at high speeds. Both front and rear axles feature durable one-piece moulded plastic solid axle design coupled with metal differential covers, guaranteeing long service life even under extreme abuse. The 3660-size brushless motor rated at 2200Kv is specifically tuned for rock racing power delivery rather than pure speed, with full compatibility for both 3S (11.1V) and 4S (14.8V) LiPo batteries, though the system is intelligently limited to 3S-4S input through the Spektrum Firma 130A Smart ESC. The ESC itself is waterproof-rated and delivers 130A continuous current capability, ensuring smooth power modulation without voltage sag even under sustained high-throttle conditions. The transmission uses a 53-tooth spur gear and 17-tooth pinion (mod 1 pitch) with bevel gear differentials, delivering a carefully balanced gear ratio optimised for trail running rather than drag racing. Suspension geometry employs a sophisticated 4-link design which actively reduces axle steer whilst providing optimal anti-squat and roll characteristics critical for maintaining traction during aggressive climbs and descents. The 4-link system also prevents suspension wrap-up that plagues high-power applications. The RBX10 Ryft measures 546mm in length, 324mm in width, and 222mm in height, with a wheelbase of 387mm (15.25 inches) and front/rear track of 324mm (12.75 inches), delivering a compact yet spacious platform ideal for navigating rocky trails. Ground clearance of 82.5mm (3.25 inches) ensures the chassis clears most obstacles without high-centering. Total weight is 3.29kg (7.26lbs), a carefully optimised mass that balances momentum for climbing with agility for manoeuvring. The Spektrum DX3 radio system operates on 2.4GHz frequency with DSMR protocol supporting full-range telemetry and AVC integration, whilst the SR6100AT receiver provides 6-channel control authority. All electronics are either waterproof or water-resistant, making the RBX10 Ryft suitable for operation in wet conditions and stream crossings common in UK trail running.
What's in the Box
- 1x Axial RBX10 Ryft 1/10 4WD RTR rock racer (fully assembled)

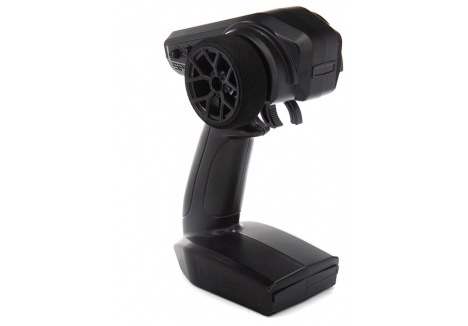

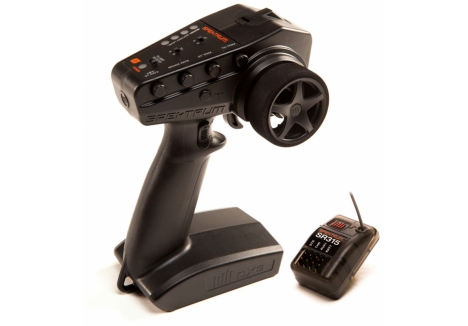

- 1x Spektrum DX3 3-Channel 2.4GHz DSMR radio transmitter
- 1x Spektrum SR6100AT 6-Channel DSMR AVC/Telemetry receiver
- 1x Spektrum Firma 130A Smart ESC (waterproof, 2S-4S compatible)
- 1x 2200Kv brushless motor (3660 size, sensorless)
- 1x Complete product manual with assembly and operation instructions
What You Need to Complete

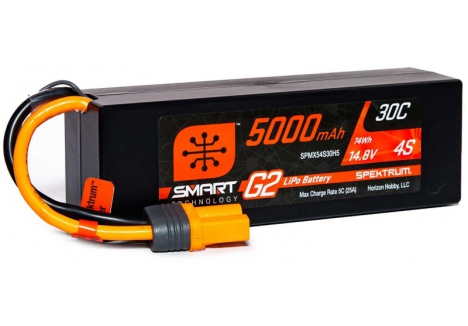

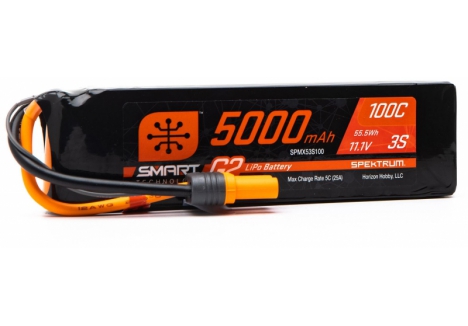

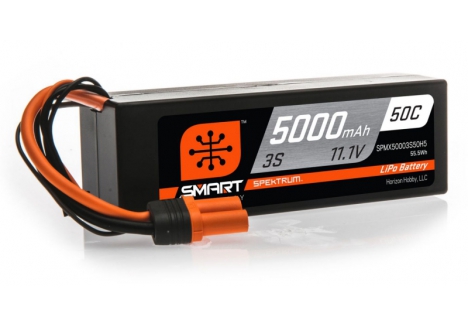

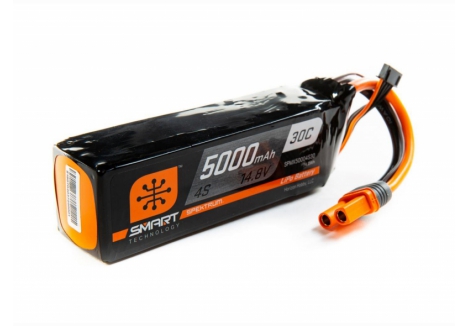

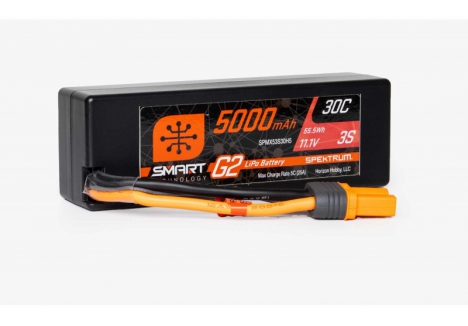

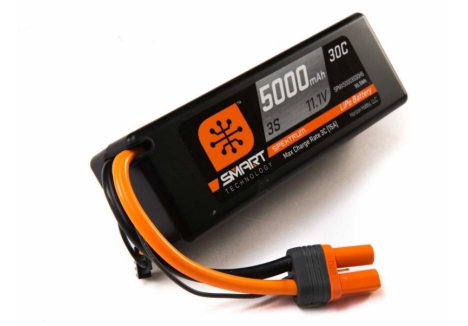

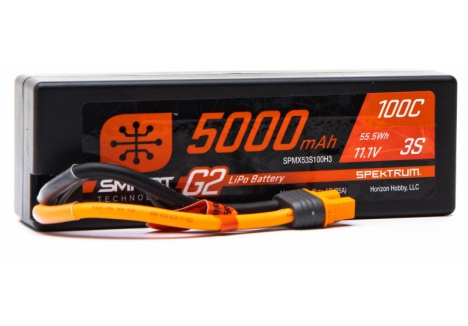

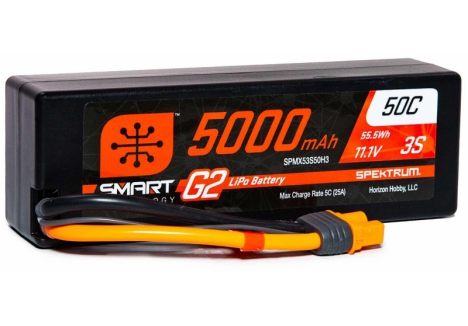

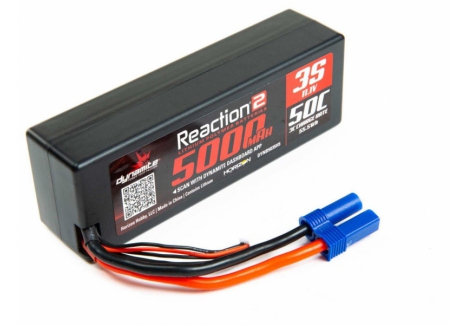

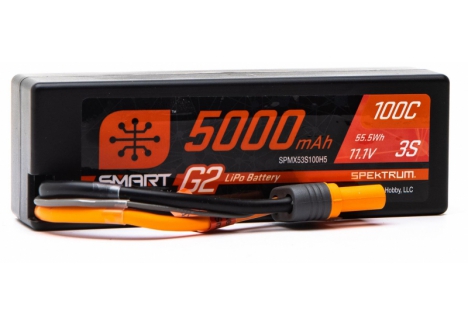

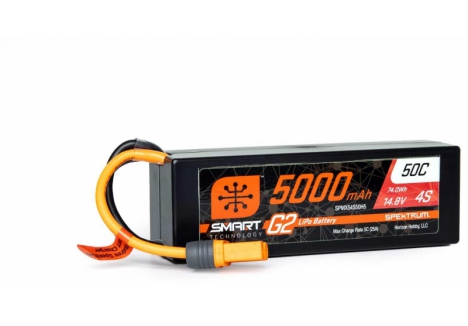

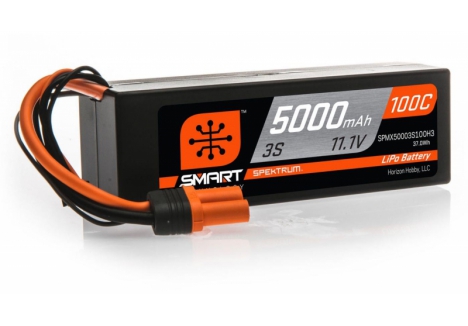

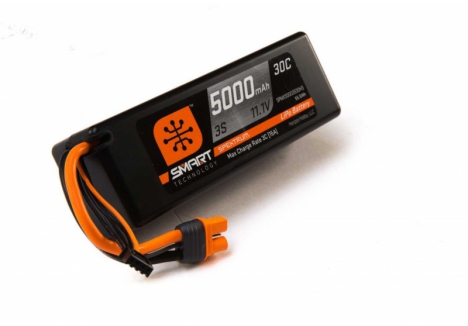

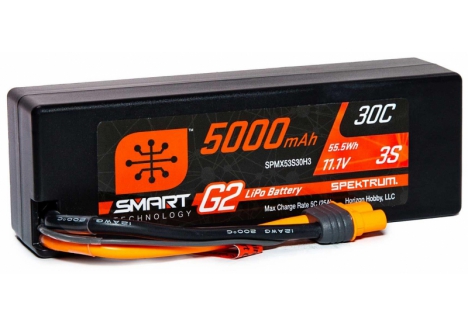

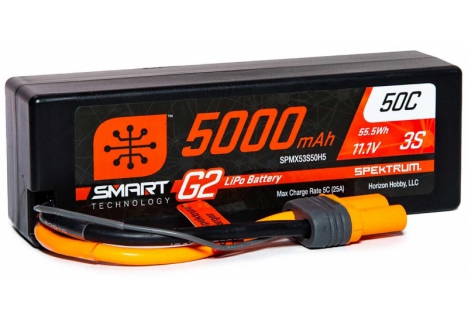

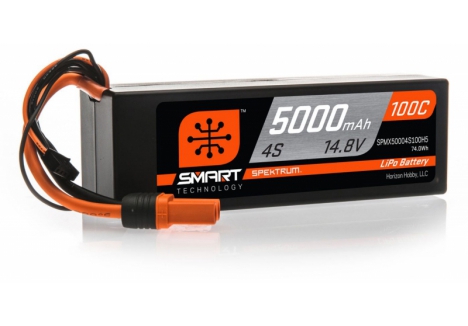

- 1x 3S or 4S LiPo battery (Standard or Shorty format) with EC5 or IC5 connector — a 5000mAh 3S battery is recommended for beginners, whilst 4S gives additional performance for experienced drivers

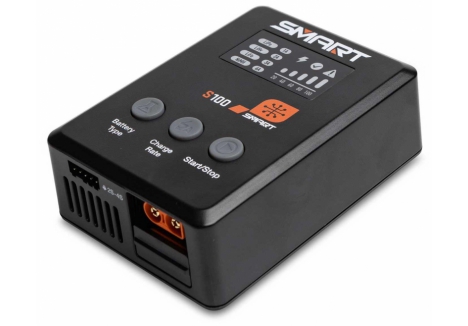

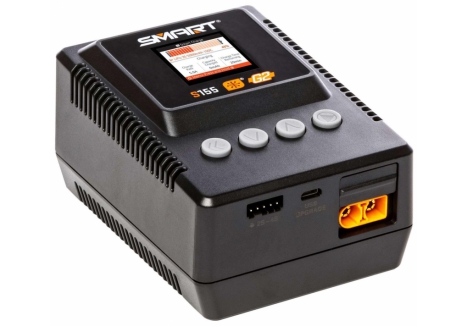

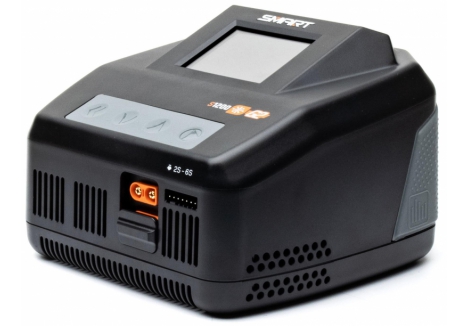

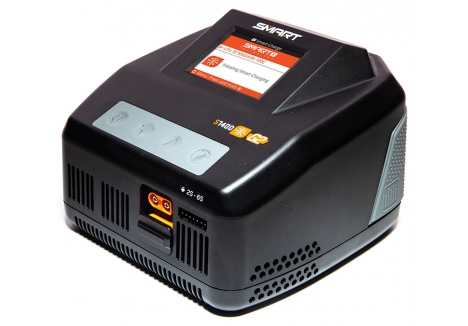

- 1x Compatible LiPo battery charger — AC chargers are recommended for convenient home charging
- 4x AA batteries for the DX3 transmitter (not included)
Frequently Asked Questions
- Is the Axial RBX10 Ryft suitable for beginners in RC rock racing? — Yes, absolutely. The RBX10 Ryft is specifically designed for beginner to intermediate RC enthusiasts and requires no assembly beyond adding a battery and charger. The included Spektrum DX3 radio is intuitive and reliable, whilst the AVC traction control system helps newer drivers maintain stability when climbing hills or navigating technical terrain without requiring backing off the throttle. The ready to run format means you'll be driving within minutes rather than hours of assembly.
- What battery does the RBX10 Ryft need and what runtime should I expect? — The RBX10 Ryft is compatible with both 3S (11.1V) and 4S (14.8V) LiPo batteries in Standard or Shorty format with EC5 or IC5 connectors. A 5000mAh 3S battery is the recommended starting point, delivering solid performance with typical runtimes of 20-30 minutes during trail running depending on driving style. For additional power and performance, 4S batteries are fully supported and offer higher speed and climbing power, though they will generate more heat and reduce runtime slightly. Always use a Smart-compatible charger for safety.
- What makes the Spektrum technology in this rock racer superior to standard RC systems? — The Spektrum DX3 radio uses frequency-agile DSMR (Digital Spectrum Modulation Response) technology, which continuously hops across the 2.4GHz frequency band to avoid interference from WiFi, other RC vehicles, and mobile networks — a common problem at crowded UK RC clubs and events. The SR6100AT receiver includes patented AVC (Active Vehicle Control) traction control, allowing you to dial in stability on demand for climbing and launching without sacrificing throttle response. The Firma 130A Smart ESC provides real-time telemetry feedback, Smart LiPo battery integration with voltage monitoring, and intelligent power management — features rarely seen in RTR vehicles at this price point.
- How does the 4-link suspension system improve rock bouncing performance? — The 4-link suspension geometry is engineered to reduce axle steer (where the axle tries to rotate around its pivot point during climbing), maintaining straight-line traction when power is applied hard. It also provides optimal anti-squat characteristics, preventing the chassis from diving under acceleration, and carefully tuned roll stiffness for stable cornering. The 4-link design actively prevents suspension wrap-up that can occur in high-power applications, ensuring consistent performance and reliability during repeated climbs and descents over boulder fields and rocky trails.

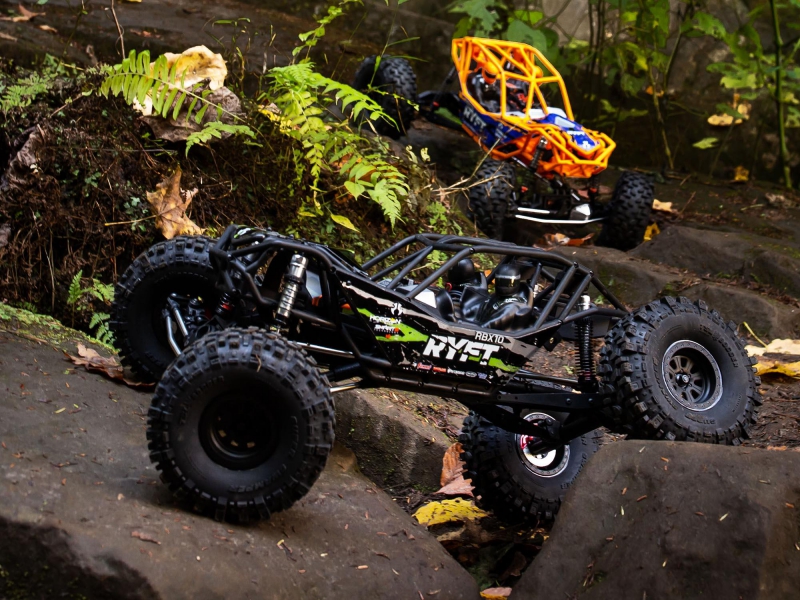

- What is the difference between the black and orange versions of the RBX10 Ryft? — The black and orange variants are mechanically identical with the same performance, features, and specifications. The difference is purely aesthetic — the choice between striking black or vibrant orange factory-applied finish is entirely personal preference. Both colours feature screen printing and applied decals for authentic appearance.
- Can I upgrade the motor or ESC on the RBX10 Ryft for more performance? — Yes, the RBX10 Ryft platform accepts various upgrades. The Spektrum Firma 130A ESC is already highly capable and waterproof, but alternative controllers can be fitted if desired. Motor upgrades are possible, though the 2200Kv brushless motor is already optimised for rock racing characteristics. Many owners opt for upgraded batteries (higher capacity or increased discharge rating), tyres, or suspension components to refine performance for their specific driving style and terrain.
- Is the RBX10 Ryft truly waterproof and can it run through streams and wet conditions? — The RBX10 Ryft is water-resistant rather than fully waterproof. The Spektrum Firma 130A ESC and servo are waterproof-rated, and the motor is brushless (no brush arcs to arc underwater), but the battery connector area and receiver should be kept as dry as possible. Light water exposure and stream crossings are fine, but prolonged submersion is not recommended. Always rinse the vehicle with fresh water after wet operation and allow components to dry thoroughly before storage.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the AXIAL 1/10 RBX10 Ryft 4WD Rock Racer RTR Black today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
Parts Diagrams

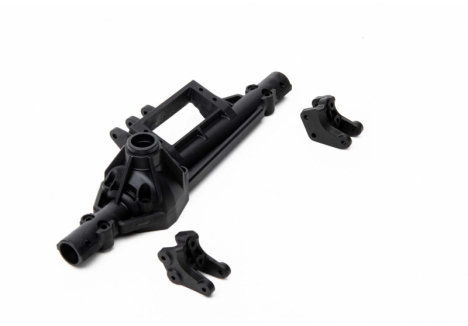

Front Assembly
Rear Assembly

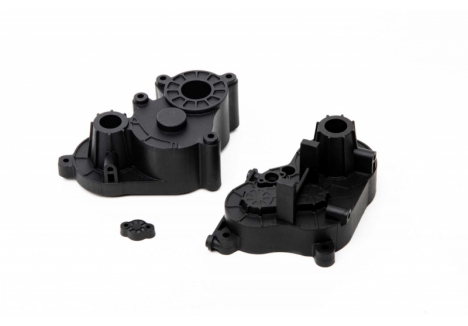

Chassis and Transmission Assembly

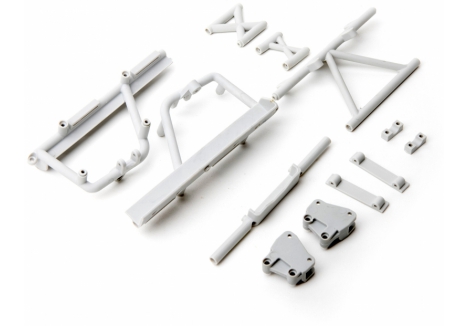

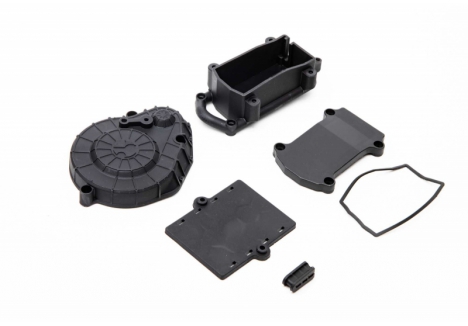

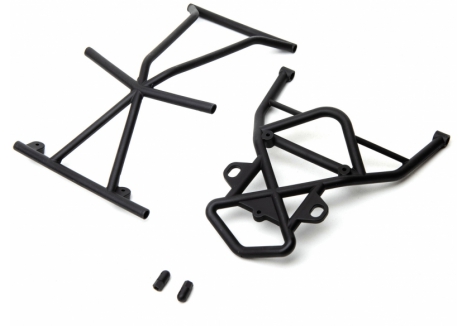

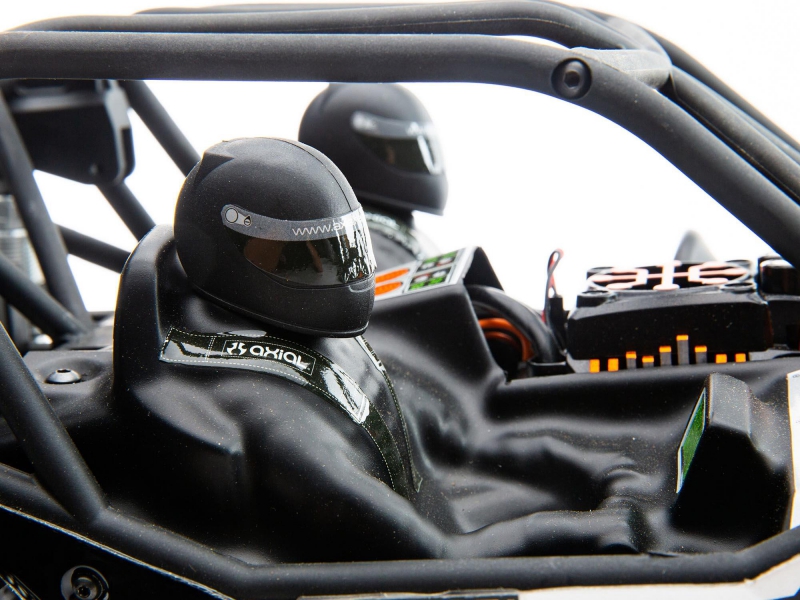

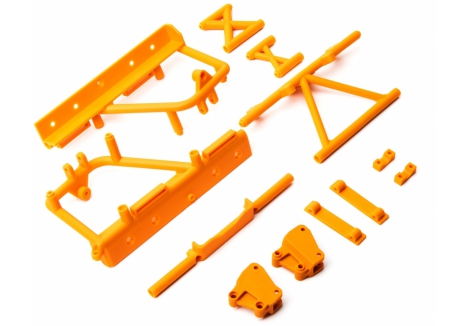

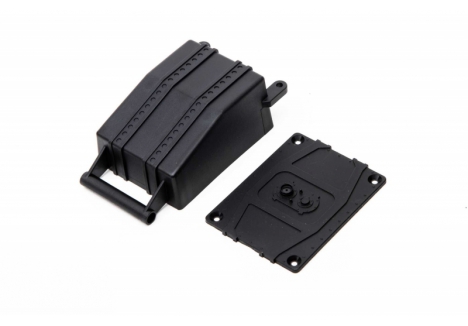

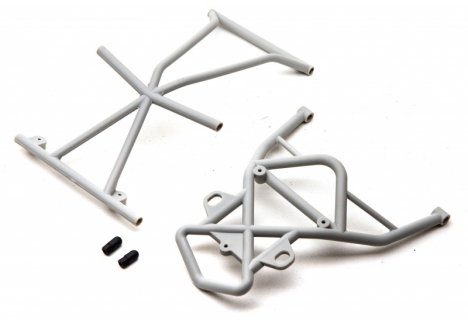

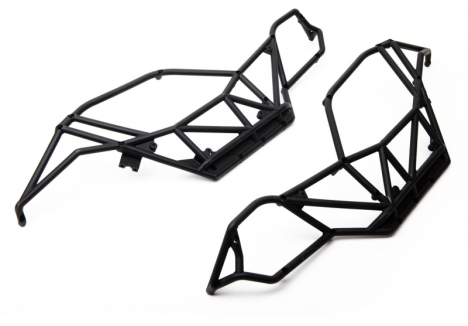

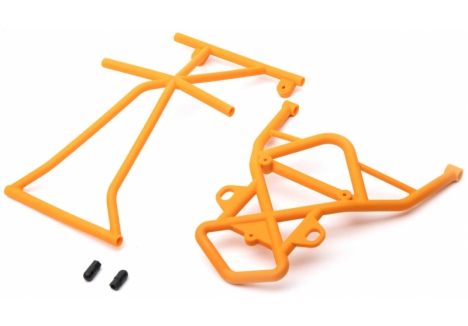

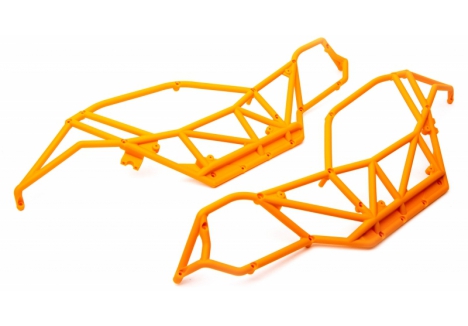

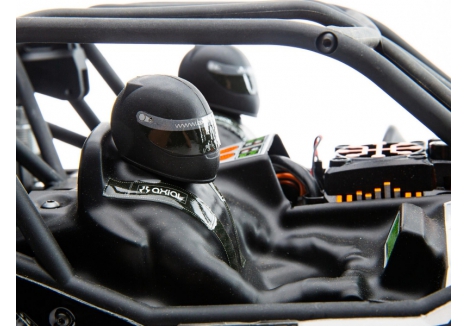

Roll Cage and Receiver Box Assembly

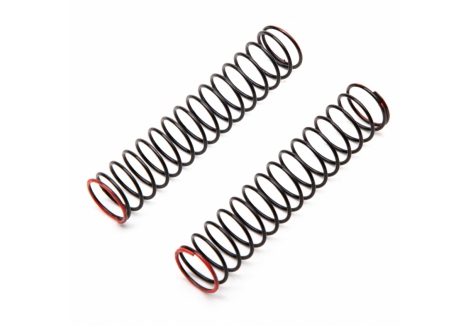

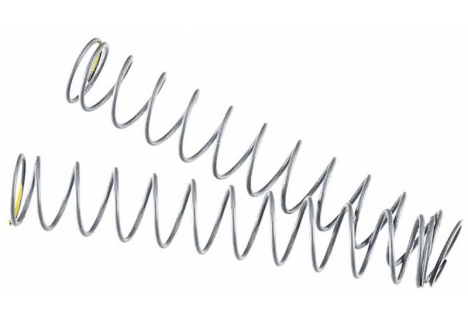

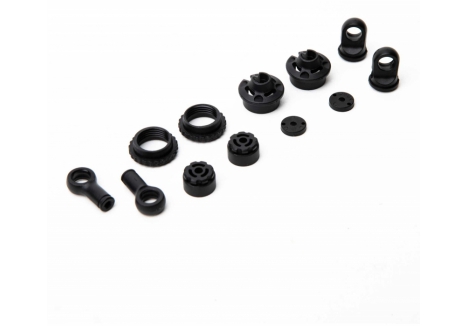

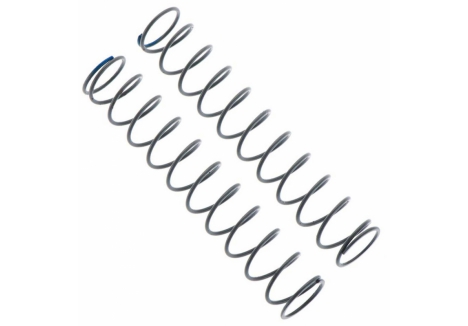

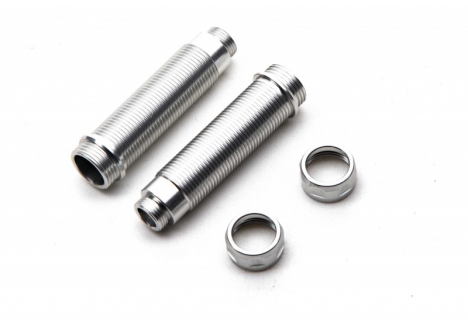

Shock Absorber Assembly
Differential Assembly

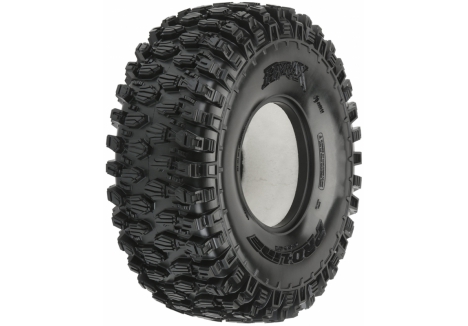

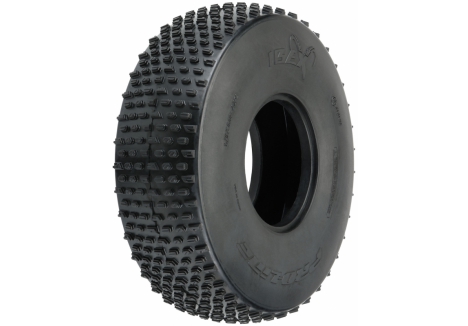

Wheel and Tyre Assembly
