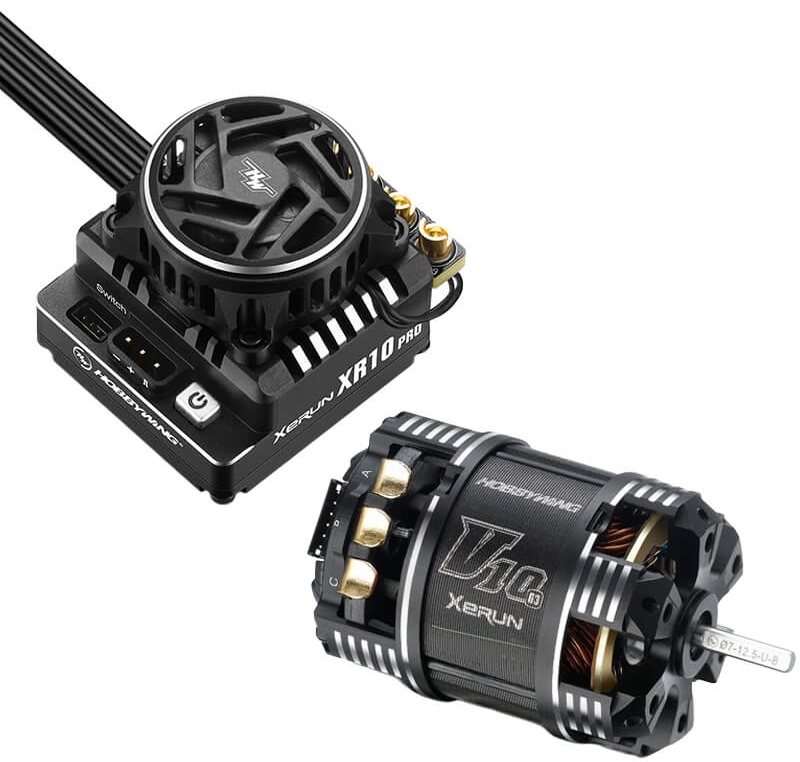

HOBBYWING XERUN COMBO XR10 PRO G3 BLK ESC +V10 G3 10.5T MOTOR HW38020453

Overview

The Hobbywing XERUN COMBO XR10 PRO G3 BLK ESC with V10 G3 10.5T motor represents the pinnacle of modern competition-grade RC car electronics for 1/10th scale on-road and drift racing. This complete ESC and motor combo brings together decades of Hobbywing's engineering expertise in brushless speed control and high-performance motor design, specifically engineered for drivers who demand precision, consistency and reliability in competitive racing environments across the UK. Whether you're competing in stock class racing, drifting, or general 1/10th touring car applications, this combo delivers the advanced features and rock-solid performance that separates champions from the rest.

This is not a beginner's setup—this is a serious competitor's choice. The XR10 PRO G3 ESC packs 160A continuous current handling with peak bursts up to 1200A, whilst the V10 G3 10.5T motor has been engineered with asymmetric bearings, high-precision Hall sensors and stepless mechanical timing adjustment for absolute control over your vehicle's behaviour. The 10.5T windings deliver a 4500KV rating that strikes the perfect balance for drift cars and stock class racing, providing the torque and power delivery needed for smooth, predictable acceleration and braking.

What sets this combo apart from basic ready-to-run RC offerings is the sheer depth of customisation and monitoring capability. With 44 programmable parameters in advanced mode, built-in data logging that captures 380 minutes of race data, real-time telemetry, and innovative technologies like freewheeling, disc brake mode, and Softening 2.0, you have complete control over how your car behaves on track. The ESC temperature theoretically drops by around 15°C compared to the previous XR10 Pro G2S, ensuring consistency and reliability during extended race sessions.

Key Features

• 160A Continuous Current Rating with 1200A Peak — The XR10 PRO G3 can handle sustained high current draw without degradation, with massive current reserves for acceleration spikes. This ensures your speed control never becomes a bottleneck in your 1/10th scale brushless RC car's performance.
• Built-In Data Logging Module — The ESC records up to 19 groups of 20-minute data sessions (380 minutes total) including throttle, voltage, current, temperature, motor RPM and vehicle speed. You can review this data as curve graphs via the app to identify tuning opportunities and track performance trends over multiple race sessions.
• OTA Programmer Support and App Connectivity — Use the optional OTA Programmer to wirelessly update firmware and read stored data logs without keeping a Bluetooth module permanently connected. Real-time data output lets you monitor operational status during testing.
• Freewheeling Function with Lower Operating Temperature — Freewheeling affects deceleration and overall efficiency to reduce operating temperature by approximately 15°C compared to the G2S generation, improving consistency and reliability especially under high load applications. The RPM decrease rate setting offers customisable deceleration when you release the throttle, enhancing control through corners.
• Disc Brake Mode with Close-Loop Control — Revolutionary braking technology that creates accurate and perfectly linear brake output at all speeds, eliminating the non-linear braking force problems common with traditional methods. Brake Force Curvature fine-tuning lets you dial in exactly the brake feel you want, or switch to traditional linear braking modes if preferred.
• Dual Parameter Setting Modes — Choose between 24 basic parameters for simplified tuning or access all 44 advanced parameters for complete control. This flexibility means casual drivers can keep things simple whilst competitive racers can fine-tune every aspect of throttle response, braking behaviour, timing and more.
• Softening 2.0 Technology — This optimised ESC technology enhances driving force during the initial acceleration phase, dramatically improving drivability in high-power vehicles without sacrificing top-end speed. Perfect for torque-rich setups where smooth power delivery is essential.
• Durable Frameless Fan Design — Special material frameless fan blades offer increased rigidity and durability, with intelligent start-stop functionality that keeps the fan off when cooling isn't needed and automatically activates when temperatures rise, reducing noise and power consumption.
• Low Centre of Gravity Design — The fan assembly is 2mm lower than the previous generation and features a detachable design, allowing you to remove cooling entirely when not needed and further lower your vehicle's centre of gravity for improved handling balance.
• Reverse Polarity Protection Circuit — Built-in protection prevents damage if you accidentally connect the battery backwards, protecting your investment in case of wiring mistakes.
• Adjustable BEC with High-Voltage Servo Support — The integrated BEC delivers up to 10A peak output with adjustable voltage from 5.0V to 7.4V in 0.1V steps, providing plenty of power for high-torque and high-voltage servos without external regulators.
• V10 G3 10.5T High-Precision Motor — Built with high-precision Hall sensors, balanced rotor and asymmetric bearings (26% larger front bearing for load capacity, 6% smaller rear bearing for reduced resistance), this motor delivers remarkable linearity and stable, smooth operation.
• Excellent Heat Dissipation — Special shell design exposes the stator core to air whilst large holes in the end plates maximise cooling, keeping motor temperatures in check during extended racing.
• Rebuilable Structure — Fully detachable design allows regular cleaning and maintenance, effectively extending the service life of your motor whilst retaining efficiency between competition seasons.
• Stepless Adjustable Mechanical Timing — Fine-tune motor timing with absolute precision using the skid-proof adjustment lines, allowing you to dial in the exact power delivery characteristics your driving style demands.
• BRCA/EFRA Approved — Meets all official British and European racing association standards, making this combo legal for club competitions and organised events across the UK.

Technical Performance

This combo is engineered for 1/10th scale brushless RC touring cars, buggies, drift cars, F1 vehicles and rally applications. The XR10 PRO G3 ESC delivers 160A continuous current with a peak rating of 1200A, accepting 2S LiPo battery input (7.4V nominal). The chassis housing measures a compact 35 x 33.6 x 30.3mm with total weight of 93g including wired connectors, contributing to excellent power-to-weight ratio in your vehicle. Standard specification includes two black 13AWG input wires and three black 13AWG output wires, both 200mm in length, with no connectors fitted (allowing you to solder your preferred connector types for compatibility with your specific chassis and battery). The aluminium-housed unit features sensored operation via Hall sensors, though sensorless operation is also supported via firmware settings. The ESC is not fully waterproof (though internals are protected) and works exclusively with brushless motors featuring compatible Hall sensor connectors. The V10 G3 10.5T motor is a sensored brushless design with 4500KV rating, perfectly suited for 1/10th drift applications and stock class racing. The motor utilises a 540 size bore of 3.2mm and is built from high-performance stator core laminations, heat-resistant pure copper windings, robust rotor construction, international-grade precision ball bearings and copper solder tabs rated for high continuous current. Combined, this setup delivers smooth, predictable power delivery with exceptional temperature stability and reliability over season-long racing campaigns.

What's in the Box

• XERUN XR10 PRO G3 Black ESC with 13AWG wires (200mm x2 input, 200mm x3 output)
• XERUN V10 G3 10.5T Black brushless motor with Hall sensors
• One set of U-type connectors for flexible wiring configurations

What You Need to Complete

• 2S LiPo battery (7.4V nominal) — the combo accepts 2-3S LiPo or 4-9 cell NiMH batteries
• Battery connectors (Dean's, EC3, XT60, or other — not included, solder to your preference)
• Motor connectors (3.5mm or 4mm bullet connectors — can be added to your order for a small fee)
• 1/10th scale RC touring car, buggy, drift car or F1 chassis (not included)
• Receiver and servo for steering (not included)
• Optional: OTA Programmer (sold separately) for wireless firmware updates and data log reading
• Optional: LCD Programmer Box Pro (sold separately) for traditional wired programming and parameter adjustment

Frequently Asked Questions

• Is the Hobbywing XERUN XR10 PRO G3 suitable for competitive 1/10th scale RC racing in the UK? — Absolutely. This is a competition-grade ESC designed specifically for serious racers. It is BRCA and EFRA approved for official racing events and delivers the precision, consistency and customisation required to compete at club and regional levels. The 44 advanced programmable parameters and real-time telemetry allow you to extract maximum performance from your specific car setup.
• What is the difference between the V10 G3 10.5T and other windings in the V10 G3 range? — The 10.5T motor provides a 4500KV rating, making it ideal for 1/10th drift cars and stock class racing applications. Higher turn counts (13.5T, 17.5T, 21.5T) offer lower KV values for more torque and are better suited to stock class touring car racing, whilst lower turn counts (3.5T to 8.5T) are high-KV variants designed for modified racing or off-road applications. Your choice depends entirely on your racing discipline and desired power delivery characteristics.
• What battery does the Hobbywing XERUN XR10 PRO G3 combo require? — The ESC accepts 2-3S LiPo batteries or 4-9 cell NiMH packs. For optimal performance with the V10 G3 10.5T motor in drift and stock class racing, a quality 2S LiPo (7.4V) is recommended. The combo supports the full voltage range and includes reverse polarity protection to safeguard against accidental connection errors.
• How does the data logging feature help me improve my racing? — The built-in data logger records throttle, voltage, current, temperature, motor RPM and vehicle speed across up to 380 minutes of racing. You can review this as curve graphs to identify performance anomalies, temperature spikes, or inconsistent throttle response. This telemetry allows you to correlate vehicle behaviour with track conditions and fine-tune your programming parameters accordingly.
• Can I upgrade the firmware on the XR10 PRO G3? — Yes, the combo supports firmware upgrades via the optional OTA Programmer or LCD Programmer Box Pro. This ensures you always have access to the latest performance updates and bug fixes released by Hobbywing.
• What makes the disc brake mode different from traditional braking? — Traditional braking methods suffer from non-linear brake force that varies with vehicle speed, making consistent braking feel difficult at high speeds. Disc brake mode uses innovative close-loop brake control to deliver perfectly linear brake output at all speeds, whilst Brake Force Curvature tuning lets you customise the brake feel. This results in more predictable, controllable deceleration essential for competitive racing.
• Is the XR10 PRO G3 waterproof? — The ESC is not fully waterproof but features protected internals suitable for typical on-road and occasional light wet-weather use. It is not recommended for fully submerged or heavy-water applications. If you require full waterproofing for off-road mud or wet environments, consider alternative housing options.
• Does this combo come with connectors fitted? — No, the ESC and motor arrive without battery or motor connectors fitted. This allows you to choose your preferred connector type (Dean's, EC3, XT60, etc.) and solder them yourself for a custom setup. Optional connector packages are available at checkout if you prefer professional installation.
