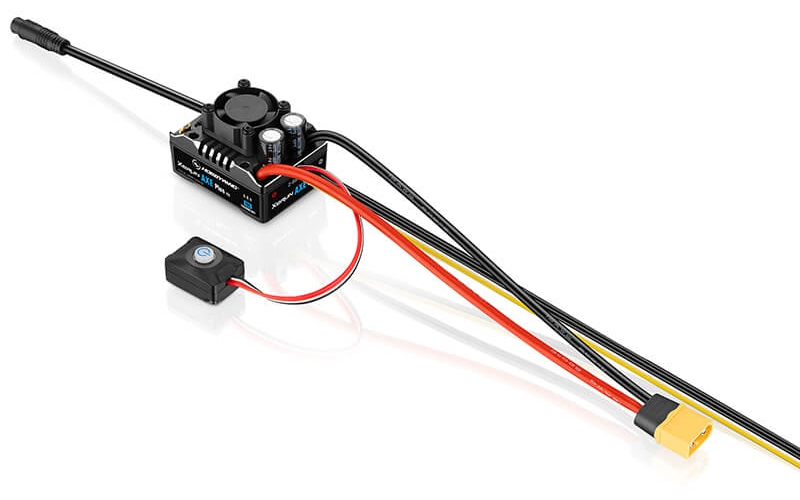

HOBBYWING XERUN AXE PLUS R3 SENSORED BRUSHLESS CRAWLER ESC HW30113201

Overview

The Hobbywing XeRun AXE PLUS R3 Sensored Brushless Crawling Speed Control represents the pinnacle of modern RC crawler electronics, delivering professional-grade performance for serious enthusiasts and competitive builders. This advanced ESC is purpose-built for crawler applications, supporting scales from 1/10th and 1/8th right through to 1/7th and 1/6th scale models. If you're looking for a brushless RC ESC for crawlers in the UK market, the AXE R3 stands out as one of the most feature-rich and capable options available today.

The XeRun AXE R3 combines cutting-edge Field-Oriented Control (FOC) drive technology with intelligent torque management, making it exceptionally smooth and controllable at low speeds—the exact scenario where crawler performance matters most. Whether you're navigating rocky terrain, climbing obstacles, or performing precision manoeuvres, this ESC delivers linear throttle response and impressive torque characteristics that match or exceed traditional brushed systems whilst remaining nearly silent during operation. The inclusion of sensored brushless compatibility means you get superior efficiency and power delivery compared to sensorless alternatives.

Built for durability and all-weather use, the AXE R3 features IP67 waterproofing and dust protection, allowing you to take your RC crawler UK adventures outdoors without worry. The advanced electronics suite includes built-in Bluetooth connectivity, programmable parameters through the HW Link mobile app, and real-time data logging—features that elevate this ESC far beyond basic speed controllers. This is a professional tool for serious RC crawling applications.

Key Features

• FOC Drive System with Sensored Brushless Technology — The XeRun AXE R3 utilises Field-Oriented Control technology that delivers excellent linearity and remarkable torque output, especially at low speeds where crawler performance is critical. This advanced drive system significantly outperforms conventional brushless ESCs and matches or exceeds brushed systems, giving you the precise control needed for technical crawling courses.
• 135A Maximum Continuous Output Current — With a peak current rating of 600A and continuous rating of 135A, this ESC handles high-power motor systems with ease. You can run powerful crawler motors without throttling back performance, ensuring your setup has the headroom needed for extreme terrain and heavy loads.
• 6S LiPo Battery Support — Rated for up to 6S LiPo batteries (22.2V maximum), the AXE R3 provides access to significantly higher voltage power systems compared to 4S or 5S alternatives. This enables faster acceleration, stronger torque delivery, and more responsive control across a wider range of demanding crawler applications.
• Super Internal BEC with Switchable Voltage Output — The integrated BEC delivers a continuous output current of 6A (note: retail information mentions 15A maximum) with switchable voltage options of 6V, 7.4V, or 8.4V. This comprehensive power solution means you can run virtually any servo or peripheral electrical equipment on the market, including high-voltage servo systems, light sets, and winches, from a single ESC without additional power regulators.
• IP67 Waterproof and Dust-Proof Protection — The AXE R3 features comprehensive IP67 protection rating, delivering excellent waterproofing and dust-proofing performance to handle various climatic conditions. You can confidently run your RC crawler through wet terrain, muddy conditions, and dusty environments whilst maintaining reliable operation. Please note that this protection applies to normal use and splash exposure; prolonged submersion may degrade protective performance over time.
• Compact Design Compatible with AXE R2 Motors — The R3 maintains backward compatibility with all XeRun AXE R2 motors whilst featuring a new compact form factor. Measuring just 2.1mm longer, 1.7mm wider, and 3.7mm shorter than the R2 ESC, it fits seamlessly into space-constrained crawler chassis without requiring major modifications to your existing build.
• Dual External Control Channels for Real-Time Parameter Adjustment — Connect the white and yellow signal cables to available receiver channels and adjust critical parameters in real time during operation. This innovative feature allows you to fine-tune throttle response, torque curves, and other settings without stopping your vehicle, giving you dynamic control over your crawler's behaviour.
• Smart Torque Output Management — The AXE R3 automatically increases torque output to help overcome resistance and accelerate uphill, then automatically reduces torque output when descending to stabilise vehicle speed. This intelligent system provides excellent control across varying terrain, making hill climbing and descending significantly more manageable and predictable.
• Smart Fan Start and Stop Function — The internal cooling fan activates automatically only when the ESC temperature reaches a preset threshold, then stops when temperatures normalise. This intelligent approach reduces noise pollution, conserves battery power, and ensures the ESC operates within its optimal temperature range for maximum performance and longevity.
• Built-In Bluetooth Connectivity with HW Link Mobile App — The integrated Bluetooth module enables direct connection to your smartphone or tablet running the HW Link app (iOS or Android). Parameter settings, firmware upgrades, and data operations can all be performed wirelessly, bringing your RC crawler setup into the modern connected era. The effective range is approximately 5 metres, suitable for trackside adjustments and bench testing.
• Real-Time Data Function and Monitoring — Connect to the HW Link app and monitor critical performance metrics in real time, including throttle position, battery voltage, draw current, ESC temperature, motor speed, and more. Understand exactly how your ESC and motor system are performing, identify potential issues, and optimise your setup for peak performance.
• Built-In Data Logging Function — The AXE R3 records up to 10 minutes of recent run data directly to onboard memory. Using the HW Link V2 app, you can review this logged data after your session, track performance trends, and gather telemetry information for competition analysis or system troubleshooting. This feature is invaluable for serious RC crawler competitors.
• Extensive Parameter Customisation — The XeRun AXE R3 provides a vast array of 21 adjustable parameters, allowing deep customisation of throttle mapping, acceleration profiles, braking characteristics, and motor behaviour. Additionally, support for 24-degree adjustable turbo timing lets you unlock maximum speed when road conditions permit, giving you complete control over your crawler's character.
• Flysky i-BUS2 Protocol Support — For users with Flysky Noble remote controllers, the AXE R3 supports the advanced i-BUS2 protocol, enabling real-time ESC parameter adjustments directly from your transmitter. The data return function displays battery voltage, motor RPM, operating current, and temperature information on your controller's screen, bringing advanced telemetry capability to Flysky users.
• Motor Compatibility and Flexibility — Whilst primarily designed for the XERUN AXE R3 series motors, the AXE R3 ESC also supports AXE R2 motors including 2800KV, 2100KV, 1400KV, and 2300KV variants. The R2 motors are recommended for 3-4S battery systems, giving you flexibility in your motor selection and the ability to upgrade or modify your setup.

Technical Performance

The Hobbywing XeRun AXE PLUS R3 represents a sophisticated engineering achievement specifically optimised for RC crawler applications. At its core, the ESC utilises FOC (Field-Oriented Control) brushless drive technology, which fundamentally differs from conventional sensorless systems by providing superior efficiency, linearity, and torque delivery. This technology is particularly valuable in crawler applications where smooth, controlled low-speed operation is paramount. The sensored brushless compatibility ensures accurate commutation and responsive throttle behaviour that brushless RC crawlers depend upon for precise technical driving. With a maximum continuous current rating of 135A and an impressive peak current capability of 600A, the AXE R3 can handle serious power systems without compromise. Support for up to 6S LiPo batteries (22.2V maximum) opens up a world of higher-voltage power options that smaller ESCs cannot handle. The compact form factor—measuring 49.5mm x 37.9mm x 22.8mm without the cooling fan and weighing just 126.5g—fits into demanding space-constrained crawler chassis designs. The integrated BEC system delivers up to 6A of continuous current with switchable 6V/7.4V/8.4V output, eliminating the need for separate servo power supplies. The battery connector is an XT-60 type, a standard solution in the RC crawler world that ensures safe, reliable power delivery. With IP67 protection against water ingress and dust contamination, this ESC can handle the demanding outdoor conditions that RC crawlers regularly encounter, from mud and water crossings to sandy terrain and dusty environments. The engineering quality and comprehensive feature set position the AXE R3 as a true professional-grade crawler ESC suitable for everything from casual backyard crawling to competitive rock crawling events across the UK and beyond.

What's in the Box

• Hobbywing XeRun AXE PLUS R3 Sensored Brushless ESC
• Pre-installed XT-60 battery connector
• User documentation and quick-start guide

What You Need to Complete

• RC crawler chassis (1/10th, 1/8th, 1/7th, or 1/6th scale)
• 2-6S LiPo battery pack
• XERUN AXE R3 or AXE R2 series brushless motor with sensor cable
• Servo for steering control
• RC receiver compatible with your chosen radio system
• Battery charger and charging lead (if not included with battery)
• Optional: Motor connectors (3.5mm bullets, Deans, TRX, XT-90, or EC5) depending on your motor setup
• Optional: Cooling fan (internal fan slot compatible, though pre-installed cooling is built-in)

Frequently Asked Questions

• Is the Hobbywing XeRun AXE R3 suitable for 1/8 and 1/10 scale crawlers? — Yes, the AXE R3 is specifically designed for 1/10th and 1/8th scale crawlers and is also compatible with 1/7th and 1/6th scale applications. Its 135A continuous current and 600A peak current make it appropriate for the power requirements of crawlers across this entire size range, from compact 1/10th scale rock crawlers to massive 1/6th scale competition rigs.
• What battery voltage does this ESC require and support? — The Hobbywing AXE PLUS R3 supports 2-6S LiPo battery packs, with a maximum voltage rating of 22.2V (6S). This flexibility allows you to start with a 2S setup for lighter builds and upgrade to higher-voltage systems as your crawler develops. Most users find 3-4S optimal for AXE R2 motors, whilst 5-6S unlocks the full potential of AXE R3 motors.
• Can I adjust the ESC settings whilst my crawler is running? — Yes, one of the standout features of the AXE R3 is its dual external control channels. By connecting the white and yellow signal cables to available receiver channels (typically channels 3 and 4), you can adjust critical parameters in real time during operation without stopping your vehicle. This allows dynamic fine-tuning of throttle response, torque curves, and other settings on the fly.
• Does the AXE R3 work with my Flysky radio controller? — The AXE R3 supports Flysky i-BUS2 protocol, making it fully compatible with Flysky Noble remote controllers. Beyond basic control, you can adjust ESC parameters in real time through the Flysky protocol, and the controller's data return function displays live telemetry including battery voltage, motor RPM, operating current, and temperature information directly on your transmitter screen.
• Is this ESC waterproof for muddy and wet terrain? — The AXE R3 features IP67 protection rating, delivering excellent waterproofing and dust-proofing performance for normal crawler operation in wet, muddy, and dusty conditions. However, it is designed for splash resistance and water resistance under normal use—not for permanent submersion. Extended underwater exposure may degrade the protective performance over time, so avoid prolonged water immersion.
• Can I use this with the older AXE R2 motors? — Absolutely. The AXE R3 maintains full backward compatibility with all XERUN AXE R2 motors, including variants with 2800KV, 2100KV, 1400KV, and 2300KV ratings. AXE R2 motors are recommended for 3-4S battery systems, providing upgrade flexibility if you already own R2 motors or wish to mix and match within your RC crawler fleet.
• What connectivity and smartphone features does the AXE R3 offer? — The built-in Bluetooth module allows you to connect to iOS or Android smartphones running the HW Link app. You can adjust parameters, upgrade firmware, monitor real-time performance data (throttle, voltage, current, temperature, speed), and review logged data from your most recent 10 minutes of operation. The Bluetooth range is approximately 5 metres, suitable for trackside adjustments and bench testing.
• How powerful is the internal BEC for servo power? — The integrated BEC is quite robust, with a maximum rated output of 6A continuous current and switchable voltage output options of 6V, 7.4V, or 8.4V. This power budget supports standard servo systems, high-voltage servo systems, and peripheral equipment including light sets and winches. For most crawler applications, this BEC power is sufficient for steering servos and basic accessories without needing external power regulation.
• What makes the FOC drive system better than standard brushless ESCs? — FOC (Field-Oriented Control) technology provides superior linearity, exceptional torque delivery, and excellent control at low speeds compared to conventional sensorless brushless systems. For crawler applications where precision and smooth throttle response matter more than raw speed, FOC technology delivers noticeably better control authority and more predictable behaviour, especially during technical driving on obstacles.
• Does the AXE R3 require programming or can I use it out of the box? — The ESC includes sensible default settings and operates immediately out of the box with most standard RC radio systems. However, the true power of the AXE R3 emerges when you explore its 21 adjustable parameters through the HW Link app or dual external control channels. Even basic users benefit from the default configuration, whilst advanced users can fine-tune virtually every aspect of ESC behaviour.
