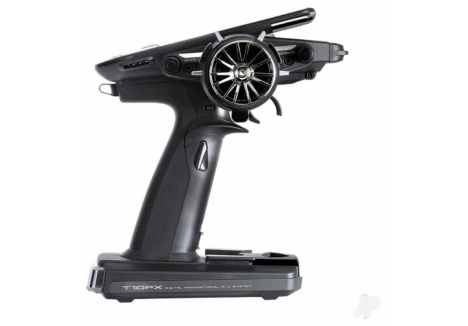

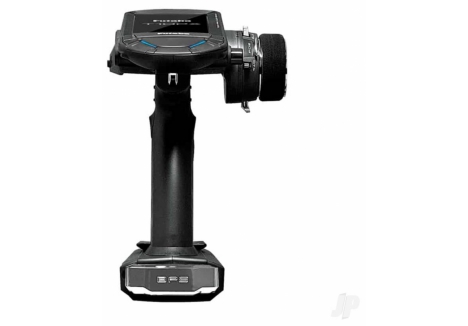

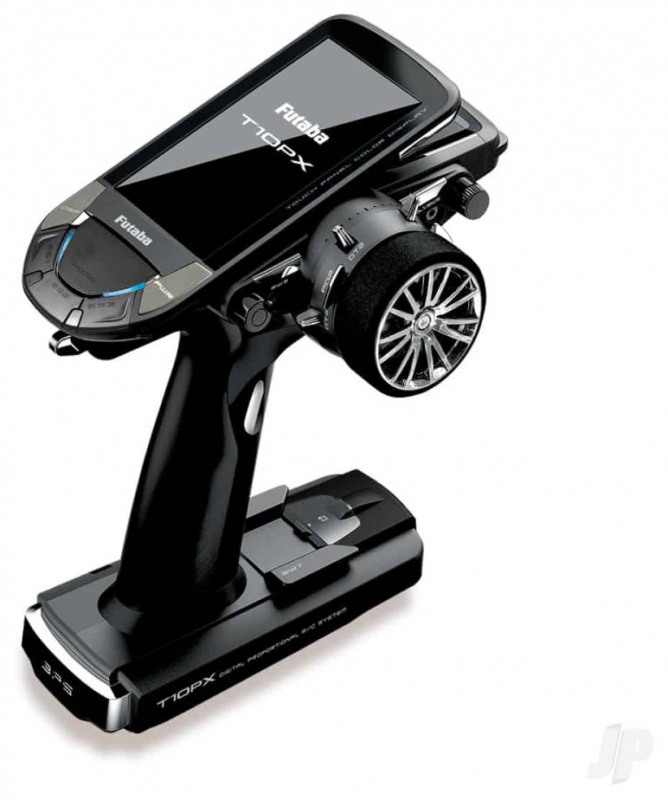

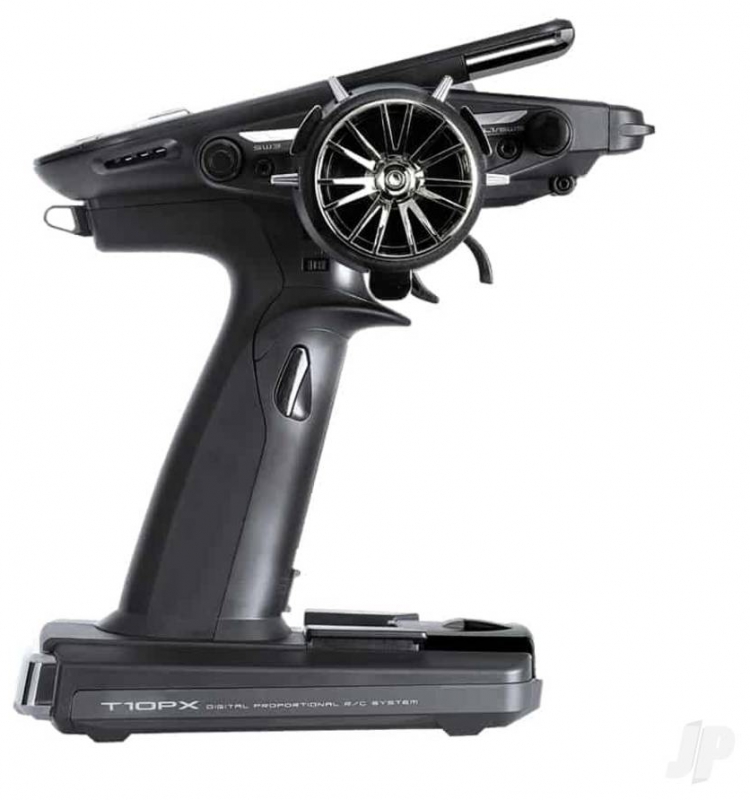

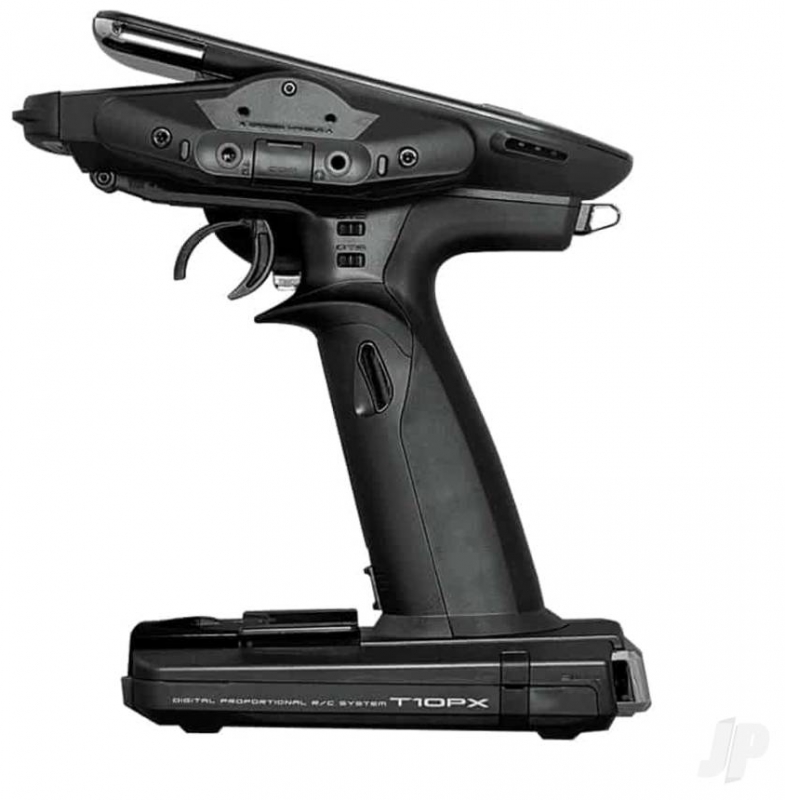

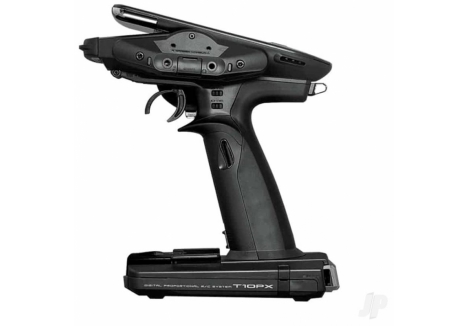

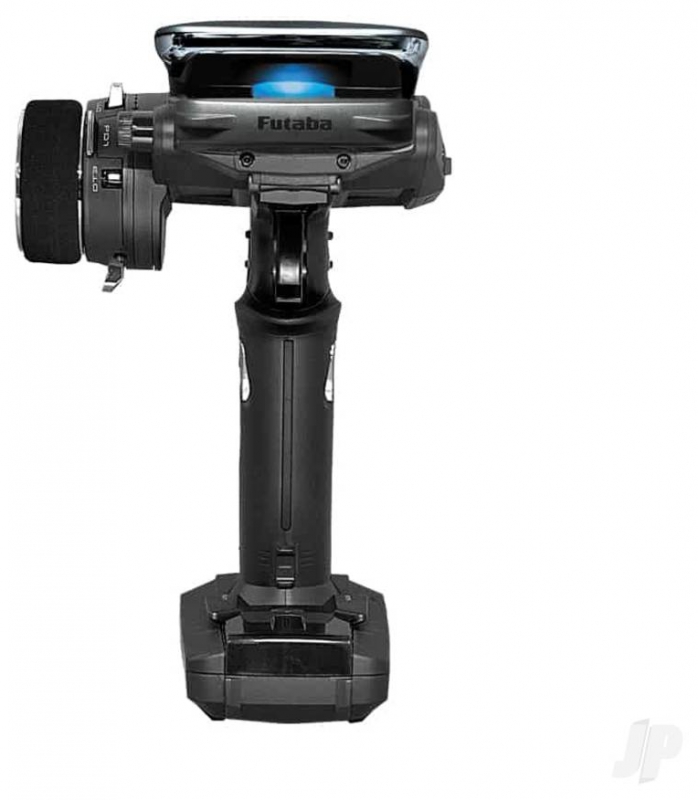

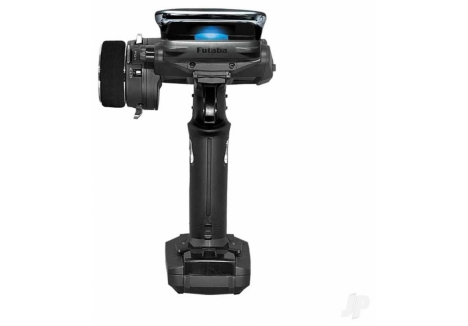

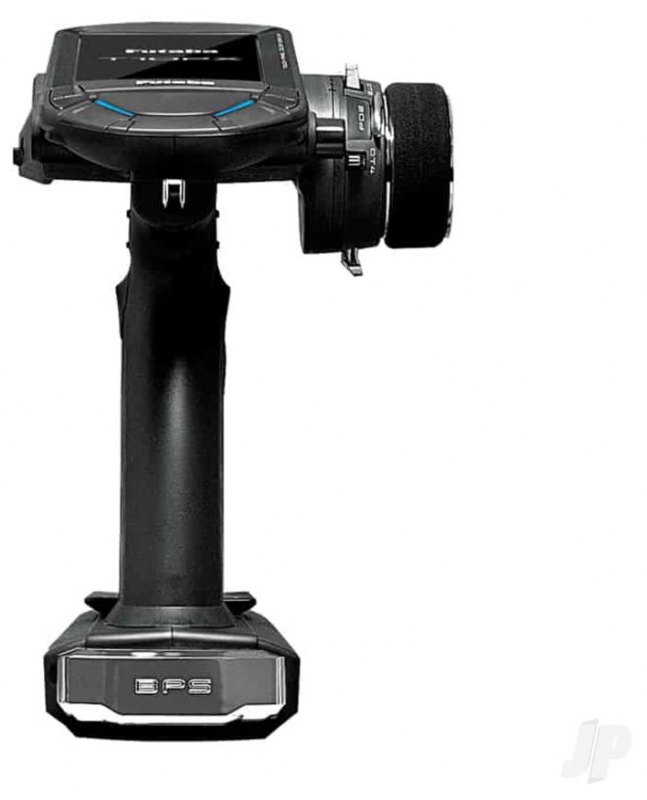

Futaba T10PX 10-Channel Surface Radio (Tx only) FUT05003172-3-J

Overview

The Futaba T10PX 10-Channel Surface Radio represents the pinnacle of RC surface radio technology, engineered specifically for the discerning competitor who demands precision, reliability and complete control. Whether you're piloting a 1/8 nitro buggy, an electric touring car, a multi-axle crawler, a tracked tank or any other RC surface vehicle, the T10PX delivers the advanced features and performance characteristics that serious racers expect from Futaba's top-tier transmission systems. As an authorised UK RC retailer, RC Model Shop stocks this competition-grade radio system for customers across Great Britain and Northern Ireland who are serious about their RC car hobby.

Built upon Futaba's revolutionary F-4G ultra-fast response transmission technology, the T10PX achieves 30% faster response times when paired with Futaba UR servos, delivering near-zero latency that translates directly into competitive advantage on track. The 4.3-inch full-colour HVGA transflective LCD touchscreen provides crystal-clear visibility both indoors and outdoors, with an intuitive interface that makes complex programming accessible to experienced drivers. With 10 full channels, expandable 40-model memory and support for multiple radio protocols including F-4G, T-FHSS SR, T-FHSS and S-FHSS, the T10PX adapts seamlessly to virtually any RC surface vehicle in your fleet.

This is not a beginner's radio, nor is it intended to be. The T10PX is a professional-grade transmission system designed for competitive drivers, experienced enthusiasts and anyone who takes their RC racing seriously. If you've been competing in the RC car UK scene for years, or you're stepping up from a more basic radio system to unlock the full potential of your vehicle, the T10PX offers the precision engineering, advanced mixing capabilities and telemetry support that will help you squeeze every ounce of performance from your setup.

Key Features

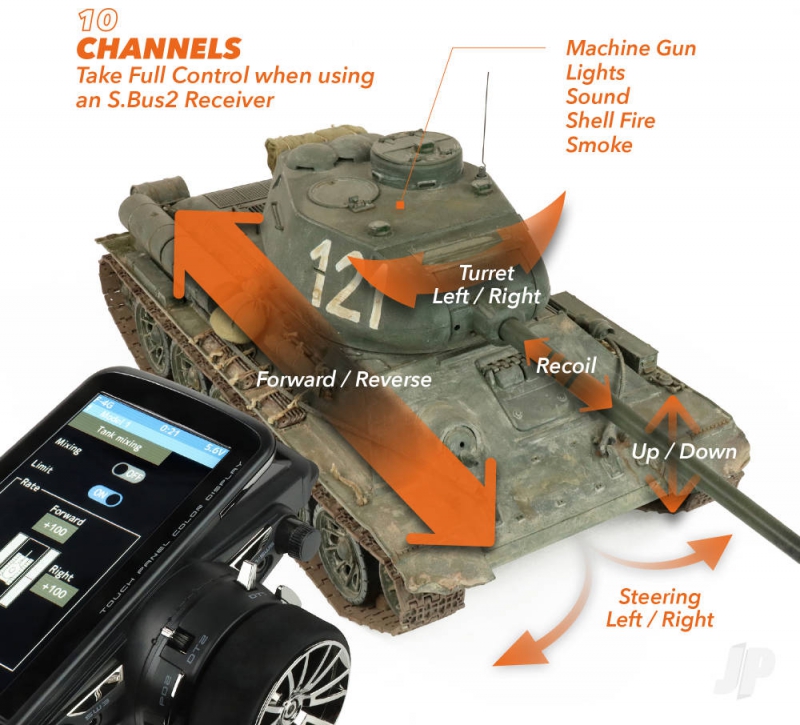

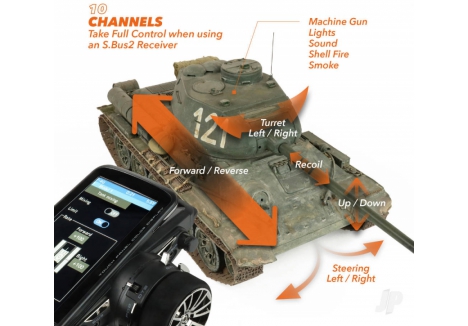

• 10 Channels with F-4G Protocol — The T10PX provides 10 full channels of control when using Futaba's cutting-edge F-4G telemetry system, giving you unprecedented command over your RC surface vehicle with lightning-fast response times and near-zero latency that professional racers demand.

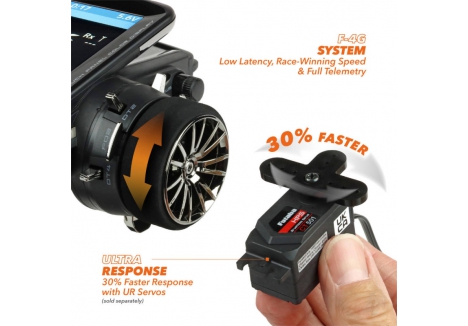

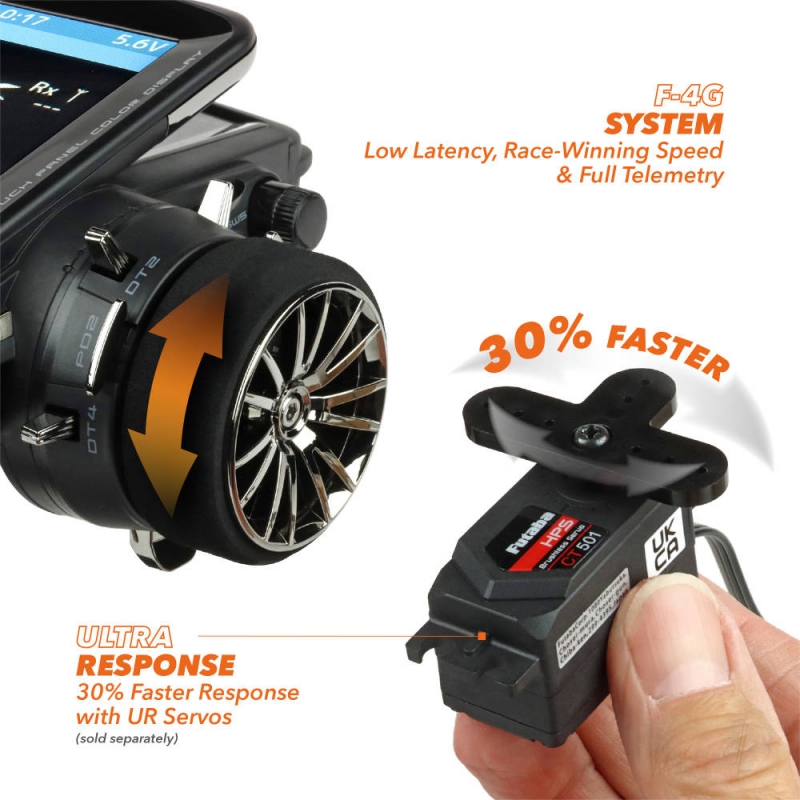

• Futaba's 4th Generation F-4G Telemetry System — This ultra-fast transmission technology delivers 30% faster response when paired with UR servos, ensuring your inputs translate to vehicle movement with virtually no delay—a critical advantage in competitive racing situations.

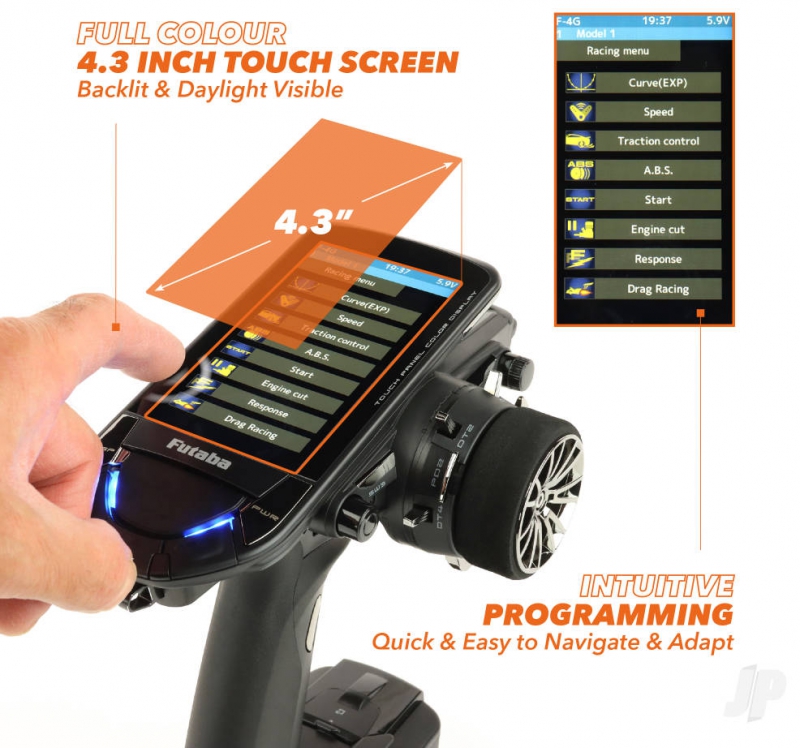

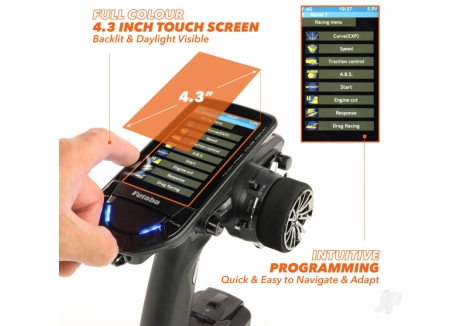

• 4.3-Inch Full-Colour HVGA Transflective Touchscreen — The bright, responsive LCD display maintains clarity both in bright outdoor sunlight and indoor environments, with a touchscreen interface that provides intuitive access to all programming functions, telemetry readouts and vehicle settings.

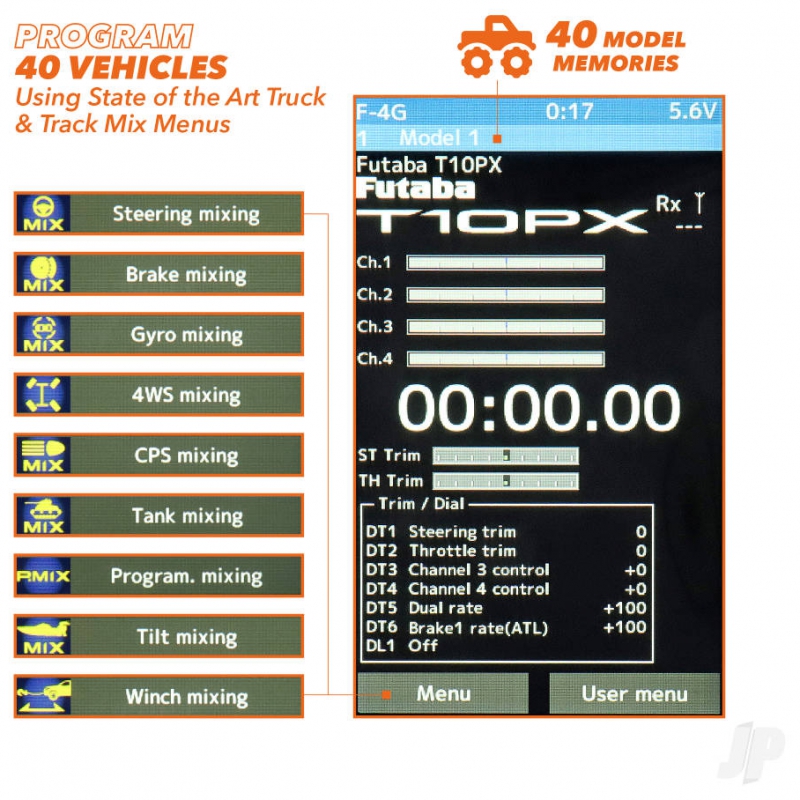

• 40-Model Memory Capacity — Store and instantly switch between configurations for up to 40 different vehicles, with model names supporting up to 15 characters, allowing you to maintain distinct setups for your entire RC car collection without any hassle.
• Comprehensive Telemetry Support — Monitor critical vehicle data in real-time including temperature, RPM, voltage, current draw and GPS position, enabling data-driven tuning decisions and helping you diagnose performance issues before they become problems on track.

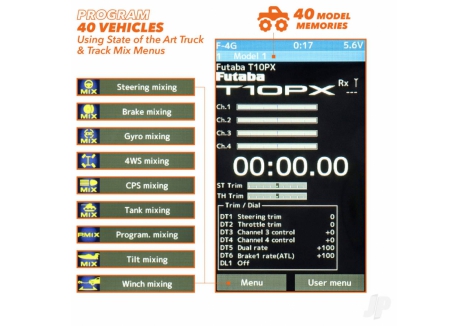

• Advanced Mixing Capabilities — The T10PX includes dedicated truck and track mix menus with sophisticated steering, acceleration, brake, gyro, 4-wheel steer, dual ESC, CPS, winch and tank mixing functions, plus program mixing and condition programming for complex vehicle setups.
• Multiple Radio Protocols — Support for F-4G, T-FHSS SR, T-FHSS Surface and S-FHSS Surface protocols, plus the T-FHSS Mini-Z system with suggested compatibility for Kyosho Mini-Z Evo receivers, ensures compatibility with a vast range of Futaba receivers and vehicle types.

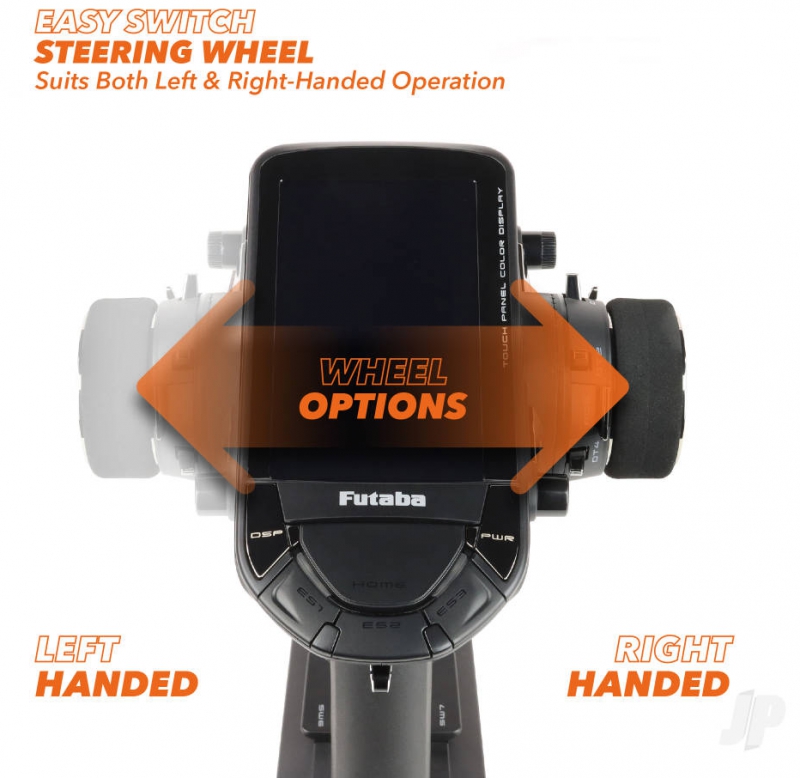

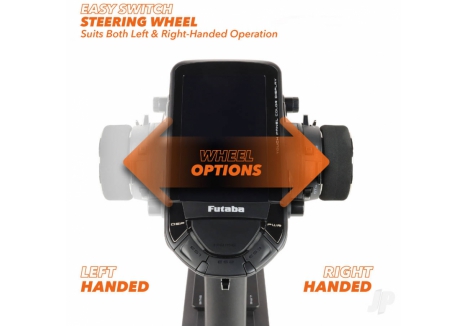

• Fully Adjustable Ergonomics — Customise wheel offset and angle, adjust throttle trigger position and tension, select your preferred rubber grip material, and flip the wheel for left-handed operation, ensuring a perfectly tailored feel for every driver.
• Dual ESC Mixing for Crawlers — Independent control of front and rear ESCs allows sophisticated management of dual-motor crawlers and multi-axle vehicles, with separate acceleration and braking curves for each axle.
• 4-Wheel Steering Support — Dedicated 4WS mixing enables precise control of crawlers and four-wheel-steer vehicles, with independent left and right steering servo settings for optimised cornering performance.
• Traction Control and ABS Functions — Advanced electronic stability features help manage tyre slip and wheelspin on challenging surfaces, with programmable curves that adapt to different track conditions and vehicle setups.
• Brake Mixing with Independent Front/Rear Control — Fine-tune braking bias independently for front and rear wheels on large 1/5GP cars and other vehicles, achieving optimal stopping performance across varied surfaces.
• MicroSD Card Compatibility — Easily update transmitter firmware, back up and restore model data, and record telemetry information on a microSD card for off-transmitter analysis and data management.
• Vibration Alerts and Warning Alarms — Customisable vibration feedback linked to the onboard timer, battery level warnings and various vehicle status indicators keeps you informed during operation without taking your eyes off the track.
• Non-Telemetry LED Indicator — A visual status light confirms when the telemetry function is disabled, providing quick feedback on your radio's current operating mode.
• Bluetooth and USB Connectivity — Connect wirelessly via Bluetooth or wired USB for PC integration, with the option to use the T10PX as a game controller for compatible racing simulations, enabling realistic practice and setup experimentation.
• S.Bus Servo Support — Direct S.Bus servo parameter configuration from the transmitter streamlines servo setup and allows on-the-fly adjustments without requiring separate servo programmers.
• MC-Link ESC Integration — Dedicated MC-Link functionality allows direct communication with compatible Futaba speed controllers, enabling ESC parameter adjustment and telemetry monitoring directly from the transmitter.
• Gyro Link Function — Adjust gyro sensitivity and parameters for Futaba car rate gyros directly from the T10PX, enabling quick tuning of electronic stability control systems during testing and racing.
• Throttle Speed Control — Smooth out aggressive trigger inputs on slippery surfaces with programmable throttle acceleration curves, preventing tyre spin and maintaining traction on challenging terrain.
• Assignable Paddle, 3-Position and Bottom Switches — Customise function assignment for the steering wheel paddle, grip-mounted 3-position switch and bottom switch, supporting multiple auxiliary functions with reversible operation.
• Dial Select and Programmable Dials — Assign any transmitter function to adjustable dials with user-configurable step amounts and operating directions, perfect for on-the-fly throttle curve adjustments or differential tuning.
• Engine Cut Function — Instantly disable motor power whilst maintaining servo control, useful for emergency situations and simplifying vehicle handling during setup.
• Drag Racing and Trans Brake Support — Specialised trans brake programming allows competition drag racing setups with launch control and staged acceleration management.
• Idle-Up Function — For nitro-powered vehicles, idle-up enables separate throttle positioning during idle and active racing phases, improving fuel efficiency and throttle response.
• Onboard Timers — Four independent lap and race timers help track runtime, count laps and manage race segments without requiring separate equipment.
• Lap List Function — Built-in lap timing and recording features assist with performance analysis and competitive practice sessions.
• Trim and Dial Lock Functions — Prevent accidental trim and dial adjustments during operation, protecting your carefully tuned settings whilst the vehicle is running.
• Exponential Control Curves — Programmable exponential curves for steering, throttle and brake channels allow tailored control sensitivity that matches your driving style and vehicle characteristics.
• Servo Response Adjustment — Fine-tune servo response times to match your vehicle's unique control requirements and driver preferences.

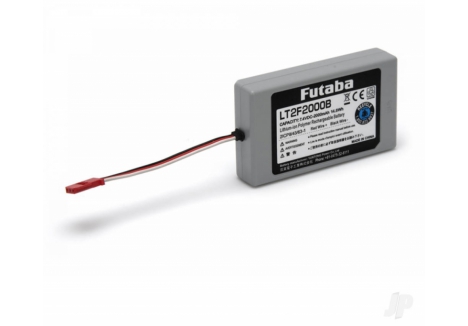

• LiPo Battery Option — The optional LT2F2000B LiPo battery provides extended runtime compared to the standard dry battery holder, ideal for extended testing and racing sessions.
• Extensive Accessory Package — Includes large-diameter steering wheel, multiple wheel adapters, trigger guard, rubber grip options, blind paddles, offset adapter and hex wrench, providing a complete out-of-the-box setup experience.

Technical Performance

The Futaba T10PX is engineered to professional racing standards with meticulous attention to transmission reliability, response speed and electromagnetic interference immunity. The transmitter operates on the 2.4 GHz band with 100mW EIRP (Effective Isotropic Radiated Power) output, providing robust signal coverage across competitive RC racing venues throughout the UK. The transmission protocols—F-4G, T-FHSS SR, T-FHSS Surface and S-FHSS Surface—each optimise for specific vehicle types and racing disciplines, with F-4G delivering the fastest response for vehicles equipped with compatible UR servos. The included R404SBS F-4G receiver measures just 25.5 x 20.7 x 10.6mm and weighs only 5.7 grams, making it compact enough for tight receiver boxes whilst maintaining full telemetry and control capabilities. The receiver operates across DC 3.7–8.4V, providing broad compatibility with various battery configurations from 1S through 2S LiPo packs. The transmitter draws a maximum of 350mA (measured with T-FHSS protocol, vibration disabled and backlight active), meaning a standard 2000mAh LiPo battery provides several hours of runtime for extended testing and racing sessions. The 4.3-inch HVGA display features transflective technology, utilising ambient light reflection combined with active backlighting to maintain visibility across all lighting conditions from bright outdoor tracks to shadowed indoor racing venues. The touchscreen interface processes inputs with responsive haptic feedback, and the intuitive menu structure organises the advanced mixing functions into logical categories that experienced drivers will immediately recognise and appreciate.

What's in the Box

• 1x T10PX Transmitter (equipped with 4.3-inch HVGA transflective touchscreen)
• 1x R404SBS F-4G Telemetry Receiver
• 1x Dry Battery Holder (AA cell configuration)
• 1x Wheel Offset Adapter with mounting screws
• 1x Wheel Adapter (32 degrees)
• 1x Wheel Angle Spacer (5 degrees)
• 1x Large Diameter Steering Wheel
• 1x Trigger Guard (left and right)
• 1x Rubber Grip (interchangeable)
• 1x Blind Paddle Set
• 1x Hex Wrench (for assembly and adjustment)
• 1x Short Manual (English language instruction guide)

What You Need to Complete

• A compatible Futaba receiver if you wish to use additional vehicles (the R404SBS receiver is included but you may wish to purchase spare receivers for your second, third and subsequent RC vehicles)
• Optional LT2F2000B LiPo battery pack (2000mAh 7.4V) for extended runtime beyond the dry battery holder capacity
• AA batteries for the included dry battery holder (four cells recommended for optimal performance)
• MicroSD memory card (if you intend to use firmware updates or telemetry data recording features)

Frequently Asked Questions

• Is the Futaba T10PX suitable for beginners? — No, the T10PX is a professional-grade competition transmitter designed for experienced RC drivers and racers. Whilst the interface is intuitive for those familiar with advanced radio systems, beginners should consider starting with an entry-level Futaba system and progressing to the T10PX as their skills and knowledge develop. The learning curve is steep due to the extensive mixing capabilities and advanced features.
• What battery does the T10PX need? — The transmitter is supplied with a dry battery holder designed for AA cells, providing portable power for field operation. For extended runtimes and more consistent performance, Futaba offers the optional LT2F2000B LiPo battery (2000mAh, 7.4V), which provides several hours of continuous operation. You may also use the compatible FT2F1700BV2 LiFe battery (6.6V) as an alternative.
• What makes the F-4G protocol faster than other Futaba systems? — The 4th generation F-4G telemetry system achieves 30% faster response times compared to previous T-FHSS technology, particularly when paired with Futaba UR servos. This speed advantage comes from optimised signal processing, reduced transmission latency and advanced servo communication protocols, translating to measurably faster steering response on track—a critical advantage in competitive racing where hundredths of a second determine race outcomes.
• Can I use the T10PX with receivers other than Futaba? — No, the T10PX is part of the Futaba ecosystem and works only with Futaba receivers including the supplied R404SBS and other compatible Futaba receivers. It is not compatible with Spektrum, Traxxas TQi or other third-party RC radio systems.
• How many vehicles can I programme into the T10PX? — The transmitter features 40-model memory, allowing you to store complete configuration data for up to 40 different vehicles. Each model memory can include unique mixes, settings, timer configurations and telemetry preferences, making it easy to switch between your various RC cars, trucks, crawlers and other surface vehicles.
• Does the T10PX include a receiver? — Yes, the T10PX package includes one R404SBS F-4G telemetry receiver. If you own multiple vehicles, you will need to purchase additional receivers for each vehicle you wish to control, though the transmitter itself can manage up to 40 separate model configurations.
• What is the difference between F-4G, T-FHSS SR and T-FHSS? — F-4G is Futaba's fastest protocol, offering 30% quicker response with UR servos. T-FHSS SR (Surface Race) is a previous-generation surface-specific protocol offering good performance. T-FHSS is an older standard still supported for backward compatibility. S-FHSS is a legacy protocol. The T10PX supports all four, allowing compatibility with a vast range of existing Futaba receivers across different vehicles.
• Can I use the T10PX as a PC game controller? — Yes, the T10PX features USB connectivity that allows it to function as a controller for compatible racing simulation games on your computer, enabling you to practice setups and driving techniques in virtual environments using your actual competition transmitter.
• What telemetry data does the T10PX receiver provide? — The R404SBS receiver supports temperature monitoring, RPM readouts from compatible ESCs, voltage and current measurements from your battery and ESC, plus GPS position data if your vehicle is equipped with compatible telemetry sensors. This real-time data appears on the transmitter's touchscreen during operation and can be recorded for later analysis.
• Is the T10PX waterproof? — Whilst the T10PX transmitter features a quality build, it is not fully waterproof and should not be submerged or exposed to heavy rain. The receiver (R404SBS) is similarly not waterproofed and should be protected from water intrusion on water-crossing vehicles. Keep the transmitter in a protective case when not in use.
• What is the transmission range of the T10PX? — Futaba does not publish specific range figures for the T10PX. However, modern 2.4GHz spread-spectrum systems with 100mW EIRP output typically provide reliable control range of 200+ metres in open spaces. Actual range varies based on antenna orientation, interference sources and terrain. Always maintain visual line-of-sight with your vehicle.
• Can I update the transmitter firmware? — Yes, the T10PX supports firmware updates via MicroSD card, allowing Futaba to release performance improvements and new features that you can install yourself. Check the official Futaba UK website for available updates and detailed installation instructions.
