Overview

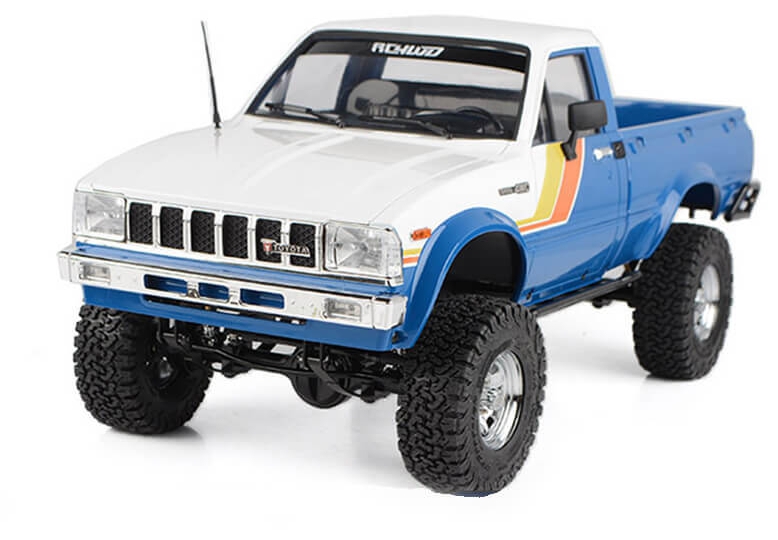

The RC4WD Trail Finder 2 RTR with 1982 Toyota Pickup Hard Body in blue is a stunning ready-to-run RC crawler that combines authentic scale authenticity with proven trail performance. This is a licensed 1/10 scale model that captures the iconic classic '80s livery and timeless lines of the original Toyota pickup truck, complete with comprehensive factory-fitted electronics and a full complement of premium components. Whether you're new to the hobby and seeking a ready-to-run RC car UK enthusiasts recommend, or an experienced trail driver looking for a showcase model with genuine performance credentials, this particular RC crawler delivers on both fronts.
From the moment you open the box, the attention to detail is immediately apparent. The hard-plastic body features a fully moulded 22R engine bay with painted dress-up kit, metal emblems, detailed inner fenders, and a meticulously crafted interior that showcases the steering wheel, shift knob, and air vents. The factory-installed LED light set means you can take your trail adventures from daytime into the night without requiring any additional modifications. This is a brushed electric RC crawler built on the legendary Trail Finder 2 chassis platform, which has undergone years of rigorous trail testing and refinement to ensure reliability and performance day after day.
The RC4WD Trail Finder 2 represents the pinnacle of ultimate scale crawling, offering scale accuracy rivalled by few competitors whilst maintaining exceptional off-road capability. New suspension updates provide improved articulation straight out of the box, with optional helper leaf springs and inner shock springs included for personal tuning should you wish to adjust the geometry later. The steering knuckles have been engineered for increased strength and durability, whilst the leaf springs mounted under the axles lower the ride height and centre of gravity for enhanced stability during challenging off-road conditions. If you're hunting for a ready-to-run RC crawler that won't disappoint, this is a serious contender.
Key Features
- R3 Single Speed Transmission — Features a tough cast metal case with wider steel gears for exceptional durability, combined with a Delrin spur and slipper clutch for smooth performance, plus a sturdy billet aluminium motor mount that resists flexing under load. The transmission delivers a pinion/spur ratio of 14/64 (1:4.57) with an internal ratio of 1.78:1, engineered for controlled trail driving rather than pure speed.
- Hammer Transfer Case — This cast metal transfer case features heavy-duty 0.8 Mod widened hardened steel gears with an impressive 8 bearings, delivering a ratio of 1.47:1. RC4WD drew on their renowned MOA gear technology to ensure these are amongst the most durable gears available, capable of withstanding daily trail use without wear.

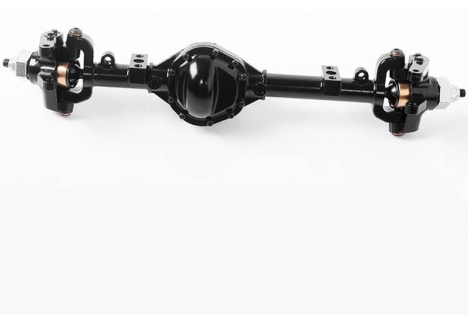

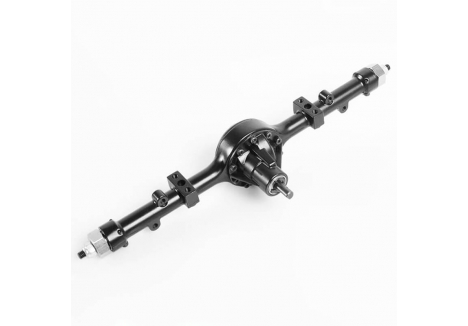

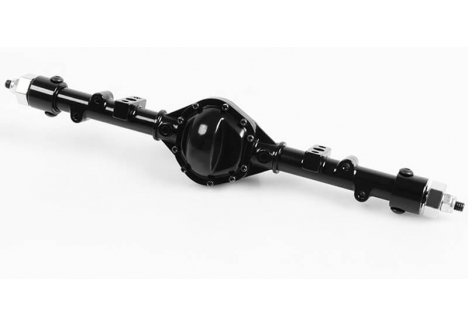

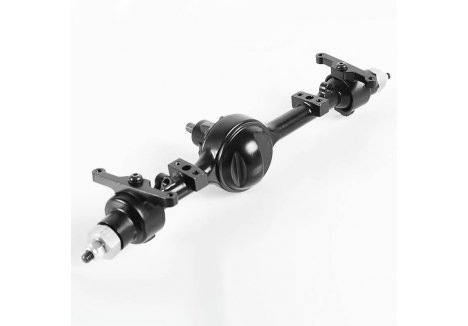

- Yota II Ultimate Scale Cast Axles (XVD) — Recognised as the most scale-accurate axles on the market, these upgraded units feature innovative 8-degree round knuckles, unique removable differential covers, lower mounting points, and a compact offset front pumpkin. The 15/40 ratio gears deliver dependable torque for crawling, whilst the XVD (extreme vertical differential) technology optimises performance on mixed terrain.
- Heavy-Duty Metal Driveshafts — Uni-joint metal driveshafts throughout provide excellent driveline angles and exceptional durability, ensuring reliable power transfer to all four wheels even when the chassis is articulated at extreme angles during technical crawling.
- Ultimate Scale Shocks with X-Ring Technology — These billet-aluminium shock absorbers feature internal springs and fully rebuildable internals, with X-ring seal technology that reduces contact friction for smooth shaft movement whilst improving oil retention around the shock shaft. Available in 60mm and 80mm configurations, they deliver both scale authenticity and genuine performance.
- Super Soft Flex Leaf Springs — Installed beneath the axles to lower the chassis ride height and centre of gravity, these flex leaf springs improve overall stability during off-road driving. Helper leaf springs and inner shock springs are included but uninstalled, allowing you to fine-tune the suspension geometry to suit your specific terrain and driving style.

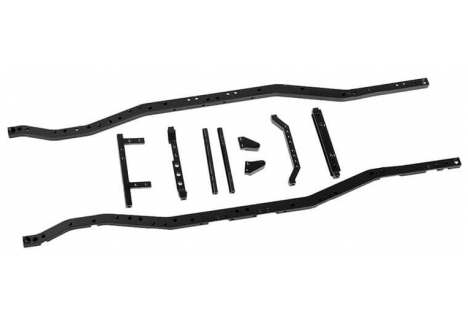

- CNC-Machined Billet Aluminium Ladder Frame — The chassis backbone is constructed from precision CNC-machined billet aluminium, featuring scale shock hoops, a dedicated chassis servo mount, and robust transmission and transfer case mounts that resist flexing and deformation under stress.
- Stamped Steel 1.7-Inch Beadlock SR5 Wheels — Chrome-finished stamped steel wheels with 12mm hex hubs and a 47mm outer diameter (23mm width) provide a classic look whilst the beadlock rings ensure tyres remain mounted even during extreme articulation or when aired down for improved traction.
- RC4WD BFGoodrich All Terrain K02 1.7-Inch Scale Tyres — Featuring the advanced X2S3 soft compound formulation, these scale-accurate tyres deliver genuine traction on mixed terrain whilst maintaining authentic proportions. At 91.4mm outer diameter with a 34.3mm width, they balance visual realism with practical grip.

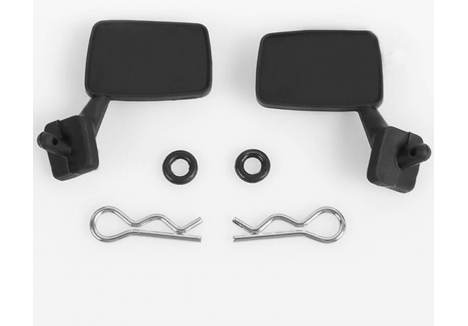

- 1982 Toyota Pickup Hard Body with Extensive Detail — The durable hard-plastic body captures the iconic '80s Toyota livery and features mirrors, door handles, vents, a detailed front grille, and fitted inner fenders. The bonnet opens to reveal the fully moulded 22R engine bay with painted components and dress-up kit, transforming the hood pop into a show-stopping moment at any RC gathering.
- Detailed Hard-Plastic Interior — The moulded interior includes a steering wheel, shift knob, and air vents, providing authentic scale representation that becomes even more impressive when viewed with the bonnet open.
- Pre-Installed LED Light Set — An ultra-bright LED lighting system comes professionally installed and concealed, keeping the realistic appearance intact whilst enabling evening trail sessions and creating genuine presence on darkened terrain. This is genuinely useful for extended driving sessions and adds genuine wow factor.

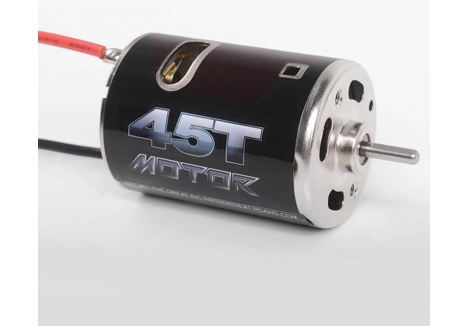

- RC4WD 45-Turn Crawler Brushed Motor — This dedicated 540-size brushed motor is specifically tuned for rock climbing and scale driving rather than all-out speed, delivering smooth, predictable power delivery that suits technical trail work perfectly. The brushed design offers simplicity and reliability, requiring minimal maintenance for hobbyists.

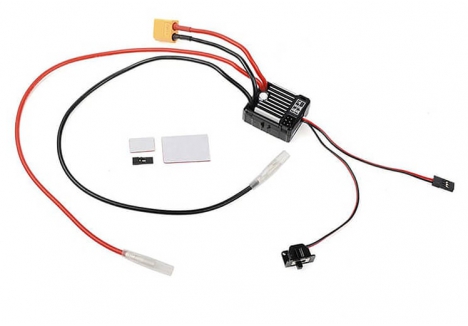

- RC4WD Outcry III Waterproof ESC with Drag Brake — This brushed-motor speed controller features built-in drag brake functionality for enhanced control on downhill sections and technical terrain, plus full waterproofing to protect electronics during river crossings and wet-weather trail sessions.
- Twister Metal Gear Digital Servo with High Torque — Delivering an impressive 277.6 oz-in torque at 6V from a fully metal-geared drivetrain, this digital servo provides the steering authority needed for technical trail work and sharp directional control. The metal gears ensure durability and resistance to stripping even under demanding conditions.

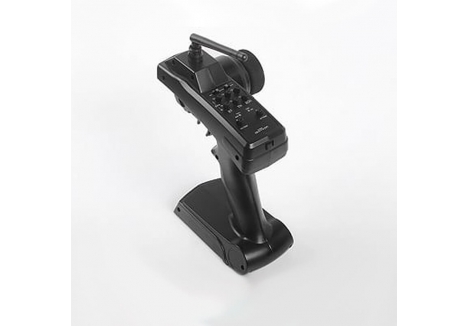

- XR3 3-Channel 2.4GHz Transmitter and Receiver — This frequency-hopping spread-spectrum radio system provides reliable long-range control with modern 2.4GHz technology, eliminating frequency conflicts common with older systems and ensuring your signal remains locked even in areas with other RC activity.

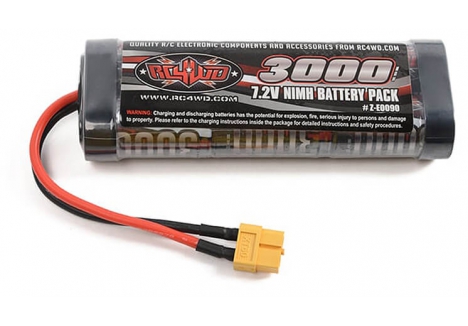

- 6-Cell 3000mAh NiMH Battery Pack — The included battery provides dependable runtime from a proven NiMH chemistry. The XT60 connector ensures secure connections, whilst the included universal NiMH peak charger provides convenient charging without requiring additional equipment purchases.

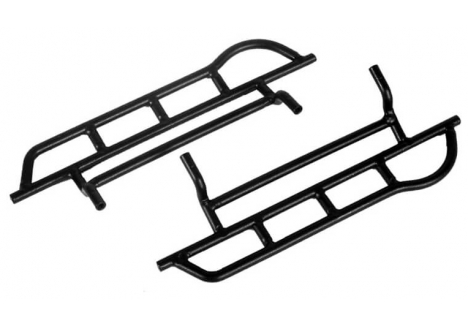

- Marlin Crawler Side Plastic Sliders V2 — These protective side sliders prevent tyre rub during extreme articulation and protect the lower body panels during technical side-hilling and rock crawling manoeuvres.
- Rear Plastic Tube Bumper and Front Inner Fender Set — Factory-fitted protective components that enhance both the scale appearance and practical durability, preventing damage during inevitable contact with rocks and trail obstacles.
Technical Performance
The RC4WD Trail Finder 2 RTR represents several years of engineering refinement focused specifically on trail performance and ultimate scale authenticity. At 1/10 scale with a wheelbase of 284mm, width of 214mm, and height of 203mm, this model sits convincingly next to its full-size counterpart whilst remaining portable and manageable. The ground clearance of 45mm combined with the super-soft flex leaf springs and upgraded Yota II axles enables remarkable articulation and obstacle-clearing capability. The chassis weighs optimally for controlled descents, with the low centre of gravity contributing to stability during technical side slopes.
The drivetrain combines the R3 Single Speed Transmission (pinion/spur 14/64 = 1:4.57, internal ratio 1.78:1) with the Hammer Transfer Case (ratio 1.47:1) and Yota II axles (ratio 15/40 = 2.67:1) to produce a final drive ratio of 31.9:1. This gearing is deliberately conservative, prioritising controlled crawling speed and maximum torque multiplication over outright velocity. The 540-size brushed motor at 45 turns delivers approximately 1100-1300mA at full throttle depending on battery condition, providing smooth modulation suitable for precision trail work. The Outcry III ESC manages this power with excellent linearity, and the drag-brake function provides genuine engine-braking effect during downhill sections, reducing the need for constant thumb input and enhancing realism.
The suspension geometry incorporates the Yota II Ultimate Scale Cast Axles with 8-degree round knuckles, which provide superior strength and articulation compared to conventional designs. The 178.2mm width at the hex maintains proper stance whilst the upgraded XVD (extreme vertical differential) technology ensures wheels maintain traction across uneven terrain. The Ultimate Scale Shocks with X-ring seals feature the durability of billet-aluminium construction combined with rebuildable internals, meaning seal degradation can be remedied without replacing the entire unit. The choice of 60mm or 80mm shock lengths allows tuning of ride height and spring preload to match specific terrain and driving preferences. The CNC-machined billet aluminium ladder frame resists flex and maintains structural integrity even when severely articulated.
Electronics are comprehensively protected and genuinely useful. The Outcry III ESC is fully waterproof, enabling fording of shallow streams and wet-weather trail work without hesitation. The pre-installed LED system operates independently from the main power system, providing continuous illumination regardless of throttle input. The Twister digital servo delivers 277.6 oz-in torque at 6V, sufficient for confident steering response even when the chassis is twisted extreme angles. The 2.4GHz XR3 radio system provides modern reliability and range, with spread-spectrum technology eliminating frequency conflicts. The included 6-cell 3000mAh NiMH battery provides genuine runtime for recreational trail sessions, typically delivering 20-40 minutes depending on driving intensity. The universal NiMH peak charger supports future battery upgrades if desired, though the included pack represents a practical balance between performance and charging convenience.
Build quality reflects RC4WD's heritage as a specialist in high-end scale crawling. Every component from the cast axle housings to the billet aluminium frame is selected for durability and aesthetic authenticity. The hard-plastic body, whilst not featuring scale paint like some premium models, benefits from hand-painted finish work that captures the spirit of 1980s Toyota trucks. The stamped steel wheels with chrome finish provide visual appeal whilst the BFGoodrich All Terrain K02 scale tyres deliver genuine grip and traction. This is a professional-grade ready-to-run model that rewards careful maintenance and respects the trail, rather than a toy-like bashable truck.
What's in the Box
- RC4WD Trail Finder 2 RTR chassis with 1982 Toyota Pickup hard body (hand-painted, blue)
- R3 Single Speed Transmission (installed)
- Hammer Transfer Case (installed)
- Yota II Ultimate Scale Cast Axles front and rear (installed)
- Ultimate Scale Shocks (60/80mm, installed)
- Super soft flex leaf springs (installed under axles)
- Helper leaf springs (uninstalled, included for tuning)
- Inner shock springs (uninstalled, included for tuning)
- Marlin Crawler side plastic sliders V2
- Rear plastic tube bumper
- Front inner fender set
- Metal uni-joint driveshafts (front and rear)
- Stamped steel 1.7-inch beadlock SR5 wheels (chrome, set of 4)
- RC4WD BFGoodrich All Terrain K02 1.7-inch scale tyres (set of 4, X2S3 soft compound)
- 22R engine bay (fully moulded with painted dress-up kit)
- Detailed hard-plastic interior with steering wheel and shift knob
- Pre-installed LED light set
- RC4WD 45-turn 540 crawler brushed motor
- RC4WD Outcry III waterproof ESC with built-in drag brake
- RC4WD Twister metal gear digital servo (high torque)
- XR3 3-channel 2.4GHz transmitter and receiver
- 6-cell 3000mAh NiMH battery pack with XT60 connector
- Universal NiMH peak battery charger
Frequently Asked Questions
- Is the RC4WD Trail Finder 2 ready to run straight out of the box? — Yes, this is a complete ready-to-run (RTR) model. Everything required for operation is included: the fully assembled chassis, pre-installed electronics, battery, charger, and transmitter/receiver. Assembly of the body panels may be required, and RC4WD recommends checking all hardware before first use and applying threadlock to metal-to-metal screw connections, but no soldering or significant construction work is needed. This makes it an excellent choice for those seeking a ready-to-run RC crawler without extensive build time.
- What battery does the RC4WD Trail Finder 2 use and how long will it run? — The model includes a 6-cell 3000mAh NiMH battery pack with XT60 connector. A typical trail session delivers 20-40 minutes of runtime depending on driving intensity, terrain, and how aggressively you operate the throttle. The included universal NiMH peak charger supports standard charging cycles, and future upgrades to higher-capacity batteries or LiPo alternatives are possible if desired, though this would require compatible chargers for safe operation.
- Is this suitable for beginners? — Absolutely. Whilst the Trail Finder 2 is built to professional standards, the ready-to-run format, intuitive 3-channel radio system, and brushed-motor simplicity make it entirely beginner-friendly. The included documentation recommends checking hardware and applying threadlock, both straightforward tasks. The slow, controlled power delivery of the 45-turn motor and conservative 31.9:1 gearing encourage smooth driving technique, and the waterproof ESC with drag brake provides confidence during learning. The main consideration is that this is a scale crawler rather than a speed-focused basher, so expectations should align with technical trail work rather than high-speed runs.
- How much articulation and flex can this chassis achieve? — The upgraded Yota II axles with 8-degree round knuckles, combined with the super-soft flex leaf springs mounted under the axles and the rebuildable Ultimate Scale Shocks, enable remarkable articulation. The low centre of gravity and near-0 approach/departure angles mean this truck can crawl over obstacles significantly taller than itself. The helper leaf springs and inner shock springs included but uninstalled allow you to soften the suspension further for additional articulation if needed, though the pre-tuned setup suits most trail conditions immediately.
- What makes the Yota II axles different from standard RC axles? — RC4WD's Yota II Ultimate Scale Cast Axles are engineered specifically for scale authenticity alongside performance. The 8-degree round knuckles replicate full-size steering geometry rather than using simplified pivot designs, the removable differential covers permit oil changes and maintenance, and the offset front pumpkin reduces the profile visible through the grille. The XVD (extreme vertical differential) technology ensures both wheels maintain traction across varied terrain rather than one wheel spinning freely. These details matter little to speed-focused drivers but significantly enhance both the scale appearance and the quality of a crawling experience.
- Is the electronics package waterproof? — The Outcry III ESC is fully waterproof, permitting ford-crossings and wet-weather trail work. The pre-installed LED system is sealed and protected. The motor and servo, whilst not military-grade waterproof, are protected by the chassis and body design. That said, this remains an electronics-equipped model, not a toy, and extended submersion should be avoided. Typical wet-weather trail work and shallow water crossings present no issues.
- What is the scale and what are the actual dimensions? — This is a 1/10 scale model, meaning it is approximately one-tenth the size of a full-size 1982 Toyota pickup truck. The wheelbase is 284mm (11.2 inches), the width is 214mm (8.4 inches), and the height is 203mm (8 inches). Ground clearance is 45mm (1.8 inches), which provides adequate obstacle-climbing capability whilst maintaining authentic proportions.
- What type of terrain is this model designed for? — The Trail Finder 2 excels on rocky terrain, root-filled forest floors, creek beds, and technical obstacle courses. The brushed motor and conservative gearing prioritise control and sustained climbing torque rather than speed across open ground. Whilst the truck is capable of general off-road driving, it truly shines when tackling challenging technical terrain where careful line selection and precision steering determine success.
- How does the hand-painted body affect the product? — RC4WD hand-paints each body, which means minor blemishes, paint variations, or imperfections may occur. This is documented openly, and the variation actually adds character and authenticity to scale models. If a perfectly uniform paint finish is essential, contact RC Model Shop to discuss expectations or to request photographic confirmation before purchase. Most buyers find the hand-painted finish entirely acceptable and appreciate the artisanal quality.
- What maintenance will this require? — Routine maintenance involves checking all hardware periodically, applying threadlock to metal-to-metal connections before first use, ensuring differential and transfer-case oil levels remain adequate, and occasionally cleaning or replacing the battery as needed. The shock seals may require replacement after extended use, but RC4WD supplies these components affordably. The brushed motor requires minimal maintenance compared to brushless alternatives, making this an excellent choice for those preferring simplicity. Avoid overtightening fasteners, particularly into soft materials like plastic, as this can cause stripping.
- Can I upgrade components or is this a sealed design? — The Trail Finder 2 is highly modular. Helper leaf springs and inner shock springs come included but uninstalled, permitting suspension tuning. The tyre and wheel combination is straightforward to swap if desired. Motor, servo, and ESC can be changed by users comfortable with basic soldering. Differential oils can be changed using RC4WD's available drain plugs. This balance between ready-to-run convenience and upgrade potential makes it suitable for hobbyists at varying experience levels.
