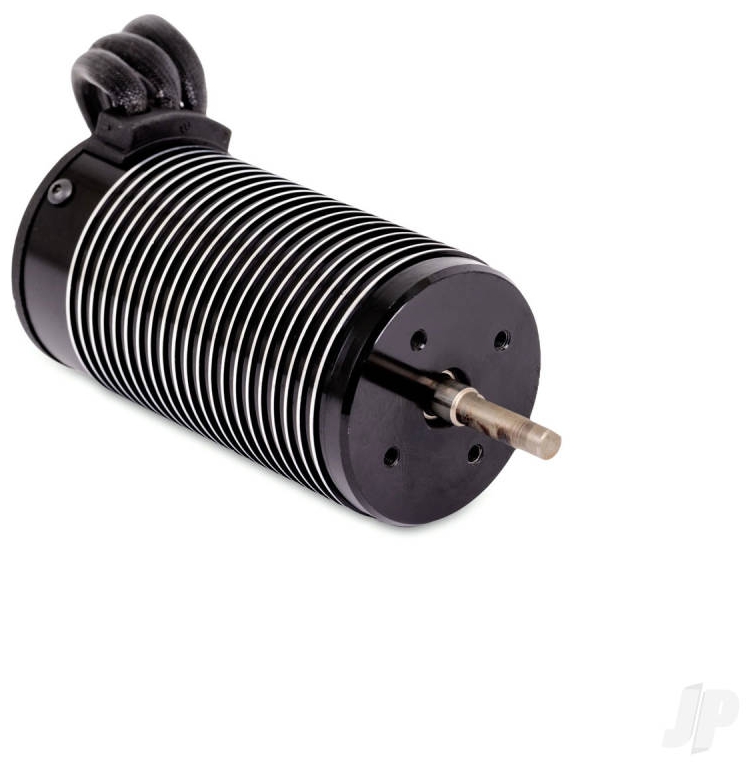

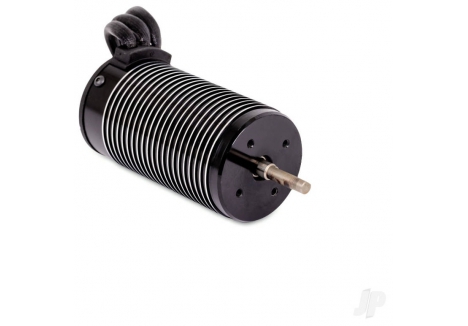

Traxxas Motor, 2000kV 77mm, brushless (with 6.5mm gold-plated connectors & high-efficiency heatsink) TRX3483

Overview

The Traxxas Motor, 2000kV 77mm brushless unit with 6.5mm gold-plated connectors is a high-performance replacement motor engineered for serious RC enthusiasts in the UK who demand reliability and power. This sensorless brushless motor represents the pinnacle of Traxxas engineering, delivering impressive performance figures that make it an ideal choice for 1/8 scale RC monster trucks and short course trucks. Whether you're upgrading an existing vehicle or building a high-powered RC car from scratch, this motor is designed to handle the demands of competitive bashing and racing with exceptional efficiency.

Brushless motors have revolutionised the RC hobby, and this 2000kV Traxxas unit exemplifies why they've become the standard for performance-focused builds. The motor's 77mm length and optimised design work in harmony with modern ESC controllers to deliver rapid acceleration, sustained high-speed performance, and excellent reliability even during extended bashing sessions. If you're searching for a brushless RC motor that punches above its weight, or you need a genuine Traxxas replacement motor for your Sledge or Maxx Slash, this is a recognised solution trusted by RC hobbyists across the UK.

This motor is compatible with several premium Traxxas platforms, making it a versatile upgrade option for those serious about pushing their RC vehicle to its limits. The high-efficiency design keeps operating temperatures low, whilst the gold-plated connectors ensure optimal electrical contact and power transfer for the ultimate in responsiveness and performance.

Key Features

• 2000kV Motor Rating — The 2000kV specification provides an ideal balance between acceleration and top-end speed for 1/8 scale RC vehicles, making this motor suitable for vehicles powered by 6S brushless battery systems and delivering the kind of thrilling performance that makes RC driving so exciting.
• 77mm Motor Length — Optimised at 77mm, this motor size is specifically engineered to fit the motor pod of high-end Traxxas platforms whilst maintaining perfect balance and weight distribution for stable handling at high speeds.
• Sensorless Brushless Technology — Unlike brushed motors that require regular maintenance and brush replacement, this brushless design eliminates brush wear entirely, meaning you get more run time between servicing and significantly longer motor life, which saves money over time.
• 6.5mm Gold-Plated Connectors — The generous 6.5mm connector size with gold plating ensures minimal electrical resistance, maximum power delivery to your ESC, and reliable connections that won't loosen or corrode even after hundreds of charge cycles and intense RC sessions.
• High-Efficiency Heatsink — Integrated directly into the motor's design, this heatsink actively draws heat away from the motor windings during operation, keeping temperatures low for sustained performance and extending the overall lifespan of the motor significantly.
• 5mm Bore Size — The motor features a 5mm bore diameter, which is the standard size for Traxxas 1/8 scale vehicles, ensuring perfect fitment and compatibility with original equipment shafts and drive components.

Technical Performance

This Traxxas brushless motor represents serious engineering for the discerning RC car enthusiast. At 2000kV, the motor delivers the kind of performance envelope that suits 6S LiPo battery systems commonly used in 1/8 scale RC monster trucks and short course trucks, with top speeds exceeding 70 mph achievable when paired with appropriate gearing and ESC controllers. The 77mm length places it in the "oversized" motor category, providing higher torque output and better heat dissipation characteristics than shorter designs, which means more consistent performance even during extended driving sessions in warm conditions. The brushless design eliminates the commutation issues associated with brushed motors, delivering perfectly smooth power delivery and allowing the motor to operate at maximum efficiency across a wide RPM range. The sensorless configuration makes it compatible with modern brushless ESCs that support sensorless operation, whilst the gold-plated 6.5mm connectors minimise voltage drop and ensure that every amp of power from your battery pack reaches the motor windings with minimal loss. The integrated high-efficiency heatsink is machined from quality materials and features optimised geometry to maximise surface area for heat dissipation, critical for maintaining peak performance during competitive runs or intense bashing sessions where continuous throttle is the norm.

What's in the Box

• Traxxas 2000kV 77mm Brushless Motor (complete assembled unit)
• Gold-plated 6.5mm connectors (pre-installed)

What You Need to Complete

• 6S LiPo brushless battery pack (3S configurations may work but are not recommended for this motor's KV rating)
• LiPo battery charger compatible with your chosen battery type
• Brushless-compatible ESC (Electronic Speed Controller) rated for your vehicle platform
• Compatible RC vehicle chassis such as the Traxxas Sledge or Traxxas Maxx Slash
• Appropriate motor timing ESC settings may need adjustment depending on your specific vehicle setup

Frequently Asked Questions

• What vehicles is the Traxxas 2000kV 77mm motor compatible with? — This motor is officially compatible with the Traxxas Sledge Belted 1/8 4WD brushless electric monster truck (available in green, red, blue and orange) and the Traxxas Maxx Slash 1/8 4WD 6S brushless short course truck (also available in multiple colours including blue, rock and roll, red and green). It serves as both an original component and a direct replacement for these platforms.
• What KV rating is this motor and what does that mean for performance? — The 2000kV rating indicates that the motor will rotate approximately 2000 revolutions per minute per volt applied under no-load conditions. For a 6S LiPo battery (22.2V nominal), this translates to approximately 44,400 RPM unloaded, which when combined with appropriate gearing delivers the kind of speed and acceleration expected from premium 1/8 scale RC vehicles. Higher KV motors spin faster but produce slightly less torque; conversely, lower KV motors produce more torque but lower top speeds. The 2000kV specification represents the "sweet spot" for 6S powered 1/8 scale vehicles.
• What type of battery does this motor require? — This brushless motor is optimised for 6S LiPo battery packs, which provide 22.2V nominal voltage. Whilst 3S packs (11.1V) are technically compatible, performance will be significantly reduced. Never exceed 6S voltage as this will damage the motor and cause failure. Always pair this motor with a brushless-rated ESC that matches your battery configuration.
• Is this a sensorless or sensored brushless motor? — This is a sensorless brushless motor, meaning it does not require sensor wires to determine rotor position. Sensorless motors are lighter, more affordable, and more commonly used in RC applications where peak performance at high RPMs is prioritised. They work perfectly with modern brushless ESCs and are the industry standard for RC vehicles in the UK and worldwide.
• What are the advantages of the gold-plated 6.5mm connectors? — Gold plating provides superior electrical conductivity compared to bare or nickel-plated connectors, reducing resistance and voltage drop during discharge. The 6.5mm size is significantly larger than standard 3.5mm connectors, allowing higher current flow with minimal heating. This means more of your battery's power reaches the motor, resulting in better acceleration and more consistent performance, plus the connectors resist corrosion and won't develop oxide layers that reduce conductivity over time.
• Why does this motor include a heatsink? — The integrated heatsink actively dissipates heat generated by motor winding resistance during operation. Heat is the enemy of brushless motors, reducing efficiency and shortening lifespan. By maintaining lower operating temperatures, the heatsink extends motor life, maintains consistent performance even during extended high-RPM runs, and ensures reliability during competitive racing or intense weekend bashing sessions where the motor runs continuously at high power levels.
• How does this compare to the TRX3481 2200kV motor? — The TRX3481 operates at 2200kV, approximately 10% higher than this 2000kV unit. The higher KV means slightly faster top speed but slightly lower torque output. For most 1/8 scale applications, especially short course trucks and monster trucks running 6S power, the 2000kV is the preferred choice. The 2200kV option suits applications where maximum top speed is prioritised, whilst the 2000kV excels at acceleration and low-end power delivery.
