FEATURES
- 10 channels (F-4G system).
- 40 model memories.
- F-4G, S-FHSS, T-FHSS, T-FHSS SR & Mini-Z protocols.
- Full colour 4.3 inch HVGA transflective LCD.
- Telemetry (temp / RPM / volts / amps / GPS).
- Acceleration (preset throttle jump).
- Steering mix (twin servo).
- Brake mix (independent adjustment of front & rear).
- Gyro mix (remote gain adjustment).
- 4WS mix (tuning of front and rear steering).
- Dual ESC mixing (control of front & rear motors).
- CPS mixing (Channel Power Switch control).
- Winch mix (winch control via trim).
- Tank / track mix (throttle & steering).
- Tilt mix (for yachts and powerboats).
- Program mixing (5 available).
- Condition programming (setting & switching parameters).
- Exponential (steering, throttle & brake).
- Response adjustment (15 point throttle & steering scale).
- Steering speed (adjustment of steering servo).
- Throttle speed (adjustment of throttle servo).
- Servo response (to adjust over sensitivity).
- Traction control (prevents wheel spin).
- A.B.S. (prevents skidding during braking).
- Engine cut (switch assigned).
- Drag racing (switch controlled trans brake).
- Idle-up (reliable idling or unintentional braking).
- Timers (x4 - up, fuel down, lap & lap navigate).
- Lap list (lap time memory / recall).
- S.Bus servo (parameter setting).
- MC link (facilitates ESC programming).
- Gyro link (wireless parameter setting).
- Warning alarms (various).
- Vibration alerts (numerous).
- Intuitive programming interface.
- MicroSD card (software updates & storage of data).
CONTENTS
- 1x T10XCR 10-channel transmitter.

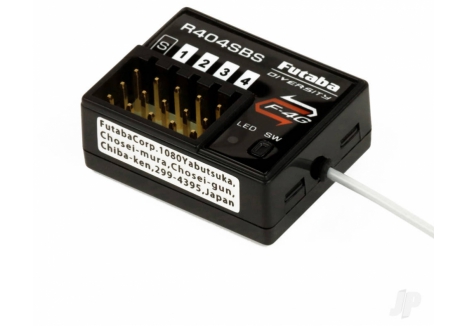

- 1x R404SBS receiver.
- 1x Dry battery holder.
- 1x Receiver connector dust cover set.
- 1x Short manual.
NEEDED TO COMPLETE
- 4x AA alkaline batteries.
DETAILS
Hardened stick radio drivers will adore Futabas T10XCR for this is a truly top-tier surface radio thats engineered for performance yet offers complete customisation. Designed for the discerning racer, the 10XCR fuses cutting-edge technology with Futabas renowned reliability, delivering unrivalled precision for competitive R/C driving.
Powered by Futabas ultra-fast 4th generation F-4G telemetry system, the XCR offers lightning-fast response and near-zero latency giving you a critical edge on the track. Meanwhile, its 10-channel capability is paired with an impressive 40 model memory, allowing you to manage all the vehicles you need with total ease, from 1/8 nitro buggies to electric touring cars, trucks, tanks and and everything in between. But, of course, theres more. Boasting 4.3 inches of vibrant full-colour the transflective touchscreen delivers an intuitive and highly responsive interface, giving you full control over advanced settings such as throttle curves, dual rates and telemetry readouts. Among its standout features are dedicated truck and track mix menus, designed specifically for managing multi-axle trucks or dual-motor crawlers, as well as fine-tuning of traction and balance over different surfaces ideal for competitive off-roaders who demand adaptability across disciplines.
Ergonomically refined, the T10XCR features precision ceramic stick bearings and offers adjustable stick mounting angles, throttle stick stroke adjustment, plus tension (including brake) and neutral adjustment, ensuring a perfectly tailored feel in hand. Bluetooth and USB connectivity, voice feedback and vibration alerts further enhance its capabilities making this radio as smart as it is powerful. But thats not all, a new steering trim function memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race. With its advanced features, extensive model capacity and tailored control options, the Futaba 10XCR isnt just a transmitter, it's an essential piece of tech thats built specifically to raise your game.
Full colour touch screen
T10PX has an HVGA 4.3 inch transflective screen, which enables both indoor and outdoor visibility.
F-4G system and telemetry
The F-4G system enables 30% faster response with UR servos.
10 channels
Enjoy full control with 10 channel availability.
T-FHSS Mini-Z system
By setting the Mini-Z system you can pair with the Kyosho Mini-Z Evo dedicated receiver RA-42.
Update-able software
Software can be updated by microSD card. Model data and telemetry data can also be saved on a microSD card.
40 model memory
Model names can use up to 15 letters, number and symbols.
Response adjustment (feeling)
Smooth out the steering and throttle response using a 15-point scale.

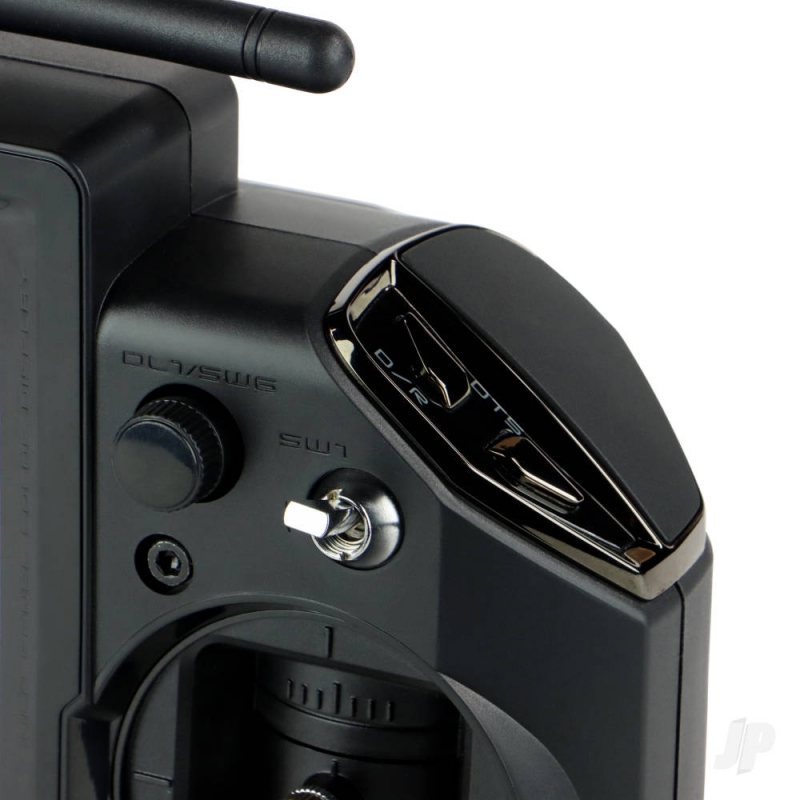

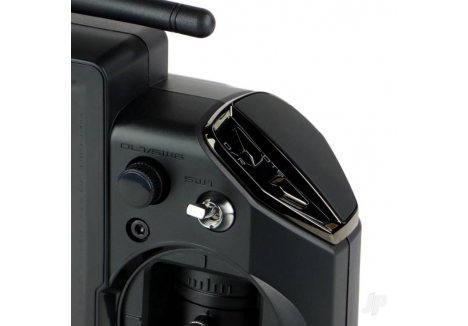

Switch availability
Assign functions to 7 switches and alter the operating direction. New independent rear press button switches.

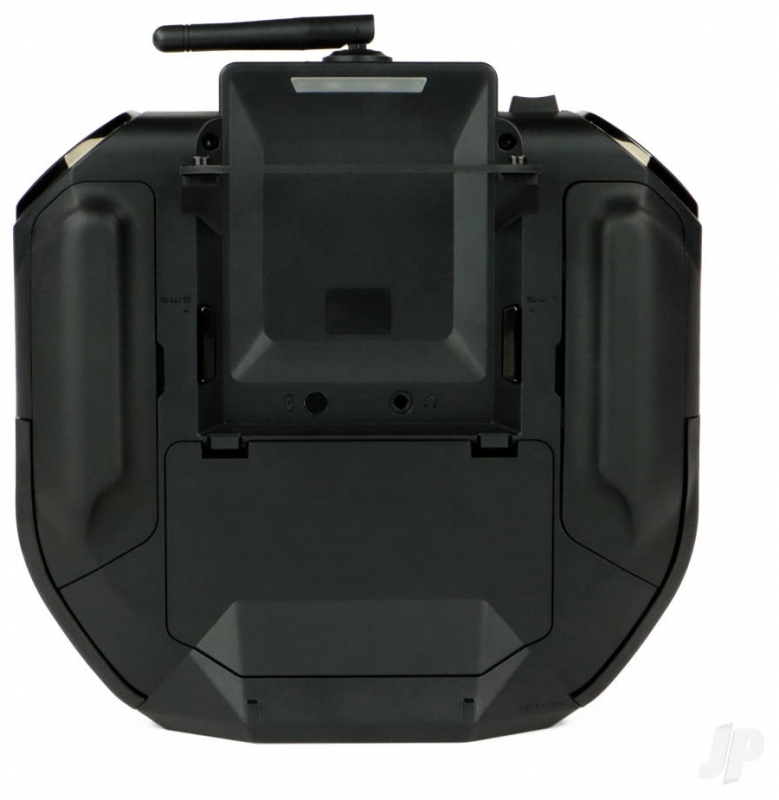

LiPo battery option
For extended running times the optional LT2F2000B LiPo battery can be used as the transmitter's power supply.
Brake mixing
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
Steer mixing
Smoother cornering can be achieved using the independent left and right steering servo setting.
4WS mixing
For use with crawlers and other 4-wheel steering type vehicles.
Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.
Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T10PX.
Tank mixing
For tanks, excavators and all tracked vehicles.
CPS mixing
LED lighting / ashing control can be matched to steering and throttle operation.
S.BUS servo
A handy function that allows the setting of S.Bus servo parameters.
MC-Link
A dedicated function allowing Futaba speed controller data changes to be made via a PC.
Throttle speed
Sudden trigger operation on a slippery road surface can cause tyres to spin. Setting the throttle speed allows the operation to be performed smoothly and easily.
Non-telemetry LED
Confirms when the telemetry function is OFF.
Dial select function
This assigns functions to dials. The step amount and operating direction can also be adjusted.

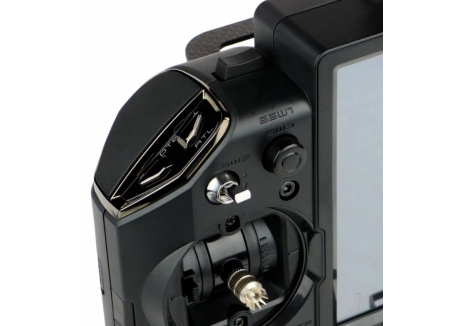

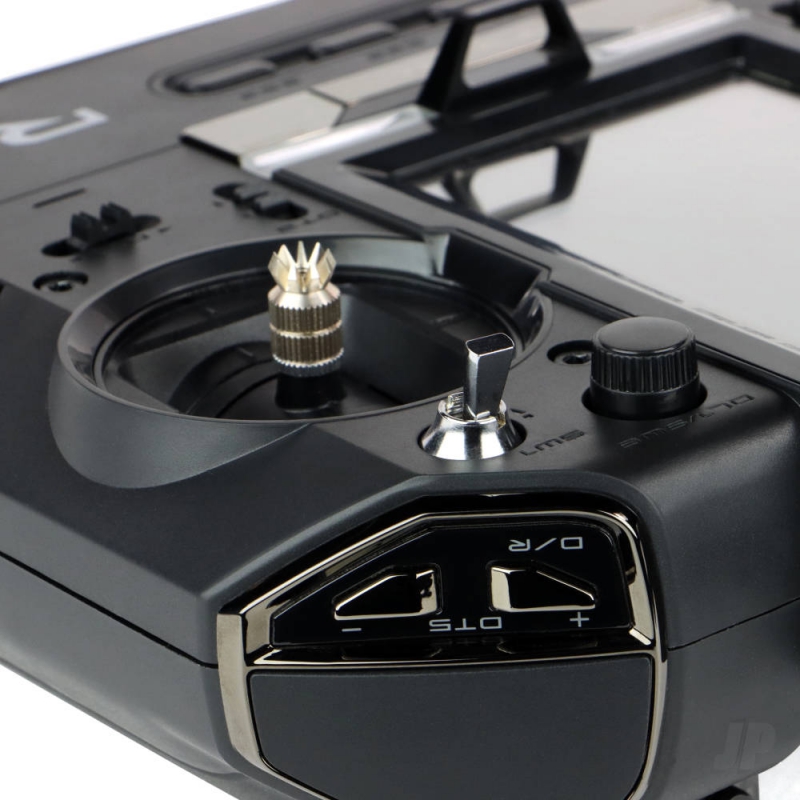

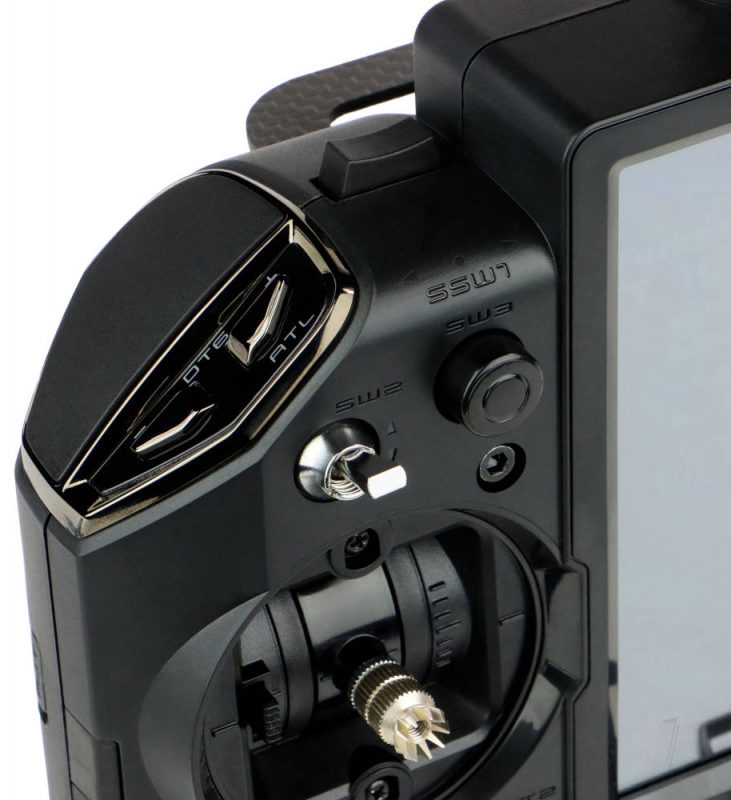

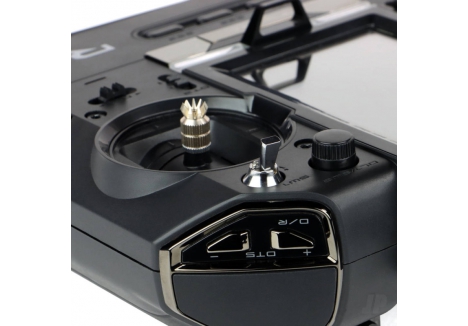

Stick adjustment
Adjustment of stick mounting angles, throttle stick stroke, tension (including brake) and neutral adjustment, ensure a perfectly tailored feel in hand.
Trim/dial lock functions
The lock functions prohibit the setting and operation of the transmitter trims and dials.
Steering trim memory
Memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race.
Vibration warning
Vibration alert can be applied to the grip and linked to the the timer, battery level and a variety of other warnings.

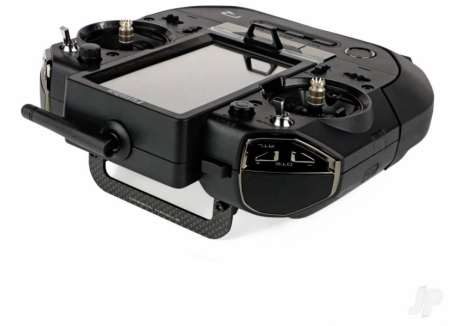

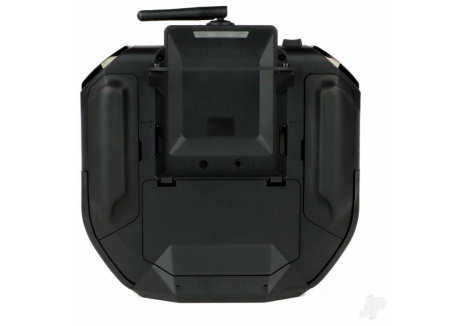

The Futaba T10XCR 10 channel surface radio in its distinctive Black Full Colour Touch Screen configuration is engineered for drivers who demand precision, responsiveness and deep configurability across a wide range of surface disciplines. Designed for competitive environments where control accuracy and tuning flexibility determine performance, the transmitter integrates advanced telemetry, refined ergonomics and a comprehensive suite of mixing and adjustment tools. The Futaba T10XCR 10 channel surface radio delivers a professional grade interface that supports everything from high speed off road racing to scale trucks, crawlers, yachts and powerboats, giving experienced users the ability to tailor every control parameter with confidence.
Key features of the Futaba 10 channel surface radio
- 10 channel control – extensive flexibility for multi function surface models
- F 4G telemetry system – enhanced response and real time data feedback
- 4.3 inch transflective touchscreen – clear visibility indoors and outdoors
- 40 model memory – convenient storage for multiple vehicle setups
- Advanced mixing functions – tailored control for crawlers, tanks, yachts and more
- Precision stick mechanics – ceramic bearings and adjustable angles for refined handling
- Bluetooth and USB connectivity – streamlined updates and device integration
- Voice and vibration alerts – intuitive feedback during operation
- Mini Z mode – suggested compatibility with Kyosho Mini Z Evo RA 42 receiver
The Futaba T10XCR 10 channel surface radio introduces a powerful combination of channel capacity and telemetry capability, making it suitable for drivers who require extensive control mapping and real time performance data. The F 4G telemetry system enhances responsiveness, enabling near zero latency operation that benefits competitive racers and technical surface model enthusiasts. This system supports temperature, RPM, voltage, current and GPS telemetry, allowing users to monitor essential metrics during demanding sessions. The transmitter’s broad protocol support, including F 4G, S FHSS, T FHSS, T FHSS SR and Mini Z, ensures wide compatibility across various platforms and disciplines.
How does the Futaba 10 channel surface radio enhance visibility and interface control
A standout feature of the Futaba T10XCR 10 channel surface radio is its 4.3 inch HVGA transflective touchscreen, designed for clarity in both indoor and outdoor environments. This display provides a responsive interface for navigating menus, adjusting throttle curves, setting dual rates and reviewing telemetry data. The transflective technology ensures that the screen remains readable even under bright sunlight, making it ideal for outdoor racing events. The touchscreen layout is intuitive, enabling quick access to essential settings without interrupting driving flow.
The transmitter’s 40 model memory further enhances usability, allowing drivers to store and recall configurations for multiple vehicles. Each model memory slot supports names up to 15 characters, making it easy to organise setups for different classes, track conditions or vehicle types. The microSD card slot supports software updates and data storage, ensuring that the transmitter remains current with the latest firmware enhancements and user defined settings.
Why do advanced drivers prefer the Futaba 10 channel surface radio for precision control
The Futaba T10XCR 10 channel surface radio is engineered with precision stick mechanics that elevate control accuracy. Ceramic stick bearings provide smooth, durable movement, while adjustable stick mounting angles, throttle stroke, tension and neutral settings allow drivers to customise the feel to their preference. These adjustments are particularly valuable for competitive drivers who require consistent, predictable input behaviour during long sessions. The steering trim memory function is designed to counter tyre wear during extended races, enabling drivers to toggle between trim settings without losing control balance.
Advanced mixing capabilities are central to the transmitter’s versatility. Steering mixes, brake mixes, 4WS mixes and dual ESC mixes support complex vehicle configurations such as crawlers, large scale cars and multi servo steering systems. Specialised mixes, including tank/track, CPS, winch and tilt mixes, expand the transmitter’s utility across non traditional surface models. These functions allow users to fine tune control behaviour for unique mechanical setups, ensuring smooth operation across diverse applications.
How does the Futaba 10 channel surface radio support connectivity and tuning
Connectivity options on the Futaba T10XCR 10 channel surface radio include Bluetooth and USB, enabling streamlined updates and integration with external devices. Voice feedback and vibration alerts provide intuitive cues during operation, helping drivers maintain awareness of telemetry warnings, timers and battery levels. The transmitter also supports S.Bus servo parameter setting, MC Link for ESC programming and Gyro Link for wireless tuning, offering a comprehensive ecosystem for fine tuning performance components.
The transmitter’s response adjustment system allows users to smooth steering and throttle behaviour using a 15 point scale, reducing over sensitivity and improving control on slippery surfaces. Additional features such as acceleration presets, drag racing mode, throttle speed adjustment and condition programming give drivers the tools to adapt to different racing environments and vehicle behaviours. These capabilities make the Futaba T10XCR 10 channel surface radio a versatile choice for both competitive and recreational users.
Timers, including lap, fuel down and navigation timers, support race management and performance tracking. The lap list memory function helps drivers analyse performance across sessions, while the dial select and trim lock functions prevent accidental adjustments during operation. These features contribute to a stable, reliable driving experience, particularly in competitive settings where precision is essential.
The Futaba T10XCR 10 channel surface radio also includes a non telemetry LED indicator, confirming when telemetry is disabled. This is useful for users who prefer simplified operation or need to comply with specific event regulations. The optional LT2F2000B LiPo battery provides extended runtime, making the transmitter suitable for long practice sessions or endurance events.
For users seeking an affordable Futaba transmitter with Bluetooth and vibration alerts, the Futaba T10XCR 10 channel surface radio offers a compelling combination of advanced features and ergonomic refinement. The transmitter’s broad compatibility, deep customisation options and intuitive interface make it a strong choice for drivers who value performance and reliability. The best Futaba surface transmitter with ceramic stick bearings delivers a premium control experience that supports both competitive and recreational applications.
To complete the experience, the final call to action encourages users to buy Futaba T10XCR transmitter with 40 model memory as a high performance solution for advanced surface control.
What’s in the box
- T10XCR 10 channel transmitter
- R404SBS receiver
- Dry battery holder
- Receiver connector dust cover set
- Short manual
Brand, Model and Product Type
- Brand: Futaba
- Model: T10XCR
- Colour: Black Full Colour Touch Screen
- Product Type: Futaba 10 channel surface radio, Futaba stick transmitter, Futaba F 4G telemetry transmitter, Futaba 4.3 inch touchscreen transmitter, Futaba advanced mixing surface transmitter
Dimensions and Weight
- Dimensions: Not specified in manufacturer information
- Weight: Not specified in manufacturer information
Control and Channel Features
- 10 channel control for advanced multi function surface models
- Response adjustment with 15 point scale for steering and throttle refinement
- Exponential settings for steering, throttle and brake
- Throttle speed adjustment for smoother control on slippery surfaces
- Acceleration function for preset throttle jumps
- Drag racing mode with switch controlled trans brake
Telemetry and Protocol Support
- F 4G telemetry system with enhanced response
- Telemetry support for temperature, RPM, voltage, current and GPS
- Protocol compatibility: F 4G, S FHSS, T FHSS, T FHSS SR and Mini Z
- Non telemetry LED indicator for simplified operation
Display and Interface
- 4.3 inch HVGA transflective touchscreen for indoor and outdoor visibility
- Touchscreen interface for intuitive navigation and configuration
- Dial select function for assigning functions to dials
- Trim and dial lock functions to prevent accidental adjustments
Model Memory and Storage
- 40 model memory with names up to 15 characters
- MicroSD card support for updates and data storage
Mixing and Vehicle Configuration
- Steering mix with independent left and right servo settings
- Brake mix for independent front and rear wheel control
- 4WS mixing for four wheel steering vehicles
- Dual ESC mixing for crawlers
- Tank and track mixing for tracked vehicles
- CPS mixing for LED lighting and flashing control
- Winch and tilt mixing for specialised applications
Connectivity and Tuning
- Bluetooth connectivity for streamlined updates
- USB connectivity for device integration box
- T10XCR 10 channel transmitter
- R404SBS receiver
- Dry battery holder
- Receiver connector dust cover set
- Short manual
