Product Details
Learn to fly Collective Pitch (CP) helicopters and advance into scale, sport, and 3D flying with the Revolution 235 CP - an updated and upgraded version of the best-selling Blade 230 S that's easier to fly, more durable, and more capable for first-time to experienced heli pilots!
Key Features
- An updated and upgraded version of the proven Blade 230 S that's easier to fly, more durable, and more capable for first-time to experienced heli pilots
- The perfect model to learn to fly Collective Pitch (CP) helicopters with before advancing into scale, sport, and/or 3D flying
- Fully factory-assembled, flight-tested, and ready to fly right out of the box-no assembly or setup required
- Normal (SAFE) plus Stunt 1 and 2 (AS3X) flight modes you can easily change between at the flip of a switch
- Ready for use with your compatible Spektrum DSMX/DSM2 equipped transmitter, battery, and charger (sold separately)
In The Box
- (1) Blade Revolution 235 CP with:
- (1) Brushless Outrunner Tail Motor (installed)
- (1) Brushless Outrunner Main Motor (installed)
- (3) Spektrum Digital, Metal-Geared Servos (installed)
- (1) Spektrum AR6250MHXD Flybarless Flight Controller and (1) Receiver with AS3X and SAFE
- (1) Spektrum Dual 15A Main and 8A Tail Brushless Smart Lite ESC (installed)
- (1) Main Blade Holder
- (1) Product Manual
Needed to Complete
- (1) Full-range 6+ channel Spektrum DSMX/DSM2 compatible transmitter (programmable for helicopters)
- (1) 3S 11.1V 850mAh LiPo battery with IC2 connector (or use a suitable IC2 adapter, sold separately)
- (1) Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320, sold separately)

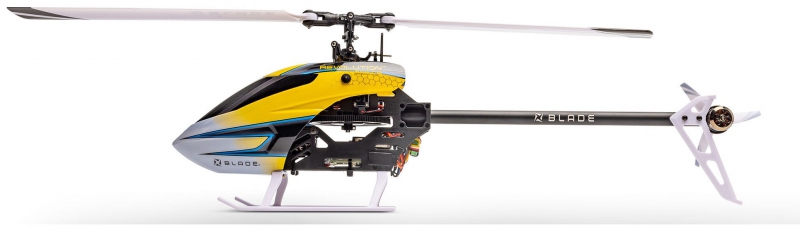

Blade Revolution 235 CP RC Helicopter Overview
For almost a decade, more people learned to fly CP (Collective Pitch) helicopters with multiple versions of the Blade 230 S than any other model. The Revolution 235 CP is an updated and upgraded version of the proven 230 equipped with new features to make it even easier to fly, plus more capable and more durable than ever before. It features exclusive and innovative SAFE (Sensor Assisted Flight Envelope) technology that offers angle limits and improved self-leveling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to "bail out" at the push of a button if you ever need it!
Updates and upgrades compared to the 230 include:
- Improved flight controller tuning for better self-leveling performance when switching back to Normal (SAFE) mode

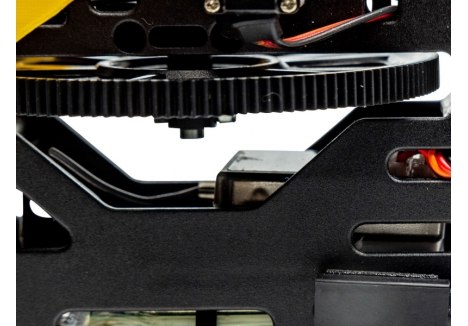

- Updated frame design with optimized servo geometry and center of gravity for improved flight performance
- Upgraded servos and improved rotor head geometry for increased precision and capabilities

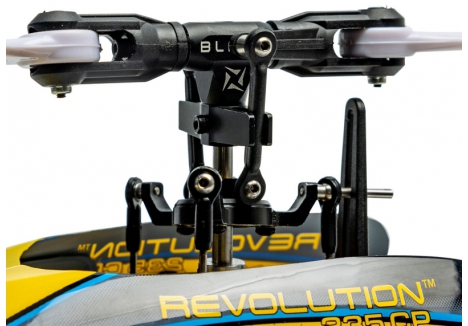

- Aluminium swashplate and rotor head block for added durability and precision
- Larger diameter tail boom for increased rigidity and durability
- More powerful and efficient main motor
- New colour scheme and option parts
Best of all the Revolution 235 CP arrives 100% factory-assembled, flight-tested, and ready to fly right out of the box-no assembly or setup required. The Ready-To-Fly (RTF) Basic version includes everything needed to fly in one box except for a battery and charger so it's a perfect choice for first-time to experienced pilots looking for maximum convenience and value. It allows you to choose a convenient and money-saving Spektrum Powerstage bundle or the separate battery and charger you prefer. Plus the included Spektrum DXS 2.4GHz transmitter can be used with other Bind-N-Fly (BNF) and BNF Basic aircraft after you learn to fly the Revolution 235 successfully! A Bind-N-Fly (BNF) Basic version is also available for pilots who want to use their current Spektrum transmitter along with Smart or non-Smart batteries and chargers they may already own. And both versions include a Spektrum flybarless flight controller and receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process to make it easier and faster to get flying with your favorite or upgraded transmitter.
And the fun doesn't stop after you learn how to fly! In the Stunt/Idle Up flight modes the Revolution 235 CP is capable of performing basic aerobatic maneuvers including loops, rolls, inverted (upside down) flight, and more. It's even capable of 3D aerobatics whether you're an experienced pilot or are just learning to perform them. Plus you can customize and personalize more than ever before with different colours of main rotor blades, tail rotors, canopies, and even landing gear. There are also optional carbon fibre main rotor blades, aluminium blade grips, main motor and tail motor mounts, and updated light kits for flying at night.
You can purchase the RealFlight Trainer Edition RC Flight Simulator and a Spektrum WS2000 Wireless Simulator Dongle (together in the money-saving RFL-1212) to fly this and other models using the transmitter included with the RTF Basic version! The simulator features many of the most popular Horizon Hobby trainer aircraft and built-in Virtual Flight Instructor lessons. This helps new pilots learn to fly successfully by practicing on a PC at home or on a laptop just about anywhere else!
Blade Revolution 235 CP RC Helicopter Features
- Mid-sized for improved visibility and stability when flying outdoors in yards, parks, sports fields, and beyond in light winds
- Equipped with improved SAFE technology that helps prevent crashes and makes it easy to learn how to fly
- Normal (SAFE) plus Stunt 1 and 2 (AS3X) flight modes you can easily change between at the flip of a switch
- Panic Recovery mode at the push and hold of a button to prevent loss of control and crashes
- Ready for use with your compatible Spektrum DSMX/DSM2 equipped transmitter, battery, and charger (sold separately)

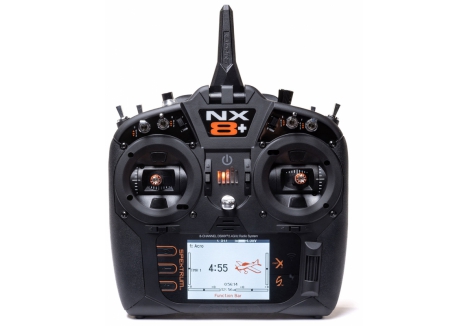

- Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
- Compatible with popular and affordable 3S 850mAh Smart and similar non-Smart LiPo batteries with IC2 connectors (or use a compatible IC2 adapter)

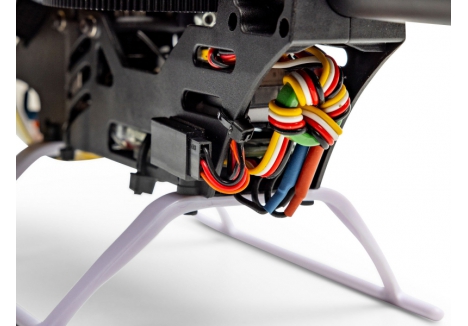

- Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters (with Smart and non-Smart batteries)
- Factory-installed Spektrum AR6250MHXD flybarless flight controller featuring exclusive AS3X and updated SAFE technologies
- Improved flight controller tuning for better self-leveling performance when switching back to Normal (SAFE) mode

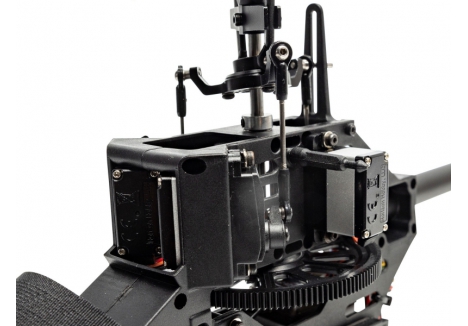

- Factory-installed digital, metal-geared cyclic servos with precise ball-link equipped linkages
- Updated frame design with optimized servo geometry and center of gravity for improved flight performance
- Upgraded servos and improved rotor head geometry for increased precision and capabilities
- Aluminium swashplate and rotor head block for added durability and precision
- Larger diameter tail boom for increased rigidity and durability
- More powerful and efficient main motor
- Full line of replacement/spare parts available
- Practice flying this helicopter in the RealFlight simulator (sold separately)

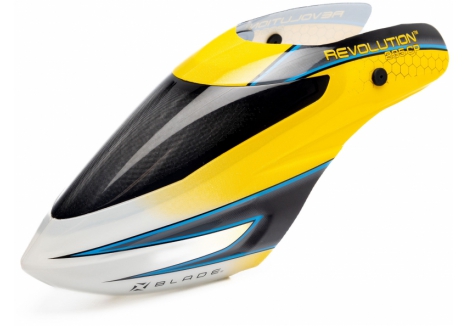

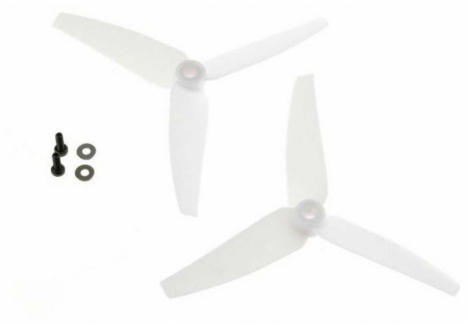

- Customize and personalize with different colours of main rotor blades, tail rotors, canopies, and landing gear (sold separately)

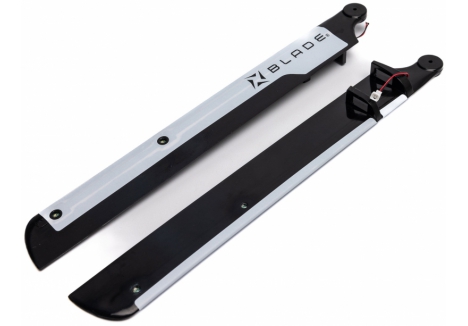

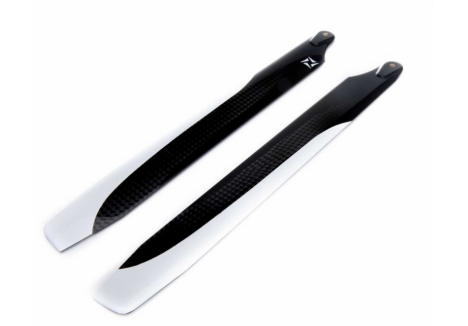

- Optional carbon fibre main rotor blades, aluminium blade grips, main motor, and tail motor mounts (sold separately)
- Updated Night Light Kit directly compatible with IC2 connectors (sold separately)
- Brand: Blade (Horizon Hobby)
- Model Number: A-BLH01450
- Model Name: Revolution 235 CP BNF Basic with SAFE
- Helicopter Type: Collective Pitch (CP) Flybarless
- Skill Level: 1 (Beginner)
- Weight: 450 grams
- Length: 470 mm
- Width: 88 mm
- Height: 168 mm
- Main Motor Type: Brushless Outrunner
- Main Motor KV Rating: 3400Kv
- Tail Motor Type: Brushless Outrunner
- Tail Motor KV Rating: 3600Kv
- ESC Type: Spektrum Dual Brushless Smart Lite ESC
- ESC Main Motor Current Rating: 15A
- ESC Tail Motor Current Rating: 8A
- Flight Controller: Spektrum AR6250MHXD Flybarless Flight Controller
- Flight Controller Features: AS3X (Attitude Stabilisation 3-Axis)
- Flight Modes: Normal (SAFE), Stunt 1 (AS3X), Stunt 2 (AS3X)
- Receiver: Spektrum AR6250MHXD with AS3X and SAFE
- Radio Protocol: Spektrum DSMX/DSM2
- Radio Channels Required: 6+ channels (full-range compatible transmitter)
- Transmitter Compatibility: Any full-range 6+ channel Spektrum DSMX/DSM2 programmable helicopter transmitter
- Radio Range: Up to 1.6 km
- Servos: Spektrum Digital Metal-Geared (3 units installed)
- Battery Type: 3S LiPo
- Battery Voltage: 11.1V
- Battery Capacity: 850mAh
- Battery Connector: IC2
- Typical Flight Time: 8-10 minutes
- Blade Holder: Main blade holder included
- Assembly Status: Fully factory-assembled and flight-tested
Overview
The Blade Revolution 235 CP is an updated and upgraded version of the best-selling Blade 230 S, designed to make learning collective pitch (CP) helicopter flying easier, more enjoyable, and more rewarding than ever before. For nearly a decade, more people have learned to fly CP helicopters with the Blade 230 S than any other model on the market, and this new Revolution 235 CP builds upon that proven legacy with enhanced features, improved durability, and greater capability. Whether you're a complete beginner taking your first steps into the world of RC helicopters, or an experienced pilot looking to advance into scale, sport, and 3D flying, the Revolution 235 CP offers the perfect balance of ease-of-use and performance to match your ambitions.
This ready-to-run RC helicopter arrives fully factory-assembled and flight-tested, so you can get flying straight out of the box without any complicated assembly or setup requirements. The inclusion of SAFE (Sensor Assisted Flight Envelope) technology means that new pilots have an extra safety net, with the helicopter automatically preventing dangerous manoeuvres and maintaining stable, controlled flight. Combined with the AS3X (Attitude Stabilisation 3-Axis) system integrated into the AR6250MHXD flight controller, you get industry-leading stability and predictability that builds confidence and makes learning CP techniques much faster.
As a UK RC hobbyist, you'll appreciate that the Revolution 235 CP is ready for use with any compatible Spektrum DSMX/DSM2 equipped transmitter, giving you flexibility and choice in your radio equipment. The brushless motor system and modern electronics deliver responsive, precise control, whilst the flybarless design simplifies the mechanics and reduces maintenance compared to traditional flybar helicopters. This is a genuine ready-to-run RC helicopter for serious hobbyists who want professional-grade performance and reliability.
Key Features
- Fully Factory-Assembled and Flight-Tested — The Revolution 235 CP arrives completely built, balanced, and tested at the factory, meaning there is absolutely no assembly or setup work required before you can take it to the field and begin flying, saving you countless hours and eliminating frustration.
- SAFE Flight Mode (Normal) — The integrated SAFE technology automatically prevents dangerous manoeuvres and maintains controlled flight, making it an invaluable learning tool that protects your investment and helps new pilots develop proper flying techniques with confidence and safety.
- AS3X Stunt 1 and Stunt 2 Flight Modes — Beyond the beginner-friendly Normal mode, the AR6250MHXD flight controller provides two additional advanced flight modes with attitude stabilisation, allowing you to progress from basic hovering through to aggressive 3D aerobatic flying as your skills improve.
- Easy Flight Mode Switching — You can smoothly transition between Normal (SAFE), Stunt 1, and Stunt 2 modes at the flip of a switch on your transmitter, making it simple to match the flight mode to your current skill level and the type of flying you want to do on any given day.
- Spektrum Digital Metal-Geared Servos — The three included metal-geared servo motors deliver the precision, speed, and durability required for responsive helicopter control, with metal gears providing superior longevity compared to plastic alternatives during regular use.
- Dual Brushless Motor System — The 3400Kv brushless outrunner main motor and 3600Kv brushless outrunner tail motor provide efficient, maintenance-free operation with significantly longer running times and superior power delivery compared to brushed motor alternatives commonly found in older RC helicopters.
- Spektrum Smart Lite ESC — The integrated 15A main motor and 8A tail brushless ESC handles power distribution with intelligence built-in, protecting your motor and battery from damage whilst optimising performance and flight time with smart power management.
- AR6250MHXD Flybarless Flight Controller and Receiver — This advanced flybarless system eliminates the complex flybar mechanics of older helicopters, reducing vibration, weight, and maintenance whilst the integrated AS3X gyroscope provides exceptional attitude stabilisation and control precision that rivals expensive competition-grade systems.
- Spektrum DSMX/DSM2 Compatible — The helicopter works with full-range 6+ channel Spektrum DSMX and DSM2 transmitters (programmable for helicopters), giving you compatibility with most modern Spektrum radio gear and flexibility to expand your RC fleet with other Spektrum models.
- Compact, Portable Design — With dimensions of 470 mm in length, 88 mm in width, and 168 mm in height, combined with a light 450g weight, the Revolution 235 CP is easy to transport, fits in most RC helicopter bags, and is suitable for flying in modest spaces and club fields across the UK.
- 3S LiPo Battery Compatible — The helicopter is designed to work with a 3S 11.1V 850mAh LiPo battery with IC2 connector, delivering the perfect balance of power, weight, and flight time for CP helicopter flying without the complexity of larger batteries or chargers.
Technical Performance
The Revolution 235 CP represents a significant leap forward in collective pitch RC helicopter design, combining proven engineering with modern brushless motor technology and advanced flight control systems. The dual brushless outrunner motor configuration—with a 3400Kv main motor for lift and rotor speed, paired with a 3600Kv tail motor for precise tail rotor control—delivers smooth, linear power delivery that responds instantly to your inputs. The Spektrum Smart Lite ESC with separate 15A main and 8A tail channels ensures that both motors receive optimised power delivery, whilst the intelligent ESC firmware prevents brownouts and protects battery voltage sags that could cause loss of control. The AR6250MHXD flybarless flight controller integrates a three-axis attitude gyroscope with the AS3X stabilisation algorithm, continuously monitoring and correcting the helicopter's orientation many times per second to maintain level flight even in turbulent conditions. The receiver with DSMX/DSM2 compatibility provides secure, full-range control up to 1.6km away, using spread-spectrum frequency hopping to resist interference—a critical safety feature that makes flying in populated areas or near other RC activity much safer. Construction quality throughout is excellent, with precision-machined components, ball bearings in critical areas, and reinforced composite materials selected for durability without excessive weight. The complete package weighs just 450 grams, making it light enough for smooth, responsive flight characteristics whilst remaining robust enough to handle the crashes and hard landings that inevitably occur during the learning process. Battery compatibility with standard 3S 11.1V 850mAh LiPo cells means you can purchase affordable batteries from numerous suppliers across the UK, and flight time typically reaches 8-10 minutes depending on flying style—aggressive 3D flying will reduce this, whilst gentle hovering practice can extend it beyond 10 minutes. This is a genuine brushless RC helicopter built to professional standards, delivering performance and reliability that justifies the investment.
What's in the Box
- Blade Revolution 235 CP helicopter (fully assembled and ready to fly)
- Brushless outrunner tail motor (pre-installed)
- Brushless outrunner main motor (pre-installed)
- Three Spektrum digital metal-geared servos (pre-installed)
- Spektrum AR6250MHXD flybarless flight controller and receiver with AS3X and SAFE technology
- Spektrum dual 15A main and 8A tail brushless Smart Lite ESC (pre-installed)
- Main blade holder
- Product manual with assembly, setup and flying instructions
What You Need to Complete
- One full-range 6+ channel Spektrum DSMX/DSM2 compatible transmitter (must be programmable for helicopters) — sold separately
- One 3S 11.1V 850mAh LiPo battery with IC2 connector (or suitable IC2 adapter, sold separately)
- One compatible LiPo battery charger plus suitable IC2 adapter or charge lead (such as the SPMXCA320, sold separately)
Frequently Asked Questions
- Is the Revolution 235 CP suitable for complete beginners learning to fly collective pitch helicopters? — Yes, absolutely. The Revolution 235 CP is specifically designed as an entry-level CP helicopter, with SAFE mode providing automatic stability and envelope protection that prevents dangerous manoeuvres. The flybarless system is much easier to control than traditional flybar designs, and the three flight modes allow you to progress gradually from basic hovering through to advanced 3D flying as your skills improve. For nearly a decade, the earlier Blade 230 S was the number-one choice for learning CP flying, and the Revolution 235 CP improves upon that formula with better durability, easier controls, and more advanced flight modes.
- What battery does the Revolution 235 CP require and how long will it fly? — The helicopter is compatible with 3S 11.1V 850mAh LiPo batteries with IC2 connectors. This is a very common battery size available from numerous UK RC retailers, making it affordable and easy to find. Flight time typically ranges from 8-10 minutes depending on flying style; gentle hovering practice can extend flight time beyond 10 minutes, whilst aggressive 3D flying and stunt manoeuvres will reduce it to 6-8 minutes. Having at least two or three batteries available allows for extended flying sessions with brief charging intervals between flights.
- Does this helicopter require any assembly or setup before flying? — No, the Revolution 235 CP arrives completely factory-assembled and flight-tested, requiring absolutely no assembly, calibration, or setup work. You simply charge the battery, bind your Spektrum transmitter to the receiver (following the simple pairing procedure in the manual), and you're ready to fly. This out-of-the-box readiness is one of the major advantages of choosing a ready-to-run BNF (Bind-and-Fly) model.
- What makes this helicopter easier to fly than older CP helicopter models? — The Revolution 235 CP benefits from three key improvements over older designs: first, the flybarless flight control system with AS3X gyroscope technology automatically stabilises the helicopter's attitude, eliminating the tricky balancing act of traditional flybar systems; second, the SAFE flight envelope protection in Normal mode prevents dangerous manoeuvres and maintains stable, controlled flight; third, the brushless motor system provides smooth, linear power delivery without the lag and dead zones of older brushed motors. Together, these innovations make the learning curve much gentler and more enjoyable.
- What is the difference between Normal mode, Stunt 1, and Stunt 2? — Normal mode includes SAFE technology, which provides maximum stability and automatically prevents dangerous manoeuvres—this is the recommended starting mode for beginners. Stunt 1 and Stunt 2 modes disable SAFE and provide increasing levels of aerobatic freedom through the AS3X system, allowing experienced pilots to perform aggressive manoeuvres, flips, and advanced 3D flying. You can easily switch between all three modes at the flip of a switch on your Spektrum transmitter, matching the flight mode to your skill level and intended flying style.
- Is this compatible with my existing Spektrum transmitter? — Yes, as long as you have a full-range 6+ channel Spektrum DSMX or DSM2 compatible transmitter that is programmable for helicopters. The AR6250MHXD receiver will bind to any compatible Spektrum transmitter, making it easy to add the Revolution 235 CP to an existing RC fleet. If you don't have a suitable transmitter, Spektrum transmitters are widely available from UK RC retailers.
- What is SAFE technology and why should I care about it? — SAFE (Sensor Assisted Flight Envelope) is exclusive Spektrum technology that uses the flight controller's gyroscope and accelerometer sensors to monitor the helicopter's orientation and automatically prevent dangerous attitudes. If you inadvertently command too much pitch or roll, SAFE automatically limits the control input to keep the helicopter within safe flying parameters. This acts as a safety net for new pilots, dramatically reducing crashes caused by control input errors and building confidence during the crucial early learning stages.
- Can I use this helicopter outdoors and what are the wind limits? — Yes, the Revolution 235 CP is designed for outdoor flying. As with all RC helicopters, wind conditions matter significantly; calm to light wind conditions (below 10 mph) are ideal for learning and precise flying. Stronger winds can make control more difficult and unpredictable, especially for beginners. Many UK flying clubs have indoor facilities for flying in poor weather, which can be invaluable for practising during winter months.
- What is the range of the radio system? — The Spektrum AR6250MHXD receiver provides full-range control up to approximately 1.6 kilometres away, using DSMX frequency hopping technology to resist interference from other RC equipment and wireless devices. In practical terms, this range far exceeds what you'll ever need for CP helicopter flying; the limiting factor will always be your ability to see and control the helicopter, not the radio range.
