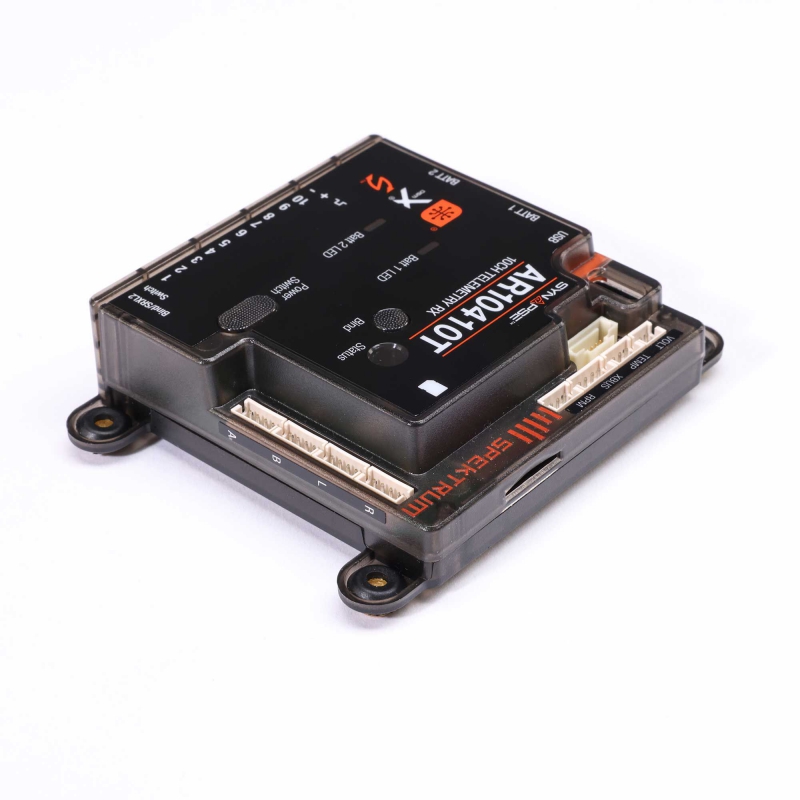

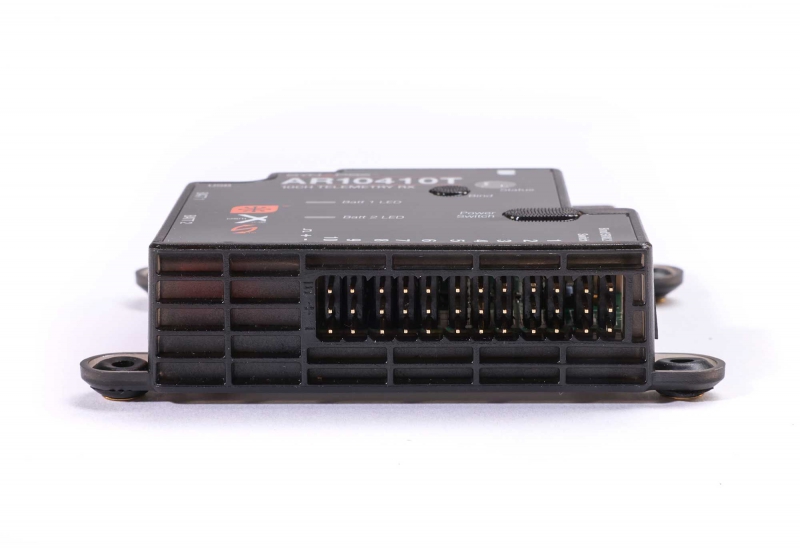

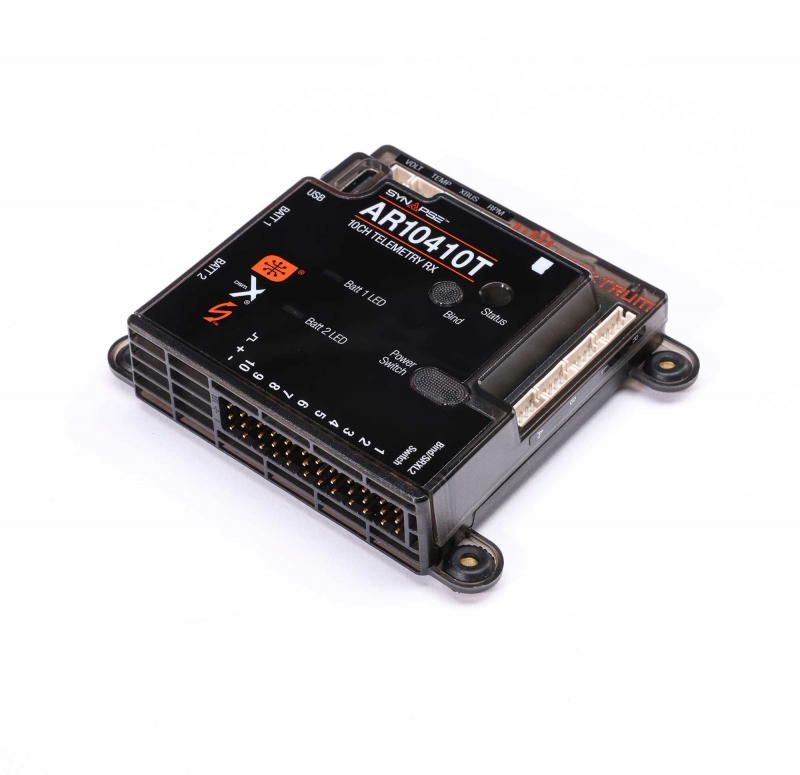

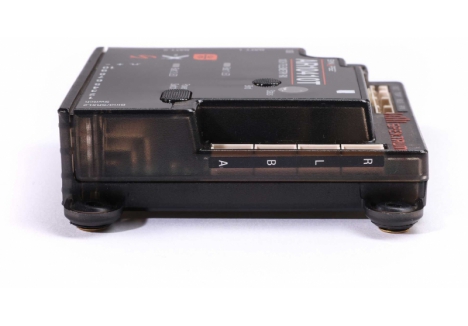

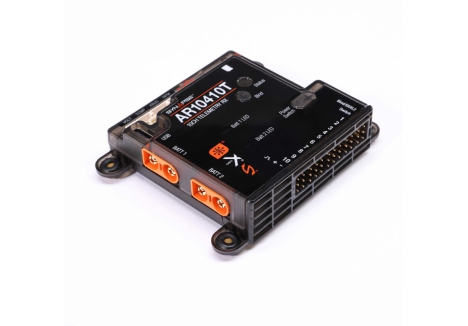

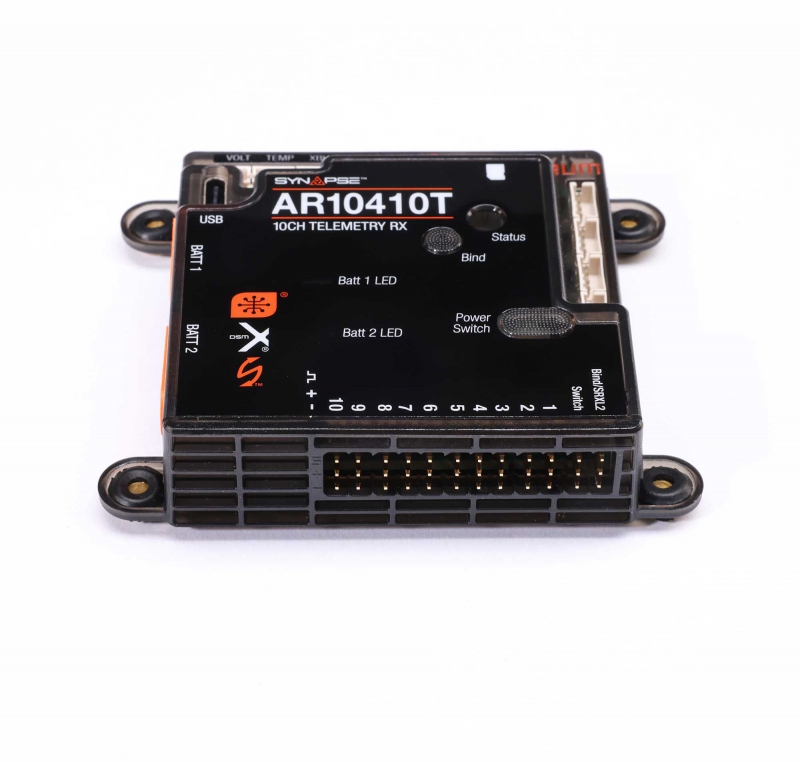

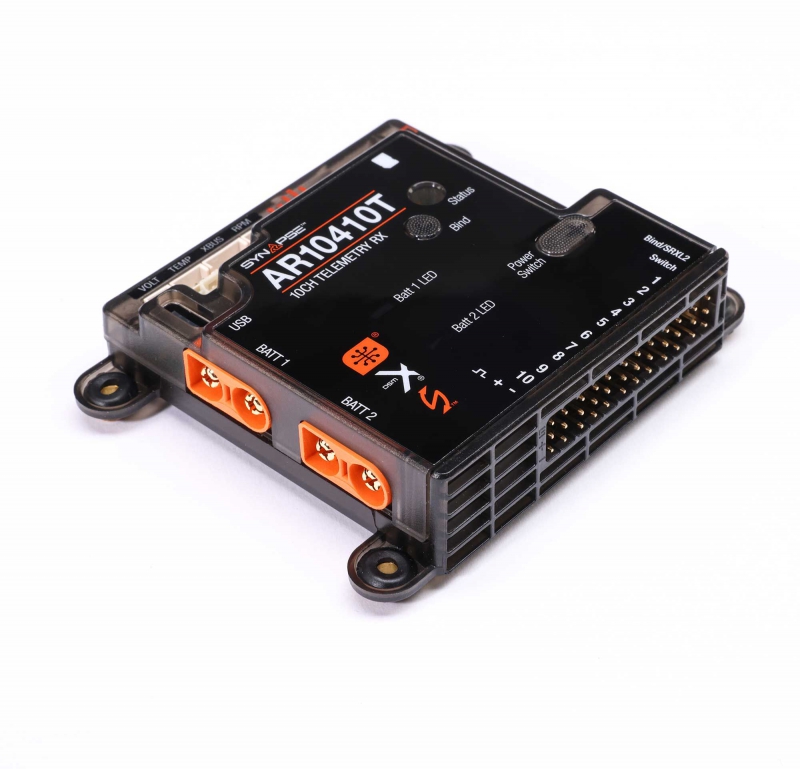

Spektrum AR10410T 10-Channel PowerSafe Telemetry Receiver Overview
The AR10410T is a 10-channel receiver with full-range telemetry that uses the Spektrum™ PowerSafe™ redundant battery system. It features connections for full telemetry support including RPM, Flight Pack Voltage and Temperature, and X-Bus. The receiver also has a built-in vario/altitude sensor and mAh sensors that allow tracking of consumed mAh. It can be powered through the servo bus or dual IC3™ connections. It is compatible with the Spektrum Synapse™ AS3X+ / SAFE (SPMAS6000) stabilization module, delivering instantaneous attitude corrections and enhancing flight stability.
Using an optional micro-SD card, the AR10410T can store flight data for later review as a CSV file. It also has a new, push-button PowerSafe LED soft switch or can be powered on and off through the on-board button. Additionally, the system can be put in sleep mode from a compatible Spektrum transmitter and woken up between flights and can be powered off from your compatible Spektrum transmitter as well. Bind can be initiated through the button or a bind plug. The AR10410T can be updated easily through the USB-C connection.
Spektrum AR10410T 10-Channel PowerSafe Telemetry Receiver Features
- Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)

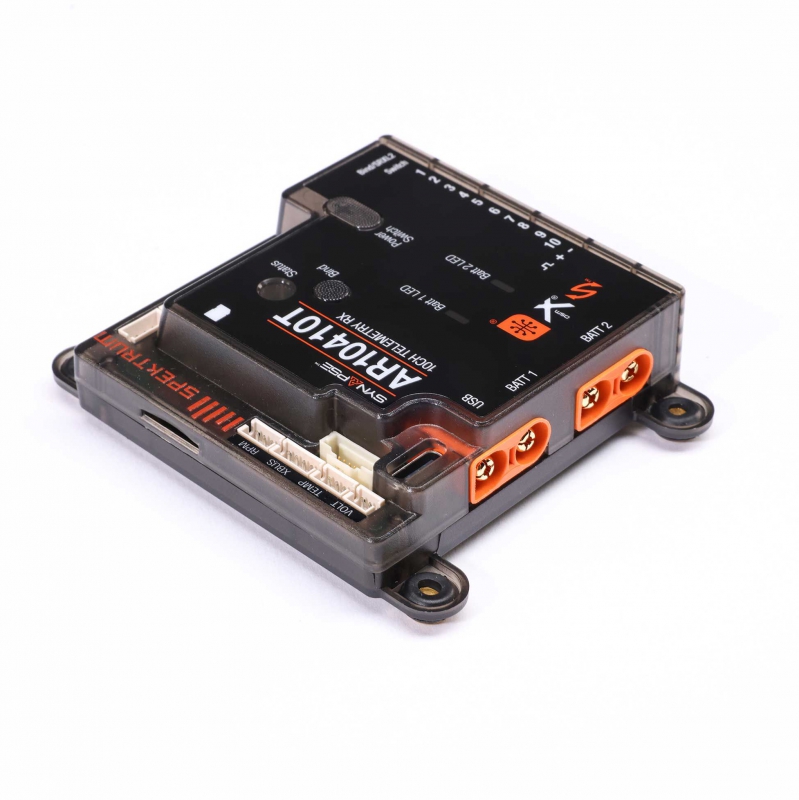

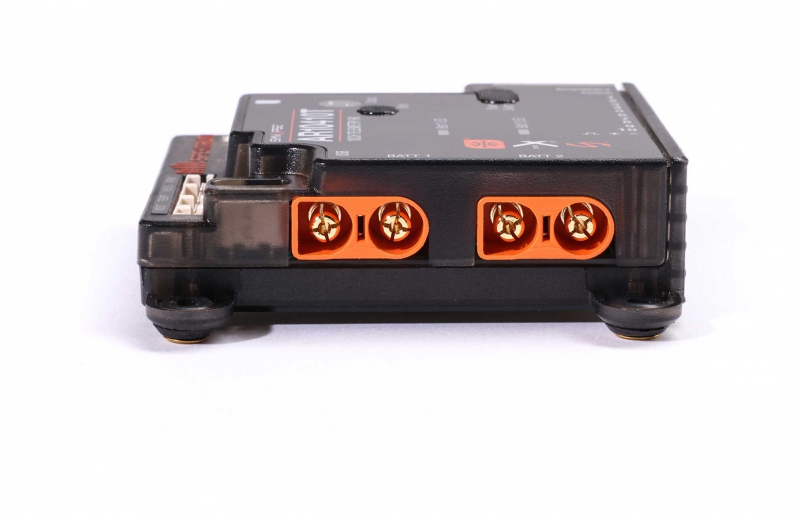

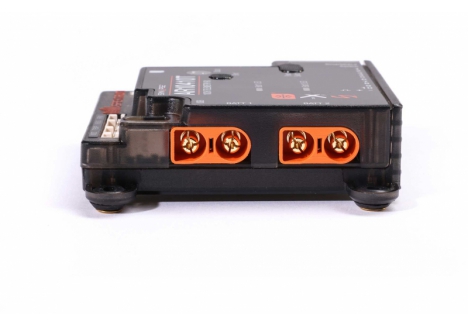

- Patented PowerSafe™ redundancy system with dual IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
- Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
- Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
- Regenerative servo support for any number of servos
- USB-C port for easy product registration and firmware updates
- 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
- Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
- Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
Integrated status LED provides helpful information during start up, warnings and mode indicators
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
Capable of high-speed 11ms frame rates
Binding is easier than ever with four options to initiate the bind process
Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
Overview
The Spektrum AR10410T 10-Channel PowerSafe Telemetry Receiver is a professional-grade receiver designed for serious RC aircraft enthusiasts who demand advanced telemetry capabilities and redundant power systems. This sophisticated receiver brings competition-level features to RC aeroplane enthusiasts across the UK, offering full-range telemetry that tracks critical flight data including RPM, flight pack voltage, temperature, and consumed mAh in real time. Whether you're flying large-scale aircraft that draw significant current or operating multiple high-torque servos simultaneously, the AR10410T delivers the reliability and data monitoring you need for confident, informed flying.
Built upon Spektrum's proven DSMX protocol, the AR10410T represents the pinnacle of RC receiver technology, featuring a patented PowerSafe redundancy system with dual IC3 connectors capable of handling up to 35A continuous current with a maximum burst capacity of 50A. This makes it ideal for power-hungry applications and high-current servo setups where standard receivers simply cannot cope. The receiver is fully compatible with the Spektrum Synapse AS3X+ and SAFE flight stabilisation modules, providing instantaneous attitude corrections that enhance flight stability and confidence, especially in challenging wind conditions or when recovering from unexpected situations.
For pilots seeking the ultimate in receiver functionality and data logging capabilities, the AR10410T integrates an innovative power management system with sleep mode, allowing you to remotely power the system on and off directly from your Spektrum transmitter. Combined with its built-in vario and altitude sensor, micro-SD card support for flight data logging, and straightforward firmware updates via USB-C, this receiver offers unparalleled control and monitoring of your RC aircraft investment.
Key Features
- 10-Channel DSMX Receiver — Provides ten independent servo control channels with Spektrum's proven DSMX protocol, ensuring compatibility with a wide range of Spektrum transmitters and delivering the channel capacity needed for complex aircraft configurations with multiple control surfaces, flaps, retracts, and auxiliary systems.
- Patented PowerSafe Redundancy System — Features dual IC3 connectors providing true redundant power delivery, ensuring that your receiver continues to operate reliably even in the unlikely event of a single power connection failure, which is essential for large aircraft or those carrying valuable equipment.
- 35A Continuous / 50A Burst Current Capacity — The dual power architecture can handle up to 35A continuous current with 50A maximum burst capability, making this receiver suitable for aircraft with numerous high-torque servos or power-hungry accessories that would overwhelm standard receivers.
- Full Telemetry Monitoring — Captures and displays real-time telemetry data including engine RPM, flight pack voltage, battery temperature, and consumed mAh, allowing pilots to monitor their aircraft's performance and battery consumption throughout the flight and make informed decisions about flight duration and power management.
- Built-in Vario and Altitude Sensor — Includes integrated vertical speed and altitude sensing capabilities, providing valuable performance data without requiring additional external sensors, and enabling voice alerts for altitude changes or sink rates when used with compatible transmitters.
- Synapse AS3X+ and SAFE Compatibility — Works seamlessly with the optional Spektrum Synapse AS3X+ and SAFE stabilisation module (SPMAS6000, sold separately), delivering instant attitude corrections that enhance flight stability and provide confidence-boosting safety features for all skill levels.
- Micro-SD Card Flight Data Logging — Using an optional micro-SD card, the receiver records comprehensive flight data that can be downloaded and reviewed as CSV files on your computer, allowing you to analyse flight performance, optimise settings, and track battery usage patterns over time.
- Smart Power Management with Sleep Mode — Features an innovative power management system allowing you to remotely put the receiver into sleep mode from your transmitter and wake it up between flights, or power it completely off from the transmitter, eliminating the need for physical power switches and helping preserve battery charge.
- USB-C Firmware Updates and Registration — A modern USB-C connection port enables quick product registration with Spektrum and straightforward firmware updates, ensuring your receiver always has the latest features and improvements without requiring proprietary cables.
- Push-Button PowerSafe LED Soft Switch — Features an intuitive push-button LED power switch on the receiver itself, providing tactile feedback and a clear visual indication of power status, with the option to activate power through an optional bind plug for automated setup procedures.
- Forward Programming Compatibility — Allows easy adjustment of failsafe settings, servo frame rate settings, and other critical parameters directly from your Spektrum transmitter using Forward Programming, eliminating the need for separate programming devices or computer software.
- 12V Servo Capability — Can be configured to support 12-volt servo applications when activated through Forward Programming, opening up possibilities for applications requiring higher voltage servos for increased torque and responsiveness.
- Regenerative Servo Support — Supports regenerative servos on any number of channels, allowing you to use advanced servo technology that can recover and feed power back into the battery during powered descent or gliding, improving overall energy efficiency.
- Servo Bus or Dual IC3 Power Options — Can be powered through either the traditional servo bus connection or through the dual IC3 connectors, providing flexibility in how you integrate the receiver into your aircraft's power distribution system.
Technical Performance
The AR10410T represents the professional standard in RC aircraft receiver design, engineered with precision for demanding applications where reliability and data monitoring are paramount. The receiver's architecture is built around Spektrum's battle-tested DSMX modulation protocol, which has proven itself across millions of flights worldwide, delivering consistent range and failsafe performance even in electromagnetically challenging environments. The dual IC3 connector redundancy system is a standout engineering achievement, allowing the receiver to distribute power across two separate circuits, each capable of handling significant current draw independently. This design is particularly valuable for large-scale RC aircraft in the UK and beyond that might feature multiple servo-driven systems like landing gear, flaps, and fuselage servos, where traditional single-power-point receivers might struggle. The built-in telemetry suite integrates altitude and vertical speed sensing directly into the receiver chassis, eliminating the need for external modules whilst providing instant access to critical flight data. The micro-SD card logging capability records flight information in industry-standard CSV format, making data analysis straightforward and enabling serious RC pilots to optimise their setups through data-driven decisions. Construction quality is evident throughout, with surface-mount electronics ensuring compact dimensions and reliable solder joints, whilst the USB-C interface represents modern engineering standards, offering superior durability compared to older micro-USB alternatives.
What's in the Box
- AR10410T 10-Channel PowerSafe Telemetry Receiver
- USB-C charge and programming cable
- Receiver documentation and quick-start guide
Frequently Asked Questions
- Is the Spektrum AR10410T suitable for beginners? — The AR10410T is primarily designed for experienced RC aircraft pilots and professionals rather than beginners, due to its advanced telemetry features and requirement for compatible Spektrum transmitters. However, beginners who are upgrading to more sophisticated aircraft will find the receiver's straightforward binding process and intuitive power management system relatively easy to use, particularly if they already have experience with Spektrum equipment. The receiver's failsafe capabilities and stabilisation module compatibility actually make it safer than simpler receivers once configured properly.
- What power system does the AR10410T require? — The AR10410T is a receiver and does not itself require a separate battery; instead, it draws power from your aircraft's main flight battery through the servo bus or dual IC3 connectors. Your aircraft will need a compatible Spektrum transmitter (such as professional-grade systems used in the UK RC scene) to control it. The receiver's dual IC3 connectivity allows it to work with aircraft power systems ranging from traditional battery packs to advanced multi-cell setups, and it can support 12-volt servo applications when activated through Forward Programming.
- Can I use the AR10410T with non-Spektrum transmitters? — No, the AR10410T uses Spektrum's proprietary DSMX protocol and is only compatible with Spektrum brand transmitters. If you currently use a different radio brand, you would need to purchase a compatible Spektrum transmitter to use this receiver. However, Spektrum offers a comprehensive range of transmitters at various price points suitable for different budgets and requirements.
- What is the difference between the AR10410T and other Spektrum 10-channel receivers? — The AR10410T stands apart from other 10-channel receivers through its PowerSafe redundancy system featuring dual IC3 connectors, its integrated telemetry monitoring with dedicated sensors, and its flight data logging capability via micro-SD card. The AR10100T is an earlier 10-channel telemetry model without the PowerSafe redundancy system, making the AR10410T superior for power-hungry applications. The AR10410T also includes more advanced power management features like remote on/off capability and sleep mode, along with AS3X+ and SAFE compatibility for enhanced flight stability.
- Does the AR10410T work with the Synapse stabilisation modules? — Yes, the AR10410T is fully compatible with the Spektrum Synapse AS3X+ and SAFE stabilisation module (SPMAS6000, sold separately). This module, when connected to the receiver, provides instantaneous attitude corrections and flight stability enhancement, making it particularly valuable for pilots wanting confidence-boosting safety features or those recovering from difficult flight conditions.
- Can I use the AR10410T to log flight data? — Yes, the AR10410T can store comprehensive flight data on an optional micro-SD card, recording information including altitude, vertical speed, battery voltage, temperature, current draw, and other telemetry parameters. This data is saved in CSV format, which you can download to your computer and analyse in spreadsheet applications, allowing you to review flight performance, optimise your setup, and track battery usage patterns over multiple flights.
- How do I update the AR10410T firmware? — Firmware updates are performed easily through the receiver's USB-C connection port using a standard USB-C cable. You download the latest firmware from the Spektrum website, connect the receiver to your computer, and follow the simple on-screen instructions. This modern approach is more convenient than older receivers that required proprietary cables or specialised equipment.
- What is the PowerSafe redundancy system and why does it matter? — The PowerSafe system uses two separate IC3 power connectors wired in parallel, so if one connection loosens or fails, the receiver continues operating on the secondary connection. This redundancy is crucial for large, expensive aircraft or those carrying important equipment, as a power loss mid-flight could result in catastrophic damage. The system is not found on most hobby-grade receivers, making it a distinguishing feature of professional-level aircraft setups.
- Can I use the AR10410T with 12-volt servos? — Yes, the AR10410T can be configured to support 12-volt servo applications by activating the appropriate setting through Forward Programming on your Spektrum transmitter. This capability is valuable when you need servos with exceptional torque and responsiveness, though standard 6-volt servos will also work with the receiver.
- What happens if my aircraft loses signal with the AR10410T? — The receiver features adjustable failsafe settings that you configure through Forward Programming. You can set each servo to return to a predetermined position when signal is lost, allowing for controlled gliding or landing depending on your aircraft type. This is a critical safety feature for expensive aircraft and those operating far from your flying location.
