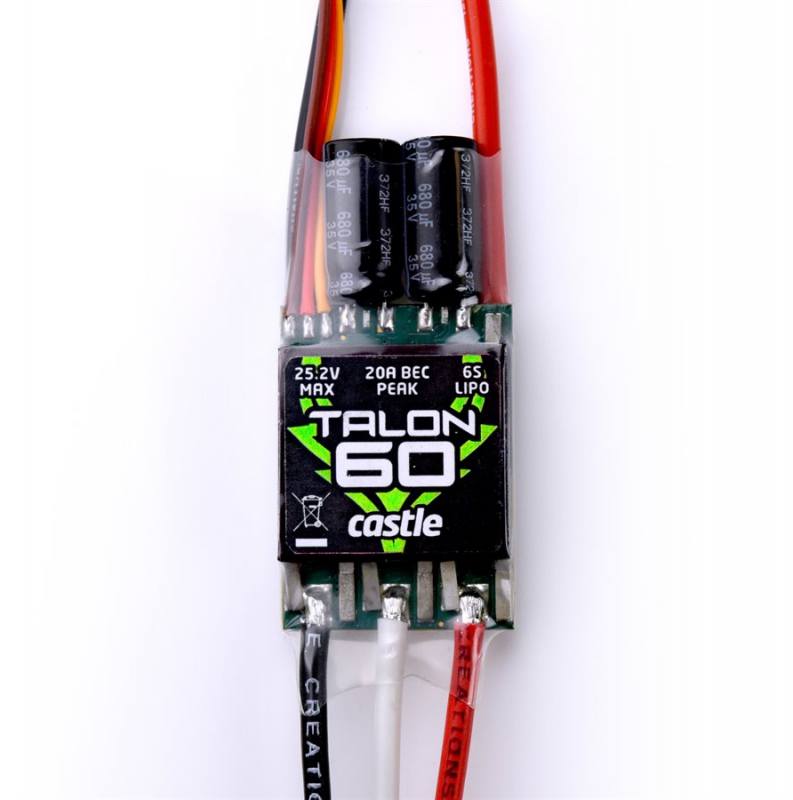

CASTLE Talon 60, 60AMP, 6S MAX, HD BEC P-CC010-0163-00

Overview

The CASTLE Talon 60 ESC is a professional-grade electronic speed controller designed for demanding RC aircraft and helicopter applications. This 60-amp continuous rated controller represents the pinnacle of Castle Creations' engineering expertise, delivering reliable power management across 2S to 6S LiPo battery configurations with up to 1400 watts of power on 6S. Whether you're piloting small-scale aerobatic helicopters, running precision scale models, or pushing the limits of sport and aerobatic fixed-wing aircraft, the Talon 60 brings industry-leading performance and control features to your RC setup in the UK market.

The Talon 60 is perfectly suited to small-scale or aerobatic helicopters ranging from 360 to 450 size class, as well as .32 to .60 class scale, sport and aerobatic aeroplanes requiring up to 1400 watts on 6S. The ESC offers Castle's renowned helicopter functions, including the remarkable direct entry governor mode, which allows you to simply type in your desired RPM using the Castle Link USB adapter and free Castle Link Programming Suite running on a Windows PC. This eliminates guesswork and delivers precision head-speed control that competitive and recreational pilots alike have come to expect from Castle Creations.

What sets the Talon 60 apart from other brushless ESCs is its combination of compact design, heavy-duty BEC power delivery, and comprehensive programmability. The slim profile and streamlined layout make mounting straightforward in tight spaces without compromising on features or reliability. This is a controller built for serious RC enthusiasts who demand professional performance from their brushless RC aircraft and helicopter systems.

Key Features

• 60-Amp Continuous Current Rating — The Talon 60 delivers a robust 60 amps of continuous current, making it capable of handling powerful brushless motors across a wide range of small-scale and mid-size RC aircraft and helicopters without thermal stress or performance degradation.
• Direct Entry Governor Mode — This industry-leading helicopter function allows you to set your desired RPM by simply typing the target head speed into Castle Link software, eliminating the need for manual head-speed adjustment and ensuring rock-solid rotor stability in aerobatic and scale helicopter applications.
• Heavy-Duty 8-Amp Continuous / 20-Amp Peak BEC — The onboard Battery Elimination Circuit delivers exceptional servo power with 8 amps of continuous current and 20 amps of peak burst capability, keeping even the most power-hungry servos operating smoothly without auxiliary power supplies, which is essential for demanding aerobatic manoeuvres and scale models with multiple high-torque servos.
• 2S to 6S LiPo Compatibility — Supporting the full range of standard lithium polymer battery configurations from 2-cell through 6-cell, this ESC adapts to your preferred power system, whether you're running economical 2S setups or pushing maximum power with 6S batteries delivering 1400 watts.
• Castle Link Programming Suite — Complete access to advanced tuning parameters via Castle Link USB adapter (redeemable coupon included) and free Windows PC software allows fine-tuning of governor sensitivity, throttle curves, timing advance, and numerous other variables to optimise performance for your specific model and flying style.
• Power System Alert System — The Talon 60 uses intelligent motor tones and flashing LED patterns to alert you to critical conditions such as over-temperature warnings, excessive load conditions, and locked head speed, helping you diagnose power system issues at a glance without requiring external diagnostics.
• Telemetry Capable — With optional Castle Telemetry Link modules (sold separately), you can monitor real-time battery voltage, ESC temperature, and other critical flight data, improving safety by alerting you to interference, low receiver battery voltage, and thermal issues before they become problematic.
• Free Firmware Updates — Castle regularly releases firmware updates that add new feature sets and performance improvements, all available free of charge via the Castle Link USB Programming Kit, ensuring your investment remains current and competitive.
• Compact Slim Profile Design — Measuring just 65mm long, 30mm wide and 10mm tall, weighing only 57 grams, the Talon 60's compact footprint makes it perfect for tight installations in scale fuselages and helicopter frames where space is at a premium.
• AS3X Technology Integration — Advanced Spectrum technology integration provides compatibility with modern radio systems, ensuring seamless operation with Futaba, Spektrum, and other popular RC transmitter brands used in the UK RC community.

Technical Performance

The CASTLE Talon 60 represents the convergence of precision engineering and practical RC design. Built with heavy-duty power handling capabilities, this 60-amp continuous ESC is engineered to manage the demands of high-performance brushless motor systems without compromise. The controller's robust construction and thermal management characteristics make it suitable for sustained aerobatic flying and competitive applications where reliability cannot be sacrificed. Operating across the full 2S to 6S LiPo spectrum (7.4 to 22.2 volts nominal), the Talon 60 scales effortlessly from lightweight 360-class aerobatic helicopters to substantial .60-class aeroplanes requiring 1400 watts of sustained power. The onboard BEC is a standout feature: with 8 amps of continuous current and 20 amps of peak capability, it eliminates the need for separate battery elimination circuits in most applications, reducing weight and complexity whilst powering modern digital servos that demand increasingly higher currents. The compact 65 x 30 x 10mm form factor and 57-gram weight ensure that the Talon 60 won't add unnecessary mass to your model, a critical consideration in aircraft design where every gram affects performance. Castle's proprietary governor mode technology, accessible through Castle Link software, provides unprecedented precision in head-speed control for helicopters, whilst the power system alert tones and LED patterns offer real-time diagnostic feedback during flight operations. Whether you're running demanding scale models with multiple heavy-load servos or pushing the limits with acrobatic helicopters, the Talon 60 delivers the performance and reliability demanded by serious RC enthusiasts across the UK.

What's in the Box

• 1 x CASTLE Talon 60 60-Amp ESC
• Redeemable coupon for Castle Link USB adapter (to be redeemed separately)

What You Need to Complete

• Brushless motor (appropriate KV rating for your battery voltage and application)
• 2S to 6S LiPo battery pack
• RC transmitter and receiver system
• Servo(s) for flight control surfaces
• Castle Link USB adapter (redeemable via included coupon) — required for programming and governor setup
• Windows PC with Castle Link Programming Suite software installed
• Optional: Castle Telemetry Link module for S.BUS2 (with Futaba radio) or X-BUS (with Spektrum radio) for real-time flight data monitoring

Frequently Asked Questions

• Is the CASTLE Talon 60 suitable for beginner RC helicopter pilots? — Whilst the Talon 60 is a professional-grade ESC with advanced features, it is appropriate for dedicated helicopter enthusiasts who understand brushless motor systems and governor-controlled flight. The direct entry governor mode is actually beneficial for beginners because it provides stable, consistent head speed without manual adjustment. However, you will need to invest in Castle Link software and the USB adapter to access these features, and programming knowledge is essential. For absolute beginners just starting in RC helicopters, you may want to consult with experienced pilots about the learning curve.
• What battery types and configurations does this ESC support? — The Talon 60 accepts 2S, 3S, 4S, 5S, and 6S LiPo (lithium polymer) battery packs. This means you can operate anywhere from 7.4V (2S) up to 22.2V nominal (6S), with maximum continuous power output of 1400 watts at 6S, making it versatile across a wide range of applications from small lightweight helicopters to larger aeroplanes.
• Can I use this ESC in both helicopters and fixed-wing aeroplanes? — Yes, absolutely. The Talon 60 is equally at home in small-scale or aerobatic helicopters ranging from 360 to 450 size class as it is in .32 to .60 class scale, sport and aerobatic aeroplanes. The direct entry governor mode is specifically designed for helicopters to control rotor speed, whilst the programmable parameters and power delivery suit aeroplane applications equally well. The 1400-watt power handling is appropriate for both aircraft types requiring high performance.
• What are Castle Link and why do I need it? — Castle Link is Castle Creations' proprietary programming system that allows you to fine-tune virtually every aspect of your ESC's operation. You get access to the governor head-speed entry system for helicopters, throttle curve programming, timing advance adjustment, rotation direction, and numerous other parameters. A redeemable coupon for the Castle Link USB adapter is included with your Talon 60, and you'll need to download the free Castle Link Programming Suite software (Windows only) to your PC. This system also provides access to free firmware updates throughout the product's lifetime.
• What is the BEC (Battery Elimination Circuit) and why is the Talon 60's BEC important? — The BEC is an onboard voltage regulator that powers your radio receiver and servos directly from the main battery pack, eliminating the need for a separate receiver battery. The Talon 60 features an impressive 8-amp continuous and 20-amp peak BEC, meaning it can power multiple high-torque digital servos without external power supplies. This is particularly valuable in scale models and aerobatic helicopters where servo power demands are high, saving weight and reducing complexity in your airframe.
• How does the power system alert system work? — The Talon 60 is programmed with intelligent motor tones and LED flashing patterns that communicate system status during operation. You'll hear specific motor tones and see distinctive LED patterns when conditions such as over-temperature warnings, excessive motor load, or locked head speed (helicopter governor issue) occur. This audible and visual feedback helps you diagnose problems quickly without needing external diagnostic equipment, making troubleshooting straightforward in the field.
• Is telemetry available for the Talon 60, and what does it monitor? — Yes, the Talon 60 is telemetry capable, though the telemetry modules are sold separately. You can monitor battery voltage, ESC temperature, and other critical flight parameters in real-time. Telemetry requires either a Castle Telemetry Link for S.BUS2 (compatible with Futaba radios) or Castle Telemetry Link for X-BUS (compatible with Spektrum radios). This system improves flight safety by providing warnings about low receiver battery voltage, radio interference, and thermal conditions, reducing the risk of unexpected power loss or ESC failure during flight.
• Will the Talon 60 work with my existing radio system? — The Talon 60 features AS3X technology integration, which means it's compatible with modern Futaba and Spektrum radio systems commonly used in the UK RC community. You simply connect your receiver to the ESC's signal input, and it will work seamlessly. If you plan to use telemetry features, you'll need either a Futaba radio with S.BUS2 capability or a Spektrum radio with X-BUS capability, along with the appropriate Castle Telemetry Link module.
• What is the compact size and how does it help my model? — Measuring just 65mm long, 30mm wide, and 10mm high, and weighing only 57 grams, the Talon 60 is one of the slimmest and lightest 60-amp ESCs available. This compact profile means you can fit it into tight spaces in scale fuselages, helicopter frames, and smaller composite airframes without extensive modification, and the light weight helps maximise flight time and performance without adding unnecessary mass to your model.
• Are firmware updates really free, and how do I install them? — Yes, all firmware updates are completely free and available indefinitely through the Castle Link USB Programming Kit. Updates are installed simply by connecting your ESC to your Windows PC via the Castle Link USB adapter and running the Castle Link Programming Suite software. New firmware occasionally adds feature sets, improves performance characteristics, or enhances compatibility with emerging radio systems, so it's worth checking for updates periodically.
