Overview

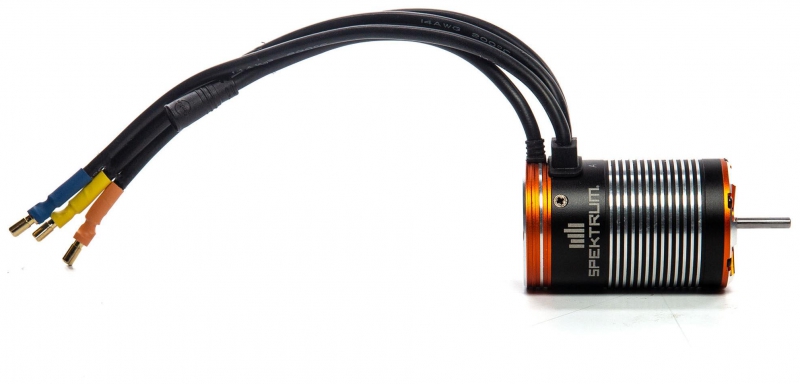

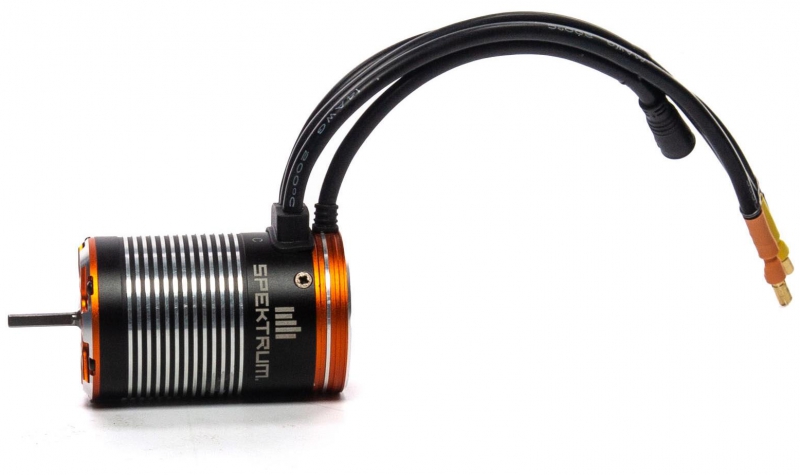

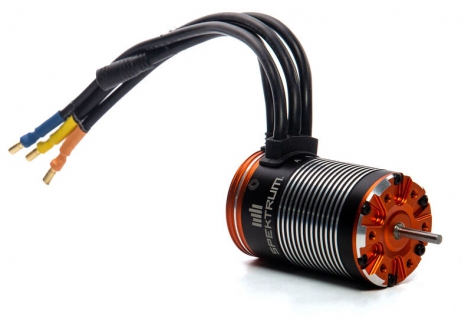

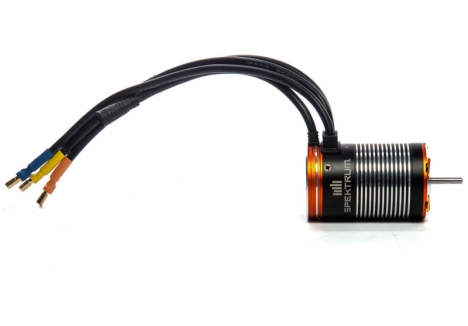

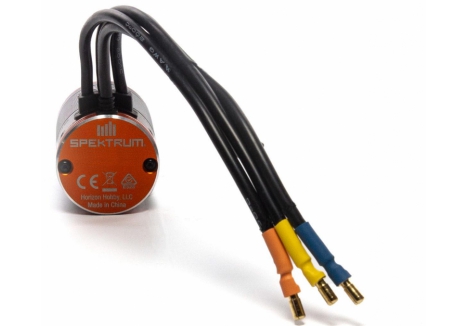

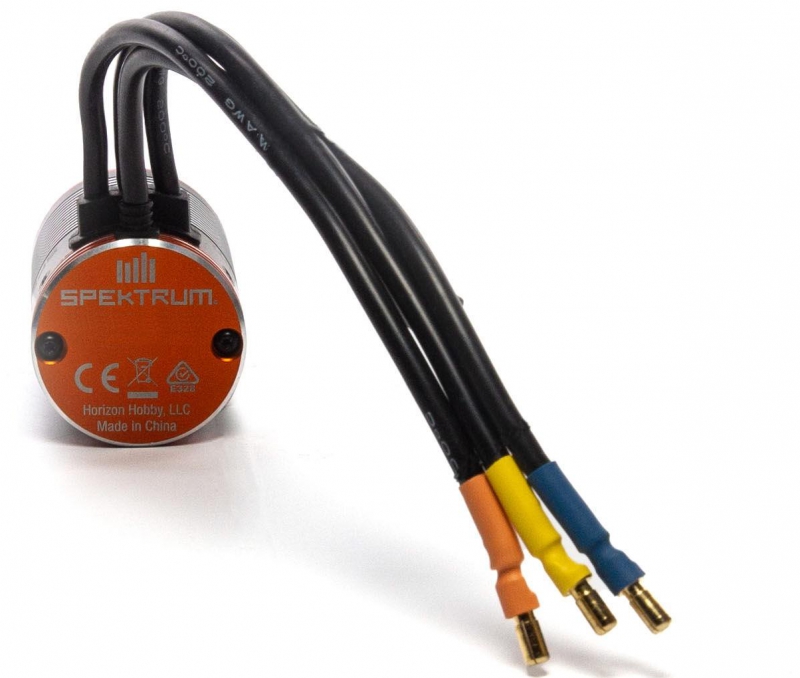

The Spektrum Firma 1400Kv Brushless Sensored Crawler Motor is an excellent choice for serious RC enthusiasts looking to upgrade their 1/10 scale crawler, rock racer, or trailer setup. Whether you're competing at the highest level or enjoying weekend crawling sessions, this motor delivers the low-speed, high-torque performance that defines modern RC crawling. Running on 2S to 3S LiPo batteries, the Firma 1400Kv combines professional-grade engineering with user-friendly installation, making it an ideal brushless RC motor upgrade for anyone looking to replace ageing 540 brushed motors with modern sensored brushless technology.
The Firma 1400Kv stands out in the competitive RC motor market due to its exceptional build quality and precision engineering. Featuring a low-cog 4-pole 8-magnet rotor design, this motor is purpose-built for the demanding requirements of competition crawlers where consistent torque delivery and reliability are paramount. The motor's compact 540-size diameter and mounting pattern make it a direct replacement for traditional brushed motors, whilst the sensored design ensures smooth, predictable performance even at minimal throttle inputs. If you're searching for a quality brushless RC motor UK retailers can supply, this Spektrum offering represents the pinnacle of crawler motor technology.
What truly sets this motor apart is the integration of advanced sensor technology and polarity protection systems. The magnetic encoder inside the motor guarantees consistency between all three phases' signals, always outputting precise signals indicated by rotor position. This level of engineering ensures that whether you're navigating technical rock gardens or competing in organised RC events, your motor responds exactly as expected, lap after lap. Pre-installed 3.5mm gold-plated bullet connectors make installation straightforward, whilst the waterproof sensor wire with locking plug and gasket ensures long-term durability in challenging outdoor conditions.
Key Features
- 1400Kv sensored brushless design — The 1400Kv rating is specifically calibrated for low-speed, high-torque crawling applications, delivering the precise power delivery that competition-level RC crawlers demand. Sensored operation means the motor knows its rotor position at all times, enabling smooth starts and consistent performance across the entire throttle range.
- Direct 540 brushed motor replacement — This motor features the same diameter and mounting pattern as standard 540 brushed motors, making it an excellent upgrade path for existing crawlers without requiring chassis modifications. Note that your vehicle must accept pinions with a 1/8" (3mm) bore to be compatible.
- Low-cog 4-pole 8-magnet rotor — The advanced rotor design minimises cogging effects, resulting in smoother acceleration and more predictable throttle response even at ultra-low speeds where crawler performance is critical. This sophisticated design is the result of Spektrum's deep expertise in brushless motor engineering.
- Polarity protection with magnetic encoder — The integrated magnetic encoder provides constant feedback about rotor position, guaranteeing consistency between all three motor phases and delivering precise signals at all times. This technology protects your ESC investment and ensures reliable operation in any RC crawling scenario.
- CNC-machined aluminium housing — Precision-engineered using computer-controlled machining, the aluminium motor case provides excellent heat dissipation whilst maintaining rigid structural integrity. This manufacturing approach ensures every Firma motor meets tight tolerances for optimal performance.
- Insulated high-purity copper windings — The motor's internal windings are crafted from premium-grade copper with proper insulation, minimising resistance losses and maximising power transfer efficiency. This translates to better performance and cooler motor operation during extended crawling sessions.
- Hardened alloy steel 3.175mm (1/8") output shaft — The precision-ground output shaft is manufactured from high-grade alloy steel and hardened for superior wear resistance. The 1/8" bore diameter is the industry standard for RC crawler pinions and is built to withstand the stresses of technical crawling.
- Precision ball bearings for smooth rotation — Premium-quality ball bearings support the rotor and shaft, ensuring minimal friction and smooth operation. These precision components are essential for delivering the responsiveness expected from a high-end crawler motor.

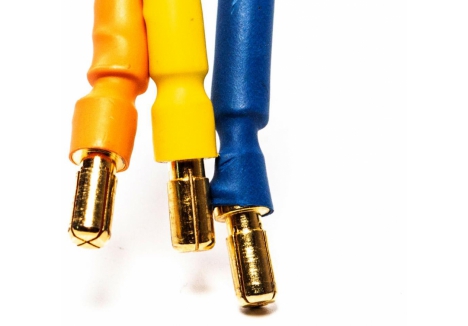

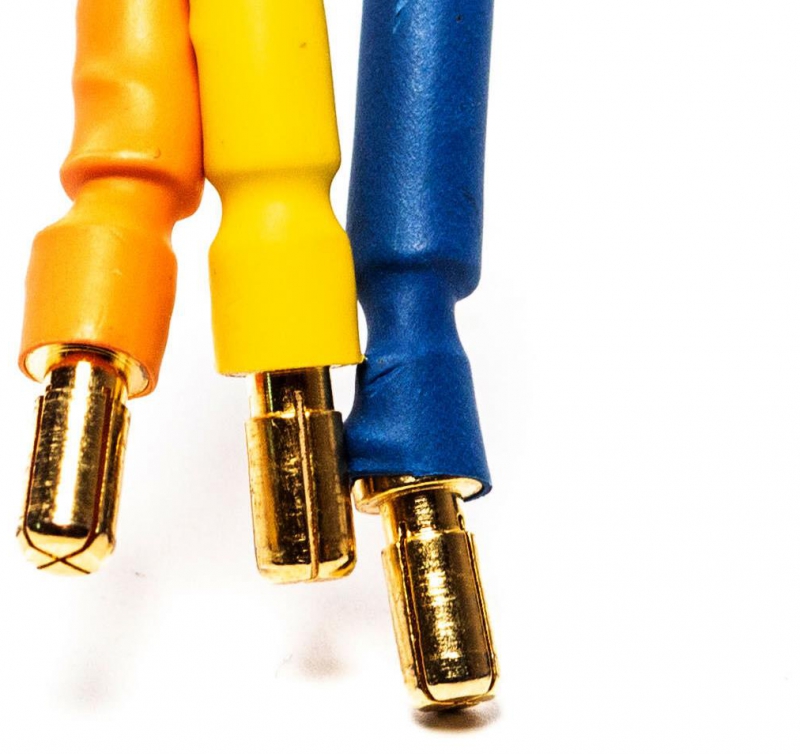

- 3.5mm gold-plated bullet connectors — Pre-installed connectors with gold plating ensure excellent electrical contact and easy disconnection for maintenance or motor swaps. The larger 3.5mm size (compared to 4mm mentioned in some literature) provides robust connection integrity.

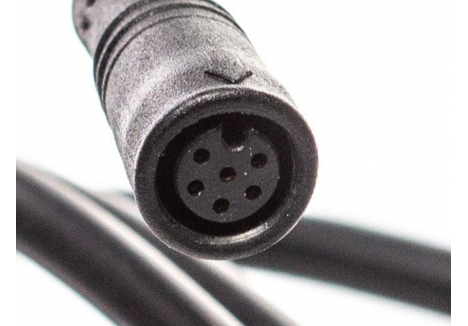

- Waterproof sensor wire with locking plug — The sensored motor includes a dedicated waterproof sensor wire featuring a secure locking plug and gasket, protecting electronics from moisture ingress during stream crossings and wet-weather crawling. This rugged design reflects the motor's suitability for serious outdoor RC use.
- FOC sensored operation — Field-Oriented Control (FOC) sensored technology represents the latest advancement in brushless motor control, delivering smoother acceleration curves and more efficient power delivery than conventional sensored or sensorless motors.
- Water-resistant construction — The entire motor assembly incorporates water-resistant design principles, making it suitable for operation in challenging outdoor conditions without fear of rapid degradation from moisture exposure.
Technical Performance
The Firma 1400Kv represents a pinnacle of engineering excellence for 1/10 scale RC crawlers in the UK and worldwide. With a constant wattage capacity of 250-499W and a maximum continuous current rating of 25A, this motor delivers impressive torque whilst remaining efficient and reliable. The 1400Kv rating, when paired with a 2S LiPo battery producing 7.4 volts, yields approximately 10,360 RPM at the output shaft, whilst a 3S LiPo at 11.1 volts delivers around 15,540 RPM. These speeds are deliberately modest because crawler motors prioritise torque over velocity—the low RPM output allows massive gear reduction ratios that produce the wheel-turning power required to climb vertical rock faces and navigate obstacles that would stop conventional RC vehicles.
The motor's 4-pole sintered rotor design is engineered for maximum low-speed performance. The high-quality sintered magnets provide consistent magnetic flux across the entire rotation cycle, whilst the 4-pole configuration and 8-magnet arrangement minimise cogging—the tendency for the rotor to prefer certain angular positions. This results in smooth acceleration from standstill, critical for the precise throttle control demanded by competition crawlers navigating gates and obstacles. The CNC-machined aluminium housing provides excellent thermal management, dissipating heat generated during extended crawling sessions. Combined with the insulated high-purity copper windings, the motor efficiently converts electrical energy into mechanical torque with minimal waste heat generation. The hardened alloy steel 1/8" shaft, supported by precision ball bearings, endures the repetitive stress of high-torque operation whilst maintaining the smooth rotation necessary for responsive vehicle control.

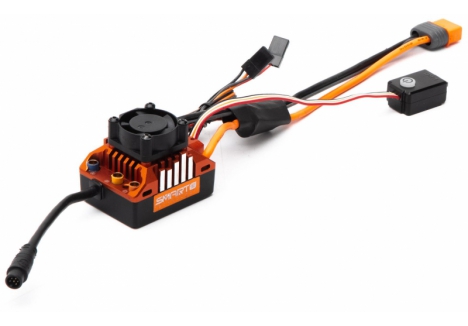

For proper operation, the Firma 1400Kv requires the Spektrum Firma 60A Sensored Brushless Smart Crawler ESC—an essential component that works in harmony with the motor's sensored design to optimise performance. The motor accepts standard 2S or 3S LiPo batteries (7.4-11.1V input voltage range), with most UK-based RC crawlers running 3S configurations for maximum performance. The motor supports both forward and reverse operation, essential for technical crawling manoeuvres. Measuring 36mm in outer diameter and 58mm in length, the compact form factor ensures compatibility with existing 540-sized motor mounts found on popular RC crawler platforms. The waterproof sensor wire with locking plug adds reliability in muddy, wet environments common in UK outdoor RC venues, whilst the 3.5mm gold-plated connectors guarantee consistent electrical connection regardless of how many times you connect and disconnect the motor.
What's in the Box
- Firma 1400Kv Brushless Sensored Crawler Motor with 3.5mm gold-plated bullet connectors pre-installed
- Waterproof sensor wire with locking plug and gasket
- Instruction manual (multilingual)
What You Need to Complete
- Spektrum Firma 60A Sensored Brushless Smart Crawler ESC (required for operation)
- 2S or 3S LiPo battery (7.4-11.1V)
- Battery charger compatible with LiPo batteries
- RC crawler vehicle with 540-size motor mount and 1/8" pinion bore
- Motor pinion (gearing depends on your vehicle and performance preferences)
Frequently Asked Questions
- Is the Firma 1400Kv motor suitable for beginner RC crawlers? — Whilst the Firma 1400Kv is not an entry-level product, it's suitable for anyone committed to serious RC crawling. The sensored design provides smooth, predictable performance that actually makes vehicle control easier than sensorless alternatives. However, beginners should note that this motor requires the dedicated Spektrum Firma 60A ESC and proper LiPo battery setup. If you're completely new to RC crawling, you might prefer starting with a ready-to-run RTR kit before upgrading to individual components like this motor.
- What battery does the Firma 1400Kv need? — The motor operates on 2S or 3S LiPo batteries, requiring an input voltage between 7.4 and 11.1 volts. Most UK RC crawlers run 3S LiPo batteries (11.1V nominal) for maximum performance and runtime. You'll need a compatible LiPo charger and should follow proper LiPo safety procedures including using a fire-safe charging bag and never leaving batteries unattended whilst charging.
- Can I use this motor with my existing ESC? — No, the Firma 1400Kv motor is specifically designed to work with the Spektrum Firma 60A Sensored Brushless Smart Crawler ESC. The sensored design requires an ESC with sensored capabilities to maximise performance. Using an incompatible ESC will result in poor performance or potential equipment damage.
- Is this motor waterproof? — The motor is water-resistant rather than fully waterproof. The waterproof sensor wire with locking plug and gasket provides good protection against moisture ingress, making the motor suitable for creek crossings and wet conditions. However, the sensor connectors should not be submerged, and you should rinse the motor with fresh water after muddy or saltwater use to prevent corrosion. Allow proper drying time before next use.
- What makes this motor better than brushed alternatives? — Brushless motors like the Firma 1400Kv offer several advantages over brushed 540 motors. Brushless designs produce less cogging, meaning smoother acceleration especially important for crawling. There's no brush wear, so brushless motors last significantly longer. Efficiency is superior, generating less heat and providing longer runtime per charge. The sensored design delivers precise speed control and smooth operation at ultra-low speeds where crawlers operate. If you're upgrading from brushed to brushless, expect notably improved performance and reliability.

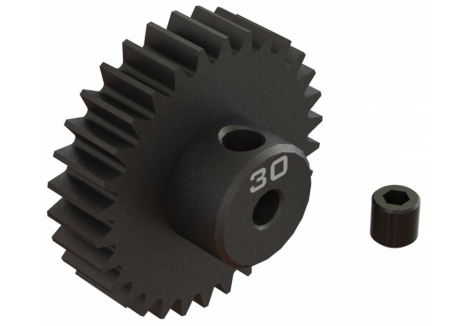

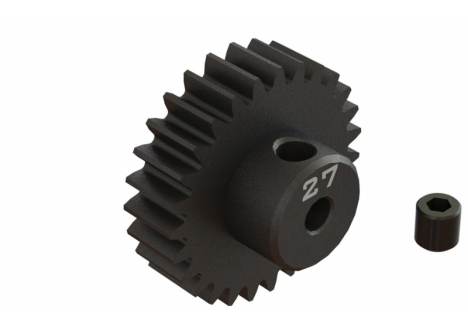

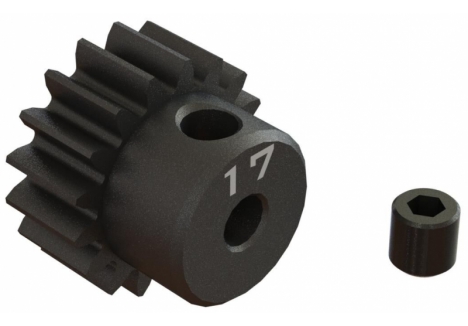

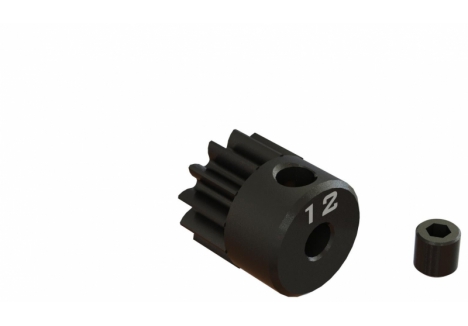

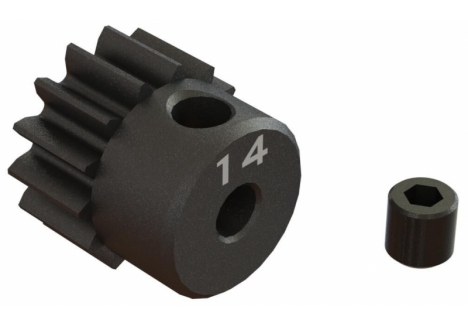

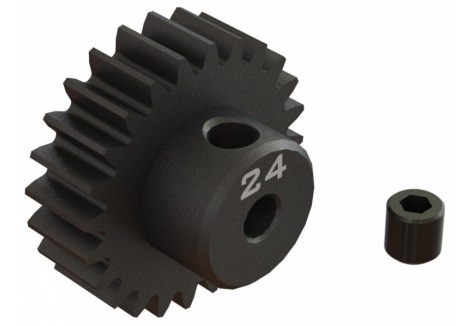

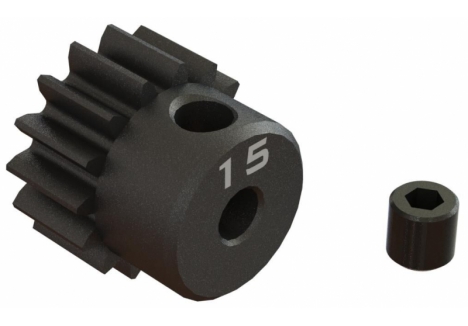

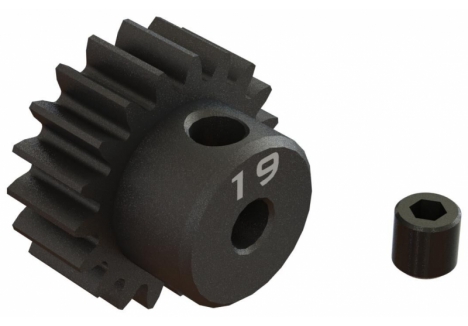

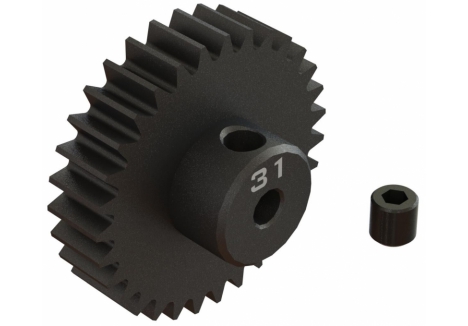

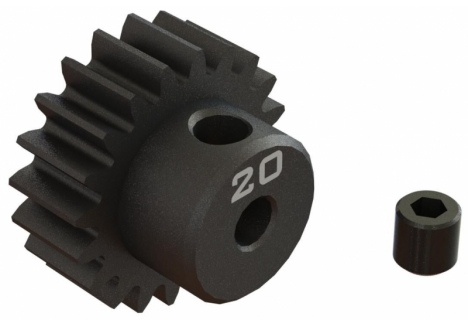

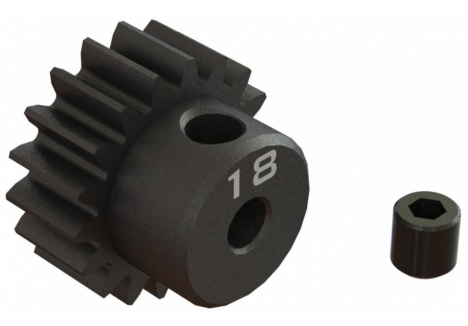

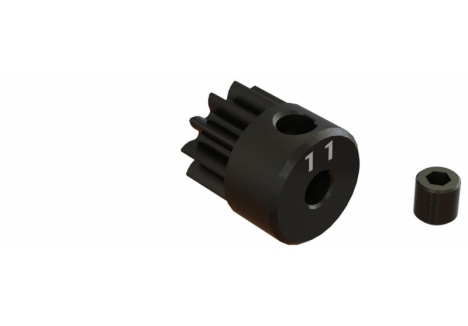

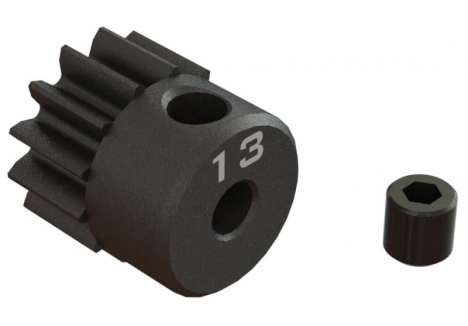

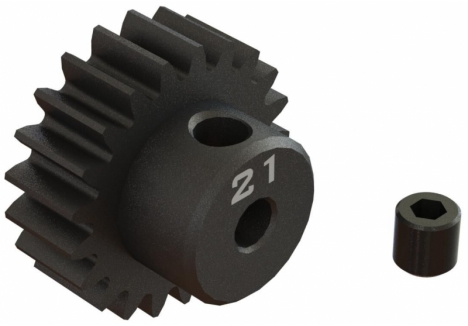

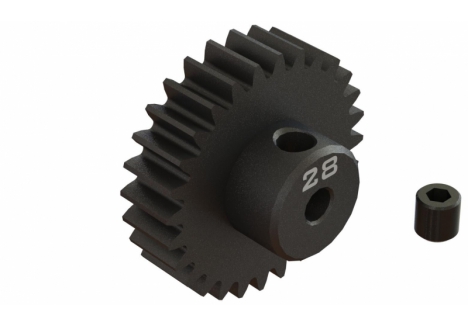

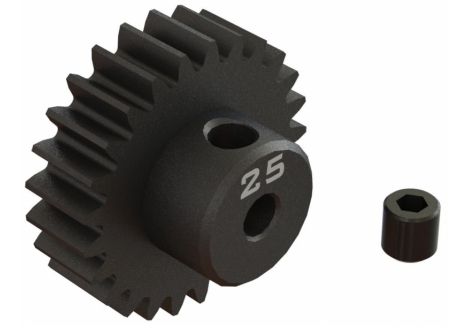

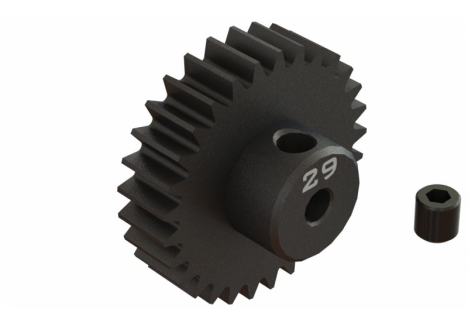

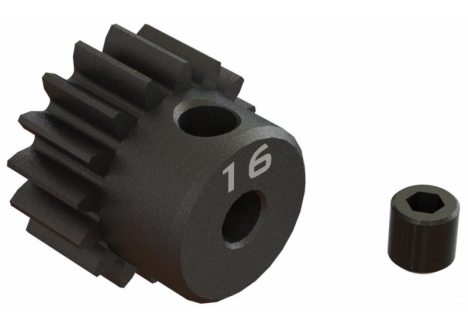

- Does this motor come with a pinion? — No, the motor does not include a pinion. You'll need to source a pinion with a 1/8" (3mm) bore separately. The correct pinion size depends on your vehicle type and desired performance characteristics. Most RC crawlers use pinions ranging from 16 to 32 teeth, with tooth count selection affecting top speed, acceleration, and motor load. Consult your vehicle's manual or the RC crawling community for pinion recommendations specific to your platform.
- What's the difference between sensored and sensorless brushless motors? — Sensored motors like the Firma 1400Kv include magnetic encoder technology that constantly monitors rotor position, allowing the ESC to deliver precisely timed electrical pulses. This results in smoother acceleration, better low-speed control, and more efficient operation—crucial advantages for technical crawling. Sensorless motors rely on back-EMF feedback, which works adequately at mid to high speeds but can be jerky at ultra-low speeds where crawlers operate. For serious crawling, sensored is the superior choice.
- How does the 1400Kv rating relate to motor speed? — Kv rating indicates how many RPM the motor produces per volt of input. At 1400Kv, a 3S LiPo battery (11.1V) produces roughly 15,540 RPM at the motor shaft (1400 × 11.1). Crawler motors intentionally feature lower Kv ratings because the final wheel speed depends on gear ratios—high numerical ratios multiply torque at the expense of speed, which is exactly what crawlers need. Don't compare Kv ratings between motor classes; instead, focus on what final wheel speed and torque your specific vehicle requires.
- Will this motor fit my existing RC crawler? — The Firma 1400Kv maintains the same 540-size diameter (36mm) and standard mounting pattern as conventional 540 brushed motors, so it should fit most 1/10 scale crawlers without chassis modifications. However, your vehicle must accept a motor with a 1/8" (3mm) bore pinion. Some older vehicles designed for 2mm bore brushed motors won't be compatible. Check your vehicle's manual or measure your existing pinion bore diameter before purchasing.
