Overview

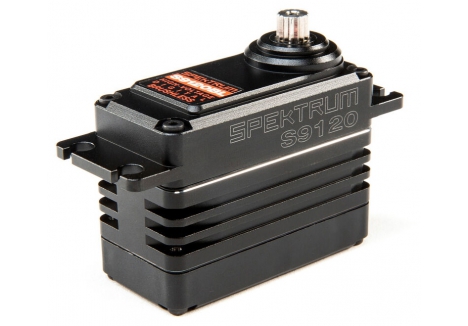

The Spektrum S9120BL is a premium 1/5 scale digital high-voltage brushless metal gear servo designed for the most demanding RC enthusiasts. Operating in the rough and tumble environment of 1/5 scale RC vehicles, servo performance is pushed to the absolute maximum, and this servo has been engineered to deliver. Whether you're racing a competitive 1/5 buggy on the track or bashing through challenging terrain, the S9120BL combines exceptional torque output with brushless motor precision to elevate your driving experience to a new level. This is not a beginner's servo — this is professional-grade equipment for those serious about RC car UK performance and reliability.
The S9120BL represents a significant leap forward in Spektrum servo technology. Engineered specifically for 1/5 scale off-road applications, it delivers an impressive 1454 oz-in of torque at 8.4V, making it one of the most powerful servos in the Spektrum range. The servo has already proven itself at the highest levels of competition, with the S9120BL winning the 2020 1/5 Worlds Buggy Class at So Cal Nitro. This race-proven pedigree means you're investing in equipment that competitors trust when championships are on the line.
What sets the S9120BL apart from previous generations is its comprehensive redesign from the ground up. Every component has been optimised for durability and performance in the extreme conditions of 1/5 scale racing and bashing. The new case design features improved support for the pins holding the gears together, whilst the new aluminium top plate incorporates a re-designed bearing house that enhances longevity and reliability. The new brushless motor design delivers significantly more power than any previous Spektrum servo, whilst maintaining the precision control that competitive drivers demand.
Key Features
- Brushless Motor Technology — The S9120BL utilises advanced brushless motor technology that delivers more power and reliability than brushed alternatives, with virtually no maintenance requirements and consistent performance throughout the servo's lifespan. Brushless motors run cooler and more efficiently, critical when your servo is working hard in competitive driving situations.
- Exceptional Torque Output of 1454 oz-in at 8.4V — This extraordinary torque rating means the servo can handle the demanding steering and throttle control requirements of high-powered 1/5 scale RC buggies and trucks. The raw power allows for aggressive steering inputs and responsive control even under extreme load, giving drivers the confidence to push their vehicles to the limit.
- Metal Gear Construction — The servo uses durable metal gears rather than plastic alternatives, providing superior strength and longevity. Metal gears can withstand the enormous forces generated in 1/5 scale driving without stripping or breaking, ensuring your investment remains reliable season after season.
- High-Voltage Operation (6.0-8.4V) — The servo accepts standard high-voltage LiPo battery packs from 2S to 3S configuration, allowing it to deliver maximum performance when paired with modern RC power systems. The wide voltage range provides flexibility in battery selection and ensures compatibility with most contemporary 1/5 scale RC setups.
- Improved Case Design with Reinforced Gear Support — The new case geometry provides superior support for the gear shaft pins, preventing deflection and premature wear that plagued earlier designs. This enhancement directly translates to longer servo life and more consistent performance, particularly important when investing in premium equipment.
- Aluminium Top Plate with Re-designed Bearing House — The precision-machined aluminium top plate combines light weight with exceptional strength, whilst the re-designed bearing house provides optimal support for smooth gear rotation and reduced friction. This engineering improves both speed and durability compared to previous generations.
- Stealth Black Design — Beyond aesthetics, the sleek black finish provides a professional racing appearance that complements modern 1/5 scale RC vehicles. The finish is durable and resists corrosion from dirt, mud, and moisture encountered during RC car UK adventures.
- 18AWG Wire Detachable Connector — The thicker 18AWG gauge wiring reduces electrical resistance and voltage drop, ensuring maximum power delivery to the servo motor. The detachable connector design makes installation and removal straightforward, a practical feature when working on your RC vehicle.
- Bearing Construction for Reduced Friction — The servo uses precision ball bearings rather than bushings, providing smoother, faster operation with minimal friction losses. This contributes to both the servo's responsive performance and its overall longevity.
- Micro-Second Deadband Control — With deadband of less than 1 microsecond, the S9120BL provides incredibly precise control inputs, essential for competitive racing where split-second steering adjustments determine race outcomes.
- 15-Tooth Spline for Compatibility — The standard 15-tooth spline ensures compatibility with a wide range of servo horns and linkages available for 1/5 scale vehicles, making it straightforward to integrate into your RC buggy or truck.
Technical Performance
The Spektrum S9120BL represents the pinnacle of 1/5 scale servo engineering, combining meticulous design with race-proven reliability. At its core sits an advanced brushless motor that delivers a remarkable 1173 oz-in of torque at 6.0V, escalating to 1209 oz-in at 7.4V, and reaching the full rated 1453.5 oz-in (104.66 kg-cm) at 8.4V. This progressive torque delivery means the servo can be optimised for different driving styles and battery configurations, providing genuine flexibility for competitive and recreational drivers alike. The brushless motor design eliminates mechanical friction associated with brush commutation, resulting in cooler operation, longer life, and more consistent performance throughout a race or bashing session.
Construction quality is exceptional throughout. The servo measures 62.7mm in length, 30mm in width, and 27.2mm in height, making it a substantial but manageable size appropriate for 1/5 scale applications where raw power takes priority over miniaturisation. At 178.6 grams, the weight is well-distributed within the servo's body, minimising the impact on vehicle balance. The metal gear train handles forces that would destroy plastic alternatives, whilst the new case design with improved pin support prevents the gear shaft deflection that plagued earlier servo generations. The aluminium top plate is both stronger and lighter than steel alternatives, optimising the strength-to-weight ratio crucial in competitive RC racing.
The servo's bearing house represents a significant engineering advancement. Rather than relying on simple bushings, the re-designed bearing house uses precision ball bearings to support the gear shafts and output horn. This reduces friction losses, improves rotational smoothness, and extends the servo's operational life even under the extreme conditions of high-speed 1/5 scale racing. The bearing design also contributes to improved speed characteristics, allowing faster response times compared to bushing-based alternatives. Operating voltage flexibility from 6.0V to 8.4V provides genuine versatility — users can select battery configurations that best suit their specific vehicle and driving style, from 2S LiPo packs offering consistent power delivery to 3S packs providing maximum performance for competitive racing.
The servo's precision electronics incorporate digital control circuitry that maintains the sub-microsecond deadband, translating even the finest radio transmitter inputs into corresponding servo movements. This level of control precision is non-negotiable in competitive 1/5 scale racing, where thousandths of a second and millimetres of steering input separate victory from defeat. The combination of brushless motor responsiveness, bearing-based smooth operation, and digital control electronics creates a servo that feels instinctively connected to the driver's inputs, providing the feedback and control responsiveness that competitors demand. The 6-inch (152mm) wire lead with thicker 18AWG gauge ensures minimal voltage drop between the servo and the receiver, guaranteeing that every bit of power from your battery reaches the servo motor rather than being wasted as heat in the connectors and wiring.
What's in the Box
- Spektrum S9120BL 1/5 Digital HV High Torque Brushless Metal Gear Servo
- 6-inch (152mm) detachable connector with 18AWG wiring
Frequently Asked Questions
- What is the maximum torque rating of the S9120BL servo? — The S9120BL delivers an impressive maximum torque of 1454 oz-in (104.66 kg-cm) when powered by an 8.4V source, such as a 3S LiPo battery pack. At lower voltages, the servo provides 1173 oz-in at 6.0V and 1209 oz-in at 7.4V. This makes it one of the most powerful servos available for 1/5 scale RC vehicles.
- What battery does the S9120BL require? — The servo operates across a high-voltage range from 6.0V to 8.4V, making it compatible with both 2S and 3S LiPo battery packs. Most users run 3S LiPo packs to achieve the full 1454 oz-in torque rating, though 2S packs will provide adequate performance for recreational bashing with reduced power consumption.
- Is the S9120BL suitable for beginners? — The S9120BL is a professional-grade servo designed for experienced RC enthusiasts and competitive racers. Its high torque output and premium price point make it better suited to those with established RC experience rather than beginners. If you're new to the hobby, consider starting with a more affordable servo and upgrading as your skills and budget allow.
- How does the S9120BL compare to the S9110BL? — Spektrum offers two variants in this servo family: the S9120BL prioritises maximum torque at 1454 oz-in, making it ideal for steering servo applications in powerful 1/5 scale buggies, whilst the S9110BL emphasises speed at 0.14 sec/60° with slightly lower torque of 1224 oz-in. The S9120BL offers nearly 60% more torque than previous generation high-torque servos, making it the choice for drivers demanding ultimate steering control and load-bearing capacity.
- Why does this servo use a brushless motor? — Brushless motors operate with no mechanical friction from brush contacts, running cooler and more efficiently than brushed alternatives. This design eliminates maintenance requirements, extends servo life, and provides more consistent performance throughout extended racing sessions or all-day bashing adventures.
- What makes the S9120BL suitable for 1/5 scale applications? — 1/5 scale RC vehicles generate enormous forces during aggressive driving, demanding servos with exceptional torque and durability. The S9120BL's metal gears, reinforced case design, bearing-based construction, and powerful brushless motor make it engineered specifically for these demands, unlike servos designed for smaller scales.
- Is the S9120BL race-proven? — Yes, the S9120BL has won the 2020 1/5 Worlds Buggy Class at So Cal Nitro, demonstrating its reliability and performance at the highest levels of competitive RC racing. This real-world race success provides confidence that you're purchasing equipment trusted by professional drivers.
- What does the metal gear construction mean for durability? — Metal gears are significantly stronger than plastic alternatives, capable of transmitting the enormous torque forces generated by the brushless motor without stripping, cracking, or breaking. This directly translates to longer servo life, more reliable performance, and better value over time, particularly important given the servo's premium price point.
