HOBBYWING QUICRUN COMBO ESC WP 10BL80/3530SL 1700KV OUT. MOT. HW38030215

Overview

The Hobbywing QUICRUN COMBO ESC WP 10BL80/3530SL 1700KV is a complete brushless power system designed specifically for 1/10 and 1/12 scale RC crawlers. This ready-to-run combo brings together precision engineering and ease of use, making it an excellent choice for anyone serious about RC crawling in the UK. Whether you're a seasoned competitor or discovering the world of RC for the first time, this combo delivers the performance and reliability that modern RC enthusiasts demand from their crawlers.

This complete system combines a powerful 80A ESC with a high-quality 3530SL sensorless brushless motor in a single package, eliminating the need to source components separately. The combo is engineered to work seamlessly together, providing superior low-speed torque and exceptionally smooth operation across the full throttle range. For UK RC car enthusiasts looking for a brushless RC crawler setup that doesn't compromise on quality, this Hobbywing combo represents excellent value and proven performance.

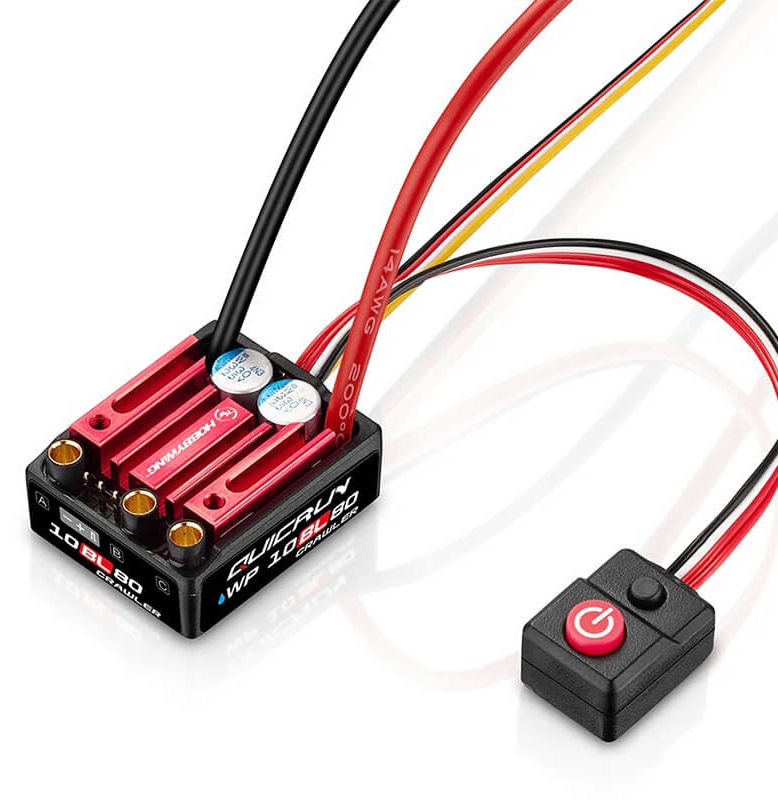

The QUICRUN WP 10BL80 ESC is specifically designed for crawler applications where precise control and smooth acceleration matter. Combined with the Outer 3530SL motor, this setup delivers the kind of progressive throttle response and climbing performance that separates serious crawlers from casual bashers. With support for 2-4S LiPo batteries, you have flexibility in choosing your power source based on your specific vehicle requirements and driving style.

Key Features

• Complete Combo Package — This isn't just an ESC or just a motor; you're getting a fully matched system where both components are engineered to work together perfectly. This takes the guesswork out of building a crawler and ensures optimal performance without compatibility issues.
• 80A Continuous / 240A Peak Current ESC — The WP 10BL80 delivers serious power handling capability, meaning your motor can draw the current it needs without throttling or voltage sag. This translates to consistent performance even during demanding climbs and heavy loads on rocky terrain.
• 3530SL Brushless Outrunner Motor — The Outer 3530 design creates a powerful motor in a compact footprint. At just 35mm outer diameter and 30mm length, this motor provides substantial torque without excessive weight or bulk, perfect for scale crawlers where every gram matters.
• Outstanding Linear Throttle Response — The motor is tuned to deliver extremely smooth, predictable acceleration from zero throttle onwards. This linear response means you have intuitive control over your crawler, making it easier to manage tricky terrain and execute precise manoeuvres.
• Low Cogging and Minimal Torque Ripple — The motor's engineered design minimises cogging effects and torque ripple, resulting in exceptionally smooth and stable performance at low speeds where crawlers do most of their work. This smoothness is crucial for rock crawling, where sudden jerks or hesitation can cause traction loss.
• Superior Low-Speed Linearity — The entire system is optimised for the low-speed crawling environment. Unlike systems designed for speed, this combo prioritises smooth, controllable operation at the crawl speeds where real crawlers excel.
• 3.5mm Male Connectors — The motor comes with 3.5mm bullet connectors that match the ESC perfectly, allowing genuine plug-and-play compatibility with no soldering required. This makes assembly straightforward and reduces potential connection issues.
• Modular, Removable Motor Design — The motor features a clever modular construction that makes routine cleaning and maintenance straightforward. After dusty or muddy sessions, you can easily service the motor to maintain optimal performance and extend its lifespan.
• Top-Tier Iron Core Construction — The motor uses premium iron cores from recognised manufacturers, paired with high-performance enamelled wire rated to 220°C and precision-grade bearings. These quality materials provide a solid foundation for long-lasting durability and consistent performance through hundreds of hours of crawling.
• Silicone Wire Connections — The rotor is connected with silicone wires that offer flexibility and cleaner installation than traditional rigid connections. This also allows for better wire management and a neater overall build.
• Precisely Balanced Rotor — Every rotor is carefully balanced to reduce vibration and energy loss. A balanced rotor means smoother operation, less wear on bearings, and more efficient power delivery to your crawler.
• 2-4S LiPo Battery Compatibility — This system supports 2S, 3S, and 4S LiPo batteries, giving you flexibility to choose the voltage that suits your vehicle and driving style. This compatibility means you can use existing batteries or choose the right pack for your needs.
• 6V/7.4V/8.4V BEC Output — The integrated BEC (Battery Eliminator Circuit) provides regulated power to your servo and receiver, with selectable output voltages to suit different servo requirements.
• Universal Mounting Compatibility — The motor's mounting hole spacing is designed to fit the majority of 1/10th and 1/12th scale crawler vehicles on the market, whether you're building a scaler buggy, a dedicated crawler, or an ultra-compact 1/12th model.
• Independent Programming Port — The ESC features its own dedicated programming port, making it easy to adjust settings, configure BEC voltage, and tune performance without needing specialist equipment or external adaptors.
• Factory-Installed XT60 Plug — The ESC comes with the industry-standard XT60 connector already soldered in place, ready for immediate battery connection without additional work.
• Compact ESC Package — At just 36×30×15.5mm, the ESC is small enough to fit into tight spaces within your crawler chassis, leaving more room for battery placement and other components.
• 14-Pole Motor Design — The 14-pole configuration provides the torque characteristics and smooth operation needed for crawler work, offering superior low-speed performance compared to lower pole count designs.

Technical Performance

The Hobbywing QUICRUN COMBO represents a sophisticated engineering approach to RC crawler performance. The 3530SL motor, with its 1700KV rating and 14-pole design, is specifically tuned for the torque-over-speed requirements of scale crawling. The motor's sensorless brushless technology eliminates carbon brushes, reducing maintenance and extending component life. With a no-load current of just 5A, the system is efficient even when the crawler isn't climbing, preserving battery capacity for when it's needed most. The motor weighs just 102g, helping keep your crawler's centre of gravity low—a critical factor in preventing rollovers on challenging terrain. The 80A continuous / 240A peak current rating of the WP 10BL80 ESC provides headroom for power spikes during aggressive climbs whilst remaining safe and stable during extended use. The ESC's compact dimensions of 36×30×15.5mm and weight of just 47.8g make it ideal for weight-conscious builds. Support for 2-4S LiPo batteries means you can tailor your voltage and capacity to your specific needs; 2S provides efficient, smooth operation for beginners, whilst 3S and 4S deliver progressive power increases for more aggressive driving. The integrated 6.0V/7.4V/8.4V selectable BEC with 5A output eliminates the need for a separate battery to power your servo and receiver, simplifying your power management. The precision-grade bearings, premium iron cores, and 220°C rated enamelled wire ensure this system will deliver consistent performance season after season, whether you're crawling rocks in a garden or competing in formal competitions across the UK.

What's in the Box

• 1 × Hobbywing QUICRUN WP 10BL80 80A Crawler ESC
• 1 × Hobbywing QUICRUN Outer 3530SL Sensorless Brushless Motor (1700KV)
• Factory-installed XT60 connector on ESC
• Motor with 3.5mm male connectors (plug-and-play compatibility)
• Heatshrink tubing kit
• Double-sided mounting tape
• Cable ties (zip ties)
• Instruction manual
• Decal sheet

What You Need to Complete

• RC Crawler chassis (1/10th or 1/12th scale compatible with 3.2mm bore motors)
• 2S, 3S, or 4S LiPo battery
• LiPo battery charger
• RC receiver
• Servo suitable for your crawler application
• Servo connectors (if not already on your servo)
• Male XT60 connector for battery lead (if your battery doesn't have one)
• Soldering iron and solder (for servo and receiver connections if not pre-soldered)
• Heatsink for ESC (optional but recommended for sustained high-load use)

Frequently Asked Questions

• Is this combo suitable for beginners to RC crawling? — Yes, absolutely. The QUICRUN combo is specifically designed with beginner and intermediate crawlers in mind. The linear throttle response and smooth acceleration make it forgiving to control, and the plug-and-play motor connections mean less soldering and fewer potential assembly mistakes. The system's stability at low speeds is particularly helpful when you're learning to navigate challenging terrain.
• What battery does this system need, and how many cells? — The system supports 2S, 3S, and 4S LiPo batteries. A 2S LiPo (7.4V) is perfect for beginners and provides smooth, controllable performance. 3S (11.1V) offers more aggressive acceleration, whilst 4S (14.8V) delivers maximum power for advanced drivers. We recommend starting with a quality 2S or 3S battery from a reputable manufacturer. The battery capacity in mAh determines runtime; larger capacity batteries will give you longer crawling sessions.
• Does this motor fit my 1/10th scale crawler? — The Outer 3530SL motor is designed for 1/10th and 1/12th scale crawlers. The motor has mounting holes spaced at 25mm (1/10th standard 4×M3 holes), making it compatible with the vast majority of modern 1/10th scale crawler platforms on the market. For 1/12th scale vehicles, the compact motor dimensions and mounting flexibility make it suitable for many models in this category as well.
• How does this compare to other crawler power systems? — The QUICRUN combo stands out through its complete integration—both components are engineered to work together perfectly. The 14-pole motor design and sensorless brushless technology provide superior low-speed linearity compared to many competing systems. The 80A ESC is genuinely high-current for a crawler system, giving you headroom for sustained climbing without thermal stress. The modular motor design also sets it apart, as you can easily service it between muddy sessions without complete disassembly.
• Is soldering required to use this combo? — No soldering is required for the ESC-to-motor connection. The motor comes with 3.5mm male connectors that plug directly into the ESC with matching female connectors. However, you will need to solder the servo and receiver leads to the ESC unless you purchase pre-soldered connectors, and you may need to solder a battery connector depending on your battery configuration.
• What makes the 3530SL motor suitable for crawling? — The 3530 designation (35mm diameter, 30mm length) represents a compact yet powerful design. The SL designation means sensorless, and the 1700KV rating is purposefully low—higher KV means higher RPM, but lower KV provides more torque at lower speeds, which is exactly what crawlers need. The 14-pole construction contributes to smooth torque delivery and low cogging, essential for precise throttle control on technical terrain. The result is a motor that excels at the 2-6 mph speeds where real rock crawling happens.
• Can I use this system in wet conditions? — Whilst the ESC and motor are designed for RC crawler use, I'd recommend avoiding submersion in water. Light splashes and damp conditions are generally fine, but deep water fording may cause issues. If you do get caught in rain or splash through water, allow components to dry completely before your next use.
• How does the modular motor design help with maintenance? — The removable construction allows you to easily access internal components without completely disassembling everything. After muddy or dusty sessions, you can open up the motor, clean out debris, inspect the bearings, and ensure the rotor spins freely. This prevents long-term damage from contamination and helps maintain that smooth low-speed performance the system is known for.
• What's the difference between the 1700KV version and higher KV ratings? — KV rating indicates how many RPM the motor turns per volt. The 1700KV rating is deliberately conservative for crawler use; it produces maximum torque at lower speeds compared to higher KV motors. This means better pulling power on climbs and more controllable speed at low throttle—exactly what you want in a crawler. Higher KV ratings spin faster but produce less torque, making them unsuitable for this application.
• Is the BEC output suitable for all servos? — The ESC offers selectable BEC output at 6.0V, 7.4V, or 8.4V with up to 5A capacity. Standard crawler servos typically run at 6.0V or 7.4V, so this is sufficient for almost all crawler applications. The 5A capacity handles single servos comfortably; if you're running multiple servos or very high-torque models, consider a dedicated servo battery instead.
