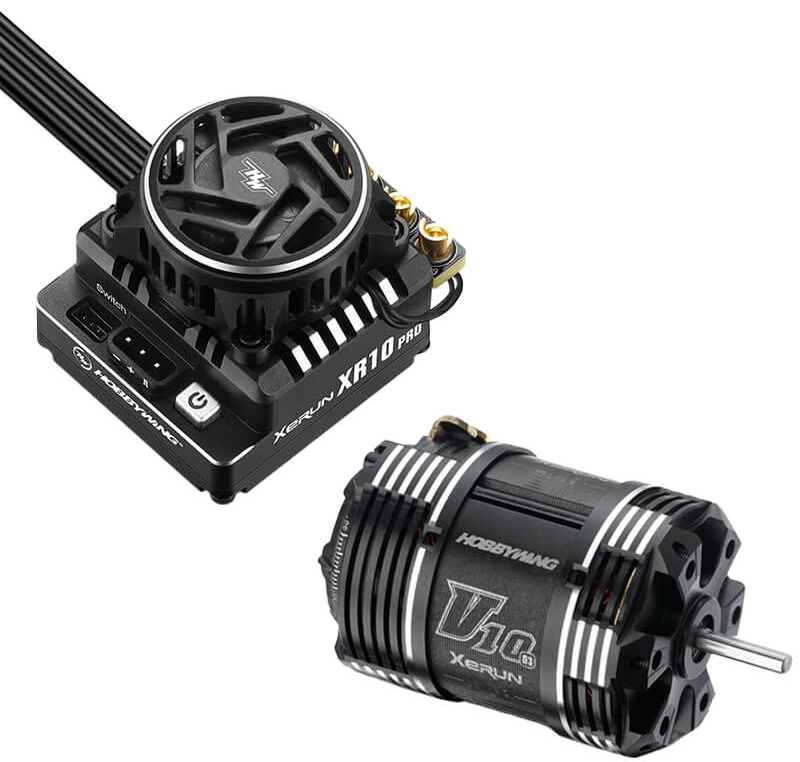

HOBBYWING XERUN COMBO XR10 PRO G3 BLK ESC + V10 G3 4.5T MOTOR HW38020445

Overview

The Hobbywing XERUN COMBO XR10 Pro G3 with V10 G3 4.5T motor represents a premium competition-grade speed controller and motor combo designed specifically for 1/10th scale touring cars, buggies and drift cars. This matched pairing brings together two of Hobbywing's most advanced drivetrain components, engineered to deliver exceptional performance for drivers who demand precision, reliability and competitive edge. Whether you're preparing for Modified class racing or perfecting your drift setup, this brushless RC car combo from a recognised manufacturer offers the sophisticated features and robust construction that serious enthusiasts expect.

The XR10 Pro G3 ESC is a sensored brushless electronic speed controller rated at 160A continuous current with peak capability of 1200A, making it powerful enough to handle demanding racing conditions whilst maintaining thermal stability through intelligent cooling systems. Paired with the renowned V10 G3 4.5T motor offering 7340KV, this combo is specifically optimised for Modified class competition in 1/10th on-road racing and 1/12th scale applications. The engineering philosophy behind this combo centres on delivering smooth, linear power delivery and predictable handling characteristics that allow drivers to focus on racing rather than wrestling with electronics.

UK RC enthusiasts will appreciate that this is a purpose-built competition combo from a manufacturer with extensive racing pedigree. The combination of the low-resistance V10 G3 design with the intelligent ESC programming creates a platform suitable for both track racing and road course applications where precision matters. RC car racing in the UK has seen rapid growth in competitive brushless racing classes, and this combo positions you directly in the Modified class where this specific configuration is recognised and proven.

Key Features

• Built-in Data Logging Function — The XR10 Pro G3 features an integrated data recording module capable of storing up to 19 groups of 20-minute data sessions, totalling 380 minutes of complete operational history. This allows you to capture and analyse throttle inputs, voltage, current draw, temperature, motor RPM, vehicle speed and other critical parameters without requiring the OTA Bluetooth module to remain connected during racing, enabling detailed post-run analysis for performance optimisation.
• OTA Wireless Programmer Support — Utilising the optional OTA Programmer or LCD Program Box Pro, you can wirelessly review all recorded data logs displayed as curve graphs, monitor real-time operational data during setup, and make parameter adjustments without physical cable connections. This modern wireless approach eliminates the need for tethered programming and streamlines the tuning workflow.
• Advanced Freewheeling Function with Temperature Reduction — The ESC incorporates an optimised freewheeling system that reduces operational temperature by approximately 15 degrees Celsius compared to the previous XR10 Pro G2S model, a significant improvement that enhances consistency and reliability under sustained high-load racing. The freewheeling system also provides adjustable RPM decrease rate settings, allowing you to fine-tune deceleration behaviour when throttle is released for improved corner control and braking response.
• Disc Brake Mode with Close-Loop Brake Control — Rather than traditional braking methods, the XR10 Pro G3 implements innovative disc brake mode technology that creates linear brake output at all speeds, completely solving the common problem of non-linear braking force that varies with vehicle speed. Additional brake force curvature adjustment allows you to fine-tune the brake bias feel to match your driving style, whilst traditional linear and conventional braking modes remain available as alternatives.
• Durable Frameless Fan Design — The cooling fan uses special rigidity-enhanced frameless blade construction that significantly improves durability and reliability compared to conventional fans. The fan assembly features a smart start-stop function that keeps the fan off during periods when cooling isn't required, automatically activating when temperatures rise, reducing noise and power consumption whilst maintaining optimal thermal management.
• 44 Programmable Parameters with Dual Adjustment Modes — The ESC offers two levels of parameter control: 24 parameters in Basic mode for straightforward tuning of common items, and access to all 44 parameters in Advanced mode for comprehensive control. These programmable settings include throttle and brake curvature, freewheeling characteristics, disc brake function, drag compensation, brake frequency, boost timing and turbo timing, providing extensive customisation for any driving preference or race condition.
• Softening 2.0 Technology — The optimised Softening 2.0 parameter enhances driving force during the initial throttle phase, significantly improving drivability of high-power vehicles without sacrificing overall top speed. This technology is particularly valuable when running powerful motor combinations like the paired 4.5T motor.
• Low Centre of Gravity Design — The ESC features an improved low centre of gravity design with the fan assembly reduced in height by 2mm compared to the previous G2S model. The detachable fan assembly allows further reduction of the ESC's centre of gravity when cooling isn't required, improving vehicle balance and handling characteristics on track.
• Optimised Cable Output for Flexible Wiring — The ESC layout has been redesigned for simplified wiring in on-road racing whilst accommodating off-road vehicle configurations. The included U-type connectors provide flexibility for various wiring requirements including flat and diagonal soldering arrangements, streamlining the build process.
• Reverse Polarity Protection Circuit — The G3 standard version includes built-in reverse connection protection that prevents damage to the ESC from accidental incorrect battery connections. Note that the polarity capacitor version provides full system reverse protection, whilst the standard capacitor protects only the ESC itself though the capacitor may be damaged in reverse connection scenarios.
• Adjustable High-Voltage BEC — An integrated switch-mode BEC provides adjustable output from 5.0V to 7.4V in 0.1V increments at peak current of 10A, enabling compatibility with both high-torque and high-voltage servo requirements without external components.
• 160A Continuous Current Rating — With 160A continuous rating and 1200A peak capability, the ESC accommodates powerful motor configurations whilst maintaining thermal stability through intelligent power management and cooling systems, essential for sustained competition racing.
• High-Precision Hall Sensor Motor — The V10 G3 4.5T motor incorporates a built-in high-precision Hall sensor combined with a high-precision balanced rotor, guaranteeing remarkable linearity of motor response that translates to predictable power delivery and improved drivability across the entire throttle range.
• Super Lightweight Motor Construction — Weighing only 161g, the G10 G3 Modified motor represents an 11% weight reduction compared to the V10 G2, allowing easier vehicle balance adjustment and improved overall handling through reduced rotational mass.
• Asymmetric Bearing Design — Compared to the V10 G2, the G3 motor features a 26% larger front bearing for improved load-carrying capacity whilst the rear bearing is reduced by 6% to minimise resistance, creating a more stable and smooth running motor optimised for racing conditions.
• Exceptional Heat Dissipation — The special shell design exposes the stator core directly to air whilst large holes in both front and rear end plates guarantee outstanding motor cooling. This thermal performance directly translates to consistent power delivery during extended racing sessions and improved motor longevity.
• Stepless Adjustable Mechanical Timing — The motor allows fine and smooth mechanical timing adjustment with anti-skid lines at the rear ensuring timing stability after adjustment, enabling drivers to optimise performance for specific racing conditions.
• Rebuilding Capability — The detachable structure design enables regular cleaning and maintenance without requiring complete disassembly, effectively extending service life and maintaining efficiency throughout the season.
• Selectable End Plate Configurations — The motor ships with big-hole end plates for superior on-road cooling, with small-hole alternatives available separately to prevent sand and dirt ingress for off-road applications, allowing users to adapt the motor to their specific racing environment.
• Premium Component Quality — The motor uses high-performance stator cores, heat-resistant pure copper wire, heat-resistant rotor with strong structural design, international top-brand high-precision bearings and copper solder tabs rated for superior current endurance, ensuring excellent performance and durability for competition use.
• BRCA and EFRA Approval — This combo meets the standards of both the British Radio Car Association and the European Free-Range Association, making it competition-legal for recognised racing series across the UK and Europe.

Technical Performance

The XERUN COMBO XR10 Pro G3 with V10 G3 4.5T represents the pinnacle of 1/10th scale sensored brushless ESC and motor technology optimised for Modified class touring car and buggy racing. The XR10 Pro G3 ESC specification shows 160A continuous current capacity with an impressive 1200A peak rating, capable of handling 2-3S LiPo batteries or 4-9 cell NiMH packs across the 2S 7.4V operating voltage range. The ESC's physical dimensions of 35 x 33.6 x 30.3mm with a trim weight of 93g (including pre-installed wires and connectors) are engineered for minimal weight penalty and low centre of gravity mounting. The unit comes with black 13AWG power wires measuring 200mm each for input connections and 200mm black 13AWG output wires provided in sets of three, allowing flexible wiring configurations to suit various vehicle chassis designs.

The paired V10 G3 4.5T motor delivers 7340KV (kilovolts per thousand RPM), positioning it in the Modified racing category specifically suited to 1/10th on-road touring cars and 1/12th racing vehicles. At a featherweight 161g, this sensored brushless 540-class motor achieves exceptional power-to-weight ratio critical for acceleration and handling balance in racing applications. The motor's 3.2mm bore diameter and sensored construction with Hall effect sensor provide linear throttle response and smooth power delivery characteristics. Engineering features include asymmetric bearing design with enlarged front bearing for load capacity paired with reduced rear bearing for minimal resistance, high-precision balanced rotor construction, pure copper windings rated for 200 degrees Celsius continuous operation, and international specification ball bearings rated for precision racing duty. The stator core design maximises cooling surface area whilst the large-hole end plates shipped as standard provide exceptional heat dissipation for on-road track conditions. UK drivers will appreciate the BRCA and EFRA recognition, confirming legal competition status for recognised racing series.

Combined performance characteristics position this combo as ideal for drivers seeking Modified class competitive advantage with proven reliability. The V10 G3 4.5T's 7340KV rating with the 160A XR10 Pro G3 ESC provides rapid acceleration and responsive handling suitable for tight racing circuits and technical track layouts common throughout UK racing venues. The freewheeling function reduces thermal load by approximately 15 degrees compared to the previous generation, critical for extended racing sessions. Brushless sensored construction ensures smooth commutation without cogging, whilst the high-precision Hall sensor guarantees reliable speed sensing for accurate RPM control. The dual-level parameter programming (24 basic versus 44 advanced parameters) allows both casual drivers and serious competitors to optimise performance characteristics. Built-in data logging with 380 minutes total recording capacity enables detailed performance analysis using the optional OTA Programmer or LCD Program Box Pro, facilitating evidence-based tuning decisions.

What's in the Box

• XERUN XR10 Pro G3 sensored brushless ESC with black case
• XERUN V10 G3 4.5T sensored brushless motor (7340KV)
• Two black 13AWG 200mm power input wires
• Three black 13AWG 200mm power output wires
• One set of U-type connectors for flexible wiring configurations

What You Need to Complete

• 2S or 3S LiPo battery (or 4-9 cell NiMH equivalent)
• LiPo battery charger compatible with your chosen battery
• 1/10th scale touring car or buggy chassis
• Radio transmitter and receiver system
• Servo for steering control
• Optional: OTA Programmer or LCD Program Box Pro for data logging access and wireless programming
• Optional: Motor and ESC connectors in your preferred type (Deans, XT60, 4mm bullets, 3.5mm bullets, or 5mm bullets) — various connector options available as add-ons

Frequently Asked Questions

• Is the XERUN XR10 Pro G3 combo suitable for beginners to RC car racing? — Whilst this is a competition-grade combo with 44 programmable parameters and advanced features like data logging and disc brake mode, the 24-parameter Basic mode provides a simplified interface suitable for newer drivers, and the straightforward brushless sensored design requires no maintenance beyond basic cleaning. However, the high power output (160A continuous) makes it better suited to drivers with intermediate experience rather than complete beginners. The investment level reflects its competition-grade status.
• What battery does the XERUN XR10 Pro G3 require? — The ESC accepts both 2S and 3S LiPo batteries (7.4V and 11.1V respectively) or traditional 4-9 cell NiMH packs. The V10 G3 4.5T motor paired with this ESC is specifically tuned for Modified class racing, making 2S or 3S LiPo the preferred choices for competitive use. Battery selection depends on your specific application within the Modified category.
• How does the XR10 Pro G3 compare to previous generation ESCs? — The G3 generation introduces approximately 15 degrees Celsius lower operating temperature through the improved freewheeling system compared to the XR10 Pro G2S, enhanced low centre of gravity design with 2mm reduced height, 44 programmable parameters versus fewer on previous versions, dual basic/advanced parameter modes, improved disc brake mode with close-loop control, Softening 2.0 technology optimisation, and built-in data logging with 380 minutes storage capacity for detailed analysis without permanent OTA connection.
• Do I need the OTA Programmer to use this combo? — No, the ESC functions fully without the OTA Programmer. However, to access recorded data logs, review graphs of historical performance data, or perform wireless programming changes, you'll need either the optional OTA Programmer or LCD Program Box Pro. The SET button on the ESC itself does not provide programming capability, making wireless or LCD options essential for full feature utilisation.
• Is this combo waterproof? — No, the XR10 Pro G3 ESC is not waterproof. Whilst suitable for wet track conditions, the electronics require protection from direct water ingestion. If you plan off-road racing in wet conditions, use appropriate enclosure methods to protect the ESC.
• What makes the V10 G3 4.5T specifically suited to Modified class racing? — The 7340KV rating combined with the 160A ESC creates the precise power-to-speed characteristic recognised in Modified class specifications. The lightweight 161g construction improves vehicle balance, the high-precision Hall sensor ensures smooth sensored response, and the asymmetric bearing design optimises stability whilst minimising drag. This specific combination is purpose-engineered for Modified racing dynamics.
• Can I upgrade connectors on this combo? — Yes, the combo ships without pre-soldered connectors. Optional add-ons allow you to specify your preferred connector type including Deans, XT60, 4mm bullets, 3.5mm bullets, or 5mm bullets for both battery and motor connections, providing flexibility to match your existing vehicle setup.
• What is Softening 2.0 technology and why does it matter? — Softening 2.0 is an ESC programming function that enhances driving force during initial throttle application phases, significantly improving drivability of high-power combinations without sacrificing top-end speed. This makes vehicles feel more responsive off the line and smoother during acceleration phases, a particular benefit when running the powerful V10 G3 4.5T motor.
• How much does temperature reduction affect racing performance? — The 15-degree Celsius temperature reduction compared to the G2S generation directly improves consistency and reliability during extended racing sessions by reducing thermal-related voltage sag and maintaining more stable ESC performance. Cooler operation also extends component lifespan, reducing maintenance needs during competitive seasons.
• What is disc brake mode and is it better than traditional braking? — Disc brake mode uses innovative close-loop control to create perfectly linear brake output at all vehicle speeds, solving the traditional problem where braking force varies unpredictably with speed. This allows confident, predictable braking throughout corners and straightaways. The system also supports brake force curvature adjustment for personalisation, whilst traditional linear and conventional modes remain available if preferred.
