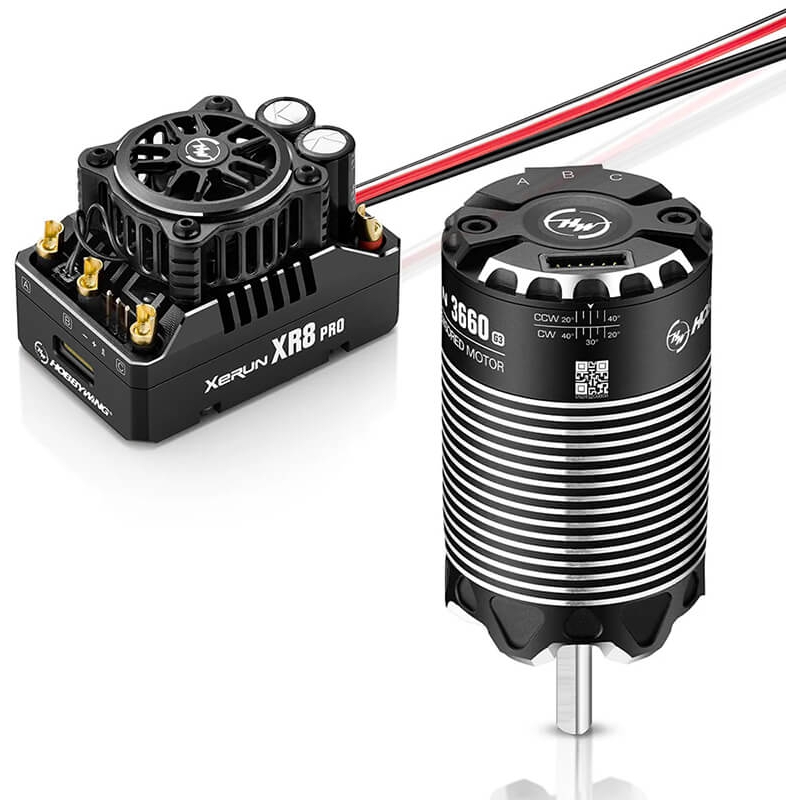

HOBBYWING SCT COMBO XR8 PRO G3 ESC & 3660SD 4200KV MOTOR HW38020440

Overview

The HOBBYWING SCT COMBO XR8 PRO G3 ESC & 3660SD 4200KV MOTOR represents the pinnacle of brushless RC car technology for serious 1/8th scale racing enthusiasts in the UK. This complete power system combines the latest generation XeRun XR8 PRO G3 electronic speed controller with a precision-engineered 3660SD motor, delivering championship-level performance and reliability. Whether you're competing at the highest levels of off-road racing, running a short course truck at the weekend, or piloting a monster truck with absolute control, this combo gives you the explosive power and refined control that separates winners from the rest of the field.

Hobbywing has invested considerable engineering effort into this third-generation system, producing a package that is not only more compact and lighter than its predecessor, but also significantly more efficient and cooler-running under intense racing conditions. The XR8 PRO G3 represents a generational leap forward in ESC technology, whilst the 3660SD motor has been specifically designed to work seamlessly with this advanced controller, utilising pure sensored technology for absolute precision and responsiveness. This is a battle-tested system trusted by international champions and professional RC racers, featuring the same Turbo Timing technology found in the legendary XR10 PRO series used in 1/10th on-road and off-road competition.

UK RC enthusiasts will appreciate the thoughtful engineering throughout this combo. The ESC features custom ultra-soft 11AWG silicone wiring that is both ultra-flexible and low-resistance, ensuring optimal power delivery to your motor. The fully sensored design means you get rock-solid control from the moment you press the throttle, with excellent low-speed linearity and no dead spots in your throttle curve. This is a ready-to-install power system that takes the guesswork out of component selection and lets you focus on extracting every last ounce of performance from your RC car.

Key Features

• Fully Sensored XR8 PRO G3 ESC with 200A Peak Current — The ESC provides a truly massive 200 amp peak current output (1080A peak), delivering explosive acceleration and the ability to handle demanding racing conditions without compromise. This ultra-high current capacity means your RC car will respond instantly to throttle inputs with full power delivery, something that is absolutely essential when competing against other serious racers on UK tracks and courses.
• Pure Sensored Motor Operation — The 3660SD motor features a built-in intelligent integrated circuit that allows the sensor unit to be easily identified by the ESC when pairing with Hobbywing's XeRun XR8 series. This ensures the motor operates in pure sensored mode at all times, providing superior performance and a much smoother throttle response compared to sensorless alternatives. You'll experience consistent, predictable handling throughout your entire race, with no sudden power surges or flat spots.
• Advanced Turbo Timing Technology with Up to 48 Degrees Support — This ESC inherits the same Turbo Timing technology used on the XR10 PRO series found in 1/10th on-road and off-road competition. When paired with the compatible 3660SD motor, it delivers a remarkable 50% increase in performance compared to the previous G2 series, with the ability to fine-tune boost and turbo timing up to 48 degrees. The motor's mechanical turbo timing can be adjusted between 20-40° in both directions (clockwise and counter-clockwise), allowing you to precisely calibrate power output to meet the exact requirements of your specific application.
• Compact and Lightweight Design with 15% Smaller Footprint — The XR8 PRO G3 is 1.3mm shorter and 5.3mm narrower than its predecessor, reducing the overall footprint by approximately 15%. This compact design makes installation easier on space-constrained vehicles whilst reducing weight, which directly translates to improved acceleration and handling characteristics. Every millimetre saved is a millimetre gained in performance.
• Dual Brake Mode with Closed-Loop Torque Control — The innovative disc brake mode (closed-loop torque brake control) completely eliminates the non-linear braking force problems caused by vehicle speed variations in traditional braking systems. This delivers linear braking force output that replicates the real-world performance of actual automotive disc brakes, with adjustable braking force curvature and front/rear brake force distribution. A traditional braking mode is also retained for drivers who prefer conventional control habits.
• Superior Temperature Management with 15°C Lower Operating Temperature — Advanced hardware design combined with innovative smart freewheeling technology enables the ESC to operate at significantly lower temperatures under heavy load. Compared with the XR8 Pro G2, the maximum operating temperature is reduced by approximately 15°C, ensuring stable and reliable performance throughout extended racing sessions. This thermal improvement means your components last longer and perform more consistently.
• Intelligent Auto-Start Fan with Noise Reduction — The ESC features an intelligent fan that only activates when the temperature rises to a pre-set threshold. This innovative approach reduces operational noise during cooler running conditions, saves battery power, and ensures the ESC operates within its optimal temperature range at all times. You get silent running when you need it and active cooling when it matters most.
• Frameless Durable Fan Design — The frameless fan blade utilises specially formulated materials designed to reduce defective rates caused by impacts from small stones, sand and other foreign objects encountered during off-road racing. This robust engineering ensures your cooling system stays operational even in the most demanding environments.
• IP5X Dustproof Rating with Protective Cover — The ESC is IP5X rated, providing superior dustproof protection to keep your electronics safe in all types of racing environments. A small protective cover is included for additional fan protection, ensuring reliable operation whether you're racing in muddy conditions, sandy tracks, or dusty outdoor venues.
• Built-In Reverse Polarity Protection — If you accidentally reverse the battery connections, the ESC will not be damaged thanks to the built-in reverse polarity protection circuit. This critical safety feature provides peace of mind during setup and maintenance, protecting your investment from costly mistakes.
• Capacitor Thermal Protection — The ESC includes capacitor thermal protection to prevent capacitors from overheating and exploding under overload conditions. This advanced protection circuit effectively prevents irreversible damage to your ESC, ensuring long-term reliability and safety during intense racing sessions.
• Real-Time Data Recording via OTA Module — When connected to the optional OTA (over-the-air) programmer module, the ESC can record real-time operating data, extreme values, and maintain a historical data graph of performance metrics. This allows you to analyse your ESC's performance and fine-tune settings with precision based on actual track data (effective range approximately 5m in open field).
• Custom Ultra-Soft 11AWG Silicone Wiring — The included power cables feature specially selected ultra-soft 11AWG silicone wire that is incredibly flexible and low-resistance. This optimised wiring combination ensures maximum current flow with minimal voltage drop and heat generation, providing the perfect foundation for peak performance.
• Adjustable BEC Output with 6A Switch-Mode Regulation — The ESC provides regulated 6V or 7.4V output via its integrated BEC (Battery Elimination Circuit) with 6A continuous current capacity. This allows you to power your receiver and other accessories directly from the ESC without requiring a separate battery, simplifying your setup and reducing weight.
• 2-4S LiPo Battery Compatibility — The system accepts 2S, 3S, and 4S LiPo batteries, giving you flexibility in your power system choice. The 5-8.4V operating voltage range covers standard 2S and 3S configurations with plenty of headroom for 4S applications, making this an extremely versatile platform for different racing categories and vehicle configurations.

Technical Performance

The HOBBYWING XR8 PRO G3 ESC and 3660SD motor combo represents the current state-of-the-art in 1/8th scale brushless RC racing technology. The ESC boasts an impressive continuous current rating of 200 amps (with a staggering 1080 amp peak burst capability), making it suitable for the most demanding high-performance applications including 1/8th scale off-road buggies, on-road racing cars, 1/10th scale short course trucks, and monster trucks. The fully sensored design with pure signal sensor mode circuit integration eliminates any latency or inconsistency in motor control, delivering instantaneous throttle response and precise speed regulation throughout the entire operating range. The compact dimensions of 54.8mm length by 36.8mm width by 38.8mm height and weight of just 102.8g make this ESC one of the lightest and smallest options available for this performance class, a crucial advantage for space-constrained 1/8th scale chassis designs. The 3660SD motor's 4200KV rating and sensored operation provide excellent compatibility with the XR8 PRO G3, with mechanical turbo timing adjustment between 20-40° allowing precise power curve customisation. The system operates from 2-4S LiPo batteries (5-8.4V), with the integrated 6A switch-mode BEC providing stable regulated power to your receiver and servos. The frameless 30x30x10mm cooling fan automatically activates to maintain optimal operating temperatures, with testing showing approximately 15°C lower peak temperatures compared to the previous generation under identical load conditions. Construction quality throughout is exemplary, with ultra-soft 11AWG silicone input wires (200mm length, dual configuration) and 11AWG silicone output wires (200mm length, triple configuration) ensuring minimal voltage drop and optimal current delivery to your motor. The IP5X dustproof rating and capacitor thermal protection circuit make this a truly professional-grade system capable of withstanding the rigours of competitive racing in the UK and internationally.

What's in the Box

• XeRun XR8 PRO G3 Electronic Speed Controller (Model 30113400)
• XeRun 3660SD 4200KV Brushless Motor
• Custom ultra-soft 11AWG silicone input wires (black, 200mm, quantity 2)
• Custom ultra-soft 11AWG silicone output wires (black, 200mm, quantity 3)
• ESC protective cover for fan protection
• Product documentation and setup guides

What You Need to Complete

• 2S, 3S or 4S LiPo battery pack (5-8.4V compatible)
• LiPo battery charger suitable for your chosen battery configuration
• RC car chassis with 1/8th scale motor mount compatible with this system
• Radio receiver (sensored compatible, such as Hobbywing branded receivers)
• Servo(s) for steering control and throttle/brake control where applicable
• Connectors (XT60 or similar, depending on your battery setup)
• LCD Program Box Pro (optional, for advanced ESC programming)
• OTA Programmer Module (optional, for wireless data logging and real-time performance monitoring)

Frequently Asked Questions

• Is the Hobbywing XR8 PRO G3 ESC suitable for beginners or is it only for experienced racers? — This is genuinely a professional-grade system designed for serious competitive racing at the highest levels. Whilst technically a beginner could use it, the cost, setup complexity, and performance characteristics are best appreciated by racers with existing experience. If you're new to RC cars, you might want to start with a more entry-level brushless system, though the excellent low-speed linearity and smooth throttle response of this combo would certainly help you learn smooth driving technique. The system is however extremely user-friendly in terms of basic operation once properly set up and tuned.
• What battery should I use with the XR8 PRO G3 ESC and 3660SD motor? — The system accepts 2S, 3S and 4S LiPo batteries with an operating voltage range of 5-8.4V. Most users opt for 3S LiPo batteries as this provides an excellent balance of performance and component compatibility. The specific capacity you choose depends on your vehicle type and desired runtime — a 4200mAh 3S LiPo would be typical for 1/8th scale buggies and trucks. Always use genuine LiPo batteries from reputable manufacturers and never exceed 4S voltage (16.8V nominal) with this controller.
• What is the difference between the XR8 PRO G3 and the previous XR8 PRO G2 version? — The G3 generation brings several significant improvements: the footprint is 15% smaller (1.3mm shorter and 5.3mm narrower), operating temperatures run approximately 15°C cooler under load, the advanced Turbo Timing system delivers up to 50% more performance, and the overall design is more refined for competitive racing. The G2 is still a capable system but the G3 represents meaningful engineering improvements especially relevant for high-level competition.
• Can I use this motor with other ESCs or other motors with this ESC? — Technically you could, however Hobbywing specifically recommends pairing the XR8 PRO G3 with the 4268 or 4274 G3 series motors to access the full 48-degree Turbo Timing capability and optimal performance. The 3660SD motor in this combo is also G3 series, making this a perfectly matched pair. Using incompatible combinations may result in reduced performance or compatibility issues with the sensored system.
• Does this ESC work with sensorless motors? — No, the XR8 PRO G3 is a fully sensored ESC that provides the best performance with sensored motors like the included 3660SD. The entire control system is optimised for sensored operation and will not function properly with sensorless motors.
• What programming options are available for the XR8 PRO G3? — The ESC can be programmed via the SET button on the ESC itself for basic adjustments, or you can use optional programming modules: the LCD Program Box Pro (Model 30502002) for comprehensive menu-based programming, or the OTA Programmer WiFi Module (Model 30850400) for wireless Bluetooth programming and real-time data logging (effective range approximately 5m in open field). The OTA module also enables real-time data recording and historical performance graphing.
• Is this a waterproof ESC? — The ESC is not fully waterproof (rated as non-waterproof in specifications), however it does feature an IP5X dustproof rating providing excellent protection against dust and dirt in off-road racing environments. Whilst the ESC itself isn't suitable for water immersion, the dustproof protection is more than adequate for muddy and sandy track conditions typical of UK RC racing venues.
• What is the maximum current this ESC can handle? — The XR8 PRO G3 has a continuous current rating of 200 amps with a peak burst rating of 1080 amps, making it one of the most powerful ESCs available for 1/8th scale racing applications.
• Does the ESC include a fan for cooling? — Yes, the ESC features a 30x30x10mm frameless fan that automatically starts when temperature reaches a pre-set threshold. This intelligent design keeps the ESC cool during intense racing whilst minimising noise and power consumption during lighter use.
• What connectors are used on this ESC? — The specifications indicate the ESC uses black 11AWG silicone wiring. The actual connector type (XT60, XT90, etc.) is not specified and will depend on your battery and vehicle setup. You may need to solder or adapt connectors as appropriate for your installation.
