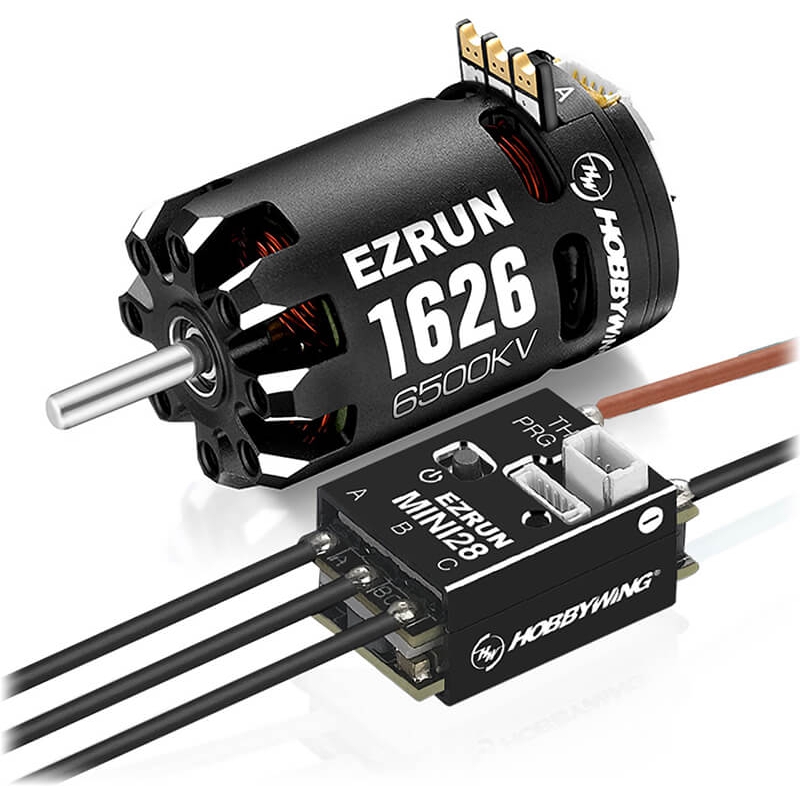

HOBBYWING COMBO EZRUN MINI28 ESC / 1626SD 6500KV MOTOR HW38020368

Overview

The Hobbywing EZRUN MINI28 ESC and 1626SD 6500KV Motor combo represents the pinnacle of compact brushless power delivery, purpose-built from the ground up for 1/28 scale RC car competition. This is the ultimate all-in-one solution for anyone serious about mini RC racing, whether you're a seasoned competitor looking to upgrade or an enthusiast stepping into the world of high-performance 1/28 cars for the first time. Born specifically for 1/28 car competition, every element of the software, hardware and structure has been meticulously tailor-made to deliver the performance characteristics that serious competitors demand.

What sets this combo apart in the UK RC car market is the complete integration between ESC and motor—no guessing, no compatibility concerns, just plug and play reliability paired with championship-level adjustability. The Hobbywing name is synonymous with quality and innovation in the brushless RC world, and this MINI28 system demonstrates exactly why Hobbywing is trusted by racers across Europe and beyond. Whether you're competing at club level or pushing for podium finishes, this combo delivers the precision response, power and tuneable control that separates winners from the rest of the field.

Unlike generic motor-and-ESC pairings, this is a purpose-engineered ecosystem. The tiny footprint, intelligent heat management and sophisticated electronic control work together to give you a competitive edge where it counts—on the track, in tight corners, and when the margin between victory and defeat is measured in hundredths of a second.

Key Features

• Compact All-Metal ESC with Superior Heat Dissipation — The ESC measures just 22.7×14.2×11.8mm and weighs only 5g without cables, making it incredibly small and lightweight for easy installation in confined spaces. The full metal case radiator ensures constant ideal operating temperature even during intense competition, keeping performance consistent lap after lap without thermal throttling.
• Exceptional Power Delivery with 30A Continuous / 80A Peak Current — Maximum output current reaches 30A continuous with 80A peak capability, delivering the high-power performance needed for competitive racing. This current capacity ensures responsive throttle control and maintains consistent acceleration whether you're powering through straightaways or navigating tight technical sections.
• 26 Fully Tuneable Competition Parameters — The ESC offers over 25 different parameter adjustment options including throttle PWM frequency, brake frequency, power softening, and Boost/Turbo timing, allowing you to precisely dial in the power characteristics to match your driving style, track conditions and personal preferences. This level of granular control is essential for serious competitors who need to extract every advantage from their setup.
• Dual Built-In Competition Modes — Two distinct competition modes are built directly into the ESC: Zero Timing mode for maximum control and precision, and Modified mode for peak power delivery. Switch between them instantly on the fly without needing external programming equipment, adapting your setup in real-time as track conditions change.
• Advanced BEC Power System with Voltage Adjustment — The integrated switch-mode BEC delivers up to 3.5A of continuous current at selectable 6V or 7.4V output, sufficient to power high-torque, high-voltage servos without requiring external power supplies. This flexibility means you can run modern high-performance servo systems without compromising space or adding complexity.
• Wireless OTA Bluetooth Programming — Connect the optional external OTA Bluetooth module and programme the entire ESC wirelessly using your mobile phone. Adjust parameters, read telemetry data, and perform firmware upgrades without connecting physical cables—essential for quick pit adjustments during competition or practice sessions.
• LCD G2 Setting Box Programming Support — For traditional programmers, full compatibility with the LCD G2 setting box allows comprehensive parameter tuning and configuration through an intuitive interface, with clear visual feedback and organised menu navigation.
• Advanced Sensored Motor for Precision Response — The included 1626SD motor features high-precision sensors that deliver zero cogging and consistent torque delivery, resulting in exceptional low-speed response and an amazing feel that experienced drivers demand. The sensored system ensures the ESC can provide the best possible feel and driveability in all conditions.
• High-KV 6500KV Motor for Top-Speed Dominance — With a 6500KV rating, this motor delivers improved top speed and allows timing advance adjustments to increase velocities drastically. Whether you make small adjustments for precise control or larger changes for raw on-demand power, the flexibility is built in.
• Superior Motor Efficiency for Cool, Reliable Operation — The 1626 motor is engineered for exceptional efficiency, meaning higher power output compared to similarly-sized competitors with reduced heat generation. This efficiency translates to cooler operation during extended practice and racing sessions, protecting motor longevity and maintaining performance when it matters most.
• Premium Motor Construction with High-Hardness Materials — The motor features high-density 4-layer PCB for easy-solder connections, high-quality precision bearings, high-hardness aluminium CNC-machined casing, high-strength explosion-proof rotor design, and corrosion-resistant output shaft. The use of 200°C temperature-resistant copper wire and 0.2mm ultra-thin silicon steel sheet demonstrates Hobbywing's commitment to component quality and longevity.
• Modular Detachable Motor Structure for Easy Maintenance — The motor design allows convenient disassembly for cleaning and maintenance work, essential for racers who need to keep their equipment in peak condition between events. No proprietary tools or complex procedures—just straightforward maintenance that keeps your setup running perfectly.
• 2S LiPo Battery Compatibility — Designed specifically for 2S LiPo battery systems (7.4V nominal), the combo integrates seamlessly with the most common and affordable battery chemistry in RC racing, simplifying your power supply strategy and keeping costs manageable.
• Waterproof-Rated Design for Outdoor Racing — Although not fully waterproof, the compact sealed design offers excellent moisture resistance suitable for outdoor track and grass racing conditions typical in the UK RC scene.

Technical Performance

The engineering philosophy behind the EZRUN MINI28 combo centres on delivering championship-grade performance in the most compact footprint possible. The ESC's 22.7×14.2×11.8mm dimensions and 5g weight make installation straightforward even in space-constrained 1/28 scale chassis, whilst the all-metal shell radiator provides passive cooling that keeps the electronics at optimal operating temperature throughout intense competition. With 30A continuous current capacity backed by an 80A peak rating, you get responsive, linear throttle control that experienced drivers can feel through the steering wheel—essential when hundredths of a second separate winners from second place.

The 1626SD sensored brushless motor represents a complete redesign specifically for the demands of high-performance 1/28 racing. Measuring 16mm in diameter and 26mm in length with an 18g weight, the motor delivers a 6500KV rating that balances top-speed capability with the smooth, predictable torque curve that 1/28 racing demands. The precision sensors eliminate cogging and ensure consistent power delivery across the entire RPM range, whilst the high-density 4-layer PCB allows for robust construction and easy maintenance. High-quality precision bearings (D5×D2×T2.5), high-hardness aluminium CNC casing, high-strength explosion-proof rotor and corrosion-resistant output shaft combine with 200°C temperature-resistant copper windings and 0.2mm ultra-thin silicon steel to create a motor that will withstand the rigours of serious competition season after season.

The combo supports 2S LiPo batteries (7.4V nominal), the industry standard for 1/28 racing, with integrated BEC delivering selectable 6V or 7.4V output at up to 3.5A continuous to power modern high-voltage servos. The 26 tuneable parameters unlock precision control over throttle response, brake characteristics, timing advance and power delivery, allowing competitors to optimise setup for different tracks, weather conditions and personal driving styles. Support for both traditional LCD G2 programmer and wireless OTA Bluetooth module programming means you can adjust settings in the pits, on the bench, or even during practice without carrying complex equipment.

What's in the Box

• EZRUN MINI28 Brushless ESC (30A continuous, 80A peak)
• EZRUN 1626SD Sensored Brushless Motor (6500KV)
• Black 20AWG power cable (55mm length)
• Red 20AWG power cable (55mm length)
• Three black 22AWG output cables (80mm length each)

What You Need to Complete

• 2S LiPo battery (7.4V nominal) with appropriate connector
• Battery charger capable of charging 2S LiPo packs
• Radio control system (receiver and transmitter)
• Servo(s) for steering and throttle control
• 1/28 scale RC car chassis compatible with 1626-size motors mounted in motor cradle
• Motor cradle or similar mounting solution (note: motor has no integral mounting holes)
• Optional: LCD G2 programmer for parameter adjustment or OTA Bluetooth module for wireless programming
• Optional: XT30 connector upgrade kit (available separately at additional cost)

Frequently Asked Questions

• Is the Hobbywing EZRUN MINI28 combo suitable for competitive 1/28 scale RC racing? — Absolutely. This combo is specifically designed and engineered for 1/28 car competition, with software, hardware and structural elements all optimised for this class. It includes competition-standard features like Zero Timing and Modified modes, extensive parameter tunability, sensored precision response and premium component quality that serious competitors expect and rely upon.
• What battery does the EZRUN MINI28 combo require? — The system is designed specifically for 2S LiPo batteries (7.4V nominal). You'll need a compatible 2S LiPo pack with appropriate connector, along with a charger capable of safely charging 2S LiPo chemistry. The integrated BEC can power servos at either 6V or 7.4V depending on your servo requirements.
• Can I programme the ESC wirelessly? — Yes, when paired with the optional external OTA Bluetooth module, you can wirelessly connect to the ESC using your mobile phone. This allows you to adjust all 26+ parameters, read telemetry data and perform firmware updates without physical cables—perfect for quick pit adjustments between heats or practice sessions.
• What makes this combo better than buying separate ESC and motor? — This is an engineered system where the ESC and motor are specifically calibrated to work together for optimal performance. You avoid compatibility concerns, and both components are proven to deliver the characteristics that 1/28 racers need. The combo packaging also represents better value than purchasing equivalent quality components separately.
• How small is the ESC really? — At just 22.7×14.2×11.8mm and weighing only 5g without cables, the MINI28 ESC is tiny enough to fit in confined spaces typical of 1/28 chassis whilst maintaining an all-metal shell radiator for heat dissipation. This compact footprint makes installation straightforward and helps keep your car stable during cornering.
• Is this combo waterproof? — Whilst not fully waterproof, the sealed compact design offers excellent moisture resistance suitable for outdoor track and grass racing. However, it is not designed for water submersion and should be protected from heavy water exposure during operation.
• What current does the motor draw at no-load? — The 1626SD motor draws approximately 0.6A at no-load conditions, indicating efficient operation with minimal parasitic current draw.
• Can I use this system on a 1/27 scale car? — Yes, the system is designed for both 1/28th and 1/27th scale applications, making it flexible enough to work with slight variations in chassis size within this micro-scale category.
