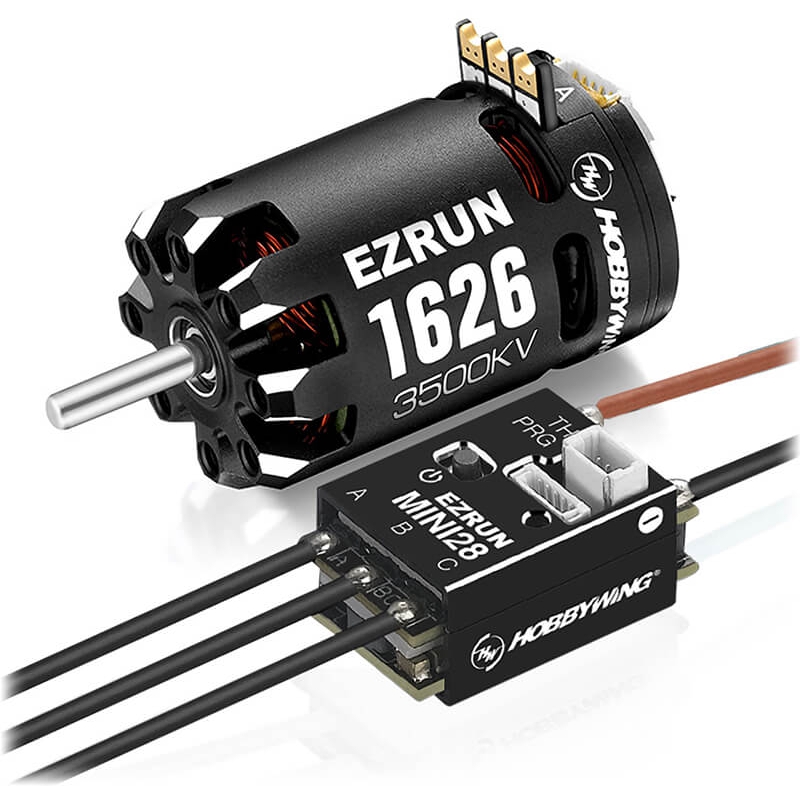

HOBBYWING COMBO EZRUN MINI28 ESC / 1626SD 3500KV MOTOR HW38020366

Overview

The Hobbywing EZRUN MINI28 ESC and 1626SD 3500KV Motor Combo (HW38020366) represents a purpose-built power solution specifically engineered for 1/28 scale RC car competition. Born from Hobbywing's commitment to delivering class-leading performance, this combo combines a ultra-compact electronic speed controller with a high-efficiency brushless motor, creating the ideal foundation for competitive 1/28 racing. Whether you're a serious racer looking to upgrade your setup or someone new to RC car UK racing wanting a ready-to-run solution, this combo eliminates the guesswork of component matching and gets you on the track immediately.

The EZRUN MINI28 ESC is a masterclass in miniaturisation without compromise. Measuring just 22.7mm long, 14.2mm wide and 11.8mm tall, and weighing a mere 5g without cables, this ESC is so compact that it simplifies wiring and improves vehicle stability during high-speed cornering. The matching 1626 brushless motor has been specifically designed for the rigours of high-performance 1/28 racing, delivering 3500KV of power with exceptional precision and efficiency. Together, they form a synergistic system where every component has been optimised to work in perfect harmony.

This is not a generic solution repurposed from larger RC scales. Every element of the EZRUN MINI28 combo—from the software architecture to the physical construction—has been tailor-made for 1/28 car competition. The result is a system that offers serious competitors the performance advantages they need whilst remaining accessible to hobbyists discovering the world of brushless RC cars for the first time.

Key Features

• Ultra-Compact ESC Design — The EZRUN MINI28 measures just 22.7x14.2x11.8mm and weighs only 5g without cables, making it exceptionally easy to fit into tight spaces within 1/28 scale chassis whilst improving overall vehicle handling and cornering stability through reduced weight.
• Extreme Power Handling — With a maximum continuous output current of 30A and peak current capability of 80A, this ESC delivers serious performance for competitive racing whilst maintaining ideal working temperature through its all-metal shell radiator design.
• All-Metal Case Radiator — The brushless ESC features a full metal shell construction that acts as an integrated heat sink, ensuring the controller always operates at the ideal working temperature even during intense racing sessions, prolonging component lifespan and maintaining consistent performance.
• 26 Tuneable Parameters — The ESC offers 26 different adjustable parameters including throttle PWM frequency, brake frequency, softening adjustment, and Boost/Turbo timing, allowing drivers to precisely dial in the power delivery and handling characteristics to match their personal driving style and track conditions.
• Dual Competition Modes — Two built-in application modes (Zero Timing and Modified) are pre-configured and ready to select immediately, so drivers can switch between competition-proven setups without complex reprogramming.
• Adjustable High-Voltage BEC — The integrated switch-mode BEC supplies up to 3.5A of current at selectable output voltages (6V or 7.4V), providing reliable power to high-torque high-voltage steering servos and other vehicle electronics with full flexibility for different servo requirements.
• OTA Bluetooth Programming Module Compatible — After connecting the optional external OTA Bluetooth module, you can establish a wireless connection to your smartphone and use the mobile app to perform complete parameter settings, real-time data reading, and firmware upgrades without needing additional hardware.
• LCD G2 Programming Box Support — The ESC is fully compatible with Hobbywing's LCD G2 setting box, providing an intuitive interface for drivers who prefer physical controls over mobile app programming.
• Sensored Brushless Motor — The 1626SD motor features integrated Hall-effect sensors that provide high-precision commutation feedback, ensuring zero cogging, consistent torque delivery, and excellent low-speed response that gives drivers amazing feel and predictable driveability.
• High-Precision Sensor Technology — The high-precision sensors ensure the ESC can provide the best possible feel for drivers, translating into confidence through corners and precise throttle modulation during racing.
• Timing Advance for Top Speed Gains — When used with the EZRUN MINI28 ESC, the 1626 motor's timing can be advanced to increase top speeds drastically, allowing drivers to make small or large changes to suit power requirements and track characteristics.
• Superior Efficiency and Cool Operation — The 1626 motor is engineered for extremely high efficiency with increased power compared to similarly-sized motors, converting battery energy to mechanical output with minimal waste heat, meaning the motor runs cooler and more reliably during extended racing sessions.
• Premium Motor Construction — The motor features high-quality ball bearings, high-hardness aluminium CNC-machined casing, a high-strength explosion-proof rotor, a high-resistance output shaft, and 200°C temperature-resistant copper winding wire, ensuring reliable performance even under racing stress.
• Advanced Motor Electronics — High-density 4-layer PCB construction provides robust, easy-to-solder connections that withstand the vibration and thermal cycling of competitive racing.
• Ultra-Thin Silicon Steel Laminations — The motor uses 0.2mm ultra-thin silicon steel sheets in the stator, optimising electromagnetic efficiency and reducing energy losses that would otherwise generate unwanted heat.
• Modular Detachable Structure — The 1626 motor can be easily disassembled for routine cleaning and maintenance, keeping the motor running at peak efficiency without requiring specialist tools or skills.
• 2S LiPo Compatibility — Designed specifically for 2-cell lithium-polymer batteries, the combo is optimised for the voltage range and discharge characteristics of standard 2S LiPo packs used in 1/28 racing.
• Competition-Grade Construction — Every aspect of this combo has been engineered to meet the demanding requirements of high-performance RC racing, with reliable materials and proven design ensuring consistent performance race after race.

Technical Performance

The EZRUN MINI28 and 1626SD combo delivers impressive performance metrics that make it ideally suited for competitive 1/28 scale RC racing. The ESC's 30A continuous current rating with 80A peak capability provides ample power for the 3500KV motor whilst maintaining stable operation even under the most demanding racing conditions. The 1626SD motor weighs just 18g and measures 16mm in diameter by 26mm in length, fitting perfectly into the tight confines of 1/28 scale chassis without compromising performance. With a 3500KV rating and sensored design, this motor delivers a no-load current of just 0.6A, indicating exceptional efficiency that translates to cooler running temperatures and longer runtime from each battery charge. The 2-pole motor design provides smooth, predictable power delivery with virtually no cogging, whilst the 2mm diameter output shaft interfaces with standard 1/28 pinions. The ESC itself is remarkably compact at 22.7x14.2x11.8mm and weighs only 5g, small enough that it doesn't burden the vehicle's handling characteristics. Build quality throughout both components reflects competition-grade standards: the motor features CNC-machined aluminium construction, high-quality ball bearings (D5×D2×T2.5), and explosion-proof rotor design, whilst the ESC's all-metal case serves dual purposes as both protective enclosure and thermal radiator. The integrated switch-mode BEC operates at up to 3.5A and adjustable output voltage (6V or 7.4V), providing flexible power for various servo types and accessory combinations. With support for 26 different tuneable parameters covering throttle response, brake characteristics, timing advance, and competition modes, experienced drivers can extract maximum performance and handling precision from their setups, whilst the pre-configured Zero Timing and Modified modes offer plug-and-play operation for newcomers to 1/28 scale racing.

What's in the Box

• Hobbywing EZRUN MINI28 30A Brushless ESC with sensored commutation
• Hobbywing 1626 3500KV Brushless Sensored Motor
• Black power lead (20AWG, 55mm length)
• Red power lead (20AWG, 55mm length)
• Three black output leads (22AWG, 80mm length)

What You Need to Complete

• 2S LiPo battery (suitable for 1/28 scale racing)
• LiPo battery charger (not included)
• 1/28 scale RC car chassis with compatible motor mount cradle
• RC radio system and receiver (sold separately)
• Steering servo suitable for 1/28 vehicles
• Optional: External OTA Bluetooth module for wireless ESC programming via smartphone app
• Optional: Hobbywing LCD G2 programming box for alternative parameter adjustment method
• Optional: XT30 connector upgrade (sold separately as an accessory)

Frequently Asked Questions

• Is the EZRUN MINI28 combo suitable for beginners to RC racing? — Yes, this combo is an excellent choice for drivers new to RC car racing in the UK. The brushless motor provides smooth, predictable power delivery, whilst the pre-configured Zero Timing and Modified competition modes allow immediate use without complex setup. However, the 26 tuneable parameters offer experienced competitors the flexibility to extract maximum performance, making this a system that grows with your skills. The sensored design ensures consistent low-speed response, making the vehicle easier to control during learning.
• What battery does the EZRUN MINI28 combo require? — This system is designed specifically for 2S LiPo (7.4V nominal) batteries. The ESC is rated for 2-cell lithium-polymer configurations and optimises performance within this voltage range. For best results, use quality 2S LiPo packs designed for 1/28 scale racing applications, ensuring the pack's discharge rating (typically 30C or higher) matches the system's 30A continuous current requirements.
• Can I use the EZRUN MINI28 ESC in other RC vehicles besides 1/28 cars? — Whilst the ESC is specifically designed and optimised for 1/28 scale cars, it may theoretically work with other small-scale vehicles using similar voltage and current characteristics. However, Hobbywing engineered this combo exclusively for 1/28 competition, and the 1626 motor mount is designed for cradle-style mounting common in 1/28 chassis. For other scales, Hobbywing manufactures dedicated ESC and motor combinations designed specifically for those applications.
• How do I program the EZRUN MINI28 ESC parameters? — The ESC supports three programming methods: the on-board SET key (though this method is limited), the Hobbywing LCD G2 setting box (compatible and recommended for intuitive parameter adjustment), or the external OTA Bluetooth module with smartphone app (offering the most convenience and wireless functionality). All three methods allow access to the complete library of 26 tuneable parameters for customising performance characteristics.
• Is the motor waterproof? — No, neither the EZRUN MINI28 ESC nor the 1626 motor features waterproof ratings. These components are designed for track racing in dry conditions. If you plan to race in wet conditions or off-road environments, water protection should be considered before operating in such conditions.
• What is the maximum output current of the EZRUN MINI28 ESC? — The ESC provides a continuous output current of 30A with a peak current capability of 80A, delivering substantial power for high-performance 1/28 racing whilst maintaining stability and reliability through its all-metal thermal management design.
• Can I upgrade the motor connector? — Yes, the standard combo includes XT30 connector option available as a purchasable upgrade if preferred over the standard configuration, allowing flexibility for different battery configurations or personal preferences.
• What makes the 1626 motor different from larger brushless motors? — The 1626 motor has been specifically engineered for 1/28 scale applications with optimised torque curves, efficiency characteristics, and mechanical design for these vehicles. At 3500KV with sensored design, it delivers precision response and excellent low-speed control compared to generic brushless motors. The motor's light weight (18g), small diameter (16mm), and modular design allow it to fit perfectly within 1/28 chassis whilst maximising performance.
• How can I improve the performance of this combo? — The 26 tuneable parameters allow comprehensive performance optimisation. Key adjustments include Boost/Turbo timing (to increase top speed), brake frequency and softening (to improve stopping control), and throttle PWM frequency (to fine-tune responsiveness). Start with the pre-configured competition modes and adjust parameters incrementally based on track conditions and personal driving style.
• What is the difference between this 3500KV version and the 6500KV variant? — The 3500KV motor in this combo delivers lower top speed but higher torque, providing better acceleration and mid-range power suitable for technical tracks with turns. The 6500KV variant available separately offers higher top speed with less torque, suited to open, speed-focused layouts. Choose based on your track type and racing style.
