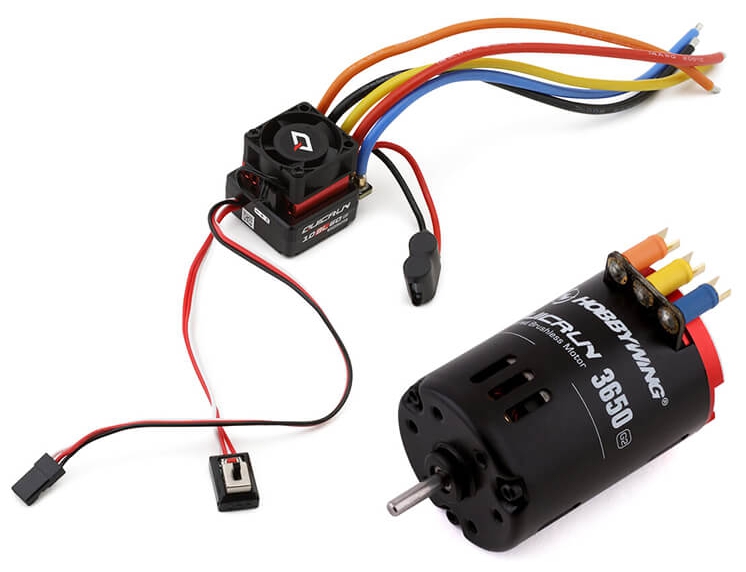

The QuicRun 10BL60 SD G2 Sensorless Brushless ESC/QR3650 G2 Motor Combo from Hobbywing is an ideal choice for entry-level and intermediate RC enthusiasts seeking a high-performance, user-friendly solution. Designed with simplicity in mind, this combo eliminates complex setups, allowing users to focus on the thrill of driving. With robust hardware, advanced software, and a range of adjustable parameters, it delivers exceptional reliability and performance. Whether you're upgrading your RC vehicle or starting fresh, this ESC and motor combo offers unmatched value and convenience.
Features
Built-In BEC for Enhanced Efficiency.
This combo features a powerful built-in BEC, ensuring stable power delivery to your vehicle’s servos and receivers. By providing consistent voltage, the BEC minimizes the need for additional components, streamlining your setup. This built-in feature enhances system efficiency, enabling smooth operation even in demanding conditions.
Boost and Turbo Timing Adjustments.
With Boost and Turbo timing adjustments of up to twenty-four degrees, this ESC delivers an instant surge of speed when needed. Whether you're navigating tight corners or racing on straightaways, these adjustments maximise motor power and responsiveness. This level of tuning offers both performance enthusiasts and competitive racers a distinct edge on the track.
Comprehensive Programming Options.
The QuicRun 10BL60 SD G2 offers three versatile programming methods to suit your preferences. You can fine-tune parameters using a multi-function LCD programming box, an LED programming box, or the onboard SET button. These flexible options make it easy to optimize performance and adapt the system to various driving styles and environments.
More Features
- Built-in BEC for stable voltage supply.
- Boost/Turbo timing adjustments up to 24 degrees.
- Motor rotation direction adjustment.
- Three programming methods for flexibility.
- Robust hardware with strong current resistance.
- Advanced software for improved reliability.
- Comprehensive protection features for durability.
- Sensorless design for simplified operation.
- User-friendly setup for entry-level builders.
- Compact and lightweight design.
Specifications
ESC
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No
Cont./Peak Current: 60A/200A
Input Voltage: 2S LiPo
BEC Output: Switch Mode 6V/7.4V@4A
Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires: Blue-14AWG-175mm*1?Yellow-14AWG-175mm*1?Orange-14AWG-175mm*1
Input Connectors: No
Output Connectors: No
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD Pro: Supported
OTA Programmer: Not Supported
Program Port: Shared with fan port
Date Recording: Not supported
Firmware Upgrade: Not Supported
Size: 35.0*31*30.8mm
Weight: 66.5g (Included wires&connectors)
Applications Motors: Sensorless / Sensored Brushless Motor
Vehicles: 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count: QUICRUN 3650 SD G2
Motor
Great Heat-dissipation.
The silicon O-ring fitted between the end bell and stator helps to conduct inner heat to the unique motor case to maximize cooling for extreme cooling conditions.
Plug-and-Play.
Customised 3.5mm low impedance bullet connectors soldered to the motor wiresguarantee "plug-and-play" and stable connections between the ESC and motor.
Re-buildable Design.
The end bell is easy to be removed for maintenance purposes and for the replacementof common wearing parts such as rotor and sensor module (Ex bearings).
