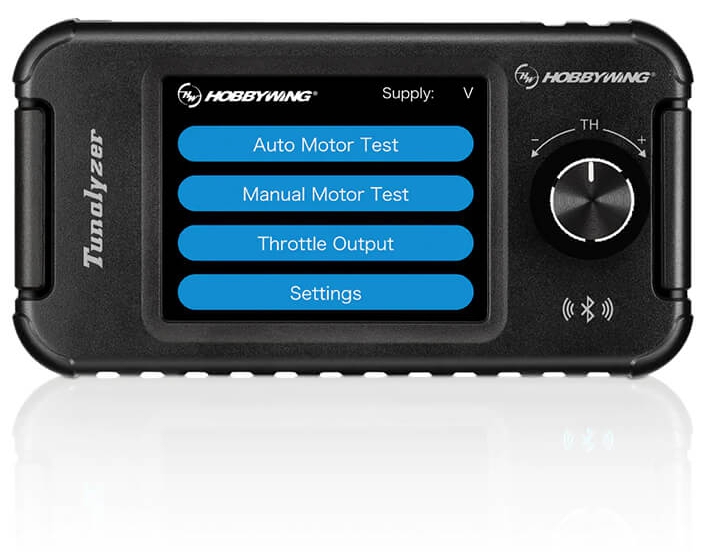

HOBBYWING TUNALYZER BRUSHLESS MOTOR TESTER HW30504003

Overview

The Hobbywing Tunalyzer is the next-generation tool for motor testing and tuning, designed for RC enthusiasts who demand precision and accuracy when setting up their brushless RC cars, trucks, and other electric-powered models. Whether you're a competitive racer fine-tuning your 1/10 scale buggy, a basher maintaining your RC monster truck, or a hobbyist exploring the world of brushless motor technology, the Tunalyzer provides professional-grade testing capabilities in a compact, user-friendly package. This innovative benchtop testing device has become an essential tool for serious RC modellers across the UK, allowing you to measure critical motor parameters with exceptional accuracy and make informed decisions about your setup.

Unlike traditional motor testing methods that rely on guesswork or basic measurements, the Tunalyzer combines advanced sensor technology with an intuitive 3-inch colour touch screen display to give you real-time visibility into your motor's performance characteristics. The device tests both sensored and sensorless brushless motors, supporting virtually any pole count from 2 to 60 poles, making it compatible with the vast majority of brushless motors used in RC cars, buggies, trucks, and specialised racing vehicles. With built-in Bluetooth connectivity and integration with the HW Link App, the Tunalyzer doubles as an ESC programmer, allowing you to adjust parameters and update firmware on compatible Hobbywing electronic speed controllers directly from your mobile phone or tablet.

Built with strong security features including reverse polarity protection, the Tunalyzer is engineered to withstand the demands of regular bench testing without risk of damage from accidental incorrect battery connections. Its compact dimensions (122.8 x 64.6 x 39mm) and lightweight design (just 144g) make it portable enough to transport to the track, the bash spot, or to other RC enthusiasts' workshops, whilst its internal voltage regulator ensures consistent, repeatable test results even as your battery pack discharges during testing sessions.

Key Features

• Automatic Test Mode with Eight Parameters — The Tunalyzer offers eight different automatic test parameters that provide quick, easy and highly accurate testing with minimal user intervention. This fully automated testing mode is perfect for rapid motor evaluation without needing to manually configure complex settings each time.
• Exceptional Measurement Accuracy — Current readings are accurate to within 0.01A, whilst end-bell deviation, rotor asymmetry and hall signal deviation measurements are accurate to within 0.1 degrees. This precision level ensures you can trust the data for making critical tuning decisions on your RC vehicle.
• Manual Test Mode for Benchtop Checks — Beyond automatic testing, the Tunalyzer functions as a manual tester for simple benchtop evaluations. Forward and reverse operation with 100% linear throttle control allows real-time live data output, giving you granular control over test conditions and the ability to observe motor behaviour across the entire throttle range.
• Stable Internal Voltage Regulator — The integrated voltage regulator maintains consistent test voltage even as your battery pack discharges throughout testing sessions. This means you can test multiple motors back-to-back at identical voltage levels, enabling direct performance comparisons without having to recharge between tests. Note that preset voltages must be used and the battery must exceed the set voltage threshold.
• Real-Time RPM Display with Configurable Pole Count — The Tunalyzer supports motor pole settings from 2 to 60 poles, allowing accurate and precise RPM calculation and display in real time. This feature eliminates the need for external tachometers and ensures the RPM figures displayed are specific to your exact motor's pole configuration.
• 3-Inch Full-Colour Touch Screen Display — The ultra-crisp, clear LCD colour touch display provides an intuitive interface that is extremely quick to learn and master. Information is presented clearly and logically, making it easy to navigate menus, view test results and interpret motor characteristics even during busy testing sessions.
• Multi-Function Control Dial — The prominent dial on the device face serves dual duty, functioning as both throttle control for motor testing and as an external testing interface. PWM output capability allows you to test servos and electronic speed controllers on the benchtop without needing separate equipment.
• Comprehensive Motor Parameter Measurement — The Tunalyzer measures motor current draw, KV value (motor velocity constant), RPM, end-bell timing and deviation, rotor asymmetry characteristics, hall signal deviation, and motor temperature. These comprehensive measurements give you complete visibility into motor health and performance.
• Support for Sensored and Sensorless Brushless Motors — Whether your RC car uses sensored motors with hall effect sensors or sensorless motors relying on back-EMF, the Tunalyzer accurately tests both types. This compatibility covers virtually any brushless motor style or pole count, from micro-motors in small-scale RC models to large-capacity motors in 1/8-scale racing vehicles.
• Four Different Manual Test Parameters — In addition to the eight automatic test modes, the device offers four different manual test parameter options, providing flexibility for customised testing approaches and specialised diagnostic work.
• OTA Tuning and Firmware Updates via Bluetooth — The Tunalyzer integrates with the HW Link App to establish wireless Bluetooth communication with compatible Hobbywing electronic speed controllers. This allows you to adjust ESC parameters and perform firmware updates via your smartphone or tablet, all whilst the ESC is connected to the Tunalyzer for benchtop testing.
• Built-In Reverse Polarity Protection Circuit — Strong security features protect the Tunalyzer from damage caused by incorrect battery connections. The reverse polarity protection circuit automatically prevents current flow if the battery leads are connected backwards, eliminating costly damage and ensuring years of reliable operation.

Technical Performance

The Hobbywing Tunalyzer represents a sophisticated piece of RC testing equipment that combines precision engineering with user-friendly design. Accepting input voltage from 6V to 16.8V (compatible with 2S and 3S LiPo battery packs, and up to 4S configurations), the device can test motors whilst powered by a wide range of common RC battery options. The maximum test current rating of 18A allows you to safely evaluate everything from low-power brushless motors in lightweight 1/10-scale racing buggies through to more powerful motors used in 1/8-scale competition trucks and bashers. The device's compact engineering delivers professional test results in a package measuring just 122.8 x 64.6 x 39mm (including the control knob) and weighing merely 144g, making it one of the most portable comprehensive motor testing solutions available to UK RC enthusiasts. The stable internal voltage regulation system ensures consistent test conditions throughout extended testing sessions, a critical factor when evaluating motor consistency and reliability. The colour LCD touch screen provides immediate visual feedback on all measured parameters including current, KV value, RPM, timing characteristics, rotor geometry and hall sensor alignment, with data refreshed in real time as the motor runs. The multi-pole support (2-60 poles) covers everything from specialised sensorless 12-pole motors through to complex sensored multipolar motor designs, ensuring the Tunalyzer remains compatible with virtually any brushless motor technology currently used in the RC hobby across the UK and internationally.

What's in the Box

• Hobbywing Tunalyzer motor testing device
• User guide and instruction manual

What You Need to Complete

• 2S or 3S LiPo battery pack (6V to 16.8V input) to power the Tunalyzer during testing
• Brushless motor(s) to test
• Compatible Hobbywing ESC (for OTA tuning and firmware update features)
• Smartphone or tablet with HW Link App installed (for wireless ESC programming via Bluetooth)

Frequently Asked Questions

• Is the Hobbywing Tunalyzer suitable for beginners? — Yes, the Tunalyzer is designed with beginners in mind, despite its advanced capabilities. The automatic test mode requires minimal setup—simply connect your motor and press start to receive comprehensive test results. The 3-inch colour touch screen display uses an intuitive interface that is extremely quick to learn. However, the device truly shines for experienced RC enthusiasts who want to dive deeper into motor characterisation, competitive tuning and ESC programming, making it a tool you will grow into and rely upon throughout your RC hobby journey.
• What battery does the Tunalyzer need, and can I use my RC car's battery? — The Tunalyzer requires an input voltage between 6V and 16.8V, which means it is compatible with 2S LiPo batteries (7.4V nominal), 3S LiPo batteries (11.1V nominal) and 4S LiPo batteries (14.8V nominal). Yes, you can use the same LiPo packs that power your RC cars, buggies and trucks. The internal voltage regulator will maintain consistent test voltage as the battery discharges, though the battery must always exceed the preset voltage threshold you select. This means you can test multiple motors back-to-back without needing to swap or recharge batteries between tests.
• What motors can the Tunalyzer test? — The Tunalyzer is compatible with virtually any brushless DC motor used in RC applications. It specifically supports both sensored brushless motors (which include hall effect sensors for smooth low-speed control) and sensorless brushless motors (which use back-EMF detection). The device accommodates motor pole counts from 2 poles up to 60 poles, covering everything from ultra-high-speed low-pole motors in racing buggies through to multipolar sensored motors in high-torque trucks and crawlers. Whether you own 1/10-scale racing cars, 1/8-scale buggies, 1/10-scale monster trucks or any other brushless-powered RC vehicle, the Tunalyzer will test its motor accurately.
• Can the Tunalyzer really test both sensored and sensorless motors? — Yes, the Tunalyzer is designed to accurately test both motor types. However, it is important to note that sensorless motor characteristics may differ from sensored motor results due to the different operating principles (back-EMF detection versus hall sensor feedback). Test data for sensorless motors is only available for specific items, so consult the detailed instruction manual for information about your particular motor type. This dual compatibility makes the Tunalyzer a truly universal motor testing solution for any RC car or truck you own.
• What is the measurement accuracy, and why does it matter? — The Tunalyzer provides exceptional accuracy: current readings are precise to within 0.01A, whilst end-bell deviation, rotor asymmetry and hall signal deviation are measured to within 0.1 degrees. This level of precision matters because it allows you to identify even subtle motor problems such as rotor imbalance, timing issues or sensor misalignment that could affect your RC vehicle's performance, reliability or longevity. For competitive racers running 1/10-scale buggies or 1/8-scale trucks, identifying these issues before they cause on-track problems is invaluable.
• How does the ESC programming feature work? — The Tunalyzer has built-in Bluetooth capability and can communicate with compatible Hobbywing electronic speed controllers through the HW Link App, which you install on your smartphone or tablet. This allows you to set ESC parameters and perform firmware updates via wireless connection whilst your ESC is connected to the Tunalyzer for benchtop testing. This feature eliminates the need to purchase separate ESC programming devices and allows you to optimise your ESC settings alongside motor testing, all from a single benchtop tool.
• Can the Tunalyzer test servos and other components? — Yes, beyond motor testing, the Tunalyzer offers PWM output functionality through its multi-function control dial, allowing you to bench-test servos and electronic speed controllers without needing them installed in your RC vehicle. This capability is valuable for diagnosing servo issues, testing ESC behaviour and confirming correct signal output before installing components into your RC car or truck.
• What makes the internal voltage regulator useful? — The internal voltage regulator maintains consistent test voltage even as your LiPo battery pack discharges during extended testing sessions. This is critical because it allows you to test multiple motors or run extended test sequences at identical voltage levels, enabling meaningful performance comparisons between different motors without having to recharge your battery between tests. For competitive tuning or systematic motor evaluation, this feature is invaluable.
• Is there any risk of damaging the Tunalyzer with incorrect battery connection? — No. The Tunalyzer includes a built-in reverse polarity protection circuit that prevents damage if you accidentally connect your battery leads backwards. This strong security feature means the device will not be damaged by incorrect connections, protecting your investment and ensuring years of reliable operation even if mistakes are made during setup.
