HOBBYWING PLATINUM 5230SL 190KV FIXED WING MOTOR HW30416200

Overview

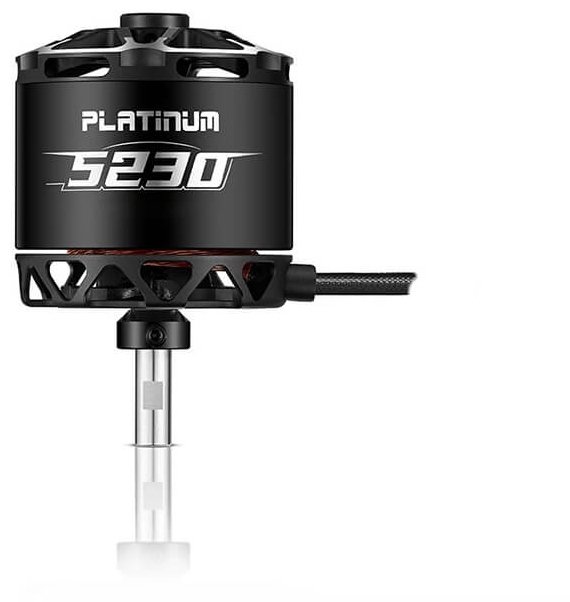

The Hobbywing Platinum 5230SL 190KV fixed wing motor is a high-performance brushless motor specifically engineered for RC fixed-wing aircraft and aeroplane applications. This is a professional-grade motor that combines cutting-edge engineering with exceptional build quality, making it an ideal choice for serious RC pilots and enthusiasts across the UK who demand reliability, efficiency and raw power. Whether you're flying competition aeroplanes, high-performance sport planes or demanding fixed-wing platforms, the Platinum 5230SL 190KV delivers the consistent performance and durability that separates premium motors from standard options.

Hobbywing's Platinum series has earned a reputation for excellence in the RC aviation community, and the 5230SL variant represents the latest evolution of this proven technology. The 190KV specification makes this motor ideal for 10-12S LiPo battery configurations, providing an excellent balance between power output and speed control for a wide range of aircraft designs. This motor is manufactured to exacting standards with premium materials and precision engineering throughout, ensuring that each unit performs consistently and reliably across your entire flying season.

RC fixed-wing flying demands motors that can handle sustained high-power loads without thermal stress or mechanical failure. The Platinum 5230SL 190KV has been specifically optimised for this demanding application, featuring advanced thermal management, reinforced mechanical components and intelligent design features that prevent common failure modes. If you're serious about RC aircraft performance and reliability, this brushless motor represents a significant upgrade over standard alternatives.

Key Features

• Double Dynamic Balance Detection System — Both the rotor and complete motor assembly undergo separate dynamic balancing tests to ensure vibration is kept to an absolute minimum (?10mg). This dual-testing approach means the motor runs with exceptional smoothness, translating directly to better flight characteristics, improved control authority and reduced structural stress on your airframe.
• Advanced Thermal Management and Efficiency — The innovative motor structure provides superior heat dissipation combined with excellent efficiency characteristics across the entire operating range. Testing shows that efficiency in the mid-to-high power sections is increased by 2-5% compared to competing motors of identical specifications, and continuous running time under heavy load is extended by more than 30%, meaning longer flights and better reliability on demanding missions.
• Patented Anti-Loosening Propeller Clamp — The innovative propeller clamp design features a patented anti-loosening mechanism (Patent number: 202311210278.7) that effectively prevents propeller loss due to clamp nut vibration. The diamond-shaped anti-slip structure prevents propeller slipping and idling within the motor body, whilst the reinforced stainless steel clamp shaft with interference fitting and adhesive bonding ensures maximum durability and safe operation throughout your flying season.
• Premium Material Selection and Construction — This motor is built with only the finest materials including top-tier JNEH1200 iron core stator, 200°C high-temperature resistant enamelled wire, international-brand precision bearings (1560ZZ and 698ZZ), and powerful N52SH arc-shaped magnets that deliver exceptional torque and power output. Every component has been selected to maximise performance and longevity.
• Robust Rotor Locking Design — The rotor features multiple redundant locking systems including copper pads, circlips and bushing set screws, preventing any possibility of rotor loosening during operation. This engineering approach guarantees long-term reliability and gives you complete confidence in your motor's mechanical integrity during high-performance flights.
• Professional Wiring and Connectivity — The three-phase motor wire outlet is equipped with a custom-made silicone rubber sheath that balances aesthetics with superior electrical insulation properties, protecting against moisture and contamination whilst maintaining professional appearance on your completed airframe.
• Modular Easy-Maintenance Design — The motor features a modular design that allows straightforward disassembly for cleaning and maintenance. This is particularly valuable for UK pilots who fly in variable weather conditions and need to keep their motors in peak condition throughout the flying season.
• Titanium Alloy Hardware for Weight Reduction — Standard titanium alloy nuts and bracket mounting screws help minimise overall motor weight without compromising strength, allowing you to optimise your aircraft's weight and balance characteristics.
• Optional Rear-Shaft Propeller Mount Configuration — The motor supports optional rear-shaft propeller mounting, allowing multi-purpose applications and flexible aircraft design options to meet your specific flying requirements.

Technical Performance

The Platinum 5230SL 190KV is a precision-engineered brushless motor engineered specifically for high-performance fixed-wing RC aircraft. The motor measures ?60.2 × 93.5mm with a stator size of ?51.7 × 30mm, providing an optimised form factor for integration into various aircraft platforms. The 24N28P (24 slot, 28 pole) configuration and 190KV specification are tuned for 10-12S LiPo battery systems, delivering a no-load current of 3.0A at 44.4V. Under sustained load testing (ambient temperature ?25°C), the motor achieves a maximum current of 112.5A over 42 seconds, generating maximum power output of 4985W with maximum static thrust reaching an impressive 14.99kg. The motor's internal resistance is measured at 22m?, contributing to efficient power delivery and minimal energy waste. The motor is equipped with precision 1560ZZ and 698ZZ bearings supporting an 8mm motor shaft diameter, mounted via M4 fasteners (?22mm 3-hole and ?30mm/?44mm 4-hole configurations). The high-standard silicon steel stator sheet features 180°C high-temperature resistance paint coating, whilst the enamelled wire is rated to 200°C continuous operation, ensuring thermal stability during extended high-power flights. The complete motor with 100mm pre-soldered wire leads weighs 582g, and has passed 500V AC high-voltage isolation testing for electrical safety. This motor integrates perfectly with Hobbywing's ecosystem — recommended ESC options are the Platinum 130A V4 or Platinum 180A V5, and optimal propeller selection includes 20×10E, 22×10E and 22×12E props for 10S configurations, or 20×8E, 20×10E and 22×10E for 12S setups.

What's in the Box

• Hobbywing Platinum 5230SL 190KV brushless motor with pre-soldered 100mm wire leads
• Motor shaft and propeller clamp components
• Titanium alloy hardware and stainless steel fasteners

What You Need to Complete

• Hobbywing Platinum ESC (130A V4 or 180A V5 recommended) — the motor requires an electronic speed controller for operation
• 10-12S LiPo battery pack — for powering the motor system
• RC Aircraft airframe and fuselage — compatible with fixed-wing designs
• Radio control system and receiver — for flight control
• Propeller (20×10E, 22×10E, 22×12E or 20×8E depending on S-count) — must be properly matched to motor and battery configuration
• Motor mount hardware and servo electronics as required by your airframe design

Frequently Asked Questions

• Is the Hobbywing Platinum 5230SL 190KV suitable for high-performance fixed-wing RC aircraft in the UK? — Absolutely. This motor is specifically engineered for professional and semi-professional RC fixed-wing applications, with performance metrics and thermal management characteristics that make it ideal for demanding flight regimes including aerobatic flying and competition applications. The 14.99kg maximum thrust figure means this motor can power substantial aircraft with excellent power-to-weight ratios.
• What battery configuration does this motor require? — The Platinum 5230SL 190KV is rated for 10-12S LiPo battery packs, delivering no-load current of 3.0A at 44.4V (full 10S voltage). This high cell-count configuration is typical for modern high-performance fixed-wing aircraft that demand strong power output and consistent flight performance.
• How does the 190KV rating compare to other Platinum 5230SL variants? — Hobbywing offers the Platinum 5230SL in three KV ratings: 190KV (this model), 220KV and 380KV. The 190KV variant is the lowest KV option in the series, making it the most suitable for higher cell-count LiPo batteries (10-12S) and aircraft designs prioritising sustained power and lower maximum RPM. The 220KV version suits 10-12S systems with different power characteristics, whilst the 380KV version is optimised for 6-8S battery configurations. Your choice depends on your intended battery voltage and desired power delivery characteristics.
• What makes the anti-loosening propeller clamp design important? — Propeller loss during flight represents a serious safety risk and potential loss of expensive equipment. Hobbywing's patented anti-loosening mechanism (Patent 202311210278.7) uses a diamond-shaped anti-slip structure and reinforced stainless steel construction to effectively eliminate vibration-induced propeller loosening. This design feature is particularly valuable in high-vibration environments and during extended flight sessions where traditional clamps might gradually loosen.
• How long will this motor last with proper maintenance? — The Platinum 5230SL 190KV is engineered for long-term reliability with premium bearing sets, robust rotor locking systems and superior thermal management. The modular design allows straightforward cleaning and maintenance. Continuous heavy-load running time is extended by more than 30% compared to competing motors, indicating exceptional thermal efficiency and longevity under demanding operation. Lifespan depends on flying frequency, maintenance practices and operating conditions, but this is a motor built for years of reliable service.
• Which ESC should I pair with this motor? — Hobbywing recommends pairing the Platinum 5230SL 190KV with either the Platinum 130A V4 or Platinum 180A V5 speed controller. These purpose-designed ESCs are optimised for the motor's electrical characteristics, voltage requirements and current draw profile, ensuring seamless integration and optimal performance across the entire throttle range.
• What propeller sizes work best with this motor? — For 10S LiPo configurations, Hobbywing recommends 20×10E, 22×10E and 22×12E propellers. For 12S setups, use 20×8E, 20×10E or 22×10E props. Propeller selection significantly impacts motor performance, so always follow these guidelines to ensure optimal efficiency, appropriate current draw and reliable operation. Oversized propellers may cause excessive current draw and thermal stress.
• Is the Platinum 5230SL 190KV a direct replacement for older motor models? — Whilst the physical mounting dimensions are compatible with standard motor mount patterns (M4 fasteners, ?22mm 3-hole and ?30mm/?44mm 4-hole configurations), electrical characteristics and performance will differ from older motors. Always verify compatibility with your ESC and airframe design before installation. The advanced features including double dynamic balance and improved efficiency make this a significant upgrade over previous-generation motors.
