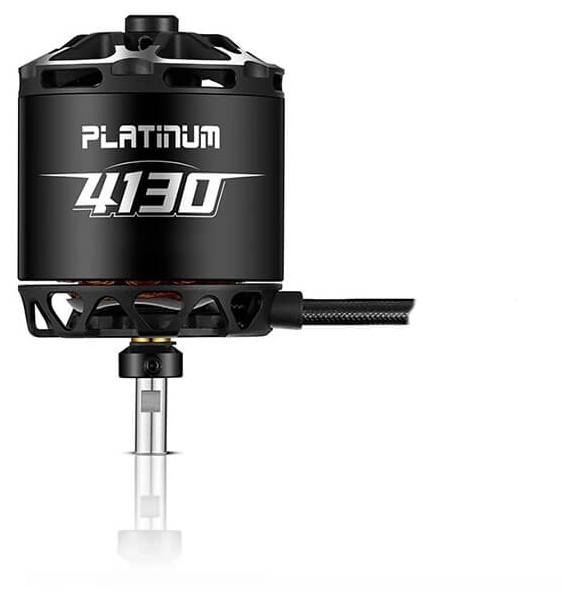

HOBBYWING PLATINUM 4130SL 490KV FIXED WING MOTOR HW30416102

Overview

The Hobbywing Platinum 4130SL 490KV Fixed Wing Motor is a high-performance brushless motor specifically engineered for fixed-wing RC aircraft and similar applications. This is a premium motor from Hobbywing's respected Platinum series, designed to deliver exceptional efficiency, reliability and power for serious RC plane enthusiasts across the UK and beyond. Whether you're flying a medium to large-scale fixed-wing model or building a competitive racing aircraft, this motor offers the engineering excellence and performance characteristics that set Hobbywing apart from competitors in the RC hobby market.

Built with industry-leading components and manufacturing processes, the 4130SL represents the pinnacle of fixed-wing motor design. The motor features a larger stator and rotor assembly compared to smaller variants in the Platinum range, making it ideal for aircraft requiring sustained power and extended flight times. At 490KV with a 6S LiPo battery compatibility, this motor delivers the perfect balance of speed and torque for a wide variety of fixed-wing applications, from casual RC flyers to those seeking performance-grade equipment for their RC models UK-wide.

Hobbywing has invested significant engineering effort into creating a motor that not only performs exceptionally but also maintains reliability through extended use. The attention to detail in materials selection, manufacturing precision and quality control makes this motor an excellent choice for modellers who demand the best from their equipment and are willing to invest in proven technology.

Key Features

• Double Dynamic Balance Technology — Both the rotor and complete motor assembly undergo dynamic balancing during manufacture. The rotor is balanced first, then the motor is tested under simulated operating conditions to perform a secondary dynamic balance check. This dual-stage process ensures extremely smooth operation with minimal vibration, which is critical for fixed-wing aircraft where unwanted vibration can affect flight stability, control response and overall flight quality.
• Superior Efficiency and Extended Runtime — The 4130SL delivers more than 2.5% higher efficiency compared to competing motors of equivalent specifications, meaning you extract more power from your battery charge. This translates directly to longer flight times and reduced heat generation during operation. The continuous running time is extended by more than 30% compared to competing motors, making this an economical choice for those who want to maximise airtime.
• Advanced Self-Cooling Rotor Design — The rotor incorporates a self-cooling structure that significantly improves heat dissipation during flight. This innovative design keeps the motor running cooler than conventional alternatives, which protects the motor's internal components and extends its operational lifespan. Better heat management also means the motor maintains peak performance for longer periods without thermal throttling or performance degradation.
• Patented Propeller Mount Locking System — The motor features an innovatively designed propeller mount locking mechanism (patent number 202311210278.7) that effectively prevents the propeller from flying off due to loose mounting nuts during flight. This safety-critical feature gives you confidence that your propeller will remain securely attached even under demanding flight conditions, eliminating a common failure mode that can result in lost aircraft and safety hazards.
• Diamond-Shaped Anti-Slip Propeller Seat — The propeller mounting seat employs a diamond-shaped anti-slip design that prevents the propeller from slipping or free-spinning on the shaft. This geometric design feature ensures positive engagement between motor shaft and propeller hub, maintaining critical power transmission and flight stability throughout your flight session.
• Premium Component Selection and Materials — The motor utilises a top-tier JNEH1200 iron core for the stator, which provides superior magnetic performance and longevity. The winding uses 200°C high-temperature resistant enamelled wire, allowing the motor to handle sustained high-power applications without insulation breakdown. International top-tier brand bearings (696ZZ specification) ensure smooth shaft rotation with minimal friction and wear, contributing to the motor's reliability and service life.
• N52SH Strong Magnetic Arc Design — The motor employs N52SH grade strong magnetic arc-shaped magnets that provide powerful torque delivery and consistent performance throughout the motor's operating range. This magnet selection ensures responsive throttle control and strong acceleration characteristics essential for dynamic fixed-wing flying.
• Custom Silicone Rubber Wire Sheathing — The three-phase wire outlet features custom-made silicone rubber sheathing that balances aesthetic appearance with superior electrical insulation. This protective covering prevents accidental short circuits and provides durability against mechanical damage during installation and operation.
• Multiple Rotor Locking Designs — The rotor incorporates three separate locking mechanisms: copper pads, a circlip, and a bushing set screw. This redundant design philosophy prevents the rotor from loosening during operation, ensuring absolute reliability and consistency even under sustained high-power flight conditions. The multiple locking points significantly enhance overall motor reliability compared to single-lock designs.
• Multi-Purpose Design Flexibility — The motor can be configured with either standard or optional rear shaft propeller mounts, allowing adaptation to different aircraft designs and configurations. This versatility means a single motor type can serve multiple building projects without requiring alternative motor purchases.
• Lightweight Titanium Alloy Hardware — The mounting nuts and bracket screws are manufactured from titanium alloy rather than steel, reducing overall weight whilst maintaining structural integrity. In fixed-wing applications where every gram counts toward improving flight performance and battery efficiency, this material choice delivers measurable benefits.
• Modular and Easy-Maintenance Design — The motor features modular construction that allows straightforward disassembly for cleaning and maintenance. This design philosophy makes it practical to perform routine maintenance without specialised tools or technical expertise, extending the motor's service life and ensuring consistent performance season after season.

Technical Performance

The Hobbywing Platinum 4130SL 490KV motor delivers impressive technical performance across a comprehensive range of operating parameters. The motor measures ?49.5 × 82.3mm in overall dimensions with a stator size of ?40.6 × 30mm, providing a substantial power-generating core whilst maintaining a compact form factor suitable for mounting in various fixed-wing airframe designs. The 490KV constant is optimised for 6S LiPo battery systems (22.2V nominal), delivering peak no-load current of just 2.4A at rated voltage—exceptionally low for a motor of this power class, indicating highly efficient operation. Under maximum power conditions with ambient temperature not exceeding 25°C, the motor delivers 129.3A peak current for 55 seconds, generating an impressive 2867W of maximum power output. This translates to a maximum thrust rating of 9.12kg, making the motor suitable for moderately-sized to large fixed-wing aircraft requiring sustained climbing performance and responsive flight characteristics. The motor features a 12-slot, 14-pole configuration (12N14P) that optimises torque delivery and smooth power characteristics across the entire throttle range. Internal resistance measures just 10.6m?, exceptionally low even among premium motors, minimising power loss and heat generation during operation. The motor incorporates high-standard silicon steel sheet stators with 180°C high-temperature resistance paint-coat, whilst the enamelled wire throughout the motor withstands sustained temperatures of 200°C, ensuring reliability even during demanding flight sessions. The ?6mm motor axle diameter provides a standard interface compatible with widely available propeller adapters and spinner systems. Dynamic balance specification of ?10mg ensures vibration levels are imperceptible during flight. The isolation test specification of 500V AC high-voltage resistance testing confirms robust electrical insulation throughout the motor windings. Wire length of 90mm provides adequate routing flexibility for most airframe installations, whilst the total assembled weight with wire of 418g allows proper aircraft balance. Hobbywing recommends pairing this motor with either the Platinum 120A V4 or Platinum 150A V5.1 electronic speed controller, ensuring optimal power management and flight safety. Propeller options for 6S operation include 15×8E, 16×6E, 16×8E, and 17×8E sizes, allowing optimisation for specific aircraft weights and performance requirements. The motor mounting configuration uses standard ?30mm centres with four M4 threaded holes (?30mm-4×M4), compatible with most fixed-wing motor mounts. Propeller mounting utilises ?15mm bore with three M3 threads (?15mm-3×M3), standard across the RC aircraft industry.

What's in the Box

• Hobbywing Platinum 4130SL 490KV Fixed Wing Motor with 90mm enamelled wire leads
• Titanium alloy mounting screws
• Motor instruction documentation

What You Need to Complete

• 6S LiPo battery pack (3S configuration also supported depending on application)
• Hobbywing Platinum 120A V4 or Platinum 150A V5.1 electronic speed controller
• RC receiver and transmitter system
• Fixed-wing airframe compatible with ?49.5mm motor diameter
• Suitable propeller (15×8E, 16×6E, 16×8E or 17×8E recommended for 6S operation)
• Motor spinner and adapter hardware
• Battery charger and charging cables for LiPo batteries

Frequently Asked Questions

• Is the Hobbywing Platinum 4130SL 490KV suitable for beginners building their first fixed-wing RC aircraft? — This is a premium performance motor designed primarily for experienced modellers who understand fixed-wing aerodynamics and have experience installing and configuring high-performance brushless systems. Beginners might find entry-level motors more forgiving and cost-effective. However, if you're willing to invest in quality equipment and follow proper installation procedures, the Platinum 4130SL's reliability and performance make it an excellent long-term choice even for those new to the hobby.
• What battery system does the Platinum 4130SL 490KV motor require? — The motor is optimised for 6S LiPo battery packs delivering 22.2V nominal voltage. It also supports 12S LiPo (44.4V) operation, though this configuration is less commonly used for fixed-wing applications. A quality 6S battery pack rated for continuous discharge current of at least 150A is recommended, though matching to a Hobbywing Platinum 120A V4 or 150A V5.1 ESC provides the most compatible and optimised setup.
• How does the 4130SL compare to the smaller 4125SL and 4120SL motors in the Platinum range? — The 4130SL features a larger stator (?40.6×30mm vs 25mm on the 4125SL and 20mm on the 4120SL) and longer motor body (82.3mm vs 77.3mm and 72.3mm respectively), delivering higher power output, greater maximum thrust (9.12kg vs 7.47kg on 4125SL and 7.69kg on 4120SL at similar configurations), and extended runtime due to improved heat dissipation. The 490KV variant is ideal for moderate-speed fixed-wing aircraft requiring sustained climbing power and extended endurance. Choose the 4130SL for larger aircraft; select smaller variants for weight-sensitive ultralight designs.
• What propeller sizes work best with the 490KV variant? — Hobbywing's official recommendations for 6S operation include 15×8E, 16×6E, 16×8E, and 17×8E propellers. The specific choice depends on your aircraft design, weight, and desired flight characteristics. Larger diameter propellers (17×8E) favour efficiency and slow-speed flight, whilst smaller options (15×8E) support faster flight speeds and more aggressive aerobatic performance.
• How does the double dynamic balancing technology benefit flight quality? — Vibration from unbalanced motor components directly translates to flight instability, poor control authority and potential structural stress on the airframe. The Platinum 4130SL's dual-stage dynamic balancing (rotor balance plus complete motor assembly balance under simulated operating conditions) minimises vibration to imperceptible levels, resulting in smoother flight characteristics, better control response, and reduced fatigue to both aircraft structure and servo mechanisms.
• What electronic speed controller should I use with this motor? — Hobbywing recommends the Platinum 120A V4 or Platinum 150A V5.1 ESC. These controllers are specifically optimised for Platinum motors and provide seamless compatibility, advanced features like telemetry integration, and reliable power management. The 120A V4 suits most fixed-wing applications, whilst the 150A V5.1 provides additional headroom for sustained high-power manoeuvres.
• Is this motor waterproof or weather-resistant? — The motor itself is not specifically waterproofed, though the silicone rubber sheathing on the three-phase wires provides basic protection. For water-landing operations, consult Hobbywing directly regarding protective measures. Standard fixed-wing operations in dry conditions present no issues.
