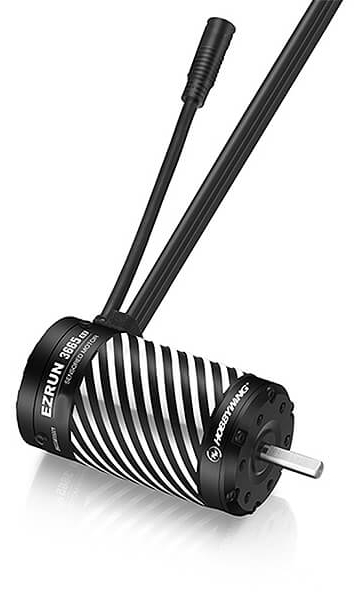

HOBBYWING EZRUN 3665SD 3200KV BLACK G3 SENSORED MOTOR HW30402607

Overview

The Hobbywing EZRUN 3665SD 3200KV Black G3 Sensored Motor represents the latest evolution in brushless motor technology for 1/10 scale RC vehicles. This third-generation motor builds upon the proven legacy of the EZRUN range with significant performance enhancements, delivering 3% greater overall efficiency and 5% increased maximum output power compared to the previous G2 generation. Whether you're an experienced RC enthusiast looking to upgrade your short course truck, truggy, or monster truck, or a dedicated racer seeking competitive advantage, this sensored brushless motor offers the precision control and reliable power delivery that serious RC drivers demand. The EZRUN 3665SD 3200KV is purpose-built for 1/10 off-road vehicles and represents Hobbywing's commitment to engineering excellence, combining high-performance hardware with thoughtful design features that make it an ideal choice for UK RC hobbyists seeking a premium brushless RC motor solution.

What sets this motor apart in the crowded brushless RC motor marketplace is the combination of advanced sensored technology, waterproof construction, and modular design philosophy. The improved waterproof sensored cable interface ensures reliable operation in wet conditions, whilst the upgraded sensored mode provides motor temperature protection—a critical feature for high-performance applications where thermal management directly impacts reliability and longevity. This motor perfectly matches the Hobbywing EzRun MAX10 G2 ESC, creating a synergistic power system that maximises performance and control across all driving conditions. From muddy forest trails to sandy beach courses, the EZRUN 3665SD delivers consistent throttle response and stable power output that makes executing advanced driving maneuvers like power wheelies, straight-line acceleration runs, and jump clearances significantly easier and more predictable.

At its core, the EZRUN 3665SD 3200KV is engineered with meticulous attention to detail. Every component—from the motor casing to the ultra-thin silicon steel sheets, high-temperature-resistance copper wire, explosion-proof rotor, and high-tolerance alloy shaft—has been carefully selected and approved by Hobbywing's in-house engineers. This uncompromising approach to material quality ensures that your investment in this motor will deliver extraordinary performance over an extended lifespan, making it an excellent choice whether you're bashing casually at weekends or competing seriously in organised RC racing events across the UK.

Key Features

• Sensored brushless motor with Hall sensors — The high-precision Hall sensor components ensure that rotor position output is always accurate and consistent, delivering excellent linearity and providing you with superior throttle control that responds predictably to your inputs, making the driving experience more intuitive and rewarding.
• G3 generation performance upgrade — Compared to the previous G2 motor, this generation achieves 3% higher overall efficiency whilst delivering 5% increased maximum output power, and critically, motor temperature is greatly reduced under identical load conditions, resulting in longer runtime and improved reliability during extended driving sessions.
• Waterproof sensored cable interface — An improved design over previous generations ensures the sensored connection remains protected from moisture and contamination, meaning you can confidently run in wet conditions, mud, and water without fear of electrical failure or short circuits.
• Motor temperature protection — The upgraded sensored mode actively monitors motor temperature and provides protection against thermal damage, automatically safeguarding your investment and ensuring the motor performs optimally even during intense driving sessions or extreme weather conditions.
• High-precision waterproof front bearing — The front bearing incorporates waterproof design, minimising friction whilst protecting against water ingress, resulting in smoother operation and extended bearing life even in muddy or wet environments typical of UK off-road tracks.
• Precision iron cover rear bearing — The rear bearing uses a precision iron cover with carefully optimised smaller structure design that improves cooling capacity and provides higher bearing speed whilst maintaining low resistance, ensuring smooth and reliable operation throughout extended driving sessions.
• Modular detachable structure design — The motor adopts a modular design that allows easy disassembly for daily maintenance and component inspection, helping to prolong the overall lifespan of the motor and making it simple to maintain peak efficiency season after season.
• IP-67 waterproof rating — The comprehensive IP-67 waterproof and dustproof protection system guarantees that the entire power unit can confidently operate across a wide variety of surface conditions including mud, sand, ice, snow, and water without risk of internal damage or degradation of performance.
• Premium materials throughout — Every component has been manufactured from carefully selected high-quality materials including ultra-thin silicon steel sheets for optimal magnetic efficiency, high-temperature-resistance copper wire for sustained performance, and an explosion-proof rotor design for durability and safety.
• 4-pole motor configuration — The 4-pole design delivers the optimal balance of torque delivery and RPM capability for 1/10 scale applications, providing the responsive power characteristics that off-road enthusiasts demand across a variety of driving styles and conditions.

Technical Performance

The EZRUN 3665SD 3200KV represents a pinnacle of brushless motor engineering for 1/10 scale RC applications. Measuring 37mm in outer diameter and 65.8mm in length with a 5mm shaft diameter, this motor delivers impressive power within a compact form factor perfectly suited to modern 1/10 short course trucks, truggies, and monster trucks. The 3200KV rating provides an excellent balance between top-end speed and mid-range torque delivery, making it versatile across different driving styles from circuit racing to bashing. Compatible with 2-3S LiPo batteries, this motor draws a no-load current of 7.1 amps, giving you precise information for calculating power system requirements and ensuring your ESC is properly matched. The brushless construction eliminates carbon brush maintenance whilst the sensored design guarantees optimal commutation at all RPM ranges, from standing starts to top speed, delivering the linear throttle response that defines premium RC performance. The motor weighs 304 grams, maintaining excellent power-to-weight characteristics that won't unnecessarily burden your chassis. Front bearing specifications of D16×D5×T5 and rear bearing specifications of D11×D5×T5 ensure minimal friction and extended operational life. The 4.0mm male bullet connectors provide secure, reliable power delivery compatible with standard RC ESC systems. This motor's combination of advanced sensored technology, waterproof construction, and precision engineering makes it an outstanding choice for UK RC enthusiasts seeking reliable, high-performance power for competitive or recreational driving across all weather conditions and track types.

What's in the Box

• Hobbywing EZRUN 3665SD 3200KV G3 brushless sensored motor

What You Need to Complete

• 2-3S LiPo battery pack
• Compatible brushless ESC (Hobbywing EzRun MAX10 G2 recommended)
• RC truck, truggy, or monster truck chassis
• Radio system and receiver
• Charger for battery pack

Frequently Asked Questions

• Is the Hobbywing EZRUN 3665SD 3200KV suitable for brushless RC motor beginners? — Yes, this motor is suitable for beginners who already own a compatible 1/10 off-road vehicle and brushless ESC. The sensored design provides precise throttle control and linear power delivery, making it more forgiving than sensorless alternatives. However, you will need an appropriate ESC and matching battery system, so this is a motor-only purchase rather than a complete ready-to-run beginner package.
• What battery does the EZRUN 3665SD 3200KV require? — This motor is compatible with 2-3S LiPo battery packs. A 2S LiPo provides sufficient power for recreational bashing and learning, whilst a 3S LiPo delivers maximum performance and top speed. Always ensure your ESC is rated for your chosen battery configuration to maintain safety and longevity.
• How does the G3 generation compare to the G2 motor? — The G3 generation delivers 3% higher overall efficiency, 5% increased maximum output power, and greatly reduced motor temperature under identical load conditions. Additionally, the G3 features an improved waterproof sensored cable interface and upgraded motor temperature protection mode, making it more reliable and durable than its predecessor.
• Is this motor waterproof for off-road use in the UK? — Yes, the EZRUN 3665SD features an IP-67 waterproof and dustproof rating, meaning it can confidently handle wet conditions, mud, sand, ice, snow, and water crossing without risk of internal water damage. This makes it an excellent choice for year-round RC driving across British off-road courses and natural terrain.
• What ESC should I pair with this motor? — Hobbywing specifically recommends pairing the EZRUN 3665SD 3200KV with the EzRun MAX10 G2 ESC, which has been engineered to work seamlessly with this motor's sensored design, temperature protection mode, and performance characteristics.
• What is the KV rating and what does it mean? — The 3200KV rating means the motor will spin approximately 3200 revolutions per minute per volt of input. Higher KV ratings produce more top speed but less torque, whilst lower KV ratings provide more torque but lower maximum speed. The 3200KV rating is well-suited to 1/10 short course trucks, truggies, and monster trucks operating on 2-3S LiPo batteries.
• Can I use this motor on vehicles other than trucks? — This motor is specifically engineered for 1/10 scale short course trucks, truggies, and monster trucks. Whilst it could theoretically fit other 1/10 applications, its power characteristics and mounting configuration are optimised for these vehicle types.
• How long will this motor last? — The EZRUN 3665SD is built from premium materials and designed for extended operational life. The sensored design eliminates carbon brush wear, and the modular structure allows easy maintenance. With proper care, regular cleaning, and appropriate power system matching, this motor should deliver years of reliable performance.
