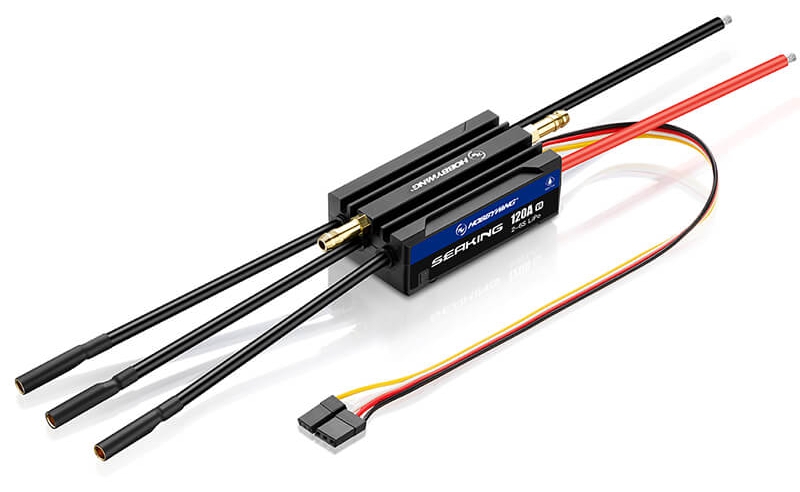

HOBBYWING SEAKING 120A V4 BRUSHLESS SPEED CONTROL HW30302363

Overview

The Hobbywing SeaKing 120A V4 Brushless Speed Control is a premium electronic speed controller (ESC) engineered specifically for high-performance RC boats. This advanced waterproof ESC represents the latest evolution in boat racing electronics, delivering exceptional reliability, durability and power management for serious RC enthusiasts across the UK and beyond. Whether you're piloting a competitive racing boat or pushing your RC vessel to its limits, the SeaKing 120A V4 provides the control, protection and performance features you need to dominate on the water.

Built with ultra-high reliability at its core, this brushless speed control incorporates robust hardware foundations combined with enhanced software optimisation that has been specifically designed for boat applications. The ESC can handle continuous currents of 120 amps with impressive peak performance of 500 amps, making it suitable for boats up to 100cm in length. The V4 generation is noticeably slimmer than its V3 predecessor—10% narrower in width—allowing for easier installation in confined spaces aboard narrow RC boats. This attention to design detail means you can fit premium electronics into tighter hulls without compromise.

For UK RC boat racers and hobbyists, the SeaKing 120A V4 stands out as a genuinely advanced choice that combines waterproof protection, intelligent safeguards and real-time performance monitoring into a single, compact package. The brushless design ensures longer motor lifespan, reduced maintenance, superior power delivery and cleaner operation compared to brushed alternatives, making this the clear choice for anyone serious about their RC boat performance.

Key Features

• IP67 Fully Waterproof Design — With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities that allow you to use it immediately without any additional waterproofing treatment. The protection has been tested under controlled laboratory conditions according to both GB/T 4208-2017 (domestic) and IEC 60529 (international) standards, ensuring splash protection, water resistance and dust immunity during normal use. This means your ESC can handle the demands of RC boat racing without fear of water damage compromising your electronics.
• Ultra-High Reliability Protection Suite — The SeaKing 120A V4 incorporates multiple layers of intelligent protection specifically designed for boat applications, including low voltage protection that prevents battery over-discharge, over-temperature protection to prevent thermal damage, throttle signal loss protection that safeguards against signal dropout, and overload protection that guards against excessive current draw. These protection strategies work together to enable the ESC to deliver powerful performance whilst significantly reducing the risk of damage under high-load conditions.
• Adjustable BEC with Exceptional Output Current — The built-in BEC (Battery Eliminator Circuit) features a high output current of 25 amps and adjustable output voltage with three selectable levels (6.0V, 7.4V, and 8.4V), allowing you to effortlessly power a wide range of high-performance servos and high-voltage receiver components. This provides enhanced control flexibility and a more enjoyable overall experience compared to ESCs with fixed voltage outputs. You can match the BEC voltage precisely to your servo requirements without needing external regulators.
• Capacitor Overheating Protection — Hobbywing has engineered dedicated capacitor overheating protection into this ESC to prevent damage caused by capacitor failure due to overloading, safeguarding the unit against complete failure. This protective feature is particularly valuable in competitive racing environments where peak loads are routine and thermal stress on components is significant.
• Advanced Freewheeling Function — When enabled, the Freewheeling function delivers multiple performance benefits: the ESC temperature runs cooler during operation, the boat decelerates faster when you release the throttle, and cornering control and handling characteristics improve noticeably. When disabled, the boat decelerates more slowly when throttle is released. This programmable function allows you to optimise ESC behaviour to match your boat's performance profile and your personal driving preferences.
• Built-in Data Logging for Performance Monitoring — By connecting the ESC to an optional OTA Bluetooth module, you can monitor real-time data including throttle position, voltage, temperature and speed via a mobile app. After your racing session, historical data can be viewed in the form of detailed curve graphs, providing a clear overview of the ESC and motor's performance and operating status. This performance analytics capability is invaluable for competitive tuning and identifying potential issues before they become failures.
• AUX External Control Channel — The yellow signal wire connects to an unused receiver channel, enabling real-time parameter adjustment using your remote control. This feature allows you to adjust ESC parameters such as reverse thrust during operation, adding genuine convenience to parameter management without needing to reprogram between runs.
• Slim Design for Easy Installation — At just 36mm wide, the SeaKing 120A V4 is significantly narrower than the previous SeaKing 120A V3 model (10% reduction), allowing for easier installation on narrow boats where space is at a premium. This design refinement means you can upgrade from older models without requiring extensive modifications to your boat's electronics bay.
• 11 Programmable Parameters — The ESC offers 11 fully programmable parameters designed to meet competitive racing needs, offering a wider and more detailed range of settings than simpler controllers. This level of programmability means you can fine-tune virtually every aspect of ESC behaviour to optimise your boat's performance.
• Firmware Update Support — The ESC supports firmware updates via Hobbywing's USB LINK software and the HW LINK mobile app, ensuring you always have access to the latest features and performance improvements. Updating requires either an LCD programming box or OTA module (sold separately), allowing you to keep your ESC current with future software enhancements.

Technical Performance

The Hobbywing SeaKing 120A V4 represents a significant engineering achievement in brushless RC boat ESC design. With continuous current handling of 120 amps and staggering peak current capacity of 500 amps, this controller is engineered for the demands of high-performance RC boats up to 100cm in length. The ESC accepts input voltage from 2-6S LiPo battery packs, providing exceptional flexibility in power system selection. This wide voltage range means you can choose battery configurations that optimise your boat's performance characteristics without worrying about ESC compatibility. The BEC output provides three voltage options—6.0V, 7.4V, and 8.4V at 25 amps—sufficient to power even high-torque servos and multiple receiver components simultaneously. The aluminium and composite construction provides excellent heat dissipation, whilst the compact 64.7 x 36.3 x 22.5mm form factor and 123.5 gram weight (including pre-installed wiring) make installation straightforward even in space-constrained hulls. Input wires are generous 12AWG gauge (150mm length) providing minimal voltage drop, whilst the three 12AWG output wires (100mm length) deliver consistent power to your brushless motor. The 4.0mm gold-plated connectors ensure reliable electrical contact and easy connection to high-current motors. Whether you're a competitive racer demanding absolute performance or a serious hobbyist who values reliability and advanced features, the SeaKing 120A V4 delivers the engineering quality and capability expected from Hobbywing's premium boat ESC range.

What's in the Box

• Hobbywing SeaKing 120A V4 Brushless Speed Control ESC
• Pre-soldered input wires: 1x red 12AWG (150mm), 1x black 12AWG (150mm)
• Pre-soldered output wires: 3x black 12AWG (100mm)
• 4.0mm gold-plated female connectors
• Yellow auxiliary signal wire for AUX channel control

What You Need to Complete

• Brushless motor suitable for 2-6S LiPo operation
• LiPo battery pack (2S, 3S, 4S, 5S or 6S configuration)
• LiPo battery charger
• RC receiver compatible with your transmitter
• RC boat hull with steering and throttle servos (optional: upgrade to high-torque servos compatible with 7.4V or 8.4V BEC output)
• Optional: LCD Programming Box Pro or OTA Bluetooth Module for advanced parameter tuning and performance monitoring
• Optional: LED Program Box for basic programming via LED indicators

Frequently Asked Questions

• What makes the Hobbywing SeaKing 120A V4 different from previous V3 models? — The V4 generation features a significantly slimmer design (10% narrower at 36mm width), making installation easier in confined boat spaces. It includes capacitor overheating protection to prevent catastrophic failures under peak load, an improved BEC capable of delivering 25 amps at three selectable voltage levels, built-in data logging with Bluetooth connectivity (via optional OTA module), Freewheeling function for improved throttle response and cornering control, and 11 programmable parameters for competitive racing applications. These enhancements make the V4 substantially more capable than V3 for serious RC boat enthusiasts.
• Is the SeaKing 120A V4 suitable for beginners in RC boat racing? — Whilst this ESC is packed with advanced features ideal for competitive racing, the fundamental operation is straightforward enough for beginners. However, the 120A rating is designed for high-performance boats and relatively powerful motors. Beginners with smaller boats (under 60cm) might find the 60A or 90A versions more appropriately matched to their needs. That said, the protective features and programmable nature of this ESC make it an excellent choice for anyone committed to learning RC boat racing seriously, as it won't limit your boat as your skills improve.
• What battery does the SeaKing 120A V4 require? — This ESC accepts LiPo batteries in 2S, 3S, 4S, 5S, or 6S configurations, providing exceptional flexibility in power system design. The choice depends on your motor's KV rating and your desired top speed. Most high-performance boats use 4S or 5S LiPo batteries with this ESC, though 6S configurations are possible. Always ensure your brushless motor is rated for your chosen battery voltage.
• Does the SeaKing 120A V4 really need additional waterproofing? — No. The IP67 rating means the ESC is fully waterproof and dustproof out of the box. It can be used immediately in wet conditions without additional waterproofing treatments. The IP67 standard ensures protection against splashes, water immersion, and dust under normal use, as verified by testing to GB/T 4208-2017 and IEC 60529 international standards. However, note that protection is not permanent and may decrease over time with normal wear and aging.
• Can I monitor my boat's performance in real-time with this ESC? — Yes, by connecting the ESC to an optional OTA Bluetooth module (sold separately), you can use the HW LINK mobile app to monitor real-time data including throttle position, battery voltage, ESC temperature, and motor speed. The module has an effective range of approximately 5 metres in open field conditions. After your run, you can review detailed historical performance graphs showing exactly how your boat and motor performed.
• How do I programme the 11 available parameters? — Programming is supported via multiple methods: LED Program Box (basic), LCD G2 Program Box, LCD PRO Program Box, or OTA Programmer (all sold separately). The programme port accepts throttle signal wire input and the yellow auxiliary signal cable. The LCD PRO box and OTA module provide the most user-friendly interfaces for adjusting all 11 programmable parameters.
• What is the Freewheeling function and should I enable it? — Freewheeling adjusts how the ESC handles motor braking when you release the throttle. When enabled, it allows the motor to freewheel (coast) more, resulting in cooler ESC temperatures, faster boat deceleration, and improved cornering control. When disabled, the motor provides more resistance, resulting in slower deceleration. The optimal setting depends on your boat design, motor characteristics, and driving style. Competitive racers typically experiment with both settings to find the best handling for their specific boat.
• Is this ESC suitable for 100cm race boats? — Yes. Hobbywing specifically rates the SeaKing 120A V4 as suitable for boats up to 100cm in length, making it ideal for serious competitive racing. The 120A continuous rating and 500A peak capability provide more than sufficient power for high-performance vessels in this size range.
