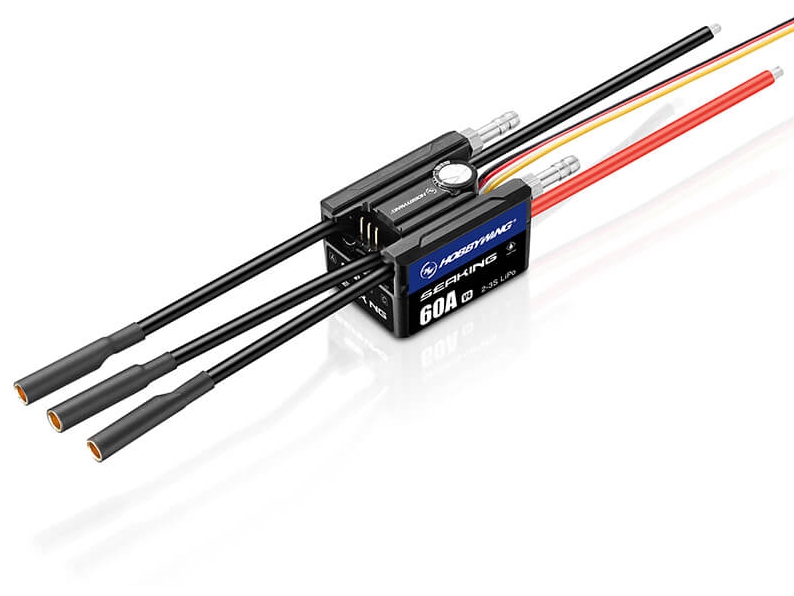

HOBBYWING SEAKING 60A V4 BRUSHLESS SPEED CONTROL HW30302202

Overview

The Hobbywing SeaKing 60A V4 Brushless Speed Control is a high-performance electronic speed controller (ESC) specifically engineered for competitive RC boat racing and high-speed aquatic models. This advanced brushless ESC represents the latest generation in Hobbywing's renowned SeaKing series, delivering exceptional reliability, durability and power management for serious RC enthusiasts and competitors across the UK. Whether you're piloting a sleek racing catamaran, a high-speed mono-hull, or any dedicated RC boat up to 60cm in length, the SeaKing 60A V4 provides the sophisticated electronic control needed to unlock your boat's true performance potential.

The SeaKing 60A V4 is purpose-built for water-based RC applications, featuring IP67 full waterproof protection that keeps your investment safe from splashes, submersion and moisture ingress without requiring any additional waterproofing treatment. This brushless RC speed controller combines cutting-edge technology with practical engineering, making it an ideal choice for anyone serious about RC boat performance, whether you're racing competitively or enjoying high-speed weekend runs at your local RC club or water venue across the United Kingdom.

At its core, the SeaKing 60A V4 offers competitive-grade performance with 11 programmable parameters, real-time data logging capabilities, and support for both sensored and sensorless brushless motors. The significantly narrower profile compared to the previous V3 generation makes installation considerably easier on narrow boat hulls, whilst the integrated BEC (battery eliminator circuit) with adjustable voltage output provides reliable power for servos and ancillary electronics without the need for separate power systems.

Key Features

• IP67 Full Waterproof Protection — This ESC boasts outstanding IP67-rated waterproof and dustproof capabilities, meaning it can be used immediately in wet conditions without any additional waterproofing treatment required. The rating has been tested under controlled laboratory conditions according to both GB/T 4208-2017 (domestic) and IEC 60529 (international) standards, ensuring genuine water and dust protection under normal use conditions.
• 60A Continuous / 200A Peak Current Rating — With a 60 amp continuous current capacity and an impressive 200 amp peak current capability, this ESC delivers the sustained power needed for competitive boat racing whilst handling acceleration spikes without degradation, making it suitable for boats up to 60cm in length.
• 2-3S LiPo Battery Compatibility — The SeaKing 60A V4 accepts 2-cell and 3-cell LiPo batteries, providing flexibility in power selection and runtime options based on your specific racing requirements and boat weight configuration.
• Adjustable BEC with High Output Current — The integrated battery eliminator circuit features adjustable output voltage at either 6.0V or 7.4V and delivers up to 7 amps of current, allowing effortless powering of high-performance and high-voltage servos without requiring external BEC modules or voltage regulators.
• Ultra-High Reliability and Durability — The SeaKing 60A V4 incorporates multiple protection strategies specifically designed for boat applications, including low voltage protection, over-temperature protection, throttle signal loss protection, and overload protection, enabling powerful performance while significantly reducing damage risk under high-load racing conditions.
• Slim Design for Easier Installation — At just 29mm in width, the SeaKing 60A V4 is 25% narrower than the previous V3 generation, allowing much easier installation on narrow boat hulls where space constraints have previously been problematic.
• Built-in Data Logging and Performance Monitoring — By connecting the ESC to the optional OTA Bluetooth module, you can monitor real-time data such as throttle position, voltage, temperature and speed via a mobile app with an effective range of approximately 5 metres, and subsequently review detailed historical performance data in curve graph format for comprehensive analysis of your ESC and motor behaviour.
• Freewheeling Function for Enhanced Control — When enabled, the Freewheeling function reduces ESC temperature, allows faster deceleration when throttle is released, and provides significantly better cornering control and overall handling characteristics compared to the standard operating mode.
• AUX External Control Channel — By connecting the yellow signal wire to an unused receiver channel, you can adjust ESC parameters such as reverse thrust in real-time using your remote control, adding considerable convenience to parameter management during testing and racing sessions.
• 11 Programmable Parameters — The ESC features extensive programmable settings designed specifically to meet competitive racing requirements, offering a wider and more detailed range of customisation options than previous generations for fine-tuning performance characteristics.
• Firmware Update Support — The ESC supports firmware updates via Hobbywing USB LINK software and the HW LINK mobile app, ensuring ongoing access to the latest features and performance improvements (firmware updates require an LCD programming box or OTA module, sold separately).
• Multiple Programming Options — The SeaKing 60A V4 can be programmed via LED Program Box, LCD G2 Program Box, LCD PRO Program Box, or OTA Programmer, providing flexibility in how you configure and manage your ESC parameters via either the throttle signal wire or throttle signal wire plus yellow signal cable.
• Brushless Motor Compatibility — This ESC is fully compatible with both sensored and sensorless brushless motors, providing versatility in motor selection and allowing you to choose based on your performance requirements and budget considerations.

Technical Performance

The Hobbywing SeaKing 60A V4 represents a significant advancement in brushless RC boat ESC technology, combining robust hardware engineering with sophisticated software optimisation specifically tailored for aquatic racing applications. The 60-amp continuous current rating with 200-amp peak capacity delivers the sustained, reliable power output necessary for competitive boat racing whilst maintaining excellent thermal management and reliability even under demanding high-speed conditions. The ESC accepts 2-3S LiPo batteries, making it compatible with a wide range of modern RC boat battery systems in current use across the United Kingdom.

Build quality is exceptional throughout, featuring input wires rated at red 14AWG-85mm and black 14AWG-85mm for reliable battery connections, with three black 14AWG-85mm output wires delivering power to your brushless motor through industry-standard 4.0mm gold female connectors. The total weight of 64.6 grams (including wires and output plug) keeps the ESC lightweight for optimal boat weight distribution, whilst the compact dimensions of 38.7 x 29 x 25 millimetres ensure compatibility with tight installation spaces typical of modern racing hulls. The IP67 waterproof rating means this ESC can handle the demanding wet environment of RC boat racing without fear of water ingress, moisture damage or performance degradation, providing genuine peace of mind during competitive events and recreational water sessions.

What's in the Box

• Hobbywing SeaKing 60A V4 Brushless Speed Control ESC
• Pre-soldered input wires with battery connectors (red and black 14AWG, 85mm length)
• Three motor output wires (black 14AWG, 85mm length) with 4.0mm gold female connectors
• Yellow signal wire for AUX external control channel functionality

What You Need to Complete

• 2-3S LiPo battery pack (2-cell or 3-cell configuration)
• Brushless motor (sensored or sensorless compatible)
• RC receiver compatible with standard servo signal protocols
• RC transmitter and receiver system
• Optional: LCD Programming Box, LCD PRO Program Box, or OTA Programmer module for advanced parameter configuration
• Optional: OTA Bluetooth module (sold separately) for real-time data monitoring and historical data logging via mobile app

Frequently Asked Questions

• Is the Hobbywing SeaKing 60A V4 truly waterproof for RC boat racing? — Yes, the SeaKing 60A V4 features an IP67 waterproof rating that has been rigorously tested according to international standards GB/T 4208-2017 and IEC 60529, ensuring protection against splashes, water submersion and dust under normal use conditions. It can be deployed immediately without any additional waterproofing treatment, making it ideal for serious RC boat racing and high-speed water applications across the UK.
• What battery type and cell count does this ESC require? — The SeaKing 60A V4 accepts 2-cell (2S) and 3-cell (3S) LiPo batteries, providing flexibility in power configuration. The choice between 2S and 3S depends on your specific motor, boat weight, and desired performance characteristics, with 3S configurations generally offering higher top-end speed but requiring appropriate motor KV selection.
• What is the maximum boat size suitable for the 60A ESC? — Hobbywing recommends the SeaKing 60A V4 for RC boats up to 60 centimetres in length, making it ideal for popular racing catamaran, mono-hull and speedboat models in this size category commonly used for competitive racing.
• How does the SeaKing 60A V4 compare to the 30A and 90A models in the series? — The 60A model sits in the middle of the SeaKing V4 range, offering 60A continuous / 200A peak current suitable for boats up to 60cm. The smaller 30A model (30A/100A peak) suits boats up to 45cm with 2-3S LiPo batteries, whilst the larger 90A model (90A/360A peak) handles boats up to 80cm and accepts 2-4S LiPo batteries. The 60A V4 is 25% narrower than the previous V3 generation, significantly improving installation on narrow hulls.
• Can I monitor real-time performance data during racing with this ESC? — Yes, by connecting the optional OTA Bluetooth module (sold separately), you can monitor real-time throttle position, voltage, temperature and speed data via a mobile app with an effective 5-metre range. After racing, you can review detailed historical performance data in curve graph format, providing comprehensive insight into your ESC and motor behaviour during competition.
• What programming options are available for parameter configuration? — The SeaKing 60A V4 supports multiple programming methods including LED Program Box, LCD G2 Program Box, LCD PRO Program Box, and OTA Programmer, all sold separately. You can also adjust certain parameters in real-time using the AUX external control channel by connecting the yellow signal wire to an unused receiver channel.
• Does this ESC support firmware updates? — Yes, the SeaKing 60A V4 supports firmware updates via Hobbywing USB LINK software and the HW LINK mobile app, ensuring you always have access to the latest features and performance improvements. Firmware updates require an LCD programming box or OTA module, which are sold separately.
• What is the Freewheeling function and why would I use it? — The Freewheeling function, when enabled, reduces ESC operating temperature, allows significantly faster boat deceleration when throttle is released, and provides considerably better cornering control and overall handling characteristics. This is particularly valuable for competitive racing where rapid directional changes and precise speed control are essential.
• Is the SeaKing 60A V4 suitable for both beginners and experienced racers? — Whilst the ESC is feature-rich and suitable for competitive racing with 11 programmable parameters, it can also serve experienced hobbyists well. Beginners should note that optimal setup requires understanding of RC boat systems, motor KV ratings and battery configurations, though the straightforward design and extensive protection strategies make it relatively forgiving for learning purposes.
• What protection features does this ESC include? — The SeaKing 60A V4 incorporates low voltage protection to prevent over-discharge of your LiPo battery, over-temperature protection to prevent thermal damage, throttle signal loss protection for safe operation if radio connection is lost, and comprehensive overload protection to safeguard the ESC under high-stress racing conditions. These robust protection strategies are specifically designed for boat applications and enable powerful performance whilst significantly reducing damage risk.
