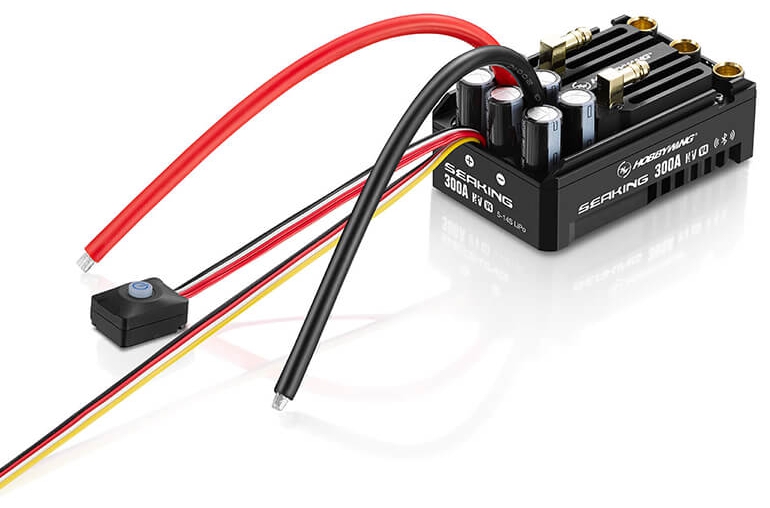

HOBBYWING SEAKING 300A HV V4 BRUSHLESS SPEED CONTROL HW30301202

Overview

The Hobbywing SeaKing 300A HV V4 is a professional-grade brushless electronic speed control (ESC) designed specifically for high-performance RC boats. This advanced waterproof ESC represents the pinnacle of marine RC electronics engineering, delivering exceptional reliability and durability for competitive racing enthusiasts and serious hobbyists across the UK. Whether you're piloting a high-speed racing catamaran or pushing the limits of your brushless RC boat, the SeaKing 300A HV V4 provides the power, control and smart features you need to dominate on the water.

Built to handle extreme conditions with unwavering performance, this ESC supports up to 14S LiPo batteries and delivers a continuous current of 300A with peak capability of 1600A, making it ideal for large-scale boats up to 180cm in length. The all-metal construction with integrated radiator ensures reliable heat dissipation during intense racing sessions, whilst the IP67 fully waterproof design means your boat electronics are protected from splashes, water ingress and dust without requiring any additional waterproofing treatment. The SeaKing 300A HV V4 combines raw power with intelligent features like built-in Bluetooth connectivity, data logging capabilities and spark-proof circuit protection that simply aren't found on standard brushless RC boat ESCs.

This is not just an ESC for casual boating — it's engineered for the competitive racer who demands precision control, real-time performance monitoring and the flexibility to fine-tune every parameter on the fly. UK RC enthusiasts who have invested in quality brushless motors and high-voltage battery systems will appreciate the advanced programmability and user-friendly interface that makes setting up and optimising the SeaKing 300A HV V4 straightforward and intuitive.

Key Features

• 300A Continuous Current Rating with 1600A Peak Output — This exceptional power delivery capability makes the SeaKing 300A HV V4 one of the most powerful ESCs for brushless RC boats, enabling you to harness the full potential of high-performance motors without current limitations holding back acceleration or top speed.
• 14S LiPo Battery Support with 5-14S Input Voltage Range — The ESC accepts battery configurations from 5S through to 14S LiPo, providing complete flexibility in battery selection and allowing you to match your power system precisely to your boat's performance requirements and racing class specifications.
• IP67 Fully Waterproof Design with Tested Protection Standards — Engineered to IP67 protection rating, this ESC has been rigorously tested under controlled laboratory conditions to both GB/T 4208-2017 (domestic) and IEC 60529 (international) standards, ensuring protection against splashes, water and dust during normal operation without any additional waterproofing measures needed.
• All-Metal Casing with Integrated Radiator — The robust metal construction combined with heat-dissipating radiator design handles high-load applications under extreme conditions, maintaining stable performance during extended racing sessions and reducing the risk of thermal throttling.
• Built-in Bluetooth Module with HW Link App Integration — Connect wirelessly to the HW Link mobile application (available up to 5 metres range) for parameter configuration, real-time data reading and firmware upgrades without requiring any additional programming devices or equipment.
• Advanced Data Logging with Historical Performance Graphs — The integrated data logging module records the latest 10 minutes of operation, allowing you to review detailed historical data in graph format after your session to monitor both ESC performance and motor behaviour for optimisation and troubleshooting.
• Super Built-in BEC with 28A Output and Switchable Voltages — The onboard battery elimination circuit (BEC) delivers up to 28A of current with selectable output voltages of 6V, 7.4V or 8.4V, providing reliable power for high-torque and high-voltage servo systems with seamless responsive control and no external BEC required.
• Built-in Spark-Proof Circuit Protection — The spark-proof circuit safeguards battery connectors from damage when using higher voltage batteries (6-14S), whilst also preventing dangerous electrical sparks that could cause injury, making connection and disconnection of high-voltage LiPo packs considerably safer.
• Extra-Large 4080µF Built-in Capacitor Pack — This substantial super-capacitor pack eliminates the need for external capacitors in 99% of applications, whilst integrated capacitor temperature protection ensures the capacitors remain in safe working condition even during intense extended usage sessions.
• Freewheeling Function for Enhanced Handling Control — When enabled, the freewheeling function reduces ESC operating temperature and improves deceleration response when you release the throttle, enhancing steering control precision during high-speed turns and manoeuvres for more predictable boat behaviour.
• AUX External Control Channel for Real-Time Parameter Adjustment — By connecting the yellow signal wire to an unused receiver channel, you can adjust critical ESC parameters like reverse thrust directly from your remote control during operation, adding convenience to real-time parameter management without interrupting your race.
• Dual Programming Method with Multiple Compatible Devices — Beyond the HW Link App via Bluetooth, the ESC features an independent programming port supporting LED program boxes and multiple LCD programming options (LCD G2, LCD PRO), offering maximum flexibility for parameter configuration based on your preferred setup method.
• 11 Programmable Parameters for Competitive Racing Needs — The extensive programmable parameter set provides the detailed control necessary for competitive racing applications, allowing you to customise behaviour for specific race conditions, boat characteristics and personal driving preferences.
• Linear Control Characteristic for Smooth Precise Operation — The ESC delivers high output power with linear throttle response, ensuring smooth gradual acceleration and deceleration curves rather than sudden power delivery, resulting in more predictable and controllable boat performance across the entire throttle range.

Technical Performance

The Hobbywing SeaKing 300A HV V4 represents advanced engineering designed specifically for high-performance brushless RC boats. With its sensorless brushless control system, the ESC achieves a continuous current rating of 300A with peak burst capability reaching 1600A, providing exceptional power delivery for the most demanding marine applications. The support for 14S LiPo batteries (5-14S input voltage range) positions this ESC at the top tier of brushless RC boat electronics, capable of powering large-scale racing boats up to 180cm in length with consistent, reliable performance even under extreme racing conditions. The robust all-metal construction with integrated aluminium radiator ensures efficient heat dissipation during extended high-power operations, maintaining thermal stability and preventing performance degradation. The integrated 4080µF capacitor pack handles voltage spikes and electrical noise, whilst the spark-proof circuit design protects against the dangerous electrical arcs that can occur with high-voltage battery connections. For servo systems, the built-in switch-mode BEC delivers up to 28A at selectable voltages (6V, 7.4V or 8.4V), providing more than adequate power for high-torque digital servos. The IP67 waterproof rating, tested to both GB/T 4208-2017 and IEC 60529 international standards, ensures protection against water ingress and dust in authentic marine environments without requiring additional waterproofing. Combined with the built-in Bluetooth connectivity for parameter adjustment and data logging capabilities that record and graphically display the previous 10 minutes of operation, the SeaKing 300A HV V4 offers the sophisticated feature set expected by competitive RC racing enthusiasts and demanding hobbyists who require performance monitoring and real-time optimisation capabilities.

What's in the Box

• Hobbywing SeaKing 300A HV V4 Brushless ESC
• Black 8AWG input wire (200mm)
• Red 8AWG input wire (200mm)

What You Need to Complete

• 5-14S LiPo battery with compatible connector
• RC radio receiver with 3+ channels
• Brushless motor compatible with sensorless ESC operation
• Servo or servos for directional control (if not already owned)
• HW Link mobile app (download free from app store) or optional programming box for parameter configuration

Frequently Asked Questions

• What is the maximum battery voltage this ESC can handle? — The SeaKing 300A HV V4 supports up to 14S LiPo batteries, with an input voltage range of 5-14S, making it one of the few brushless ESCs capable of handling the highest-voltage battery configurations available for RC boats. This extensive voltage range ensures compatibility with nearly any LiPo battery pack you might already own or purchase in future.
• Is this ESC fully waterproof and safe for use in water? — Yes, the SeaKing 300A HV V4 features an IP67 protection rating, which has been rigorously tested to both GB/T 4208-2017 (domestic) and IEC 60529 (international) standards. The rating ensures protection against splashes, water ingress and dust under normal use without requiring any additional waterproofing treatment. However, the protection is not permanent and may gradually decrease with wear and ageing through repeated exposure.
• Can I adjust parameters on the water without taking my boat back to the shoreline? — Yes, thanks to the AUX external control channel feature, you can connect the yellow signal wire to an unused receiver channel and adjust ESC parameters like reverse thrust directly from your remote control during operation. This real-time adjustment capability is invaluable for fine-tuning performance during racing sessions without interruption.
• What programming options are available for setting up the ESC? — The SeaKing 300A HV V4 offers multiple programming methods for maximum flexibility: you can use the wireless HW Link mobile app via the built-in Bluetooth module (effective up to 5 metres), programme directly through the independent programming port using an LED program box, or use optional LCD program boxes (LCD G2 or LCD PRO). This dual programming approach means you can choose the setup method that best suits your preferences and available equipment.
• Does this ESC include a BEC for powering servos? — Yes, the integrated switch-mode BEC delivers up to 28A of output current with selectable output voltages of 6V, 7.4V or 8.4V, providing ample power for high-torque and high-voltage servo systems. This means you won't need an external battery elimination circuit (BEC) device for your servo power supply.
• What data logging capability does this ESC provide? — The SeaKing 300A HV V4 records the latest 10 minutes of operation and supports real-time data viewing as well as historical data displayed in graph format. By connecting to the HW Link mobile app after your racing session, you can review performance data to analyse ESC and motor behaviour for optimisation purposes.
• How large a boat can this ESC power? — The SeaKing 300A HV V4 is rated for use in boats up to 180cm in length, making it suitable for large-scale racing catamarans and performance-oriented RC boats in this size range.
• What happens if I accidentally create a spark when connecting my high-voltage battery? — The built-in spark-proof circuit protects the battery connectors from damage when connecting 6-14S batteries, whilst also preventing dangerous electrical sparks from occurring. This is a critical safety feature when working with high-voltage LiPo packs, protecting both your equipment and your fingers from potential injury.
• Is the freewheeling function always enabled? — No, the freewheeling function is programmable and can be enabled or disabled based on your preference. When enabled, it reduces ESC temperature and improves deceleration response when you release the throttle, enhancing steering control during turns. When disabled, the boat will decelerate more slowly. You can test both settings to determine which works better for your boat and racing style.
• Does this ESC support sensorless motor operation? — Yes, the SeaKing 300A HV V4 is a sensorless brushless ESC, meaning it operates without requiring hall-effect sensors in the motor. This is the standard configuration for most high-performance brushless RC boat motors available in the UK market.
