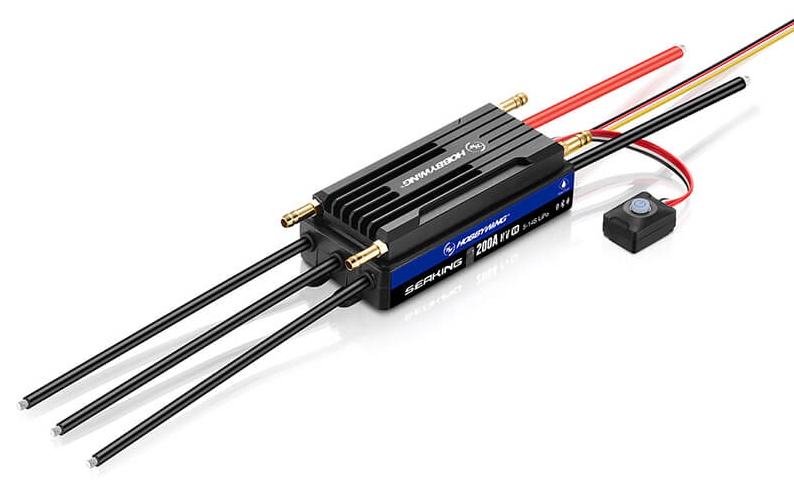

HOBBYWING SEAKING 200A HV V4 BRUSHLESS SPEED CONTROL HW30301201

Overview

The Hobbywing SeaKing 200A HV V4 is a premium brushless speed controller designed specifically for high-performance RC boats. This is a top-tier electronic speed control (ESC) that delivers exceptional power and reliability for competitive and recreational boating enthusiasts across the UK. Whether you're piloting a speedboat, catamaran, or high-performance racing vessel, the SeaKing 200A HV V4 offers the advanced features and robust engineering that serious RC boat racers demand. This ESC represents the pinnacle of Hobbywing's marine electronics technology, combining cutting-edge features with proven durability.

What sets the SeaKing 200A HV V4 apart in the RC boat market is its impressive specification sheet and intelligent design philosophy. With support for up to 14S LiPo batteries and continuous current delivery of 200A, this ESC can handle high-load applications with explosive acceleration and precise, responsive control. The combination of immense power and excellent linear throttle response makes this an ideal choice for anyone serious about RC boat performance, whether you're engaged in competitive racing or weekend bashing on lakes and rivers across the UK. This is a brushless RC speed controller built for those who refuse to compromise on quality or performance.

The SeaKing 200A HV V4 demonstrates Hobbywing's commitment to innovation and user experience, featuring built-in Bluetooth connectivity, advanced data logging, and comprehensive waterproofing. Unlike many competitors, this ESC comes ready to use with IP67 waterproof protection, eliminating the need for additional aftermarket waterproofing treatments. For RC boat enthusiasts in the UK seeking a reliable, feature-rich speed controller that can handle demanding applications, the SeaKing 200A HV V4 is an outstanding choice that delivers professional-grade performance at a competitive price point.

Key Features

• 14S High Voltage Support with 200A Continuous Current — This ESC supports input voltage from 5S to 14S LiPo batteries with a peak current rating of 1000A and continuous output of 200A, delivering the raw power needed for high-performance RC boats. This exceptional current capacity means you can run multiple high-performance motors or extremely demanding applications without worrying about current limitations or performance throttling.
• IP67 Fully Waterproof Design — With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities that have been tested under controlled laboratory conditions according to both GB/T 4208-2017 domestic standards and IEC 60529 international standards. The waterproof design means you can use the SeaKing 200A HV V4 immediately without any additional waterproofing treatment, making it perfect for demanding aquatic environments. Note that the protection is not permanent and may decrease with wear and ageing, so regular maintenance is recommended for long-term reliability.
• Built-in Bluetooth with Mobile App Control — The ESC features a built-in Bluetooth module allowing easy connection to Hobbywing's HW LINK mobile app for comprehensive parameter settings, real-time data reading, and firmware upgrades without requiring any additional programming devices. This user-friendly wireless connectivity (effective up to approximately 5 metres) makes tuning and configuration straightforward, whether you're at the water's edge or in the workshop preparing your RC boat for competition.
• Built-in Data Logging for Performance Monitoring — Equipped with an internal logging module, this ESC can record up to 10 minutes of operational data including performance metrics for both the ESC and motor. By connecting to the mobile app after your session, you can view historical data in graph format, allowing detailed analysis of both ESC and motor performance to optimise your setup for maximum efficiency and speed.
• Powerful 25A Built-in BEC with Switchable Voltage Output — The integrated Battery Elimination Circuit (BEC) delivers up to 25A of current with switchable output voltages of 6V, 7.4V, or 8.4V, providing seamless power for high-torque and high-voltage servo systems. This eliminates the need for a separate receiver battery pack in many applications, simplifying your RC boat setup and reducing weight and complexity.
• Built-in Spark-proof Design for Safety and Protection — The ESC includes a spark-proof circuit that protects battery plugs from damage when using higher voltages (6S to 14S), whilst also preventing injuries from strong electrical sparks that can occur during connection and disconnection. This safety feature is particularly valuable when working with high-voltage battery packs, protecting both your equipment and yourself.
• Dual-Channel Water Cooling System — This ESC features a sophisticated dual-channel water cooling system providing enhanced heat dissipation and ensuring the ESC remains within a safe operating temperature range during extended use. The water cooling technology is critical for maintaining consistent performance during competitive racing or prolonged sessions, preventing thermal throttling that could compromise your boat's speed and control.
• Capacitor Overheating Protection — The capacitor overheating protection circuit helps prevent damage to the ESC caused by capacitor failure due to overloading, safeguarding the entire unit against catastrophic failure and extending the lifespan of your expensive electronics.
• Freewheeling Function for Improved Control and Cooling — The freewheeling function reduces ESC temperature whilst improving deceleration when the throttle is released and enhancing steering control during turns. When enabled, the boat decelerates faster when you release throttle; when disabled, deceleration is more gradual, allowing you to fine-tune the handling characteristics to match your driving style and preferences.
• AUX External Control Channel for Real-time Parameter Adjustment — By connecting the yellow signal wire to an unused receiver channel, you can adjust ESC parameters like reverse thrust in real-time using your remote control transmitter. This on-the-fly tuning capability is invaluable during competitive racing, allowing you to make critical adjustments without stopping your boat to reprogram settings.
• Versatile 11 Programmable Parameters — The SeaKing 200A HV V4 offers 11 programmable parameters designed to meet competitive racing needs, providing a wider and more detailed range of settings than many competing ESCs. This flexibility ensures you can optimise every aspect of the ESC's behaviour to match your specific boat configuration, motor choice, and driving preferences.
• Sensorless Brushless Operation — This ESC is designed to work with sensorless brushless motors, offering the smooth, efficient power delivery and minimal maintenance that modern brushless technology provides, without the complexity and cost of sensored systems.

Technical Performance

The Hobbywing SeaKing 200A HV V4 represents a significant advancement in RC boat ESC technology, combining exceptional power handling with sophisticated control electronics. The 200A continuous current rating, backed by a peak capability of 1000A, makes this ESC suitable for the most demanding applications including twin-motor setups, large displacement RC boats, and extreme performance racing. The support for up to 14S LiPo batteries (52.8V nominal) provides access to an enormous power envelope whilst maintaining linear throttle response and precise control. The sensorless brushless design eliminates the need for motor sensor wires, simplifying installation and reducing potential failure points. The dual-channel water cooling system represents cutting-edge thermal management, essential for maintaining consistent performance during competitive racing where every fraction of a second counts. The 25A built-in BEC with multiple voltage output options (6V, 7.4V, 8.4V) provides genuine flexibility for powering high-torque servo systems without requiring additional battery packs. All of this is housed in a compact 106×51×31mm form factor weighing just 386g including wires and connectors, making the SeaKing 200A HV V4 a space-efficient solution for modern RC boat designs. The IP67 waterproof rating, tested to international standards IEC 60529 and domestic standard GB/T 4208-2017, ensures reliable operation in wet marine environments. With built-in Bluetooth connectivity, comprehensive data logging, firmware upgrade capability, and 11 programmable parameters, this ESC offers the technical sophistication and flexibility demanded by serious RC boat competitors and enthusiasts across the UK.

What's in the Box

• Hobbywing SeaKing 200A HV V4 ESC unit
• Black 8AWG input wire (200mm length)
• Red 8AWG input wire (200mm length)
• Three black 10AWG output wires (150mm length each)
• 6.5mm female output connectors

What You Need to Complete

• 5S to 14S LiPo battery pack compatible with your RC boat
• Brushless motor suitable for marine applications
• RC receiver compatible with your transmitter system
• RC transmitter/remote control
• Servo(s) for steering control
• Battery charger compatible with LiPo batteries
• Male XT connectors or suitable connectors to match your battery and motor leads (soldering required)

Frequently Asked Questions

• What is the maximum battery voltage this ESC can handle? — The SeaKing 200A HV V4 supports input voltages from 5S to 14S LiPo, meaning the maximum voltage is approximately 52.8V (14S nominal). This extensive voltage range makes it compatible with virtually any LiPo battery configuration used in modern RC boating, from modest 5S setups to extreme 14S race configurations.
• Does this ESC require additional waterproofing? — No, the SeaKing 200A HV V4 features an IP67 waterproof rating and can be used immediately without any additional waterproofing treatment. The IP67 rating ensures protection against splashes, water, and dust under normal use conditions, though the protection may decrease over time with wear and ageing, so regular inspection and maintenance is advisable.
• Can I adjust ESC settings whilst my boat is running on the water? — Yes, the AUX external control channel allows you to adjust ESC parameters like reverse thrust in real-time using your remote control transmitter. This on-the-fly tuning capability is one of the standout features for competitive racing, allowing mid-session adjustments without stopping your boat.
• What are the data logging capabilities? — The SeaKing 200A HV V4 includes a built-in logging module that records up to 10 minutes of operational data, capturing extreme values and real-time performance metrics for both the ESC and motor. After your session, connect via Bluetooth to the HW LINK app to view historical data in graph format, helping you understand how your boat and motor performed.
• How much current can the built-in BEC supply? — The built-in BEC can deliver up to 25A of current with switchable output voltages of 6V, 7.4V, or 8.4V, providing sufficient power for multiple high-torque servos without requiring a separate receiver battery pack.
• Is this ESC suitable for beginner RC boat pilots? — Whilst the SeaKing 200A HV V4 is an advanced, competition-grade ESC with sophisticated features like data logging and programmable parameters, it is suitable for intermediate and advanced pilots who understand high-voltage systems and want access to professional-grade performance and control options. Beginners might benefit from simpler ESCs, though this unit's user-friendly Bluetooth app connectivity and extensive documentation make it approachable for those willing to learn.
• What type of motor should I use with this ESC? — The SeaKing 200A HV V4 is designed for sensorless brushless motors suitable for marine RC boat applications. Your motor choice should match your boat size, desired performance level, and battery voltage. Boats up to 140cm are recommended for optimal performance with this ESC.
• What is the difference between this and the previous SeaKing generation? — The V4 designation indicates this is the fourth generation of Hobbywing's SeaKing series, featuring the latest technology including improved water cooling, enhanced Bluetooth connectivity with data logging, spark-proof circuit design, and comprehensive programmable parameters. The V4 represents a significant evolution in reliability, feature set, and user control compared to earlier generations.
• Can I use this ESC in saltwater environments? — Whilst the IP67 rating provides excellent waterproof protection, saltwater presents additional corrosion challenges. If using in saltwater, you should rinse the ESC thoroughly with fresh water immediately after use and consider additional protective measures. Regular maintenance is essential for longevity in saltwater conditions.
• What does the spark-proof design protect against? — The built-in spark-proof circuit prevents damage to battery connectors and protects against strong electrical sparks that can occur when connecting or disconnecting high-voltage (6S to 14S) battery packs. This protection benefits both your equipment and your personal safety, preventing potential burns or injuries from arcing.
