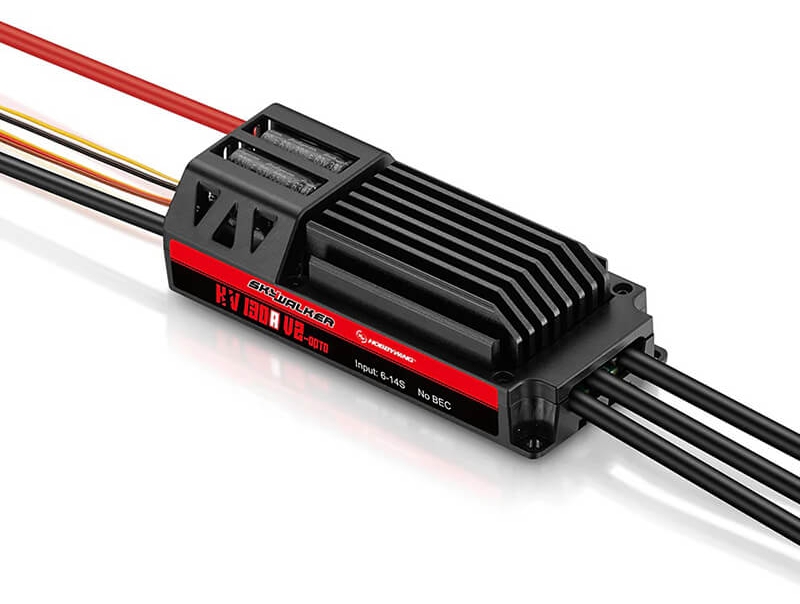

HOBBYWING SKYWALKER 130A HV 14S OPTO V2 BRUSHLESS ESC HW30222300

Overview

The HOBBYWING SKYWALKER 130A HV 14S OPTO V2 Brushless ESC is a high-performance electronic speed controller specifically engineered for RC fixed-wing aircraft and 3D aerobatic planes. This advanced ESC delivers exceptional reliability and precision control, making it an excellent choice for experienced RC pilots in the UK who demand professional-grade performance. Whether you're flying large-scale 60-74 inch 3D RC planes or need a robust ESC for competitive aerobatics, the SkyWalker 130A HV OPTO V2 provides the power, responsiveness, and safety features required for demanding flight operations.

Hobbywing has established itself as a trusted manufacturer of RC electronics, and the SkyWalker V2 series represents the pinnacle of fixed-wing ESC technology. Built around a powerful 32-bit ARM M4 microprocessor running at up to 120 MHz, this ESC achieves operational frequencies that rival professional-grade aviation electronics. The 130A continuous current rating with 160A peak capability means this ESC can handle high-power brushless motors that demand precise, responsive throttle control. For RC plane enthusiasts across the UK, from weekend flyers to competition pilots, the SkyWalker 130A HV OPTO V2 offers the advanced features and protection systems needed for reliable, consistent flight performance.

What sets this brushless RC ESC apart from standard models is its comprehensive feature set designed specifically for modern RC aircraft operations. The integration of Drive Efficiency Optimisation (DEO) technology, Reverse Brake functionality, built-in Search Mode for aircraft recovery, and multiple protection systems creates an ESC that not only performs exceptionally but also extends component lifespan and enhances flight safety. This is a professional-specification ESC that won't compromise on any aspect of performance or reliability.

Key Features

• 32-bit ARM M4 Microprocessor with 120 MHz Operational Frequency — The advanced processing power enables extremely responsive throttle control and precise motor management, delivering smooth acceleration and deceleration curves that pilots can feel in every flight manoeuvre. This high-performance processor supports motor speeds up to 300,000 RPM for 2-pole motors, providing exceptional flexibility for various brushless motor configurations used in RC aircraft.
• Drive Efficiency Optimisation (DEO) Technology — This sophisticated algorithm optimises the relationship between throttle input and motor output, resulting in significantly lower ESC operating temperatures during flight. DEO technology extends your flight duration by improving driving efficiency and enhances overall reliability by reducing thermal stress on components. Pilots who want to push the limits during high-demand 3D aerobatics can simply disable DEO for maximum raw performance.
• Reverse Brake and Linear Reverse Brake Functions — The reverse brake mode allows RC pilots to simulate realistic aircraft landing scenarios with remarkable accuracy, effectively shortening landing distance and adding a professional dimension to flight operations. Adjustable brake amount lets you customise the braking response to match your flying style, whilst Normal Brake and Brake Disabled options provide complete flexibility. This feature is invaluable for landing on short airfields or crowded RC flying sites across the UK.
• Built-in Search Mode for Aircraft Recovery — If your RC plane goes down in challenging terrain or dense vegetation, the Search Mode sends distinctive motor signals that create audible alarm beeps, helping you locate your aircraft quickly and safely. Additionally, Search Mode includes an intelligent feature that alerts you to disconnect the battery from an idle plane, preventing unnecessary power drain and potential battery damage during downtime or after a crash.
• Comprehensive Protection System — The ESC includes input voltage monitoring, over-temperature safeguard, lost throttle signal protection, and low-voltage cutoff. These multiple protection layers work together to extend the service life of your expensive brushless motor and batteries, ensuring your RC aircraft remains flight-ready for years to come. Startup protection, capacitor thermal protection, and over-current/overload protection provide complete peace of mind during every flight session.
• Flexible Programming Options — Configure your ESC using either a Hobbywing LED Program Box or directly through your transmitter, whichever method suits your preferences. This flexibility means you can adjust parameters and fine-tune settings anywhere, whether at the flying field or at home in your workshop, giving you complete control over ESC behaviour.
• High-Voltage Battery Compatibility — Designed to work with 6-14S LiPo batteries, this ESC is future-proof for high-performance setups. The high-voltage architecture means you can use more powerful battery configurations to drive larger, more demanding brushless motors, giving you exceptional power and flight time for serious RC aircraft operations.
• No BEC Output — This ESC does not include an integrated Battery Elimination Circuit, meaning you'll need to power your receiver and servos independently. This design choice reduces complexity and potential power delivery issues, allowing dedicated power systems to handle receiver and servo requirements separately for maximum reliability.
• Robust Wiring and Connectors — The ESC features 10AWG input wires rated for high-current applications, ensuring safe power delivery from your battery pack. Three 10AWG output wires provide reliable motor connections for large brushless motors, whilst the lack of integrated connectors allows you to choose connection methods that best suit your aircraft setup and personal preferences.

Technical Performance

The HOBBYWING SKYWALKER 130A HV 14S OPTO V2 represents a significant engineering achievement in brushless RC ESC design. At its core sits a powerful 32-bit ARM M4 microprocessor capable of running at frequencies up to 120 MHz, processing motor control algorithms at speeds that enable real-time response to pilot inputs. The 130A continuous current rating with 160A peak capability makes this ESC suitable for large-scale RC aircraft applications, supporting brushless motor sizes from 60-74 inches. The ESC achieves motor control frequencies that support speeds up to 300,000 RPM for 2-pole motors, making it compatible with a wide range of high-performance brushless motors available for RC aircraft in the UK market.

Build quality is exceptional throughout, with the ESC measuring 104mm x 48mm x 29mm and weighing 253.2g. The compact size belies the sophisticated electronics packed inside, with multiple layers of protection circuitry monitoring input voltage, motor temperature, capacitor temperature, current draw, and throttle signal integrity. The separate programming cable allows safe configuration without risking your aircraft, and the comprehensive feature set reflects Hobbywing's understanding of real-world RC aircraft operations. The 10AWG wiring specification ensures minimal voltage drop even under maximum current draw, maintaining consistent performance throughout your flight sessions. Whether you're flying at sea level or at altitude across the UK, this ESC maintains stable, predictable performance that serious RC pilots can depend on for competition flying or demanding aerobatic sequences.

What's in the Box

• HOBBYWING SkyWalker 130A HV OPTO V2 Brushless ESC
• Programming cable for LED Program Box configuration
• Input wires: Red 10AWG 300mm, Black 10AWG 300mm
• Output wires: Three Black 10AWG 150mm

What You Need to Complete

• 6-14S LiPo battery pack
• Brushless motor (60-74 inch RC aircraft class recommended)
• RC transmitter and receiver compatible with Hobbywing ESCs
• Servo power supply system (ESC provides no BEC output)
• Hobbywing LED Program Box (for advanced parameter tuning)
• RC aircraft airframe with suitable motor mount

Frequently Asked Questions

• What battery does the HOBBYWING SkyWalker 130A HV 14S OPTO V2 need? — This ESC is designed to work with 6-14S LiPo battery packs, making it extremely versatile for various RC aircraft power requirements. The high-voltage design allows you to use larger battery configurations that deliver the power needed for large-scale RC planes. Always ensure your battery pack is properly balanced and matched to your motor specifications for optimal performance and safety.
• Is this ESC suitable for beginners? — The SkyWalker 130A HV OPTO V2 is a professional-grade electronic speed controller designed for experienced RC aircraft pilots. Beginners should start with simpler ESC models before progressing to this level of sophistication. The advanced features, high current rating, and 6-14S LiPo compatibility make this best suited for pilots with established skills in RC aircraft operations and a good understanding of brushless motor systems.
• What makes DEO Technology valuable in RC aircraft? — Drive Efficiency Optimisation technology improves how your ESC translates throttle stick input into motor speed, resulting in smoother, more predictable acceleration and better throttle response. The efficiency improvements reduce heat generation during flight, meaning lower ESC temperatures and longer flight times because less energy is wasted as heat. For 3D aerobatics where precise control matters most, you can simply disable DEO to access raw motor response, giving you complete control over ESC behaviour for your specific flying style.
• How does Search Mode help recover a lost RC aircraft? — If your aircraft becomes lost or crashes in difficult terrain, the Search Mode feature sends a distinctive pattern of motor signals that create audible alarm beeps when the ESC powers on. This helps you locate your aircraft by sound alone, which is invaluable when searching through dense grass, bushes, or woodland. The feature also reminds you to disconnect the battery from idle planes, preventing battery drain and potential damage during storage or after crashes.
• What protection features does this ESC include? — The SkyWalker 130A HV OPTO V2 includes comprehensive protection systems including input voltage monitoring to detect battery faults, over-temperature safeguards to prevent thermal damage, capacitor thermal protection, over-current and overload detection, lost throttle signal protection to prevent runaway motors, and low-voltage cutoff to protect your batteries. These multiple layers of protection work together to extend the lifespan of your expensive components and ensure safe, reliable operation every time you fly.
• Can I programme this ESC without a Program Box? — Yes, the SkyWalker 130A HV OPTO V2 supports programming via your transmitter as well as through a Hobbywing LED Program Box. This flexibility means you can adjust ESC parameters and settings using the method you find most convenient, whether at home with a Program Box or at the flying field using your RC transmitter for quick adjustments.
• What is the difference between this model and the 160A version? — The main difference is the current rating: the 130A model offers 130A continuous with 160A peak, whilst the 160A version handles higher sustained currents. Choose the 130A for medium to large RC aircraft, and the 160A for the most demanding applications with larger brushless motors. Both share the same advanced features and protection systems.
