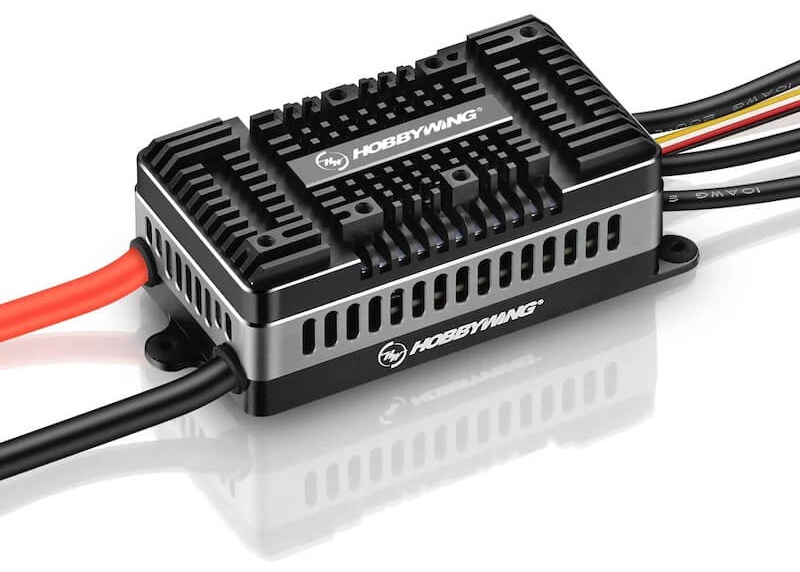

HOBBYWING PLATINUM 180A HV SBEC V5 BRUSHLESS ESC HW30209103

Overview

The Hobbywing Platinum 180A HV SBEC V5 Brushless ESC represents the pinnacle of electronic speed controller technology for RC helicopters and fixed-wing aircraft. This advanced brushless ESC is engineered for serious RC enthusiasts in the UK who demand precision, reliability, and exceptional performance from their equipment. Whether you're piloting a 550-700 class electric helicopter or operating a fixed-wing RC aircraft, this ESC delivers the consistent power and sophisticated control systems that separate professional-grade setups from amateur installations.

Hobbywing has established itself as a recognised leader in RC electronics, and the Platinum HV 180A V5 continues that tradition with cutting-edge engineering that combines compact dimensions with robust performance capabilities. This brushless ESC is designed to handle the demands of experienced pilots who require instantaneous throttle response, precise RPM control, and the advanced telemetry features that come with modern RC flying. The ESC's 180 amp continuous rating with a 260 amp peak capability makes it suitable for high-performance applications where reliability cannot be compromised.

What sets the Platinum 180A HV SBEC V5 apart in the competitive world of RC electronics is its intelligent design philosophy that balances power delivery with thermal management, programmability with ease of use, and advanced features with practical implementation. UK RC pilots looking for a professional-grade ESC that offers exceptional value and trusted performance will find this Hobbywing product delivers exactly what experienced operators expect from premium equipment.

Key Features

• Compact Design with Superior Heat Dissipation — The Platinum 180A HV V5 is engineered with a remarkably compact footprint measuring just 100.6 x 45.5 x 26.1 millimetres without the cooling fan, yet it weighs only 250.6 grams, making it ideal for weight-conscious RC helicopters and fixed-wing aircraft where every gram matters. The ESC features a patent-pending double-sided heat sink design with integrated side vents that create an innovative air duct system, enabling the built-in cooling fan to generate powerful airflow across the entire unit for significantly improved thermal performance.
• Built-in 12V Programmable BEC with High Output Capability — Unlike earlier ESC generations that maxed out at 8.4 volts, the Platinum 180A HV V5 incorporates a new circuit design that provides an adjustable switch-mode BEC capable of delivering 5-12 volts output with 0.1-volt step adjustment, continuous 10 amp output, and an impressive 30 amp peak capacity. This high-power BEC includes an anti-reverse circuit that allows parallel connection with external 2S batteries simultaneously, providing dual-layer protection for your power systems and eliminating compatibility concerns.
• 32-Bit Processor with RPM Accuracy Algorithm — The ESC employs a powerful 32-bit processor combined with an advanced RPM accuracy algorithm that delivers consistent, reliable constant-speed performance throughout your flight operations. The adjustable constant-speed sensitivity allows every pilot to fine-tune settings that perfectly match their personal flying style and aircraft characteristics, resulting in smoother throttle response and more predictable aircraft behaviour.
• Multiple Protocol Support for Enhanced Adaptability — The Platinum 180A HV V5 supports Mikado VBar System protocols and Futaba S.BUS2 telemetry standards, enabling real-time data feedback and parameter adjustment directly from your remote control transmitter. This advanced protocol compatibility means you can monitor ESC status, adjust settings, and diagnose performance characteristics without requiring additional programming equipment, making it exceptionally versatile for pilots using professional-grade radio systems.
• Built-in Anti-Spark Circuitry — Electrical sparks generated during battery connection cause cumulative damage to connectors and shorten their operational lifespan. The Platinum 180A HV V5's integrated anti-spark circuitry effectively eliminates these destructive spark events during power-on sequences, significantly prolonging the life of your battery connectors and improving the overall reliability of your RC aircraft electrical system.
• Comprehensive Multi-Layer Protection Systems — The ESC incorporates multiple sophisticated protection functions including start-up protection, current protection, temperature monitoring, overload protection, throttle signal loss detection, capacitor temperature protection, and input voltage abnormality detection. These layered protection systems work together to effectively extend the operational lifespan of your ESC whilst safeguarding your entire RC aircraft electrical system against electrical faults and operational anomalies.
• OTA Programmer and LCD Programming Box Support — The ESC supports programming via the Hobbywing OTA Programmer (wireless Bluetooth programming with 5-metre effective range) and the advanced LCD Program Box Pro, providing multiple convenient methods to configure and optimise your ESC settings. This flexible programming approach means you can adjust parameters in the field, update firmware without requiring a computer, and troubleshoot issues quickly and efficiently.

Technical Performance

The Hobbywing Platinum 180A HV SBEC V5 represents a significant advancement in brushless ESC engineering, combining extreme power handling with sophisticated thermal management and intelligent control systems. With a continuous current rating of 180 amps and peak burst capability of 260 amps, this brushless ESC handles the intense power demands of modern high-performance electric helicopters and fixed-wing aircraft with absolute reliability. The ESC accommodates 6S to 14S LiPo battery configurations, providing tremendous flexibility in power system design and allowing pilots to optimise voltage and capacity according to their specific aircraft requirements.

The engineering excellence extends to the power delivery system, where the 32-bit processor and advanced RPM accuracy algorithm ensure that motor speed remains absolutely consistent throughout flight operations, regardless of throttle input variations or changing electrical load conditions. This precision control is critical for helicopter pilots who require rock-solid stability during autorotation training, precision flying, and complex aerobatic manoeuvres. The adjustable constant-speed sensitivity feature transforms the ESC into a fully customised control system that matches individual flying preferences and aircraft characteristics, eliminating the common frustration of ESCs that feel either sluggish or overly responsive.

From a thermal engineering perspective, the patent-pending double-sided heat sink design with integrated side ventilation represents a genuine innovation in compact ESC design. The air duct geometry allows the internal cooling fan to generate strong, directed airflow across critical components, maintaining safe operating temperatures even during extended full-throttle operation. Input wiring utilises robust 10 AWG (approximately 5.26 square millimetres) copper conductors in 255-millimetre lengths, minimising voltage drop and ensuring maximum power transfer efficiency from battery to ESC. Output wiring, also 10 AWG, is provided in three 150-millimetre leads for motor phase connections, with gold-plated connectors ensuring reliable electrical contact and minimum resistance.

The built-in switch-mode BEC represents a technological leap forward in power distribution, delivering continuous 10 amps of auxiliary power for receiver systems, servo power, and payload electronics, with 30-amp peak capability for transient loads. The 5-12 volt adjustable output, controllable in 0.1-volt increments, accommodates virtually any modern receiver voltage requirement whilst the anti-reverse circuit protection allows simultaneous external 2S battery connection for parallel power redundancy. This configuration eliminates the common concern of receiver power loss and provides professional-grade electrical architecture reliability.

What's in the Box

• Hobbywing Platinum 180A HV SBEC V5 Brushless ESC unit
• Red 10 AWG input wire (255mm length)
• Black 10 AWG input wire (255mm length)
• Three black 10 AWG output wires (150mm lengths)
• User documentation and firmware information

What You Need to Complete

• 6-14S LiPo battery pack compatible with your RC aircraft
• Battery connector (typically XT60 or Anderson SB50, depending on your specific application)
• RC helicopter or fixed-wing aircraft (550-700mm class for helicopter applications)
• Compatible brushless motor rated for your aircraft type
• Radio control system with S.BUS2 or VBar protocol support (recommended for full feature utilisation)
• Firmware programmer such as the OTA Programmer (Bluetooth wireless) or LCD Program Box Pro for configuration and updates

Frequently Asked Questions

• What is the difference between the Platinum 180A HV V5 and previous Platinum ESC generations? — The V5 iteration features several significant upgrades over earlier versions. The built-in BEC now delivers up to 12 volts (adjustable 5-12V) compared to 8.4V in earlier models, providing substantially greater auxiliary power for receiver systems and accessory electronics. The advanced 32-bit processor with improved RPM accuracy algorithm delivers superior constant-speed performance, whilst the patent-pending double-sided heat sink cooling system provides noticeably better thermal management in the same compact physical footprint. Additionally, V5 firmware supports enhanced telemetry protocols and offers improved over-the-air update capabilities.
• Is the Platinum 180A HV SBEC V5 suitable for beginners learning RC helicopter flying? — Whilst this is an excellent brushless ESC, it is specifically designed for experienced RC pilots operating higher-powered aircraft systems. Beginners typically benefit from starting with smaller, more forgiving aircraft and simpler ESC configurations. However, if you are an intermediate or advanced pilot progressing to larger electric helicopters in the 550-700mm rotor diameter class, or fixed-wing aircraft with correspondingly high power demands, this ESC represents an exceptional investment that you will appreciate for many years of flying.
• What battery specifications are required for the Platinum 180A HV SBEC V5? — The ESC accepts LiPo battery packs from 6S (22.2 volts nominal) through 14S (51.8 volts nominal) configuration, providing extraordinary flexibility in power system design. Your specific battery selection depends entirely upon your aircraft type, motor specifications, and desired performance characteristics. For a 550-700 class electric helicopter, typical configurations range from 6S through 10S LiPo batteries with capacities between 2200mAh and 5000mAh. Fixed-wing applications may utilise different battery selections depending on aircraft design and mission profile. Always consult your aircraft manufacturer's specifications and your motor's voltage ratings when selecting LiPo battery packs.
• Can I programme the Platinum 180A HV V5 ESC without additional equipment? — The ESC supports programming via the separate program port using Hobbywing's OTA Programmer (wireless Bluetooth, 0-5 metre effective range with Bluetooth 4.0 or higher compatibility) or the LCD Program Box Pro (displays parameters on built-in LCD screen). If your radio control transmitter supports VBar protocol, you may adjust certain parameters directly from your transmitter without separate programming equipment. The firmware supports over-the-air updates via the OTA Programmer, allowing convenient field updates and configuration adjustments without requiring a computer.
• What input battery connector does the Platinum 180A HV SBEC V5 require? — The source documentation specifies input wiring as 10 AWG copper conductors in 255-millimetre lengths, but does not specify the connector type used by this particular ESC model. The output connectors are gold-plated, and you will need to verify the specific input connector type (commonly XT60, XT90, or Anderson SB50 on high-current ESCs) by reviewing the detailed user manual before purchasing battery connectors or adapters.
• Is the Platinum 180A HV V5 waterproof or weather-resistant for outdoor flying conditions? — Whilst the ESC features excellent engineering and thermal management design, the source documentation does not explicitly specify a waterproofing or weather-resistance rating. For outdoor RC flying in damp conditions, you should consult the detailed user manual to determine appropriate environmental protection measures and whether additional shielding is recommended for reliable operation in variable weather conditions.
• How does the anti-reverse BEC circuit benefit my power system? — The anti-reverse circuit allows you to connect an external 2S LiPo battery pack in parallel with the main ESC power input, providing redundant auxiliary power for your receiver system and other electronics. This configuration ensures receiver power remains uninterrupted even if the main battery voltage drops slightly during high-current motor operation, dramatically improving flight safety and control reliability during critical phases of flight.
• What makes the patent-pending cooling system superior to conventional designs? — Conventional ESC cooling relies on basic heat sinks with a single cooling fan drawing air through component areas. The Platinum 180A HV V5's innovative air duct geometry creates directed airflow that passes efficiently across the entire ESC, distributing cooling air where it matters most rather than creating dead zones with poor ventilation. This superior thermal management allows the ESC to maintain safe operating temperatures during extended high-power operations, reducing throttle sag and extending component lifespan significantly.
