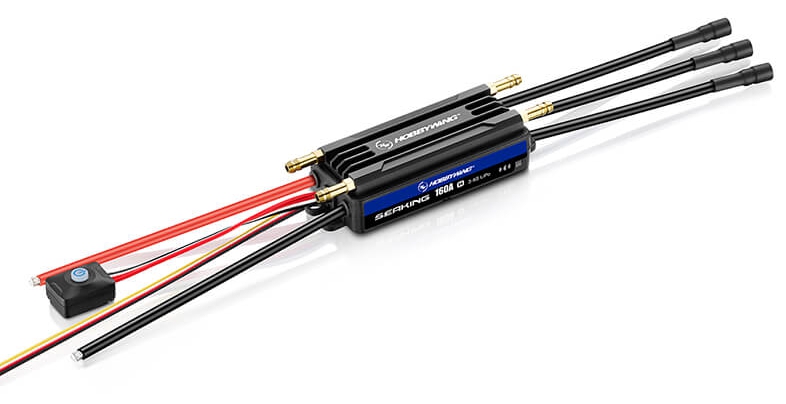

HOBBYWING SEAKING 160A V4 BRUSHLESS SPEED CONTROL HW30206200

Overview

The Hobbywing SeaKing 160A V4 Brushless Speed Control is a professional-grade electronic speed controller (ESC) designed specifically for high-performance RC boats up to 120cm in length. This waterproof brushless ESC represents the pinnacle of modern RC boat electronics, combining cutting-edge features with proven reliability that appeals to both competitive racers and serious hobbyists throughout the UK and beyond. Whether you're piloting a dedicated racing catamaran, a scale model yacht, or a high-speed electric boat basher, the SeaKing 160A V4 delivers the explosive power and precise control needed to dominate on water.

Building on the success of its predecessor, the SeaKing 160A V4 introduces a refined, sleeker design that is 15% narrower than the previous SEAKING 180A V3 model, making it easier to install in boats with tight engine compartments and confined spaces. The compact dimensions of just 91x41x25.5mm mean you'll save valuable onboard real estate without sacrificing any performance capability. This makes it an ideal choice for RC boat enthusiasts in the UK who demand both form and function in their builds.

What truly sets the SeaKing 160A V4 apart is its comprehensive feature set: built-in Bluetooth connectivity for wireless parameter adjustment via mobile app, dual-channel water cooling for temperature management, IP67 waterproof certification for genuine all-weather operation, and 11 programmable parameters to fine-tune behaviour to your exact specifications. This is not just an ESC—it's an intelligent propulsion controller designed for the modern RC boating community.

Key Features

• 160A Continuous Current with 800A Peak Output — The SeaKing 160A V4 can handle continuous discharge of 160 amps and peak bursts of up to 800 amps, providing the explosive power needed for aggressive acceleration and sustained high-speed runs. This exceptional current capacity means you can pair it with large brushless motors without worrying about performance throttling, making it suitable for demanding applications like RC racing boats and high-performance scale models.
• Support for 3-8S LiPo Battery Compatibility — With input voltage support ranging from 3S to 8S LiPo batteries, the SeaKing 160A V4 offers exceptional flexibility in power configuration. Whether you choose to run lighter 3-4S setups for casual cruising or aggressive 6-8S configurations for competitive racing, this ESC adapts seamlessly to your chosen battery voltage, making it a future-proof investment as your RC boating needs evolve.
• Dual-Channel Water Cooling System — The integrated dual-channel water cooling architecture actively dissipates heat through contact with cooling fluid, ensuring the ESC remains within safe operating temperatures even during extended high-performance runs. This advanced cooling approach allows the controller to maintain peak performance without thermal throttling, keeping your boat on the water longer and performing at maximum capability.
• IP67 Fully Waterproof Design — With an IP67 protection rating certified to international standards (IEC 60529) and domestic standards (GB/T 4208-2017), this ESC boasts outstanding waterproof and dustproof capabilities that allow splash protection, submersion in shallow water, and protection against dust ingress. You can deploy this controller immediately without any additional waterproofing treatment, though the protection may decrease gradually with wear and aging under constant use.
• Built-in Bluetooth Module for Wireless Configuration — The integrated Bluetooth connectivity allows you to connect directly to the HobbyWing mobile app from up to approximately 5 metres away for parameter settings, real-time data reading, firmware upgrades, and historical data analysis—all without requiring additional programming devices or cables. This user-friendly approach transforms parameter management from a technical chore into an intuitive wireless process, perfect for racers who need quick mid-session adjustments.
• Intelligent Data Logging and Performance Monitoring — Real-time data recording captures extreme values, live telemetry, and builds historical graphs showing your ESC's performance profile over time. This comprehensive data visibility helps you optimise settings, diagnose issues, and track improvements across multiple sessions, giving competitive racers the intelligence needed to extract maximum performance.
• Super Built-in BEC with Switchable Voltage Output — The integrated Battery Elimination Circuit (BEC) delivers up to 8 amps continuous current and 25 amps instantaneous current, with selectable output voltages of 6.0V, 7.4V, or 8.4V to power servos and onboard systems. This flexibility lets you drive powerful standard servos or high-voltage servo options without requiring separate BEC modules, simplifying your electrical architecture.
• Freewheeling Function for Enhanced Handling — When enabled, the freewheeling function allows your boat to decelerate faster when throttle is released, improving cornering control and overall handling response. The system also reduces ESC temperatures during freewheeling operation, meaning you can maintain aggressive driving styles without thermal concerns. Disabling freewheeling produces slower deceleration for more gradual speed reduction.
• AUX External Control Channel for Real-time Parameter Adjustment — By connecting the yellow signal wire to an unused receiver channel, you can adjust critical ESC parameters like reverse thrust directly from your transmitter in real-time without stopping to reprogram. This convenient feature dramatically improves race-day flexibility and allows mid-session tactical adjustments without breaking your rhythm.
• Capacitor Overheating Protection — Intelligent protection circuitry guards against damage caused by capacitor failure due to overloading, safeguarding the entire ESC against catastrophic failure and extending operational lifespan even under extreme conditions.
• 11 Programmable Parameters for Competitive Racing — The SeaKing 160A V4 offers a comprehensive suite of 11 customisable parameters specifically designed to meet the demands of competitive RC boat racing, providing far more detailed and extensive adjustment options than basic ESC models. This depth of configurability allows you to dial in perfect behaviour characteristics for your specific boat platform and racing conditions.
• Sleek Compact Design for Easy Installation — The elongated, narrower form factor measuring just 91x41x25.5mm is 7mm slimmer than predecessor models, fitting easily into confined spaces within boat hulls and engine compartments. This streamlined profile enhances installation convenience and offers greater adaptability for both professional racing applications and recreational builds.

Technical Performance

The Hobbywing SeaKing 160A V4 represents a significant engineering achievement in brushless RC boat electronics. As a sensorless brushless speed controller, it operates without shaft sensors, relying instead on advanced back-EMF detection to commutate the brushless motor with precision and responsiveness. The 160-amp continuous current rating with 800-amp peak capability provides the thermal and electrical capacity for large displacement brushless motors whilst maintaining reliability during sustained high-performance operation. The dual-channel water cooling system directly addresses one of the primary failure modes in RC boat electronics—thermal stress—by actively dissipating generated heat through contact with your cooling fluid, a feature found only in premium-tier controllers. Input voltage flexibility spanning 3-8S LiPo chemistry ensures compatibility with virtually any modern battery configuration, from modest 3S setups delivering around 11.1 volts through to aggressive 8S systems providing 29.6 volts. The integrated BEC generates clean, regulated 6V, 7.4V, or 8.4V output selectable via software, capable of supplying 8 amps continuously or 25 amps instantaneously to power servos and receiver systems. All connections utilise marine-grade connectors and heavy-gauge wiring—10AWG red and black input leads measuring 160mm for battery connection, and three 12AWG black output wires of 150mm length terminated with 6.5mm gold female plugs for motor connection—ensuring excellent conductivity and minimal voltage drop even during maximum current draw. The entire assembly weighs just 220 grams including connectors and output plugs, maintaining a weight-conscious design critical for boat performance. The switch-mode BEC topology provides stable voltage regulation across varying input battery conditions and load scenarios. Advanced firmware enables freewheeling function, AUX channel control for real-time parameter adjustment, capacitor overheating protection, and optimised throttle linearity for precise, responsive control even during high-load applications. The brushless design inherently offers superior reliability, longer operational life, lower maintenance requirements, and better efficiency compared to brushed alternatives, making it the standard choice for serious RC boat racing throughout the UK and internationally.

What's in the Box

• Hobbywing SeaKing 160A V4 Brushless Speed Controller
• Pre-assembled input wires with connectors (10AWG red and black leads)
• Pre-assembled output wires with 6.5mm gold female plugs
• USB documentation and support materials

What You Need to Complete

• Brushless motor compatible with 3-8S LiPo voltage range (typically 3000-5000KV for marine applications)
• 3-8S LiPo battery pack (chemistry matched to your boat's power requirements)
• LiPo battery charger with appropriate connector compatibility
• RC receiver with throttle/steering channels and optional AUX channel for parameter adjustment
• RC transmitter compatible with your receiver
• Marine-grade waterproof servo(s) for rudder/steering control

Frequently Asked Questions

• Is the Hobbywing SeaKing 160A V4 suitable for beginners or competitive RC boat racing? — The SeaKing 160A V4 is engineered primarily for competitive and advanced users due to its 11 programmable parameters, Bluetooth connectivity, and data logging features. Whilst beginners can certainly operate it with default settings, the full potential emerges through parameter optimisation and real-time adjustment—skills that develop over time. Its robust build quality and intelligent protection systems make it forgiving even for less experienced pilots, though the feature complexity suits experienced racers better than true beginners.
• What battery voltage and capacity should I use with the SeaKing 160A V4? — The ESC supports 3-8S LiPo battery packs, meaning any voltage from approximately 11.1 volts (3S) through 29.6 volts (8S) works seamlessly. Battery capacity depends entirely on your boat's motor, desired runtime, and available space—typical setups range from 5000mAh 4S packs for smaller boats through to 10000mAh+ 6S configurations for larger hulls. Always verify your motor's voltage rating matches your chosen battery configuration to avoid damaging the motor.
• How does the Bluetooth connectivity work and what mobile app do I need? — The built-in Bluetooth module communicates with the official HobbyWing mobile application over approximately 5 metres, allowing wireless parameter adjustment, data reading, firmware updates, and historical performance analysis without any additional programming devices or cables. Simply download the HobbyWing app to your smartphone, power the ESC, and establish a Bluetooth connection to access all configuration and monitoring functions.
• What is the difference between the SeaKing 160A V4 and the previous SEAKING 180A V3 model? — The V4 introduces several refinements: a 15% narrower, sleeker form factor (7mm slimmer) for easier installation in space-constrained hulls, integrated Bluetooth connectivity and mobile app control, built-in data logging with historical graphs, optimised programmable parameters, improved thermal management through dual-channel water cooling, and enhanced linearity for more precise throttle response. The 160A continuous rating versus the V3's 180A represents a conservative rating philosophy focusing on reliability and thermal headroom rather than peak specification.
• Is the IP67 waterproof rating permanent, and can I submerge this ESC underwater? — The IP67 rating certifies protection against splashes, water spray, and temporary shallow submersion under controlled laboratory conditions per international standards (IEC 60529), but this protection is not permanent and degrades with wear, aging, and repeated exposure. Whilst the SeaKing 160A V4 is designed for water sports use without additional waterproofing, extended underwater operation or deliberate submersion is not recommended. The waterproof design suits surface RC boats, catamarans, and racing applications where splashing and spray are normal.
• Can I adjust ESC parameters in real-time during a race using the AUX channel? — Yes, the AUX external control channel allows you to connect the yellow signal wire to an unused receiver channel, enabling mid-race parameter adjustment directly from your transmitter without stopping. This is particularly useful for reversing thrust direction, adjusting freewheeling function, or fine-tuning other parameters during competitive sessions, providing a significant advantage in tactical racing situations.
• What boat size is the SeaKing 160A V4 designed for? — The manufacturer specifies this ESC is suitable for boats measuring up to 120 centimetres in length, covering everything from competitive racing catamarans and monohulls through to large-scale sailing yachts and touring boats. Whilst physically it could fit in smaller boats, you would underutilise its capabilities; in larger boats exceeding 120cm, you should verify adequate motor performance within thermal margins.
• Does the SeaKing 160A V4 require any additional waterproofing or protective coating? — No, the IP67 protection rating means the ESC arrives ready for water use without any additional waterproofing treatment required. However, during installation, ensure all connector joints are fully mated and weathertight, and apply silicone sealant around any cable entry points through the boat hull for maximum protection during extended operation.
