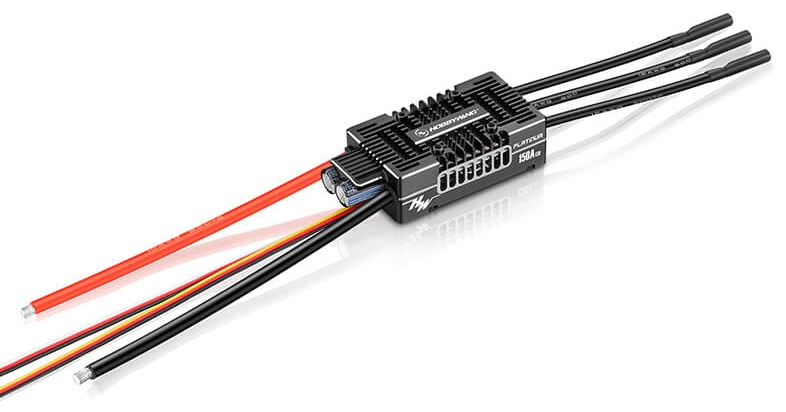

HOBBYWING PLATINUM 150A V5.1 BRUSHLESS SPEED CONTROL HW30203501

Overview

The Hobbywing Platinum 150A V5.1 is a professional-grade brushless electronic speed control (ESC) engineered for high-performance RC helicopters and fixed-wing aircraft. This advanced ESC represents the pinnacle of brushless motor control technology, combining compact dimensions with exceptional power handling capability and intelligent thermal management. Whether you're flying a 520-580mm class electric helicopter or pushing a fixed-wing aircraft to its limits, the Platinum 150A V5.1 delivers the precision, reliability and performance that serious RC pilots demand.

Built by Hobbywing, a globally recognised leader in RC electronic components, this speed control brings cutting-edge technology to demanding applications. The ESC is ideal for experienced pilots and competitive flyers who require consistent RPM accuracy, advanced telemetry integration, and the ability to fine-tune performance parameters. The Platinum 150A V5.1 is not simply a power delivery device—it's an intelligent flight control partner that adapts to your flying style and aircraft dynamics.

This fifth-generation Platinum series ESC combines a decade of Hobbywing engineering expertise with patent-pending thermal design innovations. Whether you're competing in challenging wind conditions, performing precision 3D aerobatics, or pushing your helicopter's endurance envelope, the Platinum 150A V5.1 provides the stable, responsive power delivery that transforms good flights into exceptional ones. For RC helicopter and fixed-wing enthusiasts in the UK seeking professional-grade electronics, this is the ESC specification that separates casual flying from serious competitive performance.

Key Features

• Patent-Pending Double-Sided Hollow Heat Dissipation Structure — The ESC features an innovative redesigned heat sink with double-sided hollow chambers and a unique side window design that creates an intelligent air duct system. This patented thermal architecture allows cooling air to pass completely through the ESC internals, while the integrated cooling fan generates strong airflow across the entire unit, dramatically improving heat dissipation performance and extending the lifespan of critical components under sustained high-current operation.
• 32-Bit Processor with RPM Accuracy Algorithm — Powered by a modern 32-bit processor combined with sophisticated RPM accuracy algorithms, the Platinum 150A V5.1 delivers exceptional consistency and power delivery precision. This advanced control system maximises RPM accuracy to enhance overall flight stability, control responsiveness and predictability, allowing pilots to extract maximum performance from their aircraft without hesitation or lag.
• Built-In 12V Switch-Mode BEC with Anti-Reverse Protection — The high-power built-in BEC (battery elimination circuit) features switch-mode operation with voltage adjustment capability from 5V to 12V, providing up to 35A peak current output. The integrated anti-reverse circuit enables safe parallel operation with external batteries simultaneously, offering double protection against electrical faults and ensuring reliable power supply to receivers, servos and flight control systems throughout extended flight sessions.
• Adjustable Constant-Speed Mode with Selectable Sensitivity — The ESC includes programmable constant-speed capability that compensates for load variations and battery voltage fluctuations, maintaining consistent throttle response. Pilots can easily adjust constant-speed sensitivity settings via compatible transmitter systems to find the perfect tuning for their specific aircraft and flying style, whether performing precision hovering or dynamic manoeuvres.
• Multi-Protocol Telemetry Support — The Platinum 150A V5.1 supports multiple communication protocols including Mikado VBar system and Futaba S.BUS2, enabling seamless integration with advanced flight controller systems. Via compatible telemetry adapters and programming boxes, pilots can monitor real-time ESC operating parameters, adjust settings remotely via their transmitter, and verify system status without connecting to a computer.
• Synchronous Rectification with DEO Driving Efficiency Optimisation — This advanced technology employs optimised switching patterns that dramatically improve power conversion efficiency. The result is faster throttle response for more agile flight control, enhanced stability and control authority during complex manoeuvres, more efficient energy utilisation for extended flight times, reduced internal heat generation for improved reliability, and longer battery lifespan due to lower power losses in the ESC circuit.
• Comprehensive Multi-Stage Protection System — The ESC incorporates extensive protective features including soft-start protection to prevent inrush current damage, real-time current monitoring to prevent overcurrent conditions, temperature sensing with automatic thermal limiting, overload protection against excessive loads, throttle signal loss detection to maintain safe failsafe operation, and input voltage abnormality detection to protect against wiring faults and battery connection issues.
• OTA Wireless Programming Capability — In addition to LCD programming box support, the Platinum 150A V5.1 can be programmed via Hobbywing's OTA (Over-The-Air) wireless programmer, enabling convenient parameter adjustment without physical cable connections. This feature simplifies field adjustments and testing, allowing pilots to optimise ESC settings quickly between flights without returning to the workshop.
• Firmware Upgrade Support — The ESC supports firmware updates via the OTA programmer and LCD programming box, ensuring access to the latest performance enhancements, bug fixes and feature additions released by Hobbywing. This future-proofs your investment and maintains compatibility with newly developed flight control systems and telemetry protocols.
• Compact Professional-Grade Design — With dimensions of 83.2 × 37.1 × 22.5mm (excluding optional cooling fan) and weight of just 150.4g complete with wiring, the Platinum 150A V5.1 integrates compactly into space-constrained aircraft designs without compromising cooling capability. The form factor suits modern brushless helicopter and fixed-wing airframes optimised for efficiency and performance.

Technical Performance

The Hobbywing Platinum 150A V5.1 delivers exceptional technical performance specifications designed specifically for demanding RC helicopter and fixed-wing applications. The ESC is rated for continuous current delivery of 150 amperes with peak current handling of 180 amperes, accommodating high-performance brushless motors whilst maintaining thermal stability through its patented heat dissipation architecture. Input voltage compatibility spans the full 3-8S LiPo range, making the ESC suitable for diverse power configurations from compact low-voltage helicopters to high-voltage fixed-wing platforms.

The built-in switch-mode BEC provides adjustable output voltage from 5 to 12 volts with continuous current delivery of 10 amperes and peak output capacity of 30 amperes, offering sufficient power for modern high-torque servos, flight controllers, and receiver systems common in advanced RC helicopters and aeroplanes. Power delivery is managed through heavy-gauge wiring—10AWG input cables (150mm length) and 12AWG output wires (100mm length in triplicate)—ensuring minimal voltage drop and thermal losses even during sustained maximum-current manoeuvres. The ESC employs 4.0mm gold-plated female connectors on motor outputs, providing secure reliable connections resistant to corrosion and contact resistance issues that degrade performance over time.

Programming flexibility is extensive, with support for LCD programme boxes and OTA wireless programming systems that enable comprehensive parameter adjustment without transmitter involvement. The ESC features a dedicated separate programme port for firmware updates and advanced configuration tasks. Telemetry integration with Mikado VBar and Futaba S.BUS2 protocols enables real-time monitoring of operating parameters and remote configuration adjustments via compatible flight controllers and transmitter systems. The 32-bit processor architecture delivers millisecond-precision timing control essential for smooth stable flight dynamics, whilst the synchronous rectification technology optimises power conversion efficiency to minimise wasted energy and internal heat generation during sustained high-current operation typical of competitive flying or aggressive aerobatic manoeuvres.

What's in the Box

• Hobbywing Platinum 150A V5.1 brushless ESC unit with integrated cooling fan mounting provisions
• Pre-soldered input wires: one red 10AWG 150mm cable and one black 10AWG 150mm cable for battery connection
• Three pre-soldered black 12AWG 100mm output wires for motor connection
• User manual with comprehensive programming guide and safety information

What You Need to Complete

• 3-8S LiPo battery pack with suitable discharge rating (30C minimum recommended for sustained high-current operation)
• Brushless motor (2300-3500 KV range typical for 520-580mm class helicopters; lower KV for higher-voltage batteries)
• RC helicopter or fixed-wing airframe compatible with 83.2 × 37.1 × 22.5mm mounting envelope
• Receiver compatible with ESC throttle signal protocol (PPM standard supported; VBar/S.BUS2 for advanced integration)
• LCD Programme Box (Part Number 30502001) or OTA Programmer (Part Number 30850400) if you wish to adjust settings beyond default configuration
• S.BUS2 Telemetry Adapter for Futaba (Part Number 30850500) if integrating with Futaba flight control systems
• Battery charger capable of handling your selected LiPo configuration

Frequently Asked Questions

• Is the Hobbywing Platinum 150A V5.1 suitable for beginners learning RC helicopter flying? — Whilst this ESC is fully capable of beginner operation, it's engineered primarily for experienced pilots and competitive applications. Beginners will find that the advanced features like adjustable constant-speed sensitivity and telemetry integration may be underutilised. The Platinum series is better suited to pilots already comfortable with brushless helicopter basics who seek professional-grade precision and performance. However, there's no technical barrier to beginner use—it simply represents over-specification for early learning stages.
• What battery types and configurations does the Platinum 150A V5.1 support? — The ESC accepts 3S, 4S, 5S, 6S, 7S and 8S LiPo battery configurations, providing exceptional flexibility for different helicopter and fixed-wing designs. The switch-mode BEC automatically regulates output voltage across this entire input range, ensuring consistent servo and receiver power supply regardless of battery selection. For sustained high-current operation typical of aggressive flying, a battery rated for 30C discharge or higher is recommended to minimise voltage sag and maintain responsive throttle control.
• How does the Platinum 150A V5.1 compare to other Hobbywing ESC models? — The Platinum 150A V5.1 represents the fifth generation of Hobbywing's premium helicopter and fixed-wing ESC line, incorporating the latest 32-bit processor architecture and patent-pending thermal management innovations. Compared to earlier Platinum versions, the V5.1 delivers improved RPM accuracy through advanced algorithms, higher BEC output capability (up to 35A peak versus lower ratings on V4 models), and more efficient power delivery through enhanced synchronous rectification. The compact size with integrated cooling fan support makes it ideal for modern lightweight aircraft designs. For professional competition pilots and demanding commercial applications, the Platinum 150A V5.1 represents the recognised choice for reliability and performance.
• Can I programme the Platinum 150A V5.1 with my RC transmitter? — The ESC does not support programming via transmitter SET buttons or buttons directly on the ESC itself. However, it fully supports programme box-based configuration using the LCD Programme Box (sold separately) and wireless programming via the OTA Programmer (sold separately). For VBar system integration, parameter adjustment can be performed via the compatible VBar controller using the integrated VBar telemetry protocol. Most pilots find LCD programme box configuration straightforward and intuitive after initial setup.
• What is the significance of the patent-pending double-sided hollow heat dissipation structure? — This innovative design represents a genuine engineering advancement in ESC thermal management. Traditional ESC heat sinks rely on external cooling fins, which can become clogged with dust and moisture in real-world flying conditions. The Platinum 150A V5.1's internal air passage design with side window porting allows active cooling air from the integrated fan to circulate through the ESC's interior, directly cooling the high-current circuit board and capacitors. This patent-pending architecture delivers superior thermal performance, lower operating temperatures, extended component lifespan, and improved reliability during sustained maximum-current operation compared to conventional external-only cooling approaches.
• Does the Platinum 150A V5.1 include a cooling fan? — The ESC is designed with mounting provisions for an integrated cooling fan but does not include a fan in the standard package. The fan is typically mounted during integration into the airframe and connected to the ESC's fan power output. This allows pilots to optimise cooling according to specific aircraft design and thermal requirements. Many modern 520-580mm class helicopters incorporate integrated fan mounts that utilise the ESC's fan output capability.
• What telemetry information can I monitor with the Platinum 150A V5.1? — Via compatible Mikado VBar or Futaba S.BUS2 telemetry adapters, pilots can monitor real-time ESC operating parameters including motor RPM, current draw, voltage levels, and temperature. This telemetry data can be displayed on compatible flight controller displays, ground control station software, or supported transmitter telemetry screens. The VBar protocol also enables remote parameter adjustment via the connected flight controller or transmitter system without requiring transmitter button programming.
• Is the Platinum 150A V5.1 waterproof for outdoor flying? — The ESC features robust construction suitable for typical outdoor RC helicopter and fixed-wing operation. However, Hobbywing does not publish an IP-rated waterproof specification for this model. Standard aerospace-grade conformal coating and sealed connectors provide protection against splash, rain, and morning dew typical of outdoor flying conditions. Extended water immersion or high-pressure wash-down is not recommended and may compromise internal components. Store the aircraft in dry conditions and inspect connectors regularly for salt spray corrosion if operated in coastal environments.
