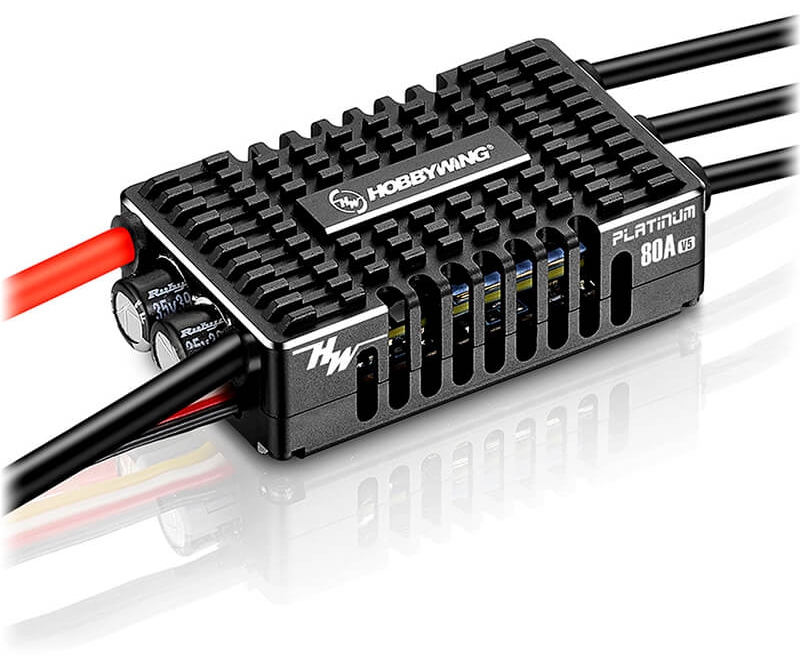

HOBBYWING PLATINUM 80A V5 BRUSHLESS SPEED CONTROL HW30203201

Overview

The Hobbywing Platinum 80A V5 Brushless Speed Control is a high-performance electronic speed controller (ESC) specifically engineered for precision flight control in 325-420 class electric helicopters and fixed-wing aircraft. This advanced ESC represents the pinnacle of Hobbywing's expertise in aerial RC control systems, combining cutting-edge processor technology with innovative thermal management to deliver exceptional performance and reliability. Whether you're piloting a lightweight aerobatic helicopter or a fixed-wing model, the Platinum 80A V5 provides the consistent, responsive throttle control that separates professional-grade systems from standard alternatives.

This brushless ESC is built for serious hobbyists and professionals who demand the highest standards in RC helicopter and fixed-wing performance. The Platinum V5 series incorporates a 32-bit processor combined with a specially developed RPM accuracy algorithm, ensuring smooth power delivery and stable flight characteristics across the entire throttle range. With continuous current handling of 80 amps and peak capacity of 120 amps, this controller can manage the demands of high-performance electric helicopter motors whilst maintaining the precision control necessary for smooth, stable flight.

The Platinum 80A V5 is more than just a powerful ESC—it's an intelligent flight management system that puts you in complete control of your aircraft. By selecting this brushless speed controller from our RC hobby shop, you're investing in technology trusted by RC enthusiasts and professionals across the UK and beyond.

Key Features

• Patent-pending double-sided hollow heat dissipation structure — The Platinum V5 features a newly designed heat sink with innovative double-sided hollow architecture that cools efficiently through both external airflow and internal circulation. This patented design allows air to flow directly through the ESC as your aircraft moves, providing passive cooling that reduces operating temperatures and extends the lifespan of critical components without requiring external fans or additional cooling solutions.
• Built-in 12V programmable switch-mode BEC — The electronic speed controller includes a powerful integrated Battery Elimination Circuit that outputs adjustable voltage between 5-12V with continuous output capability of 8 amps and peak output of 20 amps. This eliminates the need for a separate receiver battery pack, simplifying your aircraft setup and reducing overall weight whilst providing stable, regulated power to your flight receiver and servos.
• 32-bit processor with advanced RPM accuracy algorithm — The Platinum 80A V5 utilises cutting-edge processor technology combined with a proprietary algorithm that delivers constant speed performance and precise RPM control. This advanced processing ensures smooth throttle response, excellent stability, and consistent power delivery across all flight conditions, giving you the ultimate flight experience whether you're performing aerobatics or maintaining level cruise flight.
• Multiple protocol support for versatile transmitter compatibility — This brushless ESC supports Mikado VBar System, Futaba S.BUS2, and other data return protocols, allowing you to adjust parameters and monitor ESC status directly from your remote-control device or smartphone via Bluetooth. This telemetry capability means you can optimise performance in real time and check the health of your system before and after flights.
• Synchronous rectification technology with driving efficiency optimisation — The ESC incorporates DEO (Driving Efficiency Optimisation) technology that utilises synchronous rectification to maximise power efficiency. This results in faster throttle response, enhanced flight stability, higher driving efficiency for longer battery flight times, lower ESC temperature rise, and improved reliability during demanding flight operations.
• Comprehensive multi-layer protection system — The Platinum 80A V5 includes start-up protection, current protection, temperature protection, overload protection, throttle signal loss protection, capacitor temperature protection, and input voltage abnormality protection. These redundant safety systems effectively prolong the lifespan of the ESC and prevent damage from voltage spikes, signal loss, or thermal stress.
• 16 adjustable parameters with four helicopter flight modes — Advanced programmability allows customisation of controller behaviour across four distinct helicopter operating modes: fixed-wing mode, helicopter with external governor, helicopter with eleven governor, and helicopter with storekeeper governor. This flexibility ensures the ESC performs optimally regardless of your specific aircraft type and flying style.
• Compact, lightweight design with gold connectors — Measuring just 60.5 x 33 x 17.6mm and weighing only 77.5g with wires, this brushless speed controller is small enough for tight helicopter airframes without compromising cooling or durability. Premium 3.5mm gold connectors ensure reliable power transfer and long-term corrosion resistance.
• Firmware upgrade capability via OTA Programmer — Keep your ESC current with the latest performance improvements and bug fixes through over-the-air firmware updates using the optional OTA Programmer with Bluetooth connectivity. This future-proofs your investment and ensures access to new features as Hobbywing releases updates.

Technical Performance

The Platinum 80A V5 delivers exceptional technical performance through careful engineering and high-quality component selection. This brushless electronic speed controller achieves its impressive continuous current rating of 80 amps with peak capacity of 120 amps, making it suitable for demanding flight operations in 325-420 class electric helicopters and fixed-wing aircraft. The 32-bit processor running Hobbywing's advanced RPM accuracy algorithm ensures constant speed performance that remains stable across varying load conditions, throttle positions, and environmental factors. The switching-mode BEC provides adjustable output between 5-12V with an 8-amp continuous current limit and 20-amp peak capability, sufficient to power receiver boards, digital servos, and auxiliary equipment without requiring additional power regulation. Input voltage compatibility extends from 3-cell through 8-cell LiPo batteries (3S to 8S), giving you flexibility in battery selection and allowing use across a wide range of aircraft designs. The synchronous rectification technology and driving efficiency optimisation reduce power losses, resulting in cooler operation, faster throttle response, and longer flight times from each battery charge. The patented double-sided heat sink design with internal hollow structure and side ventilation provides passive cooling through airflow generated by aircraft movement, ensuring the ESC maintains safe operating temperatures even during extended flights or high-current draw situations. Construction includes 12AWG input wires (red and black, 100mm length each), three 14AWG output wires (100mm length each), and premium 3.5mm gold connectors that resist oxidation and maintain excellent electrical contact throughout the lifespan of the controller.

What's in the Box

• Hobbywing Platinum 80A V5 brushless electronic speed controller
• Red 12AWG input wire (100mm, 1 piece)
• Black 12AWG input wire (100mm, 1 piece)
• Three black 14AWG output wires (100mm each)
• Product manual and documentation

What You Need to Complete

• 3-8S LiPo battery (3S to 8S capable)
• RC helicopter or fixed-wing aircraft in the 325-420mm main blade length class
• Compatible brushless motor
• Flight receiver compatible with pulse width modulation (PWM) or supported telemetry protocols
• Transmitter system (Futaba, Spektrum, Mikado, or other PWM-compatible system)
• Optional: Multifunction LCD Program Box (Part No. 30502001) for advanced programming via dedicated interface
• Optional: LCD Program Box Pro (Part No. 30502002) for comprehensive configuration management
• Optional: OTA Programmer (Part No. 30850400) for wireless firmware updates via Bluetooth
• Optional: S.BUS2 Telemetry Adapter for Futaba (Part No. 30850500) if using compatible Futaba systems

Frequently Asked Questions

• What makes the Platinum 80A V5 different from standard helicopter ESCs? — The Platinum 80A V5 distinguishes itself through its patented double-sided hollow heat sink design that provides superior passive cooling, a 32-bit processor with advanced RPM accuracy algorithm for smooth constant-speed performance, and support for multiple telemetry protocols including Mikado VBar and Futaba S.BUS2. These features combine to deliver more consistent flight characteristics, better stability, and longer component lifespan compared to basic ESC alternatives available in the UK RC market.
• Is the Platinum 80A V5 suitable for RC helicopter beginners? — The Platinum 80A V5 is primarily designed for intermediate to advanced RC helicopter pilots who require precision control and advanced features. The ESC's 16 adjustable parameters and four flight modes offer sophisticated customisation that benefits experienced flyers, though beginners can operate it effectively using default settings. If you're just starting in RC helicopters, you may prefer a simpler ESC with fewer options, though the Platinum V5 will certainly grow with your skills and investment in higher-performance aircraft.
• What battery voltage range does this ESC support? — The Platinum 80A V5 accepts input voltage from 3-8S LiPo batteries, meaning you can use anything from 3-cell (11.1V) through 8-cell (29.6V) LiPo packs. This wide input range provides flexibility in aircraft design and battery selection, allowing you to choose the battery configuration that best suits your specific helicopter or fixed-wing model.
• Can I adjust ESC settings without purchasing additional programming equipment? — The Platinum 80A V5 does not support programming via your transmitter or through basic LED indicators; however, it supports programming via an LCD Program Box (either the standard Multifunction LCD Program Box or the new LCD Program Box Pro) or wirelessly via the OTA Programmer with Bluetooth connectivity. The OTA Programmer is particularly convenient as it allows wireless configuration and firmware updates directly from your smartphone within 5 metres of the ESC.
• What aircraft size is the Platinum 80A V5 designed for? — This brushless ESC is engineered for 325-420 class electric helicopters (meaning aircraft with main blade lengths between 325mm and 420mm) or similarly-sized fixed-wing aircraft. The 80-amp continuous and 120-amp peak current capacity makes it suitable for high-performance models in this size range whilst the compact 60.5 x 33 x 17.6mm footprint ensures it fits into tight helicopter airframes without excessive bulk.
• Does the Platinum 80A V5 require an external fan for cooling? — No, the Platinum 80A V5 features a patented passive cooling system through its double-sided hollow heat sink that cools via airflow generated by your aircraft's movement. In normal flight conditions, the internal circulation design provides adequate cooling without requiring an external fan, reducing weight and complexity. The innovative thermal design means you benefit from efficient cooling during flight whilst maintaining a compact form factor.
• What telemetry protocols does this ESC support? — The Platinum 80A V5 supports Mikado VBar System, Futaba S.BUS2, and other data return protocols. This means you can use compatible transmitter systems to read real-time data from the ESC, adjust flight parameters through your remote, and monitor system status. With Bluetooth connectivity via the optional OTA Programmer, you can also access comprehensive telemetry data on your smartphone.
• What protection features keep my ESC safe during flight? — The Platinum 80A V5 incorporates seven layers of protection: start-up protection prevents damage during power-on, current protection guards against overcurrent conditions, temperature protection prevents thermal damage, overload protection limits excessive current draw, throttle signal loss protection safely cuts power if radio link is lost, capacitor temperature protection monitors electrical components, and input voltage abnormality protection safeguards against battery voltage irregularities. These redundant safety systems ensure reliable operation and maximum lifespan.
• Is the Platinum 80A V5 waterproof for outdoor flight? — The Platinum 80A V5 is not fully waterproof, making it suitable for outdoor RC helicopter and fixed-wing flight under normal conditions but not for water landings or water landing recovery. The compact design with sealed connectors provides protection against light rain and splashing during normal operation, but complete submersion or intentional water exposure should be avoided.
