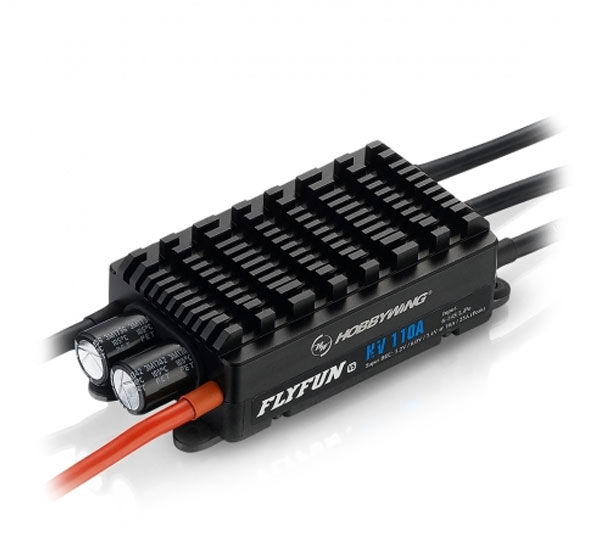

HOBBYWING FLYFUN 110A HV SBEC V5 BRUSHLESS SPEED CONTROL HW30201700

Overview

The Hobbywing FlyFun 110A HV SBEC V5 Brushless Speed Control is a professional-grade electronic speed controller designed for high-performance RC aircraft applications. This is an advanced ESC built for experienced RC flyers in the UK and beyond who demand reliability, precision throttle control, and exceptional power delivery for their brushless motor-equipped fixed-wing aircraft. Whether you're flying large-scale aeroplanes, EDF jets, or competitive slope soaring models, this high-voltage ESC delivers the performance characteristics needed for serious RC aviation enthusiasts.

As a dedicated brushless RC speed controller, the FlyFun 110A HV V5 represents the latest evolution in Hobbywing's trusted line of aircraft ESCs. This model is specifically engineered for 6S to 14S LiPo battery systems, making it ideal for everything from mid-sized trainers to advanced scale models and high-performance competition aircraft. The unit has been refined with cutting-edge DEO technology and features a robust construction that guarantees reliable operation in demanding flight conditions, from gentle thermal slope flying to aggressive aerobatic manoeuvres.

The 110A continuous current rating with 140A peak capability provides substantial power headroom, ensuring your brushless motor receives clean, responsive power delivery throughout your entire flight envelope. Combined with an integrated high-power BEC and comprehensive safety protections, this is a complete ESC solution for serious RC aircraft builders and pilots who refuse to compromise on quality or performance.

Key Features

• DEO Technology (Driving Efficiency Optimization) — This advanced Hobbywing innovation delivers rapid and smoother throttle response, providing better stability and flexibility during all phases of flight. The technology simultaneously increases driving efficiency, which translates directly to longer flight times and improved throttle linearity across your entire control range.
• High-Performance 32-Bit Microprocessor — The ESC features a sophisticated 32-bit ARM M4 microprocessor running at frequencies up to 72MHz, delivering lightning-fast processing and intelligent control algorithms that respond instantly to your transmitter commands with precision unavailable from lower-specification controllers.
• Integrated High-Power BEC with Adjustable Output Voltage — The built-in switch-mode BEC provides continuous output of 10A with peak capability of 25A, with voltage selectable among 5.2V, 6.0V, and 7.4V. This allows you to power demanding onboard electronics including servos, flight controllers, and LED lighting systems without requiring external power modules.
• 6S to 14S LiPo Battery Compatibility — Support for high-voltage battery packs from 6-cell through to 14-cell LiPo systems gives you tremendous flexibility in power system design and allows you to scale your aircraft's performance as needed for different missions and weather conditions.
• Multiple Soft Start-Up Modes — Three distinct start-up modes (normal, soft, and very soft) are optimised for different aircraft types and configurations. The very soft start-up mode is specifically engineered for EDF jet aircraft to prevent sudden motor surge, whilst soft start modes accommodate traditional propeller-driven aircraft of varying sizes.
• Advanced Braking System with Reverse Brake Mode — The ESC offers normal brake, proportional brake, and brake-disabled modes. Reverse brake mode is particularly valuable during landing, effectively shortening your aircraft's sliding distance and simulating real-world landing characteristics. In proportional brake mode, braking force automatically adjusts based on your throttle stick position for intuitive control.
• Comprehensive Multi-Layer Protection System — Start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, over-load protection, abnormal input voltage protection, and throttle signal loss (fail-safe) protection all work together to significantly extend the ESC's service life and prevent catastrophic failures during flight.
• Programmable via LED Program Box — This ESC supports programming through Hobbywing's LED program box (sold separately), allowing you to adjust multiple parameters for different aircraft setups, flight characteristics, and mission profiles whenever and wherever you choose to configure your system.
• Separate BEC Isolation Circuit — The BEC module operates on independent circuits from the main power distribution, which means your onboard electronics can continue to receive power even in the unlikely event of power board failure, allowing you to safely bring your aircraft back to earth rather than experiencing a catastrophic in-flight power loss.
• Individual Programming Port Connection — A dedicated programming connector allows straightforward connection to external program boxes without compromising the main signal wiring, providing flexibility in how you configure and adjust your ESC settings.

Technical Performance

The Hobbywing FlyFun 110A HV V5 represents a significant engineering achievement in brushless RC aircraft speed control design. Built with a high-performance 32-bit microprocessor powered by a separate DC regulator, this ESC delivers exceptional anti-interference performance that greatly reduces the possibility of losing control during flight. The separate microprocessor power supply ensures stable operation even when your main battery voltage fluctuates during high-current motor demands, a critical consideration for reliable RC aircraft operation. The PCB (printed circuit board) incorporates extremely low impedance design principles, which guarantee superior current endurance and excellent overall performance reliability. All components are selected for quality and durability, with imported materials and engineering standards that reflect Hobbywing's reputation for producing professional-grade equipment.

The 110A continuous current rating with 140A peak output delivers impressive power delivery for brushless motors ranging from modest mid-sized designs to high-performance units in scale competition aircraft. The integrated high-power BEC with 10A continuous and 25A peak current capability is substantially more capable than basic BEC modules found in budget ESCs, allowing you to power multiple servos, sophisticated flight controllers, and onboard lighting systems from a single power source. The switch-mode BEC technology with adjustable output voltage (5.2V, 6.0V, or 7.4V) ensures compatibility with the widest possible range of onboard receiver systems, flight computers, and servo requirements across different aircraft configurations.

The ESC measures 92.7 x 45.6 x 27mm, making it compact enough for installation in a diverse range of aircraft from trainers through to advanced competition models, whilst the 180g weight is minimal enough to avoid impacting your aircraft's centre of gravity calculations. Heavy-duty 10AWG wiring with 150mm length provides excellent current-carrying capacity and allows flexible routing through your airframe, whilst the robust connectors ensure secure connections that won't vibrate loose during aggressive aerobatic flying. The new design brings not only an exquisite appearance but also superior heat-dissipating performance, critical when operating at continuous high current for extended flight sessions. This combination of advanced electronics, robust construction, and intelligent thermal management makes the FlyFun 110A HV V5 an excellent choice for serious RC aircraft enthusiasts in the UK who demand professional-grade reliability and performance.

What's in the Box

• Hobbywing FlyFun 110A HV V5 Brushless ESC
• Red 10AWG input wire (150mm length)
• Black 10AWG input wire (150mm length)
• Three blue 10AWG output wires (150mm length)
• Individual programming port connector

What You Need to Complete

• Brushless motor compatible with 6-14S LiPo batteries
• LiPo battery pack (6S to 14S configuration)
• RC aircraft airframe and construction materials
• Receiver and transmitter radio system
• Servos (quantity and type depending on aircraft design)
• Hobbywing LED Program Box (model 30501003) for parameter configuration — this is sold separately and highly recommended for accessing all programmable features
• Power connectors suitable for your motor and battery configuration
• Propeller or EDF fan appropriate to your aircraft and motor selection

Frequently Asked Questions

• What is DEO technology and how does it improve my RC aircraft's performance? — DEO stands for Driving Efficiency Optimization, Hobbywing's proprietary technology that delivers rapid and smooth throttle response whilst simultaneously improving driving efficiency. This means your brushless motor receives perfectly optimised power delivery that translates directly to better stability and flexibility during all phases of flight, from gentle cruising to aggressive aerobatic manoeuvres. The efficiency improvements result in longer flight times from the same battery charge, and the lower operating temperatures mean more reliable sustained high-performance flying sessions.
• Can I program this ESC without purchasing a separate program box? — The FlyFun 110A HV V5 can be programmed using the separate Hobbywing LED Program Box (model 30501003, sold separately). Unlike some ESCs in the FlyFun range, this particular model does not support transmitter stick-based programming or direct transmitter configuration. Whilst you can operate the ESC without programming it, using the LED Program Box allows you to optimise settings for your specific aircraft configuration, weight, and flying style, which significantly improves performance and reliability.
• What battery pack does the FlyFun 110A HV V5 require? — This brushless ESC is designed for high-voltage LiPo battery packs ranging from 6S (6-cell) through to 14S (14-cell) configurations. The high-voltage capability means you can use the latest high-energy-density battery technology, which provides more power in a lighter package compared to traditional lower-voltage setups. A 6S LiPo battery (22.2V nominal) is a popular choice for mid-sized aircraft, whilst larger scale models and high-performance competition aircraft often use 8S, 10S, 12S, or even 14S battery packs for maximum power delivery.
• Is the FlyFun 110A HV V5 suitable for EDF jet aircraft? — Yes, this ESC is specifically designed to work with EDF jet aircraft. The very soft start-up mode is engineered specifically for EDF configurations to prevent sudden motor surge when you first apply throttle. The 110A continuous and 140A peak current capability is appropriate for most EDF jet setups, and the responsive throttle characteristics delivered by DEO technology provide the precise control needed for stable EDF flight. The reverse brake capability is also valuable for EDF aircraft landing operations, helping to shorten sliding distance upon landing.
• How much does the FlyFun 110A HV V5 weigh and will it impact my aircraft's balance? — The ESC weighs only 180g, making it lightweight enough for installation in a broad range of aircraft designs without significantly impacting your centre of gravity calculations. The compact dimensions (92.7 x 45.6 x 27mm) allow flexible mounting positions within your airframe, giving you options for optimal weight distribution. For most mid-sized and larger scale aircraft, the ESC weight is negligible compared to your motor, battery, and airframe components.
• What protection features does this ESC provide? — The FlyFun 110A HV V5 includes comprehensive multi-layer protection including start-up protection to prevent unexpected motor engagement, ESC thermal protection to prevent overheating, capacitor thermal protection to preserve the internal power storage components, over-current protection to prevent damage from stalled props or locked motors, over-load protection for sustained high-current scenarios, abnormal input voltage protection to handle battery anomalies, and throttle signal loss protection (fail-safe) which disengages the motor if your receiver signal is lost. These protections work together to significantly extend the ESC's service life and prevent catastrophic failures during flight.
• Does this ESC include a BEC to power my receiver and servos? — Yes, the FlyFun 110A HV V5 features a built-in high-power switch-mode BEC with continuous output of 10A and peak capability of 25A. The voltage is adjustable among 5.2V, 6.0V, and 7.4V, allowing you to match the requirements of your specific receiver and servo combination. The separate BEC circuit means your onboard electronics receive protected, regulated power independent from the main motor power, and can continue operating even if the main power stage encounters problems. This is substantially more capable than basic BEC modules found in many budget ESCs.
• How does this ESC compare to the 130A and 160A models? — The FlyFun range includes multiple current ratings to match different motor sizes and aircraft configurations. The 110A/140A rating of this model is ideal for mid-sized aircraft and motors, whilst the 130A/160A models provide higher current capacity for larger motors and aircraft with greater power demands. This 110A model is a sweet spot for many traditional fixed-wing aircraft, trainers, and slope soarers, providing ample power headroom without unnecessary size and weight. Choose the 130A or 160A models if you're planning to use particularly large high-powered motors or heavy scale models. Additionally, unlike some of the larger models, this 110A version includes the adjustable BEC capability, making it more feature-complete for complex onboard electrical systems.
• Can I use this ESC in both propeller aircraft and EDF jet aircraft? — Absolutely. The multiple soft start-up modes mean you can optimise the ESC for either type of aircraft. Normal and soft start-up modes work beautifully with traditional propeller-driven aircraft, whilst the dedicated very soft start-up mode is engineered specifically for EDF jet configurations to prevent motor surge. The reverse brake capability is valuable for both aircraft types during landing, helping to shorten landing distance. The responsive throttle characteristics delivered by DEO technology provide excellent control across both aircraft categories.
