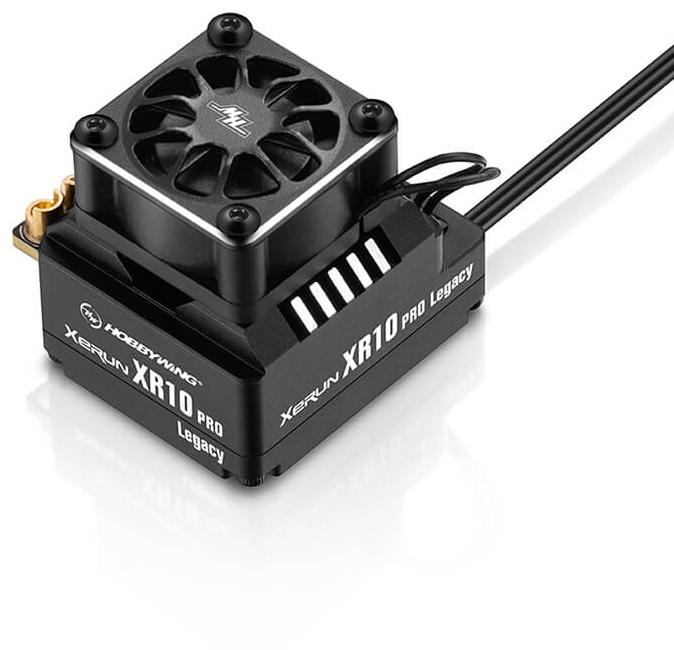

HOBBYWING XERUN XR10 PRO LEGACY BRUSHLESS SPEED CONTROL - BLACK HW30112800

Overview

Introducing the Hobbywing XERUN XR10 PRO LEGACY BRUSHLESS SPEED CONTROL — a legendary electronic speed controller built for competitive 1/10th scale RC car racing across the UK and beyond. Whether you're piloting a touring car, buggy, drift car, F1 replica or rally machine, this brushless ESC delivers the performance, reliability and advanced features that serious racers demand. The XR10 Pro Legacy combines proven competition-grade engineering with amazing value, making it an ideal choice for both dedicated competitors and experienced hobbyists looking to upgrade their RC car setup.

Built on the stable and powerful XR10 Pro series platform, this ESC is perfect for 1/10th on-road and off-road racing across both Modified and Stock classes. The Legacy represents a refinement of Hobbywing's trusted XR10 Pro design, incorporating modern features like Smart Fan technology, Bluetooth connectivity via the optional OTA programmer, and real-time data logging — all wrapped in a compact, reliable package that has proven itself on tracks across Europe. RC car enthusiasts in the UK will appreciate the combination of professional-level racing hardware with accessible pricing and straightforward setup.

At its core, the XR10 Pro Legacy is a sensored brushless ESC rated for continuous current of 150A with peak capability reaching 1000A, powered by a 32-bit M4 processor that delivers lightning-fast throttle response and precise handling characteristics. The built-in 10A switch-mode BEC with adjustable voltage from 5.0V to 7.4V ensures your servo receives clean, stable power regardless of battery voltage, whilst the integrated reverse polarity protection circuit guards against accidental damage from incorrect battery connections.

Key Features

• 32-bit M4Processor Core — The ESC is powered by a high-speed 32-bit M4 processor that delivers lightning-fast response times and handles large volumes of data with precision, enabling more accurate calculations and laying the foundation for continuous firmware optimisation and feature expansion that keeps your ESC current with evolving racing demands.
• Reverse Polarity Protection — Built-in protection circuitry prevents damage from incorrectly connected batteries, offering worry-free operation and peace of mind every time you power up your RC car, with optional full system protection available through the non-polarised capacitor module.
• Smart Fan Circuitry — The intelligent temperature-controlled fan runs only when needed, significantly extending fan life whilst maintaining optimal cooling performance during intense racing sessions; the function can be disabled through parameter settings if preferred.
• Built-in BEC Supporting High-Voltage Servos — A maximum output current of 10A through a switch-mode BEC design delivers the stable power and precision demanded by high-torque and high-voltage servos, with adjustable voltage control in 0.1V increments from 5.0V to 7.4V for fine-tuned servo performance.
• HOBBYWING Patented Softening Function — An advanced tuning tool for managing tricky track conditions, the Softening function provides enhanced control and allows drivers to optimise throttle response characteristics for specific surfaces and racing scenarios.
• Wireless Connectivity via OTA Bluetooth Module — Pair the ESC with the optional OTA Bluetooth module to access smartphone connectivity; using the HW Link mobile app, you can effortlessly adjust parameters, monitor real-time data, and upgrade firmware without requiring a dedicated programming box.
• Real-Time Data Logging and Post-Race Analysis — Monitor throttle position, battery voltage, ESC temperature, motor RPM and other critical parameters in real-time through the OTA module and HW Link app; the OTA's built-in memory records all data for detailed post-race analysis to identify performance opportunities and fine-tune your setup.
• Independent Programming Port — A dedicated programming interface supports the LCD Program Box Pro and OTA Bluetooth module, allowing straightforward parameter adjustment and firmware updates without additional hardware requirements.
• Sensored Motor Compatibility — Designed to work seamlessly with sensored brushless motors, the ESC optimises commutation timing based on actual rotor position for smoother acceleration and improved efficiency compared to sensorless designs.
• Compact, Lightweight Design — At just 94.2 grams including wires and connectors, and measuring 37.7×37.0×33.2mm with integrated fan and shroud, the ESC fits easily into confined engine compartments whilst maintaining robust construction quality.

Technical Performance

The XERUN XR10 Pro Legacy is engineered for serious 1/10th scale RC racing, whether on-road or off-road. The ESC delivers continuous current handling of 150A with peak surges to 1000A, making it suitable for high-performance brushless motors ranging from 3.5T to 5.5T (or 3650/540 size 2-pole motors); touring car applications require motors rated 4.5T or higher, whilst buggy applications demand 5.5T or higher specifications. The ESC operates on 2S LiPo battery systems (7.4V maximum), providing the efficient power delivery that modern brushless setups demand. The integrated frameless cooling fan measures 25×25×10mm and operates across the full voltage range of 5.0V to 7.4V, powered directly by the BEC circuit for efficient thermal management. Build quality reflects professional competition-grade standards: the ESC features black 13AWG input wires (×2 at 200mm length) and black 13AWG output wires (×3 at 200mm length) with high-quality connector terminations. The device is non-waterproof, so it should be mounted in protected locations within the chassis. The entire package, including wires and connectors, weighs just 94.2 grams, making it lightweight enough for competitive setups where every gram matters. The 32-bit M4 processor architecture enables advanced algorithmic control, faster data processing, and support for wireless firmware updates, ensuring the ESC can evolve with changing racing technologies and track demands throughout your competitive season.

What's in the Box

• XERUN XR10 Pro Legacy brushless ESC
• Black 13AWG input wires (×2, 200mm length)
• Black 13AWG output wires (×3, 200mm length)
• Integrated frameless cooling fan
• Fan shroud
• Instruction manual and documentation

What You Need to Complete

• 2S LiPo battery pack (7.4V maximum)
• Sensored brushless motor (3.5T–5.5T or 3650/540 size, depending on vehicle type)
• RC car chassis compatible with 1/10th scale brushless setup
• Battery charger (if not already owned)
• Servo (power supplied by ESC's built-in BEC)
• Radio receiver and transmitter system
• Motor connectors (Deans, 3.5mm bullets, 4mm bullets, or 5mm bullets) — optional connector upgrade kits available
• OTA Bluetooth module (optional, for wireless parameter tuning and data logging)
• LCD Program Box Pro (optional, for advanced parameter adjustment and firmware updates without smartphone)
• Non-polarised capacitor module (optional, for complete system-wide reverse polarity protection)

Frequently Asked Questions

• Is the XERUN XR10 Pro Legacy suitable for racing beginners or competitive drivers? — The XR10 Pro Legacy bridges the gap between beginner-friendly and competition-grade equipment. Whilst the advanced features like Softening function, real-time data logging, and firmware optimisation appeal to serious racers, the straightforward operation and reliable performance make it accessible to experienced hobbyists upgrading from entry-level ESCs. For first-time builders, the built-in BEC, reverse polarity protection, and sensored motor support simplify setup considerably.
• What battery does the XERUN XR10 Pro Legacy require? — The ESC is designed exclusively for 2S LiPo battery systems with a maximum voltage of 7.4V. A 2S LiPo typically delivers 50–100C discharge rating depending on the capacity chosen; popular options in the UK market range from 2200mAh to 5000mAh depending on your vehicle type and desired runtime.
• Can I use this ESC with sensorless motors? — No, the XERUN XR10 Pro Legacy is specifically designed for sensored brushless motors. Sensored motors provide rotor position feedback to the ESC, enabling smoother acceleration, better efficiency, and more predictable throttle response compared to sensorless alternatives. This design choice makes the ESC better suited to precision racing where consistent performance matters.
• What are the motor size and torque specifications for my vehicle type? — For touring car racing applications, select a brushless motor rated 4.5T or higher. For buggy and off-road racing, choose a motor rated 5.5T or higher. The ESC also supports 3650 size (540) 2-pole motor configurations. Higher T (turn) ratings indicate lower KV and higher torque, whilst lower T ratings provide higher speed and lower torque.
• Do I need the OTA Bluetooth module or LCD Program Box? — The ESC includes basic programming via the SET button on the unit itself, making it usable immediately without additional equipment. However, the optional OTA Bluetooth module (sold separately) enables smartphone control and wireless firmware updates, whilst the LCD Program Box Pro offers a dedicated screen-based interface for advanced parameter tuning — particularly valuable for tracking settings across multiple vehicles or detailed competition analysis.
• How do I achieve full reverse polarity protection for my entire power system? — The ESC includes built-in reverse polarity protection for its own circuitry. To protect the capacitor as well, Hobbywing sells an optional non-polarised capacitor module separately; this upgrades the system to complete protection across all power components. Without this module, an incorrectly connected battery may damage the standard capacitor, though the ESC itself will remain protected.
• What is the difference between the XR10 Pro Legacy and other Hobbywing ESC models? — The XR10 Pro Legacy combines the stable, proven XR10 Pro platform with updated features including Smart Fan technology, Softening function, and OTA wireless connectivity. Compared to simpler models, it offers professional-grade performance and data logging. Compared to newer XR10 Pro versions, the Legacy maintains proven reliability and value pricing whilst supporting modern wireless features through optional modules.
• Can I update the firmware wirelessly? — Yes, when paired with the optional OTA Bluetooth module and HW Link mobile app, the ESC supports wireless firmware updates. This allows you to benefit from continuous feature improvements and optimisations without requiring a dedicated programming box, making it easier to keep your setup current throughout the racing season.
• What is the real-time data logging range? — The OTA Bluetooth module has an effective wireless range of approximately 5 metres in open field conditions. This is sufficient for trackside monitoring and adjustment during practice sessions and races, though you should maintain line-of-sight for best reliability.
• Is this ESC waterproof? — No, the XR10 Pro Legacy is not waterproof. It should be mounted in a protected location within your RC car chassis, away from direct water contact. For waterproof brushless ESC options, you may want to explore Hobbywing's waterproof-rated product range designed specifically for water-crossing vehicles.
