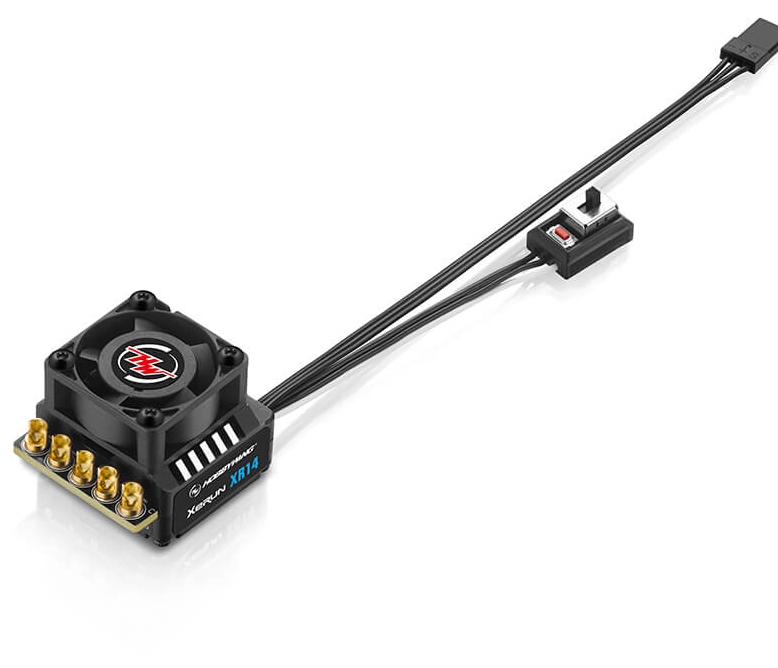

HOBBYWING XERUN XR14 BRUSHLESS SPEED CONTROL (FOR 1/14TH SCALE) HW30112622

Overview

The Hobbywing XERUN XR14 Brushless Speed Control is a competition-grade electronic speed controller specifically engineered for 1/14th scale RC racing vehicles. This advanced brushless ESC represents the pinnacle of modern RC technology, delivering exceptional performance for both on-road and off-road racing applications. Whether you're competing at the highest levels of 1/14th scale racing or seeking a professional-grade controller that offers exceptional reliability and customisation, the XR14 is the ideal choice for serious RC enthusiasts across the UK.

Built with precision engineering and meticulous software design, the XERUN XR14 combines high power output with intelligent thermal management to ensure consistent performance even during intense competitive racing sessions. This is not an entry-level controller—it's a purpose-built racing tool that has been developed by Hobbywing, a manufacturer recognised worldwide for producing some of the finest RC electronics available. The XR14 is ready to race out of the box, featuring two pre-programmed application modes specifically tuned for 1/14th scale competition.

RC car enthusiasts and competitive racers seeking a brushless RC speed controller with genuine competition credentials will find the XERUN XR14 delivers exactly what serious drivers demand: raw power, precise control, advanced data monitoring, and the flexibility to fine-tune every aspect of power delivery to match their driving style and track conditions.

Key Features

• 70A Continuous Current Output — With a maximum continuous output current of 70A and an impressive peak current rating of 300A, this ESC delivers exceptional power to your brushless motor, ensuring strong acceleration and consistent performance throughout extended racing sessions without thermal throttling.
• Full-Metal Heat Sink Design — The all-metal heat sink top case ensures efficient heat dissipation, keeping the ESC operating within safe temperature ranges even during the most demanding racing conditions, which is critical for maintaining peak performance and extending component lifespan.
• Built-in Reverse Polarity Protection Circuit — The ESC features integrated reverse connection protection that safeguards your controller from damage caused by accidentally connecting the battery with reversed polarity, providing valuable protection for your investment (note: full system protection requires an optional non-polarity capacitor).
• High-Voltage Servo Support with Integrated BEC — The built-in switch-mode BEC (Battery Eliminator Circuit) provides switchable output voltages of 6V or 7.4V at up to 4A continuous current and 8A peak current, delivering ample power to run high-torque, high-voltage digital servos without requiring a separate servo battery.
• Advanced Data Logging and Real-Time Monitoring — Track critical performance metrics including minimum voltage, maximum current, RPM, ESC temperature, and motor temperature using the built-in data logging function; connect via the optional OTA Bluetooth module and HW Link mobile app for real-time telemetry and post-race analysis (Bluetooth effective range approximately 5 metres).
• 26 Adjustable Parameters for Precision Tuning — Customise every aspect of throttle response and power delivery with 26 selectable parameters including PWM frequency, softening, initial throttle response, and Boost/Turbo timing, allowing you to fine-tune the controller to perfectly match your driving style and vehicle setup.
• Dual Pre-Programmed Application Modes — The XR14 includes two ready-to-race modes optimised specifically for 1/14th scale On-Road and 1/14th scale Off-Road competition, eliminating the need for complex programming and allowing you to switch between applications instantly.
• Sensored Brushless Motor Compatibility — Engineered specifically for sensored brushless motors, the XR14 delivers smooth, linear throttle response with excellent low-speed control, making it ideal for competitive racing where precision and consistency are paramount.
• Versatile Racing Format Compatibility — Whilst optimised for 1/14th Blinky and Boost racing formats, the XR14 also offers compatibility with 1/10th Blinky competitions, providing flexibility across different racing categories and ensuring your investment remains relevant as your racing interests evolve.
• Firmware Upgrade Support — The ESC supports firmware updates through the LCD PRO program box, ensuring you always have access to the latest performance enhancements and bug fixes released by Hobbywing.
• LCD PRO Program Box Compatibility — Utilise the optional LCD PRO programmer to access comprehensive setup menus and monitor detailed performance data directly on an LCD display, providing a professional-grade programming interface for serious competitors.
• OTA Bluetooth Module Support — Connect the optional OTA Programmer (product number 30850400) for wireless telemetry monitoring and data logging via Bluetooth, allowing you to track real-time performance metrics on your smartphone whilst your vehicle is racing.

Technical Performance

The Hobbywing XERUN XR14 represents a significant engineering achievement in brushless ESC design for 1/14th scale RC racing. At its core, this controller is engineered to work seamlessly with sensored brushless motors such as the Hobbywing XERUN 2848, delivering precision control that competitive racers demand. The sensored architecture ensures silky-smooth throttle response from zero throttle, which is especially critical in blinky-mode racing where initial off-the-line acceleration and precise power modulation determine race outcomes.

The physical construction of the XR14 reflects its competition-grade status. Measuring 35.2 x 31.3 x 28.5 millimetres and weighing just 66 grammes (including pre-installed wiring), this is a remarkably compact controller that won't add significant mass to your chassis. The full-metal heat sink top case is not merely cosmetic—it's a functional engineering solution that dissipates the considerable heat generated during high-current operation, which is essential when pushing 70A continuous through the power stage during intense racing. The framed fan design aids passive and active cooling, maintaining the ESC within safe operating temperatures even during extended racing sessions.

Electrical specifications confirm the XR14's capabilities: it accepts 2S LiPo battery input (7.4V nominal), making it compatible with standard competition-grade battery packs that are ubiquitous in UK RC racing. The integrated switch-mode BEC eliminates the need for a separate servo battery, providing clean regulated power to digital servos with switchable voltage output (6V or 7.4V), which accommodates both standard and high-voltage servo systems. Input wiring includes one 10AWG black wire at 200mm length and two 14AWG black wires at 175mm length, providing adequate gauge for reliable power delivery. Three 14AWG black output wires (175mm) connect to your brushless motor with low-resistance connections.

The advanced software architecture within the XR14 is where this ESC truly distinguishes itself from conventional controllers. Twenty-six adjustable parameters give competitive drivers unprecedented control over power characteristics: adjust PWM frequency to optimise motor responsiveness, fine-tune initial throttle response for precise steering input compatibility, programme Boost and Turbo timing modes for strategic power delivery during racing, and implement softening curves that transform raw power into smooth, predictable acceleration. This level of customisation is essential in competitive racing where track conditions, motor characteristics, and driving styles vary considerably.

Data logging capabilities elevate the XR14 beyond simple power control into the realm of performance analysis. The built-in memory logs extreme values (minimum voltage, maximum current, peak RPM, peak ESC temperature, peak motor temperature), providing valuable insights into how your vehicle performed during a race session. By pairing the ESC with the optional OTA Bluetooth module and downloading the HW Link mobile application, you unlock real-time telemetry monitoring and historical data graphing, enabling detailed post-race analysis. This is the kind of technology previously available only in professional racing programs, now accessible to competitive RC racers across the UK.

What's in the Box

• Hobbywing XERUN XR14 Brushless Speed Controller (HW30112622)
• Pre-installed input wiring (1x 10AWG 200mm black, 2x 14AWG 175mm black)
• Pre-installed output wiring (3x 14AWG 175mm black)
• User manual and documentation
• Firmware and software files for download
• ESC calibration instructions

What You Need to Complete

• 2S LiPo battery pack (7.4V nominal, appropriate capacity for your vehicle)
• Battery charger suitable for LiPo charging
• Sensored brushless motor (Hobbywing XERUN 2848 recommended)
• RC receiver compatible with your transmitter system
• Servo(s) for steering and throttle control
• Optional: LCD PRO Program Box (product number 30502002) for advanced programming via dedicated interface
• Optional: OTA Programmer Bluetooth module (product number 30850400) for wireless telemetry monitoring and data logging through HW Link mobile application
• Optional: Non-polarity capacitor for enhanced reverse-polarity system protection

Frequently Asked Questions

• Is the XERUN XR14 suitable for beginners or is it only for experienced RC racers? — The XERUN XR14 is genuinely a competition-grade controller designed primarily for serious, experienced racers rather than beginners. Its extensive parameter adjustment options, data logging capabilities, and advanced programming requirements assume prior knowledge of RC tuning and racing setups. Beginners would find an entry-level ESC more approachable. However, the XR14 features two pre-programmed application modes that work effectively out of the box, so technically a beginner could use it without programming; they would simply miss out on the advanced customisation that makes it so valuable to competitors. We recommend the XERUN XR14 for drivers with competition experience or those specifically training to race at higher levels.
• What battery does the XERUN XR14 require? — The ESC is designed exclusively for 2S LiPo batteries, which provide 7.4V nominal voltage. Standard 2S LiPo packs commonly used in UK 1/14th scale racing are fully compatible. Avoid 1S, 3S, or higher cell-count batteries, as they will damage the controller. Select a capacity appropriate for your vehicle type and intended runtime; typical competition setups use 2S packs ranging from 30C to 150C discharge rating depending on racing format.
• Does the XR14 support wireless programming and data monitoring? — Yes, the ESC is compatible with the optional OTA Programmer (Hobbywing product number 30850400), which provides wireless Bluetooth connectivity with an effective range of approximately 5 metres in open fields. Once paired with the HW Link mobile application, you can monitor real-time telemetry data including throttle position, voltage, current, temperature, and RPM during vehicle operation. The OTA module includes internal memory for recording data during races, enabling detailed post-session analysis on your smartphone.
• What programming tools are available for the XERUN XR14? — The ESC supports programming through the optional LCD PRO Program Box (product number 30502002), which provides a dedicated hardware interface with LCD display for comprehensive setup menus. The ESC does not support button-based programming via the SET button on the controller itself, nor does it support the older LCD G2 Program Box (discontinued) or WiFi module. For wireless telemetry and data logging, the optional OTA Bluetooth module is available. Firmware upgrades are supported through the LCD PRO programmer.
• What sensored brushless motors are recommended for the XR14? — Hobbywing specifically lists the XERUN 2848 sensored brushless motor as the applicable motor for the XR14. This motor is engineered as a perfect match for the ESC in 1/14th scale racing applications, with characteristics that complement the controller's power delivery and thermal management. Whilst the ESC can work with other sensored brushless motors of appropriate size and voltage rating, the XERUN 2848 is the officially recommended choice for optimal performance and reliability.
• Is the XERUN XR14 waterproof? — No, the XERUN XR14 is not waterproof. The specifications indicate a waterproof rating of NO, meaning the controller should not be exposed to water or moisture. Whilst the ESC can handle off-road dusty track environments when used in compatible brushless motors with appropriate dust sealing, you must protect the XR14 itself from water ingress. Install it in a dry location on your vehicle and avoid splashing or immersion.
• How does the built-in BEC perform with high-voltage servos? — The integrated switch-mode BEC is specifically designed to support high-torque, high-voltage digital servos. It provides switchable output of 6V or 7.4V at a maximum continuous current of 4A, with peak instantaneous current of 8A. This is sufficient for most standard digital servos used in 1/14th scale racing. However, if you're running multiple high-current servos simultaneously, verify that the total current draw doesn't exceed the BEC ratings, or consider using a dedicated servo battery pack for additional servos.
• What is reverse polarity protection and how does it work on the XR14? — The XERUN XR14 includes a built-in reverse polarity protection circuit that detects when a battery is connected with reversed polarity (positive to negative, negative to positive) and prevents damage to the main ESC components. However, this protection has a limitation: the standard electrolytic capacitor supplied with the ESC does not have reverse-polarity protection itself. If you accidentally reverse-connect the battery, the ESC circuitry will survive, but the capacitor will be damaged and must be replaced immediately. For comprehensive system-wide reverse-polarity protection including the capacitor, Hobbywing offers an optional non-polarity capacitor as a separate purchase.
• How many adjustable parameters does the XR14 offer and what can you tune? — The ESC provides 26 adjustable parameters, giving you exceptional control over performance characteristics. Tunable parameters include PWM frequency (affects motor responsiveness and efficiency), softening (throttle smoothness), initial throttle response (off-the-line acceleration), and Boost/Turbo timing (strategic power delivery modes). This extensive parameter library is one of the defining features that makes the XR14 attractive to serious competitors who demand precise control over every aspect of power delivery. You'll need the LCD PRO programmer or OTA Bluetooth module to access these parameters.
• What is the difference between Boost and Blinky racing modes, and does the XR14 support both? — Yes, the XERUN XR14 explicitly supports both Blinky and Boost racing formats. Blinky racing uses lights on the vehicle to regulate racing speeds and creates a more level playing field for competitors. Boost racing allows unrestricted acceleration, creating more dynamic racing. The XR14 is optimised for both formats, and the Boost/Turbo timing parameter allows you to programme precise power delivery characteristics suitable for the specific racing format you compete in. The two pre-programmed modes (1/14th On-Road and 1/14th Off-Road) can be adapted for both racing types.
• Can the XERUN XR14 be used for 1/10th scale vehicles? — The specifications indicate that the XR14 is suitable for 1/14th, 1/12th, and 1/10th scale vehicles, though it is optimised primarily for 1/14th racing. Whilst technically compatible with 1/10th scale light-load vehicles using zero-timing (blinky) mode, the ESC was engineered with 1/14th competition as its primary focus. For 1/10th scale applications, especially higher-powered setups, you may find Hobbywing's other ESC ranges (such as the EZRUN series) offer better optimisation. Contact us for advice on whether the XR14 suits your specific 1/10th scale requirements.
• What data does the XR14 record and how can I access it? — The ESC records critical extreme values during operation: minimum voltage, maximum current, maximum RPM, maximum ESC temperature, and maximum motor temperature. This data is logged internally and can be reviewed through the LCD PRO programmer. Additionally, when paired with the optional OTA Bluetooth module and HW Link mobile app, the ESC provides real-time data monitoring (throttle position, voltage, current, temperature, RPM) and the OTA module's internal memory records historical data, allowing you to download and analyse detailed performance graphs after racing sessions.
