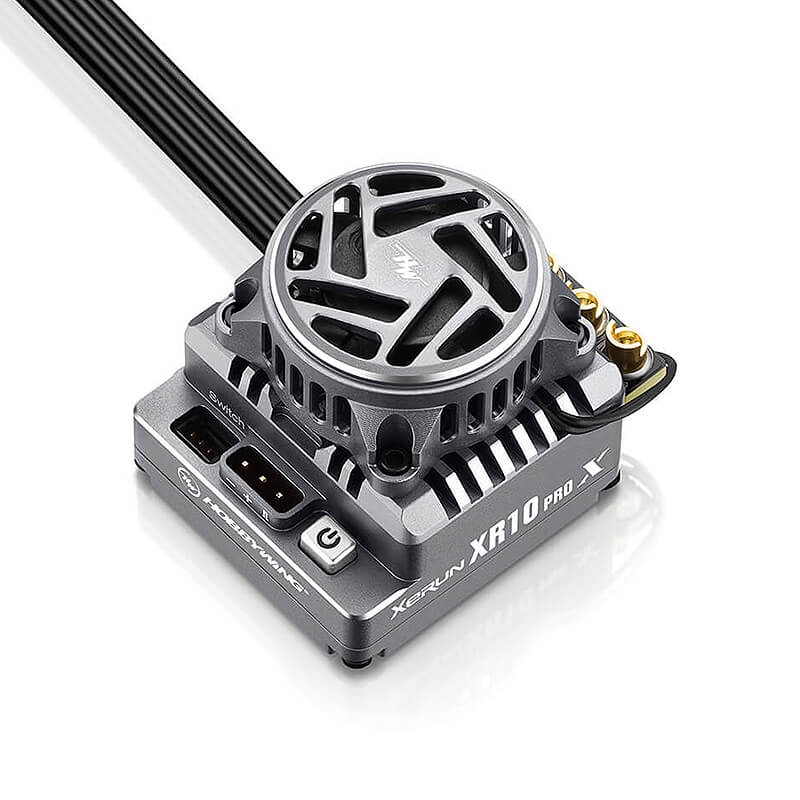

HOBBYWING XERUN XR10 PRO BLACK G3X BRUSHLESS SPEED CONTROL (STOCK) HW30112620

Overview

The Hobbywing XERUN XR10 Pro G3X is a competition-grade brushless electronic speed control (ESC) designed for serious 1/10 scale RC racing enthusiasts across the UK. This titanium grey version is specifically engineered for stock class racing, delivering more aggressive throttle response and the kind of punch that competitive drivers demand. Whether you're tackling a tight touring car circuit, navigating a buggy course, or mastering the technical challenges of drift racing, this ESC provides the precision control and advanced tuning capabilities needed to compete at the highest levels.

Built by Hobbywing, a name synonymous with quality in brushless RC motor and ESC technology, the XR10 Pro G3X represents the latest evolution in competition speed control design. This is not an entry-level ESC for beginners; this is a serious tool for drivers who understand the intricacies of tuning and optimisation, who track their data between runs, and who demand consistency lap after lap. The G3X variant comes equipped with premium 12AWG wiring for improved power delivery and is ideal for stock class racing where every fraction of a second counts.

The titanium grey case distinguishes this G3X version from the black G3 model, and the differences go much deeper than aesthetics. The G3X is tuned for maximum responsiveness and is particularly favoured by stock class competitors who value direct power delivery over the smoother characteristics of modified class setups. With advanced data logging, extensive programmable parameters, and innovative features like freewheeling mode and disc brake control, the XR10 Pro G3X gives you the tools to extract maximum performance from your RC car.

Key Features

• Built-in Data Logging with 380 Minutes Storage — The XR10 Pro G3X features an integrated data recording module that stores up to 19 complete 20-minute sessions, providing crucial performance data including throttle position, voltage, current, temperature, motor RPM, and vehicle speed. This information helps you understand exactly what's happening during each run and identify areas for improvement without needing to keep an external OTA programmer connected during operation.
• Freewheeling Mode for Temperature Reduction — The advanced freewheeling function helps reduce operating temperature by approximately 15 degrees compared to the previous G2S generation, which is particularly beneficial during high-load racing applications. This technology improves overall consistency and reliability, allowing you to push harder without thermal throttling concerns. The RPM decrease rate setting offers adjustable deceleration when you lift off the throttle, giving enhanced control when cornering.
• Innovative Disc Brake Control — Using closed-loop brake control technology, the disc brake mode delivers consistent, linear braking force across all speeds. This revolutionary approach completely eliminates the problem of non-linear braking that traditional methods suffer from due to vehicle speed variations. You can fine-tune the brake bias feeling through brake force curvature adjustments, or fall back to traditional linear braking modes if preferred.
• Durable Frameless Fan Design — The frameless fan blades are constructed from specialised rigid materials that significantly increase durability compared to traditional PBT framed fans, which are easily damaged by debris impact. The detachable design allows you to remove the fan entirely if desired, further reducing the ESC's centre of gravity for improved vehicle balance.
• Smart Fan Start-Stop Technology — The intelligent fan control system keeps the fan off during periods when cooling isn't required, activating automatically only when the ESC temperature rises. This reduces power consumption and minimises unwanted noise during lower-demand running, whilst ensuring the ESC stays within safe operating temperature ranges. The function is fully adjustable through parameter settings.
• Dual Parameter Setting Modes — Choose between 24 basic parameters for simplified tuning or access all 44 advanced parameters for complete control. This flexible approach means you can start with straightforward adjustments to throttle, brake, and performance basics, then dive into advanced features like boost timing, turbo timing, drag brake frequency, and precise motor characterisation when you're ready.
• 44 Programmable Parameters — The extensive tuning menu includes throttle and brake curvature settings, freewheeling control, disc brake modes, drag brake force and rate, boost timing with activation thresholds, turbo timing with delay and rate control, motor pole configuration, gear ratio input, and tyre diameter settings. This level of customisation allows you to adapt the ESC perfectly to your specific vehicle setup and driving style.
• Optimised Low Centre of Gravity Design — The fan assembly features an improved low centre of gravity design with the overall ESC height reduced by 2mm compared to the G2S generation. The detachable fan assembly option allows you to further reduce height when cooling isn't needed, directly improving vehicle balance and handling characteristics.
• Optimised Wiring Layout — The ESC features an improved cable output arrangement specifically optimised for on-road racing applications whilst remaining fully compatible with off-road layouts. Included U-type connectors accommodate various wiring requirements including flat and diagonal soldering configurations, making installation cleaner and more flexible.
• Built-in Adjustable BEC — An integrated switch-mode BEC provides up to 10A peak output current with continuously adjustable voltage from 5.0V to 7.4V in 0.1V increments. This meets the power requirements of both high-torque and high-voltage servos without external power supplies, simplifying your vehicle wiring harness.
• OTA Programmer and LCD Pro Support — Programme and configure the ESC using either the wireless OTA Bluetooth programmer (allowing wireless tuning during testing) or the LCD Pro programme box. Both options support firmware updates and data review, giving you flexibility in how you interact with your ESC settings.
• G3X Variant Characteristics — This titanium grey G3X version features premium 12AWG wiring for enhanced power delivery compared to the standard 13AWG, delivering more aggressive throttle response ideal for stock class racing. Note that the G3X version does not include reverse voltage protection, so correct battery polarity connection is essential.

Technical Performance

The Hobbywing XERUN XR10 Pro G3X is engineered as a professional-grade 1/10 scale brushless ESC designed for touring cars, buggies, drift vehicles, and formula-style racing applications. This 160A continuous / 1200A peak current powerhouse is built to handle the demands of sensored and sensorless brushless motors including the XERUN V10 G4R, V10 G3, and Bandit G4 motors. The G3X variant's titanium grey case and premium 12AWG wiring (versus the standard 13AWG found on the black G3 model) delivers the more direct, responsive power delivery favoured in stock class competition racing where precision throttle control and immediate motor response are paramount. The ESC is compatible exclusively with 2S LiPo battery systems (7.4V nominal, up to 8.4V fully charged), providing the right voltage range for sensored brushless motors used in competitive 1/10 scale racing. With dimensions of 41.0mm × 33.6mm × 30.3mm (terminal board extends 6.0mm) and a weight of 101.5g including wires and connectors, the compact footprint is designed to fit into tight engine bays whilst the low centre of gravity contributes to improved vehicle handling. The switch-mode BEC technology efficiently converts the main battery voltage to servo power, with full adjustment capability from 5.0V to 7.4V allowing you to optimise servo voltage for your specific servo requirements. Build quality is exceptional throughout, with the durable frameless fan featuring specially selected rigid materials to withstand the rigours of competitive use and track debris, whilst the reverse polarity protection circuit on the main ESC (though not on the G3X's capacitor pack) provides an additional safety layer against wiring mistakes.

What's in the Box

• Hobbywing XERUN XR10 Pro G3X brushless ESC (titanium grey case)
• Black 12AWG input wires (two wires, 200mm length)
• Black 12AWG output wires (three wires, 200mm length)
• U-type connectors for flexible wiring configurations
• Detachable frameless cooling fan (25mm × 25mm × 10mm)

What You Need to Complete

• Sensored or sensorless brushless motor (XERUN V10 G4R, V10 G3, or Bandit G4 recommended)
• 2S LiPo battery (7.4V nominal)
• RC receiver compatible with your radio system
• Servo(s) for steering and throttle control
• Suitable motor and battery connectors (various connector options available)
• OTA Programmer or LCD Pro Programme Box (for advanced tuning and data review; optional for basic operation)

Frequently Asked Questions

• Is the Hobbywing XERUN XR10 Pro G3X suitable for beginners learning RC racing? — This is a competition-grade ESC designed for experienced drivers who understand advanced tuning. With 44 programmable parameters, data logging capabilities, and features like disc brake control and freewheeling modes, it's better suited to drivers with solid RC experience. Beginners would be better served by simpler ESCs with fewer parameters, though the dual-mode interface does offer a simplified 24-parameter basic mode if you want to grow into the advanced features.
• What battery does the XERUN XR10 Pro G3X require? — This ESC exclusively supports 2S LiPo batteries (7.4V nominal voltage, 8.4V when fully charged). Do not attempt to use 3S batteries or other voltage packs, as they will damage the ESC. Always ensure your LiPo battery has proper balance connectors and low-voltage cutoff programming to protect the battery from over-discharge.
• What's the difference between the G3 black and G3X titanium grey versions? — The G3X (this model) features premium 12AWG wiring for enhanced power delivery and is tuned for stock class racing with more aggressive throttle response. The wiring upgrade reduces voltage drop under load, delivering punchier power. The G3X weighs slightly more (101.5g vs 93g) due to the thicker wiring. Importantly, the G3X does not include reverse voltage protection, so you must be careful with battery connections. The standard black G3 includes reverse polarity protection and comes with 13AWG wiring, making it better for modified class racing where smoother power delivery is preferred.
• Does the ESC have waterproof protection? — No, the XR10 Pro G3X is not waterproof. It should be protected from water submersion. Light moisture and brief exposure to wet conditions are tolerable for brief periods, but it's not designed for water-intensive environments. Ensure proper wire insulation and connector protection to minimise moisture intrusion.
• Can I use this ESC with sensorless motors? — Yes, the XR10 Pro G3X supports both sensored and sensorless brushless motors. You'll need to set the sensor mode parameter appropriately when programming. The ESC includes a sensor mode parameter (item 10 in the parameter list) for this purpose.
• How do I access and review the data logs? — The built-in data recording stores up to 380 minutes of operation across 19 sessions. To review this data as graphs and real-time information, you'll need either the OTA Programmer (wireless via Bluetooth) or the LCD Pro Programme Box (wired connection). The OTA Programmer is particularly convenient for track use as it allows wireless data review without keeping it connected during running.
• What programming tools do I need? — Basic programming can be done via the SET button on the ESC itself, but for full access to all 44 parameters, data logging, and firmware updates, you'll need either the LCD Pro Programme Box or the OTA Programmer. The LCD Pro connects via wire; the OTA Programmer uses Bluetooth and works with smartphones via the associated app.
• Does this ESC include all the connectors I need? — The ESC comes with no pre-soldered motor or battery connectors, allowing you to choose your preferred connector types. Various connector upgrade options are available from RC retailers (Deans, 3.5mm, 4mm, or 5mm bullet connectors) to match your vehicle's wiring specification.
• What's the advantage of disc brake mode over traditional braking? — Traditional braking methods produce non-linear braking force that varies with vehicle speed, making brake feel inconsistent. The innovative disc brake mode uses closed-loop control to maintain linear, consistent braking across all speeds, giving you predictable braking feel whether you're slowing from high speed or coming to a stop. You can further fine-tune the brake bias with curvature adjustments, or switch back to traditional braking modes if preferred.
• How much cooler does the freewheeling function make the ESC? — Compared to the previous XR10 Pro G2S generation, freewheeling reduces operating temperature by approximately 15 degrees, which significantly improves consistency during extended racing sessions or high-load competition use. This temperature reduction helps maintain stable performance and extends component lifespan.
