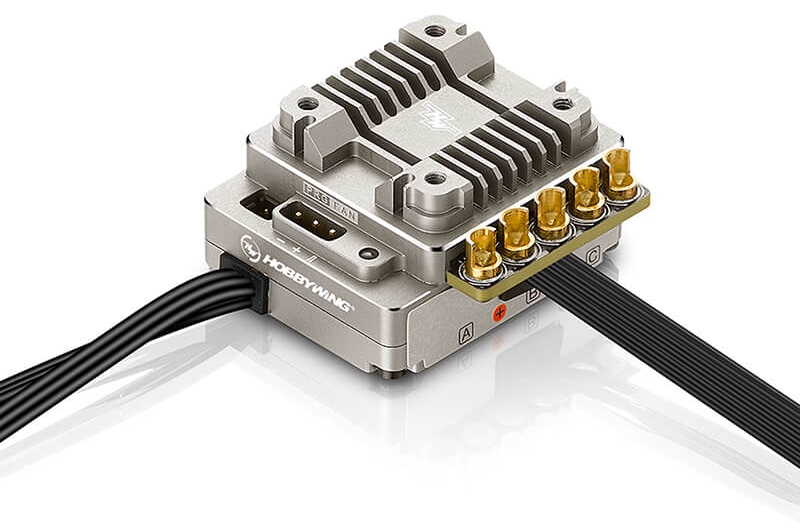

Reliable hardware combined with intelligent software (containing 9 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.
The aluminium casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable smart stop&start cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyse the recorded data via a the LCD program box or WiFi module after each use.
Features
- High Power Output
- Special Design for Top Racing
- Programming / Upgrading / Data reading wirelessly
- Adjustable Throttle & Brake PWM Frequencies
- Efficient Heat Dissipating System
- High current/voltage BEC
- Separate Programming/Fan Port
- IP67 All Weather Operation
- Smart Stop & Start Fan
- Innovative data-logging Function
Specifications
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: SD/SL
- Waterproof: Yes
- Cont./Peak Current: 160A/1200A
- Input: 2S LiPo Only
- BEC Output: Switch Mode: 5V-7.4V Adustable,5A
- Input Wires: Black-13AWG-200mm*2
- Output Wires: Black-13AWG-200mm*3
- Input Connectors: No
- Output Connectors: No
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- LCD Program Box: Supported
- Size: 37.7x37.2x19.6mm (w/o Fan)
- Weight: 95.6g (w/ Wires)
