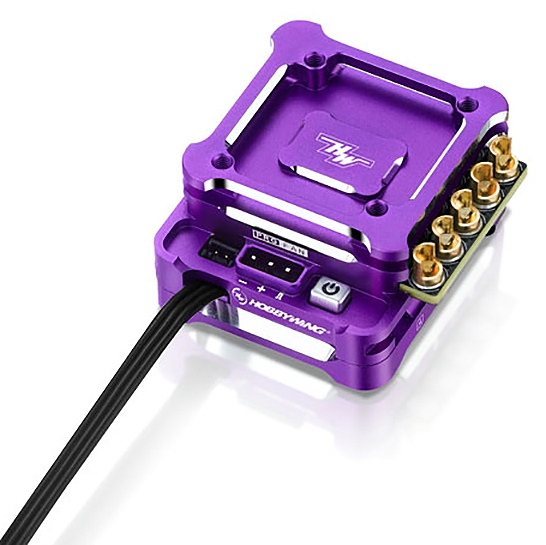

HOBBYWING XERUN XD10 PRO DRIFT BRUSHLESS SPEED CONTROL - PURPLE HW30112616

Overview

The Hobbywing XERUN XD10 Pro Drift Brushless Speed Control in striking purple is a purpose-built electronic speed controller designed specifically for competitive and recreational 1/10th scale drift racing. This is a serious piece of equipment engineered by Hobbywing, one of the world's leading manufacturers of RC electronics, and it brings professional-grade performance to your drift machine. Whether you're a seasoned drift competitor looking to upgrade your RC car UK setup or an enthusiast seeking to elevate your drifting experience, the XD10 Pro delivers the precision control, reliability and programmability that modern drifting demands.

What makes the XD10 Pro stand out in the crowded market of brushless RC ESCs is its laser-focused approach to drift performance. Unlike general-purpose speed controllers, this unit has been engineered from the ground up with drifting in mind. The developers at Hobbywing have incorporated specialised programmable parameters optimised specifically for drift applications, ensuring that your RC drift car performs at its absolute best through those perfectly executed slides and high-speed cornering manoeuvres. The elegant purple anodised finish isn't just about looks either—it's part of Hobbywing's thoughtful colour-matched design philosophy, allowing you to perfectly coordinate your ESC with your drift machine's aesthetics.

The XD10 Pro combines cutting-edge technology with practical usability. It features a powerful integrated aluminium fan for thermal management, ultra-soft 13AWG silicone wiring for flexibility and reliability, and intelligent protection circuits to guard against common setup mistakes. With support for both sensorless and sensored brushless motors rated 8.5T and above, compatibility with 2S LiPo batteries, and advanced firmware upgrade capabilities, this is a controller that will grow with your skills and ambitions in the RC drift scene.

Key Features

• Drift-Optimised Programmable Parameters — The XD10 Pro is powered by a 32-bit M4 processor with custom software specifically tailored for drift applications, allowing you to fine-tune initial start-up force adjustment, drive frequency and brake response to extract maximum performance from your setup, something essential when you're chasing competitive drift times.
• 48K Ultra-High Drive Frequency and 24K Ultra-High Brake Frequency — These exceptional frequency rates ensure that your motor responds instantly to throttle inputs and that braking is smooth and progressive, giving you the precise control required for executing tight drift lines and maintaining stability through high-speed cornering.
• Powerful Framed Aluminium Fan — The integrated 30x30x10mm fan features carefully selected materials and a robust design that actively cools the ESC during extended drift sessions, preventing thermal throttling and ensuring consistent performance whether you're practising on the track or competing in an event.
• Ultra-Soft 13AWG Silicone Wiring — The included premium silicone wires are ultra-flexible and feature low resistance, meaning easier installation, better durability through repeated handling, and maximum power transmission from your battery to your motor without energy loss.
• Reverse Polarity Protection — Built-in battery-reversal protection circuitry safeguards your ESC from damage if you accidentally connect the battery with reversed polarity, protecting your investment and eliminating a common cause of failures in the RC hobby.
• High-Voltage BEC Support — The integrated BEC (Battery Elimination Circuit) delivers power to your receiver and servos at a continuously adjustable voltage from 5.0V to 7.4V in 0.1V increments, supporting both standard and high-torque servos with sufficient current output of 5 amps to power demanding steering and gear servos reliably.
• Advanced OTA Connectivity and Real-Time Monitoring — Connect the optional OTA Bluetooth module to your smartphone via the Hobbywing app for wireless parameter adjustment, firmware updates, and real-time data logging of ESC performance, allowing you to monitor operating status and make adjustments without connecting to a computer.
• Fast Firmware Upgrade Protocol — The new communication protocol enables significantly faster firmware upgrades compared to previous generations, with the OTA Programmer delivering speeds 3-4 times faster than legacy systems, keeping your ESC firmware current with the latest optimisations and features.
• Multi-Profile Programming via LCD PRO or OTA Programmer — Program multiple ESC configurations independently through either the LCD PRO Program Box or the OTA Programmer module, allowing you to save different setups for different track conditions or racing formats without reprogramming between sessions.
• Extreme Value Data Logging and Historical Graphs — The XD10 Pro records extreme performance values and real-time operational data, with OTA connectivity enabling historical data graphing so you can analyse your ESC's behaviour and optimise settings based on actual performance data from your drifting sessions.

Technical Performance

The XERUN XD10 Pro is engineered to handle the demanding requirements of serious 1/10th scale drift racing. With a continuous current rating of 100 amps and a peak burst rating of 800 amps, this ESC delivers the instantaneous power delivery that drift driving demands, whether you're launching off the line or recovering from a slide. It's designed to work with 2S LiPo batteries, the standard power source for 1/10th drift cars in the UK and worldwide, operating across the typical voltage range of 5V to 7.4V. The unit is constructed with premium materials—the fan housing uses a framed aluminium design for durability and effective heat dissipation, whilst the main PCB houses a sophisticated 32-bit processor capable of executing complex control algorithms at 48,000Hz drive frequency and 24,000Hz brake frequency, frequencies far exceeding the requirements of standard RC drifting and ensuring response so fast it's imperceptible to the driver. The physical dimensions of 40.7 x 35.0 x 32.0mm (with the fan installed) and total weight of 95 grams including wires make it compact enough to fit in tight chassis configurations whilst remaining robust enough to withstand the vibrations and impacts of aggressive driving. The unit supports both sensorless and sensored brushless motors with a KV rating of 8.5T or higher, making it compatible with the vast majority of competitive drift motor options available today. The included output wires are a pair of 13AWG silicone cables at 250mm length, ideal for custom routing in your chassis, whilst the 3.5mm male plug connectors ensure reliable connections with your motor. The BEC output of 5 amps at variable voltage is more than sufficient for high-torque steering servos and modern receiver designs, and the waterproof capability is rated as 'No', meaning this is an ESC designed for dry, climate-controlled competition environments rather than outdoor bashing in wet conditions.

What's in the Box

• Hobbywing XERUN XD10 Pro Brushless Speed Controller (Purple)
• Two 13AWG silicone input wires with XT60 connectors (250mm length)
• Three 13AWG silicone output wires with 3.5mm male plugs (250mm length)
• Instruction manual and quick-start guide
• ESC calibration process documentation

What You Need to Complete

• 2S LiPo battery (3.7V-7.4V nominal) with XT60 connector for powering your RC drift car
• Brushless motor rated 8.5T or higher (sensored or sensorless compatible)
• RC receiver compatible with your radio transmitter
• Servo for steering control
• LCD PRO Program Box or OTA Bluetooth Module (available separately) for advanced programming and parameter adjustment
• Battery charger suitable for 2S LiPo batteries

Frequently Asked Questions

• Is the Hobbywing XERUN XD10 Pro suitable for beginners or is it only for experienced drifters? — Whilst this ESC is genuinely designed for serious drifting with advanced programmable parameters, it's absolutely usable by beginners who are getting into 1/10th scale drift racing. The factory default settings provide excellent baseline performance, and the step-by-step ESC calibration process is straightforward. However, to truly unlock the potential of the XD10 Pro's drift-specific features, you'll benefit from some understanding of ESC programming and from consulting the factory-provided setup sheets or guidance from experienced team drivers. If you're brand new to RC cars in general, you might want to start with a simpler ESC, but if you're specifically getting into drift racing, the XD10 Pro is a worthy investment that will serve you well as your skills progress.
• What battery does the Hobbywing XERUN XD10 Pro require? — The XD10 Pro is designed exclusively for 2S LiPo batteries, which provide a nominal voltage of 7.4V when fully charged (6.6V nominal, 8.4V maximum). This is the standard battery configuration for 1/10th scale drift cars, and the ESC will operate reliably anywhere within the 2S LiPo voltage range. It does not support 3S, 4S or higher voltage batteries. You'll need a 2S-compatible charger and a LiPo balance charger for safe charging.
• Can I use sensorless motors with the XD10 Pro, or do I need sensored motors? — The XERUN XD10 Pro supports both sensorless and sensored brushless motors, giving you flexibility in motor choice. Both types must have a KV rating of 8.5T or higher. Sensored motors can provide smoother low-speed control and better starting torque, whilst sensorless motors are typically lighter and more affordable. The ESC will automatically detect which type of motor you've connected during the calibration process.
• What makes the XD10 Pro different from a standard brushless ESC? — The key difference is that the XD10 Pro features programmable parameters that are specifically optimised for drift applications. Standard brushless ESCs are typically designed for general racing or bashing. The XD10 Pro includes drift-specific features such as adjustable initial start-up force (crucial for launching into a drift), 48K ultra-high drive frequency for crisp throttle response, and 24K ultra-high brake frequency for smooth progressive braking. These specialised parameters, combined with real-time data logging and OTA programming capability, make the XD10 Pro a serious tool for competitive drifters.
• How do I programme and adjust the settings on the XD10 Pro? — You can programme the XD10 Pro in three ways: directly using the SET button on the ESC itself (for basic adjustments), through the LCD PRO Program Box (which connects via USB to a computer and offers a full programming interface), or wirelessly via the optional OTA Programmer module and the Hobbywing mobile app over Bluetooth. The OTA Programmer is particularly convenient as it allows you to make parameter changes trackside without tethering to a computer, and it enables real-time data recording so you can monitor ESC performance as you're driving.
• Does the XD10 Pro protect against wiring mistakes and accidental damage? — Yes, the XD10 Pro features built-in reverse polarity protection, which means the ESC will not be damaged if you accidentally connect the battery with reversed polarity (this is a common mistake in the rush of race day setup). However, note that the standard capacitor included in the ESC can be damaged by polarity reversal. If you want complete protection including the capacitor, Hobbywing sells optional non-polarity capacitor upgrades (part numbers 30840004 and 30840005) that can be installed as replacements.
• What cooling capacity does the XD10 Pro have and how long can I run it continuously? — The XD10 Pro features a powerful 30x30x10mm framed aluminium fan powered by the ESC's BEC circuit, which actively cools the electronics during use. This fan is sized and designed to manage heat generated during competitive drift sessions. The ESC can run continuously as long as battery power is available, but it's essential to monitor operating temperature—the manual includes guidance on checking ESC temperature to maximise electronics lifespan. The wrong programming settings can cause excessive heat, so it's important to use either factory-provided settings or guidance from experienced team drivers.
• Is the XD10 Pro waterproof or suitable for outdoor bashing in wet conditions? — No, the XD10 Pro is not waterproof (rated as 'No' in waterproof specifications). This ESC is engineered specifically for track-based drift racing in dry, controlled environments. If you need an ESC suitable for outdoor bashing or wet conditions, you should look at Hobbywing's waterproofed models instead.
• What warranty and support does Hobbywing provide with the XD10 Pro? — Hobbywing provides manuals, ESC calibration documentation, setup sheets, and guidance specific to drift racing with this model. For detailed warranty information, you should contact RC Model Shop or consult the documentation provided with your purchase. Hobbywing is one of the most trusted brands in RC electronics with extensive online resources and a global user community.
