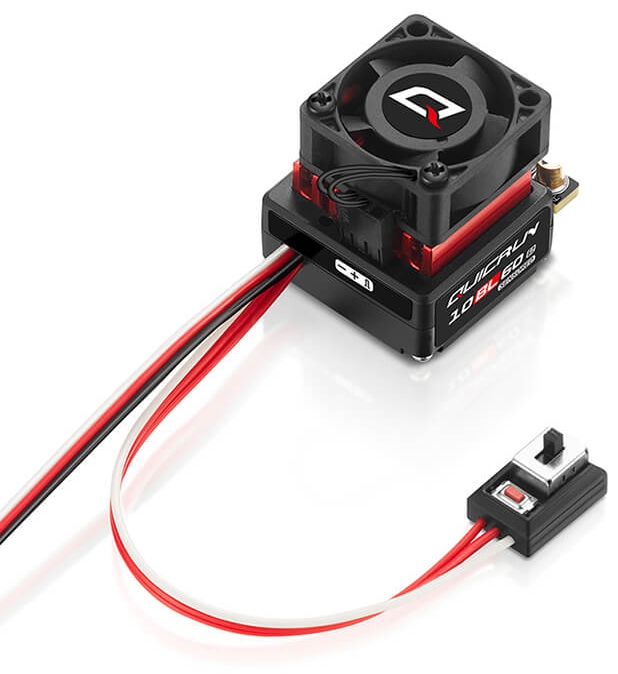

HOBBYWING QUICRUN 10BL60 SENSORED G2 BRUSHLESS ESC HW30108001

Overview

The Hobbywing QuicRun 10BL60 Sensored G2 Brushless ESC is an exceptional electronic speed controller designed specifically for entry-level and intermediate RC car enthusiasts in the UK. This impressive piece of engineering represents outstanding quality at an amazing price point, making it an ideal choice for anyone building their first brushless RC car or upgrading from older equipment. Whether you're assembling a 1/10th scale touring car, buggy, or drift machine, this ESC delivers the reliability and performance you need to get the most out of your brushless motor.

What sets the QuicRun 10BL60 Sensored G2 apart from other brushless ESCs in its class is its user-friendly design that eliminates complex setup procedures. Unlike many competing products that require extensive tuning and troubleshooting, this controller allows you to jump right into the action and start enjoying your RC car immediately. The G2 generation represents a significant step forward from the previous G1 model, featuring substantial improvements across the board that make it even more accessible to newcomers whilst delivering the performance that experienced builders demand.

This sensored brushless ESC is engineered for compatibility with 1/10th scale touring cars, buggies, and drift vehicles, as well as 1/12th and 1/14th scale models. Its robust construction and advanced software protection systems ensure that your investment is protected during countless hours of driving enjoyment. If you're searching for a reliable brushless ESC for your RC car UK setup, the QuicRun 10BL60 Sensored G2 offers exceptional value and dependable performance.

Key Features

• Upgraded BEC (Battery Elimination Circuit) — The G2 generation significantly improves upon its predecessor by increasing the continuous output current from 2A to 4A, with a peak current capacity of up to 7A. This powerful built-in BEC can switch between 6V and 7.4V output voltages, allowing you to power high-torque and high-voltage servos with complete confidence. This means you can use demanding servo setups without needing a separate battery eliminator, simplifying your RC car setup considerably.
• Boost and Turbo Timing Technology — This ESC supports adjustable Boost and Turbo timing of up to 24 degrees, giving you the ability to unleash maximum motor power on demand. These timing adjustments deliver an instant speed boost whenever you need it, whether you're launching off the line or powering through a corner. This feature is particularly valuable for competitive racing or high-performance driving sessions.
• Sensored Brushless Motor Compatibility — The ESC is specifically designed to work with sensored brushless motors, providing smooth commutation and responsive throttle control. The sensored design eliminates the cogging and hesitation sometimes found in sensorless setups, giving you buttery-smooth acceleration from a standstill. This is particularly noticeable during low-speed manoeuvres and precise control situations common in touring car racing.
• Exceptional Current Rating — With a continuous current rating of 60A and peak current capability of 200A, this ESC can handle powerful brushless motors without breaking a sweat. The robust hardware foundation combined with advanced software ensures strong current resistance and reliable performance even under demanding driving conditions. This substantial power capacity means you can use high-performance motors without worrying about the ESC becoming a limiting factor.
• Comprehensive Protection Systems — The ESC is equipped with multiple layers of protection including low voltage protection to prevent over-discharging your battery, over-temperature protection to prevent heat damage, throttle signal loss protection to safely cut power if your radio signal is lost, and overload protection to guard against short circuits. These safeguards significantly enhance reliability and durability, giving you peace of mind during every driving session.
• Multiple Programming Methods — You can programme this ESC using three different approaches: the onboard SET button for basic adjustments, an LED programming box for more detailed tuning, or the advanced LCD PRO programming box for full parameter control. This flexibility allows you to choose your preferred method and adjust settings with ease, whether you're at the track or in your garage.
• Motor Rotation Flexibility — The ESC supports both clockwise (CW) and counterclockwise (CCW) motor rotation adjustment, ensuring compatibility with a wide range of vehicle frames and motor mounting configurations. This versatility means you're not locked into a specific setup and can adapt the ESC to almost any 1/10th scale touring, buggy, or drift build you have in mind.

Technical Performance

The Hobbywing QuicRun 10BL60 Sensored G2 is built with a robust hardware foundation that delivers consistent, reliable performance across diverse driving conditions. Measuring just 35.0 x 31 x 30.8mm and weighing only 66.5g (including wires and connectors), this compact ESC is remarkably small yet capable of handling the demanding power requirements of modern brushless RC cars. The sensored design ensures smooth motor commutation and eliminates the low-speed cogging problems associated with sensorless ESCs, providing superior control particularly during slow-speed manoeuvres in touring car racing. Input voltage acceptance of 2S LiPo (7.4V) makes this ESC compatible with the most common battery configuration for 1/10th scale cars, and the continuous 60A/peak 200A current rating ensures you won't be limited by the ESC when selecting motor options. The framed cooling fan design measuring 25 x 25 x 10mm helps dissipate heat during extended driving sessions, maintaining optimal performance even during consecutive heats at the track. The ESC features three-phase output wires in blue, yellow, and orange configurations, with 14AWG wire gauge and 175mm length providing excellent connectivity to your sensored brushless motor. The switch-mode BEC outputting 6V/7.4V at 4A continuous (7A peak) represents a substantial upgrade over previous generation controllers and can reliably power demanding servo setups including high-torque steering servos and high-voltage digital servos. Support for both LED and LCD PRO programming boxes gives you comprehensive access to all ESC parameters, whilst the shared programme port design keeps the overall package compact and user-friendly.

What's in the Box

• Hobbywing QuicRun 10BL60 Sensored G2 ESC unit
• Black 14AWG input wire (175mm length)
• Red 14AWG input wire (175mm length)
• Blue 14AWG output wire (175mm length)
• Yellow 14AWG output wire (175mm length)
• Orange 14AWG output wire (175mm length)

What You Need to Complete

• 2S LiPo battery (2-cell, 7.4V) — the ESC is compatible with standard 2S battery packs
• Sensored brushless motor compatible with 1/10th scale applications
• RC car chassis suitable for 1/10th scale touring, buggy, drift, or 1/12th/1/14th scale vehicles
• Radio control system with compatible receiver
• Servo for steering control
• Motor connectors (these can be added during installation; optional connector upgrade packages are available including Deans, XT-60, 4mm bullet, or 5mm bullet options)
• ESC programming box (LED or LCD PRO) for advanced parameter adjustment — alternatively use the onboard SET button

Frequently Asked Questions

• Is the Hobbywing QuicRun 10BL60 Sensored G2 suitable for beginners? — Absolutely. This ESC has been specifically crafted for entry-level and intermediate builders, with user-friendly design that eliminates complex setup procedures. You can jump right into action without complicated tuning or troubleshooting. The multiple programming options (SET button, LED box, or LCD PRO box) allow you to start with basic configuration and progress to advanced tuning as your skills develop.
• What battery does this ESC require? — The QuicRun 10BL60 Sensored G2 accepts 2S LiPo batteries (7.4V nominal). This is the most common battery configuration for 1/10th scale RC cars in the UK, making it easy to find compatible options from multiple manufacturers. The ESC includes low voltage protection to prevent over-discharging your battery, protecting your investment.
• How does the G2 compare to the original G1 version? — The G2 generation represents a significant upgrade, particularly in BEC output. The continuous output current has increased from 2A to 4A, with peak current rising to 7A. The switchable output voltages (6V/7.4V) give you more flexibility when powering servos. These improvements make the G2 capable of powering more demanding servo setups whilst maintaining the same compact size and core reliability.
• Can I use this ESC with sensorless motors? — No, the QuicRun 10BL60 Sensored G2 is specifically designed for sensored brushless motors. The sensored design provides smoother commutation and better low-speed control compared to sensorless setups, making it ideal for touring car racing and precision driving applications. If you're looking for a sensorless option, you would need to choose a different ESC from the Hobbywing range.
• What protective features does this ESC include? — The ESC is equipped with comprehensive protection systems: low voltage protection prevents battery over-discharging, over-temperature protection guards against excessive heat damage, throttle signal loss protection safely cuts power if your radio signal fails, and overload protection guards against short circuits. These multiple safeguards significantly enhance reliability and give you confidence during extended driving sessions.
• How do I programme this ESC? — You have three options: use the onboard SET button for basic adjustments, employ an LED programming box for more detailed parameter control, or utilise the advanced LCD PRO programming box for complete parameter access. This flexibility means you can start with simple configuration and progress to advanced tuning as needed. The programme port is shared with the fan port to keep the ESC compact.
• What vehicle types is this ESC compatible with? — The QuicRun 10BL60 Sensored G2 is designed for 1/10th scale touring cars, buggies, and drift vehicles, as well as 1/12th and 1/14th scale models. The flexible motor rotation adjustment (clockwise and counterclockwise) ensures compatibility with a wide range of frame designs and motor mounting configurations across these scales.
• Does the ESC include connectors on the battery and motor sides? — The ESC ships without pre-installed connectors on either the battery input side or the motor output side. This allows you to customise the connector type to match your specific setup. Optional connector upgrade packages are available including Deans, XT-60, 4mm bullet, and 5mm bullet configurations to suit your preference.
• What is the physical size and weight of this ESC? — The ESC measures 35.0 x 31 x 30.8mm and weighs just 66.5g including wires and connectors. This compact size makes it easy to fit into tight spaces within 1/10th scale chassis whilst the lightweight construction doesn't add unnecessary mass to your vehicle.
