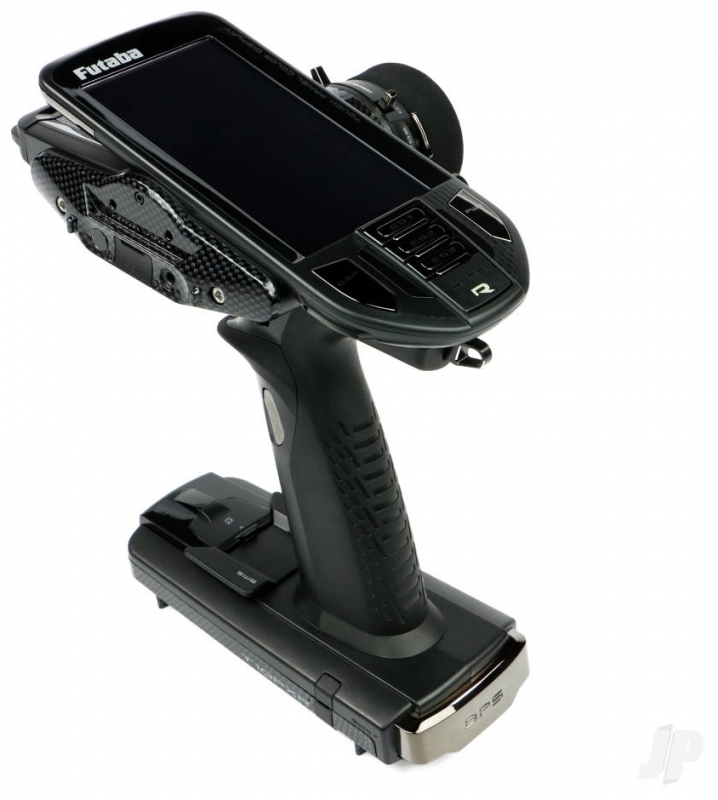

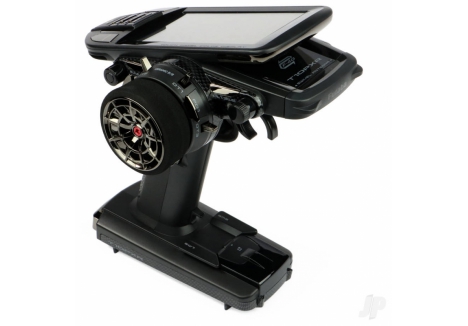

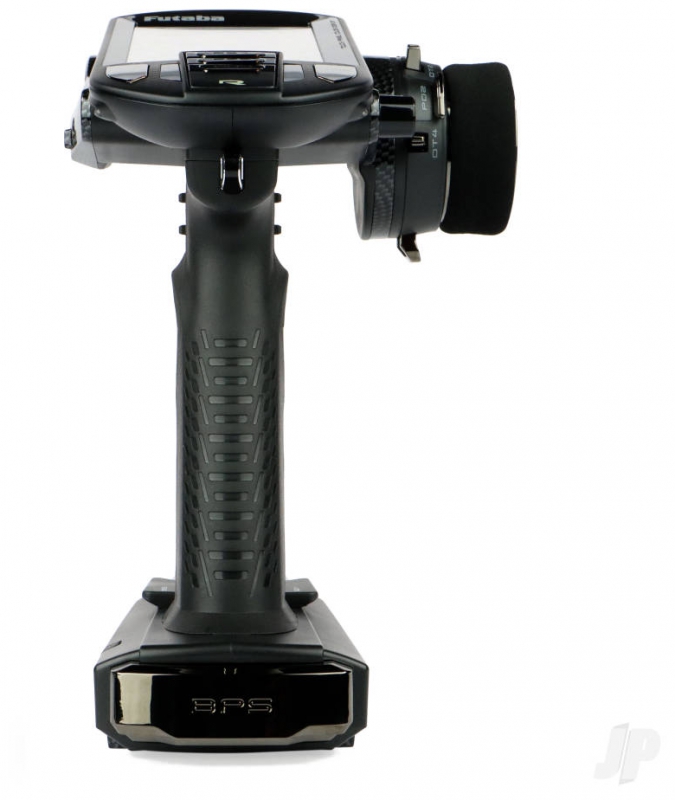

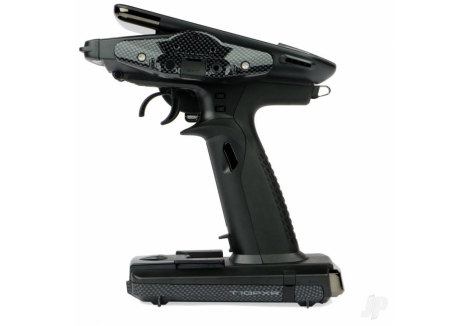

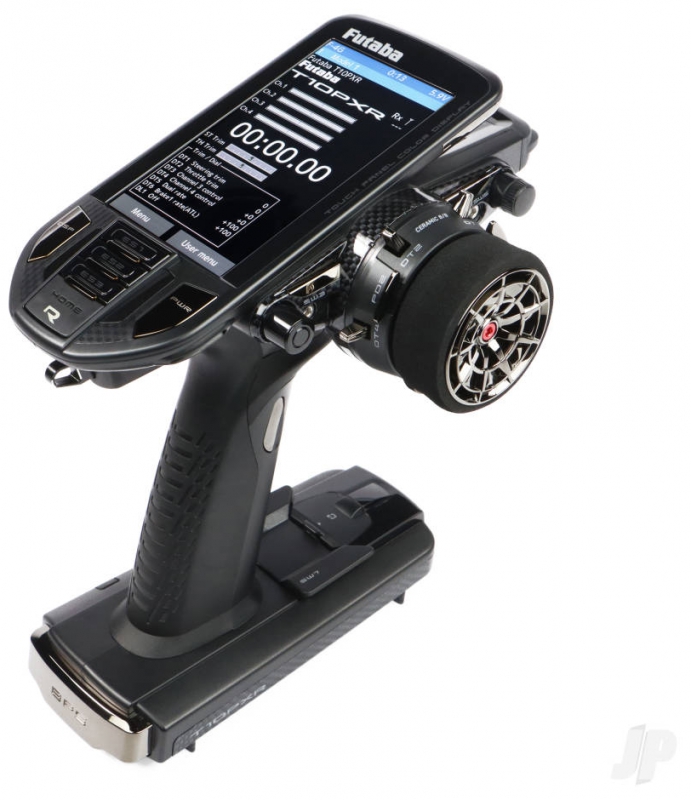

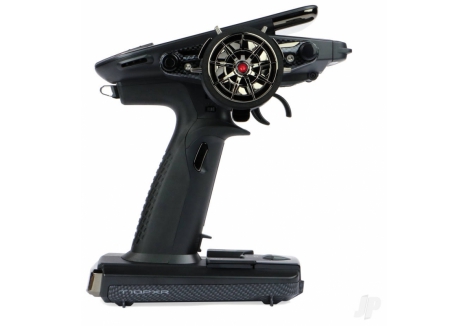

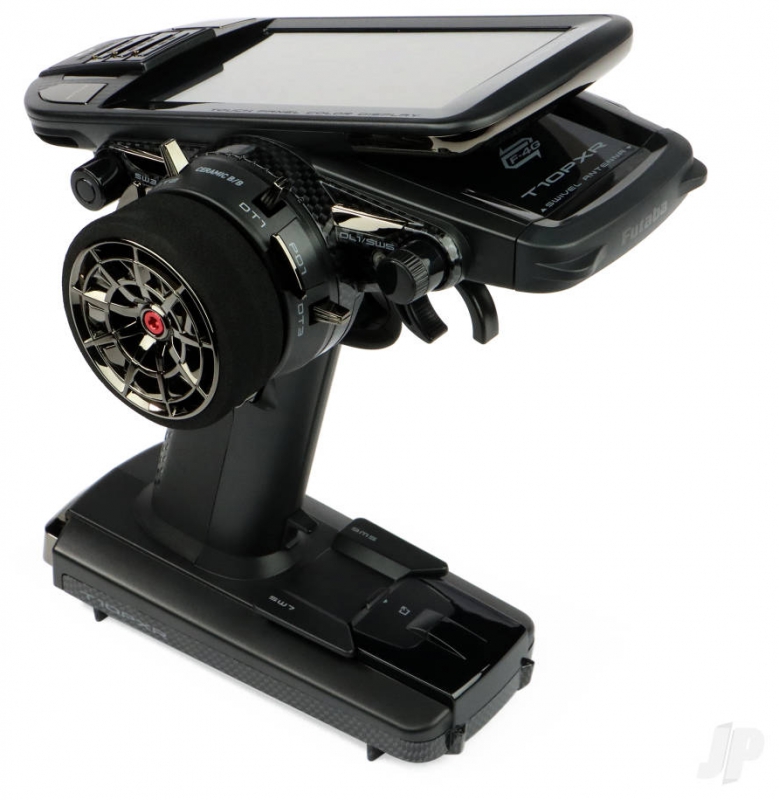

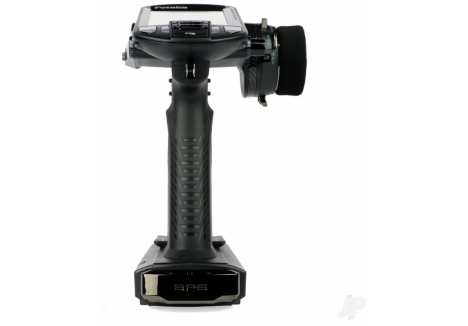

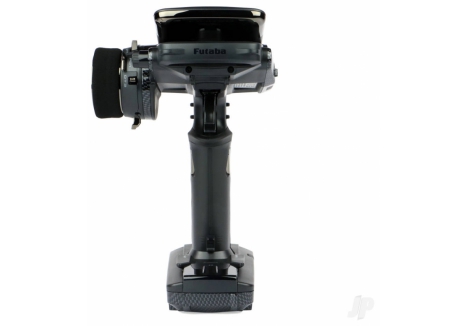

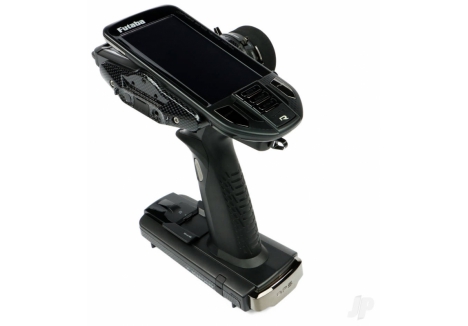

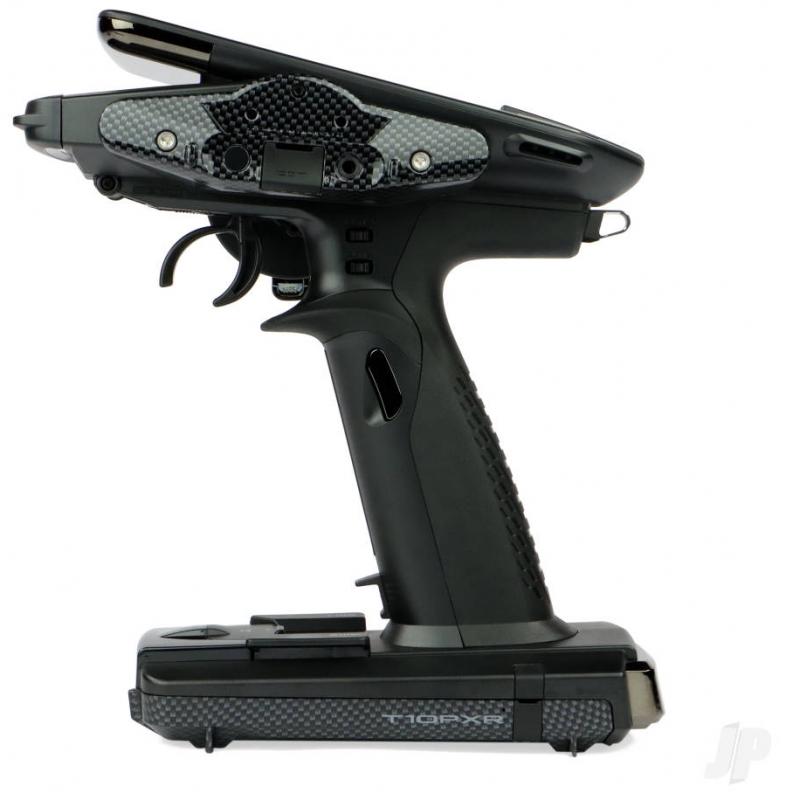

Futaba T10PXR 10-Channel Surface Radio with R404SBS Rx FUT05003237-3

Overview

The Futaba T10PXR 10-Channel Surface Radio with R404SBS Receiver represents the absolute pinnacle of RC surface radio control engineering. Designed for serious competitors and dedicated hobbyists who demand precision, speed and complete customisation, this flagship transmitter is the choice of race-winning drivers across the UK and beyond. Whether you're piloting a high-speed 1/8 nitro buggy, managing a complex multi-axle truck, controlling a dual-motor crawler, or commanding a tracked vehicle, the T10PXR delivers uncompromising performance that gives you the competitive edge on every track and terrain.

Built on Futaba's revolutionary 4th-generation F-4G telemetry system, the T10PXR offers lightning-fast response times with near-zero latency that can mean the difference between victory and second place. The integrated R404SBS F-4G receiver provides full telemetry feedback including temperature, RPM, voltage, amperage and GPS data, allowing you to monitor your vehicle's performance in real-time and make split-second adjustments during competition. This is not a beginner's radio—this is a professional-grade tool engineered for those who seek every possible advantage.

For RC enthusiasts in the UK looking for a surface radio that combines cutting-edge technology with Futaba's legendary reliability, the T10PXR stands alone. Its 40 model memories mean you can store complete setups for your entire fleet, from touring cars to crawlers to tanks, all accessible instantly. The stunning 4.3-inch full-colour HVGA transflective touchscreen delivers crystal-clear visibility both indoors and in bright outdoor conditions, providing an intuitive and highly responsive interface for accessing advanced programming features.

Key Features

• 10 Channels with F-4G System — The T10PXR provides ten full channels when operating in F-4G mode, with T-FHSS SR offering four channels, giving you maximum control flexibility depending on your vehicle requirements and competition rules.
• F-4G Telemetry System — Futaba's ultra-fast 4th-generation transmission protocol delivers 30% faster response compared to conventional systems, with full telemetry capability including real-time monitoring of temperature, RPM, voltage, amperage and GPS data streamed directly from your receiver to the transmitter display.
• 40 Model Memories — Store complete configurations for up to 40 different vehicles, each with a 15-character custom name, allowing you to manage your entire RC fleet without reprogramming between models.
• Multiple Protocol Support — Compatible with F-4G, T-FHSS SR, T-FHSS, S-FHSS and Mini-Z protocols, ensuring compatibility across a wide range of Futaba receivers and Kyosho Mini-Z models, future-proofing your investment.

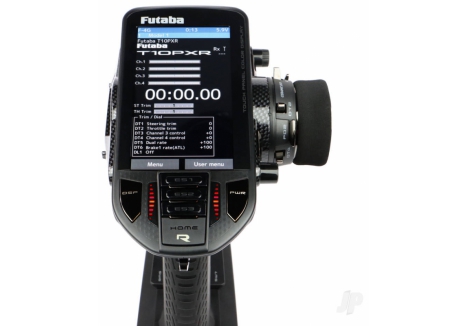

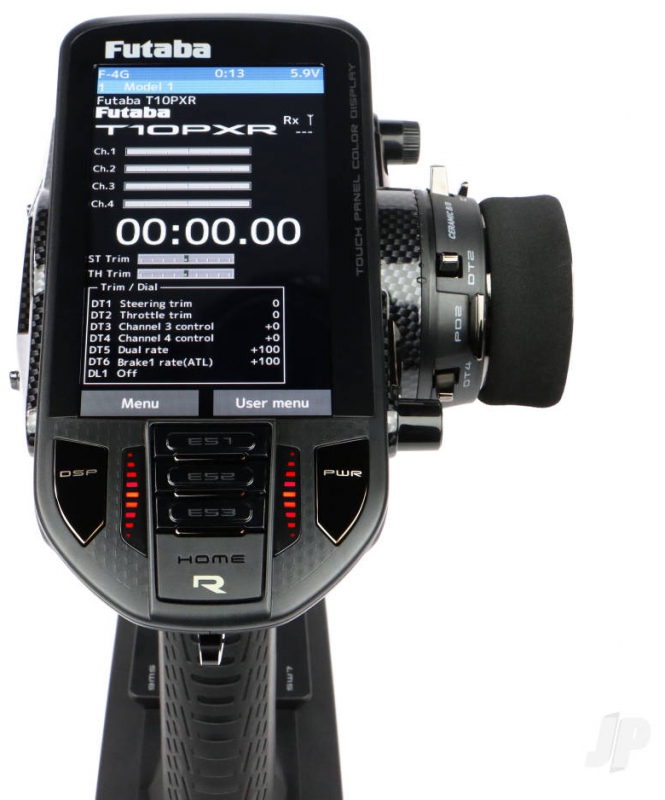

• 4.3-Inch HVGA Transflective Colour Touchscreen — The high-resolution full-colour LCD display provides outstanding visibility in both indoor and outdoor environments, with a responsive touch interface that makes navigating menus and adjusting settings intuitive and quick.
• Advanced Steering Mix with Twin Servo Control — Achieve smoother cornering and more precise steering control by independently adjusting left and right servo settings, essential for fine-tuning the handling characteristics of touring cars and buggies.
• Independent Brake Mix — Adjust front and rear brake response independently, crucial for optimising stopping power on vehicles like 1/5 GP cars and large-scale trucks where tyre grip varies across axles.
• 4WS Mixing — Full four-wheel steering capability for crawlers and specialist vehicles, allowing independent control and tuning of front and rear steering to maximise traction and manoeuvrability over rough terrain.
• Dual ESC Mixing for Crawlers — Control front and rear electronic speed controllers independently, essential for dual-motor crawler setups where separate throttle management is critical for climbing and stability.
• Tank and Tracked Vehicle Mix — Dedicated mixing for tanks, excavators and all tracked vehicles, allowing synchronised throttle and steering control optimised for differential drive systems.
• Gyro Mixing with Remote Gain Adjustment — Adjust the sensitivity of Futaba car rate gyros directly from the transmitter, with wireless Gyro Link capability enabling parameter changes without physical connection to the gyro unit.
• CPS Mixing — Channel Power Switch control allows LED lighting and other accessories to respond dynamically to steering and throttle input, matching visual feedback to driving inputs.
• Winch Mix — Dedicated winch control via trim adjustment, ideal for rock crawling and scale recovery scenarios where precise winch management is essential.
• Tilt Mix for Marine Vehicles — Specialised mixing for yachts and powerboats, allowing tilt and trim control of outboard motors alongside main throttle and steering.
• Five Program Mixes — Create custom mixing combinations using five available program mix channels for advanced vehicle-specific control requirements beyond standard mix offerings.
• Condition Programming — Set and switch between different parameter configurations instantly, allowing you to store multiple driving setups and toggle between them mid-race to respond to changing track conditions or tyre wear.
• 15-Point Response Adjustment — Fine-tune steering and throttle response across a 15-point scale to achieve your preferred feel, with exponential curves available for both steering and throttle for progressive control.
• Steering Speed Control — Adjust servo speed to match your vehicle and driving style, preventing over-sensitive steering inputs that can cause instability on slippery surfaces.
• Throttle Speed Adjustment — Smooth out trigger operation on loose surfaces where sudden throttle application causes tyre spin, critical for high-traction racing.
• Servo Response Tuning — Compensate for over-sensitive servo behaviour by adjusting response characteristics directly from the transmitter.
• Traction Control — Prevents wheel spin by intelligently managing throttle application, essential for maintaining traction on low-grip surfaces and reducing lap time variance.
• ABS (Anti-Lock Braking System) — Prevents wheel locking and skidding during heavy braking, maintaining directional stability and improving stopping consistency in competition driving.
• Engine Cut Function — Assign engine cut to any available switch, allowing instant engine shutdown for safety and convenience.
• Acceleration Preset (Throttle Jump) — Pre-set throttle jump values for instant acceleration response, useful for drag racing and scenarios requiring immediate power delivery.
• Trim and Dial Lock Functions — Prohibit accidental adjustment of transmitter trims and dials during racing, preventing unintended parameter changes that could cost you victory.
• Drag Racing Mode — Switch-controlled trans brake function designed specifically for drag racing applications, holding engine at precise RPM until launch.
• Idle-Up Function — Ensures reliable idling in nitro vehicles or prevents unintentional braking in electric models, critical for consistent nitro engine performance.
• Steering Trim Memory — Store and toggle between steering trim settings mid-race to counter tyre wear during long runs, a new feature that allows dynamic compensation without stopping.
• Four Timer Functions — Includes up timer, fuel down timer, lap timer and lap navigate timer with lap list memory for storing and recalling lap times during competitive sessions.
• S-Bus Servo Parameter Setting — Configure compatible Futaba S-Bus servos directly from the transmitter without requiring additional programming devices, streamlining setup time.
• MC-Link Futaba ESC Programming — Programme compatible Futaba electronic speed controllers via PC connection through the transmitter, allowing firmware updates and parameter adjustments without specialist equipment.
• Gyro Link Wireless Parameter Setting — Adjust gyro settings wirelessly without physical cables, improving convenience and reducing setup complexity.
• Warning Alarms and Vibration Alerts — Comprehensive alert system with vibration feedback linked to timer events, battery level warnings, receiver signal loss and numerous other critical status indicators.
• MicroSD Card Slot — Update transmitter software via microSD card, and save model data and telemetry data for analysis and backup purposes.
• USB Port — Provides games controller compatibility and connectivity for PC-based programming and data management.
• Voice Feedback — Audio alerts and feedback via the transmitter speaker, providing audible confirmation of critical events and status changes.
• Left-Handed Operation Support — Quickly convert the radio to left-hand operation, ensuring comfort and control for left-handed drivers without compromising functionality.

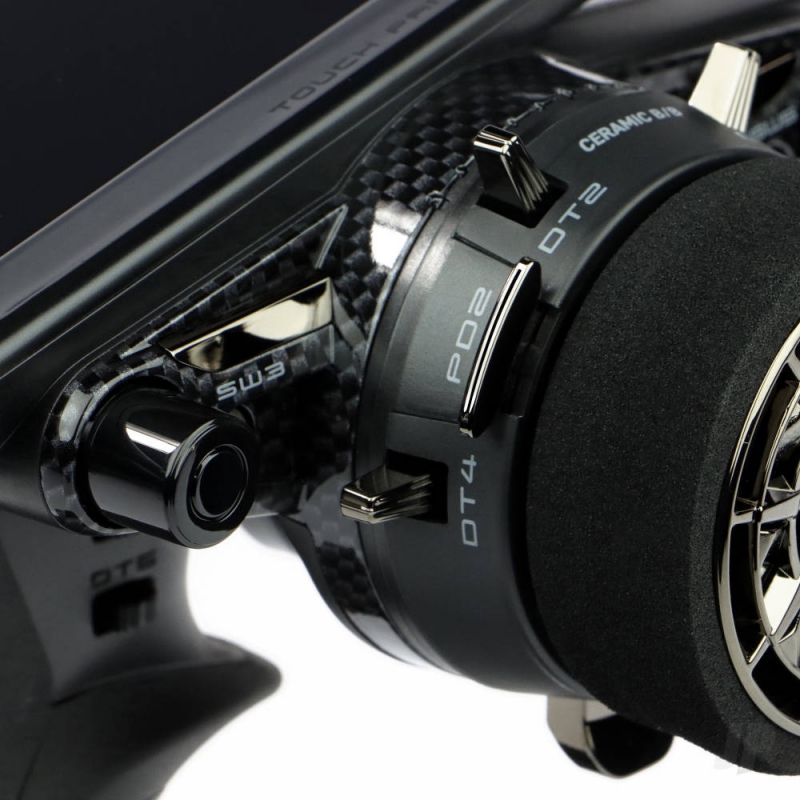

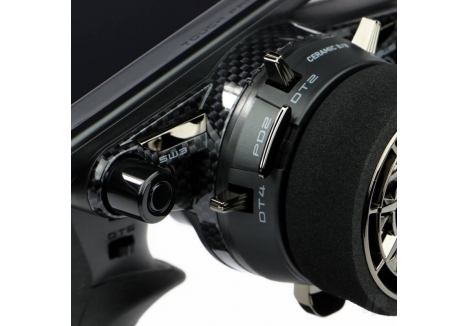

• Ceramic Bearing Construction — Both trigger and steering wheel feature precision ceramic bearings, providing smooth, responsive control with minimal friction and maximum durability for competitive use.

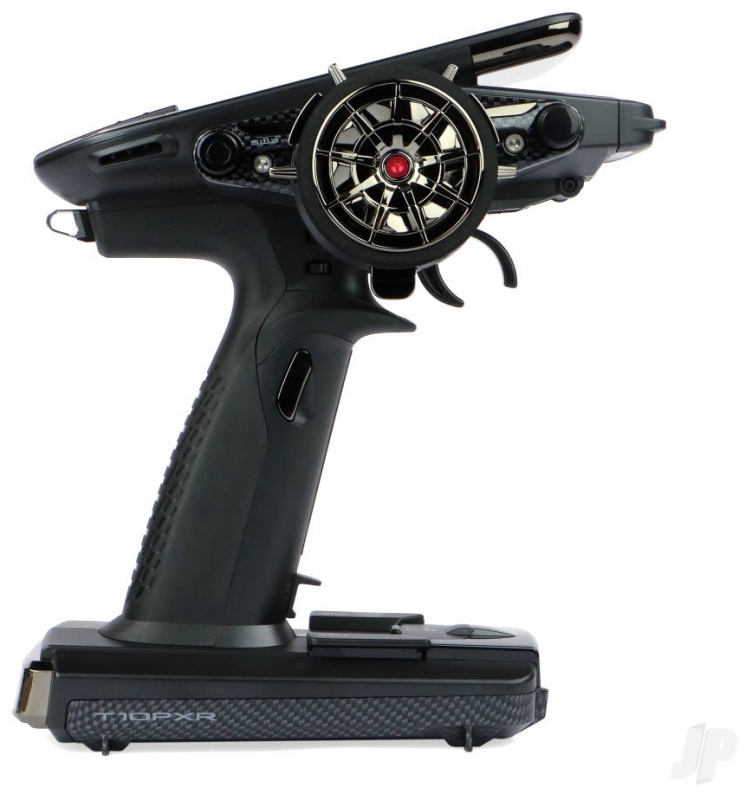

• Adjustable Wheel Position and Angle — Modify steering wheel offset and mounting angle to suit your personal driving style and vehicle requirements, with included wheel adapters providing 32-degree and 5-degree angle options.
• Adjustable Trigger Position and Tension — Customise throttle trigger position and spring tension to match your preferred feel and driving technique.

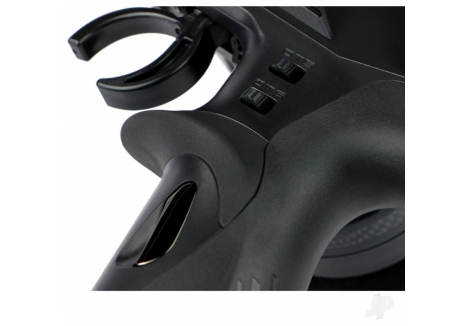

• Alternative Narrow Grip Option — Included alternative grip provides a narrower hold for drivers who prefer reduced transmitter width, improving control for smaller hands or personal preference.

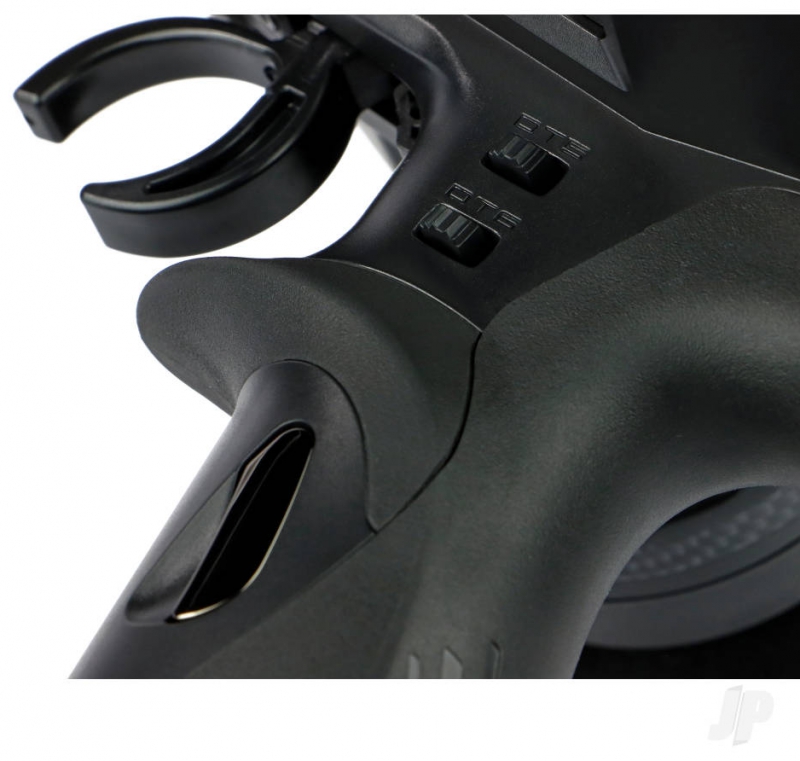

• Trigger Guard Included — Protective guard prevents accidental trigger engagement, essential for safe handling during transport and storage.
• Multiple Brake Lever Options — Includes both large and twin-finger brake levers, allowing selection based on vehicle type and personal braking preference.
• Optional LiPo Battery Support — Compatible with the optional LT2F2000B LiPo transmitter battery (7.4V), providing extended runtime beyond standard AA battery holders for marathon racing sessions.

Technical Performance

The T10PXR is engineered to the highest standards of precision and reliability expected in competitive RC racing across the UK and internationally. At the heart of this system is Futaba's F-4G transmission protocol, which delivers lightning-fast response with latency so minimal that drivers notice the competitive advantage immediately. The transmitter operates on the 2.4 GHz band with 100 mW EIRP output power, ensuring reliable signal transmission across competitive tracks and racing environments. The transmitter draws just 350 mA or less during standard operation with T-FHSS protocol and vibration disabled, with backlight active, making it extremely efficient whether running on standard AA batteries or the optional LiPo pack. Power is supplied by either four AA alkaline batteries via the included dry battery holder or the optional LT2F2000B 7.4V LiPo battery pack for extended runtime. The included R404SBS F-4G receiver is remarkably compact at just 25.5 x 20.7 x 10.6 mm and weighs only 5.7 grams, yet includes full F-4G telemetry capability and operates across a voltage range of 3.7 to 8.4V DC, compatible with virtually all modern receiver battery configurations. The transmitter features a 1/2 wavelength dipole antenna and a 4.3-inch HVGA transflective LCD touchscreen that provides outstanding visibility in varying light conditions—critical for outdoor racing where sun glare can make standard LCD screens difficult to read. The 10-channel capability ensures you have sufficient control channels for even the most complex vehicle setups, with every channel easily assigned through the intuitive touchscreen interface. Ceramic bearings on both the steering wheel and throttle trigger guarantee smooth, precise control with exceptional durability, essential for the hundreds of operating hours demanded by competitive racing. The build quality throughout reflects Futaba's 60-year heritage in radio control, with robust construction designed to withstand the rigours of frequent competitive use and the occasional impact common in racing environments. Whether you're controlling a rapid-fire touring car, a powerful nitro buggy, a technically demanding crawler, or any other RC surface vehicle, the T10PXR's combination of raw performance, comprehensive mixing capabilities and legendary Futaba reliability makes it the benchmark standard in RC surface radio systems.

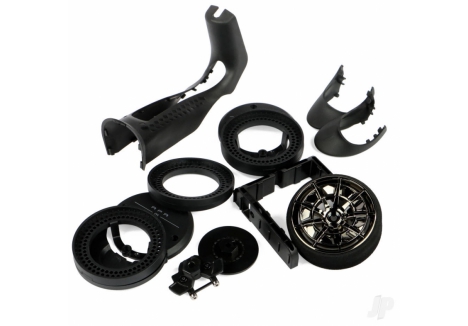

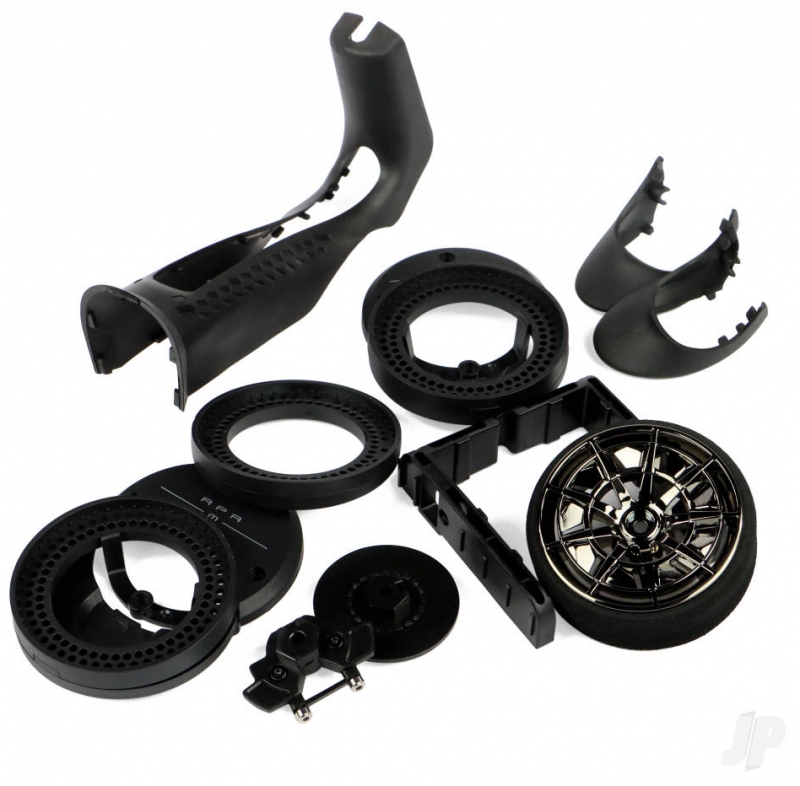

What's in the Box

• 1x T10PXR 10-channel transmitter with ceramic-bearing steering wheel and trigger

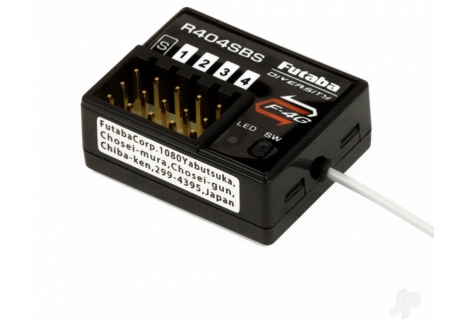

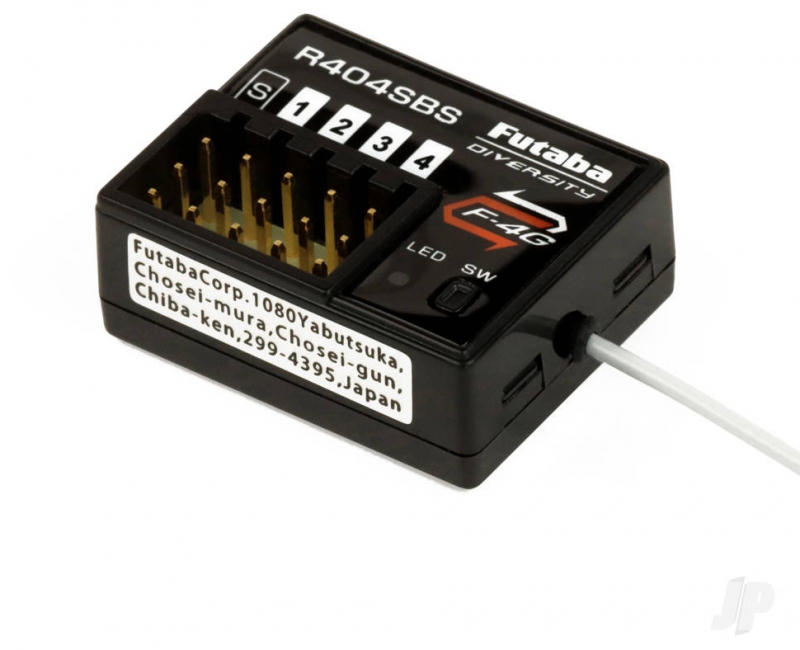

• 1x R404SBS F-4G receiver with full telemetry capability
• 1x Dry battery holder for 4x AA alkaline batteries
• 1x LiPo battery spacer for optional LT2F2000B battery compatibility
• 1x Wheel offset adapter with mounting screws
• 1x Wheel adapter at 32-degree angle
• 1x Wheel angle spacer at 5-degree angle
• 1x Large diameter steering wheel
• 1x Trigger guard for safety
• 1x Large brake lever
• 1x Twin finger brake lever
• 1x Rubber grip for enhanced ergonomics
• 1x Blind paddle set
• 1x Hex wrench for adjustments
• 1x UR/SR label sheet
• 1x Short manual with quick-start instructions

What You Need to Complete

• 4x AA alkaline batteries (required for initial operation with standard battery holder)
• Optional: LT2F2000B 7.4V LiPo transmitter battery for extended runtime

Frequently Asked Questions

• Is the Futaba T10PXR suitable for beginners or only for experienced racers? — The T10PXR is primarily engineered for experienced competitors and serious hobbyists who understand RC control systems and appreciate advanced mixing capabilities. The extensive feature set and deep menu structure require familiarity with radio programming concepts. However, beginners can use it at a basic level without engaging advanced features, though the investment is better justified for those with competitive experience. If you're new to RC surface vehicles, a simpler model may be more appropriate until you've developed the skills to fully utilise this radio's capabilities.
• What is F-4G and why does it matter compared to standard RC radio systems? — F-4G is Futaba's ultra-fast 4th-generation transmission protocol that delivers approximately 30% faster response times compared to conventional systems, with near-zero latency. This means your inputs translate to vehicle movement almost instantaneously, critical in competitive racing where milliseconds determine winners. F-4G also provides full telemetry feedback including temperature, RPM, voltage, amperage and GPS data, allowing real-time performance monitoring during races.
• What battery does the T10PXR transmitter need, and can I use a LiPo instead of AA batteries? — The T10PXR comes with a dry battery holder for 4x AA alkaline batteries, which provides standard operation. For extended runtime, you can optionally purchase the LT2F2000B 7.4V LiPo battery pack, which the transmitter fully supports via the included LiPo spacer. The LiPo option is ideal for marathon racing sessions where you need longer transmitter runtime without battery changes.
• How many model memories can the T10PXR store, and what information does it save for each model? — The T10PXR provides 40 model memory slots, each with 15-character custom naming capability. Each model memory stores complete configuration including all mix settings, response adjustments, trim values, timer settings, channel assignments, telemetry preferences and all other programmable parameters, allowing instant switching between completely different vehicles without manual reprogramming.
• Can I use the Futaba T10PXR with different brands of receivers, or does it only work with Futaba receivers? — The T10PXR is designed for use with Futaba receivers supporting F-4G, T-FHSS SR, T-FHSS, S-FHSS or Mini-Z protocols. It will not be compatible with receivers from other manufacturers such as Spektrum, JR or Sanwa, as these use proprietary protocols. All Futaba receivers operating on these protocols are compatible, and the included R404SBS receiver provides full F-4G telemetry support.
• What is the difference between this T10PXR and other Futaba surface radios like the T10XCR or older models? — The T10PXR represents Futaba's flagship offering with cutting-edge F-4G telemetry system delivering 30% faster response than conventional systems. The PXR designation indicates premium positioning with comprehensive mixing capabilities, intuitive touchscreen interface, and advanced features like steering trim memory. While other Futaba models offer excellent value, the T10PXR provides the maximum performance and customisation for serious competitors willing to invest in the best available technology.
• Does the T10PXR support left-handed operation, and is conversion easy? — Yes, the T10PXR fully supports left-handed operation and can be quickly converted from right-hand to left-hand configuration without requiring specialist tools or modifications. This makes it accessible for left-handed drivers without compromising functionality or requiring a completely different transmitter model.
• What telemetry data can I monitor in real-time during racing? — The T10PXR with R404SBS receiver provides comprehensive telemetry including motor temperature, RPM (revolutions per minute), battery voltage, current draw in amperes, and GPS position data. This information appears in real-time on the colour touchscreen, allowing you to monitor vehicle performance during races and make informed decisions about settings adjustments or pit strategy.
• Can the T10PXR control multiple motors independently, such as in a dual-motor crawler setup? — Yes, the T10PXR includes dedicated dual ESC mixing for crawlers, allowing independent control of front and rear electronic speed controllers. This is essential for dual-motor crawler setups where separate throttle management optimises weight distribution, traction and climbing ability on challenging terrain.
• What mixing features does the T10PXR offer for different vehicle types? — The T10PXR includes specialised mixing for numerous vehicle types: steering mix and brake mix for touring cars, 4WS mixing for crawlers, tank/track mix for armoured vehicles, dual ESC mixing for dual-motor crawlers, tilt mix for marine vehicles, and gyro mixing with wireless adjustment for vehicles equipped with Futaba rate gyros. Additionally, five programmable mix channels allow custom combinations for specialist applications.
• How does steering trim memory work, and why is it useful during competition? — Steering trim memory allows you to store multiple trim settings and toggle between them during a race to compensate for tyre wear. As tyres wear through a race, their grip characteristics change, which can cause the vehicle to drift towards one side. Rather than manually adjusting trim (which is time-consuming and imprecise), you simply toggle to a pre-set trim value that compensates for the wear, maintaining optimal handling throughout the race.
• Is the R404SBS receiver waterproof, and can it be used in wet conditions? — The R404SBS receiver is a standard receiver suitable for most RC surface vehicles. While surface vehicles are not typically fully waterproofed like aquatic models, standard receivers like the R404SBS function reliably in normal racing conditions. For vehicles specifically designed to operate in wet or muddy environments, you may want to confirm receiver waterproofing specifications with Futaba support, though the R404SBS has proven reliable in typical competitive environments.
• What is the shipping weight and size of the complete T10PXR system in the box? — The complete T10PXR system ships at 1.13 kilograms (2.50 pounds), making it relatively lightweight for shipping and storage. The packaging maintains a compact footprint suitable for delivery throughout the UK without excessive shipping costs.
• Can I update the transmitter software, and how does this work? — Yes, the T10PXR includes a MicroSD card slot for transmitter software updates and data storage. Futaba periodically releases software improvements and new features, which you can download and install via MicroSD card. This ensures your transmitter remains current with the latest capabilities and improvements without requiring a complete replacement.
• Does the T10PXR work with Kyosho Mini-Z models? — Yes, the T10PXR includes T-FHSS Mini-Z protocol support, allowing pairing with compatible Kyosho Mini-Z models. This makes the radio versatile across multiple vehicle types if you operate both surface models and Mini-Z collectors.
