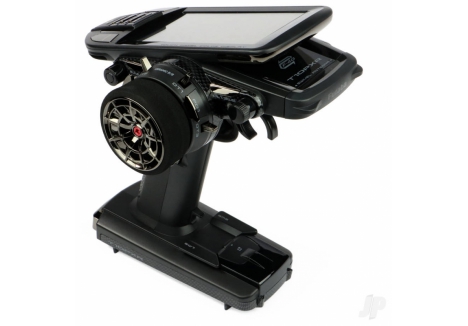

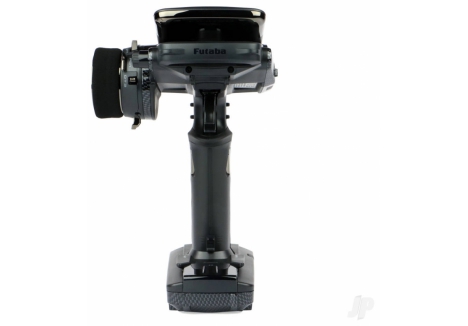

Futaba T10PXR 10-Channel Surface Radio with R404SBS-E Rx FUT05003236-3

Overview

The Futaba T10PXR 10-Channel Surface Radio with R404SBS-E Receiver represents the pinnacle of RC surface radio technology, engineered specifically for competitive drivers who demand precision, reliability and comprehensive control. This flagship steerwheel system is the natural choice for serious racers across the UK and Europe, whether you're piloting 1/8 nitro buggies, electric touring cars, scale crawlers, trucks or tracked vehicles. Futaba has been the trusted name in radio control since 1962, and the T10PXR builds upon decades of expertise to deliver a radio that competes at the highest levels whilst remaining accessible to dedicated enthusiasts.

Powered by Futaba's revolutionary F-4G ultra-fast response transmission system, the T10PXR delivers lightning-fast control with near-zero latency—a critical advantage when every millisecond counts on the track or in competition. The 4.3-inch HVGA transflective colour touchscreen provides an intuitive interface that works perfectly in both indoor and outdoor light conditions, giving you full visibility and control whether you're at an indoor track or out in bright daylight. With 40 model memories, expandable 10-channel capability and support for multiple protocols including F-4G, T-FHSS, T-FHSS SR, S-FHSS and Mini-Z compatibility, this is a radio built to grow with your hobby and adapt to virtually any surface vehicle you might own.

What sets the T10PXR apart from other RC car radios in the UK market is its philosophy of complete customisation combined with ergonomic excellence. Every aspect—from the precision ceramic bearings on the wheel and trigger to the adjustable steering angles, grip sizes and trigger positions—has been refined to deliver a perfectly tailored feel in your hand. Whether you're a left-handed operator or require specific comfort adjustments, the T10PXR accommodates you. This is a radio designed by racers, for racers, offering the competitive edge you need to cross the finish line first.

Key Features

• 10 Channels with F-4G System — The T10PXR delivers full 10-channel control using Futaba's fourth-generation F-4G telemetry system, which provides 30% faster response compared to standard systems, giving you the reaction speed needed to dominate competitive racing and precise vehicle control.
• F-4G Ultra-Fast Response Transmission — This revolutionary transmission mode enables lightning-fast command execution with near-zero latency, providing a critical competitive advantage when milliseconds separate winners from the rest of the field.
• 40 Model Memories with Extended Naming — Store up to 40 complete vehicle setups with model names using up to 15 characters, letters, numbers and symbols, allowing you to manage everything from nitro buggies to electric trucks, crawlers and tracked vehicles with ease.

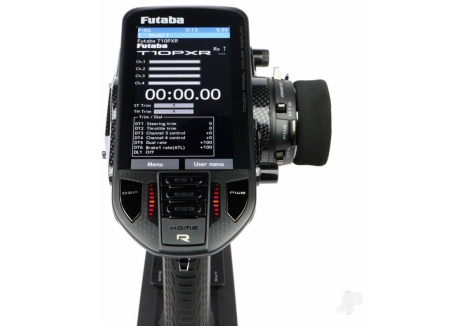

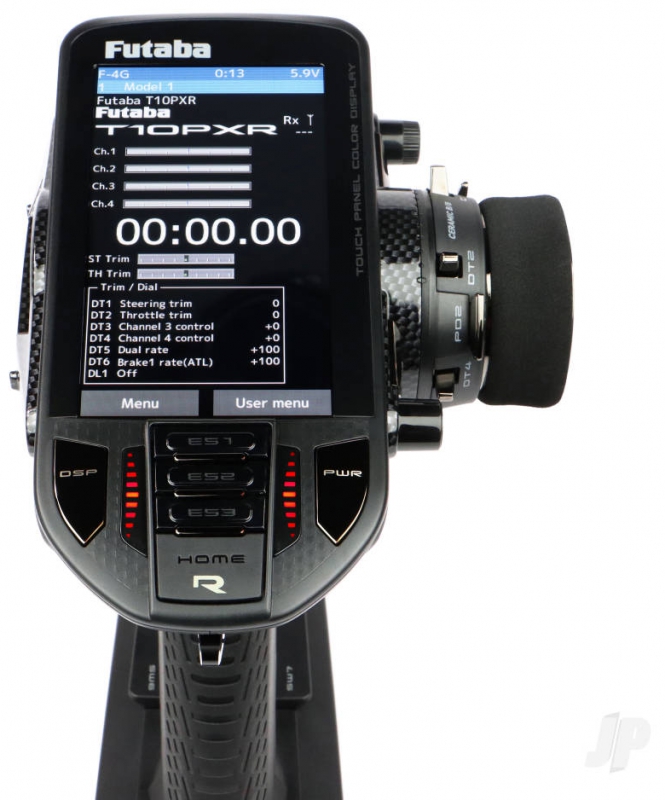

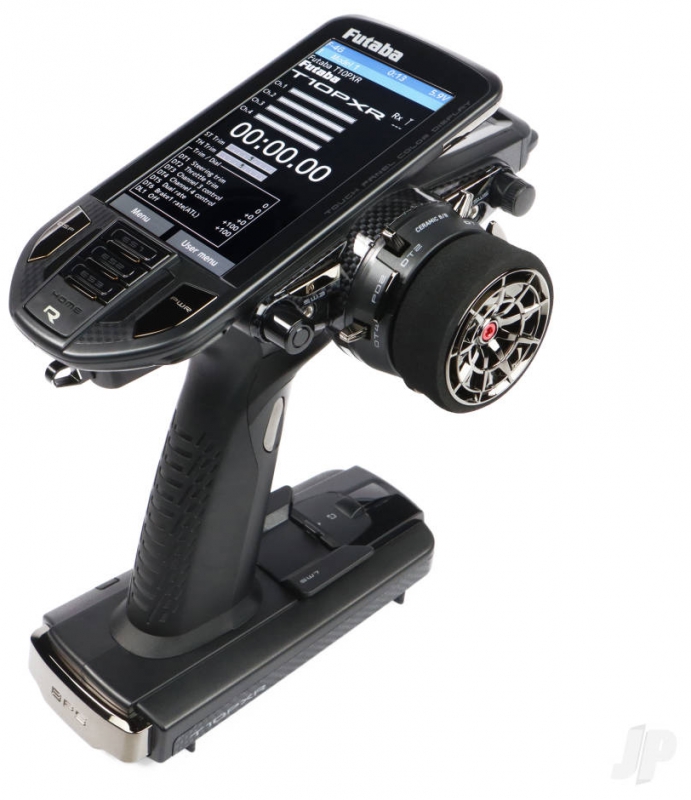

• 4.3-Inch HVGA Transflective Colour Touchscreen — The bright, responsive touchscreen maintains excellent visibility both indoors and outdoors, delivering an intuitive interface for programming and real-time telemetry display without compromising usability in any lighting condition.
• Comprehensive Telemetry System — Real-time feedback including temperature, RPM, voltage, amperage and GPS tracking allows you to monitor your vehicle's performance continuously and make informed adjustments during testing and competition.
• Advanced Steering and Brake Mixing — Independent control of front and rear steering servos enables smoother cornering, whilst independent front and rear brake adjustment is perfect for tuning 1/5 GP vehicles and large scale RC cars for optimal stopping power and balance.
• 4WS Mixing for Multi-Axle Vehicles — Dedicated four-wheel steering mixing simplifies setup and tuning for crawlers, scale trucks and other 4WS-equipped vehicles, allowing precise control of both front and rear steering geometry.
• Dual ESC Mixing — Control front and rear electronic speed controllers independently, essential for crawlers with dual motors and for vehicles requiring separate throttle management across multiple drive systems.
• Gyro Mixing with Remote Gain Adjustment — Wireless parameter setting for Futaba car rate gyros means you can fine-tune gyro sensitivity on the fly, adjusting stability and handling characteristics without needing to access your vehicle.
• Tank and Track Mixing — Dedicated mixing modes for tracked vehicles, excavators and tanks allow independent throttle and steering control optimised for non-wheeled platforms, expanding the T10PXR's versatility across multiple vehicle types.
• CPS Mixing for LED Lighting Control — Synchronise Channel Power Switch lighting to steering and throttle operation, allowing dynamic light effects that respond to your driving inputs for enhanced visual feedback and scale realism.
• Winch Mixing via Trim Control — Dedicated winch control accessed through trim buttons allows smooth winch operation for scale crawling and recovery scenarios without requiring dedicated channels.
• Tilt Mixing for Marine Vehicles — Support for tilt control on yachts and powerboats expands the T10PXR's application beyond ground vehicles into water-based RC platforms.
• 15-Point Response Adjustment — Fine-tune steering and throttle response across 15 discrete points, allowing you to dial in the exact handling feel and smoothness that suits your driving style and track conditions.
• Five Program Mixing Channels — Create complex multi-step mixing sequences with five dedicated program mix slots, enabling sophisticated control logic for advanced vehicle setups.
• Condition Programming — Set and switch multiple parameter groups instantly, allowing rapid transitions between different vehicle configurations or track conditions without reprogramming.
• Exponential Control Functions — Apply exponential curves to steering, throttle and brake inputs, giving you precise low-speed control whilst maintaining high-speed responsiveness.
• Steering and Throttle Speed Control — Adjust servo speed to prevent tyre spin on slippery surfaces and smooth throttle application during acceleration, improving traction and consistency across variable track conditions.
• Traction Control System — Active traction control prevents wheel spin during acceleration, maintaining grip and stability even on challenging surfaces.
• ABS Anti-Lock Braking System — Prevent skidding during hard braking with Futaba's ABS system, improving stopping power and vehicle stability during emergency stops.
• Servo Response Tuning — Adjust servo response characteristics to eliminate over-sensitivity and dial in the perfect control feel for your specific servos and vehicle setup.
• Engine Cut Switch — Instantly stop your nitro engine via assigned switch input without disarming the receiver, useful for safety and preventing unwanted engine restart.
• Four Independent Timers — Track elapsed time, fuel consumption countdown, lap times and navigate lap lists, essential tools for endurance racing and performance optimisation.
• Lap List and Lap Time Memory — Automatically record and recall individual lap times, allowing detailed performance analysis and tracking of improvements across multiple runs.
• Drag Racing Mode — Switch-controlled trans brake function for drag racing applications, enabling consistent launch performance.
• Idle-Up Function — Ensure reliable idling and prevent unintentional braking in nitro vehicles, maintaining stable engine operation between throttle applications.
• S.Bus Servo Parameter Setting — Programme servo-specific parameters directly from the radio without requiring separate servo programming equipment or computer connections.
• MC-Link ESC Programming — Facilitate speed controller parameter changes directly from the transmitter via dedicated MC-Link wireless communication, eliminating the need for separate ESC programming tools.
• Gyro Link Wireless Communication — Set gyro parameters wirelessly without physical connections, streamlining your pre-race setup routine.
• Trim and Dial Lock Functions — Prevent accidental trim adjustments and dial changes during operation, protecting your carefully configured settings during intense racing.
• Comprehensive Warning Alarms — Multiple alarm types alert you to battery low conditions, telemetry failures and other critical system states, keeping you informed of potential issues.
• Numerous Vibration Alerts — Haptic feedback through grip vibration alerts you to timer events, battery level changes, telemetry warnings and numerous other conditions, particularly useful when audio feedback isn't practical.
• Steering Trim Memory — Store and toggle between multiple steering trim settings to automatically compensate for tyre wear during long races, maintaining consistent handling throughout endurance events.

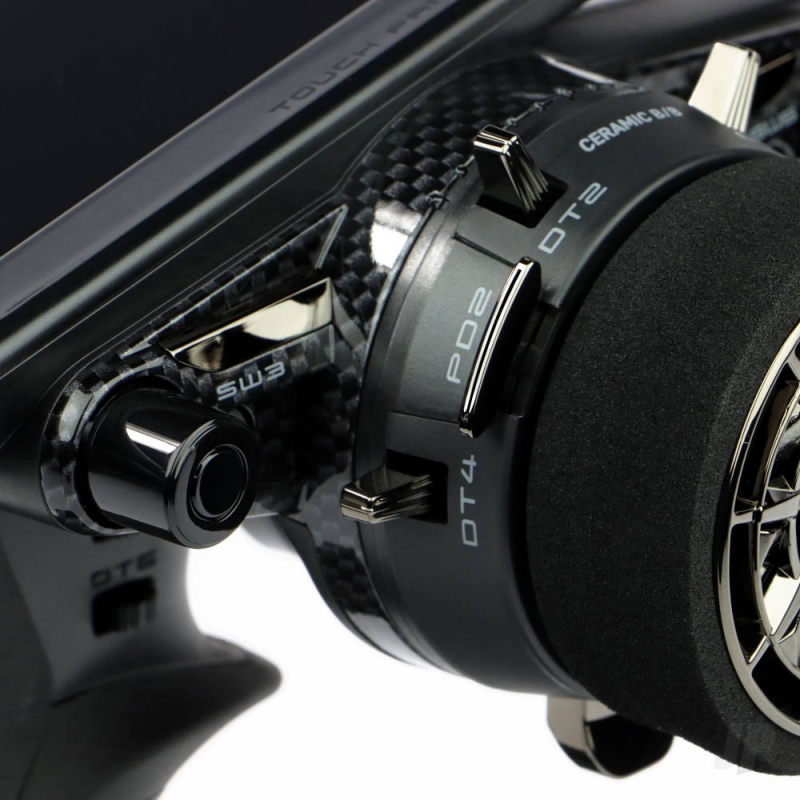

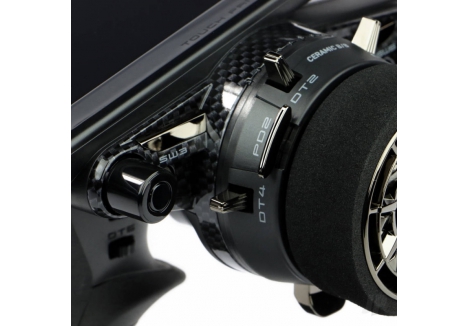

• Precision Ceramic Bearing Construction — Both the steering wheel and trigger mechanism feature precision ceramic bearings, delivering buttery-smooth operation, minimal friction and exceptional durability for reliable control session after session.
• Adjustable Steering Wheel Position — Wheel offset and angle adjustment allows you to dial in the perfect steering geometry for your hands and driving position, reducing fatigue and improving control precision during long races.

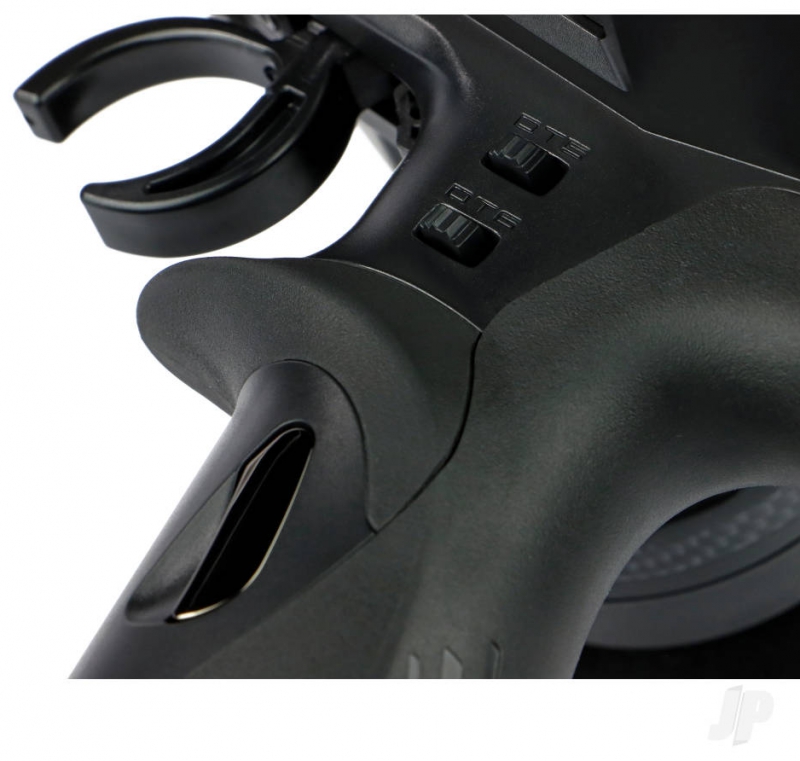

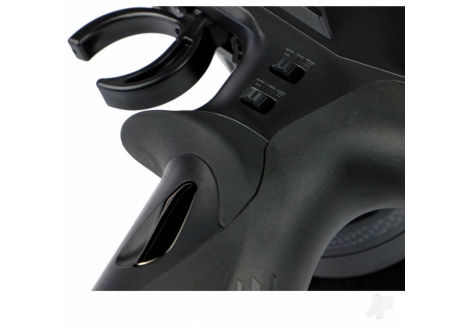

• Variable Grip Sizes and Trigger Adjustment — Choose between standard and narrower grip options and adjust trigger position to suit your hand size and preference, delivering a truly personalised control experience.
• Rapid Left-Hand Operation Conversion — Switch to left-handed control instantly without requiring modification or additional hardware, making the T10PXR equally accessible to all drivers.
• USB Games Controller Port — Connect the radio to PC or gaming platforms via USB, opening up possibilities for radio simulation and advanced programming through compatible software.
• MicroSD Card Support — Update firmware and store complete model data and telemetry information on microSD card, providing secure backup of your configurations and enabling easy software updates.
• Voice Feedback System — Audible notifications provide feedback on system status, alerts and programming confirmations, complementing the vibration system for comprehensive feedback.
• Intuitive Touchscreen Programming Interface — The colour touchscreen provides a modern, responsive interface that makes complex programming tasks straightforward and fast.
• Multi-Protocol Support — F-4G, T-FHSS, T-FHSS SR, S-FHSS and Mini-Z protocol compatibility ensures the T10PXR works with virtually any Futaba receiver and compatible systems including suggested compatibility with Kyosho Mini-Z models.

Technical Performance

The T10PXR transmitter operates on the 2.4 GHz frequency band with 100mW EIRP transmitting power, providing exceptional range and reliability for both indoor track and outdoor field racing. The unit draws a maximum current of 350 milliamps when operating with T-FHSS protocol and vibration disabled with backlighting active, ensuring efficient battery consumption across extended racing sessions. Power is supplied via either the included LiPo battery (NLF2F2000B at 7.4V) or LiFe battery (FT2F1700BV2 at 6.6V), with an optional dry battery holder accepting four AA alkaline batteries for emergency or practice use. The 4.3-inch HVGA transflective LCD touchscreen utilises high-precision TFT technology delivering exceptional visual clarity and colour accuracy, with the transflective design ensuring visibility in both bright sunlight and indoor lighting conditions. The radio features a 1/2 wavelength dipole transmitting antenna engineered for optimal signal propagation and reception. The included R404SBS-E receiver measures just 25.5 x 20.7 x 10.6 millimetres and weighs a mere 5.7 grammes, making it exceptionally compact for installation in tight spaces within vehicles. The receiver operates across a DC voltage range of 3.7 to 7.4 volts, providing compatibility with most lithium battery configurations used in modern RC vehicles. Build quality throughout reflects Futaba's reputation for precision engineering, with the steering wheel and trigger mechanism incorporating precision ceramic bearings that deliver smooth, consistent operation with minimal friction. The overall construction emphasises reliability and longevity, ensuring the T10PXR will serve competitive drivers reliably for many seasons of intensive use. Whether you're running 1/8 scale nitro buggies, 1/10 electric touring cars, scale crawlers or tracked vehicles, the T10PXR's comprehensive feature set and rock-solid engineering make it the choice of serious competitors across the UK and beyond.

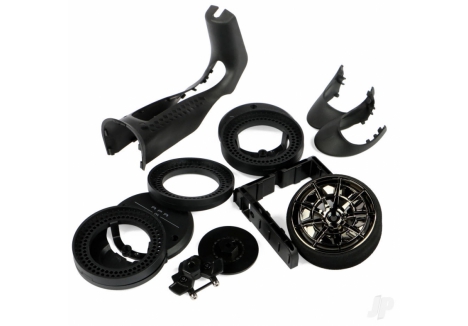

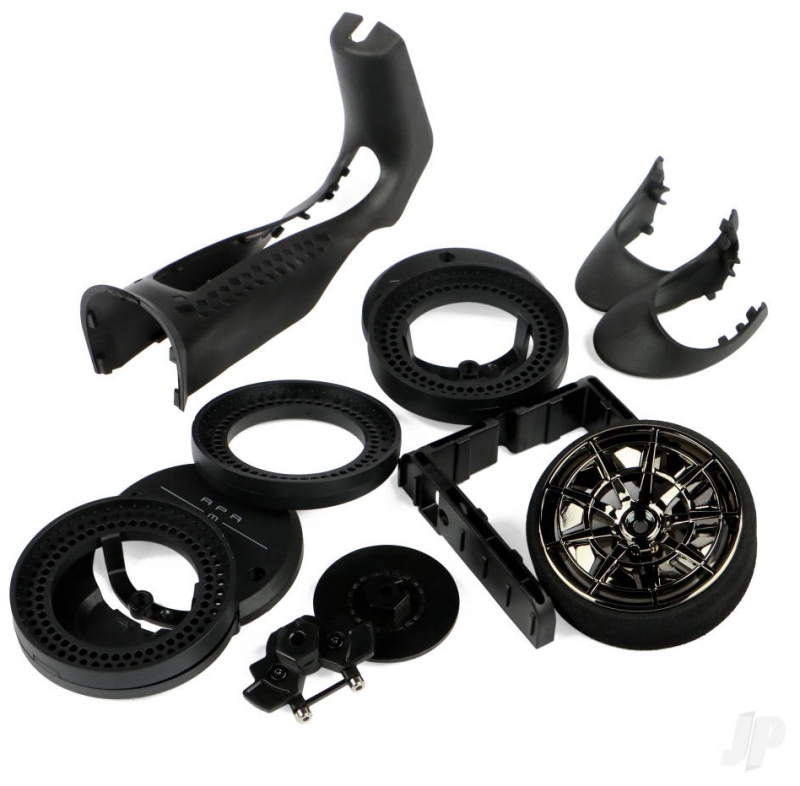

What's in the Box

• 1x T10PXR 10-channel transmitter

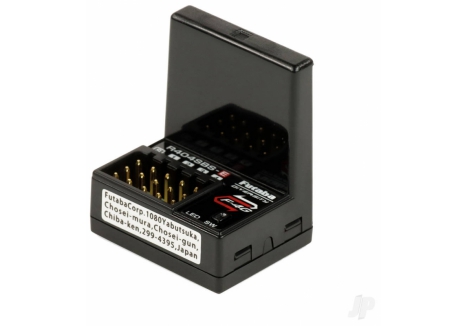

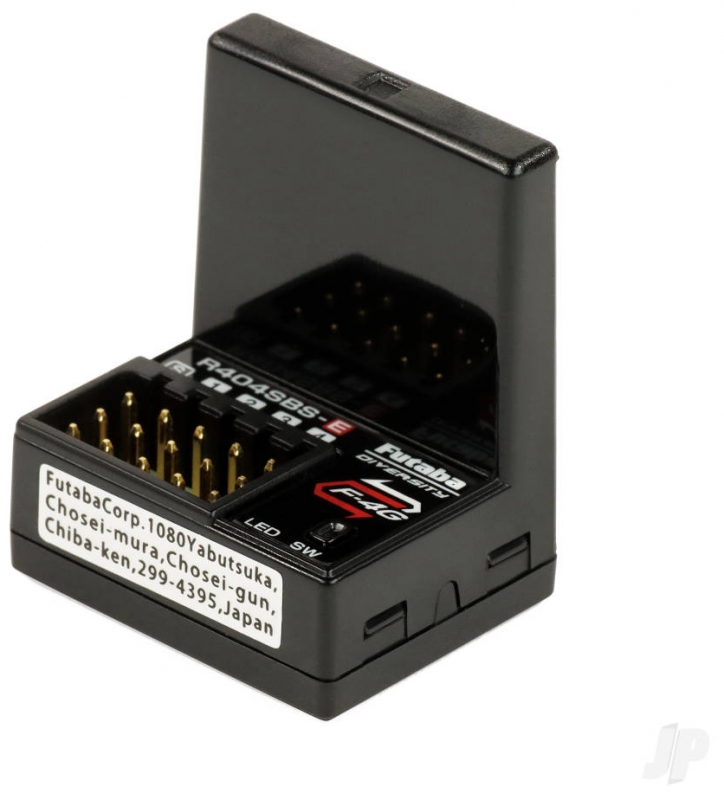

• 1x R404SBS-E receiver with F-4G telemetry capability
• 1x Dry battery holder (compatible with 4x AA alkaline batteries)
• 1x LiPo battery spacer for secure battery mounting
• 1x Wheel offset adapter with mounting screws
• 1x Wheel adapter (32-degree offset)
• 1x Wheel angle spacer (5-degree additional angle)
• 1x Large diameter steering wheel
• 1x Trigger guard for left and right trigger protection
• 1x Brake lever L configuration
• 1x Twin finger brake lever alternative
• 1x Rubber grip for enhanced comfort
• 1x Blind paddle set for alternative control configurations
• 1x Hex wrench for adjustments and maintenance
• 1x UR/SR label sheet for system identification
• 1x Short manual with essential operating instructions

What You Need to Complete

• 4x AA alkaline batteries (if using the dry battery holder instead of LiPo)

Frequently Asked Questions

• Is the Futaba T10PXR suitable for beginners to RC racing? — The T10PXR is positioned as a professional-grade competition radio rather than a beginner's system. Its extensive customisation features, advanced mixing capabilities and 10-channel complexity require a solid understanding of RC vehicle setup and tuning. Beginners would be better served by a simpler 4-6 channel radio system. However, if you're an experienced driver upgrading from a basic radio, the T10PXR's comprehensive programming tools will unlock new levels of vehicle control and performance optimisation.
• What battery does the T10PXR transmitter require? — The T10PXR is designed to work with either a 7.4V LiPo battery (Futaba part NLF2F2000B) or a 6.6V LiFe battery (Futaba part FT2F1700BV2) for extended operation during competitive sessions. A dry battery holder is included for use with four AA alkaline batteries as a backup or practice option. The LiPo battery provides the best runtime and is recommended for serious racing.
• What receiver frequencies and protocols does this radio support? — The T10PXR transmitter and included R404SBS-E receiver operate on the 2.4 GHz frequency band and support F-4G, T-FHSS, T-FHSS SR and S-FHSS protocols for maximum compatibility with Futaba receivers. The system also provides suggested compatibility with Kyosho Mini-Z models when configured in Mini-Z mode.
• Can I use the T10PXR for vehicles other than RC cars? — Yes, the T10PXR's versatility extends well beyond standard RC cars. Dedicated mixing modes support tanks and tracked vehicles (tank mixing), scale crawlers with four-wheel steering (4WS mixing), vehicles with independent front and rear motors (dual ESC mixing), gyro-equipped vehicles (gyro mixing), and even marine platforms such as yachts and powerboats (tilt mixing). With 40 model memories, you can programme separate configurations for each vehicle type.
• Does this radio work with any receiver or only Futaba receivers? — The T10PXR is specifically designed for Futaba receivers supporting F-4G, T-FHSS, T-FHSS SR and S-FHSS protocols. The R404SBS-E receiver included in this package is the primary option, though other compatible Futaba receivers using these protocols will work. The radio will not work with receivers from other manufacturers.
• What makes the F-4G system faster than other Futaba protocols? — Futaba's F-4G system delivers approximately 30% faster response compared to standard systems, meaning your control inputs translate to vehicle movement with near-zero latency. This translates directly into a competitive advantage on the track, allowing faster cornering and more precise control during high-speed driving.
• Is the touchscreen visible in bright outdoor sunlight? — The 4.3-inch HVGA transflective LCD touchscreen is specifically designed to remain visible in both indoor and outdoor lighting conditions. The transflective technology reflects ambient light effectively, making it suitable for outdoor track use without the washout problems common with standard LCD screens in bright conditions.
• Can I programme the T10PXR for left-handed operation? — Yes, the T10PXR supports rapid conversion to left-handed operation without requiring any physical modifications or additional hardware. Simply configure the left-hand setting in the programming menu and you're ready to go.
• What telemetry information can the R404SBS-E receiver provide? — The R404SBS-E receiver provides comprehensive telemetry including real-time temperature monitoring, engine or motor RPM, voltage, amperage and GPS tracking where equipped with compatible telemetry modules. This data displays on the touchscreen and can be used to trigger warnings and alerts.
• How many different vehicle setups can I store in the T10PXR? — The T10PXR features 40 model memories, allowing you to store complete configurations for up to 40 different vehicles. Each model memory can include model names using up to 15 characters and stores all your custom mixes, trim settings and parameter configurations.
• What makes the ceramic bearing steering wheel and trigger important? — Precision ceramic bearings provide exceptionally smooth operation with minimal friction, meaning less mechanical resistance when steering or accelerating. This translates to more responsive control and reduced hand fatigue during long races, plus superior durability ensuring years of reliable operation even in competitive environments.
• Is this a ready-to-run system or do I need additional equipment? — The T10PXR is a transmitter and receiver system requiring you to mount the compact R404SBS-E receiver into your RC vehicle. You will need compatible Futaba servos, speed controller (ESC) and motor setup as well as a suitable vehicle chassis to complete your system.
